HarmonyOS Next开发学习手册——卡片事件

能力说明针

对动态卡片,ArkTS卡片中提供了 postCardAction 接口用于卡片内部和提供方应用间的交互,当前支持router、message和call三种类型的事件,仅在卡片中可以调用。

针对静态卡片,ArkTS卡片提供了 FormLink 用于卡片内部和提供方应用间的交互。

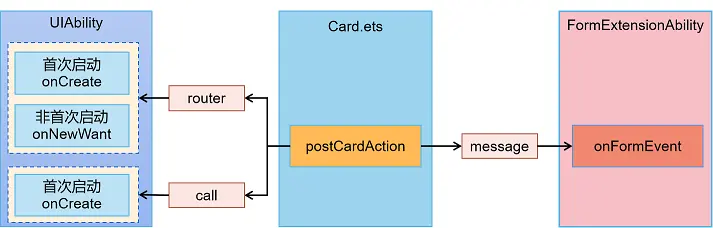

动态卡片事件能力说明

动态卡片事件的主要使用场景如下:

  • router事件:可以使用router事件跳转到指定UIAbility,并通过router事件刷新卡片内容。
  • call事件:可以使用call事件拉起指定UIAbility到后台,并通过call事件刷新卡片内容。
  • message事件:可以使用message拉起FormExtensionAbility,并通过FormExtensionAbility刷新卡片内容。

静态卡片事件能力说明

请参见FormLink

使用router事件跳转到指定UIAbility

在卡片中使用 postCardAction 接口的router能力,能够快速拉起卡片提供方应用的指定UIAbility,因此UIAbility较多的应用往往会通过卡片提供不同的跳转按钮,实现一键直达的效果。例如相机卡片,卡片上提供拍照、录像等按钮,点击不同按钮将拉起相机应用的不同UIAbility,从而提高用户的体验。

说明

本文主要介绍动态卡片的事件开发。对于静态卡片,请参见FormLink 。

通常使用按钮控件来实现页面拉起,示例代码如下:

  • 在卡片页面中布局两个按钮,点击其中一个按钮时调用postCardAction向指定UIAbility发送router事件,并在事件内定义需要传递的内容。
@Entry
@Component
struct WidgetEventRouterCard {
  build() {
    Column() {
      Text($r('app.string.JumpLabel'))
        .fontColor('#FFFFFF')
        .opacity(0.9)
        .fontSize(14)
        .margin({ top: '8%', left: '10%' })
      Row() {
        Column() {
          Button() {
            Text($r('app.string.ButtonA_label'))
              .fontColor('#45A6F4')
              .fontSize(12)
          }
          .width(120)
          .height(32)
          .margin({ top: '20%' })
          .backgroundColor('#FFFFFF')
          .borderRadius(16)
          .onClick(() => {
            postCardAction(this, {
              action: 'router',
              abilityName: 'EntryAbility',
              params: { targetPage: 'funA' }
            });
          })

          Button() {
            Text($r('app.string.ButtonB_label'))
              .fontColor('#45A6F4')
              .fontSize(12)
          }
          .width(120)
          .height(32)
          .margin({ top: '8%', bottom: '15vp' })
          .backgroundColor('#FFFFFF')
          .borderRadius(16)
          .onClick(() => {
            postCardAction(this, {
              action: 'router',
              abilityName: 'EntryAbility',
              params: { targetPage: 'funB' }
            });
          })
        }
      }.width('100%').height('80%')
      .justifyContent(FlexAlign.Center)
    }
    .width('100%')
    .height('100%')
    .alignItems(HorizontalAlign.Start)
    .backgroundImage($r('app.media.CardEvent'))
    .backgroundImageSize(ImageSize.Cover)
  }
}
  • 在UIAbility中接收router事件并获取参数,根据传递的params不同,选择拉起不同的页面。
import { AbilityConstant, UIAbility, Want } from '@kit.AbilityKit';
import { window } from '@kit.ArkUI';
import { hilog } from '@kit.PerformanceAnalysisKit';

const TAG: string = 'EntryAbility';
const DOMAIN_NUMBER: number = 0xFF00;

export default class EntryAbility extends UIAbility {
  private selectPage: string = '';
  private currentWindowStage: window.WindowStage | null = null;

  onCreate(want: Want, launchParam: AbilityConstant.LaunchParam): void {
    // 获取router事件中传递的targetPage参数
    hilog.info(DOMAIN_NUMBER, TAG, `Ability onCreate, ${JSON.stringify(want)}`);
    if (want.parameters !== undefined) {
      let params: Record<string, string> = JSON.parse(JSON.stringify(want.parameters));
      this.selectPage = params.targetPage;
    }
  }

  // 如果UIAbility已在后台运行,在收到Router事件后会触发onNewWant生命周期回调
  onNewWant(want: Want, launchParam: AbilityConstant.LaunchParam): void {
    hilog.info(DOMAIN_NUMBER, TAG, `onNewWant Want: ${JSON.stringify(want)}`);
    if (want.parameters?.params !== undefined) {
      let params: Record<string, string> = JSON.parse(JSON.stringify(want.parameters));
      this.selectPage = params.targetPage;
    }
    if (this.currentWindowStage !== null) {
      this.onWindowStageCreate(this.currentWindowStage);
    }
  }

  onWindowStageCreate(windowStage: window.WindowStage): void {
    // Main window is created, set main page for this ability
    let targetPage: string;
    // 根据传递的targetPage不同,选择拉起不同的页面
    switch (this.selectPage) {
      case 'funA':
        targetPage = 'pages/FunA';
        break;
      case 'funB':
        targetPage = 'pages/FunB';
        break;
      default:
        targetPage = 'pages/Index';
    }
    if (this.currentWindowStage === null) {
      this.currentWindowStage = windowStage;
    }
    windowStage.loadContent(targetPage, (err, data) => {
      if (err.code) {
        hilog.error(DOMAIN_NUMBER, TAG, 'Failed to load the content. Cause: %{public}s', JSON.stringify(err) ?? '');
        return;
      }
      hilog.info(DOMAIN_NUMBER, TAG, 'Succeeded in loading the content. Data: %{public}s', JSON.stringify(data) ?? '');
    });
  }
}

使用call事件拉起指定UIAbility到后台

许多应用希望借助卡片的能力,实现和应用在前台时相同的功能。例如音乐卡片,卡片上提供播放、暂停等按钮,点击不同按钮将触发音乐应用的不同功能,进而提高用户的体验。在卡片中使用postCardAction接口的call能力,能够将卡片提供方应用的指定的UIAbility拉到后台。同时,call能力提供了调用应用指定方法、传递数据的功能,使应用在后台运行时可以通过卡片上的按钮执行不同的功能。

说明

本文主要介绍动态卡片的事件开发。对于静态卡片,请参见 FormLink。

约束限制

提供方应用需要具备后台运行权限(ohos.permission.KEEP_BACKGROUND_RUNNING)。

开发步骤

通常使用按钮控件来触发call事件,示例代码如下:

  • 在卡片页面中布局两个按钮,点击其中一个按钮时调用postCardAction向指定UIAbility发送call事件,并在事件内定义需要调用的方法和传递的数据。需要注意的是,method参数为必选参数,且类型需要为string类型,用于触发UIAbility中对应的方法。
@Entry
@Component
struct WidgetEventCallCard {


  @LocalStorageProp('formId') formId: string = '12400633174999288';

  build() {


    Column() {


      //...
      Row() {


        Column() {


          Button() {
