【java&python GRPC】利用grpc实现在java和python跨平台调用

Java调用GRPC

1. 创建一个maven工程
   在pom.xml引入依赖

	<properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <!--grpc版本 -->
        <grpc.version>1.60.2</grpc.version>
    </properties>
<dependencies>
    <!-- grpc 需要的依赖-->
    <dependency>
        <groupId>io.grpc</groupId>
        <artifactId>grpc-netty-shaded</artifactId>
        <version>${grpc.version}</version>
    </dependency>

    <dependency>
        <groupId>io.grpc</groupId>
        <artifactId>grpc-protobuf</artifactId>
        <version>${grpc.version}</version>
    </dependency>

    <dependency>
        <groupId>io.grpc</groupId>
        <artifactId>grpc-stub</artifactId>
        <version>${grpc.version}</version>
    </dependency>
</dependencies>
    <build>
        <extensions>
            <extension>
                <groupId>kr.motd.maven</groupId>
                <artifactId>os-maven-plugin</artifactId>
                <version>1.5.0.Final</version>
            </extension>
        </extensions>
	<plugins>
	   <plugin>
	       <groupId>org.xolstice.maven.plugins</groupId>
	       <artifactId>protobuf-maven-plugin</artifactId>
	       <version>0.5.0</version>
	       <configuration>
	           <protocArtifact>com.google.protobuf:protoc:3.3.0:exe:${os.detected.classifier}</protocArtifact>
	           <pluginId>grpc-java</pluginId>
	           <pluginArtifact>io.grpc:protoc-gen-grpc-java:${grpc.version}:exe:${os.detected.classifier}</pluginArtifact>
	       </configuration>
	       <executions>
	           <execution>
	               <goals>
	                   <!--它将{@code .proto}文件 生成java源代码 -->
	                   <goal>compile</goal>
	                   <!--它将{@code .proto}文件 生成grpc java源代码 -->
	                   <goal>compile-custom</goal>
	               </goals>
	           </execution>
	       </executions>
	   </plugin>
	   <plugin>
	       <groupId>org.apache.maven.plugins</groupId>
	       <!-- 解决jar 包冲突、重复依赖、无效引用 -->
	       <artifactId>maven-enforcer-plugin</artifactId>
	       <version>1.4.1</version>
	       <executions>
	           <execution>
	               <id>enforce</id>
	               <goals>
	                   <goal>enforce</goal>
	               </goals>
	               <configuration>
	                   <rules>
	                       <requireUpperBoundDeps/>
	                   </rules>
	               </configuration>
	           </execution>
	       </executions>
	   </plugin>
	</plugins>
</build>

2. 新建proto文件 helloworld.proto


syntax = "proto3";
package lyj;
option java_package = "com.lyj.grpc";
option java_outer_classname = "HelloWorldServiceProto";
option java_multiple_files = true;

// The greeting service definition.
service Greeter {
  // Sends a greeting
  rpc SayHello (HelloRequest) returns (HelloReply) {}
}

// The request message containing the user's name.

message HelloRequest {
  string name = 1;
}

// The response message containing the greetings
message HelloReply {
  string message = 1;
}

2.进入文件目录，打开控制台
进入项目根目录所在的位置的终端，我这里是pure-design-master

E:\目录\pure-design-master>

先后输入下面命令

mvn protobuf:compile
mvn protobuf:compile-custom

成功后会在如下目录生成这六个文件

若没有生成检查命令行是否有以下提示

[INFO] E:\目录\pure-design-master\src\main\proto does not exist. Review the configuration or consider disabling the plugin.

这说明proto文件夹需要放在main下面，把位置放置正确，重新执行两条命令即可

mvn protobuf:compile
mvn protobuf:compile-custom

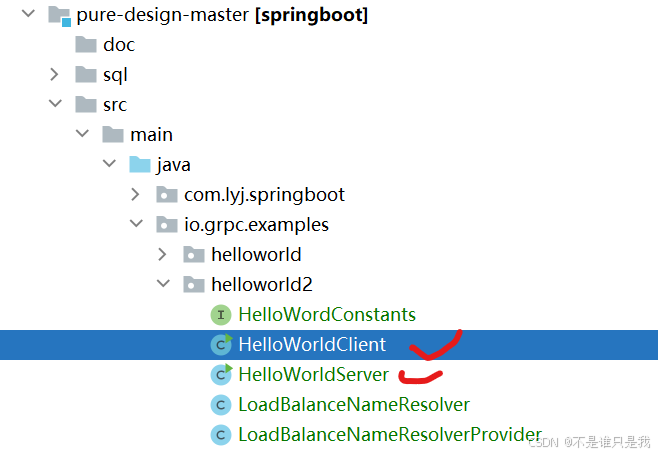

将上面生成的文件复制移动到下面的目录结构中，如果不存在该文件夹创建一个空的即可（放在java包下面，这里的包名与之后的server.java和client.java导入的包名对应，自己也可以根据需求更改）

3. 编写java客户端和服务端

HelloWorldClient.java

package io.grpc.examples.helloworld2;

import io.grpc.*;
import io.grpc.examples.helloworld.GreeterGrpc;
import io.grpc.examples.helloworld.HelloReply;
import io.grpc.examples.helloworld.HelloRequest;

import java.net.InetSocketAddress;
import java.util.Arrays;
import java.util.List;
import java.util.concurrent.TimeUnit;
import java.util.logging.Logger;
import java.util.logging.Level;


public class HelloWorldClient{
    private static final Logger logger = Logger.getLogger(HelloWorldClient.class.getName());

    private final ManagedChannel channel;
    private final GreeterGrpc.GreeterBlockingStub blockingStub;

    /**
     * Construct client connecting to HelloWorld server at {@code host:port}.
     */
    public HelloWorldClient(String host, int port) {

        channel = ManagedChannelBuilder.forAddress(host, port)
                .usePlaintext()
                .build();
        blockingStub = GreeterGrpc.newBlockingStub(channel);
    }

    public void shutdown() throws InterruptedException {
        channel.shutdown().awaitTermination(5, TimeUnit.SECONDS);
    }

    /**
     * Say hello to server.
     */
    public void greet(String name) {
        logger.info("Will try to greet " + name + " ...");
        HelloRequest request = HelloRequest.newBuilder().setName(name).build();
        HelloReply response;
        try {
            response = blockingStub.sayHello(request);
        } catch (StatusRuntimeException e) {
            logger.log(Level.WARNING, "RPC failed: {0}", e.getStatus());
            return;
        }
        logger.info("Greeting: " + response.getMessage());
    }

    /**
     * Greet server. If provided, the first element of {@code args} is the name to use in the
     * greeting.
     */
    public static void main(String[] args) throws Exception {
        HelloWorldClient client = new HelloWorldClient("127.0.0.1", 50052);
        try {

            String user = "java_client";
            if (args.length > 0) {
                user = args[0];
            }
            client.greet(user);
        } finally {
            client.shutdown();
        }
    }
}

HelloWorldServer.java

package io.grpc.examples.helloworld2;

import io.grpc.Grpc;
import io.grpc.InsecureServerCredentials;
import io.grpc.Server;
import io.grpc.ServerBuilder;
import io.grpc.examples.helloworld.GreeterGrpc;
import io.grpc.examples.helloworld.HelloReply;
import io.grpc.examples.helloworld.HelloRequest;
import io.grpc.stub.StreamObserver;

import java.io.IOException;
import java.util.Objects;
import java.util.Random;
import java.util.concurrent.TimeUnit;
import java.util.logging.Logger;

public class HelloWorldServer {
    private static final Logger logger = Logger.getLogger(HelloWorldServer.class.getName());

    /* The port on which the server should run */
    private int port = 50052;
    private Server server;

    private void start() throws IOException {
        server = ServerBuilder.forPort(port)
                .addService( new GreeterImpl())
                .build()
                .start();
        logger.info("Server started, listening on " + port);
        Runtime.getRuntime().addShutdownHook(new Thread() {
            @Override
            public void run() {
                // Use stderr here since the logger may have been reset by its JVM shutdown hook.
                System.err.println("*** shutting down gRPC server since JVM is shutting down");
                HelloWorldServer.this.stop();
                System.err.println("*** server shut down");
            }
        });
    }

    private void stop() {
        if (server != null) {
            server.shutdown();
        }
    }

    /**
     * Await termination on the main thread since the grpc library uses daemon threads.
     */
    private void blockUntilShutdown() throws InterruptedException {
        if (server != null) {
            server.awaitTermination();
        }
    }

    /**
     * Main launches the server from the command line.
     */
    public static void main(String[] args) throws IOException, InterruptedException {
        final HelloWorldServer server = new HelloWorldServer();
        server.start();
        server.blockUntilShutdown();
    }

    static class GreeterImpl extends GreeterGrpc.GreeterImplBase {
        /** 原子Integer */
        //    public AtomicInteger count = new AtomicInteger(0);

        @Override
        public void sayHello(HelloRequest req, StreamObserver<HelloReply> responseObserver) {
//            System.out.println("call sayHello");
            HelloReply reply = HelloReply.newBuilder().setMessage("Hello " + req.getName()).build();
            responseObserver.onNext(reply);
            responseObserver.onCompleted();
//            System.out.println(count.incrementAndGet() + Thread.currentThread().getName());
        }
    }
}

测试是否成功
先运行HelloWorldServer.java
输出

再运行HelloWorldClient.java
输出

以上说明java调用GRPC已经完成

python调用GRPC

1. 创建proto
   将java项目中的.proto文件复制到python中

   打开终端，进入proto目录下输入

python -m grpc_tools.protoc -I. --python_out=. --grpc_python_out=. ./helloworld.pro

若成功，则会生成下面两个文件

2. 创建服务端和客户端
   server.py

#! /usr/bin/env python
# -*- coding: utf-8 -*-

import time

import grpc
from concurrent import futures

import helloworld_pb2_grpc
import helloworld_pb2


_ONE_DAY_IN_SECONDS = 60 * 60 * 24


class Greeter(helloworld_pb2_grpc.GreeterServicer):

    def SayHello(self, request, context):
        print("This is server sayHello,",request,context)
        return helloworld_pb2.HelloReply(message='Hello this is python server, %s!' % request.name)


def serve():
    server = grpc.server(futures.ThreadPoolExecutor(max_workers=10))
    helloworld_pb2_grpc.add_GreeterServicer_to_server(Greeter(), server)
    server.add_insecure_port('[::]:50052')
    print("监听端口：50052")
    server.start()
    try:
        while True:
            time.sleep(_ONE_DAY_IN_SECONDS)
    except KeyboardInterrupt:
        server.stop(0)


if __name__ == '__main__':
    serve()

client.py

#! /usr/bin/env python
# -*- coding: utf-8 -*-
#from __future__ import print_function
import time

import grpc
import helloworld_pb2, helloworld_pb2_grpc

def run():
    # NOTE(gRPC Python Team): .close() is possible on a channel and should be
    # used in circumstances in which the with statement does not fit the needs
    # of the code.
    with grpc.insecure_channel('localhost:50052') as channel:
        stub = helloworld_pb2_grpc.GreeterStub(channel)
        response = stub.SayHello(helloworld_pb2.HelloRequest(name='python_client'))
    print("Greeter client received: " + response.message)

    time.sleep(10)
    print("hi")


if __name__ == '__main__':
    run()

测试是否成功


成功！

三、跨平台测试

开启python端的server
开启java端的client

或者开启java端的server和python端的client都能够互通
