I2C通信——EEPROM的读写

软件实现

默认有底层代码

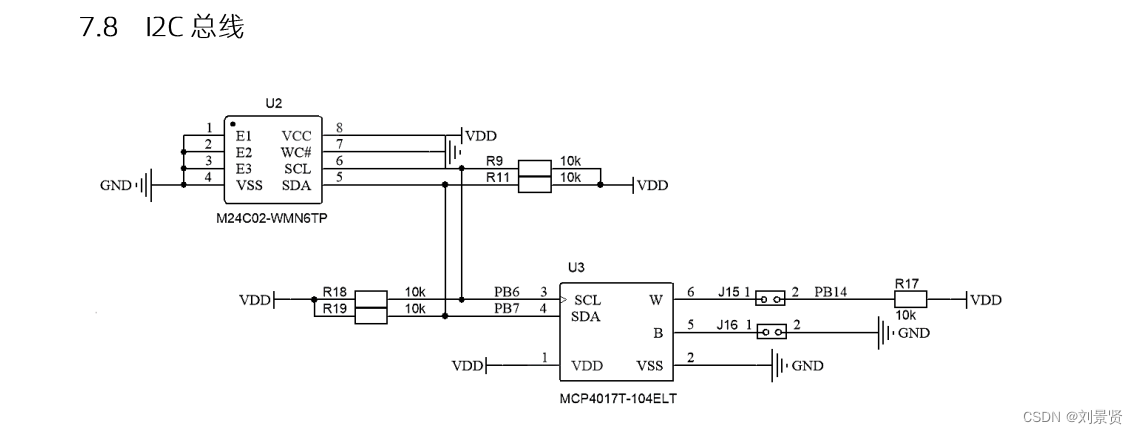

用的是M24C02   地址怎么找   看芯片手册

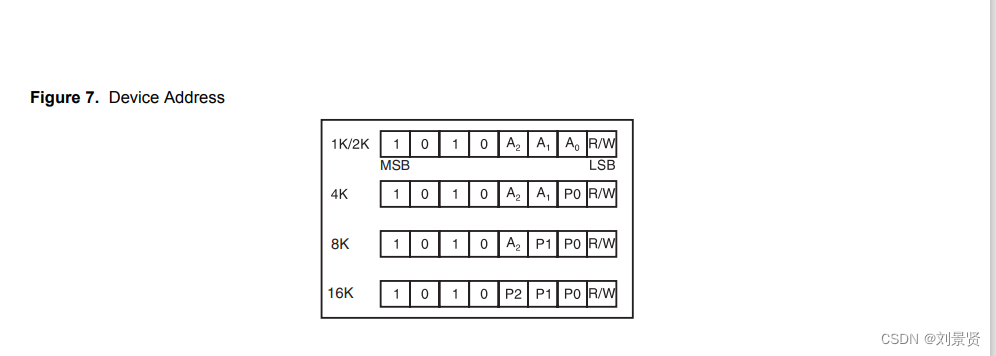

E1 E2 E3 （等效 A0 A1 A2）是 地址

而 R 为1         W为0

得出:写地址为         1 0 1 0 0 0 0 0 （0xA0）                读地址为      (0xA1)

读写代码

// 读
uint8_t eeprom_read(uint8_t addr)
{
	uint8_t dat;
	I2CStart();
	I2CSendByte(0xA0);		//向AT24C02发送地址位  	为什么是0xA0 (写地址)
	I2CWaitAck();			//等待应答位 显示发送完成
	I2CSendByte(addr);		//向AT24C02发送信息:选择读的地址
	I2CWaitAck();
	I2CStop();

	I2CStart();
	I2CSendByte(0xA1);		//向AT24C02发送地址位：表示要读这个芯片  	为什么是0xA1（读地址）
	I2CWaitAck();
	dat = I2CReceiveByte(); //读取
	I2CWaitAck();
	I2CStop();

	return dat;
}

//写
void eeprom_write(uint8_t addr,uint8_t dat)
{

	I2CStart();
	I2CSendByte(0xA0);		//向AT24C02发送地址位  	为什么是0xA0 (写地址)
	I2CWaitAck();			//等待应答位 显示发送完成
	I2CSendByte(addr);		//向AT24C02发送信息:选择读的地址
	I2CWaitAck();

	I2CSendByte(dat);
	I2CWaitAck();

	I2CStop();
}

main中

void Key_proc(void)
{
	if(key[0].Single_Flag == 1)
	{
		view = !view ;

		key[0].Single_Flag = 0;
	}
	if(key[1].Single_Flag == 1)
	{
		PA6_Duty+=10;
		if(PA6_Duty>=100)PA6_Duty=10;
		__HAL_TIM_SetCompare(&htim16,TIM_CHANNEL_1,PA6_Duty);
		key[1].Single_Flag = 0;
	}
	if(key[2].Single_Flag == 1)
	{
		PA7_Duty+=10;
		if(PA7_Duty>=100)PA7_Duty=10;
		__HAL_TIM_SetCompare(&htim17,TIM_CHANNEL_1,PA7_Duty);

		key[2].Single_Flag = 0;
	}


	if(key[3].Single_Flag == 1)
	{
		uchar Frq_h = Frq1>>8;
		uchar Frq_l = Frq1&0xFF;
		eeprom_write(1, Frq_h);
		HAL_Delay(10);
		eeprom_write(2, Frq_l);
		key[3].Single_Flag = 0;
	}
}
