在Quartus-ii中出现Error: (vsim-19) Failed to access library ‘cycloneive_ver‘ at “cycloneive_ver“.

原创 于 2025-03-26 19:12:43 发布 · 562 阅读 · 5 ·
CC 4.0 BY-SA版权
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
文章标签：

#编辑器

一、在仿真运行时出现如上错误。

因为我的Quartus的安装和Modelsim的安装是分开进行的（出现的具体原因未知maybe）可能在关联时出现问题。

二、解决方法（非一劳永逸版）

每次新打开文件都要重新设置，不知道为什么，有大神可以解答嘛。

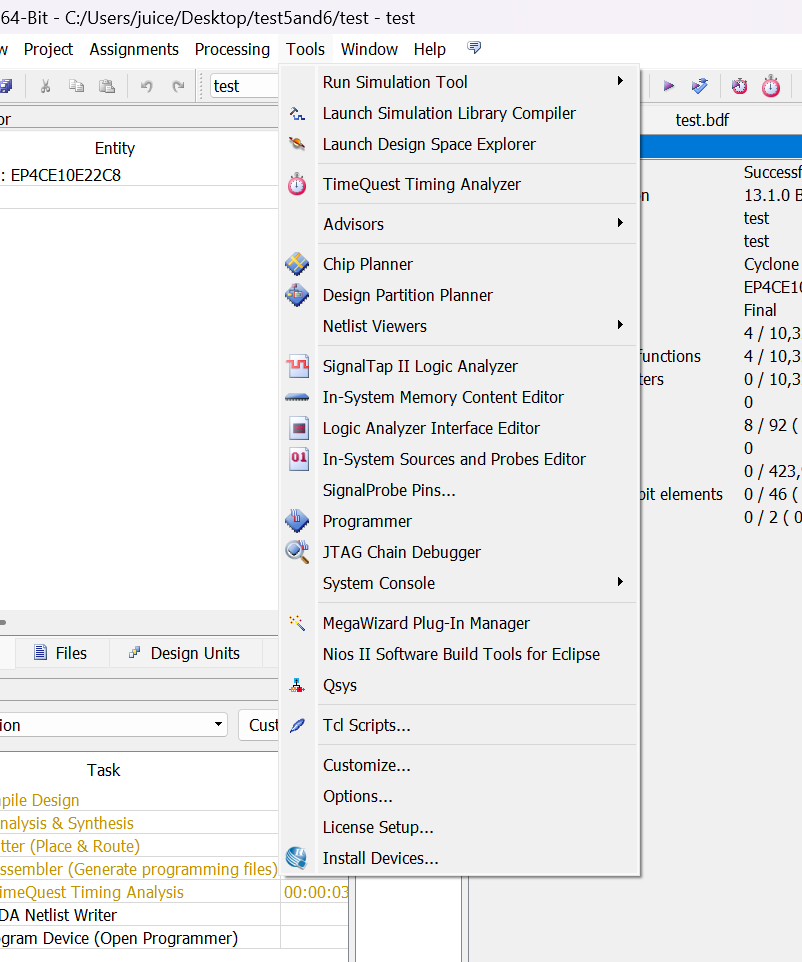

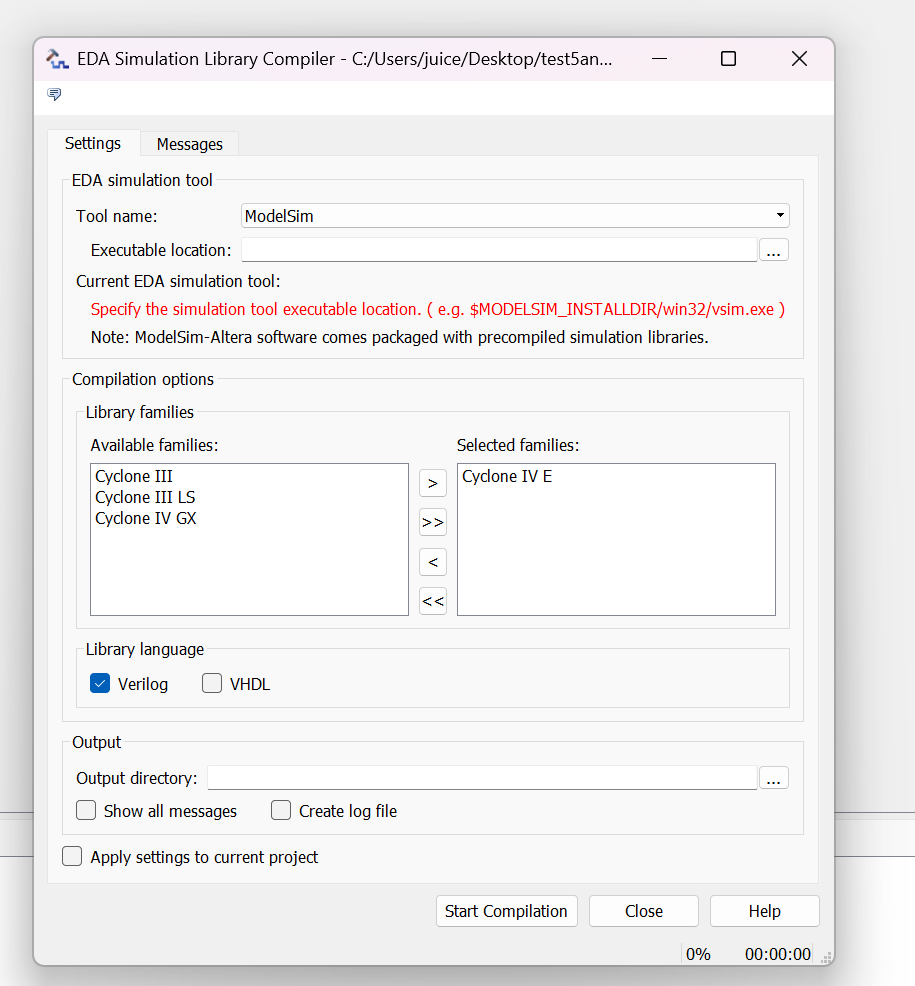

菜单栏点开tools,选择第二个"launch simulation library compiler"点开。

第一步

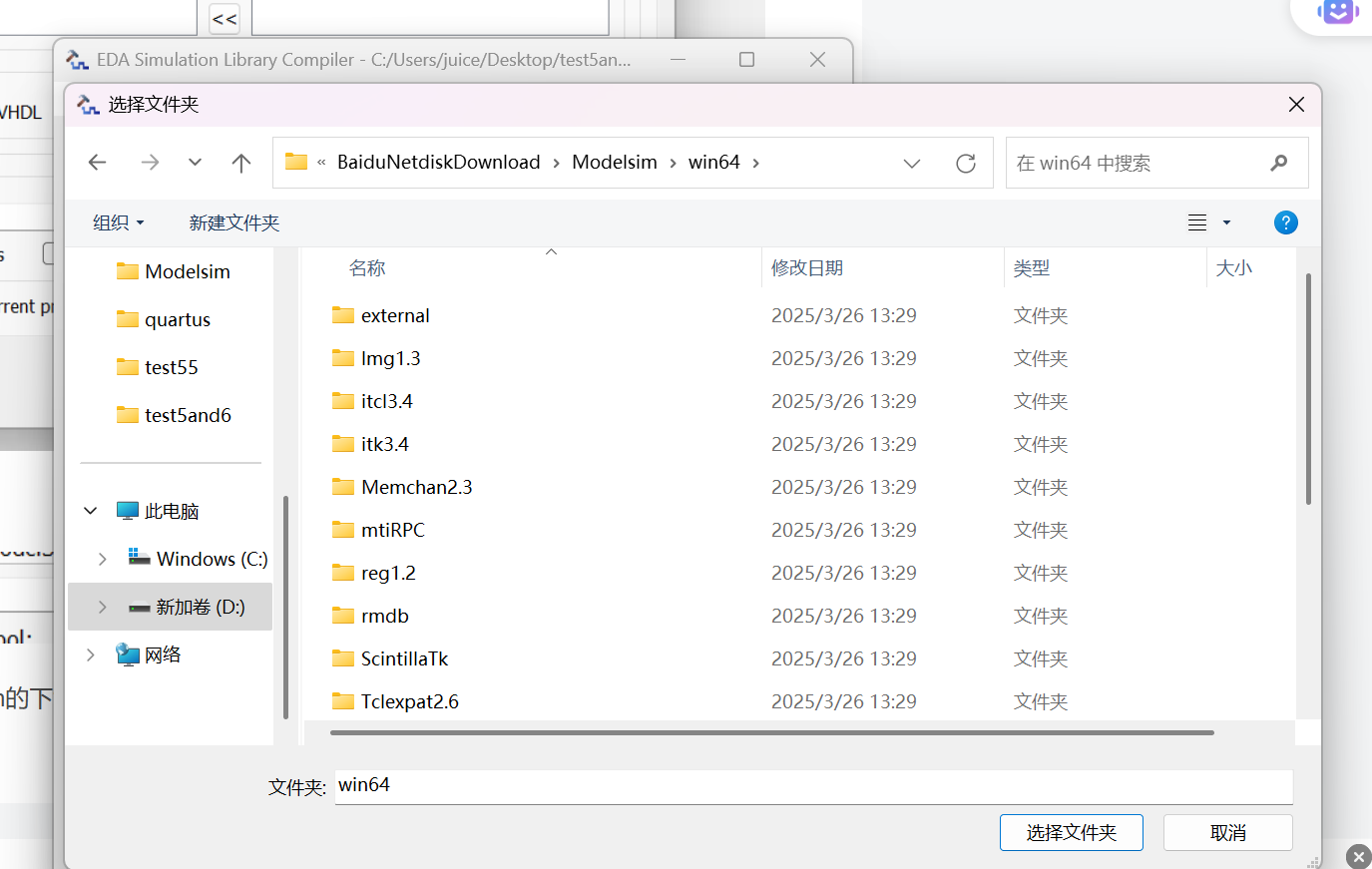

运行位置选择，modelsim的下载位置中的win64(maybe 32个人电脑配置）第二步

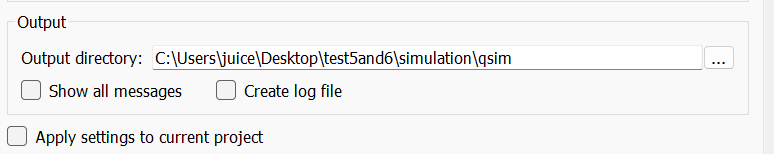

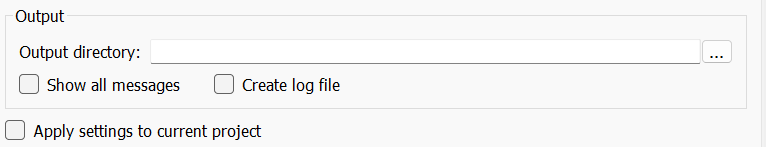

输出位置选择建立的该项目的文件里的simulation的qsim文件夹。

第三步

点击开始编译。

编译成功，打开仿真。vmf文件。

运行即可。
