概要：
1、配置基本抵制信息和路由协议
2、R2把OSPF引入到rip，把rip引入OSPF
3、R4把RIP引入到OSPF,把ospf引入到rip
4、R5把直连引入到OSPF
5、R3把直连和静态引入RIP，不引入/25路由
6、全部互相引入，避免次优路由和环路

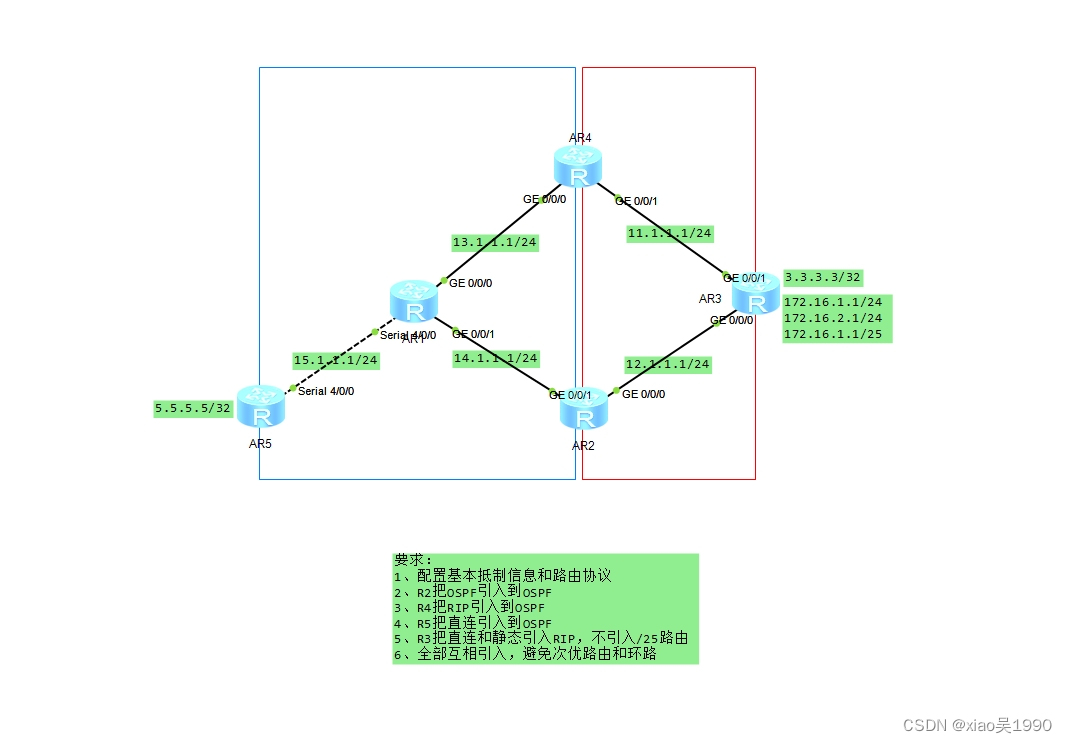

拓扑图：
技术名词：
import-route direct/static/rip/ospf route-policy wu #引入相关策略
display ip route-static protocol ospf/rip/static/direct #查询协议路由
route-policy 名称 permit/deny node 10 #创建路由策略
dis route-policy #查看路由策略情况
技术细节：
1、当两个协议互相引入后，R5引入的5.5.5.5/32网段会出现环路的问题，可以使用filter-policy注入到引入协议阻断环路的路由，也可以使用route-policy标签阻断环路的路由
2、当两个协议互相引入后，在R1和R3可以看到引入的路由会有两个下一条，且会出现次优路由的问题，可以使用route-policy改变相关的开销选择路径方向。
3、R3引入静态路由，不引入172.16.1.0/25网段。
四、AR3静态rip不引入172.1.1.0/25段路由，可以使用前缀列表Ip-prefix过滤此网段路由：
[R3]ip ip-prefix wu permit 172.16.1.0 24 greater-equal 24 less-equal 24
[R3]ip ip-prefix wu permit 172.16.2.0 24
[R3]route-policy wu permit node 10
[R3-route-policy]if-match ip-prefix wu
[R3]rip
[R3-rip-1] import-route static route-policy wu
在R4使用dis ip route-static protocol rip查看rip引入情况：
[R4]dis ip routing-table protocol rip
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Public routing table : RIP
Destinations : 6 Routes : 6
RIP routing table status : <Active>
Destinations : 4 Routes : 4
Destination/Mask Proto Pre Cost Flags NextHop Interface
5.5.5.5/32 RIP 100 2 D 11.1.1.2 GigabitEthernet
0/0/1
12.1.1.0/24 RIP 100 1 D 11.1.1.2 GigabitEthernet
0/0/1
172.16.1.0/24 RIP 100 1 D 11.1.1.2 GigabitEthernet
0/0/1
172.16.2.0/24 RIP 100 1 D 11.1.1.2 GigabitEthernet
0/0/1
RIP routing table status : <Inactive>
可以看到172.16.1.0/25已经过滤，没有引入rip协议；配置如下：
一、基本配置：
sy
sys R5
int s4/0/0
ip add 15.1.1.1 24
int lo 0
ip add 5.5.5.5 32
ospf router-id 5.5.5.5
a 0
net 15.1.1.1 0.0.0.0
sy
sys R1
int s4/0/0
ip add 15.1.1.2 24
int g0/0/0
ip add 13.1.1.1 24
int g0/0/1
ip add 14.1.1.1 24
ospf router-id 1.1.1.1
a 0
net 15.1.1.2 0.0.0.0
net 13.1.1.1 0.0.0.0
net 14.1.1.1 0.0.0.0
sy
sys R2
int g0/0/1
ip add 14.1.1.2 24
int g0/0/0
ip add 12.1.1.1 24
ospf router-id 2.2.2.2
a 0
net 14.1.1.2 0.0.0.0
rip
version 2
net 12.0.0.0
sy
sys R4
int g0/0/1
ip add 11.1.1.1 24
int g0/0/0
ip add 13.1.1.2 24
ospf router-id 4.4.4.4
a 0
net 13.1.1.2 0.0.0.0
rip
version 2
net 11.0.0.0
sy
sys R3
int g0/0/1
ip add 11.1.1.2 24
int g0/0/0
ip add 12.1.1.2 24
int lo 0
ip add 3.3.3.3 32
ip route-static 172.16.1.0 24 null 0
ip route-static 172.16.1.0 25 null 0
ip route-static 172.16.2.0 24 null 0
rip 1
version 2
net 11.0.0.0
net 12.0.0.0
在R1使用dis ospf peer brief 查看ospf邻居：
[R1]dis ospf peer brief
OSPF Process 1 with Router ID 1.1.1.1
Peer Statistic Information
----------------------------------------------------------------------------
Area Id Interface Neighbor id State
0.0.0.0 Serial4/0/0 5.5.5.5 Full
0.0.0.0 GigabitEthernet0/0/0 4.4.4.4 Full
0.0.0.0 GigabitEthernet0/0/1 2.2.2.2 Full
----------------------------------------------------------------------------
可以看到R1与R2、R4、R5已建立好领居
在R2和R4分别使用dis ip routing-table protocol rip，可以看到已通过RIP协议学到对方的网段
[R4]dis ip routing-table protocol rip
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Public routing table : RIP
Destinations : 1 Routes : 1
RIP routing table status : <Active>
Destinations : 1 Routes : 1
Destination/Mask Proto Pre Cost Flags NextHop Interface
12.1.1.0/24 RIP 100 1 D 11.1.1.2 GigabitEthernet
0/0/1
<R2>dis ip routing-table protocol rip
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Public routing table : RIP
Destinations : 1 Routes : 1
RIP routing table status : <Active>
Destinations : 1 Routes : 1
Destination/Mask Proto Pre Cost Flags NextHop Interface
11.1.1.0/24 RIP 100 1 D 12.1.1.2 GigabitEthernet
0/0/0
RIP routing table status : <Inactive>
Destinations : 0 Routes : 0二、当两个协议互相引入后，R5引入的5.5.5.5/32网段会出现环路的问题，可以通过阻断5.5.5.5路由破环。 [R5]acl 2000 [R5-acl-basic-2000] [R5-acl-basic-2000]rule permit source 5.5.5.5 0 [R5-acl-basic-2000] [R5-acl-basic-2000]route-policy wu permit node 10 Info: New Sequence of this List. [R5-route-policy] [R5-route-policy]if-match acl 2000 [R5]ospf [R5-ospf-1]import-route direct route-policy wu #引入5.5.5.5/32外部路由 [R2]ospf [R2-ospf-1]import-route rip 1 #引入rip协议 [R2-ospf-1]rip [R2-rip-1]import-route ospf 1 #引入ospf协议 [R4]ospf [R4-ospf-1]import-route rip 1 [R4-ospf-1]rip [R4-rip-1]import-route ospf 1 [R4-rip-1] 在引入协议后，双方的路由都已学到，但在R3tracert 5.5.5.5时发现已经环路了： [R3]tracert 5.5.5.5 traceroute to 5.5.5.5(5.5.5.5), max hops: 30 ,packet length: 40,press CTRL_C t o break 1 12.1.1.1 30 ms 20 ms 20 ms 2 14.1.1.1 20 ms 10 ms 10 ms 3 13.1.1.2 10 ms 20 ms 30 ms 4 11.1.1.2 20 ms 10 ms 30 ms 5 12.1.1.1 30 ms 30 ms 30 ms 在R1使用dis ip route-s pro ospf 命令时发现5.5.5.5下一条在R4学到的，而不是在R5学到： [R1]dis ip routing-table protocol ospf Route Flags: R - relay, D - download to fib ------------------------------------------------------------------------------ Public routing table : OSPF Destinations : 3 Routes : 5 OSPF routing table status : <Active> Destinations : 3 Routes : 5 Destination/Mask Proto Pre Cost Flags NextHop Interface 5.5.5.5/32 O_ASE 150 1 D 13.1.1.2 GigabitEthernet 0/0/0 11.1.1.0/24 O_ASE 150 1 D 14.1.1.2 GigabitEthernet 0/0/1 O_ASE 150 1 D 13.1.1.2 GigabitEthernet 0/0/0 12.1.1.0/24 O_ASE 150 1 D 14.1.1.2 GigabitEthernet 0/0/1 O_ASE 150 1 D 13.1.1.2 GigabitEthernet 0/0/0 OSPF routing table status : <Inactive> Destinations : 0 Routes : 0 针对此情况，在 R4使用filter-policy 或者在R2、R4使用route-policy标签的方式阻断5.5.5.5的路由： 1、使用filter-policy阻断： [R4]ip ip-prefix wu deny 5.5.5.5 32 [R4]ip ip-prefix wu permit 0.0.0.0 0 less-equal 32 [R4]ospf [R4-ospf-1]filter-policy ip-prefix wu export 在R3 tracert 5.5.5.5 发现已破环： [R3]tracert 5.5.5.5 traceroute to 5.5.5.5(5.5.5.5), max hops: 30 ,packet length: 40,press CTRL_C t o break 1 12.1.1.1 40 ms 20 ms 10 ms 2 14.1.1.1 30 ms 10 ms 10 ms 3 15.1.1.1 50 ms 40 ms 30 ms 2、使用route-policy标签阻断 [R4]ospf [R4-ospf-1]undo filter-policy ip-prefix wu export #删除filter-policy，恢复环路状态 [R2]acl 2005 [R2-acl-basic-2005] [R2-acl-basic-2005]rule 2 permit source 5.5.5.5 0 [R2]route-policy ospf-rip permit node 10 #创建route-policy Info: New Sequence of this List. [R2-route-policy]if-match acl 2005 #引入acl2005 [R2-route-policy]apply tag 10 #打上标签 10 [R2-route-policy]route-policy ospf-rip permit node 20 #创建rout-policy空语句，允许其他路由通过 Info: New Sequence of this List. [R2-route-policy]rip [R2-rip-1]import-route ospf route-policy ospf-rip [R4]route-policy rip-ospf deny node 10 Info: New Sequence of this List. [R4-route-policy]apply tag 10 [R4]route-policy rip-ospf permit node 20 Info: New Sequence of this List. [R4-route-policy]ospf [R4-ospf-1]import-route rip route-policy rip-ospf 在R3 tra 5.5.5.5 可以看到通过标签已破环： [R3]tracert 5.5.5.5 traceroute to 5.5.5.5(5.5.5.5), max hops: 30 ,packet length: 40,press CTRL_C t o break 1 12.1.1.1 20 ms 20 ms 20 ms 2 14.1.1.1 30 ms 30 ms 30 ms 3 15.1.1.1 40 ms 30 ms 20 ms
三、在R1和R3使用dis ip route-s 发现，11.1.1.0/24、12.1.1.0/24、13.1.1.0/24、14.1.1.0/24网段有两个下一跳，且出现次优路由等情况，针对这个情况我们可以通过改开销方法来选择最优路径：
[R1]dis ip routing-table protocol ospf
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Public routing table : OSPF
Destinations : 3 Routes : 5
OSPF routing table status : <Active>
Destinations : 3 Routes : 5
Destination/Mask Proto Pre Cost Flags NextHop Interface
5.5.5.5/32 O_ASE 150 1 D 15.1.1.1 Serial4/0/0
11.1.1.0/24 O_ASE 150 1 D 14.1.1.2 GigabitEthernet
0/0/1
O_ASE 150 1 D 13.1.1.2 GigabitEthernet
0/0/0
12.1.1.0/24 O_ASE 150 1 D 14.1.1.2 GigabitEthernet
0/0/1
O_ASE 150 1 D 13.1.1.2 GigabitEthernet
0/0/0
R3]dis ip routing-table protocol rip
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Public routing table : RIP
Destinations : 4 Routes : 7
RIP routing table status : <Active>
Destinations : 4 Routes : 7
Destination/Mask Proto Pre Cost Flags NextHop Interface
5.5.5.5/32 RIP 100 1 D 12.1.1.1 GigabitEthernet
0/0/0
13.1.1.0/24 RIP 100 1 D 12.1.1.1 GigabitEthernet
0/0/0
RIP 100 1 D 11.1.1.1 GigabitEthernet
0/0/1
14.1.1.0/24 RIP 100 1 D 12.1.1.1 GigabitEthernet
0/0/0
RIP 100 1 D 11.1.1.1 GigabitEthernet
0/0/1
15.1.1.0/24 RIP 100 1 D 12.1.1.1 GigabitEthernet
0/0/0
RIP 100 1 D 11.1.1.1 GigabitEthernet
0/0/1
由于这个是之前配好的，我们直接在R2、R4使用display route-policy查看相关配置：
[R4]acl 2002
[R4-acl-basic-2002]rule 1 permit source 13.1.1.0 0.0.0.255
[R4]route-policy cost permit node 10
[R4-route-policy]if-match acl 2002
[R4]route-policy cost permit node 20
[R4-route-policy]apply cost 5 #更改路径开销
[R4]route-policy cost permit node 30
[R4]rip
[R4-rip-1]import-route ospf 1 route-policy cost
[R4]acl 2003
[R4-acl-basic-2003]rule 5 permit source 11.1.1.0 0.0.0.255
[R4]route-policy cost2 permit node 10
[R4-route-policy] if-match acl 2003
[R4]route-policy cost2 permit node 20
[R4-route-policy]apply cost 5
[R4]route-policy cost permit node 30
[R4]ospf
[R4-ospf-1]import-route rip 1 route-policy cost2
[R2]acl 2002
[R2-acl-basic-2002]rule 1 permit source 13.1.1.0 0.0.0.255
[R2]acl 2003
[R2-acl-basic-2003]rule 5 permit source 11.1.1.0 0.0.0.255
[R2]route-policy cost permit node 10
[R2-route-policy]if-match acl 2002
[R2-route-policy]apply cost 5
[R2]route-policy cost permit node 20
[R2]route-policy cost2 permit node 10
[R2-route-policy]if-match acl 2003
[R2-route-policy]apply cost 5
[R2]route-policy cost2 permit node 20
[R2]rip
[R2-rip-1] import-route ospf 1 route-policy cost
[R2]ospf
[R2-ospf-1]import-route rip 1 route-policy cost2
配置完毕，可以在R1、R3再次查看路由情况:可以看到已经没有次优路由了
<R1>dis ip routing-table protocol ospf
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Public routing table : OSPF
Destinations : 3 Routes : 3
OSPF routing table status : <Active>
Destinations : 3 Routes : 3
Destination/Mask Proto Pre Cost Flags NextHop Interface
5.5.5.5/32 O_ASE 150 1 D 15.1.1.1 Serial4/0/0
11.1.1.0/24 O_ASE 150 1 D 13.1.1.2 GigabitEthernet
0/0/0
12.1.1.0/24 O_ASE 150 1 D 14.1.1.2 GigabitEthernet
0/0/1
OSPF routing table status : <Inactive>
Destinations : 0 Routes : 0
[R3]dis ip routing-table protocol rip
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Public routing table : RIP
Destinations : 4 Routes : 4
RIP routing table status : <Active>
Destinations : 4 Routes : 4
Destination/Mask Proto Pre Cost Flags NextHop Interface
5.5.5.5/32 RIP 100 1 D 12.1.1.1 GigabitEthernet
0/0/0
13.1.1.0/24 RIP 100 1 D 11.1.1.1 GigabitEthernet
0/0/1
14.1.1.0/24 RIP 100 1 D 12.1.1.1 GigabitEthernet
0/0/0
15.1.1.0/24 RIP 100 1 D 12.1.1.1 GigabitEthernet
0/0/0
RIP routing table status : <Inactive>
总结
路由策略可以使用在很多场景，既可以在动态路由做路由路径的选择，也可以根据前缀列表过滤子网划分的网段。
