STM32之串口传输结构体

传输数据还可以，上位机解析数据耽误了一个下午的时间特此来记录一下！这里将16位数据转成8位数据转发到上位机。

STM32端口

这次协议帧头定义的是 0xAA、0xBB和0xFF、0xEE、0xBB确保数据的准确性！！！

uint16_t VLpress  = 1000;

uint16_t AC1press = 999;

uint16_t AC2press = 998;

uint16_t ASpress  = 997;

uint16_t SRpress  = 996;

uint16_t BCpress  = 995;

typedef struct My_Test
{
  uint8_t head;     //帧头
	uint8_t head1;     //帧头

  uint8_t VLpressH;	//VL压力高八位
	uint8_t VLpressL; //VL压力低八位

	uint8_t AC1pressH;//AC1压力高八位
	uint8_t AC1pressL;//AC21力低八位

	uint8_t AC2pressH;//AC2压力高八位
	uint8_t AC2pressL;//AC2压力低八位

	uint8_t ASpressH; //AS高力低八位
	uint8_t ASpressL; //AS压力低八位

	uint8_t SRpressH; //SR压力高八位
	uint8_t SRpressL; //SR压力低八位

	uint8_t BCpressH; //BC压力高八位
	uint8_t BCpressL; //BC压力低八位

  uint8_t end;    //帧尾
	uint8_t end1;    //帧尾
	uint8_t end2;    //帧尾

}My_Test;

//实际使用
My_Test mytest;

void My_Struct_Test(My_Test *mytest)
{
	mytest->head = 			  0xAA;  //帧头数据
	mytest->head1 = 			0xBB;  //帧头数据

	mytest->VLpressH  =  ((VLpress&0xff00)>>8);
	mytest->VLpressL  =  (VLpress&0x00ff);

	mytest->AC1pressH =  ((AC1press>>8)&0xff);
	mytest->AC1pressL =  (AC1press&0xff);

	mytest->AC2pressH =  ((AC2press>>8)&0xff);
	mytest->AC2pressL =  (AC2press&0xff);

	mytest->ASpressH  =  ((ASpress>>8)&0xff);
	mytest->ASpressL  =  (ASpress&0xff);

	mytest->SRpressH  =  ((SRpress>>8)&0xff);
	mytest->SRpressL  =  (SRpress&0xff);

	mytest->BCpressH  =  ((BCpress>>8)&0xff);
	mytest->BCpressL  =  (BCpress&0xff);

  mytest->end = 		  0xFF;  //帧尾数据
	mytest->end1 = 		  0xEE;  //帧尾数据
	mytest->end2 = 		  0xBB;  //帧尾数据
}

发送函数定义，通过指针的方式发送结构体数据，一位一位的发送数据，直到发送完成！！！！

void send_data(My_Test*mytest,uint8_t len)
{
  static uint8_t* date=0,i=0;
  for(i=0;i<len;i++) //使用sizeof计算结构体
  {
    date = (((uint8_t *)&mytest->head)+i); //从帧头开始 然后依次向下指向
		HAL_UART_Transmit(&UART1_Handler,date,len,1000);	//发送接收到的数据
		while(__HAL_UART_GET_FLAG(&UART1_Handler,UART_FLAG_TC)!=SET);		//等待发送结束
  }
}

在主函数中调用即可：

My_Struct_Test(&mytest);           //赋值
send_data(&mytest,sizeof(mytest)); //发送一个结构体

QT上位机解析数据！！！

因为没有把接收的数据进行类型转换，耽误了不少时间！！！

这里最关键的是要把接收数据的字节进行类型转换 VLpress = (((uchar)bytes.at(2)<<8)|(uchar)bytes.at(3)),必须要这样，否则会出错，显示负数！！！

/*
 * 串口接收数据并且解析数据
*/
void Widget::serialPortReadyRead()
{
    bytes = serialPort->readAll();
    bytes.resize(17);


    if((bytes.at(0) == '\xAA')&&(bytes.at(1) == '\xBB')&&(bytes.at(14) == '\xFF')&&(bytes.at(15) == '\xEE')&&(bytes.at(16) == '\xBB')){
        VLpress  = (((uchar)bytes.at(2)<<8)|(uchar)bytes.at(3)),
        AC1press = (((uchar)bytes.at(4)<<8)|(uchar)bytes.at(5)),
        AC2press = (((uchar)bytes.at(6)<<8)|(uchar)bytes.at(7)),
        ASPress  = (((uchar)bytes.at(8)<<8)|(uchar)bytes.at(9)),
        SRpress  = (((uchar)bytes.at(10)<<8)|(uchar)bytes.at(11)),
        BCpress  = (((uchar)bytes.at(12)<<8)|(uchar)bytes.at(13));
        StrI1 = QString::number(VLpress);
        StrI2 = QString::number(AC1press);
        StrI3 = QString::number(AC2press);
        StrI4 = QString::number(ASPress);
        StrI5 = QString::number(SRpress);
        StrI6 = QString::number(BCpress);
        QList <QString>list2;
        list2<<StrI1<<StrI2<<StrI3<<StrI3<<StrI5<<StrI6;
        for(int i = 0;i<6;i++){
          pressEdit[i]->setText(list2[i]);
        }

结果：

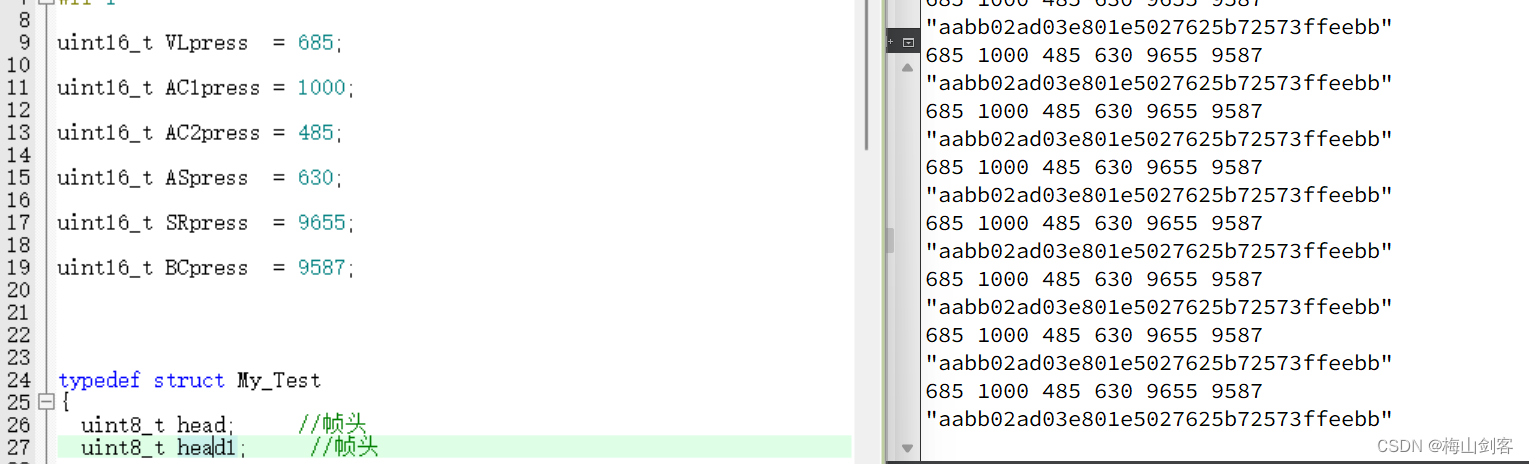

结果如图所示：
发送和接收的数据是一致的！！！！
