Android Handler机制·一（入门篇）

概览

Android线程间通信是消息驱动的，Looper负责轮询，Message为消息，MessageQueue为Message的集合，Handler负责串联线程。本文基于android api 29源码，主要讲解java层的Handler机制。
先来个一般性的例子：

  fun testOriHandler() {

        var handler1: Handler? = null
        var handler2: Handler? = null

        Log.d("Ktest", "${
     Thread.currentThread().name}：main")
        thread {

            Looper.prepare()
            // 暂不考虑内存泄漏
            handler1 = object : Handler() {

                override fun handleMessage(msg: Message) {

                    super.handleMessage(msg)
                    Log.d("Ktest", "${
     Thread.currentThread()}：handler1.handleMessage")
                }
            }
            Looper.loop()
        }

        thread {

            Looper.prepare()
            handler2 = object : Handler() {

                override fun handleMessage(msg: Message) {

                    super.handleMessage(msg)
                    Log.d("Ktest", "${
     Thread.currentThread()}：handler2.handleMessage")
                }
            }
            Looper.loop()
        }

        thread {

            Thread.sleep(1000)
            handler2?.sendMessage(Message.obtain(handler2, Runnable {

                Log.d("Ktest", "${
     Thread.currentThread()}：msg2.callback")
            }))

            Thread.sleep(1000)
            handler1?.sendMessage(Message.obtain())
        }
    }

运行结果：

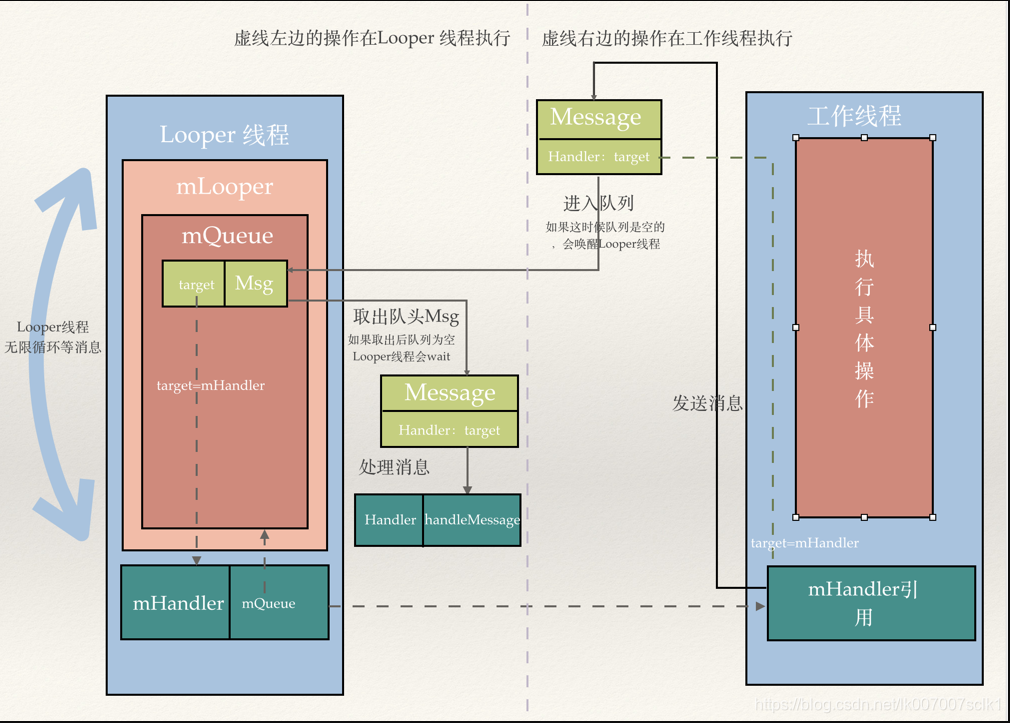

其大概的运行流程如下：

工作线程通过绑定了Looper线程的handler，发送Message到消息队列，而Looper线程无限循环的从消息队列中取Message，并在Looper所在线程，执行handler的dispatchMessage方法，实现了异步线程通信。

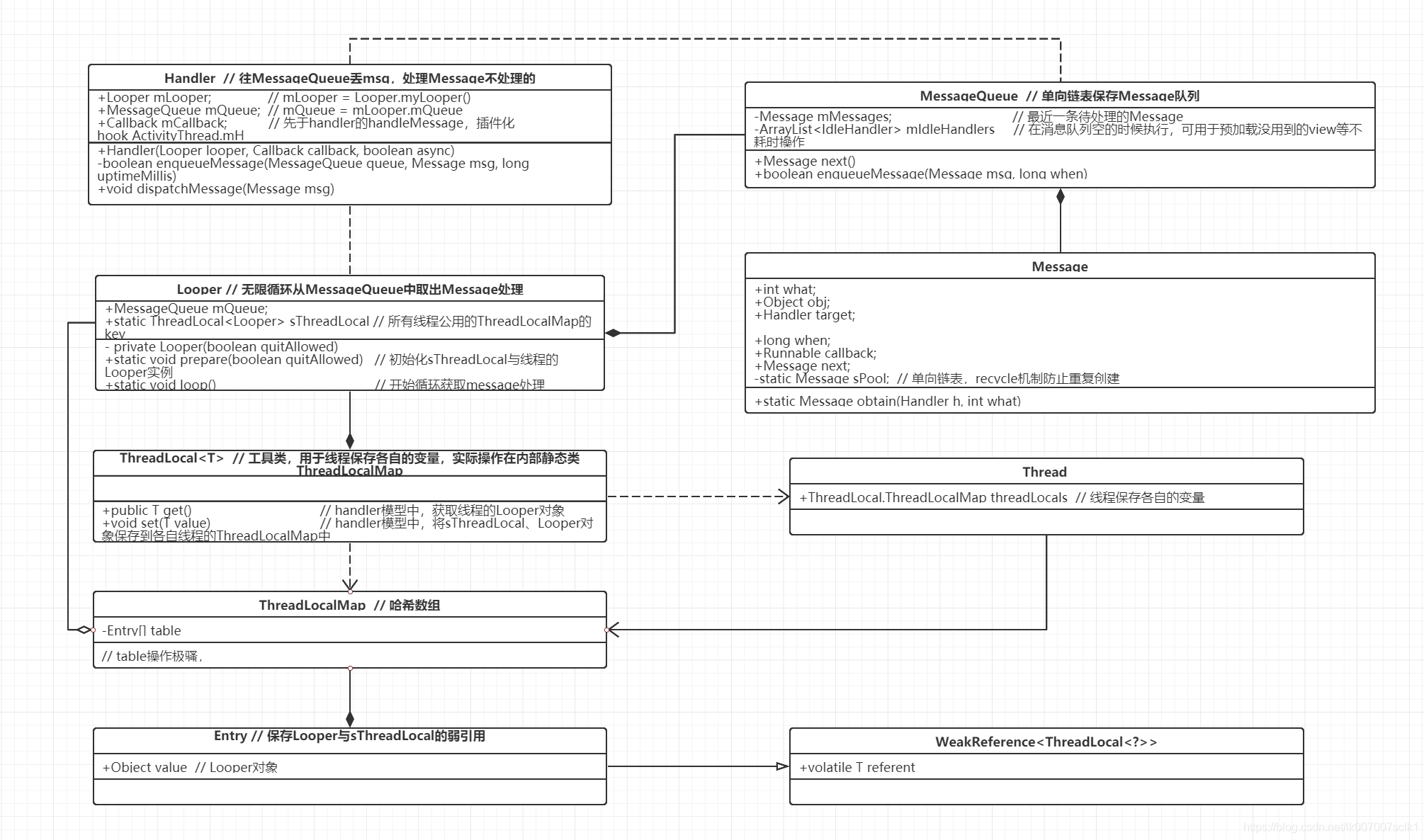

正式代码分析前先看看简略类图：

关键代码分析

其实也就四句话：

1. 初始化Looper：Looper.prepare()
2. 初始化Handler：handler1 = object : Handler()
3. 开始循环：Looper.loop()
4. 消息发送：handler1?.sendMessage(Message.obtain())

初始化Looper

// Looper.java
// 充当ThreadLocalMap的key和获取线程Looper的工具类
static final ThreadLocal<Looper> sThreadLocal = new ThreadLocal<Looper>();
public static void prepare() {
    prepare(true); }
private static void prepare(boolean quitAllowed) {

    if (sThreadLocal.get() != null) {

    	// 这里保证了prepare两次会抛错，保证一个线程对应一个looper
        throw new RuntimeException("Only one Looper may be created per thread");
    }
    // 设置线程的Looper
    sThreadLocal.set(new Looper(quitAllowed));
}

初始化当前线程.threadLocals，最终会调用ThreadLocal.createMap，给当前线程初始化threadLocals变量：

// ThreadLocal.java
public T get() {

    Thread t = Thread.currentThread();
    // 获取当前线程的threadLocals
    ThreadLocalMap map = getMap(t);
    if (map != null) {

        ThreadLocalMap.Entry e = map.getEntry(this);
        if (e != null) {

            @SuppressWarnings("unchecked")
            T result = (T)e.value;
            return result;
        }
    }
    // 设置当前线程.threadLocals初始值
    return setInitialValue();
}

ThreadLocalMap getMap(Thread t) {

    return t.threadLocals;
}

private T setInitialValue() {

    T value = initialValue();
    Thread t = Thread.currentThread();
    ThreadLocalMap map = getMap(t);
    if (map != null)
        map.set(this, value);
    else
        // threadLocals初始化
        createMap(t, value);
    return value;
}

void createMap(Thread t, T firstValue) {

   // 设置线程threadLocals
   t.threadLocals = new ThreadLocalMap(this, firstValue);
}

设置当threadLocals的初始值：

// ThreadLocal.java#ThreadLocalMap
private Entry[] table;
ThreadLocalMap(ThreadLocal<?> firstKey, Object firstValue) {

    table = new Entry[
