TIDB-由飞书接收报警

一、背景

由于公司的办公软件由企业微信转到了飞书,所以报警也由企业微信转到飞书了,而altermanager的输出格式是飞书不接受的,飞书接受的消息格式可以从官网找到飞书链接
这时就有两种办法解决,第一种,自己写个服务,接收altermanager的消息,然后进行转换发给飞书,第二种是使用开源工具,如prometheusalert考虑到一些原因,最终选择了方案一

二、搭建

1.飞书操作

1.1 建群

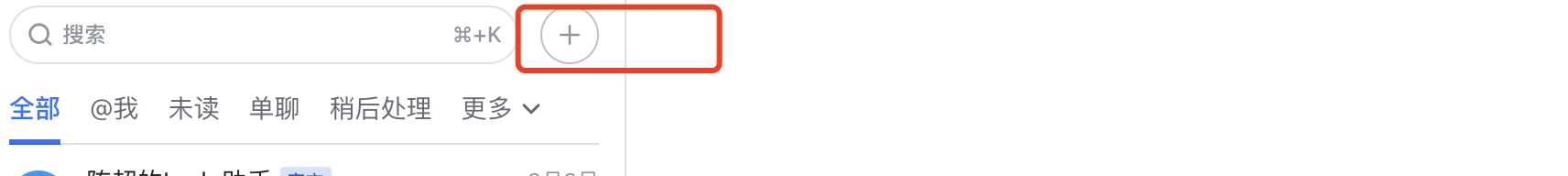

点击下图所示加号建群,随意写个群组名
在这里插入图片描述

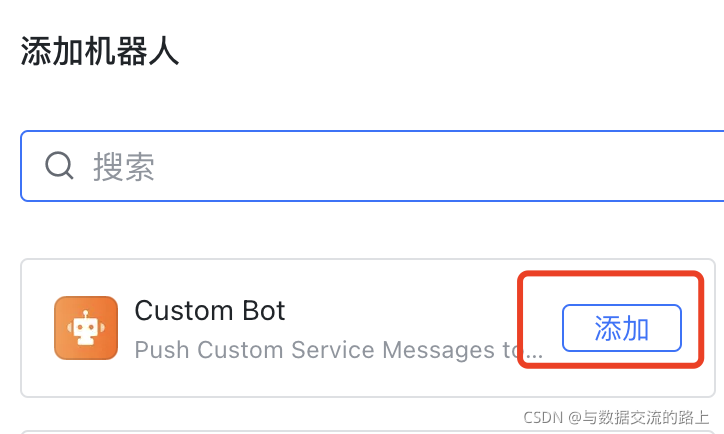

1.2创建机器人
点击群图标即可创建机器人,点击添加即可在这里插入图片描述

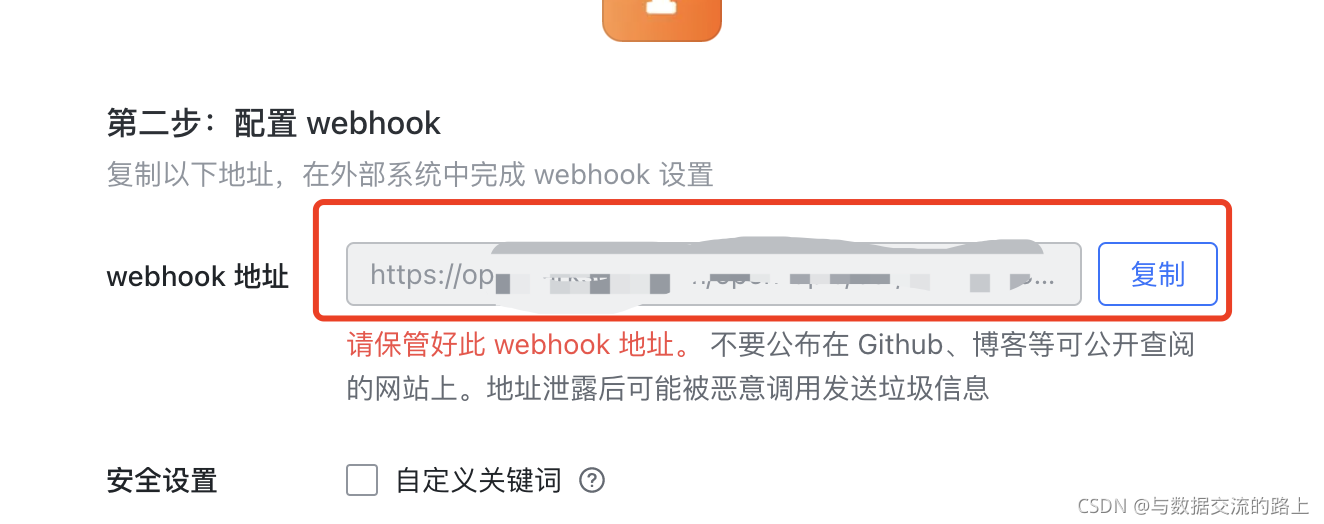

1.3 生成webook
记录webook地址,是之后要用到的
在这里插入图片描述

2.写服务来接收处理消息

2.1 python服务文本到飞书示例

import requests
import arrow
from flask import Flask
from flask import request
import json
app1 = Flask(__name__)
@app1.route('/send', methods=['POST'])
def send():
    url = 'https://open.larksuite.com/open-apis/bot/v2/hook/*****'   # lark的weboook
    dict1 = dict()
    data = json.loads(request.data)
    #print(data)
    alerts = data['alerts']
    for output in alerts:
        try:
            message = output['annotations']['message']
        except KeyError:
            try:
                message = output['annotations']['description']
            except KeyError:
                message = 'null'
        info = "**告警类型**: %s \n\n" % output['labels']['alertname'] + "**告警详情** : %s \n\n" % message + "**告警状态**: %s \n\n" % output['status'] + "**触发时间**: %s \n\n" % arrow.get(output['startsAt']).to('Asia/Shanghai').format('YYYY-MM-DD HH:mm:ss ZZ') + "**触发结束时间**: %s \n" % arrow.get(output['endsAt']).to('Asia/Shanghai').format('YYYY-MM-DD HH:mm:ss ZZ')
        # 转换为飞书接受的格式(文本)
        send_data = {
			    "msg_type": "text",
                            "content": {
			                            "text":  info
			           }
                    }
        send_data = json.dumps(send_data)
        print(send_data)
        req = requests.post(url, data=send_data)
        result = req.json()
        #调用api提交信息给短信平台api
        # r = requests.post(url_test_api,data=j)
    return 'ok'


if __name__ == '__main__':
    app1.run(debug=True,host='0.0.0.0',port=5100)

2.1 python服务富文本到飞书示例

import requests
import arrow
from flask import Flask
from flask import request
import json
app1 = Flask(__name__)
print(3)
@app1.route('/send', methods=['POST'])
def send():
    url = 'https://open.larksuite.com/open-apis/bot/v2/hook/****'
    dict1 = dict()   #定义一个字典用来存放清理过后的数据,最后需要把这个数据推送给其他应用
    data = json.loads(request.data)
    #print(data)
    alerts = data['alerts']
    for output in alerts:
        try:
            message = output['annotations']['message']
        except KeyError:
            try:
                message = output['annotations']['description']
            except KeyError:
                message = 'null'
        title = "警告: %s" %  output['labels']['alertname']
        warning_info =  " %s \n" % message.replace(',', '\n').replace(':', ':  ')
        warning_status = " status:  %s \n" % output['status']
        warning_start_time = " start_time:  %s \n" % arrow.get(output['startsAt']).to('Asia/Shanghai').format('YYYY-MM-DD HH:mm:ss ZZ')
        warning_end_time = " end_time:  %s \n" % arrow.get(output['endsAt']).to('Asia/Shanghai').format('YYYY-MM-DD HH:mm:ss ZZ')

        send_data = {
        "msg_type": "post",
        "content": {
                "post": {
                        "zh_cn": {
                                "title": title,
                                "content": [[{
                                                        "tag": "text",
                                                        "text": warning_info
                                                },
                                               {
                                                        "tag": "text",
                                                        "text": warning_status
                                                },
                                             {
                                                        "tag": "text",
                                                        "text": warning_start_time
                                                },
                                             {
                                                        "tag": "text",
                                                        "text": warning_end_time
                                                }

                                           ]]
                        }
                }
        }
}
        send_data = json.dumps(send_data)
        print(send_data)
        req = requests.post(url, data=send_data)
        result = req.json()
        #调用api提交信息给短信平台api
        # r = requests.post(url_test_api,data=j)
    return 'ok'


if __name__ == '__main__':
    app1.run(debug=True,host='0.0.0.0',port=5100)

写这个服务用来接受altermanager的消息并格式化后发给飞书,启动服务即可

3.altermanager的处理

3.1 编辑conf下的alertmanager.yml

route:
  # A default receiver
  receiver: "feishubook"

  # The labels by which incoming alerts are grouped together. For example,
  # multiple alerts coming in for cluster=A and alertname=LatencyHigh would
  # be batched into a single group.
  group_by: ['env','instance','alertname','type','group','job']

  # When a new group of alerts is created by an incoming alert, wait at
  # least 'group_wait' to send the initial notification.
  # This way ensures that you get multiple alerts for the same group that start
  # firing shortly after another are batched together on the first
  # notification.
  group_wait:      30s

  # When the first notification was sent, wait 'group_interval' to send a batch
  # of new alerts that started firing for that group.
  group_interval:  3m

  # If an alert has successfully been sent, wait 'repeat_interval' to
  # resend them.
  repeat_interval: 1h


receivers:
- name: 'feishubook'
  webhook_configs:
  - url: 'http://python程序的ip:5100/send'

3.2 重启alterrmanager服务

重启后飞书即可收到报警消息了
