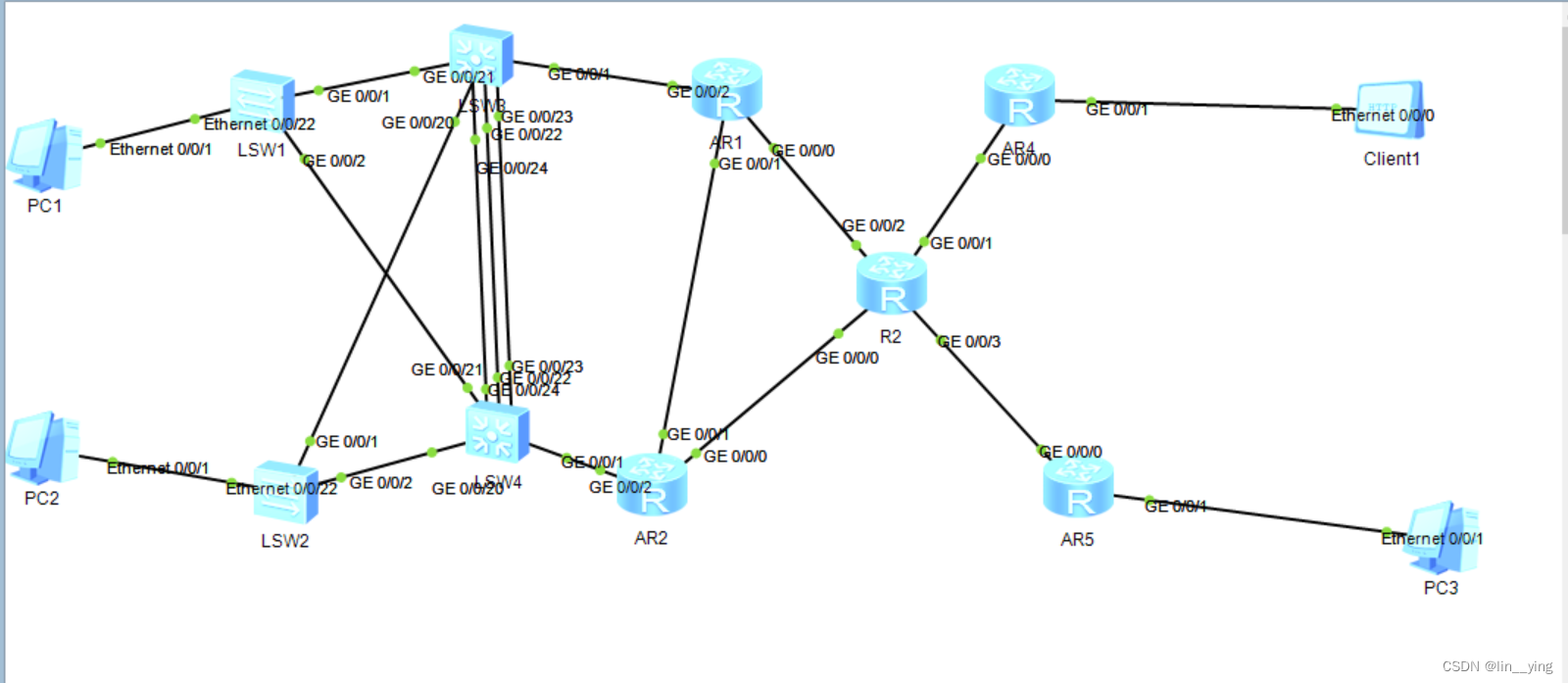

一.设备命名

LSW1

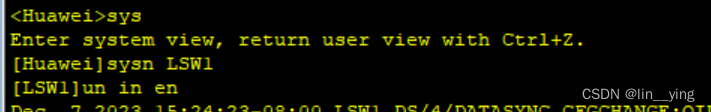

<Huawei>sys
[Huawei]sysn LSW1
[LSW1]un in en

同理可得，给所有设备如以上命令一样配置

二.VLAN

LSW1

[LSW1]vlan ba 1 10 20 100
[LSW1]int g0/0/1
[LSW1-GigabitEthernet0/0/1]port link-type trunk
[LSW1-GigabitEthernet0/0/1]port trunk allow-pass vlan 10 20 100
[LSW1-GigabitEthernet0/0/1]int g0/0/2
[LSW1-GigabitEthernet0/0/2]port link-type trunk
[LSW1-GigabitEthernet0/0/2]port trunk allow-pass vlan 10 20 100
[LSW1-GigabitEthernet0/0/2]int e0/0/22
[LSW1-Ethernet0/0/22]port link-type access
[LSW1-Ethernet0/0/22]port default vlan 10
[LSW1-Ethernet0/0/22]dis port vlan

LSW2

[LSW2]vlan ba 20 10 100
[LSW2]int g0/0/1
[LSW2-GigabitEthernet0/0/1]port link-type trunk
[LSW2-GigabitEthernet0/0/1]port trunk allow-pass vlan 10 20 100
[LSW2-GigabitEthernet0/0/1]int g0/0/2
[LSW2-GigabitEthernet0/0/2]port link-type trunk
[LSW2-GigabitEthernet0/0/2]port trunk allow-pass vlan 10 20 100.
[LSW2-GigabitEthernet0/0/2]int e0/0/22
[LSW2-Ethernet0/0/22]port link-type hybrid

[LSW2-Ethernet0/0/22]port hybrid pvid vlan 20
[LSW2-Ethernet0/0/22]port hybrid untagged vlan 20

[LSW1-Ethernet0/0/22]dis port vlan

LSW3

[LSW3]vlan ba 101 10 20 100
[LSW3]int g0/0/1
[LSW3-GigabitEthernet0/0/1]port link-type access
[LSW3-GigabitEthernet0/0/1]port default vlan 101
[LSW3-GigabitEthernet0/0/1]int g0/0/20
[LSW3-GigabitEthernet0/0/20]port link-type trunk
[LSW3-GigabitEthernet0/0/20]port trunk allow-pass vlan 10 20 100
[LSW3-GigabitEthernet0/0/20]int g0/0/21
[LSW3-GigabitEthernet0/0/21]port link-type trunk
[LSW3-GigabitEthernet0/0/21]port trunk allow-pass vlan 10 20 100
[LSW3-GigabitEthernet0/0/21]int eth 1
[LSW3-Eth-Trunk1]port link-type trunk
[LSW3-Eth-Trunk1]port trunk allow-pass vlan 10 20 100
[LSW3-Eth-Trunk1]undo port trunk allow-pass vlan 1
[LSW3-Eth-Trunk1]port trunk pvid vlan 100
[LSW3-Eth-Trunk1]dis port vlan

LSW4

[LSW4]vlan ba 201 10 20 100
[LSW4]int g0/0/1
[LSW4-GigabitEthernet0/0/1]port link-type access
[LSW4-GigabitEthernet0/0/1]port default vlan 201
[LSW4-GigabitEthernet0/0/1]int g0/0/20
[LSW4-GigabitEthernet0/0/20]port link-type trunk
[LSW4-GigabitEthernet0/0/20]port trunk allow-pass vlan 10 20 100
[LSW4-GigabitEthernet0/0/20]int g0/0/21
[LSW4-GigabitEthernet0/0/21]port link-type trunk
[LSW4-GigabitEthernet0/0/21]port trunk allow-pass vlan 10 20 100
[LSW4-GigabitEthernet0/0/21]int eth 1
[LSW4-Eth-Trunk1]port link-type trunk
[LSW4-Eth-Trunk1]port trunk allow-pass vlan 10 20 100
[LSW4-Eth-Trunk1]undo port trunk allow-pass vlan 1
[LSW4-Eth-Trunk1]port trunk pvid vlan 100
