1+x网络系统建设与运维（中级）-练习3

一.设备命名

AR1

[Huawei]sysn AR1
[AR1]

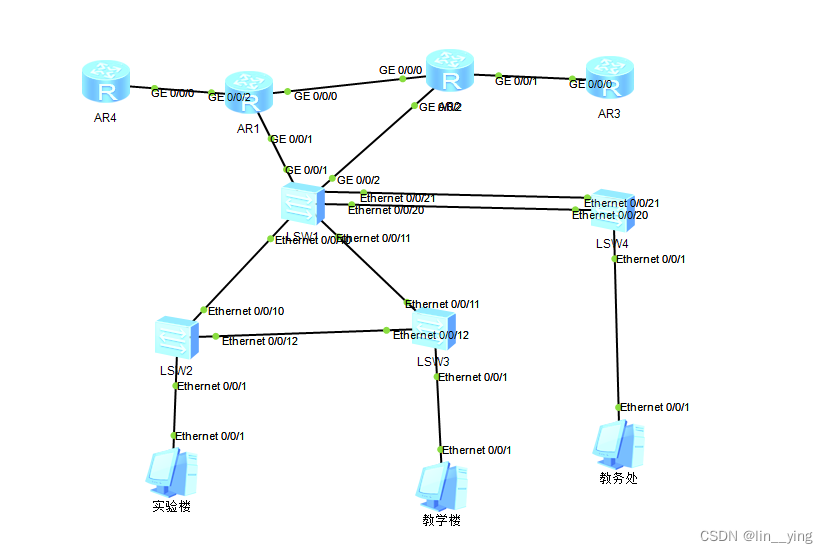

同理可得，所有设备的命名如上图所示

二.VLAN

LSW1

[LSW1]vlan 10
[LSW1-vlan10]q
[LSW1]int g0/0/1
[LSW1-GigabitEthernet0/0/1]port link-type access
[LSW1-GigabitEthernet0/0/1]port default vlan 10
[LSW1-GigabitEthernet0/0/1]int g0/0/2
[LSW1-GigabitEthernet0/0/2]port link-type access
[LSW1-GigabitEthernet0/0/2]port default vlan 10
[LSW1-GigabitEthernet0/0/2]int e0/0/10
[LSW1-Ethernet0/0/10]port link-type trunk
[LSW1-Ethernet0/0/10]port trunk allow-pass vlan 10
[LSW1-Ethernet0/0/10]int e0/0/11
[LSW1-Ethernet0/0/11]port link-type trunk
[LSW1-Ethernet0/0/11]port trunk allow-pass vlan 10
[LSW1-Ethernet0/0/11]int eth 1
[LSW1-Eth-Trunk1]port link-type trunk
[LSW1-Eth-Trunk1]port trunk allow-pass vlan 10
[LSW1-Eth-Trunk1]q
[LSW1]dis po vlan

LSW2

[LSW2]vlan 10
[LSW2-vlan10]q
[LSW2]int e0/0/10
[LSW2-Ethernet0/0/10]port link-type trunk
[LSW2-Ethernet0/0/10]port trunk allow-pass vlan 10
[LSW2-Ethernet0/0/10]int e0/0/12
[LSW2-Ethernet0/0/12]port link-type trunk
[LSW2-Ethernet0/0/12]port trunk allow-pass vlan 10
[LSW2-Ethernet0/0/12]int e0/0/1
[LSW2-Ethernet0/0/1]port link-type access
[LSW2-Ethernet0/0/1]port default vlan 10

LSW3

[LSW3]int e0/0/10
[LSW3-Ethernet0/0/10]port link-type trunk
[LSW3-Ethernet0/0/10]port trunk allow-pass vlan 10
[LSW3-Ethernet0/0/10]int e0/0/12
[LSW3-Ethernet0/0/12]port link-type trunk
[LSW3-Ethernet0/0/
