keil工程After Build/Rebuild添加带参.exe实现全流程(2):带参调用.exe的几种方法

0 工具准备

keil5工程
带参.exe

1 前言

使用keil编译生成了二进制镜像文件后,有时为了防止镜像被恶意修改,可以通过添加校验和来对整个镜像进行保护,实现手段就是在keil工程After Build/Rebuild中调用一些外部程序来为镜像添加校验和。本文基于keil5工程,介绍After Build/Rebuild添加带参.exe实现全流程(2):带参调用.exe的几种方法

2 带参调用.exe的几种方法

2.1 直接带参调用.exe

2.1.1 带参调用单个.exe

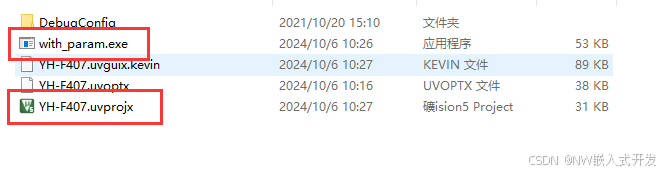

将带参调用.exe放到和keil5工程文件一个目录下(也可以放到其它目录下,只要给出正确的路径即可):
在这里插入图片描述
打开keil5工程,依次点击“options for Target…(魔法棒)”、User,勾选“Run #1”,在对应的“User Command”输入框输入“.\with_param.exe p1 p2”,这表示在当前keil5工程文件目录下运行with_param.exe,且参数1为p1,参
