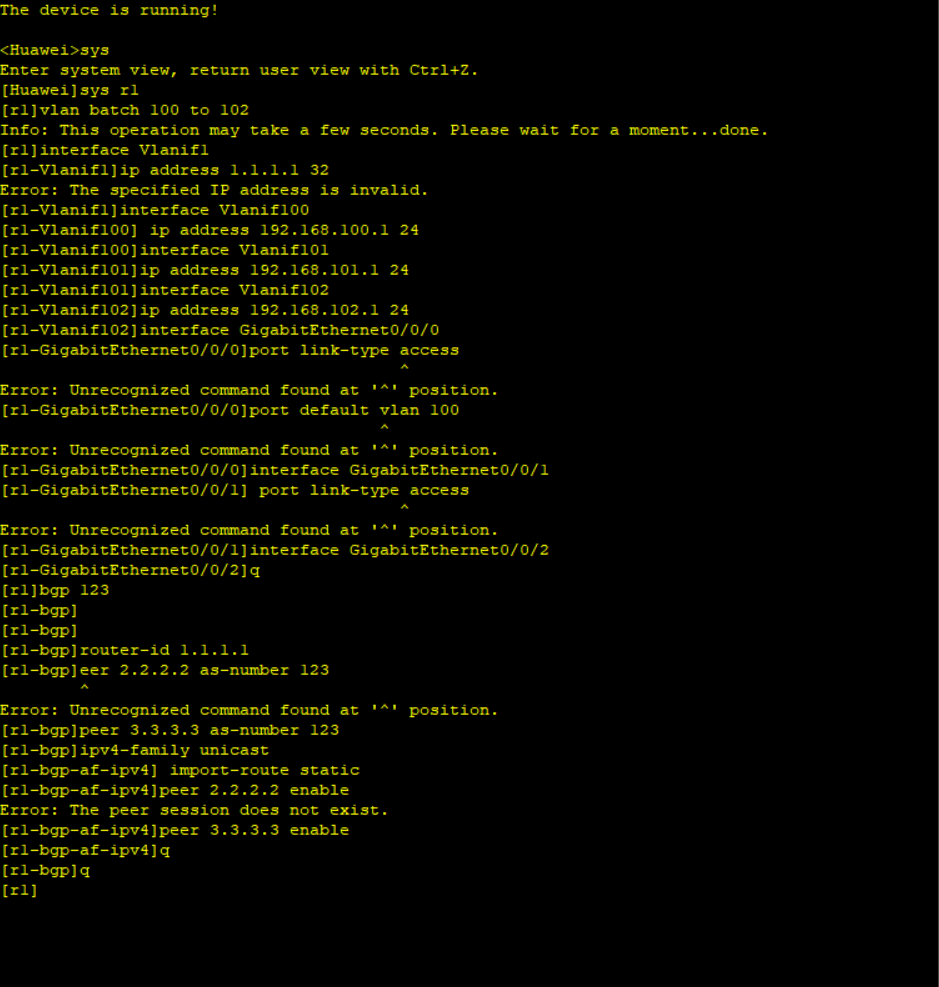

AR1 配置命令
system-view
sysname AR1
vlan batch 100 to 102
interface Vlanif100
ip address 192.168.100.1 24
interface Vlanif101
ip address 192.168.11.1 24
interface Vlanif102
ip address 192.168.12.1 24
interface GigabitEthernet0/0/0
ip address 1.1.1.1 32
interface GigabitEthernet0/0/1
ip address 3.3.3.1 32
interface GigabitEthernet0/0/2
ip address 192.168.10.1 24
bgp 123
router-id 1.1.1.1
peer 2.2.2.2 as-number 123
peer 3.3.3.3 as-number 123
ipv4-family unicast
import-route static
peer 2.2.2.2 enable
peer 3.3.3.3 enable

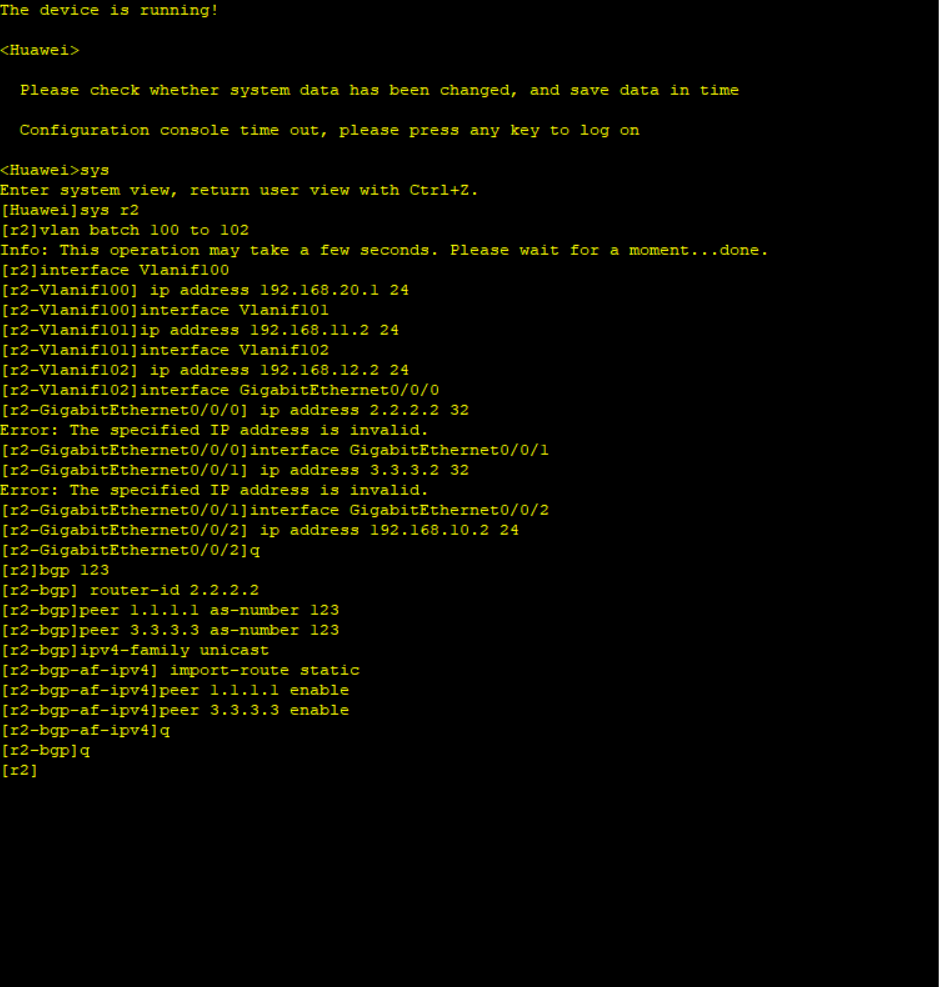

AR2 配置命令
system-view
sysname AR2
vlan batch 100 to 102
interface Vlanif100
ip address 192.168.20.1 24
interface Vlanif101
ip address 192.168.11.2 24
interface Vlanif102
ip address 192.168.12.2 24
interface GigabitEthernet0/0/0
ip address 2.2.2.2 32
interface GigabitEthernet0/0/1
ip address 3.3.3.2 32
interface GigabitEthernet0/0/2
ip address 192.168.10.2 24
bgp 123
router-id 2.2.2.2
peer 1.1.1.1 as-number 123
peer 3.3.3.3 as-number 123
ipv4-family unicast
import-route static
peer 1.1.1.1 enable
peer 3.3.3.3 enable

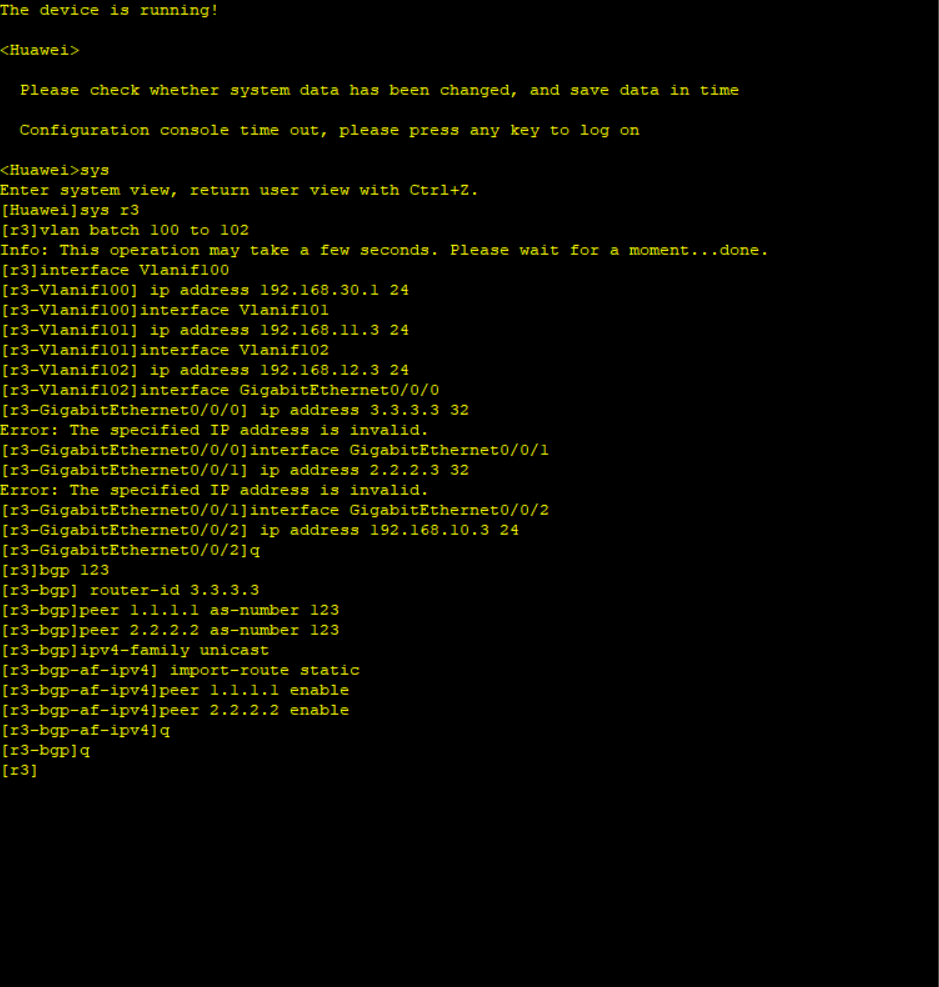

AR3 配置命令
system-view
sysname AR3
vlan batch 100 to 102
interface Vlanif100
ip address 192.168.30.1 24
interface Vlanif101
ip address 192.168.11.3 24
interface Vlanif102
ip address 192.168.12.3 24
interface GigabitEthernet0/0/0
ip address 3.3.3.3 32
interface GigabitEthernet0/0/1
ip address 2.2.2.3 32
interface GigabitEthernet0/0/2
ip address 192.168.10.3 24
bgp 123
router-id 3.3.3.3
peer 1.1.1.1 as-number 123
peer 2.2.2.2 as-number 123
ipv4-family unicast
import-route static
peer 1.1.1.1 enable
peer 2.2.2.2 enable

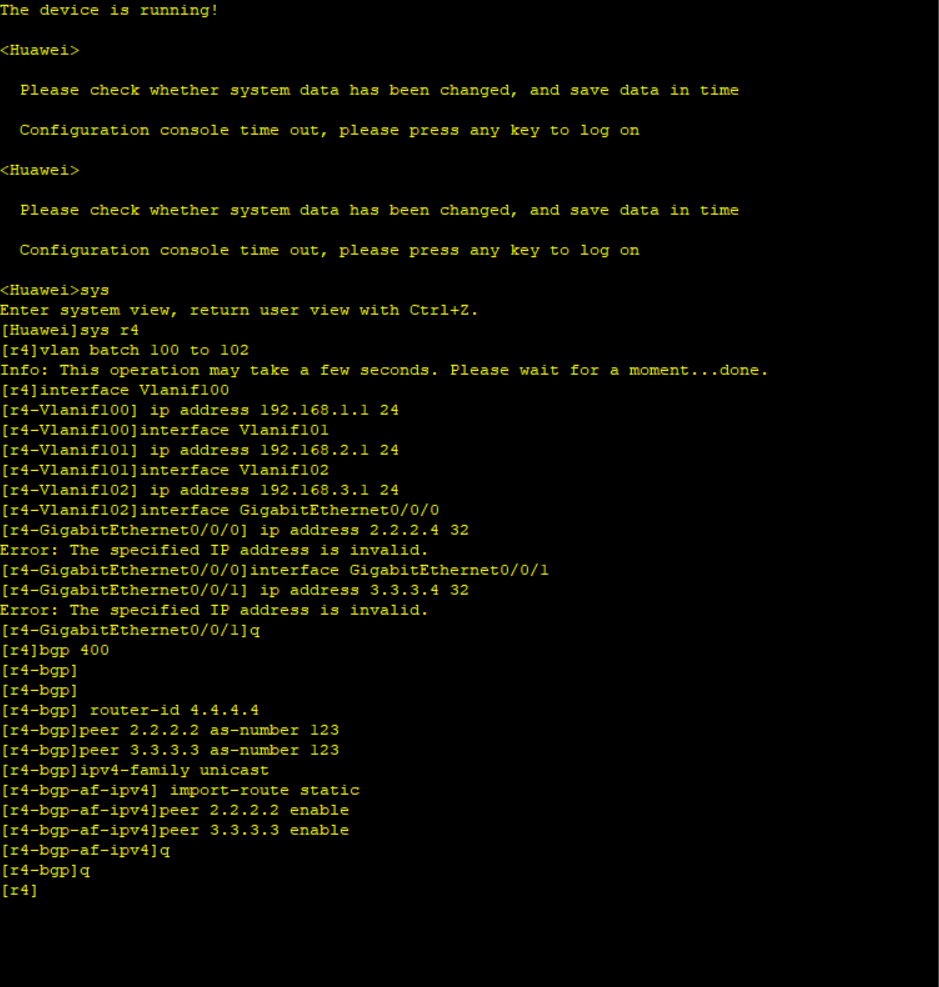

AR4 配置命令
system-view
sysname AR4
vlan batch 100 to 102
interface Vlanif100
ip address 192.168.1.1 24
interface Vlanif101
ip address 192.168.2.1 24
interface Vlanif102
ip address 192.168.3.1 24
interface GigabitEthernet0/0/0
ip address 2.2.2.4 32
interface GigabitEthernet0/0/1
ip address 3.3.3.4 32
bgp 400
router-id 4.4.4.4
peer 2.2.2.2 as-number 123
peer 3.3.3.3 as-number 123
ipv4-family unicast
import-route static
peer 2.2.2.2 enable
peer 3.3.3.3 enable

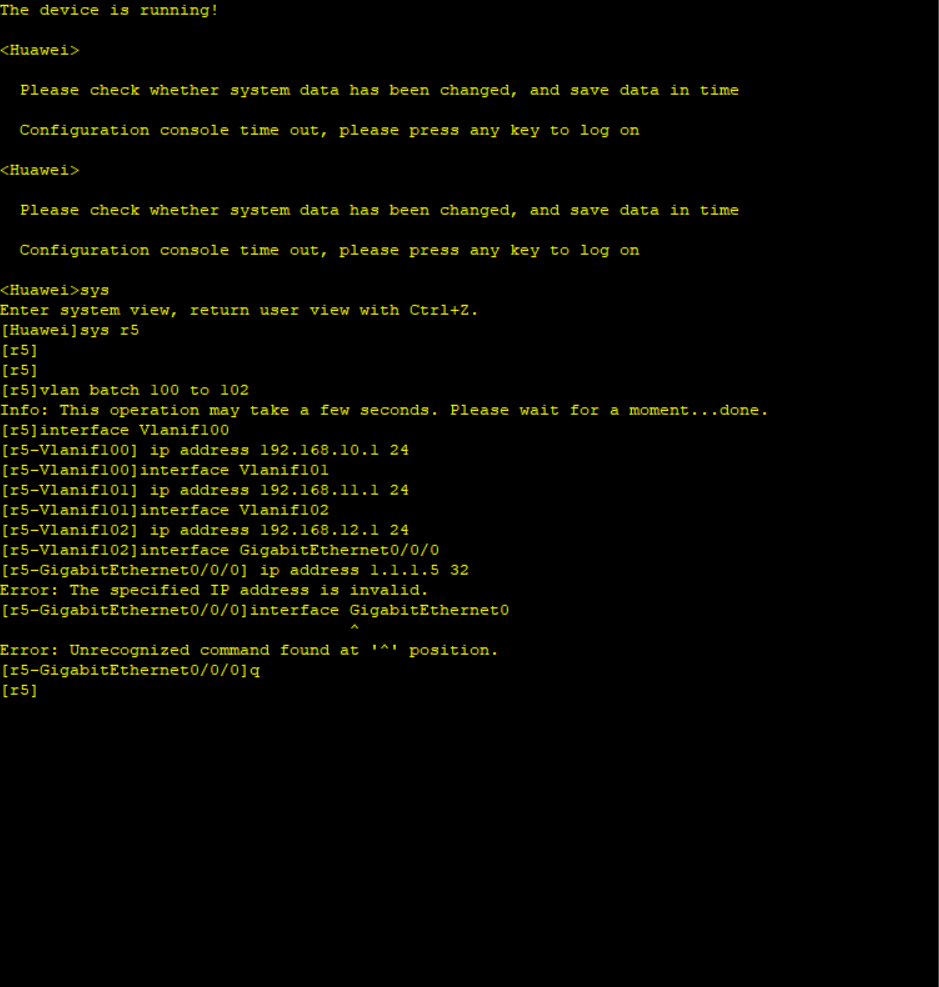

AR5 配置命令
system-view
sysname AR5
vlan batch 100 to 102
interface Vlanif100
ip address 192.168.10.1 24
interface Vlanif101
ip address 192.168.11.1 24
interface Vlanif102
ip address 192.168.12.1 24
interface GigabitEthernet0/0/0
ip address 1.1.1.5 32
interface GigabitEthernet0
