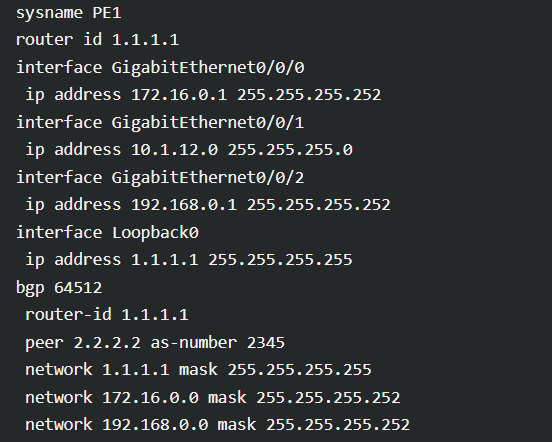

PE1 配置命令
sysname PE1
router id 1.1.1.1
interface GigabitEthernet0/0/0
ip address 172.16.0.1 255.255.255.252
interface GigabitEthernet0/0/1
ip address 10.1.12.0 255.255.255.0
interface GigabitEthernet0/0/2
ip address 192.168.0.1 255.255.255.252
interface Loopback0
ip address 1.1.1.1 255.255.255.255
bgp 64512
router-id 1.1.1.1
peer 2.2.2.2 as-number 2345
network 1.1.1.1 mask 255.255.255.255
network 172.16.0.0 mask 255.255.255.252
network 192.168.0.0 mask 255.255.255.252

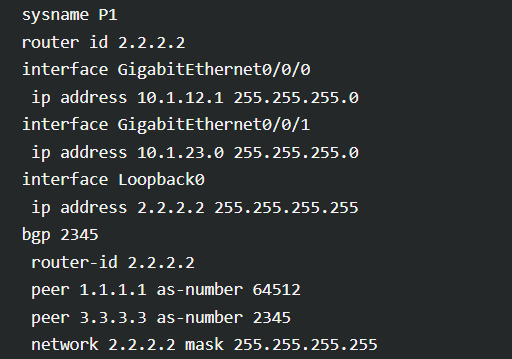

P1 配置命令
sysname P1
router id 2.2.2.2
interface GigabitEthernet0/0/0
ip address 10.1.12.1 255.255.255.0
interface GigabitEthernet0/0/1
ip address 10.1.23.0 255.255.255.0
interface Loopback0
ip address 2.2.2.2 255.255.255.255
bgp 2345
router-id 2.2.2.2
peer 1.1.1.1 as-number 64512
peer 3.3.3.3 as-number 2345
network 2.2.2.2 mask 255.255.255.255

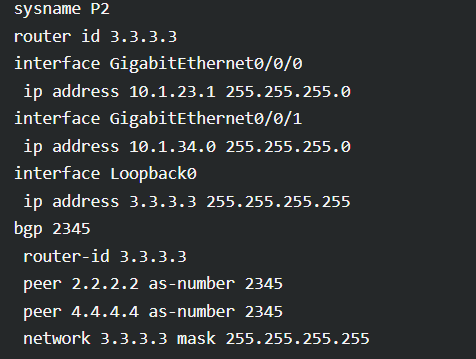

P2 配置命令
sysname P2
router id 3.3.3.3
interface GigabitEthernet0/0/0
ip address 10.1.23.1 255.255.255.0
interface GigabitEthernet0/0/1
ip address 10.1.34.0 255.255.255.0
interface Loopback0
ip address 3.3.3.3 255.255.255.255
bgp 2345
router-id 3.3.3.3
peer 2.2.2.2 as-number 2345
peer 4.4.4.4 as-number 2345
network 3.3.3.3 mask 255.255.255.255

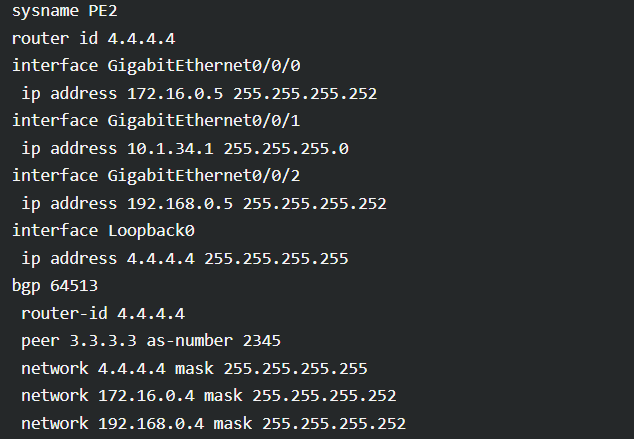

PE2 配置命令
sysname PE2
router id 4.4.4.4
interface GigabitEthernet0/0/0
ip address 172.16.0.5 255.255.255.252
interface GigabitEthernet0/0/1
ip address 10.1.34.1 255.255.255.0
interface GigabitEthernet0/0/2
ip address 192.168.0.5 255.255.255.252
interface Loopback0
ip address 4.4.4.4 255.255.255.255
bgp 64513
router-id 4.4.4.4
peer 3.3.3.3 as-number 2345
network 4.4.4.4 mask 255.255.255.255
network 172.16.0.4 mask 255.255.255.252
network 192.168.0.4 mask 255.255.255.252

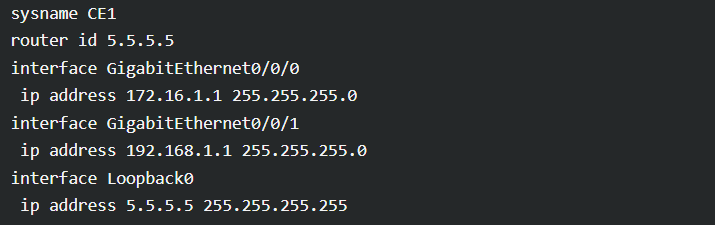

CE1 配置命令
sysname CE1
router id 5.5.5.5
interface GigabitEthernet0/0/0
ip address 172.16.1.1 255.255.255.0
interface GigabitEthernet0/0/1
ip address 192.168.1.1 255.255.255.0
interface Loopback0
ip address 5.5.5.5 255.255.255.255

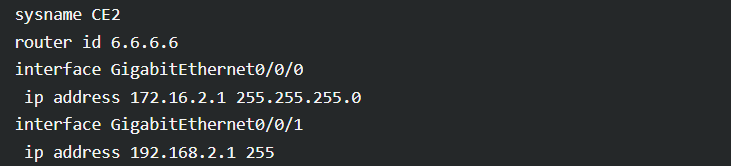

CE2 配置命令
sysname CE2
router id 6.6.6.6
interface GigabitEthernet0/0/0
ip address 172.16.2.1 255.255.255.0
interface GigabitEthernet0/0/1
ip address 192.168.2.1 255
