Linux VFS文件系统

Linux一直强调一切皆文件,除了普通的文件和目录,块设备、管道、socket等都被Linux视为文件。所以理解了文件系统,对于深入理解Linux非常重要,接下来就让我们从设计和源码双角度了解Linux文件系统。

1. VFS的基本概念

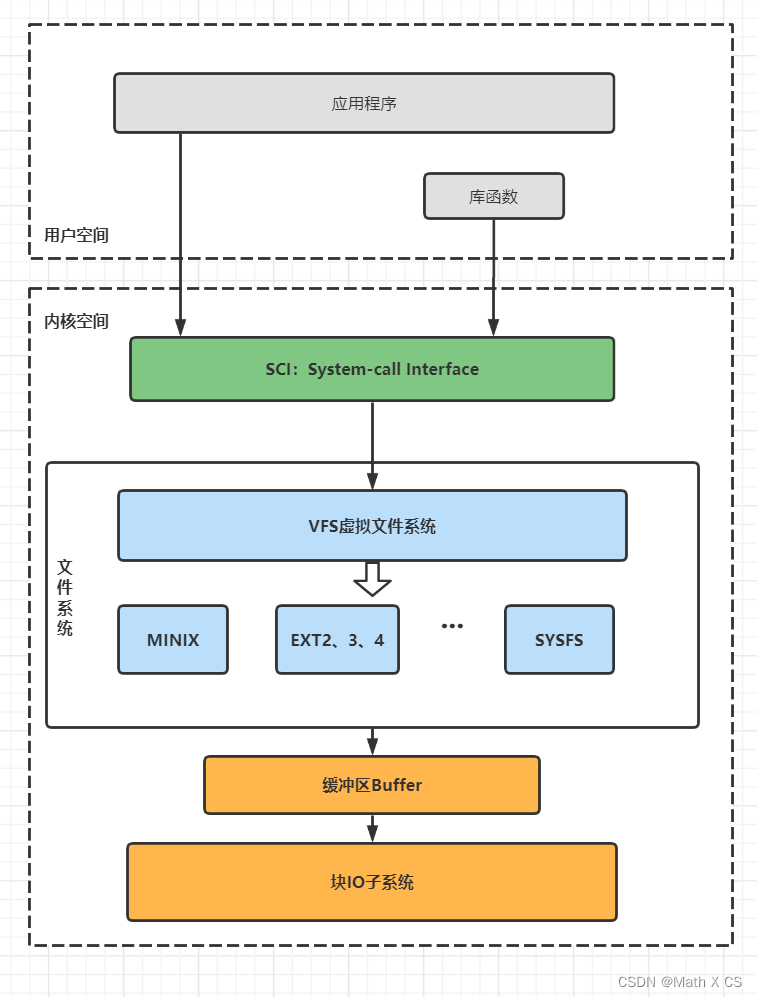

Linux内核通过虚拟文件系统(Virtual File System,VFS)管理文件系统。VFS是Linux内核文件系统的一个极其重要的基础设施,VFS为所有的文件系统提供了统一的接口,对每个具体文件系统的访问要通过VFS定义的接口来实现,所有Linux的文件系统也必须按照VFS定义的方式来实现。

VFS本身只存在于内存中,需要将硬盘中的文件系统抽象到内存中,这个过程是通过几个重要的结构实现的,分别是:super_block,dentry,inode,file,通过这些结构,可以将硬盘中的文件系统抽象到内存中,通过对dentry,inode的管理来实现对文件系统的一些操作。

在这里插入图片描述

1.1 super_block

struct super_block {
    struct list_head	s_list;
    unsigned long        s_blocksize;
    unsigned char        s_blocksize_bits;
    ……/*省略超级块的链表、设备号等代码*/
    unsigned long long        s_maxbytes;        /* Max file size */
    struct file_system_type        *s_type;
    struct super_operations        *s_op;
    unsigned long        s_magic;
    struct dentry        *s_root;
    struct list_head        s_inodes;        /* all inodes */
    struct list_head         s_dirty;        /* dirty inodes */
    struct block_device        *s_bdev;
    void         *s_fs_info;        /* Filesystem private info */
};

超级块(super_block)代表了整个文件系统本身,超级块一般对应文件系统自身在磁盘上的超级块结构

  • s_list链接超级块链表

  • s_blocksize指定了文件系统块大小

  • s_maxbytes指定了文件系统中最大文件的尺寸

  • s_type是指向file_system_type结构的指针,file_system_type是表示文件系统类型的结构体,每种文件系统类型中都有一个链表,指向所有属于该类型的文件系统的超级块。

  • s_magic是魔术数字,每个文件系统都有一个魔术数字

  • s_root是指向文件系统根dentry的指针

  • s_inodes指向文件系统内所有的inode,通过它可以遍历inode对象

  • s_dirty指向所有dirty的inode对象

  • s_bdev指向文件系统存在的块设备指针

  • s_op存储的函数指针

    函数功能
    alloc_inode(sb)为一个inode对象分配空间
    destroy_inode(inode)销毁一个inode对象
    read_inode(inode)从磁盘中读取inode数据,填充作为传入参数的inode对象
    write_inode(inode, flag)使用内存中的inode信息更新磁盘中的inode信息
    delete_inode(inode)删除内存中的inode对象同时删除磁盘上的inode

1.2 dentry

dentry记录着文件名,上级目录等信息,文件系统的树状结构主要就是由dentry链接表示出来的,需要注意的是,dentry并不实际保存具体文件信息

struct dentry {
    ……/省略dentry锁、标志等代码/
    struct inode *d_inode;        /* Where the name belongs to - NULL is negative */
    /*
    * The next three fields are touched by __d_lookup.  Place them here
    * so they all fit in a cache line.
    */
    struct hlist_node d_hash;        /* lookup hash list */
    struct dentry *d_parent;                /* parent directory */
    struct qstr d_name;
    /*
    * d_child and d_rcu can share memory
    */
    union {
        struct list_head d_child;        /* child of parent list */
        struct rcu_head d_rcu;
    } d_u;
    struct list_head d_alias;    /* inode alias list */
    struct list_head d_subdirs;        /* our children */
    struct dentry_operations *d_op;
    struct super_block *d_sb;        /* The root of the dentry tree */
    int d_mounted;
};
  • d_inode指向一个inode结构,这个inodedentry共同描述了一个普通文件或者目录文件

  • d_subdirs子项的链表头

  • d_childdentry自身的链表头,需要连接到父dentryd_subdirs成员

  • d_parent指向父dentry结构

  • d_hash是链接到dentry cache的hash链表

  • d_name保存文件或者目录的名字

  • d_mounted只来指示dentry是否是一个挂载点,如果是,则不为0

  • d_alias:一个有效的dentry必然与一个inode关联,但是一个inode可以对应多个dentry,因为一个文件可以被链接到其他文件,所以,这个dentry就是通过这个字段链接到属于自己的inode结构中的i_dentry链表中的。

  • d_op中存储的函数指针

    函数功能
    d_revalidate(dentry, nameidata)判断当前dentry对象是仍然有效,应该是dentry cache中使用的
    d_hash(dentry, name)计算哈希值,应该也是dentry cache中使用的
    d_delete(dentry)在d_count为0时,删除dentry,默认的VFS函数什么都不做

1.3 inode

inode代表一个文件。inode保存了文件的大小、创建时间、文件的块大小等参数,以及对文件的读写函数、文件读写缓存等信息。

struct inode {
    struct list_head        i_list;
    struct list_head        i_sb_list;
    struct list_head        i_dentry;
    unsigned long        i_ino;
    atomic_t        i_count;
    loff_t        i_size;
    unsigned int        i_blkbits;
    struct inode_operations        *i_op;
    const struct file_operations        *i_fop;        /* former ->i_op->default_file_ops */
    struct address_space        *i_mapping;
    struct block_device        *i_bdev;
    ……/*省略锁等代码*/
};
  • 成员i_listi_sb_listi_dentry分别是三个链表头。成员i_list用于链接描述inode当前状态的链表。成员i_sb_list用于链接到超级块中的inode链表。当创建一个新的inode的时候,成员i_list要链接到inode_in_use这个链表,表示inode处于使用状态,同时成员i_sb_list也要链接到文件系统超级块的s_inodes链表头。由于一个文件可以对应多个dentry,这些dentry都要链接到成员i_dentry这个链表头。

  • 成员i_inoinode的号,而i_countinode的引用计数。成员i_size是以字节为单位的文件长度。

  • 成员i_blkbits是文件块的位数。

  • 成员i_fop是一个struct file_operations类型的指针。文件的读写函数和异步io函数都在这个结构中提供。每一个具体的文件系统,基本都要提供各自的文件操作函数。

  • i_mapping是一个重要的成员。这个结构目的是缓存文件的内容,对文件的读写操作首先要在i_mapping包含的缓存里寻找文件的内容。如果有缓存,对文件的读就可以直接从缓存中获得,而不用再去物理硬盘读取,从而大大加速了文件的读操作。写操作也要首先访问缓存,写入到文件的缓存。然后等待合适的机会,再从缓存写入硬盘。后面我们将分析文件的具体读写,在此处只需要理解基本的作用即可。

  • 成员i_bdev是指向块设备的指针。这个块设备就是文件所在的文件系统所绑定的块设备。

  • i_op中存储的函数指针

    函数功能
    create(dir, dentry, mode, nameidata)创建一个inode
    lookup(dir, dentry, nameidata)在一个目录文件中查找和dentry包含的文件名匹配的inode
    link(old_dentry, dir, new_dentry)创建一个指向new_dentry的硬链接,保存在old_dentry中,该old_dentry和new_dentry指向同一个inode,即同一个文件。
    symlink(dir, dentry, symname)创建一个新的inode,该inode是一个软连接文件,指向参数dentry
    mkdir(dir, dentry, mode)为dentry创建一个目录文件的inode

1.4 file

file数据结构用于存储进程和打开的文件之间交互的信息,这个信息只会存在于内核空间中,在磁盘上没有对应的信息。

struct file {
    union {
		struct llist_node	fu_llist;
		struct rcu_head 	fu_rcuhead;
	} f_u;
	struct path		f_path;
	struct inode		*f_inode;	/* cached value */
	const struct file_operations	*f_op;
    unsigned int              f_flags;/* 文件标志,如O_RDONLY、O_NONBLOCK、O_SYNC */
    fmode_t                 f_mode;/* 文件读/写模式,FMODE_READ、FMODE_WRITE */
    ……/*省略部分代码*/
    loff_t        f_pos;
    struct fown_struct        f_owner;
    unsigned int        f_uid, f_gid;
    struct file_ra_state        f_ra;
    struct address_space        *f_mapping;
};

struct path {
	struct vfsmount *mnt;
	struct dentry *dentry;
}
  • f_inode指向该file对应的dentry

  • f_path.dentry指向该file对应的dentry

  • f_path.mnt指向file所在的文件系统(文件系统挂载的数据结构)

  • f_uid,f_gid分别表示文件的用户id和用户组id

  • f_op存储函数指针

    函数功能
    open(inode, file)打开文件
    llseek(file, offset, origin)移动文件指针
    read(file, buf, count, offset)读文件
    write(file, buf, count, offset)写文件

1.5 file_system_type

struct file_system_type {
        const char *name;
        int fs_flags;
        struct super_block *(*get_sb)(struct file_system_type *,
                int, char *, void *, struct vfsmount *);
        void (*kill_sb) (struct super_block *);
        struct module *owner;
        struct file_system_type *next;
        struct list_head fs_supers;
        struct lock_class_key s_lock_key;
        struct lock_class_key s_umount_key;
};
  • name保存文件系统类型的名称

  • get_sb在文件系统mount时,内核调用get_sb()来初始化信息并设置超级块

  • kill_sb在文件系统umount时清除信息

  • next, 在 fs/filesystems.c 文件中有一个全局变量

    static struct file_system_type *file_systems;


    该变量是已知file_system_type链表的头, register_filesystem() 会将一个file_system_type加入到链表, unregister_filesystem() 将一个file_system_type从链表中移除,next就是用来链接链表中的file_system_type

  • fs_supers就是该file_system_type超级块链表的头部

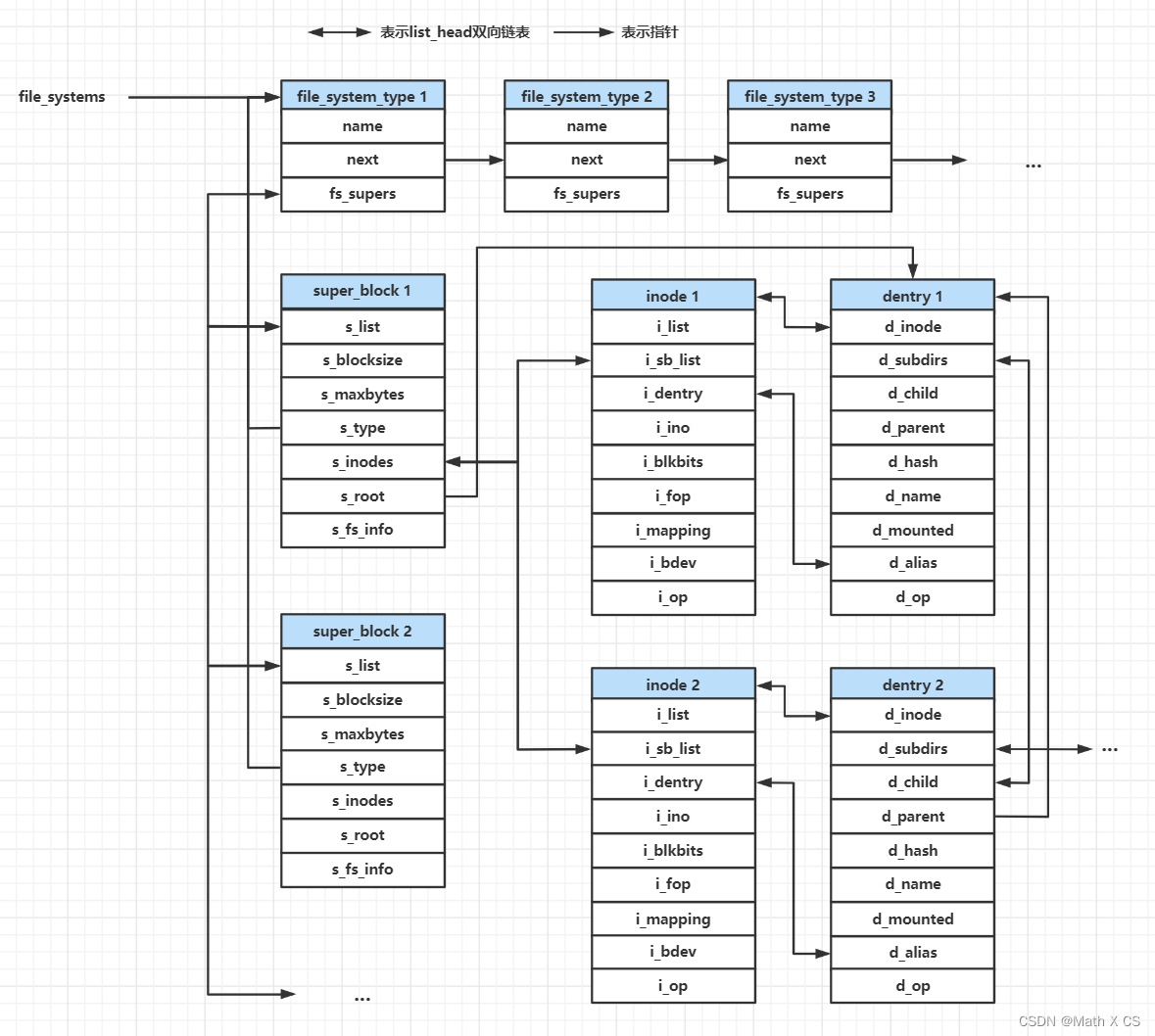

1.5 overview

在这里插入图片描述

2. 文件在磁盘中的存储结构

前面说的VFS虚拟文件系统都处于内存中,接下来介绍文件系统在硬盘这种硬件中是如何组织的

在Linux系统中,硬盘设备对应/dev/sda这样的设备文件,诸如此类的块设备代表整块硬盘,分区是对整块硬盘的进一步划分,在Linux系统中由硬盘的名称加数字表示,如/dev/sda1, /dev/sda2。内核将分区用块设备呈现,如同每个分区都是一整块硬盘,分区信息存放在硬盘上的分区表中。

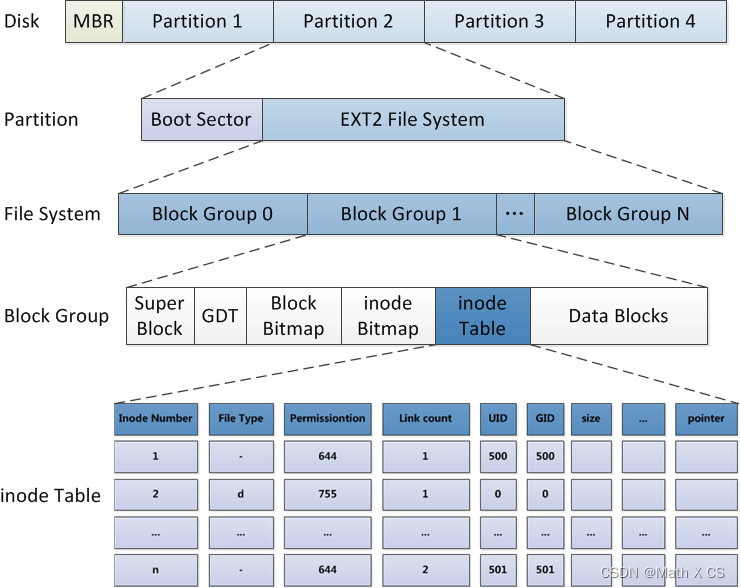

在这里插入图片描述
分区表有很多种,比较典型的一种叫主引导记录(Master Boot Record,以下简称MBR)。另一种逐渐普及的叫做全局唯一标识符分区表(Globally Unique Identifier Partition Table,以下简称GPT)。MBR最多只能有4个主分区,如果需要更多分区,要将一个分区设置为扩展分区,然后将扩展分区划分为数个逻辑分区。

以Ext2为例,每个Ext2分区文件系统数据结构的第一个部分都是boot block,boot block 是芯片设计厂家在LPC2000系列微控制器内部固化的一段代码,用户无法对其修改和删除。这段代码在芯片复位后首先被运行,其功能主要是判断运行那个存储器上的程序、检查用户代码是否有效、判断芯片是否被加密、芯片的在应用以及在系统编程功能,在系统启动时起到引导作用。Boot Block之后是连续的块组。
在这里插入图片描述

  • Super Block,每个块组中的Super Block与VFS架构中的超级块(super_block)相对应,包含的是文件系统(不单纯是本块组)的重要信息,比如 inode 总个数、块总个数、每个块组的 inode 个数、每个块组的块个数等等
  • Group Descriptors(GDT),包含文件系统中各个块组的状态,比如块组中空闲块和 inode 的数目等,每个块组都包含了文件系统中所有块组的组描述符信息
  • Block Bitmap中记录着Data Blocks中哪个数据块已经被占用,哪个数据块没 有被占用
  • inode Bitmap判断此位置映射的inode号有没有被其他文件所占用,占用了这个位就会设为1,否者为0,这些位图对应了inode table中的某一个位置
  • inode Table,包含了块组中所有的 inode,inode 用于保存文件系统中与各个文件和目录相关的所有元数据
  • Data Blocks,数据块,包含文件的有用数据。

每个块组里有很多重复的信息,比如超级块和块组描述符表,这两个都是全局信息,而且非常的重要,这么做是有两个原因:

  • 如果系统崩溃破坏了超级块或块组描述符,有关文件系统结构和内容的所有信息都会丢失。如果有冗余的副本,该信息是可能恢复的。
  • 通过使文件和管理数据尽可能接近,减少了磁头寻道和旋转,这可以提高文件系统的性能。

3.文件挂载

文件系统在能够正常使用之前都必须经历挂载的过程

挂载是为了什么?Linux系统本身也有一个文件目录树,把新文件系统的dentry树绑定到系统本来的dentry树上并建立链接,这样就可以通过原先的系统树遍历到新的文件系统的dentry树了,这就是mount的过程

执行文件系统的mount指令,要指定一个源文件系统和一个目的文件系统。同时要为目的文件系统指定一个目录,源文件系统就挂载到目的文件系统的这个目录下,这个目录被称为挂载点。一般源文件系统要制定设备名,这个设备就是源文件系统所存在的设备。

先介绍一下vfsmount

struct vfsmount {
	struct dentry *mnt_root;	/* root of the mounted tree */
	struct super_block *mnt_sb;	/* pointer to superblock */
	int mnt_flags;
	struct user_namespace *mnt_userns;
} __randomize_layout;

vfsmount结构描述的是一个独立文件系统的挂载信息,每个不同挂载点对应一个独立的vfsmount结构,属于同一文件系统的所有目录和文件隶属于同一个vfsmount,该vfsmount结构对应于该文件系统顶层目录,即挂载目录

文件系统挂载通过系统调用sys_mount来执行,系统调用sys_mount又会调用do_mount整体过程如下:

do_mount->path_mount->do_new_mount->do_new_mount_fc->…

long do_mount(const char *dev_name, const char __user *dir_name,
		const char *type_page, unsigned long flags, void *data_page)
{
	struct path path;
	int ret;

	ret = user_path_at(AT_FDCWD, dir_name, LOOKUP_FOLLOW, &path);
	if (ret)
		return ret;
	ret = path_mount(dev_name, &path, type_page, flags, data_page);
	path_put(&path);
	return ret;
}
...

具体代码定义于内核fs/namespace.c文件内。

4. 文件打开

在Linux内核最早0.0.1的版本中,进程打开文件的纪律方式非常简单,直接将进程打开的文件放在struct task_struct所定义的定长数组struct file*中。

struct task_struct {
        //...
        struct file * filp[NR_OPEN];
        fd_set close_on_exec;
        // ...
}

这样子虽然简洁,但是限制了每个进程可以打开的文件数不能超过NR_OPEN的设置。

从Linux 1.1.11版本开始,Linux从task_struct中分离出了fs_structfiles_structmm_struct,并在1.3.22版本中将其设置为指针形式,这与我们现在看到的task_struct就非常类似了,但是files_structfd仍然是定长数组。

// include/linux/sched.h of linux-1.3.21

/* Open file table structure */
struct files_struct {
        int count;
        fd_set close_on_exec;
        struct file * fd[NR_OPEN];
};

struct task_struct {
        // ...

/* filesystem information */
        struct fs_struct *fs;
/* open file information */
        struct files_struct *files;
/* memory management info */
        struct mm_struct *mm;

        // ...
};

2.1.90 把 files_structfd成员从定长数组改成了动态数组,这样每个进程就能同时打开很多文件了,为编写高并发的网络服务扫清了一大障碍。

/*
 * Open file table structure
 */
struct files_struct {
        atomic_t count;
+       int max_fds;
+       struct file ** fd;      /* current fd array */
        fd_set close_on_exec;   // changed to fd_set* in 2.2.12
        fd_set open_fds;
-       struct file * fd[NR_OPEN];
};

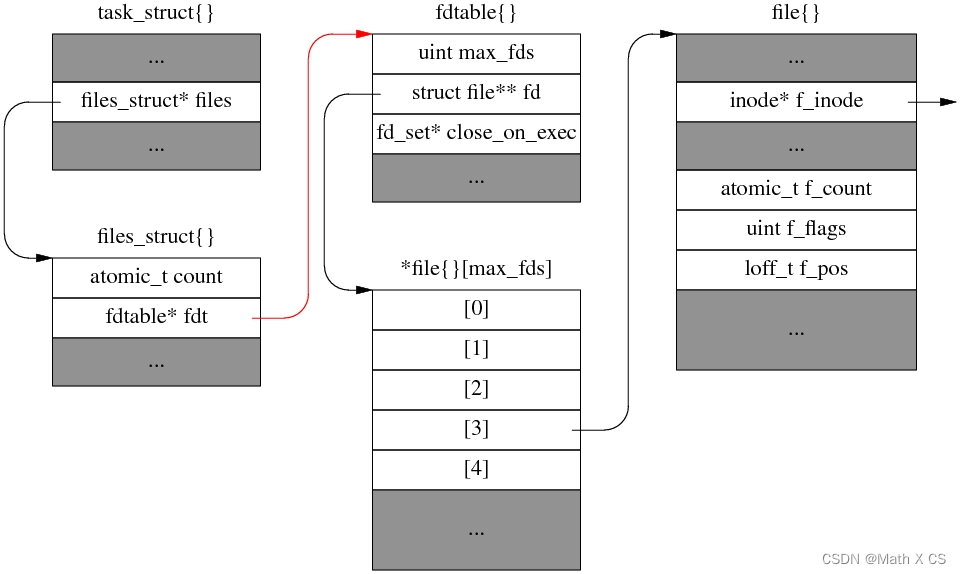

2.6.14 引入了 struct fdtable 作为 files_struct 的间接成员,把 fd、max_fds、close_on_exec 等成员fdtable。这么做是为了方便采用 RCU,让 fdtable 可以整体替换。至今依然采用这种设计。

// include/linux/fdtable.h of linux-2.6.37

struct fdtable {
        unsigned int max_fds;
        struct file __rcu **fd;      /* current fd array */
        fd_set *close_on_exec;
        fd_set *open_fds;
        struct rcu_head rcu;
        struct fdtable *next;
};

/*
 * Open file table structure
 */
struct files_struct {
  /*
   * read mostly part
   */
        atomic_t count;
        struct fdtable __rcu *fdt;
        struct fdtable fdtab;
  /*
   * written part on a separate cache line in SMP
   */
        spinlock_t file_lock ____cacheline_aligned_in_smp;
        int next_fd;
        struct embedded_fd_set close_on_exec_init;
        struct embedded_fd_set open_fds_init;
        struct file __rcu * fd_array[NR_OPEN_DEFAULT];
};

在这里插入图片描述

打开一个文件,需要使用内核提供的系统调用sys_open,具体调用过程如下

sys_open->do_sys_open->do_filp_open->path_openat->link_path_walk->walk_component->…

SYSCALL_DEFINE3(open, const char __user *, filename, int, flags, umode_t, mode)
{
	if (force_o_largefile())
		flags |= O_LARGEFILE;

	return do_sys_open(AT_FDCWD, filename, flags, mode);
}

long do_sys_open(int dfd, const char __user *filename, int flags, umode_t mode)
{
	struct open_flags op;
    //检查给定的 flags 参数是否有效,并处理不同的 flags 和 mode 条件
	int fd = build_open_flags(flags, mode, &op);
	struct filename *tmp;

	if (fd)
		return fd;
	//将文件路径从用户空间拷贝到内核空间
	tmp = getname(filename);
	if (IS_ERR(tmp))
		return PTR_ERR(tmp);
	//从当前进程的打开文件表(files_struct)中找到一个空闲的表项,该表项的下标即为“打开文件号”
	fd = get_unused_fd_flags(flags);
	if (fd >= 0) {
        //创建进程与文件的链接,或者说创建file结构体代表该读写文件的上下文
		struct file *f = do_filp_open(dfd, tmp, &op);
		if (IS_ERR(f)) {
            //如果发生了错误,释放已分配的 fd 文件描述符
			put_unused_fd(fd);
            //释放已分配的 struct file
			fd = PTR_ERR(f);
		} else {
			fsnotify_open(f);
            //将这个file结构体的指针填入当前进程的打开文件表中
			fd_install(fd, f);
		}
	}
	putname(tmp);
	return fd;
}

//用来保存路径遍历时候当前目录状态
struct nameidata {
    struct path path;
    struct qstr last;
    struct path root;
    struct inode    *inode; /* path.dentry.d_inode */
    unsigned int    flags;
    unsigned    seq;
    int     last_type;
    unsigned    depth;
    char *saved_names[MAX_NESTED_LINKS + 1];
};

struct file *do_filp_open(int dfd, struct filename *pathname,
		const struct open_flags *op)
{
	struct nameidata nd;
	int flags = op->lookup_flags;
	struct file *filp;

    //为nd赋值
	set_nameidata(&nd, dfd, pathname);
    //使用 RCU 查找(rcu-walk)方式
	filp = path_openat(&nd, op, flags | LOOKUP_RCU);
	if (unlikely(filp == ERR_PTR(-ECHILD)))
        //使用 REF 查找(ref-walk)方式
		filp = path_openat(&nd, op, flags);
	if (unlikely(filp == ERR_PTR(-ESTALE)))
		filp = path_openat(&nd, op, flags | LOOKUP_REVAL);
	restore_nameidata();
	return filp;
}

static struct file *path_openat(struct nameidata *nd,
			const struct open_flags *op, unsigned flags)
{
	struct file *file;
	int error;
	//获取一个空的 file 描述符, 设置 file 描述符的查找标志。
	file = alloc_empty_file(op->open_flag, current_cred());
	if (IS_ERR(file))
		return file;
	//如果是要创建一个临时文件
	if (unlikely(file->f_flags & __O_TMPFILE)) {
		error = do_tmpfile(nd, flags, op, file);
	} else if (unlikely(file->f_flags & O_PATH)) {
		error = do_o_path(nd, flags, file);
	} else {
        // 路径初始化,确定查找的起始目录,初始化结构体 nameidata 的成员 path。
		const char *s = path_init(nd, flags);
        // 调用函数 link_path_walk 解析文件路径的每个分量,最后一个分量除外。
  		// 调用函数 do_last,解析文件路径的最后一个分量,并且打开文件。
		while (!(error = link_path_walk(s, nd)) &&
			(error = do_last(nd, file, op)) > 0) {
            // 如果最后一个分量是符号链接,调用 trailing_symlink 函数进行处理
    		// 读取符号链接文件的数据,新的文件路径是符号链接链接文件的数据,然后继续 while循环,解析新的文件路径。
			nd->flags &= ~(LOOKUP_OPEN|LOOKUP_CREATE|LOOKUP_EXCL);
			s = trailing_symlink(nd);
		}
		terminate_walk(nd);
	}
	if (likely(!error)) {
		if (likely(file->f_mode & FMODE_OPENED))
			return file;
		WARN_ON(1);
		error = -EINVAL;
	}
	fput(file);
	if (error == -EOPENSTALE) {
		if (flags & LOOKUP_RCU)
			error = -ECHILD;
		else
			error = -ESTALE;
	}
	return ERR_PTR(error);
}

/*
*link_path_walk()完成的工作是逐级解析file路径,直到解析到最后一级路径,最终会将filename保存到 *nameidata的last成员以供do_last()处理最后的file open动作
*/
static int link_path_walk(const char *name, struct nameidata *nd)
{
	int depth = 0; // depth <= nd->depth
	int err;

	nd->last_type = LAST_ROOT;
	nd->flags |= LOOKUP_PARENT;
	if (IS_ERR(name))
		return PTR_ERR(name);
    //如果是根目录,跳过‘/’
	while (*name=='/')
		name++;
    //如果路径只包含‘/’,搜索完成,返回。
	if (!*name) {
		nd->dir_mode = 0; // short-circuit the 'hardening' idiocy
		return 0;
	}

	/* At this point we know we have a real path component. */
	for(;;) {
		struct user_namespace *mnt_userns;
		const char *link;
		u64 hash_len;
		int type;

		mnt_userns = mnt_user_ns(nd->path.mnt);
		err = may_lookup(mnt_userns, nd);
		if (err)
			return err;

        //计算当前目录的hash_len,这个变量高4 byte是当前目录name字串长度,低4byte是当前目录(路径)的hash值
        //hash值的计算是基于当前目录的父目录dentry(nd->path.dentry)来计算的,所以它跟其目录(路径)dentry是关联的
		hash_len = hash_name(nd->path.dentry, name);

		type = LAST_NORM;
		if (name[0] == '.') switch (hashlen_len(hash_len)) {
			case 2:
                //如果以..开头
				if (name[1] == '.') {
					type = LAST_DOTDOT;
					nd->state |= ND_JUMPED;
				}
				break;
			case 1:
                //如果以.开头
				type = LAST_DOT;
		}
		if (likely(type == LAST_NORM)) {
			struct dentry *parent = nd->path.dentry;
			nd->state &= ~ND_JUMPED;
			if (unlikely(parent->d_flags & DCACHE_OP_HASH)) {
				struct qstr this = { { .hash_len = hash_len }, .name = name };
				err = parent->d_op->d_hash(parent, &this);
				if (err < 0)
					return err;
				hash_len = this.hash_len;
				name = this.name;
			}
		}
		//更新nd->last, 保存上一级目录信息
		nd->last.hash_len = hash_len;
		nd->last.name = name;
		nd->last_type = type;

		name += hashlen_len(hash_len);
		if (!*name)
			goto OK;
		/*
		 * If it wasn't NUL, we know it was '/'. Skip that
		 * slash, and continue until no more slashes.
		 */
		do {
			name++;
		} while (unlikely(*name == '/'));
		if (unlikely(!*name)) {
OK:
			/* pathname or trailing symlink, done */
			if (!depth) {
				nd->dir_uid = i_uid_into_mnt(mnt_userns, nd->inode);
				nd->dir_mode = nd->inode->i_mode;
				nd->flags &= ~LOOKUP_PARENT;
				return 0;
			}
			/* last component of nested symlink */
			name = nd->stack[--depth].name;
			link = walk_component(nd, 0);
		} else {
			/* not the last component */
			link = walk_component(nd, WALK_MORE);
		}
		if (unlikely(link)) {
			if (IS_ERR(link))
				return PTR_ERR(link);
			/* a symlink to follow */
			nd->stack[depth++].name = name;
			name = link;
			continue;
		}
		if (unlikely(!d_can_lookup(nd->path.dentry))) {
			if (nd->flags & LOOKUP_RCU) {
				if (!try_to_unlazy(nd))
					return -ECHILD;
			}
			return -ENOTDIR;
		}
	}
}

更详细代码见fs/namei.c

5. 文件读

读一个文件需要系统调用sys_read,具体过程如下:

sys_read->ksys_read->vfs_read->new_sync_read->call_read_iter->…

SYSCALL_DEFINE3(read, unsigned int, fd, char __user *, buf, size_t, count)
{
	return ksys_read(fd, buf, count);
}

ssize_t ksys_read(unsigned int fd, char __user *buf, size_t count)
{
	struct fd f = fdget_pos(fd);
	ssize_t ret = -EBADF;

	if (f.file) {
		loff_t pos, *ppos = file_ppos(f.file);
		if (ppos) {
			pos = *ppos;
			ppos = &pos;
		}
		ret = vfs_read(f.file, buf, count, ppos);
		if (ret >= 0 && ppos)
			f.file->f_pos = pos;
		fdput_pos(f);
	}
	return ret;
}

ssize_t vfs_read(struct file *file, char __user *buf, size_t count, loff_t *pos)
{
	ssize_t ret;

	if (!(file->f_mode & FMODE_READ))
		return -EBADF;
	if (!(file->f_mode & FMODE_CAN_READ))
		return -EINVAL;
	if (unlikely(!access_ok(buf, count)))
		return -EFAULT;

	ret = rw_verify_area(READ, file, pos, count);
	if (ret)
		return ret;
	if (count > MAX_RW_COUNT)
		count =  MAX_RW_COUNT;

	if (file->f_op->read)
		ret = file->f_op->read(file, buf, count, pos);
	else if (file->f_op->read_iter)
		ret = new_sync_read(file, buf, count, pos);
	else
		ret = -EINVAL;
	if (ret > 0) {
		fsnotify_access(file);
		add_rchar(current, ret);
	}
	inc_syscr(current);
	return ret;
}

static ssize_t new_sync_read(struct file *filp, char __user *buf, size_t len, loff_t *ppos)
{
	struct iovec iov = { .iov_base = buf, .iov_len = len };
	struct kiocb kiocb;
	struct iov_iter iter;
	ssize_t ret;

	init_sync_kiocb(&kiocb, filp);
	kiocb.ki_pos = (ppos ? *ppos : 0);
	iov_iter_init(&iter, READ, &iov, 1, len);

	ret = call_read_iter(filp, &kiocb, &iter);
	BUG_ON(ret == -EIOCBQUEUED);
	if (ppos)
		*ppos = kiocb.ki_pos;
	return ret;
}

具体代码见fs/read_write.c

6. 文件写

文件写需要调用sys_write,具体过程如下:

sys_write->ksys_write->vfs_write->new_sync_write->call_write_iter->…

SYSCALL_DEFINE3(write, unsigned int, fd, const char __user *, buf,
		size_t, count)
{
	return ksys_write(fd, buf, count);
}

ssize_t ksys_write(unsigned int fd, const char __user *buf, size_t count)
{
	struct fd f = fdget_pos(fd);
	ssize_t ret = -EBADF;

	if (f.file) {
		loff_t pos, *ppos = file_ppos(f.file);
		if (ppos) {
			pos = *ppos;
			ppos = &pos;
		}
		ret = vfs_write(f.file, buf, count, ppos);
		if (ret >= 0 && ppos)
			f.file->f_pos = pos;
		fdput_pos(f);
	}

	return ret;
}

ssize_t vfs_write(struct file *file, const char __user *buf, size_t count, loff_t *pos)
{
	ssize_t ret;

	if (!(file->f_mode & FMODE_WRITE))
		return -EBADF;
	if (!(file->f_mode & FMODE_CAN_WRITE))
		return -EINVAL;
	if (unlikely(!access_ok(buf, count)))
		return -EFAULT;

	ret = rw_verify_area(WRITE, file, pos, count);
	if (ret)
		return ret;
	if (count > MAX_RW_COUNT)
		count =  MAX_RW_COUNT;
	file_start_write(file);
	if (file->f_op->write)
		ret = file->f_op->write(file, buf, count, pos);
	else if (file->f_op->write_iter)
		ret = new_sync_write(file, buf, count, pos);
	else
		ret = -EINVAL;
	if (ret > 0) {
		fsnotify_modify(file);
		add_wchar(current, ret);
	}
	inc_syscw(current);
	file_end_write(file);
	return ret;
}

static ssize_t new_sync_write(struct file *filp, const char __user *buf, size_t len, loff_t *ppos)
{
	struct iovec iov = { .iov_base = (void __user *)buf, .iov_len = len };
	struct kiocb kiocb;
	struct iov_iter iter;
	ssize_t ret;

	init_sync_kiocb(&kiocb, filp);
	kiocb.ki_pos = (ppos ? *ppos : 0);
	iov_iter_init(&iter, WRITE, &iov, 1, len);

	ret = call_write_iter(filp, &kiocb, &iter);
	BUG_ON(ret == -EIOCBQUEUED);
	if (ret > 0 && ppos)
		*ppos = kiocb.ki_pos;
	return ret;
}

评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

Hack Rabbit

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付:¥1
获取中
扫码支付

您的余额不足,请更换扫码支付或充值

打赏作者

实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
