前言

相比于PX4 1.13.2版本，1.14版本进行了大量更新，本文基于雷讯系列飞控，使用 PX4 1.14 固件，进行激光传感器驱动，并完成数据读取用于EKF融合。

---

一、PX4 距离传感器驱动与编译

在PX4的源码中，已经支持一部分距离传感器的驱动例程，如北醒激光雷达、MB12XX、SRF05等，可以实现即插即用。相关代码位于…\Firmware\src\drivers\distance_sensor，其中 CmakeList.txt 用于定义这些驱动的编译规则（添加源码、生成模块，通过add_subdirectory(文件名) 将距离传感器添加到编译中；Kconfig用于提供配置开关（是否启用某个距离传感器驱动）。

//  CmakeList.TXT
add_subdirectory(tfmini)
add_subdirectory(tf02pro)
...

//  Kconfig
menu "Distance sensors"
    menuconfig COMMON_DISTANCE_SENSOR
        bool "Common distance sensor's"
        default n
        select DRIVERS_DISTANCE_SENSOR_TFMINI
        select DRIVERS_DISTANCE_SENSOR_TF02PRO
        ...


最后，通过位于…\Firmware\boards\cuav\x7pro\default.px4board中的编译命令，完成距离传感器的编译和执行。

CONFIG_COMMON_DISTANCE_SENSOR=y

二、北醒激光雷达使用

1.代码分析

本文选择北醒TF系列激光雷达，通信协议为串口，如TF_03，TF_Mini（uart）进行分析。PX4 代码位于**…\Firmware\src\drivers\distance_sensor\tfmini**，包含以下几个文本

tfmini_main.cpp  →  调用  TFMINI 类
                        ↓
                  TFMINI.cpp / TFMINI.hpp
                        ↓
               调用 tfmini_parser.cpp（数据帧校验/解析）
                        ↓
               解析出距离 → 通过 PX4Rangefinder → uORB: distance_sensor

在文件 module.yaml 中，可以看到参数：SENS_TFMINI_CFG，即可以通过选择不同串口号来完成硬件连接。该参数可在地面站中查看和修改。

module_name: Benewake TFmini Rangefinder
serial_config:
    - command: tfmini start -d ${SERIAL_DEV}
      port_config_param:
        name: SENS_TFMINI_CFG
        group: Sensors

图中为地面站参数，这里我选择 飞控的TELEM2 连接 激光雷达。

**值得注意的是：**串口选择的参数只有1个，tfmini_main.cpp中也是单个雷达的驱动和运行。若飞控同时连接多个TF系列串口激光雷达，则无法实现，需要对代码进行修改。

2.参数修改

在 PX4 1.14 固件中，取消了参数EKF2_AID_MASK：（代码位于…\Firmware\src\modules\ekf2\ekf2_params.c）

/**
 * Will be removed after v1.14 release
 *  * Set bits in the following positions to enable:
 * 0 : Deprecated, use EKF2_GPS_CTRL instead
 * 1 : Deprecated. use EKF2_OF_CTRL instead
 * 2 : Deprecated, use EKF2_IMU_CTRL instead
 * 3 : Deprecated, use EKF2_EV_CTRL instead
 * 4 : Deprecated, use EKF2_EV_CTRL instead
 * 5 : Deprecated. use EKF2_DRAG_CTRL instead
 * 6 : Deprecated, use EKF2_EV_CTRL instead
 * 7 : Deprecated, use EKF2_GPS_CTRL instead
 * 8 : Deprecated, use EKF2_EV_CTRL instead
 * ...
 */
PARAM_DEFINE_INT32(EKF2_AID_MASK, 0);

针对1.14固件，可以修改的距离传感器参数为：

• EKF2_RNG_CTRL ：决定是否启用距离融合，默认为：1 Enabled (conditional mode)1 Enabled (conditional mode)

/**
 * Range sensor height aiding
 *
 * WARNING: Range finder measurements are less reliable and can experience unexpected errors.
 * For these reasons, if accurate control of height relative to ground is required, it is recommended to use the MPC_ALT_MODE parameter instead,
 * unless baro errors are severe enough to cause problems with landing and takeoff.
 *
 * To en-/disable range finder for terrain height estimation, use EKF2_TERR_MASK instead.
 *
 * If this parameter is enabled then the estimator will make use of the range finder measurements to estimate its height in addition to other
 * height sources (if activated). Range sensor aiding can be enabled (i.e.: always use) or set in "conditional" mode.
 *
 * Conditional mode: This enables the range finder to be used during low speed (< EKF2_RNG_A_VMAX) and low altitude (< EKF2_RNG_A_HMAX)
 * operation, eg takeoff and landing, where baro interference from rotor wash is excessive and can corrupt EKF state
 * estimates. It is intended to be used where a vertical takeoff and landing is performed, and horizontal flight does
 * not occur until above EKF2_RNG_A_HMAX.
 *
 * @group EKF2
 * @value 0 Disable range fusion
 * @value 1 Enabled (conditional mode)
 * @value 2 Enabled
 */
PARAM_DEFINE_INT32(EKF2_RNG_CTRL, 1);

• EKF2_RNG_A_HMAX ：条件距离辅助模式允许的最大绝对高度（离地高度），默认：5 m。可根据传感器的测距范围修改参数的定义域。如： * @min 1.0 * @max 50.0

/**
 * Maximum absolute altitude (height above ground level) allowed for conditional range aid mode.
 *
 * If the vehicle absolute altitude exceeds this value then the estimator will not fuse range measurements
 * to estimate its height. This only applies when conditional range aid mode is activated (EKF2_RNG_CTRL = 1).
 *
 * @group EKF2
 * @min 1.0
 * @max 50.0
 * @unit m
 */
PARAM_DEFINE_FLOAT(EKF2_RNG_A_HMAX, 10.0f);

• EKF2_RNG_A_VMAX ：条件距离辅助模式允许的最大水平速度。默认：1.0f。

/**
 * Maximum horizontal velocity allowed for conditional range aid mode.
 *
 * If the vehicle horizontal speed exceeds this value then the estimator will not fuse range measurements
 * to estimate its height. This only applies when conditional range aid mode is activated (EKF2_RNG_CTRL = 1).
 *
 * @group EKF2
 * @min 0.1
 * @max 2
 * @unit m/s
 */
PARAM_DEFINE_FLOAT(EKF2_RNG_A_VMAX, 1.0f);

还有一些测距仪的位置的参数：

/**
 * X position of range finder origin in body frame (forward axis with origin relative to vehicle centre of gravity)
 *
 * @group EKF2
 * @unit m
 * @decimal 3
 */
PARAM_DEFINE_FLOAT(EKF2_RNG_POS_X, 0.0f);

/**
 * Y position of range finder origin in body frame (right axis with origin relative to vehicle centre of gravity)
 *
 * @group EKF2
 * @unit m
 * @decimal 3
 */
PARAM_DEFINE_FLOAT(EKF2_RNG_POS_Y, 0.0f);

/**
 * Z position of range finder origin in body frame (down axis with origin relative to vehicle centre of gravity)
 *
 * @group EKF2
 * @unit m
 * @decimal 3
 */
PARAM_DEFINE_FLOAT(EKF2_RNG_POS_Z, 0.0f);

这些EKF2_RNG_POS_*参数主要是为了向下的距离传感器提供位置校准，用于高度估计。

3.飞控高度估计

与高度数据融合的飞控参数为：EKF2_HGT_REF，可以知道获取高度的传感器有：气压计，GPS，距离传感器，视觉传感器，可修改该参数使用不同传感器作为主高度数据源，其他高度参数进行融合。

/**
 * Determines the reference source of height data used by the EKF.
 *
 * When multiple height sources are enabled at the same time, the height estimate will
 * always converge towards the reference height source selected by this parameter.
 *
 * The range sensor and vision options should only be used when for operation over a flat surface as the local NED origin will move up and down with ground level.
 *
 * @group EKF2
 * @value 0 Barometric pressure
 * @value 1 GPS
 * @value 2 Range sensor
 * @value 3 Vision
 * @reboot_required true
 */
PARAM_DEFINE_INT32(EKF2_HGT_REF, 1);

4.硬件接线与测试

由于上文提到使用TELEM2作为激光雷达串口，因此连接TF03和飞控如下图所示：

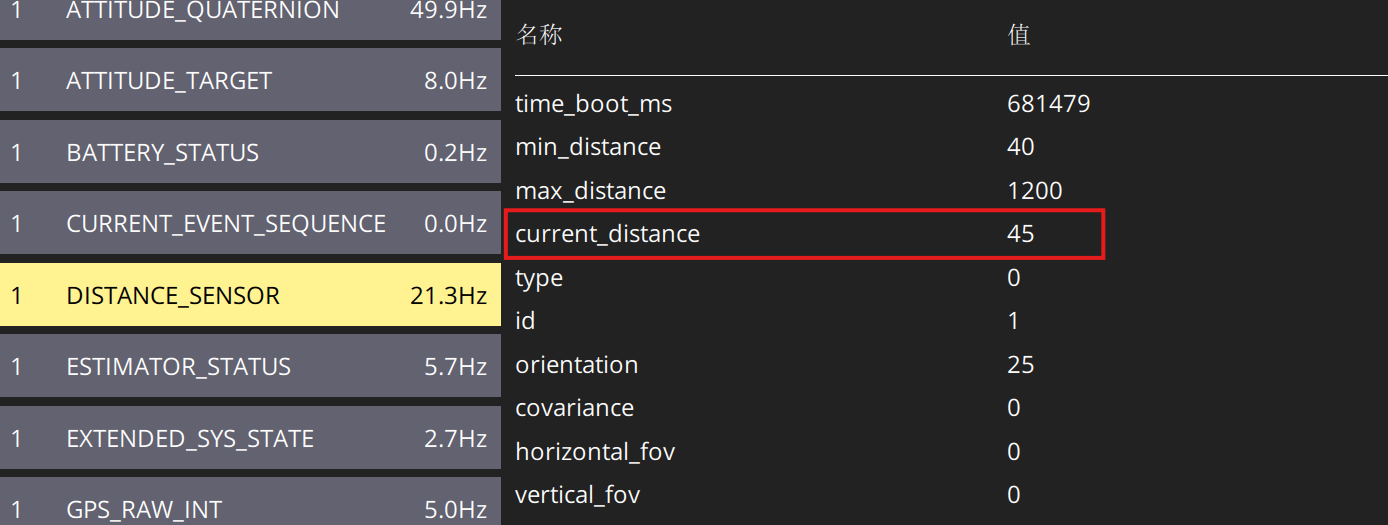

打开地面站，连接飞控，查看mavlink 监测数据：

---

总结

北醒系列官方的驱动教程位于：北醒官方雷达驱动教程
