LeakCanary 检测到内存泄露【精确分析】

1.内存泄露

LeakCanary集成至项目当中监测内存泄露，可以实时检测，比较好用！

2.检测到的问题

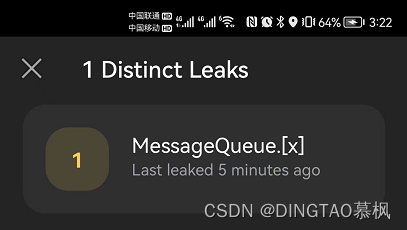

当项目中存在内存泄漏问题时，LeakCanary会通过弹窗的形式，通知你检测到的问题。可以打开LeakCanary的app会出现弹窗中的泄露位置；

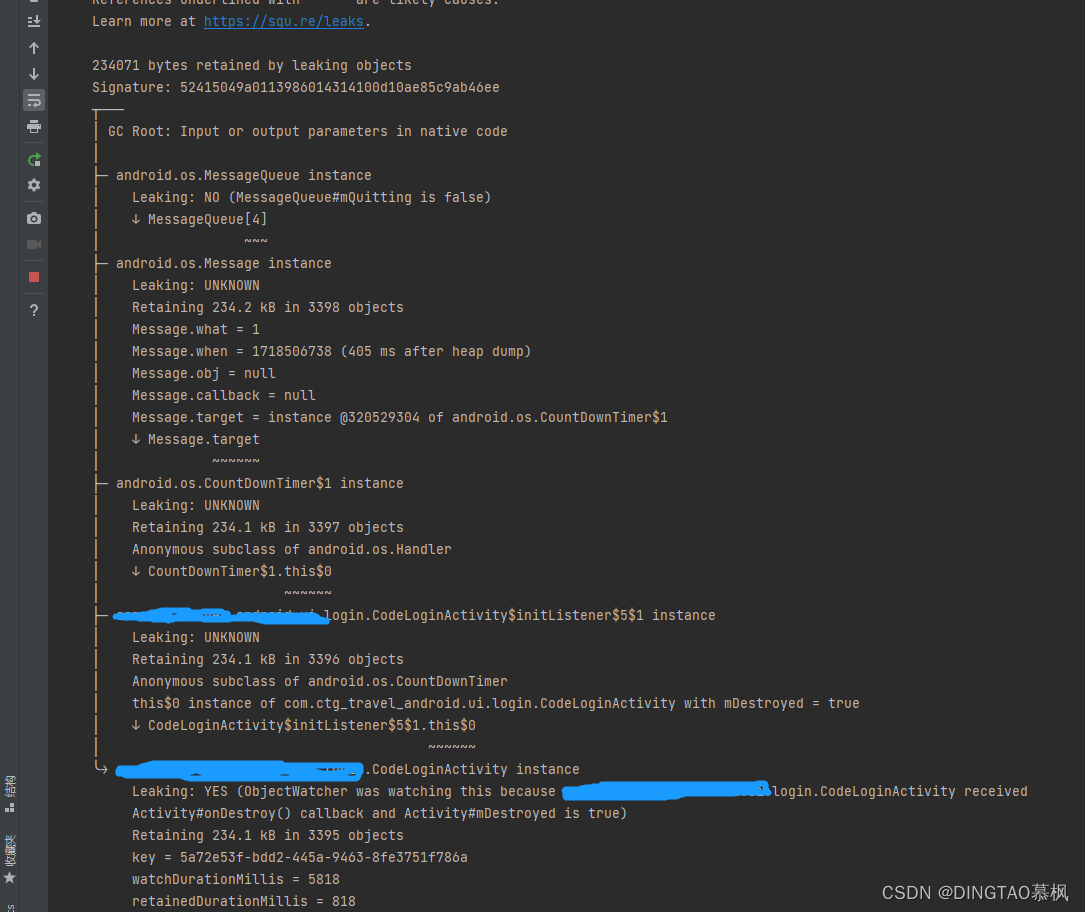

此时在Logcat中也会打印LeakCanary检测到的问题：

打印的日志代码如下：

    ====================================
    HEAP ANALYSIS RESULT
    ====================================
    1 APPLICATION LEAKS

    References underlined with "~~~" are likely causes.
    Learn more at https://squ.re/leaks.

    234941 bytes retained by leaking objects
    Signature: 52415049a0113986014314100d10ae85c9ab46ee
    ┬───
    │ GC Root: Input or output parameters in native code
    │
    ├─ android.os.MessageQueue instance
    │    Leaking: NO (MessageQueue#mQuitting is false)
    │    HandlerThread: "main"
    │    ↓ MessageQueue[2]
    │                  ~~~
    ├─ android.os.Message instance
    │    Leaking: UNKNOWN
    │    Retaining 235.1 kB in 3424 objects
    │    Message.what = 1
    │    Message.when = 1717029504 (109 ms after heap dump)
    │    Message.obj = null
    │    Message.callback = null
    │    Message.target = instance @326657336 of android.os.CountDownTimer$1
    │    ↓ Message.target
    │              ~~~~~~
    ├─ android.os.CountDownTimer$1 instance
    │    Leaking: UNKNOWN
    │    Retaining 235.0 kB in 3423 objects
    │    Anonymous subclass of android.os.Handler
    │    ↓ CountDownTimer$1.this$0
    │                       ~~~~~~
    ├─ (此处为你的包名...).CodeLoginActivity$initListener$5$1 instance
    │    Leaking: UNKNOWN
    │    Retaining 235.0 kB in 3422 objects
    │    Anonymous subclass of android.os.CountDownTimer
    │    this$0 instance of (此处为你的包名...).CodeLoginActivity with mDestroyed = true
    │    ↓ CodeLoginActivity$initListener$5$1.this$0
    │                                         ~~~~~~
    ╰→ (此处为你的包名...).CodeLoginActivity instance
    ​     Leaking: YES (ObjectWatcher was watching this because (此处为你的包名...).CodeLoginActivity received
    ​     Activity#onDestroy() callback and Activity#mDestroyed is true)
    ​     Retaining 234.9 kB in 3421 objects
    ​     watchDurationMillis = 5710
    ​     retainedDurationMillis = 702
    ​     mApplication instance of (此处为你的包名...)BaseApplication
    ​     mBase instance of androidx.appcompat.view.ContextThemeWrapper
    ====================================

3.问题分析

从上面的日志中可以看出整了链表，执行的顺序过程，其中Leaking会有三种状态：NO（无问题）、UNKNOWN（可能有问题）、YES（有问题），从上面的链表当中寻找到；

状态：NO（无问题）

    ├─ android.os.MessageQueue instance
    │    Leaking: NO (MessageQueue#mQuitting is false)
    │    HandlerThread: "main"
    │    ↓ MessageQueue[2]

状态：UNKNOWN（可能有问题）

    ├─ android.os.CountDownTimer$1 instance
    │    Leaking: UNKNOWN
    │    Retaining 235.0 kB in 3423 objects
    │    Anonymous subclass of android.os.Handler
    │    ↓ CountDownTimer$1.this$0

状态：YES（有问题）

    ╰→ (此处为你的包名...).CodeLoginActivity instance
    ​     Leaking: YES (ObjectWatcher was watching this because (此处为你的包名...).CodeLoginActivity received
    ​     Activity#onDestroy() callback and Activity#mDestroyed is true)
    ​     Retaining 234.9 kB in 3421 objects
    ​     watchDurationMillis = 5710
    ​     retainedDurationMillis = 702
    ​     mApplication instance of (此处为你的包名...)BaseApplication
    ​     mBase instance of androidx.appcompat.view.ContextThemeWrapper

此处存在问题，然后去代码中找就可以了

4.我的问题

我的问题是在进行获取验证码的时候，设置的倒计时时间为60秒，当很快获取到验证码，登录成功之后，所引用的倒计时TextView还在引用，导致了内存泄露！
