行：维度对象天粒度的汇总

列：维度ID+维度模型中与该维度相关的事实表的度量按天汇总

分区：每个分区存放维度对象对应天的汇总

遇到次数的指标：count(*)/sum(if(xxx,1,0)) 解决

多张表进行 full join ,为了防止数据丢失，第二个关联条件开始需要用coalesce

select
    coalesce(a.id,b.id,c.id) as id
from a

full outer join b

on a.id = b.id

full outer join c

on a.id = c.id;--a和c不相交,b和c相交的数据就会过滤掉

需要修改为：
select
    coalesce(a.id,b.id,c.id) as id
from a

full outer join b

on a.id = b.id

full outer join c

on nvl(a.id,b.id) = c.id;--保证数据准确

--结构体数组。数组里面放结构体
`order_detail_stats` array<struct<sku_id:string,sku_num:bigint>> --'下单明细统计'

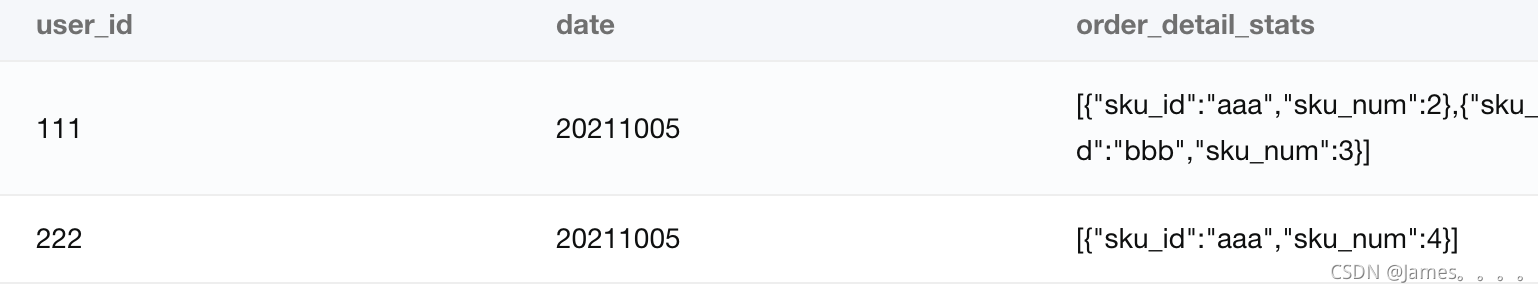

--例子
--user day 粒度下的汇总
SELECT user_id,date,COLLECT_SET(named_struct('sku_id',sku_id,'sku_num',sku_num)) as order_detail_stats
from
(
    --user day sku 粒度下的汇总
select '111' as user_id,'20211005' as date,'aaa' as sku_id,2 as sku_num
union all
select '111' as user_id,'20211005' as date,'bbb' as sku_id,3 as sku_num
union all
select '222' as user_id,'20211005' as date,'aaa' as sku_id,4 as sku_num
) a
group by user_id,date;

用户主题

DROP TABLE IF EXISTS dws_user_action_daycount;
CREATE EXTERNAL TABLE IF NOT EXISTS dws_user_action_daycount
(
    `user_id` STRING COMMENT '用户id',
    `login_count` BIGINT COMMENT '登录次数',
    `cart_count` BIGINT COMMENT '加入购物车次数',
    `favor_count` BIGINT COMMENT '收藏次数',
    `order_count` BIGINT COMMENT '下单次数',
    `order_activity_count` BIGINT COMMENT '订单参与活动次数',
    `order_activity_reduce_amount` DECIMAL(16,2) COMMENT '订单减免金额(活动)',
    `order_coupon_count` BIGINT COMMENT '订单用券次数',
    `order_coupon_reduce_amount` DECIMAL(16,2) COMMENT '订单减免金额(优惠券)',
    `order_original_amount` DECIMAL(16,2)  COMMENT '订单单原始金额',
    `order_final_amount` DECIMAL(16,2) COMMENT '订单总金额',
    `payment_count` BIGINT COMMENT '支付次数',
    `payment_amount` DECIMAL(16,2) COMMENT '支付金额',
    `refund_order_count` BIGINT COMMENT '退单次数',
    `refund_order_num` BIGINT COMMENT '退单件数',
    `refund_order_amount` DECIMAL(16,2) COMMENT '退单金额',
    `refund_payment_count` BIGINT COMMENT '退款次数',
    `refund_payment_num` BIGINT COMMENT '退款件数',
    `refund_payment_amount` DECIMAL(16,2) COMMENT '退款金额',
    `coupon_get_count` BIGINT COMMENT '优惠券领取次数',
    `coupon_using_count` BIGINT COMMENT '优惠券使用(下单)次数',
    `coupon_used_count` BIGINT COMMENT '优惠券使用(支付)次数',
    `appraise_good_count` BIGINT COMMENT '好评数',
    `appraise_mid_count` BIGINT COMMENT '中评数',
    `appraise_bad_count` BIGINT COMMENT '差评数',
    `appraise_default_count` BIGINT COMMENT '默认评价数',
    `order_detail_stats` array<struct<sku_id:string,sku_num:bigint,order_count:bigint,activity_reduce_amount:decimal(16,2),coupon_reduce_amount:decimal(16,2),original_amount:decimal(16,2),final_amount:decimal(16,2)>> COMMENT '下单明细统计'
) COMMENT '每日用户行为'
PARTITIONED BY (`dt` STRING)
STORED AS PARQUET
LOCATION '/warehouse/gmall/dws/dws_user_action_daycount/'
TBLPROPERTIES ("parquet.compression"="lzo");

--with as 生成临时表

with
tmp_login as
(
    select
        dt,
        user_id,
        count(*) login_count
    from dwd_page_log
    where user_id is not null
    and last_page_id is null
    group by dt,user_id
),
tmp_cf as
(
    select
        dt,
        user_id,
        sum(if(action_id='cart_add',1,0)) cart_count,
        sum(if(action_id='favor_add',1,0)) favor_count
    from dwd_action_log
    where user_id is not null
    and action_id in ('cart_add','favor_add')
    group by dt,user_id
),
tmp_order as
(
    select
        date_format(create_time,'yyyy-MM-dd') dt,
        user_id,
        count(*) order_count,
        sum(if(activity_reduce_amount>0,1,0)) order_activity_count,
        sum(if(coupon_reduce_amount>0,1,0)) order_coupon_count,
        sum(activity_reduce_amount) order_activity_reduce_amount,
        sum(coupon_reduce_amount) order_coupon_reduce_amount,
        sum(original_amount) order_original_amount,
        sum(final_amount) order_final_amount
    from dwd_order_info
    group by date_format(create_time,'yyyy-MM-dd'),user_id
),
tmp_pay as
(
    select
        date_format(callback_time,'yyyy-MM-dd') dt,
        user_id,
        count(*) payment_count,
        sum(payment_amount) payment_amount
    from dwd_payment_info
    group by date_format(callback_time,'yyyy-MM-dd'),user_id
),
tmp_ri as
(
    select
        date_format(create_time,'yyyy-MM-dd') dt,
        user_id,
        count(*) refund_order_count,
        sum(refund_num) refund_order_num,
        sum(refund_amount) refund_order_amount
    from dwd_order_refund_info
    group by date_format(create_time,'yyyy-MM-dd'),user_id
),
tmp_rp as
(
    select
        date_format(callback_time,'yyyy-MM-dd') dt,
        rp.user_id,
        count(*) refund_payment_count,
        sum(ri.refund_num) refund_payment_num,
        sum(rp.refund_amount) refund_payment_amount
    from
    (
        select
            user_id,
            order_id,
            sku_id,
            refund_amount,
            callback_time
        from dwd_refund_payment
    )rp
    left join
    (
        select
            user_id,
            order_id,
            sku_id,
            refund_num
        from dwd_order_refund_info
    )ri
    on rp.order_id=ri.order_id
    and rp.sku_id=rp.sku_id
    group by date_format(callback_time,'yyyy-MM-dd'),rp.user_id
),
tmp_coupon as
(
    select
        coalesce(coupon_get.dt,coupon_using.dt,coupon_used.dt) dt,
        coalesce(coupon_get.user_id,coupon_using.user_id,coupon_used.user_id) user_id,
        nvl(coupon_get_count,0) coupon_get_count,
        nvl(coupon_using_count,0) coupon_using_count,
        nvl(coupon_used_count,0) coupon_used_count
    from
    (
        select
            date_format(get_time,'yyyy-MM-dd') dt,
            user_id,
            count(*) coupon_get_count
        from dwd_coupon_use
        where get_time is not null
        group by user_id,date_format(get_time,'yyyy-MM-dd')
    )coupon_get
    full outer join
    (
        select
            date_format(using_time,'yyyy-MM-dd') dt,
            user_id,
            count(*) coupon_using_count
        from dwd_coupon_use
        where using_time is not null
        group by user_id,date_format(using_time,'yyyy-MM-dd')
    )coupon_using
    on coupon_get.dt=coupon_using.dt
    and coupon_get.user_id=coupon_using.user_id
    full outer join
    (
        select
            date_format(used_time,'yyyy-MM-dd') dt,
            user_id,
            count(*) coupon_used_count
        from dwd_coupon_use
        where used_time is not null
        group by user_id,date_format(used_time,'yyyy-MM-dd')
    )coupon_used
    on nvl(coupon_get.dt,coupon_using.dt)=coupon_used.dt
    and nvl(coupon_get.user_id,coupon_using.user_id)=coupon_used.user_id
),
tmp_comm
