《理解MySQL数据库》慢查询监控与优化实战指南

1. 引言：慢查询的代价与影响

在当今数据驱动的应用中，慢查询是系统性能的"隐形杀手"。对于Java开发者而言，理解慢查询的监控与优化至关重要：

• 用户体验：页面加载时间从毫秒级到秒级的恶化
• 系统吞吐：单个慢查询可能阻塞整个数据库连接池
• 资源消耗：CPU、内存、IO的异常占用
• 业务风险：超时导致的交易失败、数据不一致

// 真实场景：慢查询导致的级联故障
@Service
@Transactional
public class OrderService {

    public void processBatchOrders(List<Order> orders) {
        for (Order order : orders) {
            // 看似简单的查询，在数据量增长后变慢
            User user = userRepository.findByComplexConditions(order.getCriteria());
            if (user != null) {
                order.setUserId(user.getId());
                orderRepository.save(order);
            }
        }
        // 事务长时间不提交，导致连接池耗尽
    }
}

2. 慢查询基础概念

2.1 什么是慢查询？

定义：执行时间超过指定阈值的SQL语句。MySQL默认阈值为10秒，但生产环境通常设置为1-2秒。

-- 查看当前慢查询配置
SHOW VARIABLES LIKE 'long_query_time';
-- 通常设置为1-2秒
SET GLOBAL long_query_time = 1.0;

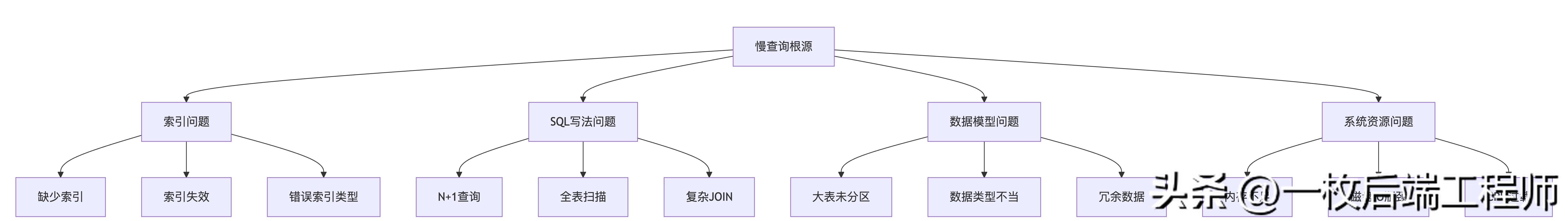

2.2 慢查询的根源分析

3. 慢查询监控体系搭建

3.1 慢查询日志配置

# /etc/my.cnf 慢查询配置
[mysqld]
# 开启慢查询日志
slow_query_log = 1
slow_query_log_file = /var/log/mysql/slow.log
long_query_time = 1.0
log_queries_not_using_indexes = 1
log_throttle_queries_not_using_indexes = 60
min_examined_row_limit = 100
log_slow_admin_statements = 1
log_slow_slave_statements = 1

3.2 实时状态监控

-- 查看当前慢查询状态
SHOW STATUS LIKE 'Slow_queries';
-- 监控数据库性能指标
SHOW STATUS WHERE Variable_name IN (
    'Threads_connected',
    'Threads_running',
    'Innodb_rows_read',
    'Innodb_rows_updated',
    'Select_scan',
    'Sort_merge_passes'
);
-- 查看正在执行的慢查询
SHOW PROCESSLIST;

3.3 Java应用层监控集成

@Component
public class QueryPerformanceMonitor {

    private static final Logger logger = LoggerFactory.getLogger(QueryPerformanceMonitor.class);

    @Autowired
    private DataSource dataSource;

    private ThreadLocal<Long> queryStartTime = new ThreadLocal<>();

    public void startMonitoring() {
        queryStartTime.set(System.currentTimeMillis());
    }

    public void endMonitoring(String sql, Object[] params) {
        Long startTime = queryStartTime.get();
        if (startTime != null) {
            long duration = System.currentTimeMillis() - startTime;
            if (duration > 1000) { // 1秒阈值
                logger.warn("慢查询检测 - 执行时间: {}ms, SQL: {}, 参数: {}",
                           duration, sql, Arrays.toString(params));

                // 记录到专门的慢查询表
                logSlowQueryToDatabase(sql, params, duration);
            }
            queryStartTime.remove();
        }
    }

    @Aspect
    @Component
    public static class QueryMonitoringAspect {

        @Autowired
        private QueryPerformanceMonitor monitor;

        @Around("execution(* org.springframework.jdbc.core.JdbcTemplate.query(..))")
        public Object monitorQuery(ProceedingJoinPoint joinPoint) throws Throwable {
            monitor.startMonitoring();
            try {
                return joinPoint.proceed();
            } finally {
                String sql = (String) joinPoint.getArgs()[0];
                Object[] params = (Object[]) joinPoint.getArgs()[1];
                monitor.endMonitoring(sql, params);
            }
        }
    }
}

4. 慢查询日志分析实战

4.1 慢查询日志格式解析

# Time: 2023-10-01T10:00:00.123456Z
# User@Host: app_user[app_user] @  [192.168.1.100]  Id: 12345
# Query_time: 2.345678  Lock_time: 0.000123 Rows_sent: 10  Rows_examined: 100000
SET timestamp=1696156800;
SELECT * FROM orders o
JOIN users u ON o.user_id = u.id
WHERE u.email LIKE '%@example.com'
AND o.create_time > '2023-01-01'
ORDER BY o.amount DESC
LIMIT 10;

关键字段解读：

• Query_time: 查询执行总时间
• Lock_time: 锁等待时间
• Rows_sent: 返回给客户端的行数
• Rows_examined: 扫描的行数（关键性能指标）

4.2 使用mysqldumpslow分析

# 安装MySQL客户端工具
sudo apt-get install mysql-client
# 分析慢查询日志
mysqldumpslow -s t /var/log/mysql/slow.log
# 按执行时间排序，显示前10条
mysqldumpslow -s t -t 10 /var/log/mysql/slow.log
# 分析特定模式的查询
mysqldumpslow -g "ORDER BY" /var/log/mysql/slow.log
# 输出示例：
# Count: 25  Time=2.34s (58s)  Lock=0.00s (0s)  Rows=10.0 (250), app_user[app_user]@[192.168.1.100]
#   SELECT * FROM orders ...

4.3 使用pt-query-digest高级分析

bash

# 安装Percona Toolkit
wget https://repo.percona.com/apt/percona-release_latest.$(lsb_release -sc)_all.deb
sudo dpkg -i percona-release_latest.$(lsb_release -sc)_all.deb
sudo apt-get update
sudo apt-get install percona-toolkit
# 分析慢查询日志
pt-query-digest /var/log/mysql/slow.log
# 输出详细报告到文件
pt-query-digest /var/log/mysql/slow.log --output slowlog_analysis.html
# 监控实时慢查询
pt-query-digest --processlist h=localhost --interval 0.1 --print --no-continue

5. 慢查询优化核心技术

5.1 索引优化策略

5.1.1 索引诊断与创建

-- 查看表索引情况
SHOW INDEX FROM orders;
-- 分析索引使用情况
EXPLAIN SELECT * FROM orders WHERE user_id = 1001 AND status = 'COMPLETED';
-- 创建复合索引
ALTER TABLE orders ADD INDEX idx_user_status (user_id, status);
-- 创建覆盖索引
ALTER TABLE orders ADD INDEX idx_covering (user_id, status, amount, create_time);

5.1.2 索引失效场景分析

public class IndexFailureScenarios {

    /**
     * 常见的索引失效场景
     */
    public void commonIndexFailures() {
        // 1. 隐式类型转换
        // user_id是VARCHAR，但传入数字 → 索引失效
        String sql1 = "SELECT * FROM users WHERE user_id = 12345";

        // 2. 前导通配符LIKE
        String sql2 = "SELECT * FROM users WHERE email LIKE '%@example.com'";

        // 3. 对索引列进行函数操作
        String sql3 = "SELECT * FROM orders WHERE DATE(create_time) = '2023-10-01'";

        // 4. OR条件使用不当
        String sql4 = "SELECT * FROM products WHERE category_id = 1 OR price > 100";

        // 5. 不满足最左前缀原则
        // 索引 (category_id, status)
        String sql5 = "SELECT * FROM products WHERE status = 'ACTIVE'";
    }

    /**
     * 优化方案
     */
    public void optimizationSolutions() {
        // 1. 类型匹配
        String sql1 = "SELECT * FROM users WHERE user_id = '12345'";

        // 2. 避免前导通配符
        String sql2 = "SELECT * FROM users WHERE email LIKE 'user%@example.com'";

        // 3. 避免索引列函数操作
        String sql3 = "SELECT * FROM orders WHERE create_time >= '2023-10-01' AND create_time < '2023-10-02'";

        // 4. OR优化为UNION
        String sql4 = "SELECT * FROM products WHERE category_id = 1 " +
                     "UNION SELECT * FROM products WHERE price > 100";

        // 5. 调整索引或查询条件
        String sql5 = "SELECT * FROM products WHERE category_id IN (1,2,3) AND status = 'ACTIVE'";
    }
}

5.2 SQL重写优化

5.2.1 分页查询优化

-- 原始慢查询（偏移量大时变慢）
SELECT * FROM orders ORDER BY create_time DESC LIMIT 10000, 20;
-- 优化方案1：游标分页（基于ID）
SELECT * FROM orders
WHERE id > 10000
ORDER BY id ASC
LIMIT 20;
-- 优化方案2：延迟关联
SELECT * FROM orders o
JOIN (
    SELECT id FROM orders
    ORDER BY create_time DESC
    LIMIT 10000, 20
) AS tmp ON o.id = tmp.id;

5.2.2 JOIN查询优化

-- 原始慢JOIN
SELECT u.*, o.*, p.*
FROM users u
LEFT JOIN orders o ON u.id = o.user_id
LEFT JOIN payments p ON o.id = p.order_id
WHERE u.create_time > '2023-01-01';
-- 优化：分阶段查询 + 应用层组合
-- 第一阶段：获取用户ID列表
SELECT id FROM users WHERE create_time > '2023-01-01' LIMIT 1000;
-- 第二阶段：批量查询关联数据
SELECT * FROM orders WHERE user_id IN (?, ?, ...);
SELECT * FROM payments WHERE order_id IN (?, ?, ...);

5.3 Java代码层面的优化

@Repository
public class OptimizedUserRepository {

    @Autowired
    private JdbcTemplate jdbcTemplate;

    /**
     * 优化前：N+1查询问题
     */
    public List<User> findUsersWithOrdersBad() {
        List<User> users = jdbcTemplate.query(
            "SELECT * FROM users WHERE status = 'ACTIVE'",
            new UserRowMapper());

        // N+1查询问题
        for (User user : users) {
            List<Order> orders = jdbcTemplate.query(
                "SELECT * FROM orders WHERE user_id = ?",
                new Object[]{user.getId()},
                new OrderRowMapper());
            user.setOrders(orders);
        }
        return users;
    }

    /**
     * 优化后：单次JOIN查询
     */
    public List<User> findUsersWithOrdersOptimized() {
        String sql = """
            SELECT u.*, o.id as order_id, o.amount, o.create_time as order_time
            FROM users u
            LEFT JOIN orders o ON u.id = o.user_id
            WHERE u.status = 'ACTIVE'
            ORDER BY u.id, o.create_time DESC
            """;

        return jdbcTemplate.query(sql, new UserWithOrdersRowMapper());
    }

    /**
     * 优化：批量查询减少数据库往返
     */
    public Map<Long, List<Order>> findOrdersByUserIds(List<Long> userIds) {
        if (userIds.isEmpty()) {
            return Collections.emptyMap();
        }

        String inClause = String.join(",",
            Collections.nCopies(userIds.size(), "?"));

        String sql = String.format(
            "SELECT * FROM orders WHERE user_id IN (%s) ORDER BY create_time DESC",
            inClause);

        List<Order> orders = jdbcTemplate.query(sql, userIds.toArray(), new OrderRowMapper());

        // 在应用层分组，减少数据库压力
        return orders.stream()
            .collect(Collectors.groupingBy(Order::getUserId));
    }
}

6. 系统级优化策略

6.1 数据库参数调优

# /etc/my.cnf 性能优化参数
[mysqld]
# 缓冲池设置（通常设置为物理内存的70-80%）
innodb_buffer_pool_size = 16G
innodb_buffer_pool_instances = 8
# 日志设置
innodb_log_file_size = 2G
innodb_log_buffer_size = 64M
# 连接设置
max_connections = 500
thread_cache_size = 50
table_open_cache = 2000
# 查询缓存（MySQL 8.0已移除，5.7版本谨慎使用）
# query_cache_type = 0

6.2 架构层面的优化

// 读写分离架构
@Configuration
@EnableConfigurationProperties(DataSourceProperties.class)
public class ReadWriteDataSourceConfig {

    @Bean
    @Primary
    public DataSource routingDataSource() {
        Map<Object, Object> targetDataSources = new HashMap<>();

        // 主库（写）
        targetDataSources.put("master", createMasterDataSource());

        // 从库（读）
        targetDataSources.put("slave1", createSlaveDataSource());
        targetDataSources.put("slave2", createSlaveDataSource());

        ReadWriteRoutingDataSource routingDataSource =
            new ReadWriteRoutingDataSource();
        routingDataSource.setTargetDataSources(targetDataSources);
        routingDataSource.setDefaultTargetDataSource(
            targetDataSources.get("master"));

        return routingDataSource;
    }

    // 基于注解的读写分离
    @Target({ElementType.METHOD, ElementType.TYPE})
    @Retention(RetentionPolicy.RUNTIME)
    public @interface ReadOnly {
    }
}

7. 自动化监控与告警系统

7.1 基于Prometheus的监控

# prometheus.yml 配置
scrape_configs:
  - job_name: 'mysql_slow_queries'
    static_configs:
      - targets: ['mysql-exporter:9104']
    metrics_path: /metrics
    params:
      collect[]:
        - slowlog
        - engine_innodb
        - global_status
# 告警规则
groups:
- name: mysql_slow_queries
  rules:
  - alert: MySQLSlowQueryRateHigh
    expr: rate(mysql_global_status_slow_queries[5m]) > 10
    for: 2m
    labels:
      severity: warning
    annotations:
      summary: "MySQL慢查询率过高"
      description: "当前慢查询率为 {{ $value }} 个/秒"

7.2 Java应用集成监控

@Component
public class SlowQueryAlertService {

    @Autowired
    private MeterRegistry meterRegistry;

    private final Counter slowQueryCounter;
    private final DistributionSummary queryDurationSummary;

    public SlowQueryAlertService() {
        this.slowQueryCounter = Counter.builder("db.query.slow")
            .description("慢查询计数")
            .register(meterRegistry);

        this.queryDurationSummary = DistributionSummary.builder("db.query.duration")
            .description("查询耗时分布")
            .baseUnit("milliseconds")
            .register(meterRegistry);
    }

    public void recordQuery(String sql, long duration, boolean isSlow) {
        queryDurationSummary.record(duration);

        if (isSlow) {
            slowQueryCounter.increment();

            // 触发告警逻辑
            if (shouldSendAlert(sql, duration)) {
                sendAlertToTeams(sql, duration);
            }
        }
    }

    private boolean shouldSendAlert(String sql, long duration) {
        // 基于SQL模式、执行时间、频率等判断
        return duration > 5000; // 5秒以上立即告警
    }

    private void sendAlertToTeams(String sql, long duration) {
        // 发送告警到Teams/Slack/钉钉
        String message = String.format(
            " 慢查询告警\n执行时间: %dms\nSQL: %s",
            duration, abbreviateSql(sql));

        // 调用Webhook发送消息
        sendWebhookAlert(message);
    }
}

8. 实战案例：电商系统慢查询优化

8.1 案例背景

-- 原始慢查询：商品搜索+分页
SELECT p.*, c.name as category_name, COUNT(r.id) as review_count
FROM products p
LEFT JOIN categories c ON p.category_id = c.id
LEFT JOIN reviews r ON p.id = r.product_id
WHERE p.status = 'ACTIVE'
AND p.price BETWEEN 100 AND 1000
AND p.stock_count > 0
AND (p.name LIKE '%手机%' OR p.description LIKE '%手机%')
GROUP BY p.id
ORDER BY p.sales_count DESC
LIMIT 0, 20;
-- 执行时间：8.2秒，扫描行数：50万+

8.2 优化步骤

步骤1：索引分析与创建

-- 分析现有索引
SHOW INDEX FROM products;
-- 创建复合索引
ALTER TABLE products ADD INDEX idx_search_composite (
    status, price, stock_count, sales_count
);
-- 创建全文索引（用于名称和描述搜索）
ALTER TABLE products ADD FULLTEXT(name, description);

步骤2：SQL重写

-- 优化后的查询
SELECT p.*, c.name as category_name, r.review_count
FROM products p
FORCE INDEX (idx_search_composite)
LEFT JOIN categories c ON p.category_id = c.id
LEFT JOIN (
    SELECT product_id, COUNT(*) as review_count
    FROM reviews
    GROUP BY product_id
) r ON p.id = r.product_id
WHERE p.status = 'ACTIVE'
AND p.price BETWEEN 100 AND 1000
AND p.stock_count > 0
AND MATCH(p.name, p.description) AGAINST('手机' IN BOOLEAN MODE)
ORDER BY p.sales_count DESC
LIMIT 0, 20;
-- 执行时间：0.15秒，扫描行数：2000

步骤3：Java代码优化

@Service
public class ProductSearchService {

    /**
     * 分阶段搜索优化
     */
    public Page<ProductVO> searchProducts(ProductSearchRequest request) {
        // 第一阶段：快速获取ID列表
        List<Long> productIds = findProductIdsByConditions(request);

        if (productIds.isEmpty()) {
            return Page.empty();
        }

        // 第二阶段：批量获取详细信息
        Map<Long, Product> products = productRepository.findByIds(productIds);
        Map<Long, Category> categories = categoryRepository.findByProductIds(productIds);
        Map<Long, Long> reviewCounts = reviewRepository.countByProductIds(productIds);

        // 第三阶段：应用层组装
        return assembleProductVOs(products, categories, reviewCounts, request.getPageable());
    }

    private List<Long> findProductIdsByConditions(ProductSearchRequest request) {
        String sql = """
            SELECT id FROM products
            WHERE status = 'ACTIVE'
            AND price BETWEEN ? AND ?
            AND stock_count > 0
            AND MATCH(name, description) AGAINST(? IN BOOLEAN MODE)
            ORDER BY sales_count DESC
            LIMIT ?, ?
            """;

        return jdbcTemplate.queryForList(sql, Long.class,
            request.getMinPrice(), request.getMaxPrice(),
            request.getKeyword(),
            request.getOffset(), request.getPageSize());
    }
}

9. 预防性优化与最佳实践

9.1 开发规范

/**
 * 数据库操作最佳实践
 */
public class DatabaseBestPractices {

    // 1. 使用预编译语句防止SQL注入
    public User findByEmail(String email) {
        return jdbcTemplate.queryForObject(
            "SELECT * FROM users WHERE email = ?",
            new Object[]{email},
            new UserRowMapper());
    }

    // 2. 合理使用批量操作
    public void batchInsertUsers(List<User> users) {
        jdbcTemplate.batchUpdate(
            "INSERT INTO users (name, email) VALUES (?, ?)",
            users.stream()
                .map(user -> new Object[]{user.getName(), user.getEmail()})
                .collect(Collectors.toList()));
    }

    // 3. 限制查询结果集大小
    public List<User> findActiveUsers(int limit) {
        return jdbcTemplate.query(
            "SELECT * FROM users WHERE status = 'ACTIVE' LIMIT ?",
            new Object[]{limit},
            new UserRowMapper());
    }

    // 4. 避免SELECT *
    public List<String> findUserNames() {
        return jdbcTemplate.queryForList(
            "SELECT name FROM users WHERE status = 'ACTIVE'",
            String.class);
    }
}

9.2 定期维护任务

-- 定期分析表
ANALYZE TABLE orders, users, products;
-- 优化表（碎片整理）
OPTIMIZE TABLE orders;
-- 更新索引统计信息
UPDATE mysql.innodb_index_stats SET last_update = NOW();
-- 清理历史数据
DELETE FROM audit_logs WHERE create_time < DATE_SUB(NOW(), INTERVAL 90 DAY);

10. 总结

慢查询监控与优化是一个系统工程，需要从监控、分析、优化到预防的全链路管理：

• 监控体系：建立全方位的慢查询检测机制
• 分析工具：掌握专业的日志分析工具使用
• 优化技术：索引优化、SQL重写、架构调整多管齐下
• 预防措施：开发规范、定期维护、容量规划

通过系统化的慢查询治理，可以显著提升应用性能，保障系统稳定运行，为业务发展提供坚实的技术支撑。
