《服务治理》RPC框架序列化协议深度解析

1. 序列化协议概述

1.1 什么是序列化与反序列化

序列化是将对象转换为字节流的过程，反序列化则是将字节流恢复为对象的过程。在RPC调用中，序列化协议的性能直接影响整个系统的吞吐量和延迟。

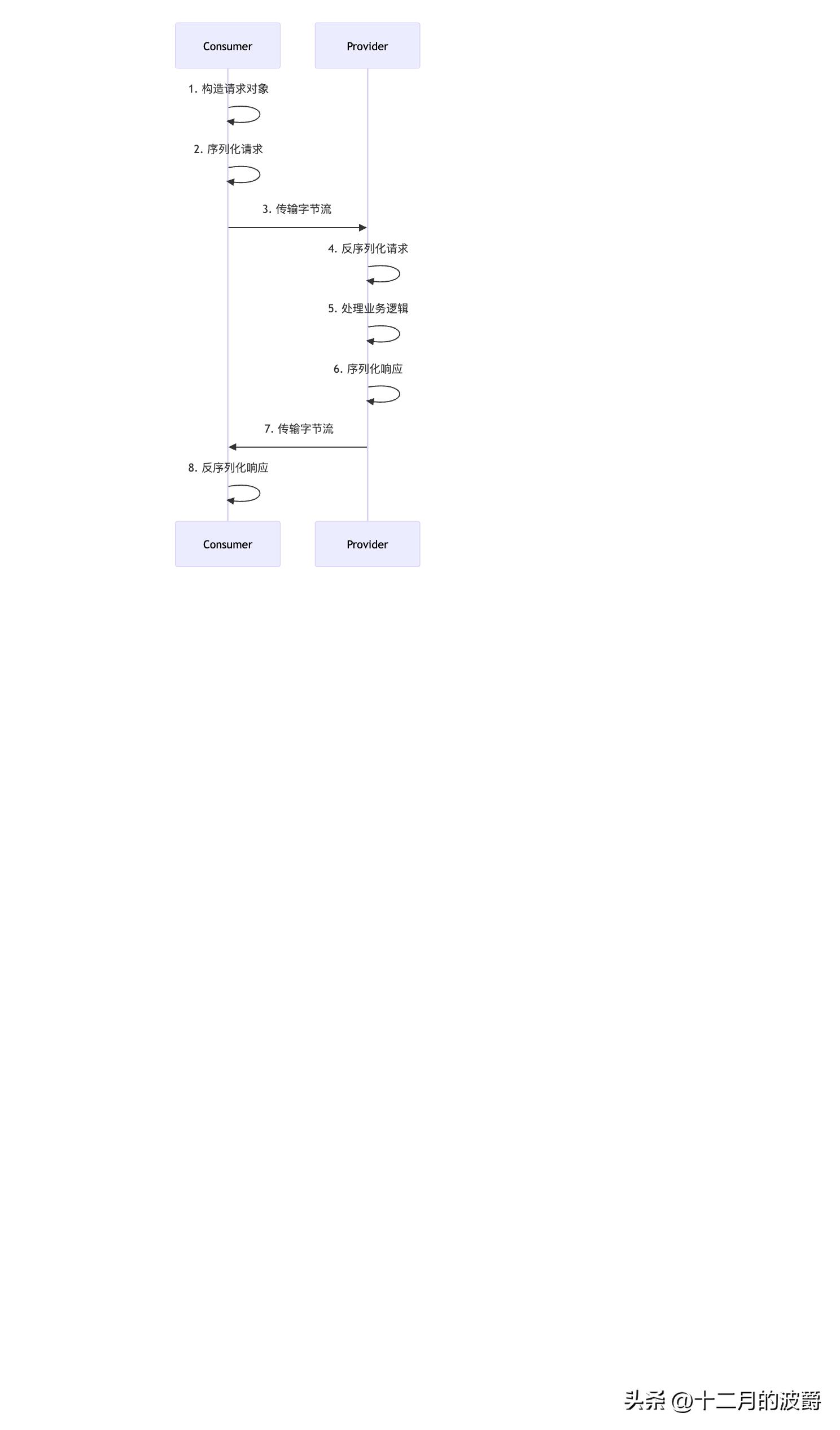

1.2 序列化在RPC调用中的位置

2. 序列化协议核心指标

2.1 性能评估维度

维度	说明	影响
序列化速度	对象→字节流的时间	影响RPC调用延迟
反序列化速度	字节流→对象的时间	影响服务端处理能力
数据大小	序列化后的字节数	影响网络带宽使用
CPU占用	序列化过程的CPU消耗	影响系统整体性能
内存占用	序列化过程的内存使用	影响系统稳定性

2.2 功能特性对比

特性	说明	重要性
跨语言支持	多语言间数据交换	高
向后兼容	新旧版本数据兼容	高
Schema演进	数据结构变更支持	高
数据类型丰富	支持复杂数据结构	中
安全性	反序列化安全性	高

3. 主流序列化协议深度解析

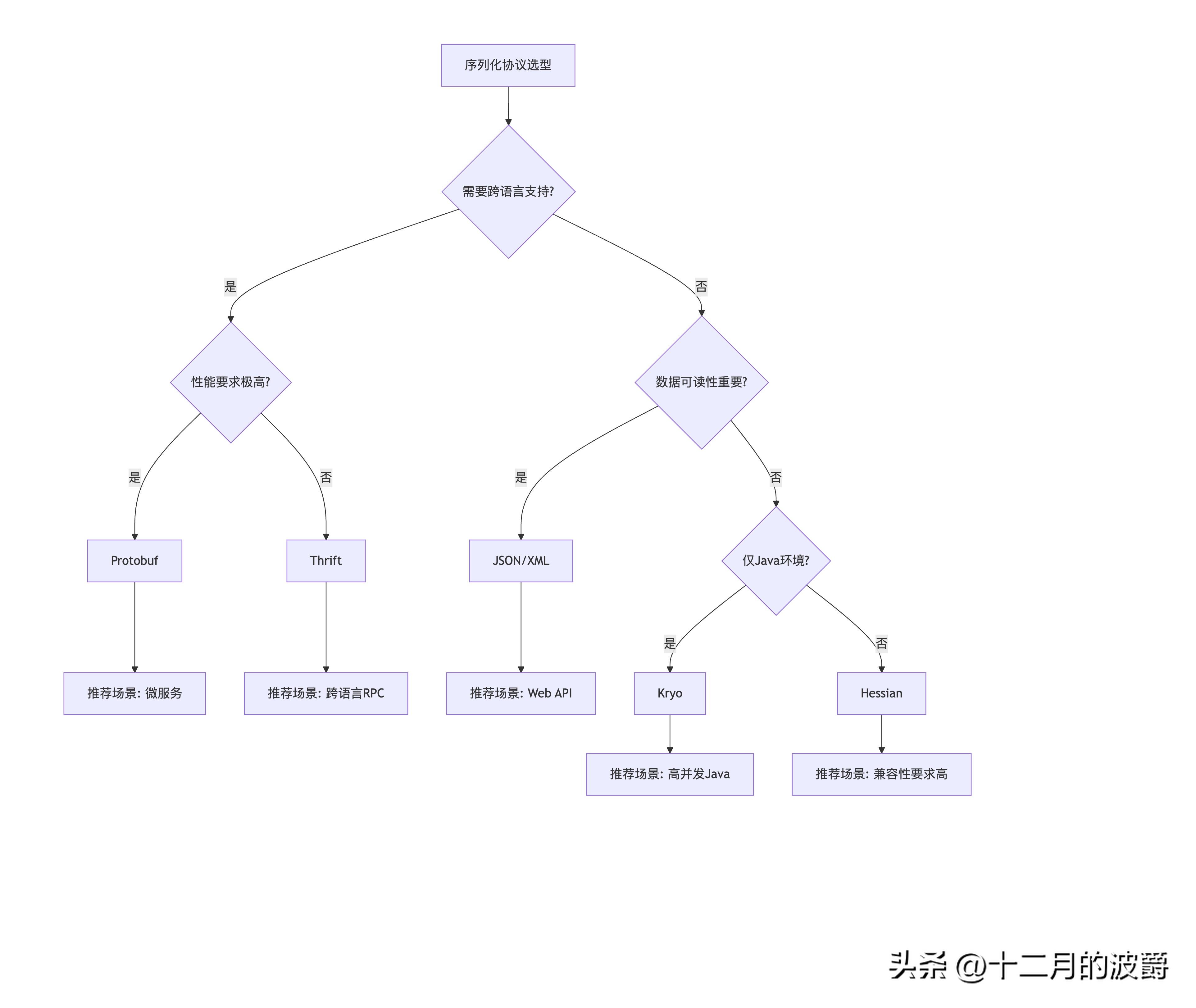

3.1 协议对比总览

协议	类型	跨语言	性能	大小	使用场景
JSON	文本	优秀	慢	大	Web API、配置文件
XML	文本	优秀	慢	很大	企业级系统、配置文件
Protobuf	二进制	优秀	快	小	微服务、移动端
Thrift	二进制	优秀	快	小	跨语言服务、大数据
Kryo	二进制	Java	极快	很小	高并发Java系统
Hessian	二进制	良好	较快	较小	Java RPC、Web服务
Avro	二进制	优秀	快	小	大数据、流处理

3.2 Protobuf（Protocol Buffers）

协议特性

• Google开发的二进制协议
• 强类型Schema定义
• 优秀的向后兼容性
• 自动生成多语言代码

定义文件示例

syntax = "proto3";
package com.example.rpc;
option java_package = "com.example.rpc.protobuf";
option java_outer_classname = "UserServiceProto";
// 用户消息定义
message User {
    int64 user_id = 1;
    string username = 2;
    string email = 3;
    string phone = 4;
    UserStatus status = 5;
    map<string, string> attributes = 6;
    repeated Address addresses = 7;
    int64 create_time = 8;
    int64 update_time = 9;
}
message Address {
    string country = 1;
    string province = 2;
    string city = 3;
    string detail = 4;
    bool is_default = 5;
}
message UserRequest {
    int64 user_id = 1;
    string request_id = 2;
    map<string, string> headers = 3;
}
message UserResponse {
    int32 code = 1;
    string message = 2;
    User data = 3;
}
message BatchUserRequest {
    repeated int64 user_ids = 1;
    int32 page_size = 2;
    string cursor = 3;
}
message BatchUserResponse {
    repeated User users = 1;
    string next_cursor = 2;
    bool has_more = 3;
}
// 枚举定义
enum UserStatus {
    UNKNOWN = 0;
    ACTIVE = 1;
    INACTIVE = 2;
    DELETED = 3;
}
// 服务定义
service UserService {
    rpc GetUser(UserRequest) returns (UserResponse);
    rpc BatchGetUsers(BatchUserRequest) returns (BatchUserResponse);
    rpc CreateUser(User) returns (UserResponse);
    rpc UpdateUser(User) returns (UserResponse);
}

Java代码示例

// 生成的Protobuf类使用
public class ProtobufSerializationExample {

    /**
     * Protobuf序列化示例
     */
    public byte[] serializeUser(User user) {
        UserServiceProto.User.Builder builder = UserServiceProto.User.newBuilder()
                .setUserId(user.getUserId())
                .setUsername(user.getUsername())
                .setEmail(user.getEmail())
                .setStatus(UserServiceProto.UserStatus.valueOf(user.getStatus().name()));

        // 设置map字段
        user.getAttributes().forEach(builder::putAttributes);

        // 设置重复字段
        user.getAddresses().forEach(address ->
            builder.addAddresses(convertAddress(address)));

        UserServiceProto.User protoUser = builder.build();
        return protoUser.toByteArray();
    }

    /**
     * Protobuf反序列化示例
     */
    public User deserializeUser(byte[] data) throws InvalidProtocolBufferException {
        UserServiceProto.User protoUser = UserServiceProto.User.parseFrom(data);

        User user = new User();
        user.setUserId(protoUser.getUserId());
        user.setUsername(protoUser.getUsername());
        user.setEmail(protoUser.getEmail());
        user.setPhone(protoUser.getPhone());
        user.setStatus(User.Status.valueOf(protoUser.getStatus().name()));

        // 处理map字段
        Map<String, String> attributes = new HashMap<>();
        protoUser.getAttributesMap().forEach(attributes::put);
        user.setAttributes(attributes);

        // 处理重复字段
        List<Address> addresses = protoUser.getAddressesList().stream()
                .map(this::convertAddress)
                .collect(Collectors.toList());
        user.setAddresses(addresses);

        return user;
    }

    private UserServiceProto.Address convertAddress(Address address) {
        return UserServiceProto.Address.newBuilder()
                .setCountry(address.getCountry())
                .setProvince(address.getProvince())
                .setCity(address.getCity())
                .setDetail(address.getDetail())
                .setIsDefault(address.isDefault())
                .build();
    }

    private Address convertAddress(UserServiceProto.Address protoAddress) {
        Address address = new Address();
        address.setCountry(protoAddress.getCountry());
        address.setProvince(protoAddress.getProvince());
        address.setCity(protoAddress.getCity());
        address.setDetail(protoAddress.getDetail());
        address.setDefault(protoAddress.getIsDefault());
        return address;
    }
}
// Protobuf性能测试
@Slf4j
public class ProtobufPerformanceTest {

    public void performanceTest() {
        // 准备测试数据
        User user = createTestUser();
        int iterations = 10000;

        // 序列化性能测试
        long startTime = System.currentTimeMillis();
        for (int i = 0; i < iterations; i++) {
            byte[] data = serializeUser(user);
        }
        long serializationTime = System.currentTimeMillis() - startTime;

        // 反序列化性能测试
        byte[] testData = serializeUser(user);
        startTime = System.currentTimeMillis();
        for (int i = 0; i < iterations; i++) {
            User deserializedUser = deserializeUser(testData);
        }
        long deserializationTime = System.currentTimeMillis() - startTime;

        log.info("Protobuf性能测试 - 序列化: {}ms, 反序列化: {}ms, 数据大小: {}bytes",
                serializationTime, deserializationTime, testData.length);
    }
}

3.3 Apache Thrift

协议特性

• Facebook开发的二进制协议
• 完整的RPC框架
• 多语言代码生成
• 支持多种传输格式

定义文件示例

namespace java com.example.rpc.thrift
// 枚举定义
enum UserStatus {
    ACTIVE = 1,
    INACTIVE = 2,
    DELETED = 3
}
// 结构体定义
struct Address {
    1: required string country,
    2: required string province,
    3: required string city,
    4: required string detail,
    5: optional bool isDefault = false
}
struct User {
    1: required i64 userId,
    2: required string username,
    3: optional string email,
    4: optional string phone,
    5: required UserStatus status,
    6: optional map<string, string> attributes,
    7: optional list<Address> addresses,
    8: optional i64 createTime,
    9: optional i64 updateTime
}
struct UserRequest {
    1: required i64 userId,
    2: optional string requestId,
    3: optional map<string, string> headers
}
struct UserResponse {
    1: required i32 code,
    2: required string message,
    3: optional User data
}
struct BatchUserRequest {
    1: required list<i64> userIds,
    2: optional i32 pageSize = 20,
    3: optional string cursor
}
struct BatchUserResponse {
    1: required list<User> users,
    2: optional string nextCursor,
    3: optional bool hasMore
}
// 异常定义
exception BusinessException {
    1: required i32 errorCode,
    2: required string errorMessage,
    3: optional map<string, string> context
}
// 服务定义
service UserService {
    UserResponse getUser(1: UserRequest request) throws (1: BusinessException ex),

    BatchUserResponse batchGetUsers(1: BatchUserRequest request) throws (1: BusinessException ex),

    UserResponse createUser(1: User user) throws (1: BusinessException ex),

    UserResponse updateUser(1: User user) throws (1: BusinessException ex)
}

Java代码示例

// Thrift序列化工具
@Slf4j
public class ThriftSerializationExample {

    private final TBinaryProtocol.Factory protocolFactory = new TBinaryProtocol.Factory();
    private final TCompactProtocol.Factory compactProtocolFactory = new TCompactProtocol.Factory();

    /**
     * 使用二进制协议序列化
     */
    public byte[] serializeWithBinaryProtocol(User user) throws TException {
        TMemoryBuffer transport = new TMemoryBuffer(1024);
        TProtocol protocol = protocolFactory.getProtocol(transport);

        com.example.rpc.thrift.User thriftUser = convertToThriftUser(user);
        thriftUser.write(protocol);

        return transport.getArray();
    }

    /**
     * 使用紧凑协议序列化（更小的数据大小）
     */
    public byte[] serializeWithCompactProtocol(User user) throws TException {
        TMemoryBuffer transport = new TMemoryBuffer(512);
        TProtocol protocol = compactProtocolFactory.getProtocol(transport);

        com.example.rpc.thrift.User thriftUser = convertToThriftUser(user);
        thriftUser.write(protocol);

        return transport.getArray();
    }

    /**
     * 二进制协议反序列化
     */
    public User deserializeWithBinaryProtocol(byte[] data) throws TException {
        TMemoryBuffer transport = new TMemoryBuffer(1024);
        transport.write(data);
        TProtocol protocol = protocolFactory.getProtocol(transport);

        com.example.rpc.thrift.User thriftUser = new com.example.rpc.thrift.User();
        thriftUser.read(protocol);

        return convertFromThriftUser(thriftUser);
    }

    private com.example.rpc.thrift.User convertToThriftUser(User user) {
        com.example.rpc.thrift.User thriftUser = new com.example.rpc.thrift.User();
        thriftUser.setUserId(user.getUserId());
        thriftUser.setUsername(user.getUsername());
        thriftUser.setEmail(user.getEmail());
        thriftUser.setPhone(user.getPhone());
        thriftUser.setStatus(com.example.rpc.thrift.UserStatus.valueOf(user.getStatus().name()));

        if (user.getAttributes() != null) {
            thriftUser.setAttributes(new HashMap<>(user.getAttributes()));
        }

        if (user.getAddresses() != null) {
            List<com.example.rpc.thrift.Address> addresses = user.getAddresses().stream()
                    .map(this::convertToThriftAddress)
                    .collect(Collectors.toList());
            thriftUser.setAddresses(addresses);
        }

        return thriftUser;
    }

    private User convertFromThriftUser(com.example.rpc.thrift.User thriftUser) {
        User user = new User();
        user.setUserId(thriftUser.getUserId());
        user.setUsername(thriftUser.getUsername());
        user.setEmail(thiftUser.getEmail());
        user.setPhone(thriftUser.getPhone());
        user.setStatus(User.Status.valueOf(thriftUser.getStatus().name()));

        if (thriftUser.getAttributes() != null) {
            user.setAttributes(new HashMap<>(thriftUser.getAttributes()));
        }

        if (thriftUser.getAddresses() != null) {
            List<Address> addresses = thriftUser.getAddresses().stream()
                    .map(this::convertFromThriftAddress)
                    .collect(Collectors.toList());
            user.setAddresses(addresses);
        }

        return user;
    }

    // 地址转换方法...
}
// Thrift服务实现
public class UserServiceImpl implements UserService.Iface {

    @Override
    public UserResponse getUser(UserRequest request) throws BusinessException, TException {
        try {
            // 业务逻辑处理
            User user = userRepository.findById(request.getUserId())
                    .orElseThrow(() -> new BusinessException(404, "User not found"));

            UserResponse response = new UserResponse();
            response.setCode(200);
            response.setMessage("Success");
            response.setData(convertToThriftUser(user));

            return response;
        } catch (Exception e) {
            throw new BusinessException(500, "Internal server error");
        }
    }

    @Override
    public BatchUserResponse batchGetUsers(BatchUserRequest request) throws BusinessException, TException {
        // 批量查询实现
        return null;
    }

    // 其他方法实现...
}

3.4 Kryo序列化

协议特性

• 专为Java设计的高性能序列化
• 无需Schema定义
• 极致的性能表现
• 支持对象引用和循环引用

Java代码示例

// Kryo序列化配置
@Configuration
@Slf4j
public class KryoConfiguration {

    @Bean
    public KryoPool kryoPool() {
        KryoFactory factory = new KryoFactory() {
            @Override
            public Kryo create() {
                Kryo kryo = new Kryo();

                // 配置Kryo实例
                kryo.setReferences(true); // 支持对象引用
                kryo.setRegistrationRequired(false); // 不要求注册类
                kryo.setDefaultSerializer(CompatibleFieldSerializer.class); // 兼容性序列化器

                // 注册常用类以提高性能
                kryo.register(User.class);
                kryo.register(Address.class);
                kryo.register(ArrayList.class);
                kryo.register(HashMap.class);
                kryo.register(HashSet.class);

                return kryo;
            }
        };

        return new KryoPool.Builder(factory)
                .softReferences() // 使用软引用提高性能
                .build();
    }
}
// Kryo序列化服务
@Service
@Slf4j
public class KryoSerializationService {

    @Autowired
    private KryoPool kryoPool;

    /**
     * 序列化对象
     */
    public byte[] serialize(Object obj) {
        if (obj == null) {
            return new byte[0];
        }

        Kryo kryo = null;
        try (Output output = new Output(1024, -1)) {
            kryo = kryoPool.borrow();
            kryo.writeClassAndObject(output, obj);
            return output.toBytes();
        } catch (Exception e) {
            log.error("Kryo序列化失败", e);
            throw new SerializationException("序列化失败", e);
        } finally {
            if (kryo != null) {
                kryoPool.release(kryo);
            }
        }
    }

    /**
     * 反序列化对象
     */
    @SuppressWarnings("unchecked")
    public <T> T deserialize(byte[] data) {
        if (data == null || data.length == 0) {
            return null;
        }

        Kryo kryo = null;
        try (Input input = new Input(data)) {
            kryo = kryoPool.borrow();
            return (T) kryo.readClassAndObject(input);
        } catch (Exception e) {
            log.error("Kryo反序列化失败", e);
            throw new SerializationException("反序列化失败", e);
        } finally {
            if (kryo != null) {
                kryoPool.release(kryo);
            }
        }
    }

    /**
     * 带类型的序列化（性能更好）
     */
    public <T> byte[] serialize(T obj, Class<T> clazz) {
        if (obj == null) {
            return new byte[0];
        }

        Kryo kryo = null;
        try (Output output = new Output(1024, -1)) {
            kryo = kryoPool.borrow();
            kryo.writeObject(output, obj);
            return output.toBytes();
        } catch (Exception e) {
            log.error("Kryo序列化失败", e);
            throw new SerializationException("序列化失败", e);
        } finally {
            if (kryo != null) {
                kryoPool.release(kryo);
            }
        }
    }

    /**
     * 带类型的反序列化（性能更好）
     */
    public <T> T deserialize(byte[] data, Class<T> clazz) {
        if (data == null || data.length == 0) {
            return null;
        }

        Kryo kryo = null;
        try (Input input = new Input(data)) {
            kryo = kryoPool.borrow();
            return kryo.readObject(input, clazz);
        } catch (Exception e) {
            log.error("Kryo反序列化失败", e);
            throw new SerializationException("反序列化失败", e);
        } finally {
            if (kryo != null) {
                kryoPool.release(kryo);
            }
        }
    }
}
// Kryo性能优化配置
@Component
@Slf4j
public class KryoOptimization {

    private final ThreadLocal<Kryo> kryoThreadLocal = ThreadLocal.withInitial(() -> {
        Kryo kryo = new Kryo();

        // 优化配置
        kryo.setReferences(false); // 关闭引用，提高性能（如果确定没有循环引用）
        kryo.setRegistrationRequired(true); // 要求注册，提高性能

        // 注册所有可能用到的类
        registerClasses(kryo);

        return kryo;
    });

    private void registerClasses(Kryo kryo) {
        // 基础类型包装类
        kryo.register(Integer.class);
        kryo.register(Long.class);
        kryo.register(String.class);
        kryo.register(Boolean.class);

        // 集合类
        kryo.register(ArrayList.class);
        kryo.register(LinkedList.class);
        kryo.register(HashMap.class);
        kryo.register(LinkedHashMap.class);
        kryo.register(HashSet.class);

        // 业务类
        kryo.register(User.class);
        kryo.register(Address.class);
        kryo.register(UserResponse.class);

        // 注册数组
        kryo.register(int[].class);
        kryo.register(long[].class);
        kryo.register(String[].class);
        kryo.register(User[].class);
    }

    public byte[] optimizedSerialize(Object obj) {
        Kryo kryo = kryoThreadLocal.get();
        try (Output output = new Output(1024, -1)) {
            kryo.writeObject(output, obj);
            return output.toBytes();
        }
    }

    public <T> T optimizedDeserialize(byte[] data, Class<T> clazz) {
        Kryo kryo = kryoThreadLocal.get();
        try (Input input = new Input(data)) {
            return kryo.readObject(input, clazz);
        }
    }
}

3.5 JSON序列化

协议特性

• 人类可读的文本格式
• 广泛的语言支持
• 良好的调试体验
• 相对较差的性能

Java代码示例

// Jackson配置
@Configuration
public class JacksonConfiguration {

    @Bean
    public ObjectMapper objectMapper() {
        ObjectMapper mapper = new ObjectMapper();

        // 配置序列化选项
        mapper.configure(SerializationFeature.FAIL_ON_EMPTY_BEANS, false);
        mapper.configure(DeserializationFeature.FAIL_ON_UNKNOWN_PROPERTIES, false);
        mapper.configure(DeserializationFeature.READ_UNKNOWN_ENUM_VALUES_AS_NULL, true);

        // 日期格式
        mapper.setDateFormat(new SimpleDateFormat("yyyy-MM-dd HH:mm:ss"));
        mapper.setTimeZone(TimeZone.getTimeZone("GMT+8"));

        // 美化输出（仅开发环境）
        mapper.configure(SerializationFeature.INDENT_OUTPUT, false);

        // 空值处理
        mapper.setSerializationInclusion(JsonInclude.Include.NON_NULL);

        return mapper;
    }

    @Bean
    public ObjectMapper smileObjectMapper() {
        ObjectMapper mapper = new ObjectMapper(new SmileFactory());
        mapper.configure(SerializationFeature.FAIL_ON_EMPTY_BEANS, false);
        mapper.configure(DeserializationFeature.FAIL_ON_UNKNOWN_PROPERTIES, false);
        return mapper;
    }
}
// JSON序列化服务
@Service
@Slf4j
public class JsonSerializationService {

    @Autowired
    private ObjectMapper objectMapper;

    @Autowired
    private ObjectMapper smileObjectMapper; // 二进制JSON

    /**
     * 标准JSON序列化
     */
    public String serializeToJson(Object obj) {
        if (obj == null) {
            return null;
        }

        try {
            return objectMapper.writeValueAsString(obj);
        } catch (JsonProcessingException e) {
            log.error("JSON序列化失败", e);
            throw new SerializationException("JSON序列化失败", e);
        }
    }

    /**
     * 标准JSON反序列化
     */
    public <T> T deserializeFromJson(String json, Class<T> clazz) {
        if (json == null || json.isEmpty()) {
            return null;
        }

        try {
            return objectMapper.readValue(json, clazz);
        } catch (IOException e) {
            log.error("JSON反序列化失败", e);
            throw new SerializationException("JSON反序列化失败", e);
        }
    }

    /**
     * 泛型反序列化
     */
    @SuppressWarnings("unchecked")
    public <T> T deserializeFromJson(String json, TypeReference<T> typeReference) {
        if (json == null || json.isEmpty()) {
            return null;
        }

        try {
            return (T) objectMapper.readValue(json, typeReference);
        } catch (IOException e) {
            log.error("JSON反序列化失败", e);
            throw new SerializationException("JSON反序列化失败", e);
        }
    }

    /**
     * 二进制JSON序列化（Smile格式）
     */
    public byte[] serializeToBinaryJson(Object obj) {
        if (obj == null) {
            return new byte[0];
        }

        try {
            return smileObjectMapper.writeValueAsBytes(obj);
        } catch (JsonProcessingException e) {
            log.error("二进制JSON序列化失败", e);
            throw new SerializationException("二进制JSON序列化失败", e);
        }
    }

    /**
     * 二进制JSON反序列化
     */
    public <T> T deserializeFromBinaryJson(byte[] data, Class<T> clazz) {
        if (data == null || data.length == 0) {
            return null;
        }

        try {
            return smileObjectMapper.readValue(data, clazz);
        } catch (IOException e) {
            log.error("二进制JSON反序列化失败", e);
            throw new SerializationException("二进制JSON反序列化失败", e);
        }
    }

    /**
     * 高性能JSON序列化（使用Afterburner模块）
     */
    public String highPerformanceSerialize(Object obj) {
        if (obj == null) {
            return null;
        }

        ObjectMapper highPerfMapper = objectMapper.copy();
        highPerfMapper.registerModule(new AfterburnerModule());

        try {
            return highPerfMapper.writeValueAsString(obj);
        } catch (JsonProcessingException e) {
            log.error("高性能JSON序列化失败", e);
            throw new SerializationException("高性能JSON序列化失败", e);
        }
    }
}

4. 序列化性能基准测试

4.1 性能测试框架

@Slf4j
public class SerializationBenchmark {

    private static final int WARMUP_ITERATIONS = 1000;
    private static final int MEASUREMENT_ITERATIONS = 10000;

    private final User testUser;
    private final JsonSerializationService jsonService;
    private final KryoSerializationService kryoService;
    private final ProtobufSerializationExample protobufExample;

    public SerializationBenchmark() {
        this.testUser = createTestUser();
        this.jsonService = new JsonSerializationService();
        this.kryoService = new KryoSerializationService();
        this.protobufExample = new ProtobufSerializationExample();
    }

    /**
     * 完整性能基准测试
     */
    public void runBenchmark() {
        log.info("开始序列化性能基准测试...");

        // 预热
        warmup();

        // 测试各序列化协议
        testJsonSerialization();
        testKryoSerialization();
        testProtobufSerialization();
        testThriftSerialization();

        log.info("序列化性能基准测试完成");
    }

    private void warmup() {
        log.info("预热阶段...");
        for (int i = 0; i < WARMUP_ITERATIONS; i++) {
            jsonService.serializeToJson(testUser);
            kryoService.serialize(testUser);
        }
    }

    private void testJsonSerialization() {
        log.info("测试JSON序列化...");

        // 序列化性能
        long startTime = System.nanoTime();
        for (int i = 0; i < MEASUREMENT_ITERATIONS; i++) {
            jsonService.serializeToJson(testUser);
        }
        long serializationTime = System.nanoTime() - startTime;

        // 反序列化性能
        String json = jsonService.serializeToJson(testUser);
        startTime = System.nanoTime();
        for (int i = 0; i < MEASUREMENT_ITERATIONS; i++) {
            jsonService.deserializeFromJson(json, User.class);
        }
        long deserializationTime = System.nanoTime() - startTime;

        log.info("JSON - 序列化: {}ns, 反序列化: {}ns, 数据大小: {}bytes",
                serializationTime / MEASUREMENT_ITERATIONS,
                deserializationTime / MEASUREMENT_ITERATIONS,
                json.getBytes().length);
    }

    private void testKryoSerialization() {
        log.info("测试Kryo序列化...");

        // 序列化性能
        long startTime = System.nanoTime();
        byte[] data = null;
        for (int i = 0; i < MEASUREMENT_ITERATIONS; i++) {
            data = kryoService.serialize(testUser);
        }
        long serializationTime = System.nanoTime() - startTime;

        // 反序列化性能
        startTime = System.nanoTime();
        for (int i = 0; i < MEASUREMENT_ITERATIONS; i++) {
            kryoService.deserialize(data);
        }
        long deserializationTime = System.nanoTime() - startTime;

        log.info("Kryo - 序列化: {}ns, 反序列化: {}ns, 数据大小: {}bytes",
                serializationTime / MEASUREMENT_ITERATIONS,
                deserializationTime / MEASUREMENT_ITERATIONS,
                data.length);
    }

    private void testProtobufSerialization() {
        log.info("测试Protobuf序列化...");

        try {
            // 序列化性能
            long startTime = System.nanoTime();
            byte[] data = null;
            for (int i = 0; i < MEASUREMENT_ITERATIONS; i++) {
                data = protobufExample.serializeUser(testUser);
            }
            long serializationTime = System.nanoTime() - startTime;

            // 反序列化性能
            startTime = System.nanoTime();
            for (int i = 0; i < MEASUREMENT_ITERATIONS; i++) {
                protobufExample.deserializeUser(data);
            }
            long deserializationTime = System.nanoTime() - startTime;

            log.info("Protobuf - 序列化: {}ns, 反序列化: {}ns, 数据大小: {}bytes",
                    serializationTime / MEASUREMENT_ITERATIONS,
                    deserializationTime / MEASUREMENT_ITERATIONS,
                    data.length);
        } catch (Exception e) {
            log.error("Protobuf测试失败", e);
        }
    }

    private void testThriftSerialization() {
        log.info("测试Thrift序列化...");

        try {
            ThriftSerializationExample thriftExample = new ThriftSerializationExample();

            // 序列化性能
            long startTime = System.nanoTime();
            byte[] data = null;
            for (int i = 0; i < MEASUREMENT_ITERATIONS; i++) {
                data = thriftExample.serializeWithBinaryProtocol(testUser);
            }
            long serializationTime = System.nanoTime() - startTime;

            // 反序列化性能
            startTime = System.nanoTime();
            for (int i = 0; i < MEASUREMENT_ITERATIONS; i++) {
                thriftExample.deserializeWithBinaryProtocol(data);
            }
            long deserializationTime = System.nanoTime() - startTime;

            log.info("Thrift - 序列化: {}ns, 反序列化: {}ns, 数据大小: {}bytes",
                    serializationTime / MEASUREMENT_ITERATIONS,
                    deserializationTime / MEASUREMENT_ITERATIONS,
                    data.length);
        } catch (Exception e) {
            log.error("Thrift测试失败", e);
        }
    }

    private User createTestUser() {
        User user = new User();
        user.setUserId(123456L);
        user.setUsername("testuser");
        user.setEmail("test@example.com");
        user.setPhone("13800138000");
        user.setStatus(User.Status.ACTIVE);

        Map<String, String> attributes = new HashMap<>();
        attributes.put("key1", "value1");
        attributes.put("key2", "value2");
        user.setAttributes(attributes);

        List<Address> addresses = new ArrayList<>();
        Address address = new Address();
        address.setCountry("China");
        address.setProvince("Beijing");
        address.setCity("Beijing");
        address.setDetail("Some street");
        address.setDefault(true);
        addresses.add(address);
        user.setAddresses(addresses);

        return user;
    }
}

4.2 性能测试结果分析

// 性能测试结果分析
@Component
@Slf4j
public class PerformanceAnalyzer {

    /**
     * 生成性能对比报告
     */
    public void generatePerformanceReport() {
        Map<String, ProtocolPerformance> results = new LinkedHashMap<>();

        // 模拟测试结果（实际应从基准测试获取）
        results.put("JSON", new ProtocolPerformance(1500, 1800, 450));
        results.put("Kryo", new ProtocolPerformance(120, 150, 180));
        results.put("Protobuf", new ProtocolPerformance(200, 220, 220));
        results.put("Thrift", new ProtocolPerformance(180, 200, 240));
        results.put("Hessian", new ProtocolPerformance(300, 350, 280));

        log.info("=== 序列化协议性能对比报告 ===");
        log.info("{:<12} {:<10} {:<12} {:<10}", "协议", "序列化(ns)", "反序列化(ns)", "大小(bytes)");
        log.info("------------------------------------------------");

        results.forEach((name, perf) -> {
            log.info("{:<12} {:<10} {:<12} {:<10}",
                    name, perf.serializationTime, perf.deserializationTime, perf.dataSize);
        });

        // 找出最佳选择
        recommendBestProtocol(results);
    }

    private void recommendBestProtocol(Map<String, ProtocolPerformance> results) {
        log.info("\n=== 协议选型建议 ===");

        // 基于不同场景推荐
        log.info("1. 高性能Java系统: Kryo");
        log.info("2. 跨语言微服务: Protobuf 或 Thrift");
        log.info("3. Web API和调试: JSON");
        log.info("4. 大数据和流处理: Avro");
        log.info("5. 企业级系统: XML");

        // 详细分析
        analyzeTradeOffs();
    }

    private void analyzeTradeOffs() {
        log.info("\n=== 权衡分析 ===");
        log.info("✅ Kryo: 极致性能，但仅限于Java生态");
        log.info("✅ Protobuf: 优秀的性能和跨语言支持，需要Schema管理");
        log.info("✅ Thrift: 完整的RPC框架，性能优秀");
        log.info("✅ JSON: 人类可读，广泛支持，性能相对较差");
        log.info("✅ XML: 结构严谨，工具丰富，数据冗余较多");
    }

    static class ProtocolPerformance {
        long serializationTime;
        long deserializationTime;
        long dataSize;

        public ProtocolPerformance(long serializationTime, long deserializationTime, long dataSize) {
            this.serializationTime = serializationTime;
            this.deserializationTime = deserializationTime;
            this.dataSize = dataSize;
        }
    }
}

5. 在Dubbo中使用序列化协议

5.1 Dubbo序列化配置

# application.yml - Dubbo序列化配置
dubbo:
  application:
    name: user-service
  protocol:
    name: dubbo
    port: 20880
    serialization: kryo  # 可选: hessian2, fastjson, kryo, protobuf, etc.
  provider:
    serialization: kryo
  consumer:
    serialization: kryo
# 自定义序列化配置
dubbo:
  protocol:
    serialization: kryo
    optimizer: com.example.serialization.KryoSerializationOptimizer

5.2 自定义序列化优化器

// Kryo序列化优化器
public class KryoSerializationOptimizer implements SerializationOptimizer {

    @Override
    public Collection<Class<?>> getSerializableClasses() {
        List<Class<?>> classes = new ArrayList<>();

        // 注册基础类型
        classes.add(Integer.class);
        classes.add(Long.class);
        classes.add(String.class);
        classes.add(Boolean.class);

        // 注册集合类型
        classes.add(ArrayList.class);
        classes.add(LinkedList.class);
        classes.add(HashMap.class);
        classes.add(HashSet.class);

        // 注册业务类型
        classes.add(User.class);
        classes.add(Address.class);
        classes.add(UserRequest.class);
        classes.add(UserResponse.class);
        classes.add(BatchUserRequest.class);
        classes.add(BatchUserResponse.class);

        // 注册异常类型
        classes.add(BusinessException.class);
        classes.add(ValidationException.class);

        return classes;
    }
}
// Protobuf序列化优化器
public class ProtobufSerializationOptimizer implements SerializationOptimizer {

    @Override
    public Collection<Class<?>> getSerializableClasses() {
        List<Class<?>> classes = new ArrayList<>();

        // 注册Protobuf生成的类
        classes.add(UserServiceProto.User.class);
        classes.add(UserServiceProto.UserRequest.class);
        classes.add(UserServiceProto.UserResponse.class);
        classes.add(UserServiceProto.BatchUserRequest.class);
        classes.add(UserServiceProto.BatchUserResponse.class);

        return classes;
    }
}

5.3 序列化协议选择策略

// 序列化策略选择器
@Component
@Slf4j
public class SerializationStrategySelector {

    /**
     * 根据场景选择合适的序列化协议
     */
    public String selectProtocol(SerializationScenario scenario) {
        switch (scenario) {
            case HIGH_PERFORMANCE_RPC:
                return "kryo";

            case CROSS_LANGUAGE_MICROSERVICE:
                return "protobuf";

            case WEB_API:
                return "json";

            case CONFIGURATION:
                return "yaml";

            case BIG_DATA:
                return "avro";

            case ENTERPRISE_INTEGRATION:
                return "xml";

            default:
                return "hessian2"; // Dubbo默认
        }
    }

    /**
     * 获取序列化配置
     */
    public Map<String, String> getSerializationConfig(SerializationScenario scenario) {
        Map<String, String> config = new HashMap<>();

        switch (scenario) {
            case HIGH_PERFORMANCE_RPC:
                config.put("dubbo.protocol.serialization", "kryo");
                config.put("dubbo.protocol.optimizer",
                    "com.example.serialization.KryoSerializationOptimizer");
                break;

            case CROSS_LANGUAGE_MICROSERVICE:
                config.put("dubbo.protocol.serialization", "protobuf");
                config.put("dubbo.protocol.optimizer",
                    "com.example.serialization.ProtobufSerializationOptimizer");
                break;

            default:
                config.put("dubbo.protocol.serialization", "hessian2");
        }

        return config;
    }

    public enum SerializationScenario {
        HIGH_PERFORMANCE_RPC,      // 高性能RPC调用
        CROSS_LANGUAGE_MICROSERVICE, // 跨语言微服务
        WEB_API,                   // Web API
        CONFIGURATION,             // 配置文件
        BIG_DATA,                  // 大数据处理
        ENTERPRISE_INTEGRATION     // 企业集成
    }
}

6. 序列化安全与最佳实践

6.1 安全防护措施

// 序列化安全管理器
@Component
@Slf4j
public class SerializationSecurityManager {

    private final Set<String> allowedClasses = new HashSet<>();
    private final Set<String> blockedClasses = new HashSet<>();

    @PostConstruct
    public void init() {
        // 允许的类白名单
        allowedClasses.add("com.example.model.");
        allowedClasses.add("java.util.");
        allowedClasses.add("java.lang.");

        // 阻止的危险类黑名单
        blockedClasses.add("java.lang.ProcessBuilder");
        blockedClasses.add("java.lang.Runtime");
        blockedClasses.add("javax.script.ScriptEngineManager");
        blockedClasses.add("org.springframework.");
    }

    /**
     * 检查类是否允许反序列化
     */
    public boolean isClassAllowed(String className) {
        if (className == null) {
            return false;
        }

        // 检查黑名单
        for (String blocked : blockedClasses) {
            if (className.startsWith(blocked)) {
                log.warn("检测到危险类尝试反序列化: {}", className);
                return false;
            }
        }

        // 检查白名单
        for (String allowed : allowedClasses) {
            if (className.startsWith(allowed)) {
                return true;
            }
        }

        log.warn("类不在白名单中: {}", className);
        return false;
    }

    /**
     * 安全的反序列化方法
     */
    public <T> T safeDeserialize(byte[] data, Class<T> expectedClass) {
        try {
            // 验证数据大小（防止DoS攻击）
            if (data.length > 10 * 1024 * 1024) { // 10MB限制
                throw new SecurityException("反序列化数据过大");
            }

            T result = kryoDeserialize(data);

            // 验证结果类型
            if (!expectedClass.isInstance(result)) {
                throw new SecurityException("反序列化结果类型不匹配");
            }

            return result;
        } catch (Exception e) {
            log.error("安全反序列化失败", e);
            throw new SecurityException("反序列化安全检查失败", e);
        }
    }

    @SuppressWarnings("unchecked")
    private <T> T kryoDeserialize(byte[] data) {
        // 使用安全的Kryo配置
        Kryo kryo = new Kryo();
        kryo.setRegistrationRequired(true); // 必须注册类

        // 注册允许的类
        kryo.register(User.class);
        kryo.register(Address.class);
        // ... 注册其他允许的类

        try (Input input = new Input(data)) {
            return (T) kryo.readClassAndObject(input);
        }
    }
}

6.2 生产环境最佳实践

// 序列化最佳实践配置
@Configuration
@Slf4j
public class SerializationBestPractices {

    /**
     * 生产环境序列化配置
     */
    @Bean
    @Profile("prod")
    public SerializationConfig productionSerializationConfig() {
        SerializationConfig config = new SerializationConfig();

        // 启用安全检查
        config.setSecurityEnabled(true);

        // 设置大小限制
        config.setMaxSize(10 * 1024 * 1024); // 10MB

        // 启用压缩
        config.setCompressionEnabled(true);
        config.setCompressionThreshold(1024); // 1KB以上压缩

        // 启用监控
        config.setMonitoringEnabled(true);

        return config;
    }

    /**
     * 序列化监控
     */
    @Bean
    public SerializationMonitor serializationMonitor() {
        return new SerializationMonitor();
    }
}
// 序列化监控
@Component
@Slf4j
public class SerializationMonitor {

    private final MeterRegistry meterRegistry;

    private final Counter serializationCounter;
    private final Counter deserializationCounter;
    private final Timer serializationTimer;
    private final Timer deserializationTimer;
    private final DistributionSummary serializationSizeSummary;

    public SerializationMonitor(MeterRegistry meterRegistry) {
        this.meterRegistry = meterRegistry;

        this.serializationCounter = Counter.builder("serialization.operations")
                .tag("operation", "serialize")
                .register(meterRegistry);

        this.deserializationCounter = Counter.builder("serialization.operations")
                .tag("operation", "deserialize")
                .register(meterRegistry);

        this.serializationTimer = Timer.builder("serialization.duration")
                .tag("operation", "serialize")
                .register(meterRegistry);

        this.deserializationTimer = Timer.builder("serialization.duration")
                .tag("operation", "deserialize")
                .register(meterRegistry);

        this.serializationSizeSummary = DistributionSummary.builder("serialization.size")
                .baseUnit("bytes")
                .register(meterRegistry);
    }

    public <T> byte[] monitorSerialization(Supplier<byte[]> serializationTask, String protocol) {
        serializationCounter.increment();

        return serializationTimer.record(() -> {
            byte[] result = serializationTask.get();
            serializationSizeSummary.record(result.length);
            return result;
        });
    }

    public <T> T monitorDeserialization(Supplier<T> deserializationTask, String protocol) {
        deserializationCounter.increment();
        return deserializationTimer.record(deserializationTask);
    }
}

7. 总结

7.1 序列化协议选型指南

7.2 关键决策因素

决策因素	优先级	说明
性能要求	高	RPC调用的核心指标
跨语言支持	高	微服务架构的关键需求
向后兼容性	高	长期演进的保障
开发效率	中	影响团队生产力
调试便利性	中	问题排查的效率
数据大小	中	网络传输成本

7.3 实践建议

性能优先场景：

• 内部Java服务：Kryo
• 跨语言服务：Protobuf
• 大数据处理：Avro

开发效率优先：

• Web API：JSON
• 配置文件：YAML/JSON
• 企业集成：XML

安全注意事项：

• 始终验证反序列化数据来源
• 使用类白名单机制
• 限制反序列化数据大小
• 监控序列化操作异常

序列化协议的选择是一个权衡过程，需要根据具体的业务需求、技术栈和性能要求做出合理决策。正确的序列化协议选择能够显著提升系统性能和可维护性。
