QT学习VTK序列: IsoparametricCells

 学习相关的vtkCell的具体类型，其中:

vtkHexahedron	4个顶点 + 4个顶点组成的规则四棱柱
vtkPentagonalPrism	5个顶点 + 5个顶点组成的规则五棱柱
vtkHexagonalPrism	6个顶点 + 6个顶点组成的规则六棱柱
vtkPyramid	金字塔拓扑
dodechedron	规则五边形12面体
vtkTetra	规则三角形4面体
vtkVoxel	规则四边形六面体
vtkWedge	三棱柱

/*
 * ModuleName: 模块名称
 * Description:
 * 参考代码：https://lorensen.github.io/VTKExamples/site/Cxx/GeometricObjects/IsoparametricCellsDemo/
 * Author: HSW
 * Date: 2020-03-15
 *
*/

// QT
#include <QMainWindow>
#include <QDebug>

// VTK
#include <vtkActor.h>
#include <vtkActor2D.h>
#include <vtkCamera.h>
#include <vtkCellArray.h>
#include <vtkDataSetMapper.h>
#include <vtkGlyph3DMapper.h>
#include <vtkLabeledDataMapper.h>
#include <vtkNamedColors.h>
#include <vtkPoints.h>
#include <vtkProperty.h>
#include <vtkRenderer.h>
#include <vtkRenderWindow.h>
#include <vtkRenderWindowInteractor.h>
#include <vtkSmartPointer.h>
#include <vtkSphereSource.h>
#include <vtkTextMapper.h>
#include <vtkTextProperty.h>
#include <vtkTextProperty.h>
#include <vtkUnstructuredGrid.h>

#include <vtkBiQuadraticQuad.h>
#include <vtkBiQuadraticQuadraticHexahedron.h>
#include <vtkBiQuadraticQuadraticWedge.h>
#include <vtkBiQuadraticTriangle.h>
#include <vtkCubicLine.h>
#include <vtkQuadraticEdge.h>
#include <vtkQuadraticHexahedron.h>
#include <vtkQuadraticLinearQuad.h>
#include <vtkQuadraticLinearWedge.h>
#include <vtkQuadraticPolygon.h>
#include <vtkQuadraticPyramid.h>
#include <vtkQuadraticQuad.h>
#include <vtkQuadraticTetra.h>
#include <vtkQuadraticTriangle.h>
#include <vtkQuadraticWedge.h>
#include <vtkTriQuadraticHexahedron.h>
#include <vtkAutoInit.h>

// C++
#include <algorithm>
#include <array>
#include <cstdlib>
#include <string>
#include <vector>

namespace Ui {
class MainWindow;
}

VTK_MODULE_INIT(vtkRenderingOpenGL2);
VTK_MODULE_INIT(vtkInteractionStyle);
VTK_MODULE_INIT(vtkRenderingContextOpenGL2);
VTK_MODULE_INIT(vtkRenderingFreeType);

namespace
{
template<typename T> vtkSmartPointer<vtkUnstructuredGrid> MakeUnstructuredGrid(vtkSmartPointer<T>);
vtkSmartPointer<vtkUnstructuredGrid> MakeQuadraticPolygon();
}

class MainWindow : public QMainWindow
{
    Q_OBJECT
public:
    explicit MainWindow(QWidget *parent = 0);
    ~MainWindow();
private:
    Ui::MainWindow *ui;
private:
    vtkSmartPointer<vtkNamedColors>            colors;
    vtkSmartPointer<vtkPoints>                 points;
    vtkSmartPointer<vtkHexahedron>             hex;
    vtkSmartPointer<vtkCellArray>              hexs;
    vtkSmartPointer<vtkUnstructuredGrid>       uGrid;
    vtkSmartPointer<vtkPolyDataMapper>         mapper;
    vtkSmartPointer<vtkActor>                  actor;
    vtkSmartPointer<vtkRenderer>               renderer;
};

#include "mainwindow.h"
#include "ui_mainwindow.h"

namespace
{
template<typename T> vtkSmartPointer<vtkUnstructuredGrid> MakeUnstructuredGrid(vtkSmartPointer<T> aCell)
{
    double *pcoords = aCell->GetParametricCoords();
    for (int i = 0; i < aCell->GetNumberOfPoints(); ++i)
    {
        aCell->GetPointIds()->SetId(i, i);
        aCell->GetPoints()->SetPoint(i,
                                     *(pcoords + 3 * i),
                                     *(pcoords + 3 * i + 1),
                                     *(pcoords + 3 * i + 2));
    }

    vtkSmartPointer<vtkUnstructuredGrid> ug =
            vtkSmartPointer<vtkUnstructuredGrid>::New();
    ug->SetPoints(aCell->GetPoints());
    ug->InsertNextCell(aCell->GetCellType(),aCell->GetPointIds());
    return ug;
}

vtkSmartPointer<vtkUnstructuredGrid> MakeQuadraticPolygon()
{
    vtkSmartPointer<vtkQuadraticPolygon> quadraticPolygon =
            vtkSmartPointer<vtkQuadraticPolygon>::New();

    quadraticPolygon->GetPointIds()->SetNumberOfIds(8);
    quadraticPolygon->GetPointIds()->SetId(0,0);
    quadraticPolygon->GetPointIds()->SetId(1,1);
    quadraticPolygon->GetPointIds()->SetId(2,2);
    quadraticPolygon->GetPointIds()->SetId(3,3);
    quadraticPolygon->GetPointIds()->SetId(4,4);
    quadraticPolygon->GetPointIds()->SetId(5,5);
    quadraticPolygon->GetPointIds()->SetId(6,6);
    quadraticPolygon->GetPointIds()->SetId(7,7);

    quadraticPolygon->GetPoints()->SetNumberOfPoints(8);
    quadraticPolygon->GetPoints()->SetPoint(0, 0.0, 0.0, 0.0);
    quadraticPolygon->GetPoints()->SetPoint(1, 2.0, 0.0, 0.0);
    quadraticPolygon->GetPoints()->SetPoint(2, 2.0, 2.0, 0.0);
    quadraticPolygon->GetPoints()->SetPoint(3, 0.0, 2.0, 0.0);
    quadraticPolygon->GetPoints()->SetPoint(4, 1.0, 0.0, 0.0);
    quadraticPolygon->GetPoints()->SetPoint(5, 2.0, 1.0, 0.0);
    quadraticPolygon->GetPoints()->SetPoint(6, 1.0, 2.0, 0.0);
    quadraticPolygon->GetPoints()->SetPoint(7, 0.0, 1.0, 0.0);
    quadraticPolygon->GetPoints()->SetPoint(5, 3.0, 1.0, 0.0);

    vtkSmartPointer<vtkUnstructuredGrid> ug =
            vtkSmartPointer<vtkUnstructuredGrid>::New();
    ug->SetPoints(quadraticPolygon->GetPoints());
    ug->InsertNextCell(quadraticPolygon->GetCellType(),quadraticPolygon->GetPointIds());
    return ug;
}
}

MainWindow::MainWindow(QWidget *parent) :
    QMainWindow(parent),
    ui(new Ui::MainWindow)
{
    ui->setupUi(this);

    std::vector<std::string> titles;
    std::vector<vtkSmartPointer<vtkTextMapper> > textMappers;
    std::vector<vtkSmartPointer<vtkActor2D> > textActors;

    std::vector<vtkSmartPointer<vtkUnstructuredGrid> > uGrids;
    std::vector<vtkSmartPointer<vtkDataSetMapper> > mappers;
    std::vector<vtkSmartPointer<vtkActor> > actors;
    std::vector<vtkSmartPointer<vtkRenderer> > renderers;

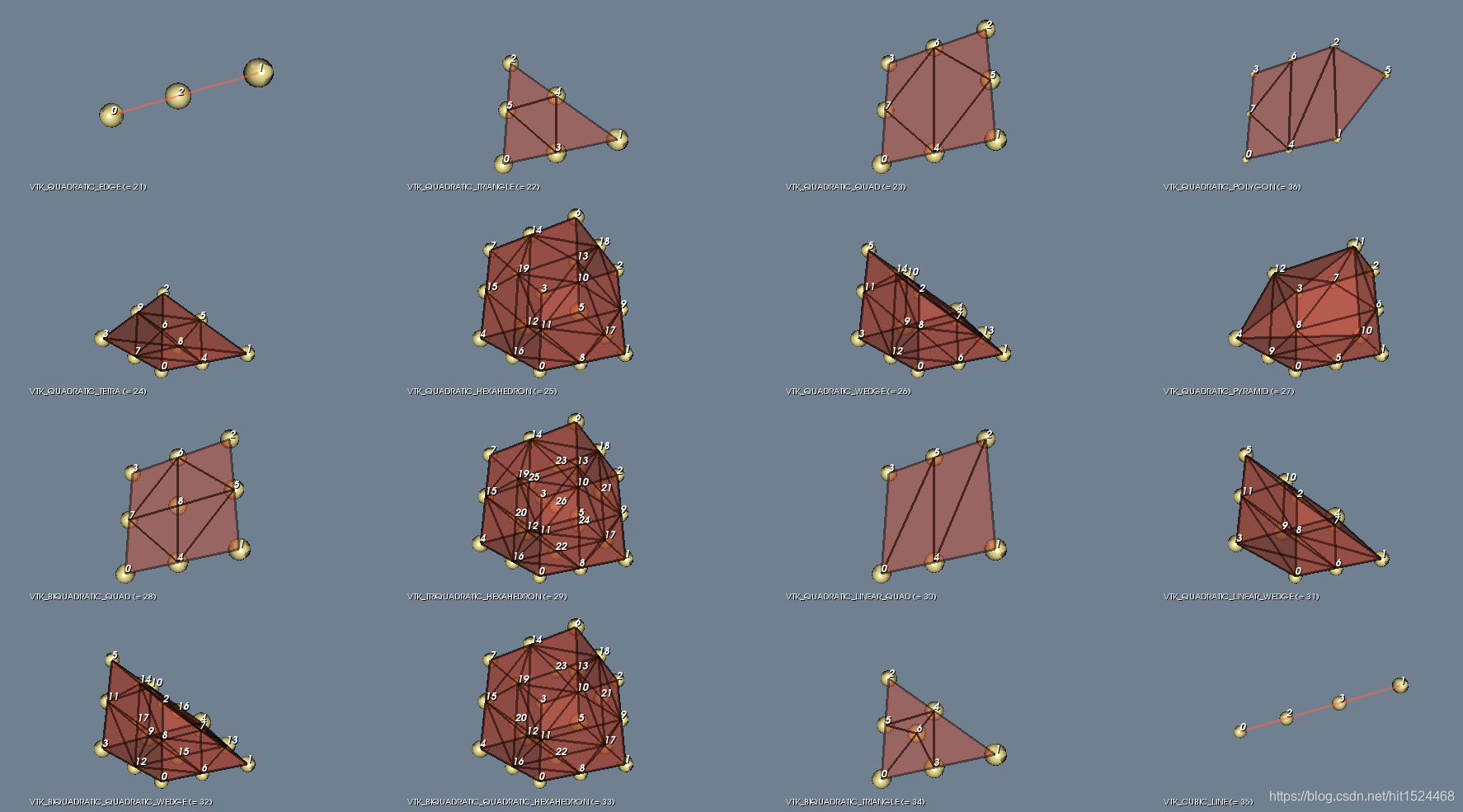

    uGrids.push_back(MakeUnstructuredGrid(
                         vtkSmartPointer<vtkQuadraticEdge>::New()));
    titles.push_back("VTK_QUADRATIC_EDGE (= 21)");

    uGrids.push_back(MakeUnstructuredGrid(
                         vtkSmartPointer<vtkQuadraticTriangle>::New()));
    titles.push_back("VTK_QUADRATIC_TRIANGLE (= 22)");

    uGrids.push_back(MakeUnstructuredGrid(
                         vtkSmartPointer<vtkQuadraticQuad>::New()));
    titles.push_back("VTK_QUADRATIC_QUAD (= 23)");

    uGrids.push_back(MakeQuadraticPolygon());
    titles.push_back("VTK_QUADRATIC_POLYGON (= 36)");

    uGrids.push_back(MakeUnstructuredGrid(
                         vtkSmartPointer<vtkQuadraticTetra>::New()));
    titles.push_back("VTK_QUADRATIC_TETRA (= 24)");

    uGrids.push_back(MakeUnstructuredGrid(
                         vtkSmartPointer<vtkQuadraticHexahedron>::New()));
    titles.push_back("VTK_QUADRATIC_HEXAHEDRON (= 25)");

    uGrids.push_back(MakeUnstructuredGrid(
                         vtkSmartPointer<vtkQuadraticWedge>::New()));
    titles.push_back("VTK_QUADRATIC_WEDGE (= 26)");

    uGrids.push_back(MakeUnstructuredGrid(
                         vtkSmartPointer<vtkQuadraticPyramid>::New()));
    titles.push_back("VTK_QUADRATIC_PYRAMID (= 27)");

    uGrids.push_back(MakeUnstructuredGrid(
                         vtkSmartPointer<vtkBiQuadraticQuad>::New()));
    titles.push_back("VTK_BIQUADRATIC_QUAD (= 28)");

    uGrids.push_back(MakeUnstructuredGrid(
                         vtkSmartPointer<vtkTriQuadraticHexahedron>::New()));
    titles.push_back("VTK_TRIQUADRATIC_HEXAHEDRON (= 29)");

    uGrids.push_back(MakeUnstructuredGrid(
                         vtkSmartPointer<vtkQuadraticLinearQuad>::New()));
    titles.push_back("VTK_QUADRATIC_LINEAR_QUAD (= 30)");

    uGrids.push_back(MakeUnstructuredGrid(
                         vtkSmartPointer<vtkQuadraticLinearWedge>::New()));
    titles.push_back("VTK_QUADRATIC_LINEAR_WEDGE (= 31)");

    uGrids.push_back(MakeUnstructuredGrid(
                         vtkSmartPointer<vtkBiQuadraticQuadraticWedge>::New()));
    titles.push_back("VTK_BIQUADRATIC_QUADRATIC_WEDGE (= 32)");

    uGrids.push_back(MakeUnstructuredGrid(
                         vtkSmartPointer<vtkBiQuadraticQuadraticHexahedron>::New()));
    titles.push_back("VTK_BIQUADRATIC_QUADRATIC_HEXAHEDRON (= 33)");

    uGrids.push_back(MakeUnstructuredGrid(
                         vtkSmartPointer<vtkBiQuadraticTriangle>::New()));
    titles.push_back("VTK_BIQUADRATIC_TRIANGLE (= 34)");

    uGrids.push_back(MakeUnstructuredGrid(
                         vtkSmartPointer<vtkCubicLine>::New()));
    titles.push_back("VTK_CUBIC_LINE (= 35)");

    vtkSmartPointer<vtkNamedColors> colors =
            vtkSmartPointer<vtkNamedColors>::New();

    vtkSmartPointer<vtkRenderWindow> renWin =
            vtkSmartPointer<vtkRenderWindow>::New();
    renWin->SetSize(600, 600);
    renWin->SetWindowName("Isoparametric Cell");

    vtkSmartPointer<vtkRenderWindowInteractor> iRen =
            vtkSmartPointer<vtkRenderWindowInteractor>::New();
    iRen->SetRenderWindow(renWin);

    // Create one sphere for all
    vtkSmartPointer<vtkSphereSource> sphere =
            vtkSmartPointer<vtkSphereSource>::New();
    sphere->SetPhiResolution(21);
    sphere->SetThetaResolution(21);
    sphere->SetRadius(.08);

    // Create one text property for all
    vtkSmartPointer<vtkTextProperty> textProperty =
            vtkSmartPointer<vtkTextProperty>::New();
    textProperty->SetFontSize(10);
    textProperty->SetJustificationToCentered();

    // Create and link the mappers actors and renderers together.
    for (unsigned int i = 0; i < uGrids.size(); ++i)
    {
        std::cout << "Creating: " << titles[i] << std::endl;
        textMappers.push_back(vtkSmartPointer<vtkTextMapper>::New());
        textActors.push_back(vtkSmartPointer<vtkActor2D>::New());

        textMappers[i]->GetTextProperty()->SetFontSize(10);
        textMappers[i]->GetTextProperty()->ShadowOn();
        mappers.push_back(vtkSmartPointer<vtkDataSetMapper>::New());
        actors.push_back(vtkSmartPointer<vtkActor>::New());
        renderers.push_back(vtkSmartPointer<vtkRenderer>::New());
        mappers[i]->SetInputData(uGrids[i]);
        actors[i]->SetMapper(mappers[i]);
        actors[i]->GetProperty()->SetColor(colors->GetColor3d("Tomato").GetData());
        actors[i]->GetProperty()->EdgeVisibilityOn();
        actors[i]->GetProperty()->SetLineWidth(3);
        actors[i]->GetProperty()->SetOpacity(.5);
        renderers[i]->AddViewProp(actors[i]);

        textMappers[i]->SetInput(titles[i].c_str());
        textActors[i]->SetMapper(textMappers[i]);
        textActors[i]->SetPosition(50, 10);
        renderers[i]->AddViewProp(textActors[i]);

        // Label the points
        vtkSmartPointer<vtkLabeledDataMapper> labelMapper =
                vtkSmartPointer<vtkLabeledDataMapper>::New();
        labelMapper->SetInputData(uGrids[i]);
        vtkSmartPointer<vtkActor2D> labelActor =
                vtkSmartPointer<vtkActor2D>::New();
        labelActor->SetMapper(labelMapper);
        renderers[i]->AddViewProp(labelActor);

        // Glyph the points
        vtkSmartPointer<vtkGlyph3DMapper> pointMapper =
                vtkSmartPointer<vtkGlyph3DMapper>::New();
        pointMapper->SetInputData(uGrids[i]);
        pointMapper->SetSourceConnection(sphere->GetOutputPort());
        pointMapper->ScalingOff();
        pointMapper->ScalarVisibilityOff();

        vtkSmartPointer<vtkActor> pointActor =
                vtkSmartPointer<vtkActor>::New();
        pointActor->SetMapper(pointMapper);
        pointActor->GetProperty()->SetDiffuseColor(colors->GetColor3d("Banana").GetData());
        pointActor->GetProperty()->SetSpecular(.6);
        pointActor->GetProperty()->SetSpecularColor(1.0,1.0,1.0);
        pointActor->GetProperty()->SetSpecularPower(100);
        renderers[i]->AddViewProp(pointActor);

        ui->qvtkWidget->GetRenderWindow()->AddRenderer(renderers[i]);
    }

    // Setup the viewports
    int xGridDimensions = 4;
    int yGridDimensions = 4;
    int rendererSize = 240;

    renWin->SetSize(
                rendererSize * xGridDimensions, rendererSize * yGridDimensions);

    for(int row = 0; row < yGridDimensions; row++)
    {
        for(int col = 0; col < xGridDimensions; col++)
        {
            int index = row * xGridDimensions + col;

            // (xmin, ymin, xmax, ymax)
            // (xmin, ymin, xmax, ymax)
            double viewport[4] = {
                static_cast<double>(col) / xGridDimensions,
                static_cast<double>(yGridDimensions - (row + 1))/ yGridDimensions,
                static_cast<double>(col + 1) / xGridDimensions,
                static_cast<double>(yGridDimensions - row) / yGridDimensions
            };

            if(index > int(actors.size()) - 1)
            {
                // Add a renderer even if there is no actor.
                // This makes the render window background all the same color.
                vtkSmartPointer<vtkRenderer> ren = vtkSmartPointer<vtkRenderer>::New();
                ren->SetBackground(colors->GetColor3d("SlateGray").GetData());
                ren->SetViewport(viewport);
                renWin->AddRenderer(ren);
                continue;
            }

            renderers[index]->SetViewport(viewport);
            renderers[index]->SetBackground(colors->GetColor3d("SlateGray").GetData());
            renderers[index]->ResetCamera();
            renderers[index]->GetActiveCamera()->Azimuth(30);
            renderers[index]->GetActiveCamera()->Elevation(-30);
            renderers[index]->ResetCameraClippingRange();
        }
    }
}

MainWindow::~MainWindow()
{
    delete ui;
}
