apache NIFI 自定义grpc processor 源码

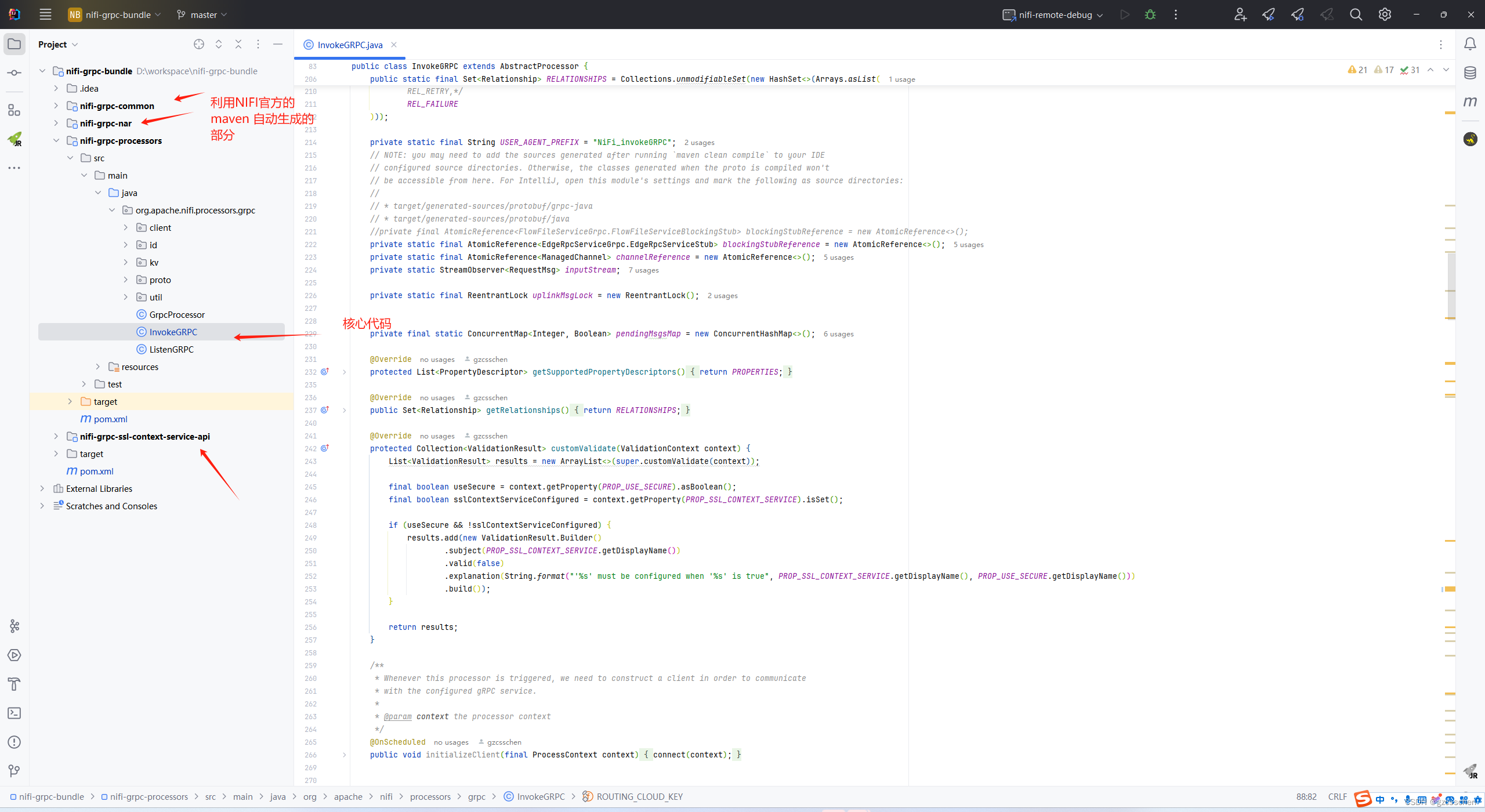

源码结构

实现效果

核心代码说明

继承AbstractProcessor

/*
 * Licensed to the Apache Software Foundation (ASF) under one or more
 * contributor license agreements.  See the NOTICE file distributed with
 * this work for additional information regarding copyright ownership.
 * The ASF licenses this file to You under the Apache License, Version 2.0
 * (the "License"); you may not use this file except in compliance with
 * the License.  You may obtain a copy of the License at
 *
 *     http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package org.apache.nifi.processors.grpc;

import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.JsonNode;
import com.fasterxml.jackson.databind.ObjectMapper;
import com.google.gson.Gson;
import com.google.gson.GsonBuilder;
import com.google.protobuf.ByteString;
import io.grpc.CompressorRegistry;
import io.grpc.DecompressorRegistry;
import io.grpc.ManagedChannel;
import io.grpc.netty.NettyChannelBuilder;
import io.grpc.stub.StreamObserver;
import io.netty.handler.ssl.SslContext;
import org.apache.nifi.annotation.behavior.InputRequirement;
import org.apache.nifi.annotation.behavior.SupportsBatching;
import org.apache.nifi.annotation.behavior.WritesAttribute;
import org.apache.nifi.annotation.behavior.WritesAttributes;
import org.apache.nifi.annotation.documentation.CapabilityDescription;
import org.apache.nifi.annotation.documentation.DeprecationNotice;
import org.apache.nifi.annotation.documentation.Tags;
import org.apache.nifi.annotation.lifecycle.OnScheduled;
import org.apache.nifi.annotation.lifecycle.OnShutdown;
import org.apache.nifi.components.PropertyDescriptor;
import org.apache.nifi.components.ValidationContext;
import org.apache.nifi.components.ValidationResult;
import org.apache.nifi.flowfile.FlowFile;
import org.apache.nifi.logging.ComponentLog;
import org.apache.nifi.processor.*;
import org.apache.nifi.processor.exception.ProcessException;
import org.apache.nifi.processor.util.StandardValidators;
import org.apache.nifi.processors.grpc.gen.edge.v1.*;
import org.apache.nifi.processors.grpc.id.EntityType;
import org.apache.nifi.processors.grpc.ssl.SslContextProvider;
import org.apache.nifi.processors.grpc.util.EdgeUtils;
import org.apache.nifi.ssl.SSLContextService;
import org.apache.nifi.util.StopWatch;

import java.io.InputStream;
import java.net.InetAddress;
import java.net.UnknownHostException;
import java.util.*;
import java.util.concurrent.ConcurrentHashMap;
import java.util.concurrent.ConcurrentMap;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.atomic.AtomicReference;
import java.util.concurrent.locks.ReentrantLock;
import java.util.function.Consumer;

@SupportsBatching
@Tags({
   "grpc", "rpc", "client"})
@InputRequirement(InputRequirement.Requirement.INPUT_REQUIRED)
@CapabilityDescription("Sends FlowFiles, optionally with content, to a configurable remote gRPC service endpoint. The remote gRPC service must abide by the service IDL defined in NiFi. " +
        " gRPC isn't intended to carry large payloads,  so this processor should be used only when FlowFile" +
        " sizes are on the order of megabytes. The default maximum message size is 4MB.")
@WritesAttributes({

        @WritesAttribute(attribute = "invokegrpc.response.code", description = "The response code that is returned (0 = ERROR, 1 = SUCCESS, 2 = RETRY)"),
        @WritesAttribute(attribute = "invokegrpc.response.body", description = "The response message that is returned"),
        @WritesAttribute(attribute = "invokegrpc.service.host", description = "The remote gRPC service hostname"),
        @WritesAttribute(attribute = "invokegrpc.service.port", description = "The remote gRPC service port"),
        @WritesAttribute(attribute = "invokegrpc.service.cloudKey", description = "The remote gRPC service cloudKey"),
        @WritesAttribute(attribute = "invokegrpc.service.cloudSecret", description = "The remote gRPC service cloudSecret"),
        @WritesAttribute(attribute = "invokegrpc.java.exception.class", description = "The Java exception class raised when the processor fails"),
        @WritesAttribute(attribute = "invokegrpc.java.exception.message", description = "The Java exception message raised when the processor fails"),
})
@DeprecationNotice(reason = "No planned alternatives to be offered. Use custom processors instead.")
public class InvokeGRPC extends AbstractProcessor {

    public static final String RESPONSE_CODE = "invokegrpc.response.code";
    public static final String RESPONSE_BODY = "invokegrpc.response.body";
    public static final String SERVICE_HOST = "invokegrpc.service.host";
    public static final String SERVICE_PORT = "invokegrpc.service.port";
    public static final String ROUTING_CLOUD_KEY = "invokegrpc.service.cloudKey";
    public static final String ROUTING_CLOUD_SECRET = "invokegrpc.service.cloudSecret";
    public static final String EXCEPTION_CLASS = "invokegrpc.java.exception.class";
    public static final String EXCEPTION_MESSAGE = "invokegrpc.java.exception.message";

    // properties
    public static final PropertyDescriptor PROP_SERVICE_HOST = new PropertyDescriptor.Builder()
            .name("Remote gRPC service hostname")
            .description("Remote host which will be connected to")
            .required(true)
            .addValidator(StandardValidators.NON_EMPTY_VALIDATOR)
            .build();
    public static final PropertyDescriptor PROP_SERVICE_PORT = new PropertyDescriptor.Builder()
            .name("Remote gRPC service port")
            .description("Remote port which will be connected to")
            .required(true)
            .addValidator(StandardValidators.PORT_VALIDATOR)
            .build();
