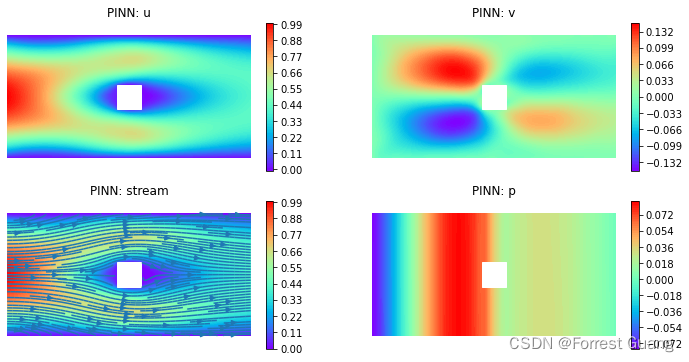

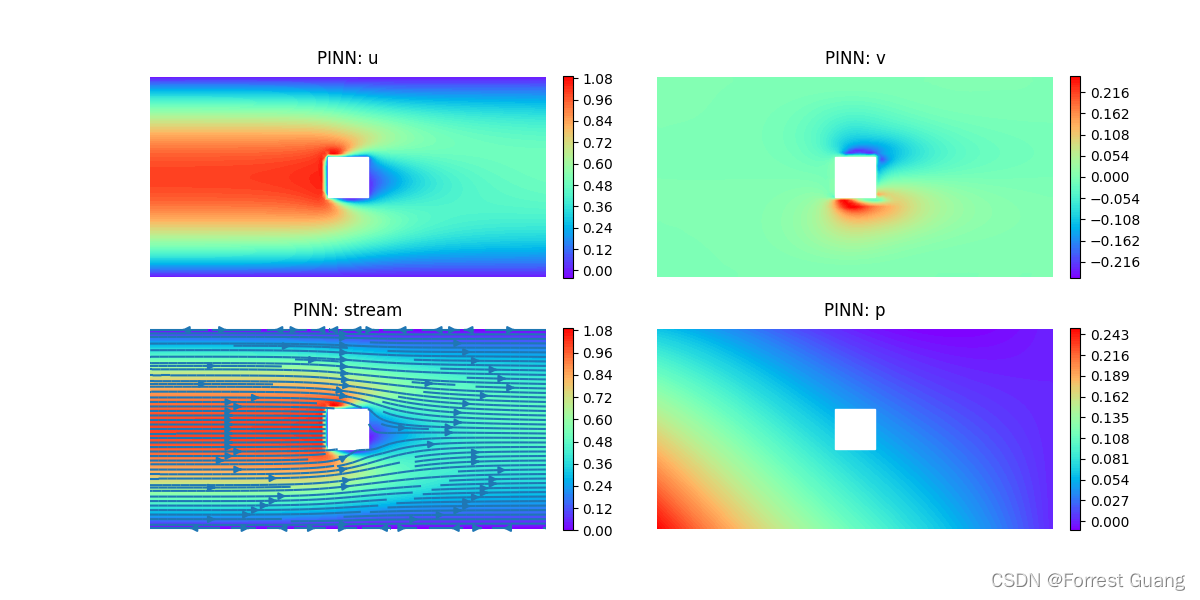

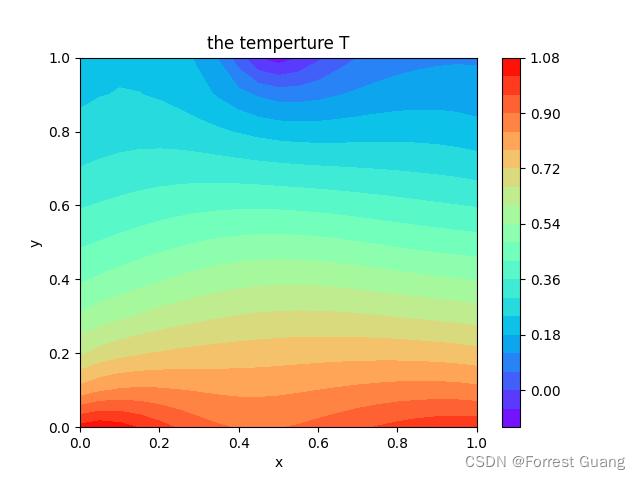

本文详细介绍了使用PyTorch实现物理 informed 深度学习（PINN）来解决Kovasznay流动问题、CVD问题和障碍流问题。通过设置适当的网络结构和损失函数，PINN能有效逼近复杂的边界条件。文中提供了相关代码示例，展示了PINN在处理PDE约束优化问题中的应用。
博客内容参考知乎添加链接描述

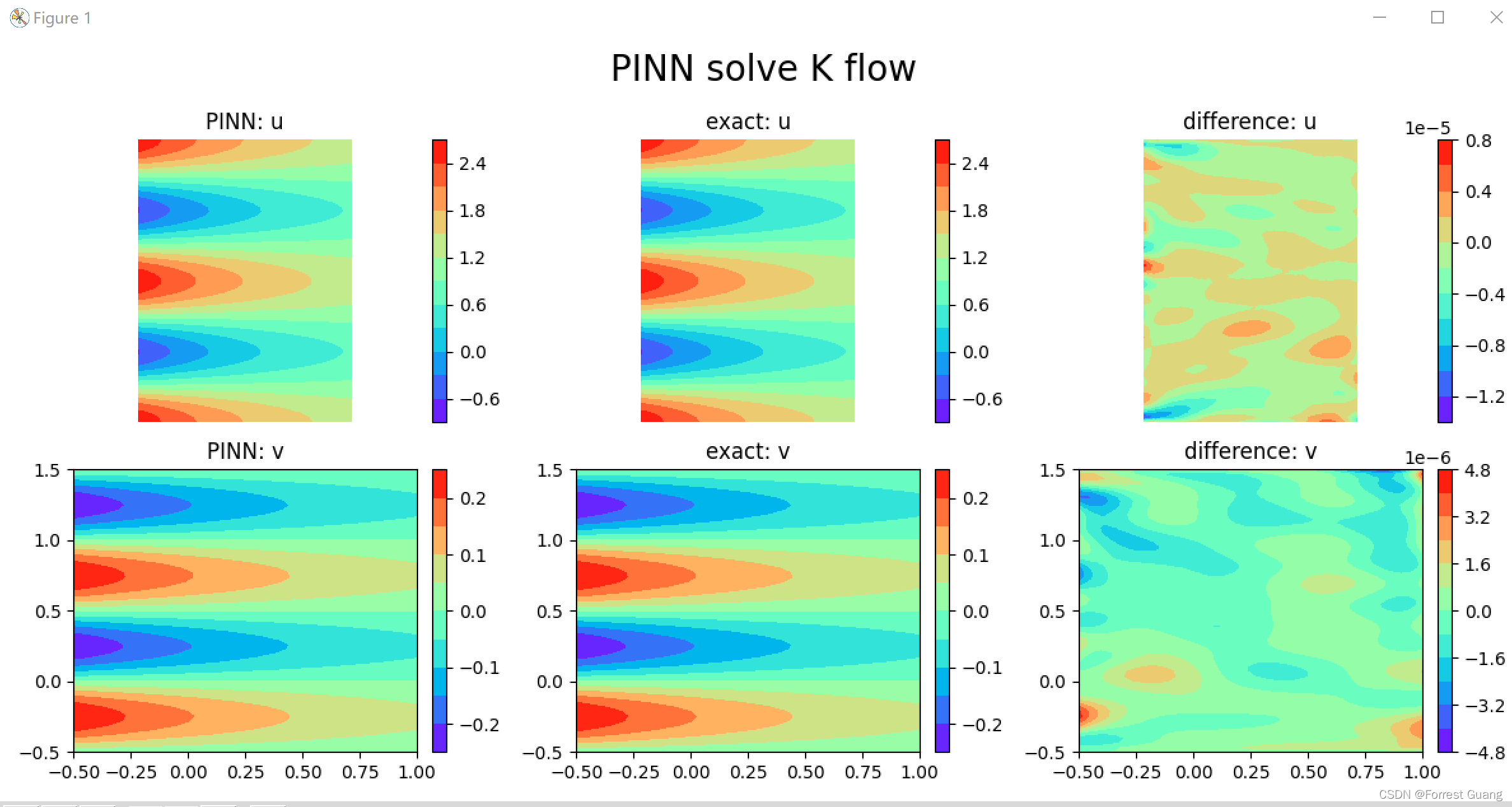

问题描述Kovasznay problem
参考文献：Dockhorn, T. . “A Discussion on Solving Partial Differential Equations using Neural Networks.” (2019).
{
−
ν
Δ
u
+
u
u
x
+
v
u
y
+
p
x
=
f
1
,
−
ν
Δ
v
+
u
v
x
+
v
v
y
+
p
y
=
f
2
,
u
x
+
v
y
=
0
,
u
∣
∂
Ω
=
u
0
,
v
∣
∂
Ω
=
v
0
.
\left\{\begin{array}{l} -\nu \Delta u + uu_x + v u_y + p_x = f_1,\\ -\nu \Delta v + uv_x + vv_y + p_y=f_2,\\ u_x + v_y=0,\\ u|_{\partial \Omega} = u_0,\\ v|_{\partial \Omega}=v_0. \end{array}\right.
⎩
⎨
⎧−νΔu+uux+vuy+px=f1,−νΔv+uvx+vvy+py=f2,ux+vy=0,u∣∂Ω=u0,v∣∂Ω=v0.
u
1
(
x
1
,
x
2
)
=
1
−
exp
(
λ
x
1
)
cos
2
π
x
2
,
u
2
(
x
1
,
x
2
)
=
λ
2
π
exp
(
λ
x
1
)
sin
2
π
x
2
,
p
(
x
1
,
x
2
)
=
1
2
(
1
−
exp
(
2
λ
x
1
)
)
+
C
,
λ
=
1
2
ν
−
1
4
ν
2
+
4
π
2
,
ν
=
0.025
,
f
1
=
0
,
f
2
=
0.
\begin{aligned} u_{1}&\left(x_{1}, x_{2}\right) =1-\exp \left(\lambda x_{1}\right) \cos 2 \pi x_{2}, \\ u_{2}&\left(x_{1}, x_{2}\right) =\frac{\lambda}{2 \pi} \exp \left(\lambda x_{1}\right) \sin 2 \pi x_{2}, \\ p&\left(x_{1}, x_{2}\right) =\frac{1}{2}\left(1-\exp \left(2 \lambda x_{1}\right)\right)+C,\\ \lambda&=\frac{1}{2\nu} - \sqrt{\frac{1}{4\nu^2} + 4\pi^2},\nu = 0.025,\\ f_1&=0,f_2=0. \end{aligned}
u1u2pλf1(x1,x2)=1−exp(λx1)cos2πx2,(x1,x2)=2πλexp(λx1)sin2πx2,(x1,x2)=21(1−exp(2λx1))+C,=2ν1−4ν21+4π2,ν=0.025,=0,f2=0.
其中
Ω
=
[
−
0.5
,
1.0
]
×
[
−
0.5
,
1.5
]
\Omega=[-0.5,1.0]\times[-0.5,1.5]
Ω=[−0.5,1.0]×[−0.5,1.5],内点集用均匀采样得到
[
64
,
64
]
[64,64]
[64,64]网格点，边界集均匀采样得到
[
10
,
10
]
[10,10]
[10,10]边界点，使用全连接网络，损失函数利用强形式PINN，三个网络参数都设置为[2,25,25,1]，利用BFGS优化器迭代2000次可以得到下列结果。
注意，下面结果必须要使用BFGS优化器才能达到，这里给出linesearch.py,bfgs.py，运行时需要把linesearch.py,bfgs.py和kflow.py放在一个文件夹运行
bfgs.py
# ---------------------------------------------------------------------------------------------------
# BFGS Optimizer
# The code is modified from torch.optim.LBFGS
# ---------------------------------------------------------------------------------------------------
import torch
from functools import reduce
from torch.optim.optimizer import Optimizer
import linesearch
class BFGS(Optimizer):
"""
Arguments:
lr (float): learning rate (default: 1)
max_iter (int): maximal number of iterations per optimization step
(default: 20)
max_eval (int): maximal number of function evaluations per optimization
step (default: max_iter * 1.25).
tolerance_grad (float): termination tolerance on first order optimality
(default: 1e-5).
tolerance_change (float): termination tolerance on function
value/parameter changes (default: 1e-9).
history_size (int): update history size (default: 100).
line_search_fn (str): either 'strong_wolfe' or None (default: None).
"""
def __init__(self,
params,
lr=1,
max_iter=20,
max_eval=None,
tolerance_grad=1e-5,
tolerance_change=1e-9,
history_size=100,
line_search_fn=None):
if max_eval is None:
max_eval = max_iter * 5 // 4
defaults = dict(
lr=lr,
max_iter=max_iter,
max_eval=max_eval,
tolerance_grad=tolerance_grad,
tolerance_change=tolerance_change,
history_size=history_size,
line_search_fn=line_search_fn)
super(BFGS, self).__init__(params, defaults)
if len(self.param_groups) != 1:
raise ValueError("BFGS doesn't support per-parameter options "
"(parameter groups)")
self._params = self.param_groups[0]['params']
self._numel_cache = None
def _numel(self):
if self._numel_cache is None:
self._numel_cache = reduce(lambda total, p: total + p.numel(), self._params, 0)
return self._numel_cache
def _clone_param(self):
return [p.clone() for p in self._params]
def _set_param(self, params_data):
offset = 0
for p in self._params:
numel = p.numel()
p.data.copy_(params_data[offset:offset + numel].view_as(p.data))
offset += numel
assert offset == self._numel()
def _flatten(self, x):
views = []
for p in x:
view = p.view(-1)
views.append(view)
return torch.cat(views, 0)
def _gather_grad_flat(self):
views = []
for p in self._params:
if p.grad is None:
view = p.new(p.numel()).zero_()
elif p.grad.is_sparse:
view = p.grad.to_dense().view(-1)
else:
view = p.grad.view(-1)
views.append(view)
return torch.cat(views, 0)
def _add_grad(self, step_size, update):
offset = 0
for p in self._params:
numel = p.numel()
# view as to avoid deprecated pointwise semantics
p.data.add_(step_size, update[offset:offset + numel].view_as(p.data))
offset += numel
assert offset == self._numel()
def step(self, closure):
"""Performs a single optimization step.
Arguments:
closure (callable): A closure that reevaluates the model
and returns the loss.
"""
assert len(self.param_groups) == 1
group = self.param_groups[0]
lr = group['lr']
max_iter = group['max_iter']
max_eval = group['max_eval']
tolerance_grad = group['tolerance_grad']
tolerance_change = group['tolerance_change']
line_search_fn = group['line_search_fn']
history_size = group['history_size']
# NOTE: BFGS has only global state, but we register it as state for
# the first param, because this helps with casting in load_state_dict
state = self.state[self._params[0]]
state.setdefault('func_evals', 0)
state.setdefault('n_iter', 0)
# evaluate initial f(x) and df/dx
loss = float(closure())
grad_flat = self._gather_grad_flat()
current_evals = 1
state['func_evals'] += 1
# optimal condition
opt_cond = grad_flat.abs().max() <= tolerance_grad
if opt_cond:
return closure()
# tensors cached in state (for tracing)
x_prev = self._clone_param()
x_prev = self._flatten(x_prev)
direction = state.get('direction')
step_size = state.get('step_size')
loss_prev = state.get('loss_prev')
loss_prev_prev = state.get('loss_prev_prev')
grad_prev_flat = state.get('grad_prev_flat')
Hess_inv = state.get('Hess_inv')
if loss_prev is None:
loss_prev = loss
if grad_prev_flat is None:
grad_prev_flat = grad_flat.clone()
if loss_prev_prev is None:
loss_prev_prev = loss_prev + ((grad_prev_flat**2).sum())**0.5 / 2
if Hess_inv is None:
Hess_inv = torch.eye(self._numel(), dtype=self._params[0].dtype).to(self._params[0].device)
n_iter = 0
# optimize for a max of max_iter iterations
while n_iter < max_iter:
direction = torch.mm(Hess_inv, grad_flat.neg().view(-1,1)).view(-1)
# directional derivative
grad_dot_dir = grad_flat.dot(direction)
if grad_dot_dir > -tolerance_change:
break
# optional line search: user function
ls_func_evals = 0
if line_search_fn is not None:
# perform line search, using user function
if line_search_fn != "strong_wolfe":
raise RuntimeError("only 'strong_wolfe' is supported")
else:
def obj_func_loss(x):
self._set_param(x)
return float(closure())
def obj_func_grad(x):
# self._set_param(x)
# loss = float(closure())
return self._gather_grad_flat()
try:
step_size, ls_func_evals, _, loss_prev, loss_prev_prev, _ = \
linesearch._line_search_wolfe12(obj_func_loss, obj_func_grad,
x_prev, direction, grad_flat,
loss_prev, loss_prev_prev,
amin=1e-100, amax=1e100)
except:
self._set_param(x_prev)
loss_prev = loss
loss_prev_prev = loss_prev + ((grad_prev_flat**2).sum())**0.5 / 2
grad_flat = self._gather_grad_flat()
Hess_inv = torch.eye(self._numel(), dtype=self._params[0].dtype).to(self._params[0].device)
direction = torch.mm(Hess_inv, grad_flat.neg().view(-1,1)).view(-1)
current_evals += 1
state['func_evals'] += 1
break
'''
step_size, ls_func_evals, _, loss_prev, loss_prev_prev, _ = \
linesearch._line_search_wolfe12(obj_func_loss, obj_func_grad,
x_prev, direction, grad_flat,
loss_prev, loss_prev_prev,
amin=1e-100, amax=1e100)
'''
else:
step_size = lr
x = x_prev + step_size*direction
loss_prev_prev = loss_prev
loss_prev = float(closure())
ls_func_evals = 1
x = x_prev + step_size*direction
s = direction.mul(step_size)
grad_flat = self._gather_grad_flat()
opt_cond = grad_flat.abs().max() <= tolerance_grad
y = grad_flat.sub(grad_prev_flat)
ys = y.dot(s)
Hess_inv = Hess_inv - torch.mm(s.view(-1,1)/ys, torch.mm(y.view(-1,1).T, Hess_inv))
Hess_inv = Hess_inv - torch.mm(torch.mm(Hess_inv, y.view(-1,1)), s.view(-1,1).T/ys)
Hess_inv = Hess_inv + torch.mm(s.view(-1,1), s.view(-1,1).T) / ys
x_prev = x
grad_prev_flat = grad_flat
# keep track of nb of iterations
n_iter += 1
state['n_iter'] += 1
# update func eval
current_evals += ls_func_evals
state['func_evals'] += ls_func_evals
############################################################
# check conditions
############################################################
if n_iter == max_iter:
break
if current_evals >= max_eval:
break
# optimal condition
if opt_cond:
break
# lack of progress
if direction.mul(step_size).abs().max() <= tolerance_change:
break
if abs(loss_prev - loss_prev_prev) < tolerance_change:
break
state['direction'] = direction
state['step_size'] = step_size
state['grad_prev_flat'] = grad_prev_flat
state['loss_prev'] = loss_prev
state['loss_prev_prev'] = loss_prev_prev
state['Hess_inv'] = Hess_inv
return closure()
linesearch.py
# ---------------------------------------------------------------------------------------------------
# Minpack's Wolfe line and scalar searches
# The code is modified from scipy.optimize.linesearch to make it suitable to Pytorch
# ---------------------------------------------------------------------------------------------------
from warnings import warn
from scipy.optimize import minpack2
import numpy as np
import torch
def _line_search_wolfe12(f, fprime, xk, pk, gfk, old_fval, old_old_fval,
**kwargs):
"""
Same as line_search_wolfe1, but fall back to line_search_wolfe2 if
suitable step length is not found, and raise an exception if a
suitable step length is not found.
Raises
------
_LineSearchError
If no suitable step size is found
"""
extra_condition = kwargs.pop('extra_condition', None)
ret = line_search_wolfe1(f, fprime, xk, pk, gfk,
old_fval, old_old_fval,
**kwargs)
if ret[0] is not None and extra_condition is not None:
xp1 = xk + ret[0] * pk
if not extra_condition(ret[0], xp1, ret[3], ret[5]):
# Reject step if extra_condition fails
ret = (None,)
if ret[0] is None:
# line search failed: try different one.
with warnings.catch_warnings():
warnings.simplefilter('ignore', LineSearchWarning)
kwargs2 = {}
for key in ('c1', 'c2', 'amax'):
if key in kwargs:
kwargs2[key] = kwargs[key]
ret = line_search_wolfe2(f, fprime, xk, pk, gfk,
old_fval, old_old_fval,
extra_condition=extra_condition,
**kwargs2)
if ret[0] is None:
raise _LineSearchError()
return ret
def line_search_wolfe1(f, fprime, xk, pk, gfk=None,
old_fval=None, old_old_fval=None,
args=(), c1=1e-4, c2=0.9, amax=50, amin=1e-8,
xtol=1e-14):
"""
As `scalar_search_wolfe1` but do a line search to direction `pk`
Parameters
----------
f : callable
Function `f(x)`
fprime : callable
Gradient of `f`
xk : array_like
Current point
pk : array_like
Search direction
gfk : array_like, optional
Gradient of `f` at point `xk`
old_fval : float, optional
Value of `f` at point `xk`
old_old_fval : float, optional
Value of `f` at point preceding `xk`
The rest of the parameters are the same as for `scalar_search_wolfe1`.
Returns
-------
stp, f_count, g_count, fval, old_fval
As in `line_search_wolfe1`
gval : array
Gradient of `f` at the final point
"""
if gfk is None:
gfk = fprime(xk)
if isinstance(fprime, tuple):
eps = fprime[1]
fprime = fprime[0]
newargs = (f, eps) + args
gradient = False
else:
newargs = args
gradient = True
gval = [gfk]
gc = [0]
fc = [0]
def phi(s):
fc[0] += 1
return f(xk + s*pk, *args)
def derphi(s):
gval[0] = fprime(xk + s*pk, *newargs)
if gradient:
gc[0] += 1
else:
fc[0] += len(xk) + 1
return torch.dot(gval[0], pk) ####
derphi0 = torch.dot(gfk, pk) ####
stp, fval, old_fval = scalar_search_wolfe1(
phi, derphi, old_fval, old_old_fval, derphi0,
c1=c1, c2=c2, amax=amax, amin=amin, xtol=xtol)
return stp, fc[0], gc[0], fval, old_fval, gval[0]
def scalar_search_wolfe1(phi, derphi, phi0=None, old_phi0=None, derphi0=None,
c1=1e-4, c2=0.9,
amax=50, amin=1e-8, xtol=1e-14):
"""
Scalar function search for alpha that satisfies strong Wolfe conditions
alpha > 0 is assumed to be a descent direction.
Parameters
----------
phi : callable phi(alpha)
Function at point `alpha`
derphi : callable phi'(alpha)
Objective function derivative. Returns a scalar.
phi0 : float, optional
Value of phi at 0
old_phi0 : float, optional
Value of phi at previous point
derphi0 : float, optional
Value derphi at 0
c1 : float, optional
Parameter for Armijo condition rule.
c2 : float, optional
Parameter for curvature condition rule.
amax, amin : float, optional
Maximum and minimum step size
xtol : float, optional
Relative tolerance for an acceptable step.
Returns
-------
alpha : float
Step size, or None if no suitable step was found
phi : float
Value of `phi` at the new point `alpha`
phi0 : float
Value of `phi` at `alpha=0`
Notes
-----
Uses routine DCSRCH from MINPACK.
"""
if phi0 is None:
phi0 = phi(0.)
if derphi0 is None:
derphi0 = derphi(0.)
if old_phi0 is not None and derphi0 != 0:
alpha1 = min(1.0, 1.01*2*(phi0 - old_phi0)/derphi0)
if alpha1 < 0:
alpha1 = 1.0
else:
alpha1 = 1.0
phi1 = phi0
derphi1 = derphi0
isave = np.zeros((2,), np.intc)
dsave = np.zeros((13,), float)
task = b'START'
maxiter = 100
for i in range(maxiter):
stp, phi1, derphi1, task = minpack2.dcsrch(alpha1, phi1, derphi1,
c1, c2, xtol, task,
amin, amax, isave, dsave)
if task[:2] == b'FG':
alpha1 = stp
phi1 = phi(stp)
derphi1 = derphi(stp)
else:
break
else:
# maxiter reached, the line search did not converge
stp = None
if task[:5] == b'ERROR' or task[:4] == b'WARN':
stp = None # failed
return stp, phi1, phi0
K flow代码参考
import torch
import time
import numpy as np
import matplotlib.pyplot as plt
from matplotlib import cm
import torch.nn as nn
import torch.nn.functional as F
import itertools
import bfgs
from scipy.stats import qmc
device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")
#device = torch.device('cpu')
bound = np.array([-0.5,1,-0.5,1.5]).reshape(2,2)
Re = 40;nu = 1/Re
lam = 1/(2*nu) - np.sqrt(1/(4*nu**2) + 4*np.pi**2)
def UU(X,order,prob):
if prob == 1:
eta = 2*np.pi
if order == [0,0]:
tmp = torch.zeros(X.shape[0],2)
tmp[:,0] = 1 - torch.exp(lam*X[:,0])*torch.cos(X[:,1]*eta)
tmp[:,1] = torch.exp(lam*X[:,0])*torch.sin(X[:,1]*eta)*lam/(eta)
return tmp
if order == [1,0]:
tmp = torch.zeros(X.shape[0],2)
tmp[:,0] = - torch.exp(lam*X[:,0])*torch.cos(X[:,1]*eta)*lam
tmp[:,1] = torch.exp(lam*X[:,0])*torch.sin(X[:,1]*eta)*(lam**2)/(eta)
return tmp
if order == [0,1]:
tmp = torch.zeros(X.shape[0],2)
tmp[:,0] = torch.exp(lam*X[:,0])*torch.sin(X[:,1]*eta)*(eta)
tmp[:,1] = torch.exp(lam*X[:,0])*torch.cos(X[:,1]*eta)*lam
return tmp
if order == [2,0]:
tmp = torch.zeros(X.shape[0],2)
tmp[:,0] = - torch.exp(lam*X[:,0])*torch.cos(X[:,1]*eta)*lam*lam
tmp[:,1] = torch.exp(lam*X[:,0])*torch.sin(X[:,1]*eta)*(lam**3)/(eta)
return tmp
if order == [0,2]:
tmp = torch.zeros(X.shape[0],2)
tmp[:,0] = torch.exp(lam*X[:,0])*torch.cos(X[:,1]*eta)*(eta)**2
tmp[:,1] = -torch.exp(lam*X[:,0])*torch.sin(X[:,1]*eta)*lam*(eta)
return tmp
def Delta(X,prob):
return UU(X,[2,0],prob) + UU(X,[0,2],prob)
def PP(X,order,prob):
if prob == 1:
if order == [0,0]:
return 0.5*(1 - torch.exp(2*lam*X[:,0]))
if order == [1,0]:
return - lam*torch.exp(2*lam*X[:,0])
if order == [0,1]:
return 0*X[:,0]
def FF(X,prob):#mu = 0.5
tmp = torch.zeros(X.shape[0],2)
tmp[:,0] = -nu*Delta(X,prob)[:,0] + (UU(X,[0,0],prob)[:,0])*(UU(X,[1,0],prob)[:,0]) + \
(UU(X,[0,0],prob)[:,1])*(UU(X,[0,1],prob)[:,0]) + PP(X,[1,0],prob)
tmp[:,1] = -nu*Delta(X,prob)[:,1] + (UU(X,[0,0],prob)[:,0])*(UU(X,[1,0],prob)[:,1]) + \
(UU(X,[0,0],prob)[:,1])*(UU(X,[0,1],prob)[:,1]) + PP(X,[0,1],prob)
return tmp
class INSET():#边界点取值
def __init__(self,bound,nx,prob,mode):
self.dim = 2
#self.area = (bound[0,1] - bound[0,0])*(bound[1,1] - bound[1,0])
self.hx = [(bound[0,1] - bound[0,0])/nx[0],(bound[1,1] - bound[1,0])/nx[1]]
self.size = nx[0]*nx[1]
self.X = torch.zeros(self.size,self.dim)#储存内点
if mode == 'uniform':
for i in range(nx[0]):
for j in range(nx[1]):
self.X[i*nx[1] + j,0] = bound[0,0] + (i + 0.5)*self.hx[0]
self.X[i*nx[1] + j,1] = bound[1,0] + (j + 0.5)*self.hx[1]
elif mode == 'random':
tmp = torch.rand(self.size,2)
self.X[:,0] = bound[0,0] + self.hx[0] + (bound[0,1] - bound[0,0] - 2*self.hx[0])*tmp[:,0]
self.X[:,1] = bound[1,0] + self.hx[1] + (bound[1,1] - bound[1,0] - 2*self.hx[1])*tmp[:,1]
else:
tmp = torch.tensor(self.quasi_samples(self.size))
self.X[:,0] = bound[0,0] + self.hx[0] + (bound[0,1] - bound[0,0] - 2*self.hx[0])*tmp[:,0]
self.X[:,1] = bound[1,0] + self.hx[1] + (bound[1,1] - bound[1,0] - 2*self.hx[1])*tmp[:,1]
self.uu = UU(self.X,[0,0],prob)[:,0:1]
self.vv = UU(self.X,[0,0],prob)[:,1:2]
self.ff = FF(self.X,prob)
def quasi_samples(self,N):
sampler = qmc.Sobol(d=self.dim)
sample = sampler.random(n=N)
return sample
class BDSET():#边界点取值
def __init__(self,bound,nx,prob):
self.dim = 2
self.area = (bound[0,1] - bound[0,0])*(bound[1,1] - bound[1,0])
self.hx = [(bound[0,1] - bound[0,0])/nx[0],(bound[1,1] - bound[1,0])/nx[1]]
self.size = 2*(nx[0] + nx[1])
self.X = torch.zeros(self.size,self.dim)#储存内点
m = 0
for i in range(nx[0]):
self.X[m,0] = bound[0,0] + (i + 0.5)*self.hx[0]
self.X[m,1] = bound[1,0]
m = m + 1
for j in range(nx[1]):
self.X[m,0] = bound[0,1]
self.X[m,1] = bound[1,0] + (j + 0.5)*self.hx[1]
m = m + 1
for i in range(nx[0]):
self.X[m,0] = bound[0,0] + (i + 0.5)*self.hx[0]
self.X[m,1] = bound[1,1]
m = m + 1
for j in range(nx[1]):
self.X[m,0] = bound[0,0]
self.X[m,1] = bound[1,0] + (j + 0.5)*self.hx[1]
m = m + 1
#plt.scatter(self.X[:,0],self.X[:,1])
self.uu = UU(self.X,[0,0],prob)[:,0:1]
self.vv = UU(self.X,[0,0],prob)[:,1:2]
class TESET():
def __init__(self, bound, nx,prob):
self.bound = bound
self.nx = nx
self.hx = [(self.bound[0,1]-self.bound[0,0])/self.nx[0],
(self.bound[1,1]-self.bound[1,0])/self.nx[1]]
self.prob = prob
self.size = (self.nx[0] + 1)*(self.nx[1] + 1)
self.X = torch.zeros(self.size,2)
m = 0
for i in range(self.nx[0] + 1):
for j in range(self.nx[1] + 1):
self.X[m,0] = self.bound[0,0] + i*self.hx[0]
self.X[m,1] = self.bound[1,0] + j*self.hx[1]
m = m + 1
#plt.scatter(self.X[:,0],self.X[:,1])
self.uu = UU(self.X,[0,0],prob)[:,0:1]
self.vv = UU(self.X,[0,0],prob)[:,1:2]
self.pp = PP(self.X,[0,0],prob)
class LEN():
def __init__(self,bound,mu):
self.mu = mu
self.bound = bound
self.hx = bound[:,1] - bound[:,0]
def forward(self,X):
L = 1.0
for i in range(2):
L = L*(1 - (1 - (X[:,i] - self.bound[i,0])/self.hx[i])**self.mu)
L = L*(1 - (1 - (self.bound[i,1] - X[:,i])/self.hx[i])**self.mu)
return L.view(-1,1)
np.random.seed(1234)
torch.manual_seed(1234)
class Net(torch.nn.Module):
def __init__(self, layers, dtype):
super(Net, self).__init__()
self.layers = layers
self.layers_hid_num = len(layers)-2
self.device = device
self.dtype = dtype
fc = []
for i in range(self.layers_hid_num):
fc.append(torch.nn.Linear(self.layers[i],self.layers[i+1]))
fc.append(torch.nn.Linear(self.layers[i+1],self.layers[i+1]))
fc.append(torch.nn.Linear(self.layers[-2],self.layers[-1]))
self.fc = torch.nn.Sequential(*fc)
for i in range(self.layers_hid_num):
self.fc[2*i].weight.data = self.fc[2*i].weight.data.type(dtype)
self.fc[2*i].bias.data = self.fc[2*i].bias.data.type(dtype)
self.fc[2*i + 1].weight.data = self.fc[2*i + 1].weight.data.type(dtype)
self.fc[2*i + 1].bias.data = self.fc[2*i + 1].bias.data.type(dtype)
self.fc[-1].weight.data = self.fc[-1].weight.data.type(dtype)
self.fc[-1].bias.data = self.fc[-1].bias.data.type(dtype)
def forward(self, x):
dev = x.device
for i in range(self.layers_hid_num):
h = torch.sin(self.fc[2*i](x))
h = torch.sin(self.fc[2*i+1](h))
temp = torch.eye(x.shape[-1],self.layers[i+1],dtype = self.dtype,device = dev)
x = h + x@temp
return self.fc[-1](x)
def pred_u(netu,X):
return netu.forward(X)
def pred_v(netv,X):
return netv.forward(X)
def pred_p(netp,X):
return netp.forward(X)
def loadtype(inset,teset,bdset,dtype):
inset.X = inset.X.type(dtype)
inset.uu = inset.uu.type(dtype)
inset.vv = inset.vv.type(dtype)
inset.ff = inset.ff.type(dtype)
bdset.X = bdset.X.type(dtype)
bdset.uu = bdset.uu.type(dtype)
bdset.vv = bdset.vv.type(dtype)
teset.X = teset.X.type(dtype)
teset.uu = teset.uu.type(dtype)
teset.vv = teset.vv.type(dtype)
def loadcuda(netu,netv,netp,inset,teset,bdset):
netu = netu.to(device)
netv = netv.to(device)
netp = netp.to(device)
if inset.X.requires_grad == False:
inset.X.requires_grad = True
inset.X = inset.X.to(device)
inset.ff = inset.ff.to(device)
bdset.X = bdset.X.to(device)
bdset.uu = bdset.uu.to(device)
bdset.vv = bdset.vv.to(device)
teset.X = teset.X.to(device)
def loadcpu(netu,netv,netp,inset,teset,bdset):
netu = netu.to('cpu')
netv = netv.to('cpu')
netp = netp.to('cpu')
inset.X = inset.X.to('cpu')
inset.ff = inset.ff.to('cpu')
bdset.X = bdset.X.to('cpu')
bdset.uu = bdset.uu.to('cpu')
bdset.vv = bdset.vv.to('cpu')
teset.X = teset.X.to('cpu')
def error(u_pred,u_acc):
u_pred = u_pred.to(device)
u_acc = u_acc.to(device)
tmp = (u_pred - u_acc)
return max(abs(tmp))
#----------------------
def Lossyp(netu,netv,netp,inset,bdset,penalty_in):
inset.u = pred_u(netu,inset.X)
inset.v = pred_v(netv,inset.X)
inset.p = pred_p(netp,inset.X)
u_x, = torch.autograd.grad(inset.u, inset.X, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(inset.size,1).to(device))
u_xx, = torch.autograd.grad(u_x[:,0:1], inset.X, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(inset.size,1).to(device))
u_yy, = torch.autograd.grad(u_x[:,1:2], inset.X, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(inset.size,1).to(device))
u_lap = u_xx[:,0:1] + u_yy[:,1:2]
v_x, = torch.autograd.grad(inset.v, inset.X, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(inset.size,1).to(device))
v_xx, = torch.autograd.grad(v_x[:,0:1], inset.X, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(inset.size,1).to(device))
v_yy, = torch.autograd.grad(v_x[:,1:2], inset.X, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(inset.size,1).to(device))
v_lap = v_xx[:,0:1] + v_yy[:,1:2]
p_x, = torch.autograd.grad(inset.p, inset.X, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(inset.size,1).to(device))
inset.res_u = (-nu*u_lap + inset.u*u_x[:,0:1] + inset.v*u_x[:,1:2] + p_x[:,0:1] - inset.ff[:,0:1])**2
inset.res_v = (-nu*v_lap + inset.u*v_x[:,0:1] + inset.v*v_x[:,1:2] + p_x[:,1:2] - inset.ff[:,1:2])**2
inset.res_div = (u_x[:,0:1] + v_x[:,1:2])**2
inset.loss_u = torch.sqrt(inset.res_u.mean())
inset.loss_v = torch.sqrt(inset.res_v.mean())
inset.loss_div = torch.sqrt(inset.res_div.mean())
inset.loss = penalty_in[0]*inset.loss_u + penalty_in[1]*inset.loss_v + \
penalty_in[2]*inset.loss_div
bdset.res_u = (pred_u(netu,bdset.X) - bdset.uu)**2
bdset.res_v = (pred_v(netv,bdset.X) - bdset.vv)**2
bdset.loss = torch.sqrt(bdset.res_u).mean() + torch.sqrt(bdset.res_v).mean()
return inset.loss + bdset.loss
def Trainyp(netu,netv,netp, inset,bdset,penalty_in,optim, epoch,error_history,optimtype):
print('train neural network yp,optim:%s'%(optimtype))
loss_history,lossin_history,lossbd_history = error_history
loss = Lossyp(netu,netv,netp,inset,bdset,penalty_in)
print('epoch_yp: %d, Lu:%.3e,Lv:%.3e,Ldiv:%.3e, bloss:%.3e,time: %.2f\n'
%(0,inset.loss_u.item(),inset.loss_v.item(),inset.loss_div.item(), bdset.loss.item(),0.00))
for it in range(epoch):
st = time.time()
if optimtype == 'Adam':
for j in range(100):
optim.zero_grad()
loss = Lossyp(netu,netv,netp,inset,bdset,penalty_in)
loss.backward()
optim.step()
if optimtype == 'BFGS' or optimtype == 'LBFGS':
def closure():
optim.zero_grad()
loss = Lossyp(netu,netv,netp,inset,bdset,penalty_in)
loss.backward()
return loss
optim.step(closure)
loss = Lossyp(netu,netv,netp,inset,bdset,penalty_in)
ela = time.time() - st
print('epoch_yp: %d, loss:%.3e,Lu:%.3e,Lv:%.3e,Ldiv:%.3e, bloss:%.3e,time: %.2f\n'
%(it + 1,loss.item(),inset.loss_u.item(),inset.loss_v.item(),inset.loss_div.item(), bdset.loss.item(),ela))
if (it + 1)%4 == 0:
u_L1err = error(pred_u(netu,inset.X),inset.uu)
v_L1err = error(pred_v(netv,inset.X),inset.vv)
print('epoch_yp:%d,u_L1err:%.3e,v_L1err:%.3e'%(it + 1,u_L1err,v_L1err))
loss_u = inset.loss_u.item()
loss_v = inset.loss_v.item()
loss_div = inset.loss_div.item()
loss_history.append(loss.item())
lossin_history.append([inset.loss.item(),loss_u,loss_v,loss_div])
lossbd_history.append(bdset.loss.item())
error_history = [loss_history,lossin_history,lossbd_history]
return error_history
nx = [64,64]
nx_te = [10,10]
prob = 1
mu = 1
lr = 1e0
#mode = 'random'
#mode = 'uniform'
mode = 'qmc'
inset = INSET(bound,nx,prob,mode)
bdset = BDSET(bound,nx,prob)
teset = TESET(bound,nx_te,prob)
lenth = LEN(bound,mu)
dtype = torch.float64
wid = 25
layer_u = [2,wid,wid,1];netu = Net(layer_u,dtype)
layer_v = [2,wid,wid,1];netv = Net(layer_v,dtype)
layer_p = [2,wid,wid,1];netp = Net(layer_p,dtype)
fname1 = "u-CVDlay%dvar.pt"%(wid)
fname2 = "v-CVDlay%dvar.pt"%(wid)
fname3 = "p-CVDlay%dvar.pt"%(wid)
#netu = torch.load(fname1)
#netv = torch.load(fname2)
#netp = torch.load(fname3)
loadtype(inset,teset,bdset,dtype)
loadcuda(netu,netv,netp,inset,teset,bdset)
error_history = [[],[],[]]
epoch = 20
start_time = time.time()
penalty_in = [1e0,1e0,1e0]
lr = 1e0
max_iter = 1
#optimtype = 'Adam'
optimtype = 'BFGS'
#optimtype = 'LBFGS'
for i in range(max_iter):
if optimtype == 'BFGS':
optim = bfgs.BFGS(itertools.chain(netu.parameters(),
netv.parameters(),
netp.parameters()),
lr=lr, max_iter=100,
tolerance_grad=1e-16, tolerance_change=1e-16,
line_search_fn='strong_wolfe')
if optimtype == 'LBFGS':
optim = torch.optim.LBFGS(itertools.chain(netu.parameters(),
netv.parameters(),
netp.parameters()),
lr=lr, max_iter=100,
tolerance_grad=1e-16, tolerance_change=1e-16,
history_size=2500,
line_search_fn='strong_wolfe')
if optimtype == 'Adam':
optim = torch.optim.Adam(itertools.chain(netu.parameters(),
netv.parameters(),
netp.parameters()),
lr=lr)
error_history = \
Trainyp(netu,netv,netp, inset,bdset,penalty_in,optim, epoch,error_history,optimtype)
if (i + 1)%5 == 0:
lr *= 0.985
elapsed = time.time() - start_time
print('Finishied! train time: %.2f\n' %(elapsed))
loadcpu(netu,netv,netp,inset,teset,bdset)
torch.cuda.empty_cache()
torch.save(netu, fname1)
torch.save(netv, fname2)
torch.save(netp, fname3)
loss_history,lossin_history,lossbd_history = error_history
np.save('lay%d-epoch%d-lossin.npy'%(wid,epoch),lossin_history)
np.save('lay%d-epoch%d-lossvd.npy'%(wid,epoch),lossbd_history)
np.save('lay%d-epoch%d-loss.npy'%(wid,epoch),loss_history)
#%%

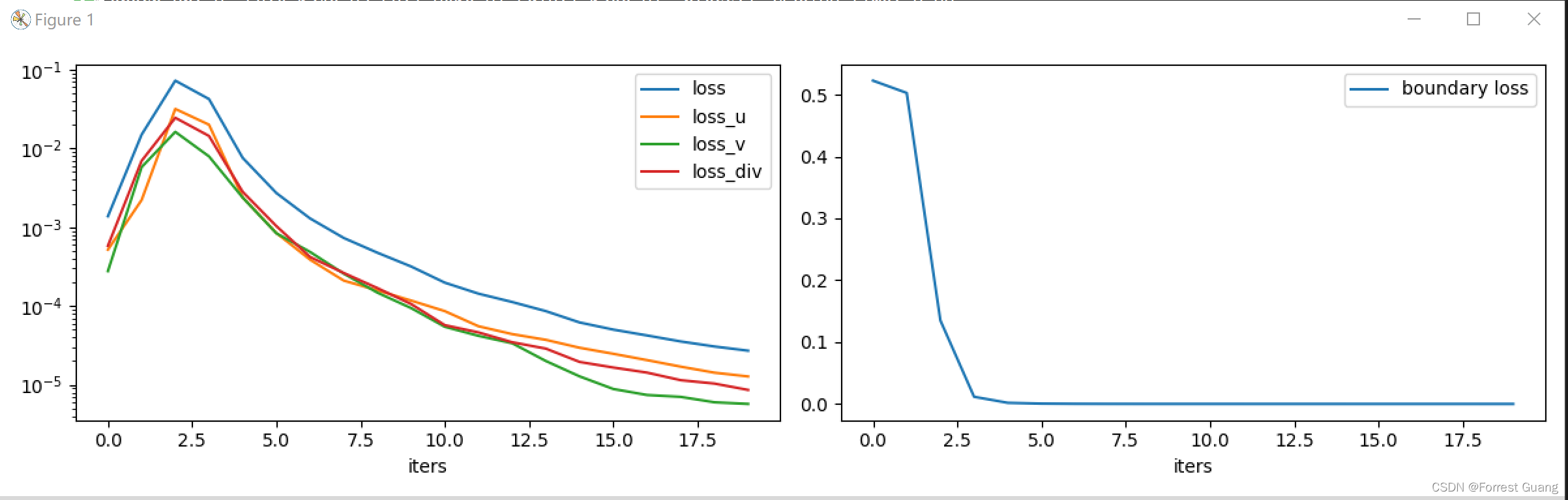

fig, ax = plt.subplots(1,2,figsize=(12,3.5))
ax[0].semilogy(np.array(lossin_history))
ax[0].legend(['loss', 'loss_u', 'loss_v', 'loss_div'])
ax[0].set_xlabel('iters')
ax[1].plot(np.array(lossbd_history))
ax[1].legend(['boundary loss'])
ax[1].set_xlabel('iters')
fig.tight_layout()
plt.show()
plt.scatter(inset.X.detach().numpy()[:,0],inset.X.detach().numpy()[:,1])
plt.show()
#%%
nx_te_in = [64,64]
x_train = np.linspace(bound[0,0],bound[0,1],nx_te_in[0])
y_train = np.linspace(bound[1,0],bound[1,1],nx_te_in[1])
x0, x1= np.meshgrid(x_train,y_train)
xx = np.hstack((x0.reshape(-1,1), x1.reshape(-1,1)))
xx = torch.from_numpy(xx).type(dtype)
u_pred = pred_u(netu,xx).detach().numpy()
v_pred = pred_v(netv,xx).detach().numpy()
u_acc = UU(xx,[0,0],prob).numpy()[:,0:1]
v_acc = UU(xx,[0,0],prob).numpy()[:,1:2]
fig, ax = plt.subplots(2,3,figsize=(12,6))
for i in range(1):
for j in range(3):
ax[i,j].axis('equal')
ax[i,j].set_xlim([bound[0,0],bound[0,1]])
ax[i,j].set_ylim([bound[1,0],bound[1,1]])
ax[i,j].axis('off')
num_line = 10
x0 = x0.flatten()
x1 = x1.flatten()
u_pred = u_pred.reshape(-1,1).flatten()
v_pred = v_pred.reshape(-1,1).flatten()
u_acc = u_acc.reshape(-1,1).flatten()
v_acc = v_acc.reshape(-1,1).flatten()
ax00 = ax[0,0].tricontourf(x0, x1, u_pred, num_line, cmap='rainbow')
fig.colorbar(ax00,ax=ax[0,0],fraction = 0.05,pad = 0.04)
ax[0,0].set_title('PINN: u')
ax10 = ax[1,0].tricontourf(x0, x1, v_pred, num_line, alpha=1, cmap='rainbow')
fig.colorbar(ax10,ax=ax[1,0],fraction = 0.05,pad = 0.04)
ax[1,0].set_title('PINN: v')
ax01 = ax[0,1].tricontourf(x0, x1, u_acc, num_line, cmap='rainbow')
fig.colorbar(ax01,ax=ax[0,1],fraction = 0.05,pad = 0.04)
ax[0,1].set_title('exact: u')
ax11 = ax[1,1].tricontourf(x0, x1, v_acc, num_line, alpha=1, cmap='rainbow')
fig.colorbar(ax11,ax=ax[1,1],fraction = 0.05,pad = 0.04)
ax[1,1].set_title('exact: v')
ax02 = ax[0,2].tricontourf(x0, x1, u_pred - u_acc, num_line, cmap='rainbow')
fig.colorbar(ax02,ax=ax[0,2],fraction = 0.05,pad = 0.04)
ax[0,2].set_title('difference: u')
ax12 = ax[1,2].tricontourf(x0, x1, v_pred - v_acc, num_line, alpha=1, cmap='rainbow')
fig.colorbar(ax12,ax=ax[1,2],fraction = 0.05,pad = 0.04)
ax[1,2].set_title('difference: v')
plt.suptitle('PINN solve K flow',fontsize=20)
fig.tight_layout()
plt.show()
CVD问题
参考文献： Yang, H. , F. N. Hwang , and X. C. Cai . “NONLINEAR PRECONDITIONING TECHNIQUES FOR FULL-SPACE LAGRANGE-NEWTON SOLUTION OF PDE-CONSTRAINED OPTIMIZATION PROBLEMS *.” Siam Journal on entific Computing (2016).
其中
γ
=
0.01
,
R
e
=
1
,
P
r
=
0.72
,
G
r
=
1
e
4.
\gamma=0.01,Re=1,Pr=0.72,Gr=1e4.
γ=0.01,Re=1,Pr=0.72,Gr=1e4.
{
min
J
=
1
2
∫
Ω
ω
2
d
Ω
+
γ
2
∫
Γ
2
∪
Γ
4
g
2
d
Γ
,
subject to
{
ω
=
−
∂
u
∂
y
+
∂
v
∂
x
−
Δ
u
−
∂
ω
∂
y
=
0
−
Δ
v
+
∂
ω
∂
x
=
0
−
1
R
e
Δ
ω
+
u
∂
ω
∂
x
+
v
∂
ω
∂
y
−
G
r
R
e
2
∂
T
∂
x
=
0
−
1
R
e
P
r
Δ
T
+
u
∂
T
∂
x
+
v
∂
T
∂
y
=
0
and
{
v
=
(
0
,
0
)
and
T
=
1
on
Γ

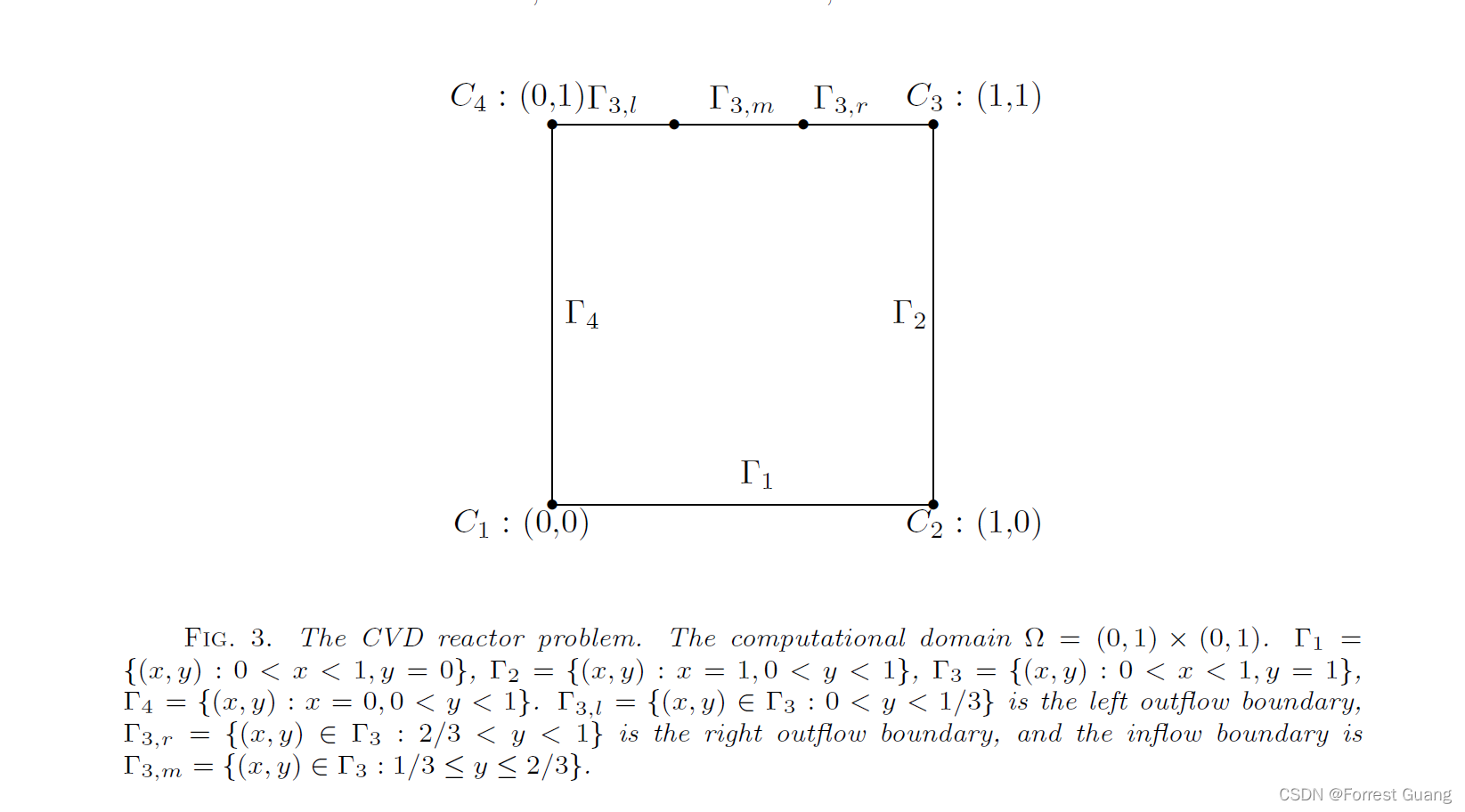

1
∪
C
1
∪
C
2
,
v
=
(
0
,
0
)
and
∂
T
∂
n
=
g
−
T
on
Γ
2
∪
Γ
4
,
v
=
(
0
,
−
4
(
x
−
1
/
3
)
(
2
/
3
−
x
)
)
and
T
=
0
on
Γ
3
,
m
,
v
=
(
0
,
2
x
(
1
/
3
−
x
)
)
and
∂
T
∂
n
=
0
on
Γ
3
,
l
∪
C
4
,
v
=
(
0
,
2
(
x
−
2
/
3
)
(
1
−
x
)
)
and
∂
T
∂
n
=
0
on
Γ
3
,
r
∪
C
3
,
\left\{\begin{aligned} &\min J=\frac{1}{2}\int_{\Omega}\omega^2 d\Omega+\frac{\gamma}{2}\int_{\Gamma_2\cup\Gamma_4}g^2d\Gamma, \\ &\text { subject to } \left\{\begin{aligned} \omega = -\frac{\partial u}{\partial y} + \frac{\partial v}{\partial x}\\ -\Delta u-\frac{\partial \omega}{\partial y}=0 \\ -\Delta v+\frac{\partial \omega}{\partial x}=0 \\ -\frac{1}{R e} \Delta \omega+u \frac{\partial \omega}{\partial x}+v \frac{\partial \omega}{\partial y}-\frac{G r}{R e^{2}} \frac{\partial T}{\partial x}=0 \\ -\frac{1}{R e P r} \Delta T+u \frac{\partial T}{\partial x}+v \frac{\partial T}{\partial y}=0 \end{aligned}\right.\\ &\text{and} \left\{\begin{array}{lll} \mathbf{v}=(0,0) \text { and } T=1 & \text { on } \quad \Gamma_{1} \cup C_{1} \cup C_{2}, \\ \mathbf{v}=(0,0) \text { and } \frac{\partial T}{\partial n}=g-T & \text { on } \quad \Gamma_{2} \cup \Gamma_{4}, \\ \mathbf{v}=(0,-4(x-1 / 3)(2 / 3-x)) \text { and } T=0 & \text { on } \quad \Gamma_{3, m}, \\ \mathbf{v}=(0,2 x(1 / 3-x)) \text { and } \frac{\partial T}{\partial n}=0 & \text { on } \quad \Gamma_{3, l} \cup C_{4}, \\ \mathbf{v}=(0,2(x-2 / 3)(1-x)) \text { and } \frac{\partial T}{\partial n}=0 & \text { on } \quad \Gamma_{3, r} \cup C_{3}, \end{array}\right. \end{aligned}\right.
⎩
⎨
⎧minJ=21∫Ωω2dΩ+2γ∫Γ2∪Γ4g2dΓ, subject to ⎩
⎨
⎧ω=−∂y∂u+∂x∂v−Δu−∂y∂ω=0−Δv+∂x∂ω=0−Re1Δω+u∂x∂ω+v∂y∂ω−Re2Gr∂x∂T=0−RePr1ΔT+u∂x∂T+v∂y∂T=0and⎩
⎨
⎧v=(0,0) and T=1v=(0,0) and ∂n∂T=g−Tv=(0,−4(x−1/3)(2/3−x)) and T=0v=(0,2x(1/3−x)) and ∂n∂T=0v=(0,2(x−2/3)(1−x)) and ∂n∂T=0 on Γ1∪C1∪C2, on Γ2∪Γ4, on Γ3,m, on Γ3,l∪C4, on Γ3,r∪C3,
选取
g
=
0
g=0

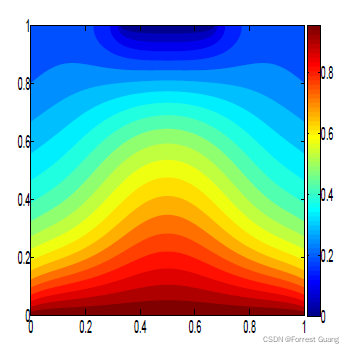

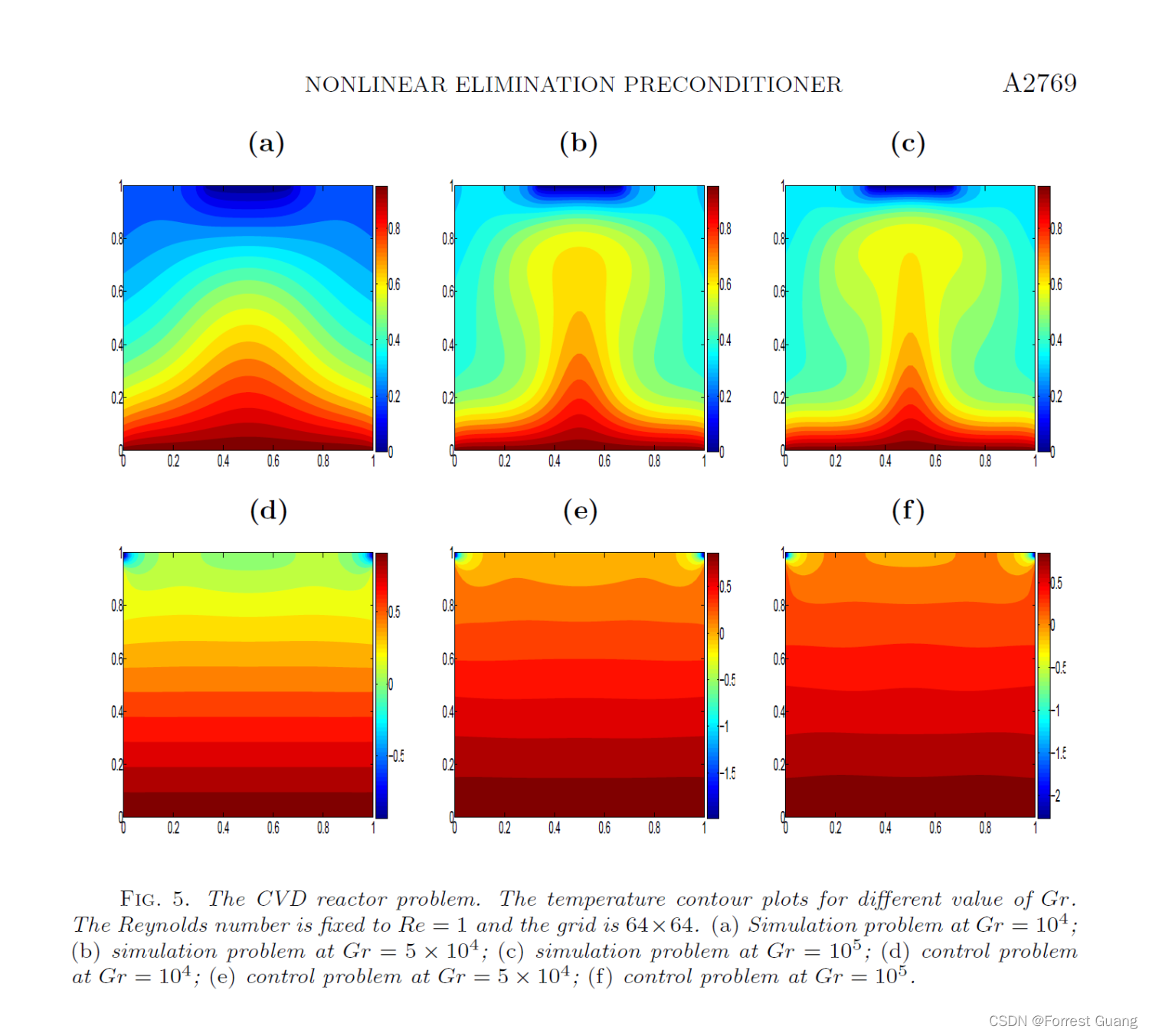

g=0,只考虑约束条件，论文结果如下所示：
PINN求解CVD正问题代码
对于
u
,
v
,
w
,
T
u,v,w,T
u,v,w,T，设置FNN的层数以及神经元数目为
[
2
,
25
,
25
,
25
,
1
]
[2,25,25,25,1]
[2,25,25,25,1]，内点使用均匀采样，剖分为
[
64
,
64
]
[64,64]
[64,64]，边界点剖分为
[
100
,
100
]
[100,100]
[100,100]，上面提到了15个边界条件，不过这里本人设置近似解定义如下：
{
u
=
n
e
t
u
x
(
1
−
x
)
y
(
1
−
y
)
,
v
=
n
e
t
v
x
(
1
−
x
)
y
,
w
=
n
e
t
w
,
T
=
n
e
t
T
\left\{\begin{array}{l} u = net_ux(1-x)y(1-y),\\ v = net_vx(1-x)y,\\ w = net_w,\\ T = net_T \end{array}\right.
⎩
⎨
⎧u=netux(1−x)y(1−y),v=netvx(1−x)y,w=netw,T=netT
通过上面这种定义，近似解可以直接满足7个边界条件，引入损失函数定义：
L
=
α
1
L
u
+
α
2
L
v
+
α
3
L
w
+
α
4
L
T
+
α
5
L
v
a
r
+
∑
i
=
1
5
β
i
L
b
d
i
L = \alpha_1L_u + \alpha_2 L_v + \alpha_3L_{w} + \alpha_4L_T + \alpha_5L_{var}+\sum_{i=1}^{5}\beta_iL_{bdi}
L=α1Lu+α2Lv+α3Lw+α4LT+α5Lvar+∑i=15βiLbdi
{
L
v
a
r
=
1
n
I
∑
i
n
I
(
w
+
u
y
−
v
x
)
i
2
，
L
b
d
1
=
1
n
B
∑
i
n
B
(
T
−
1
)
i
2
，
L
b
d
2
=
1
n
B
∑
i
n
B
(
∂
T
∂
n
+
T
)
i
2
，
L
b
d
3
=
1
n
B
∑
i
n
B
(
v
+
4
(
x
−
1
/
3
)
(
2
/
3
−
x
)
)
i
2
+
T
i
2
，
L
b
d
4
=
1
n
B
∑
i
n
B
(
v
−
2
x
(
1
/
3
−
x
)
)
i
2
+
(
∂
T
∂
n
−
0
)
i
2
，
L
b
d
5
=
1
n
B
∑
i
n
B
(
v
−
2
(
x
−
2
/
3
)
(
1
−
x
)
)
i
2
+
(
∂
T
∂
n
−
0
)
i
2
.
\left\{\begin{array}{l} L_{var}=\frac{1}{n_I}\sum_{i}^{n_I}(w +u_y - v_x)_i^2，\\ L_{bd1}=\frac{1}{n_B}\sum_{i}^{n_B}(T - 1)_i^2，\\ L_{bd2}=\frac{1}{n_B}\sum_{i}^{n_B}(\frac{\partial T}{\partial n} + T)_i^2，\\ L_{bd3}=\frac{1}{n_B}\sum_{i}^{n_B}(v + 4(x-1 / 3)(2 / 3-x))_i^2 + T_i^2，\\ L_{bd4}=\frac{1}{n_B}\sum_{i}^{n_B}(v - 2x(1/3 - x))_i^2 + (\frac{\partial T}{\partial n}-0)_i^2，\\ L_{bd5}=\frac{1}{n_B}\sum_{i}^{n_B}(v - 2(x-2/3)(1 - x))_i^2 + (\frac{\partial T}{\partial n}-0)_i^2. \end{array}\right.
⎩
⎨
⎧Lvar=nI1∑inI(w+uy−vx)i2，Lbd1=nB1∑inB(T−1)i2，Lbd2=nB1∑inB(∂n∂T+T)i2，Lbd3=nB1∑inB(v+4(x−1/3)(2/3−x))i2+Ti2，Lbd4=nB1∑inB(v−2x(1/3−x))i2+(∂n∂T−0)i2，Lbd5=nB1∑inB(v−2(x−2/3)(1−x))i2+(∂n∂T−0)i2.
其中所有惩罚参数都为1。

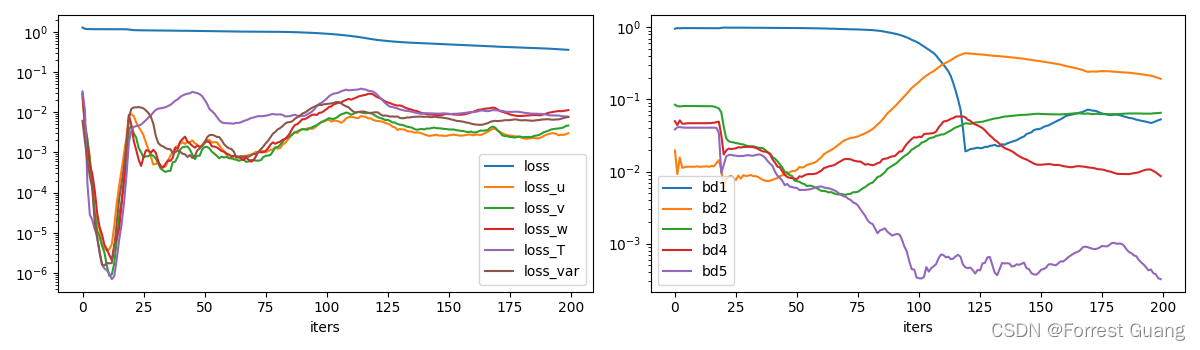

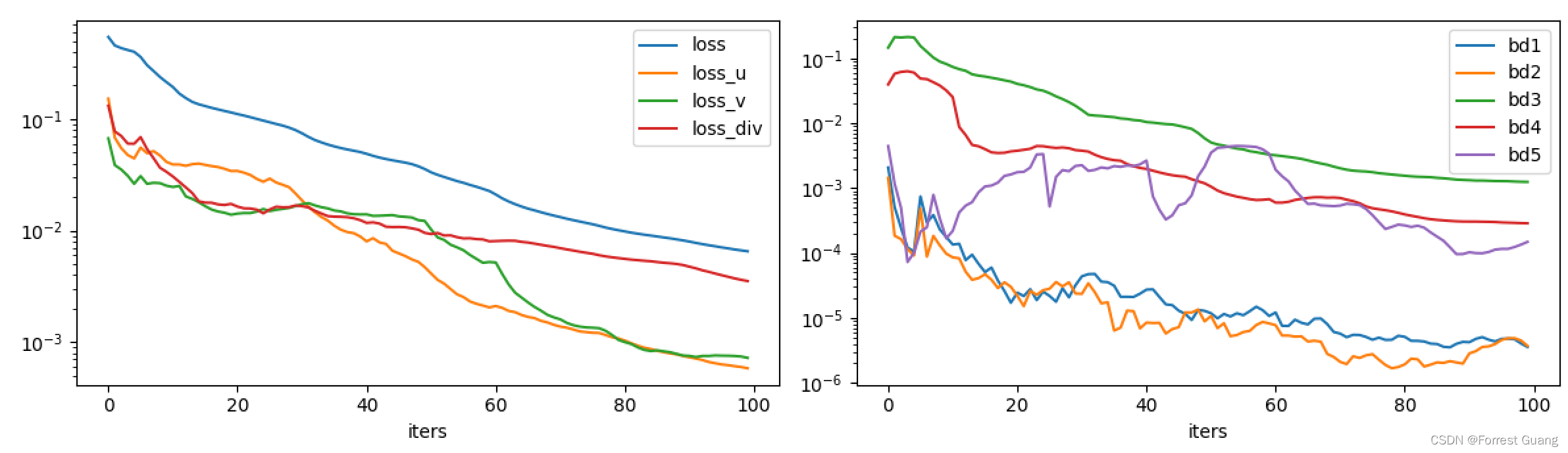

正问题的求解难点主要在于边界条件复杂，普通的PINN+FNN拟合效果有限，下面展示代码迭代200个epoch的结果：
自动满足边界bd1：
修改T的定义为
T
=
n
e
t
T
y
+
1
T = net_Ty + 1

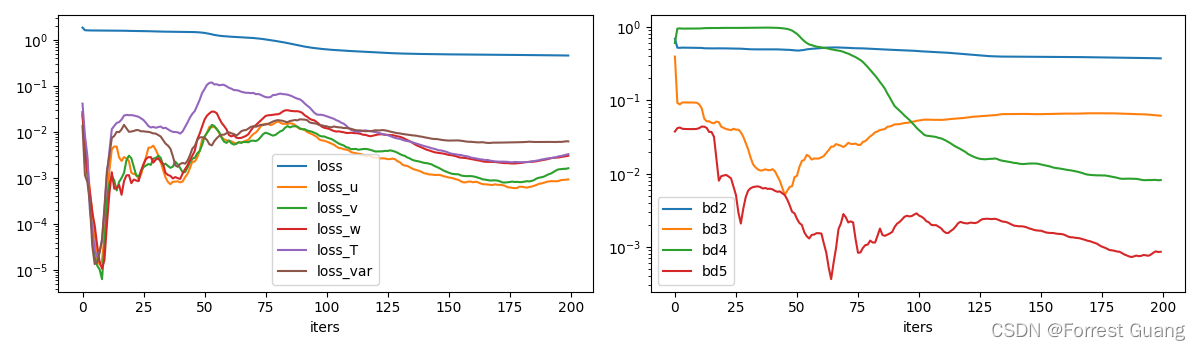

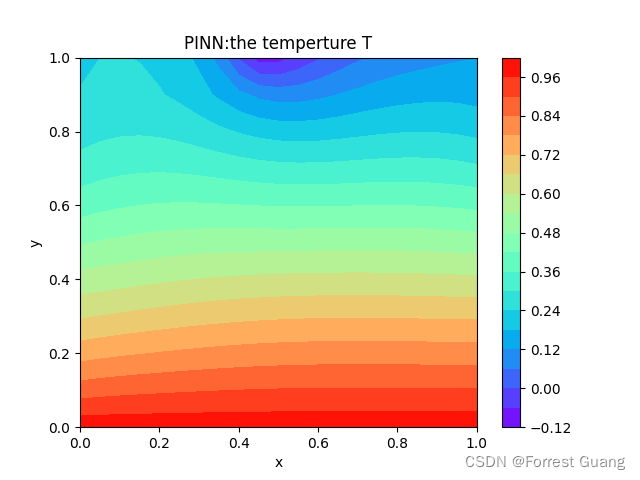

T=netTy+1，这样可以自动满足边界bd1，根据这个做法，重新迭代200次得到的结果如下：
import torch
import time
import numpy as np
import matplotlib.pyplot as plt
from matplotlib import cm
import torch.nn as nn
import torch.nn.functional as F
import itertools
import bfgs
from scipy.stats import qmc
device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")
#device = torch.device('cpu')
bounds = np.array([0,1,0,1]).reshape(2,2)
Re = 1
Pr = 0.72
Gr = 1e4
class INSET():#边界点取值
def __init__(self,nx,mode):
self.dim = 2
#self.area = (bound[0,1] - bound[0,0])*(bound[1,1] - bound[1,0])
self.hx = [(bounds[0,1] - bounds[0,0])/nx[0],(bounds[1,1] - bounds[1,0])/nx[1]]
self.size = nx[0]*nx[1]
self.X = torch.zeros(self.size,self.dim)#储存内点
if mode == 'uniform':
for i in range(nx[0]):
for j in range(nx[1]):
self.X[i*nx[1] + j,0] = bounds[0,0] + (i + 0.5)*self.hx[0]
self.X[i*nx[1] + j,1] = bounds[1,0] + (j + 0.5)*self.hx[1]
elif mode == 'random':
tmp = torch.rand(self.size,2)
self.X[:,0] = bounds[0,0] + self.hx[0] + (bounds[0,1] - bounds[0,0] - 2*self.hx[0])*tmp[:,0]
self.X[:,1] = bounds[1,0] + self.hx[1] + (bounds[1,1] - bounds[1,0] - 2*self.hx[1])*tmp[:,1]
else:
tmp = torch.tensor(self.quasi_samples(self.size))
self.X[:,0] = bounds[0,0] + self.hx[0] + (bounds[0,1] - bounds[0,0] - 2*self.hx[0])*tmp[:,0]
self.X[:,1] = bounds[1,0] + self.hx[1] + (bounds[1,1] - bounds[1,0] - 2*self.hx[1])*tmp[:,1]
def quasi_samples(self,N):
sampler = qmc.Sobol(d=self.dim)
sample = sampler.random(n=N)
return sample
class BDSET():#边界点取值
def __init__(self,nx):
self.dim = 2
self.hx = [(bounds[0,1] - bounds[0,0])/nx[0],(bounds[1,1] - bounds[1,0])/nx[1]]
self.size = 2*(nx[0] + nx[1])
#----------------------------------
self.u1 = torch.zeros(nx[0] + 1,1)
self.v1 = torch.zeros(nx[0] + 1,1)
self.x1 = torch.zeros(nx[0] + 1,2)
for i in range(nx[0] + 1):
self.x1[i,0] = bounds[0,0] + i*self.hx[0]
self.x1[i,1] = bounds[1,0]
self.T1 = torch.ones(self.x1.shape[0],1)
#--------------------------------
self.u2 = torch.zeros(2*nx[1],1)
self.v2 = torch.zeros(2*nx[1],1)
self.x2 = torch.zeros(2*nx[1],2)
self.dir2 = torch.zeros(2*nx[1],2)
for i in range(nx[1]):
self.x2[i,0] = bounds[0,0]
self.x2[i,1] = bounds[1,0] + (i + 0.5)*self.hx[1]
self.dir2[i,0] = -1;self.dir2[i,1] = 0
self.x2[i + nx[1],0] = bounds[0,1]
self.x2[i + nx[1],1] = bounds[1,0] + (i + 0.5)*self.hx[1]
self.dir2[i + nx[1],0] = 1;self.dir2[i + nx[1],1] = 0
self.g2 = torch.zeros_like(self.u2)
#--------------------------
self.u3 = torch.zeros(nx[0],1)
self.v3 = torch.zeros(nx[0],1)
self.x3 = torch.zeros(nx[0],2)
for i in range(1,nx[0] - 1):
self.x3[i,0] = 1/3 + i/(3*nx[0])
self.x3[i,1] = 1.0
self.x3[0,0] = 1/3;self.x3[0,1] = 1
self.x3[-1,0] = 2/3;self.x3[-1,1] = 1
for i in range(nx[0]):
self.v3[i,0] = -4*(self.x3[i,0] - 1/3)*(2/3 - self.x3[i,0])
self.T3 = torch.zeros(self.x3.shape[0],1)
#------------------------------------
self.x4 = torch.zeros(nx[0],2)
self.u4 = torch.zeros(nx[0],1)
self.v4 = torch.zeros(nx[0],1)
self.dir4 = torch.zeros(nx[0],2)
for i in range(1,nx[0]):
self.x4[i,0] = i/(3*nx[0])
self.x4[i,1] = 1.0
self.x4[0,0] = 0;self.x4[0,1] = 1.0
for i in range(nx[0]):
self.v4[i,0] = 2*self.x4[i,0]*(1/3 - self.x4[i,0])
self.dir4[:,0] = torch.zeros(nx[0]);self.dir4[:,1] = torch.ones(nx[0])
#------------------------------------
self.x5 = torch.zeros(nx[0],2)
self.u5 = torch.zeros(nx[0],1)
self.v5 = torch.zeros(nx[0],1)
self.dir5 = torch.zeros(nx[0],2)
for i in range(nx[0] - 1):
self.x5[i,0] = 2/3 + (i + 0.5)/(3*nx[0])
self.x5[i,1] = 1.0
self.x5[-1,0] = 1;self.x5[-1,1] = 1.0
for i in range(nx[0]):
self.v5[i,0] = 2*(self.x5[i,0] - 2/3)*(1 - self.x5[i,0])
class LENU():
def __init__(self):
pass
def forward(self,X):
x = X[:,0]
y = X[:,1]
L = x*(1 -x)*y*(1 - y)
return L.reshape(-1,1)
class LENV():
def __init__(self):
pass
def forward(self,X):
x = X[:,0]
y = X[:,1]
L = x*(1 -x)*y
return L.reshape(-1,1)
np.random.seed(1234)
torch.manual_seed(1234)
class Net(torch.nn.Module):
def __init__(self, layers, dtype):
super(Net, self).__init__()
self.layers = layers
self.layers_hid_num = len(layers)-2
self.device = device
self.dtype = dtype
fc = []
for i in range(self.layers_hid_num):
fc.append(torch.nn.Linear(self.layers[i],self.layers[i+1]))
fc.append(torch.nn.Linear(self.layers[i+1],self.layers[i+1]))
fc.append(torch.nn.Linear(self.layers[-2],self.layers[-1]))
self.fc = torch.nn.Sequential(*fc)
for i in range(self.layers_hid_num):
self.fc[2*i].weight.data = self.fc[2*i].weight.data.type(dtype)
self.fc[2*i].bias.data = self.fc[2*i].bias.data.type(dtype)
self.fc[2*i + 1].weight.data = self.fc[2*i + 1].weight.data.type(dtype)
self.fc[2*i + 1].bias.data = self.fc[2*i + 1].bias.data.type(dtype)
self.fc[-1].weight.data = self.fc[-1].weight.data.type(dtype)
self.fc[-1].bias.data = self.fc[-1].bias.data.type(dtype)
def forward(self, x):
dev = x.device
for i in range(self.layers_hid_num):
h = torch.sin(self.fc[2*i](x))
h = torch.sin(self.fc[2*i+1](h))
temp = torch.eye(x.shape[-1],self.layers[i+1],dtype = self.dtype,device = dev)
x = h + x@temp
return self.fc[-1](x)
def pred_u(netu,lenthu,X):
return netu.forward(X)*lenthu.forward(X)
def pred_v(netv,lenthv,X):
return netv.forward(X)*lenthv.forward(X)
def pred_w(netw,X):
return netw.forward(X)
def pred_T(netT,X):
return netT.forward(X)*X[:,1:2] + 1
def loadtype(inset,bdset,dtype):
inset.X = inset.X.type(dtype)
#-----------------------------
bdset.x1 = bdset.x1.type(dtype)
bdset.u1 = bdset.u1.type(dtype)
bdset.v1 = bdset.v1.type(dtype)
bdset.T1 = bdset.T1.type(dtype)
#-----------------------------
bdset.x2 = bdset.x2.type(dtype)
bdset.u2 = bdset.u2.type(dtype)
bdset.v2 = bdset.v2.type(dtype)
bdset.g2 = bdset.g2.type(dtype)
bdset.dir2 = bdset.dir2.type(dtype)
#-----------------------------
bdset.x3 = bdset.x3.type(dtype)
bdset.u3 = bdset.u3.type(dtype)
bdset.v3 = bdset.v3.type(dtype)
bdset.T3 = bdset.T3.type(dtype)
#-----------------------------
bdset.x4 = bdset.x4.type(dtype)
bdset.u4 = bdset.u4.type(dtype)
bdset.v4 = bdset.v4.type(dtype)
bdset.dir4 = bdset.dir4.type(dtype)
#-----------------------------
bdset.x5 = bdset.x5.type(dtype)
bdset.u5 = bdset.u5.type(dtype)
bdset.v5 = bdset.v5.type(dtype)
bdset.dir5 = bdset.dir5.type(dtype)
def loadcuda(netu,netv,netw,netT,inset,bdset):
netu = netu.to(device)
netv = netv.to(device)
netw = netw.to(device)
netT = netT.to(device)
if inset.X.requires_grad == False:
inset.X.requires_grad = True
inset.X = inset.X.to(device)
#-----------------------------
bdset.x1 = bdset.x1.to(device)
bdset.u1 = bdset.u1.to(device)
bdset.v1 = bdset.v1.to(device)
bdset.T1 = bdset.T1.to(device)
#-----------------------------
if bdset.x2.requires_grad == False:
bdset.x2.requires_grad = True
bdset.x2 = bdset.x2.to(device)
bdset.u2 = bdset.u2.to(device)
bdset.v2 = bdset.v2.to(device)
bdset.g2 = bdset.g2.to(device)
bdset.dir2 = bdset.dir2.to(device)
#-----------------------------
bdset.x3 = bdset.x3.to(device)
bdset.u3 = bdset.u3.to(device)
bdset.v3 = bdset.v3.to(device)
bdset.T3 = bdset.T3.to(device)
#-----------------------------
if bdset.x4.requires_grad == False:
bdset.x4.requires_grad = True
bdset.x4 = bdset.x4.to(device)
bdset.u4 = bdset.u4.to(device)
bdset.v4 = bdset.v4.to(device)
bdset.dir4 = bdset.dir4.to(device)
#-----------------------------
if bdset.x5.requires_grad == False:
bdset.x5.requires_grad = True
bdset.x5 = bdset.x5.to(device)
bdset.u5 = bdset.u5.to(device)
bdset.v5 = bdset.v5.to(device)
bdset.dir5 = bdset.dir5.to(device)
def loadcpu(netu,netv,netw,netT,inset,bdset):
netu = netu.to('cpu')
netv = netv.to('cpu')
netw = netw.to('cpu')
netT = netT.to('cpu')
if inset.X.requires_grad == False:
inset.X.requires_grad = True
inset.X = inset.X.to('cpu')
#-----------------------------
bdset.x1 = bdset.x1.to('cpu')
bdset.u1 = bdset.u1.to('cpu')
bdset.v1 = bdset.v1.to('cpu')
bdset.T1 = bdset.T1.to('cpu')
#-----------------------------
if bdset.x2.requires_grad == False:
bdset.x2.requires_grad = True
bdset.x2 = bdset.x2.to('cpu')
bdset.u2 = bdset.u2.to('cpu')
bdset.v2 = bdset.v2.to('cpu')
bdset.g2 = bdset.g2.to('cpu')
bdset.dir2 = bdset.dir2.to('cpu')
#-----------------------------
bdset.x3 = bdset.x3.to('cpu')
bdset.u3 = bdset.u3.to('cpu')
bdset.v3 = bdset.v3.to('cpu')
bdset.T3 = bdset.T3.to('cpu')
#-----------------------------
if bdset.x4.requires_grad == False:
bdset.x4.requires_grad = True
bdset.x4 = bdset.x4.to('cpu')
bdset.u4 = bdset.u4.to('cpu')
bdset.v4 = bdset.v4.to('cpu')
bdset.dir4 = bdset.dir4.to('cpu')
#-----------------------------
if bdset.x5.requires_grad == False:
bdset.x5.requires_grad = True
bdset.x5 = bdset.x5.to('cpu')
bdset.u5 = bdset.u5.to('cpu')
bdset.v5 = bdset.v5.to('cpu')
bdset.dir5 = bdset.dir5.to('cpu')
def Loss_yp(netu,netv,netw,netT,lenthu,lenthv,inset,bdset,penalty_in,penalty_bd):
inset.u = pred_u(netu,lenthu,inset.X)
inset.v = pred_v(netv,lenthv,inset.X)
inset.w = pred_w(netw,inset.X)
inset.T = pred_T(netT,inset.X)
u_x, = torch.autograd.grad(inset.u, inset.X, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(inset.size,1).to(device))
u_xx, = torch.autograd.grad(u_x[:,0:1], inset.X, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(inset.size,1).to(device))
u_yy, = torch.autograd.grad(u_x[:,1:2], inset.X, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(inset.size,1).to(device))
u_lap = u_xx[:,0:1] + u_yy[:,1:2]
v_x, = torch.autograd.grad(inset.v, inset.X, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(inset.size,1).to(device))
v_xx, = torch.autograd.grad(v_x[:,0:1], inset.X, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(inset.size,1).to(device))
v_yy, = torch.autograd.grad(v_x[:,1:2], inset.X, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(inset.size,1).to(device))
v_lap = v_xx[:,0:1] + v_yy[:,1:2]
w_x, = torch.autograd.grad(inset.w, inset.X, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(inset.size,1).to(device))
w_xx, = torch.autograd.grad(w_x[:,0:1], inset.X, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(inset.size,1).to(device))
w_yy, = torch.autograd.grad(w_x[:,1:2], inset.X, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(inset.size,1).to(device))
w_lap = w_xx[:,0:1] + w_yy[:,1:2]
T_x, = torch.autograd.grad(inset.T, inset.X, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(inset.size,1).to(device))
T_xx, = torch.autograd.grad(T_x[:,0:1], inset.X, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(inset.size,1).to(device))
T_yy, = torch.autograd.grad(T_x[:,1:2], inset.X, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(inset.size,1).to(device))
T_lap = T_xx[:,0:1] + T_yy[:,1:2]
inset.res_u = (u_lap + w_x[:,1:2])**2
inset.res_v = (-v_lap + w_x[:,0:1])**2
inset.res_w = (-w_lap/Re + inset.u*w_x[:,0:1] + inset.v*w_x[:,1:2] - T_x[:,0:1]*Gr/(Re**2))**2
inset.res_T = (-T_lap/(Re*Pr) + inset.u*T_x[:,0:1] + inset.v*T_x[:,1:2])**2
inset.var_w = (inset.w + u_x[:,1:2] - v_x[:,0:1])**2
inset.loss_u = torch.sqrt(inset.res_u.mean())
inset.loss_v = torch.sqrt(inset.res_v.mean())
inset.loss_w = torch.sqrt(inset.res_w.mean())
inset.loss_T = torch.sqrt(inset.res_T.mean())
inset.loss_var = torch.sqrt(inset.var_w.mean())
inset.loss_in = penalty_in[0]*inset.loss_u + penalty_in[1]*inset.loss_v + \
penalty_in[2]*inset.loss_w + penalty_in[3]*inset.loss_T + penalty_in[4]*inset.loss_var
#--------------------------------------
#2
bdset.T2 = pred_T(netT,bdset.x2)
Tbd_x2, = torch.autograd.grad(bdset.T2, bdset.x2, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(bdset.x2.shape[0],1).to(device))
Tbd_n2 = ((Tbd_x2*bdset.dir2).sum(1)).reshape(-1,1)
bdset.loss2 = torch.sqrt((Tbd_n2 + bdset.T2)**2).mean()
#3
tmpbd3 = (pred_v(netv,lenthv,bdset.x3) - bdset.v3)**2 + (pred_T(netT,bdset.x3))**2
bdset.loss3 = torch.sqrt(tmpbd3.mean())
#4
Tbd_x4, = torch.autograd.grad(pred_T(netT,bdset.x4), bdset.x4, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(bdset.x4.shape[0],1).to(device))
Tbd_n4 = ((Tbd_x4*bdset.dir4).sum(1)).reshape(-1,1)
tmpbd4 = (pred_v(netv,lenthv,bdset.x4) - bdset.v4)**2 + (Tbd_n4)**2
bdset.loss4 = torch.sqrt(tmpbd4.mean())
#5
Tbd_x5, = torch.autograd.grad(pred_T(netT,bdset.x5), bdset.x5, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(bdset.x5.shape[0],1).to(device))
Tbd_n5 = ((Tbd_x5*bdset.dir5).sum(1)).reshape(-1,1)
tmpbd5 = (pred_v(netv,lenthv,bdset.x5) - bdset.v5)**2 + (Tbd_n5)**2
bdset.loss5 = torch.sqrt(tmpbd5.mean())
inset.loss_bd = penalty_bd[0]*bdset.loss2 + penalty_bd[1]*bdset.loss3 +\
penalty_bd[2]*bdset.loss4 + penalty_bd[3]*bdset.loss5
return inset.loss_in + inset.loss_bd
def train_yp(netu,netv,netw,netT,lenthu,lenthv,inset,bdset,penalty_in,penalty_bd,optim,epoch,error_history,optimtype):
print('Train y&p Neural Network')
lossin_history,var_history,lossbd_history = error_history
loss = Loss_yp(netu,netv,netw,netT,lenthu,lenthv,inset,bdset,penalty_in,penalty_bd)
print('epoch_yp: %d, Lu:%.3e,Lv:%.3e,Lw:%.3e,LT:%.3e,Lvar:%.3e, time: %.2f\n'
%(0,inset.loss_u.item(),inset.loss_v.item(),inset.loss_w.item(),inset.loss_T.item(),inset.loss_var.item(), 0.00))
print('bd2:%.3e,bd3:%.3e,bd4:%.4e,bd5:%.3e\n'%
(bdset.loss2.item(),bdset.loss3.item(),bdset.loss4.item(),bdset.loss5.item()))
for it in range(epoch):
st = time.time()
if optimtype == 'Adam':
for j in range(100):
optim.zero_grad()
loss = Loss_yp(netu,netv,netw,netT,lenthu,lenthv,inset,bdset,penalty_in,penalty_bd)
loss.backward()
optim.step()
if optimtype == 'BFGS' or optimtype == 'LBFGS':
def closure():
optim.zero_grad()
loss = Loss_yp(netu,netv,netw,netT,lenthu,lenthv,inset,bdset,penalty_in,penalty_bd)
loss.backward()
return loss
optim.step(closure)
loss = Loss_yp(netu,netv,netw,netT,lenthu,lenthv,inset,bdset,penalty_in,penalty_bd)
ela = time.time() - st
print('------------------------------')
print('loss:%.3e,bd2:%.3e,bd3:%.3e,bd4:%.4e,bd5:%.3e\n'%
(loss.item(),bdset.loss2.item(),bdset.loss3.item(),bdset.loss4.item(),bdset.loss5.item()))
print('epoch_yp: %d, Lu:%.3e,Lv:%.3e,Lw:%.3e,LT:%.3e,Lvar:%.3e, time: %.2f\n'
%(it + 1,inset.loss_u.item(),inset.loss_v.item(),inset.loss_w.item(),inset.loss_T.item(),inset.loss_var.item(), ela))
loss_u = inset.loss_u.item()
loss_v = inset.loss_v.item()
loss_w = inset.loss_w.item()
loss_T = inset.loss_T.item()
loss_var = inset.loss_var.item()
bd2 = bdset.loss2.item()
bd3 = bdset.loss3.item()
bd4 = bdset.loss4.item()
bd5 = bdset.loss5.item()
lossin_history.append([loss.item(),loss_u,loss_v,loss_w,loss_T,loss_var])
var_history.append(loss_var)
lossbd_history.append([bd2,bd3,bd4,bd5])
error_history = [lossin_history,var_history,lossbd_history]
return error_history
nx = [64,64]
nx_bd = [100,100]
mu = 1
lr = 1e0
#mode = 'random'
mode = 'uniform'
#mode = 'qmc'
inset = INSET(nx,mode)
bdset = BDSET(nx_bd)
lenthu = LENU()
lenthv = LENV()
dtype = torch.float64
wid = 25
layer_u = [2,wid,wid,wid,1];netu = Net(layer_u,dtype)
layer_v = [2,wid,wid,wid,1];netv = Net(layer_v,dtype)
layer_w = [2,wid,wid,wid,1];netw = Net(layer_w,dtype)
layer_T = [2,wid,wid,wid,1];netT = Net(layer_T,dtype)
fname1 = "unobasic-CVDlay%dvar.pt"%(wid)
fname2 = "vnobasic-CVDlay%dvar.pt"%(wid)
fname3 = "wnobasic-CVDlay%dvar.pt"%(wid)
fname4 = "Tnobasic-CVDlay%dvar.pt"%(wid)
#netu = torch.load(fname1)
#netv = torch.load(fname2)
#netw = torch.load(fname3)
#netT = torch.load(fname4)
loadtype(inset,bdset,dtype)
loadcuda(netu,netv,netw,netT,inset,bdset)
loss_history = [[],[],[]]
epoch = 10
start_time = time.time()
penalty_in = [1e0,1e0,1e0,1e0,1e0]
penalty_bd = [1e0,1e0,1e0,1e0,1e0]
lr = 1e0
max_iter = 1
#optimtype = 'Adam'
optimtype = 'BFGS'
#optimtype = 'LBFGS'
for i in range(max_iter):
if optimtype == 'BFGS':
optim = bfgs.BFGS(itertools.chain(netu.parameters(),
netv.parameters(),
netw.parameters(),
netT.parameters()),
lr=lr, max_iter=100,
tolerance_grad=1e-16, tolerance_change=1e-16,
line_search_fn='strong_wolfe')
if optimtype == 'LBFGS':
optim = torch.optim.LBFGS(itertools.chain(netu.parameters(),
netv.parameters(),
netw.parameters(),
netT.parameters()),
lr=lr, max_iter=100,
history_size=100,
line_search_fn='strong_wolfe')
if optimtype == 'Adam':
optim = torch.optim.Adam(itertools.chain(netu.parameters(),
netv.parameters(),
netw.parameters(),
netT.parameters()),
lr=lr)
loss_history = \
train_yp(netu,netv,netw,netT,lenthu,lenthv,inset,bdset,penalty_in,penalty_bd,optim,epoch,loss_history,optimtype)
if (i + 1)%2 == 0:
lr *= 0.985
elapsed = time.time() - start_time
print('Finishied! train time: %.2f\n' %(elapsed))
loadcpu(netu,netv,netw,netT,inset,bdset)
torch.cuda.empty_cache()
torch.save(netu, fname1)
torch.save(netv, fname2)
torch.save(netw, fname3)
torch.save(netT, fname4)
lossin_history,var_history,lossbd_history = loss_history
np.save('lay%d-epoch%d-lossin.npy'%(wid,epoch),lossin_history)
np.save('lay%d-epoch%d-lossvd.npy'%(wid,epoch),lossbd_history)
np.save('lay%d-epoch%d-lossvar.npy'%(wid,epoch),var_history)
fig, ax = plt.subplots(1,2,figsize=(12,3.5))
ax[0].semilogy(np.array(lossin_history))
ax[0].legend(['loss','loss_u', 'loss_v', 'loss_w', 'loss_T','loss_var'])
ax[0].set_xlabel('iters')
ax[1].plot(np.array(lossbd_history))
ax[1].legend(['bd2','bd3','bd4','bd5'])
ax[1].set_xlabel('iters')
plt.yscale('log')
fig.tight_layout()
plt.show()
plt.scatter(inset.X.detach().numpy()[:,0],inset.X.detach().numpy()[:,1])
plt.show()
#%%
fig, ax = plt.subplots(2,2,figsize=(8,8))
for i in range(2):
for j in range(2):
ax[i,j].axis('equal')
ax[i,j].set_xlim([0,1])
ax[i,j].set_ylim([0,1])
ax[i,j].axis('off')
num_line = 100
nx = [21,11]
x = np.linspace(bounds[0,0],bounds[0,1],nx[0])
y = np.linspace(bounds[1,0],bounds[1,1],nx[1])
hx = [(bounds[0,1] - bounds[0,0])/(nx[0] - 1),(bounds[1,1] - bounds[1,0])/(nx[1] - 1)]
inp = torch.zeros(nx[0]*nx[1],2).type(dtype)
for i in range(nx[0]):
for j in range(nx[1]):
inp[i*nx[1] + j,0] = bounds[0,0] + i*hx[0]
inp[i*nx[1] + j,1] = bounds[1,0] + j*hx[1]
u = pred_u(netu,lenthu,inp).detach().numpy().reshape(nx[0],nx[1]).T
v = pred_u(netv,lenthv,inp).detach().numpy().reshape(nx[0],nx[1]).T
w = pred_w(netw,inp).detach().numpy().reshape(nx[0],nx[1]).T
T = pred_T(netT,inp).detach().numpy().reshape(nx[0],nx[1]).T
X,Y = np.meshgrid(x,y)
s = ax[0,0].contourf(X,Y, u, num_line, cmap='rainbow')
ax[0,0].contour(s, linewidths=0.6, colors='black')
plt.subplots_adjust(left=None, bottom=None, right=None, top=None, wspace=None, hspace=None)
ax[0,0].set_title('NN:u',fontsize=15)
fig.colorbar(s,ax=ax[0,0],fraction = 0.045)
s = ax[0,1].contourf(X,Y, v, num_line, cmap='rainbow')
ax[0,1].contour(s, linewidths=0.6, colors='black')
plt.subplots_adjust(left=None, bottom=None, right=None, top=None, wspace=None, hspace=None)
ax[0,1].set_title('NN:v',fontsize=15)
fig.colorbar(s,ax=ax[0,1],fraction = 0.045)
s = ax[1,0].contourf(X,Y, w, num_line, cmap='rainbow')
ax[1,0].contour(s, linewidths=0.6, colors='black')
plt.subplots_adjust(left=None, bottom=None, right=None, top=None, wspace=None, hspace=None)
ax[1,0].set_title('NN:w',fontsize=15)
fig.colorbar(s,ax=ax[1,0],fraction = 0.045)
s = ax[1,1].contourf(X,Y, T, num_line, cmap='rainbow')
ax[1,1].contour(s, linewidths=0.6, colors='black')
plt.subplots_adjust(left=None, bottom=None, right=None, top=None, wspace=None, hspace=None)
ax[1,1].set_title('NN:T',fontsize=15)
fig.colorbar(s,ax=ax[1,1],fraction = 0.045)
fig.tight_layout()
plt.show()
#%%
plt.contourf(x,y,T,40,cmap = 'rainbow')
plt.colorbar()
plt.xlabel('x')
plt.ylabel('y')
plt.title('the temperture T')
plt.show()

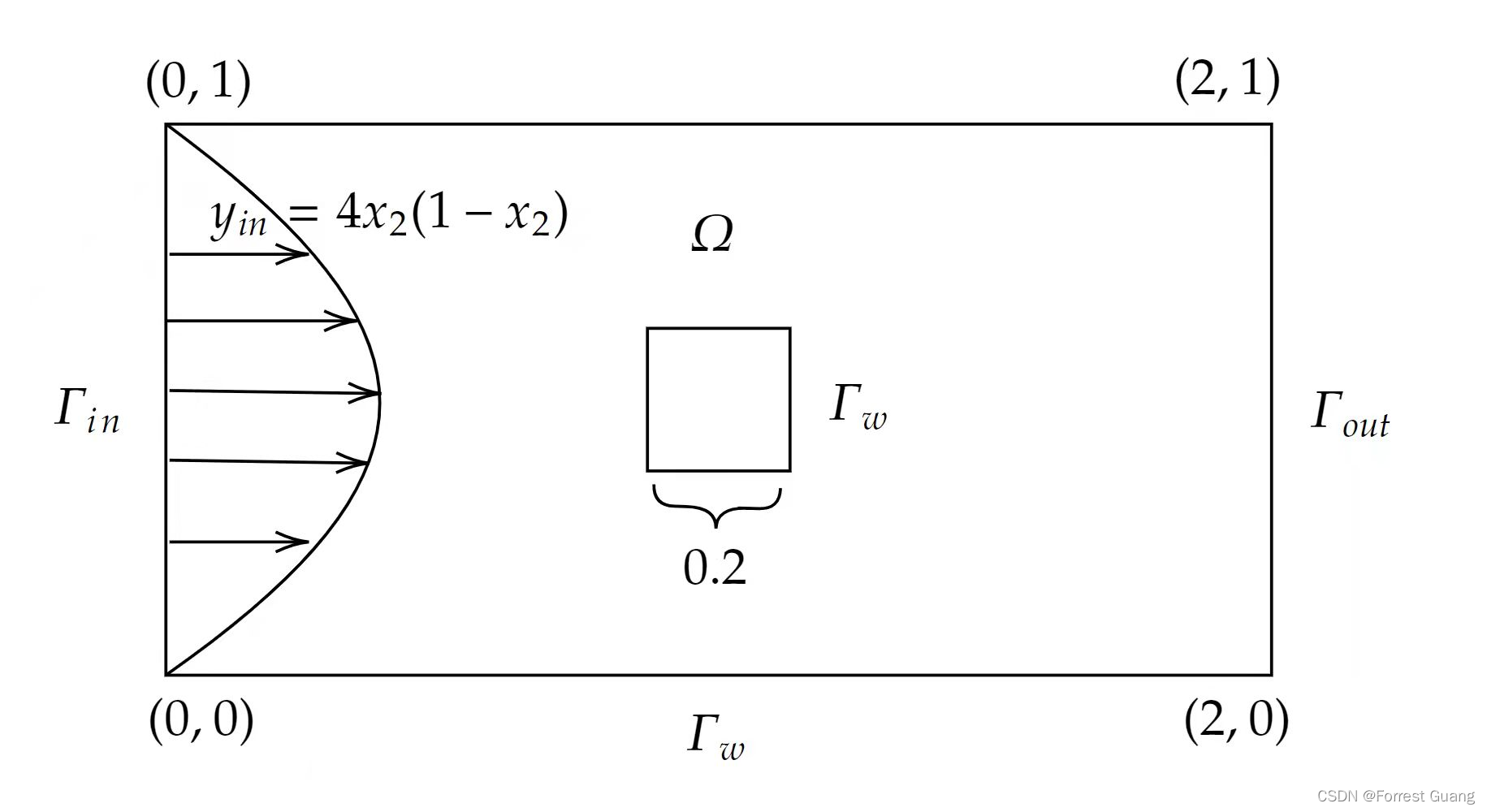

障碍流问题
其中
d
=
0.1
,
ν
=
0.01
d=0.1,\nu=0.01
d=0.1,ν=0.01
{
−
ν
Δ
u
+
u
u
x
+
v
u
y
+
p
x
=
0
,
−
ν
Δ
v
+
u
v
x
+
v
v
y
+
p
y
=
0
,
u
x
+
v
y
=
0
,
u
∣
x
i
n
=
4
y
(
1
−
y
)
,
v
∣
x
i
n
=
0
,
∂
u
∂
n
∣
x
o
u
t
=
0
,
∂
v
∂
n
∣
x
o
u
t
=
0
,
u
∣
x
w
=
0
,
v
∣
x
w
=
0
,
p
∣
x
o
u
t
=
0
,
∂
p
∂
n
∣
x
o
c
=
0.
\left\{\begin{array}{l} -\nu \Delta u + uu_x + v u_y + p_x = 0,\\ -\nu \Delta v + uv_x + vv_y + p_y=0,\\ u_x + v_y=0,\\ u|_{x_{in}} = 4y(1-y),v|_{x_{in}} = 0,\\ \frac{\partial u}{\partial n}|_{x_{out}} = 0,\frac{\partial v}{\partial n}|_{x_{out}} = 0,\\ u|_{x_{w}} = 0,v|_{x_{w}} = 0,\\ p|_{x_{out}} = 0,\\ \frac{\partial p}{\partial n}|_{x_{oc}} = 0. \end{array}\right.
⎩
⎨
⎧−νΔu+uux+vuy+px=0,−νΔv+uvx+vvy+py=0,ux+vy=0,u∣xin=4y(1−y),v∣xin=0,∂n∂u∣xout=0,∂n∂v∣xout=0,u∣xw=0,v∣xw=0,p∣xout=0,∂n∂p∣xoc=0.
{
x
i
n
=
{
(
x
,
y
)
∣
x
=
0
,
0
≤
y
≤
1
}
,
x
o
u
t
=
{
(
x
,
y
)
∣
x
=
2
,
0
≤
y
≤
1
}
,
x
w
=
{
(
x
,
y
)
∣
y
=
0
,
0
≤
x
≤
2
}
∪
{
(
x
,
y
)
∣
y
=
1
,
0
≤
x
≤
2
}
∪
Ω
d
,
Ω
d
=
{
(
x
,
y
)
∣
1
−
d
≤
x
≤
1
+
d
,
0.5
−
d
≤
y
≤
0.5
+
d
}
,
x
o
c
=
x
w
∪
x
i
n
.
\left\{\begin{array}{l} x_{in}=\{(x,y)|x = 0,0\leq y \leq 1\},\\ x_{out}=\{(x,y)|x = 2,0\leq y \leq 1\},\\ x_{w} = \{(x,y)|y = 0,0\leq x \leq 2\}\cup \{(x,y)|y = 1,0\leq x \leq 2\} \cup \Omega_d,\\ \Omega_d = \{(x,y)|1 - d \leq x \leq 1 + d,0.5 -d \leq y \leq 0.5 + d\},\\ x_{oc} = x_w \cup x_{in}. \end{array}\right.
⎩
⎨
⎧xin={(x,y)∣x=0,0≤y≤1},xout={(x,y)∣x=2,0≤y≤1},xw={(x,y)∣y=0,0≤x≤2}∪{(x,y)∣y=1,0≤x≤2}∪Ωd,Ωd={(x,y)∣1−d≤x≤1+d,0.5−d≤y≤0.5+d},xoc=xw∪xin.
参考结果如下
PINN求解障碍流问题代码
对于
u
,
v
,
p
u,v,p
u,v,p，设置FNN的层数以及神经元数目为
[
2
,
25
,
25
,
25
,
1
]
[2,25,25,25,1]
[2,25,25,25,1]，内点使用均匀采样，剖分为
[
64
,
64
]
[64,64]
[64,64]，边界点剖分为
[
100
,
100
]
[100,100]
[100,100]，上面提到了8个边界条件，不过这里本人设置近似解定义如下：
{
u
=
n
e
t
u
x
+
4
y
(
1
−
y
)
,
v
=
n
e
t
v
y
(
1
−
y
)
,
p
=
n
e
t
p
(
y
−
1
)
.
\left\{\begin{array}{l} u = net_ux + 4y(1-y),\\ v = net_vy(1 - y),\\ p = net_p(y-1). \end{array}\right.
⎩
⎨
⎧u=netux+4y(1−y),v=netvy(1−y),p=netp(y−1).
通过上面这种定义，近似解可以直接满足3个边界条件，迭代100次的结果如下：

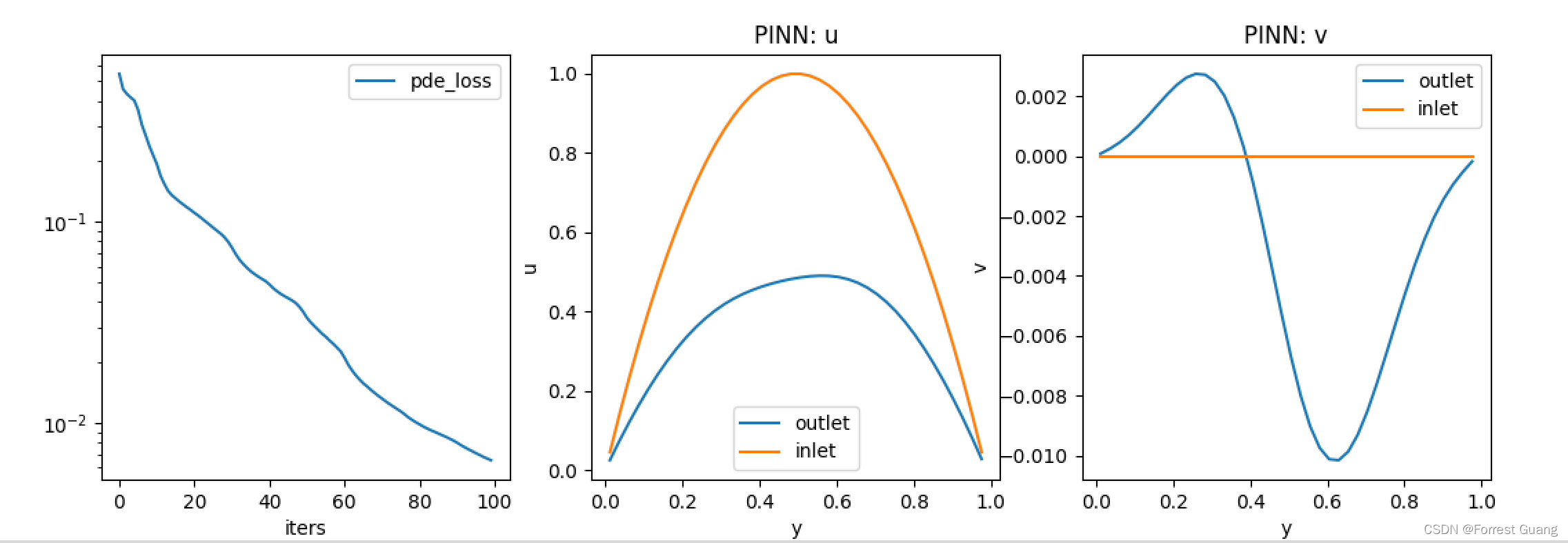

上图中bd1拟合
∂
u
∂
n
∣
x
o
u
t
=
0
\frac{\partial u}{\partial n}|_{x_{out}} = 0
∂n∂u∣xout=0，bd2拟合
∂
v
∂
n
∣
x
o
u
t
=
0
\frac{\partial v}{\partial n}|_{x_{out}} = 0
∂n∂v∣xout=0，bd3拟合
u
∣
x
w
=
0
u|_{x_{w}} = 0
u∣xw=0，bd4拟合
v
∣
x
w
=
0
v|_{x_{w}} = 0
v∣xw=0，
bd5拟合
∂
p
∂
n
∣
x
o
c
=
0
\frac{\partial p}{\partial n}|_{x_{oc}} = 0
∂n∂p∣xoc=0
import torch
import time
import numpy as np
import matplotlib.pyplot as plt
from matplotlib import cm
import torch.nn as nn
import torch.nn.functional as F
import itertools
import bfgs
from scipy.stats import qmc
device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")
#device = torch.device('cpu')
nu = 1e-2
d = 0.1
def region(x):
x1 = x[:,0:1]
x2 = x[:,1:2]
box = (x1>1-d)&(x1<1+d)&(x2>0.5-d)&(x2<0.5+d)
s = (x1>0)&(x1<2)&(x2>0)&(x2<1)&(np.invert(box))
return s.flatten()
hr = 1e-3
bounds = np.array([0 - hr,2 + hr,0 - hr,1 + hr]).reshape(2,2)
Lx = 2.0
Ly = 1.0
def y_in(x):
x2 = x[:,1:2]
s = 0*x
s[:,0:1] = 4*x2*(1-x2)/(Ly**2)
return s
def y_d(x):
return y_in(x)
class Geo():
def __init__(self,region,bounds):
self.region = region
self.bounds = bounds
self.dim = self.bounds.shape[0]
def samples(self,N):
x = np.zeros((N,self.dim))
m=0
while (m<N):
pt = np.random.uniform(0,1,self.dim).reshape(1,-1)
pt = pt*(self.bounds[:,1]-self.bounds[:,0])+self.bounds[:,0]
if self.region(pt).all():
x[m,:] = pt.ravel()
m += 1
return x
def quasi_samples(self,N):
sampler = qmc.Sobol(d=self.dim)
sample = sampler.random(n=2*N)
sample = sample*(self.bounds[:,1]-self.bounds[:,0])+self.bounds[:,0]
sample = sample[self.region(sample),:][:N,:]
return sample
Omega = Geo(region, bounds)
class INSET():
def __init__(self,n_tr,mode):
if mode == 'uniform':
x = np.linspace(bounds[0,0],bounds[0,1],2*n_tr)
y = np.linspace(bounds[1,0],bounds[1,1],n_tr)
xx0, xx1 = np.meshgrid(x,y)
inp_s = (np.hstack([xx0.reshape(-1,1),xx1.reshape(-1,1)]))
x = []
for i in range(inp_s.shape[0]):
ind = (inp_s[i,0] > 1 - d)&(inp_s[i,0] < 1 + d)&(inp_s[i,1] > 0.5 - d)&(inp_s[i,1] < 0.5 + d)
if ~ind:
x.append(inp_s[i,:])
x = np.array(x)
self.X = torch.tensor(x)
else:
self.X = torch.from_numpy(Omega.quasi_samples(n_tr*n_tr))
self.size = self.X.shape[0]
self.area = 2-d**2
self.dim = 2
self.yd = y_d(self.X)
class BDSET():#边界点取值
def __init__(self,nx):
self.dim = 2
self.hx = [(bounds[0,1] - bounds[0,0])/nx[0],(bounds[1,1] - bounds[1,0])/nx[1]]
self.x_in = torch.zeros(nx[1],self.dim)
self.dir_in = torch.zeros(nx[1],self.dim)
for i in range(nx[1]):
self.x_in[i,0] = bounds[0,0]
self.x_in[i,1] = bounds[1,0] + (i + 0.5)*self.hx[1]
self.dir_in[i,0] = -1
self.dir_in[i,1] = 0
self.rig_in = torch.zeros_like(self.x_in)
self.rig_in = y_in(self.x_in)
self.x_out = torch.zeros(nx[1],self.dim)
self.dir_out = torch.zeros(nx[1],self.dim)
for i in range(nx[1]):
self.x_out[i,0] = bounds[0,1]
self.x_out[i,1] = bounds[1,0] + (i + 0.5)*self.hx[1]
self.dir_out[i,0] = 1
self.dir_out[i,1] = 0
self.x_w = torch.zeros(4*nx[0] + 2*nx[1],self.dim)
self.dir_w = torch.zeros(4*nx[0] + 2*nx[1],self.dim)
m = 0
for i in range(nx[0]):
self.x_w[m,0] = bounds[0,0] + (i + 0.5)*self.hx[0]
self.x_w[m,1] = bounds[1,0]
self.dir_w[m,0] = 0
self.dir_w[m,1] = -1
m = m + 1
for i in range(nx[0]):
self.x_w[m,0] = bounds[0,0] + (i + 0.5)*self.hx[0]
self.x_w[m,1] = bounds[1,1]
self.dir_w[m,0] = 0
self.dir_w[m,1] = 1
m = m + 1
for i in range(nx[0]):
self.x_w[m,0] = 1 - d + (i + 0.5)*(2*d/nx[0])
self.x_w[m,1] = 0.5 - d
self.dir_w[m,0] = 0
self.dir_w[m,1] = -1
m = m + 1
for i in range(nx[0]):
self.x_w[m,0] = 1 - d + (i + 0.5)*(2*d/nx[0])
self.x_w[m,1] = 0.5 + d
self.dir_w[m,0] = 0
self.dir_w[m,1] = 1
m = m + 1
for i in range(nx[1]):
self.x_w[m,0] = 1 - d
self.x_w[m,1] = 0.5 - d + (i + 0.5)*(2*d/nx[1])
self.dir_w[m,0] = -1
self.dir_w[m,1] = 0
m = m + 1
for i in range(nx[1]):
self.x_w[m,0] = 1 + d
self.x_w[m,1] = 0.5 - d + (i + 0.5)*(2*d/nx[1])
self.dir_w[m,0] = 1
self.dir_w[m,1] = 0
m = m + 1
self.x_oc = torch.cat([self.x_in,self.x_w],0)
self.dir_oc = torch.cat([self.dir_in,self.dir_w],0)
np.random.seed(1234)
torch.manual_seed(1234)
class Net(torch.nn.Module):
def __init__(self, layers, dtype):
super(Net, self).__init__()
self.layers = layers
self.layers_hid_num = len(layers)-2
self.device = device
self.dtype = dtype
fc = []
for i in range(self.layers_hid_num):
fc.append(torch.nn.Linear(self.layers[i],self.layers[i+1]))
fc.append(torch.nn.Linear(self.layers[i+1],self.layers[i+1]))
fc.append(torch.nn.Linear(self.layers[-2],self.layers[-1]))
self.fc = torch.nn.Sequential(*fc)
for i in range(self.layers_hid_num):
self.fc[2*i].weight.data = self.fc[2*i].weight.data.type(dtype)
self.fc[2*i].bias.data = self.fc[2*i].bias.data.type(dtype)
self.fc[2*i + 1].weight.data = self.fc[2*i + 1].weight.data.type(dtype)
self.fc[2*i + 1].bias.data = self.fc[2*i + 1].bias.data.type(dtype)
self.fc[-1].weight.data = self.fc[-1].weight.data.type(dtype)
self.fc[-1].bias.data = self.fc[-1].bias.data.type(dtype)
def forward(self, x):
dev = x.device
for i in range(self.layers_hid_num):
h = torch.sin(self.fc[2*i](x))
h = torch.sin(self.fc[2*i+1](h))
temp = torch.eye(x.shape[-1],self.layers[i+1],dtype = self.dtype,device = dev)
x = h + x@temp
return self.fc[-1](x)
def total_para(self):#计算参数数目
return sum([x.numel() for x in self.parameters()])
def length(X):
return (X[:,1:2] - bounds[1,0])*(bounds[1,1] - X[:,1:2])
def pred_u(netu,X):
return netu.forward(X)*(X[:,0:1] - bounds[0,0]) + 4*X[:,1:2]*(1 - X[:,1:2])
def pred_v(netv,X):
return netv.forward(X)*(X[:,0:1] - bounds[0,0])*length(X)
def pred_p(netp,X):
return netp.forward(X)*(X[:,0:1] - bounds[0,1])
def loadtype(inset,bdset,dtype):
inset.X = inset.X.type(dtype)
inset.yd = inset.yd.type(dtype)
#-----------------------------
bdset.x_in = bdset.x_in.type(dtype)
bdset.rig_in = bdset.rig_in.type(dtype)
bdset.x_out = bdset.x_out.type(dtype)
bdset.x_w = bdset.x_w.type(dtype)
bdset.x_oc = bdset.x_oc.type(dtype)
bdset.dir_in = bdset.dir_in.type(dtype)
bdset.dir_out = bdset.dir_out.type(dtype)
bdset.dir_w = bdset.dir_w.type(dtype)
bdset.dir_oc = bdset.dir_oc.type(dtype)
def loadcuda(netu,netv,netp,inset,bdset):
netu = netu.to(device)
netv = netv.to(device)
netp = netp.to(device)
if inset.X.requires_grad == False:
inset.X.requires_grad = True
inset.X = inset.X.to(device)
inset.yd = inset.yd.to(device)
bdset.rig_in = bdset.rig_in.to(device)
bdset.x_in = bdset.x_in.to(device)
if bdset.x_out.requires_grad == False:
bdset.x_out.requires_grad = True
bdset.x_out = bdset.x_out.to(device)
bdset.x_w = bdset.x_w.to(device)
if bdset.x_oc.requires_grad == False:
bdset.x_oc.requires_grad = True
bdset.x_oc = bdset.x_oc.to(device)
bdset.dir_in = bdset.dir_in.to(device)
bdset.dir_out = bdset.dir_out.to(device)
bdset.dir_w = bdset.dir_w.to(device)
bdset.dir_oc = bdset.dir_oc.to(device)
def loadcpu(netu,netv,netp,inset,bdset):
netu = netu.to('cpu')
netv = netv.to('cpu')
netp = netp.to('cpu')
if inset.X.requires_grad == False:
inset.X.requires_grad = True
inset.X = inset.X.to('cpu')
inset.yd = inset.yd.to('cpu')
bdset.rig_in = bdset.rig_in.to('cpu')
bdset.x_in = bdset.x_in.to('cpu')
bdset.x_out = bdset.x_out.to('cpu')
bdset.x_w = bdset.x_w.to('cpu')
bdset.x_oc = bdset.x_oc.to('cpu')
bdset.dir_in = bdset.dir_in.to('cpu')
bdset.dir_out = bdset.dir_out.to('cpu')
bdset.dir_w = bdset.dir_w.to('cpu')
bdset.dir_oc = bdset.dir_oc.to('cpu')
def Loss_yp(netu,netv,netp,inset,bdset,penalty_in,penalty_bd):
inset.u = pred_u(netu,inset.X)
inset.v = pred_v(netv,inset.X)
inset.p = pred_p(netp,inset.X)
u_x, = torch.autograd.grad(inset.u, inset.X, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(inset.size,1).to(device))
u_xx, = torch.autograd.grad(u_x[:,0:1], inset.X, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(inset.size,1).to(device))
u_yy, = torch.autograd.grad(u_x[:,1:2], inset.X, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(inset.size,1).to(device))
u_lap = u_xx[:,0:1] + u_yy[:,1:2]
v_x, = torch.autograd.grad(inset.v, inset.X, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(inset.size,1).to(device))
v_xx, = torch.autograd.grad(v_x[:,0:1], inset.X, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(inset.size,1).to(device))
v_yy, = torch.autograd.grad(v_x[:,1:2], inset.X, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(inset.size,1).to(device))
v_lap = v_xx[:,0:1] + v_yy[:,1:2]
p_x, = torch.autograd.grad(inset.p, inset.X, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(inset.size,1).to(device))
inset.res_u = (-nu*u_lap + inset.u*u_x[:,0:1] + inset.v*u_x[:,1:2] + p_x[:,0:1])**2
inset.res_v = (-nu*v_lap + inset.u*v_x[:,0:1] + inset.v*v_x[:,1:2] + p_x[:,1:2])**2
inset.res_div = (u_x[:,0:1] + v_x[:,1:2])**2
inset.loss_u = torch.sqrt(inset.res_u.mean())
inset.loss_v = torch.sqrt(inset.res_v.mean())
inset.loss_div = torch.sqrt(inset.res_div.mean())
inset.loss_in = penalty_in[0]*inset.loss_u + penalty_in[1]*inset.loss_v + \
penalty_in[2]*inset.loss_div
u_out = pred_u(netu,bdset.x_out)
u_out_x, = torch.autograd.grad(u_out, bdset.x_out, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(bdset.x_out.shape[0],1).to(device))
u_out_n = ((u_out_x*bdset.dir_out).sum(1)).reshape(-1,1)
bdset.loss1 = torch.sqrt(u_out_n**2).mean()
v_out = pred_v(netv,bdset.x_out)
v_out_x, = torch.autograd.grad(v_out, bdset.x_out, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(bdset.x_out.shape[0],1).to(device))
v_out_n = ((v_out_x*bdset.dir_out).sum(1)).reshape(-1,1)
bdset.loss2 = torch.sqrt(v_out_n**2).mean()
u_w = pred_u(netu,bdset.x_w)
bdset.loss3 = torch.sqrt(u_w**2).mean()
v_w = pred_v(netv,bdset.x_w)
bdset.loss4 = torch.sqrt(v_w**2).mean()
p_oc = pred_p(netp,bdset.x_oc)
p_oc_x, = torch.autograd.grad(p_oc, bdset.x_oc, create_graph=True, retain_graph=True,
grad_outputs=torch.ones(bdset.x_oc.shape[0],1).to(device))
p_oc_n = ((p_oc_x*bdset.dir_oc).sum(1)).reshape(-1,1)
bdset.loss5 = torch.sqrt(p_oc_n**2).mean()
inset.loss_bd = penalty_bd[0]*bdset.loss1 + penalty_bd[1]*bdset.loss2 + penalty_bd[2]*bdset.loss3 +\
penalty_bd[3]*bdset.loss4 + penalty_bd[4]*bdset.loss5
return inset.loss_in + inset.loss_bd
def train_yp(netu,netv,netp,inset,bdset,penalty_in,penalty_bd,optim,epoch,error_history,optimtype):
print('Train y&p Neural Network')
lossin_history,div_history,lossbd_history,lo_histroy = error_history
loss = Loss_yp(netu,netv,netp,inset,bdset,penalty_in,penalty_bd)
print('epoch_yp: %d, Lu:%.3e,Lv:%.3e,div:%.3e, time: %.2f\n'
%(0,inset.loss_u.item(),inset.loss_v.item(),inset.loss_div.item(), 0.00))
print('bd1:%.3e,bd2:%.3e,bd3:%.3e,bd4:%.4e,bd5:%.3e\n'%
(bdset.loss1.item(),bdset.loss2.item(),bdset.loss3.item(),bdset.loss4.item(),bdset.loss5.item()))
for it in range(epoch):
st = time.time()
if optimtype == 'Adam':
for j in range(100):
optim.zero_grad()
loss = Loss_yp(netu,netv,netp,inset,bdset,penalty_in,penalty_bd)
loss.backward()
optim.step()
if optimtype == 'BFGS' or optimtype == 'LBFGS':
def closure():
loss = Loss_yp(netu,netv,netp,inset,bdset,penalty_in,penalty_bd)
optim.zero_grad()
loss.backward()
return loss
optim.step(closure)
loss = Loss_yp(netu,netv,netp,inset,bdset,penalty_in,penalty_bd)
ela = time.time() - st
print('------------------------------')
print('epoch_yp: %d, Loss:%.3e,Lu:%.3e,Lv:%.3e,div:%.3e, time: %.2f\n'
%(it + 1,loss.item(),inset.loss_u.item(),inset.loss_v.item(),inset.loss_div.item(), ela))
print('bd1:%.3e,bd2:%.3e,bd3:%.3e,bd4:%.4e,bd5:%.3e\n'%
(bdset.loss1.item(),bdset.loss2.item(),bdset.loss3.item(),bdset.loss4.item(),bdset.loss5.item()))
loss_u = inset.loss_u.item()
loss_v = inset.loss_v.item()
loss_div = inset.loss_div.item()
bd1 = bdset.loss1.item()
bd2 = bdset.loss2.item()
bd3 = bdset.loss3.item()
bd4 = bdset.loss4.item()
bd5 = bdset.loss5.item()
lossin_history.append([loss.item(),loss_u,loss_v,loss_div])
div_history.append(loss_div)
lossbd_history.append([bd1,bd2,bd3,bd4,bd5])
lo_histroy.append(loss.item())
error_history = [lossin_history,div_history,lossbd_history,lo_histroy]
return error_history
n_tr = 64
nx_bd = [100,100]
mode = 'uniform'
#mode = 'qmc'
inset = INSET(n_tr,mode)
bdset = BDSET(nx_bd)
dtype = torch.float64
wid = 25
layer_u = [2,wid,wid,wid,1];netu = Net(layer_u,dtype)
layer_v = [2,wid,wid,wid,1];netv = Net(layer_v,dtype)
layer_p = [2,wid,wid,wid,1];netp = Net(layer_p,dtype)
fname1 = "ubasic-NSlay%dvar.pt"%(wid)
fname2 = "vbasic-NSlay%dvar.pt"%(wid)
fname3 = "pbasic-NSlay%dvar.pt"%(wid)
netu = torch.load(fname1)
netv = torch.load(fname2)
netw = torch.load(fname3)
loadtype(inset,bdset,dtype)
loadcuda(netu,netv,netp,inset,bdset)
loss_history = [[],[],[],[]]
epoch = 50
start_time = time.time()
penalty_in = [1e0,1e0,1e0]
penalty_bd = [1e0,1e0,1e0,1e0,1e0]
lr = 1e0
max_iter = 1
#optimtype = 'Adam'
optimtype = 'BFGS'
#optimtype = 'LBFGS'
number = 0
for i in range(max_iter):
if optimtype == 'BFGS':
optim = bfgs.BFGS(itertools.chain(netu.parameters(),
netv.parameters(),
netp.parameters()),
lr=lr, max_iter=100,
tolerance_grad=1e-16, tolerance_change=1e-16,
line_search_fn='strong_wolfe')
if optimtype == 'LBFGS':
optim = torch.optim.LBFGS(itertools.chain(netu.parameters(),
netv.parameters(),
netp.parameters()),
lr=lr, max_iter=100,
history_size=100,
line_search_fn='strong_wolfe')
if optimtype == 'Adam':
optim = torch.optim.Adam(itertools.chain(netu.parameters(),
netv.parameters(),
netp.parameters()),
lr=lr)
loss_history = \
train_yp(netu,netv,netp,inset,bdset,penalty_in,penalty_bd,optim,epoch,loss_history,optimtype)
if (i + 1)%5 == 0:
number += 1
lr *= 0.985
elapsed = time.time() - start_time
print('Finishied! train time: %.2f\n' %(elapsed))
loadcpu(netu,netv,netp,inset,bdset)
torch.cuda.empty_cache()
torch.save(netu, fname1)
torch.save(netv, fname2)
torch.save(netp, fname3)
lossin_history,div_history,lossbd_history,lo_history = loss_history
np.save('lay%d-epoch%d-lossin.npy'%(wid,epoch),lossin_history)
np.save('lay%d-epoch%d-lossbd.npy'%(wid,epoch),lossbd_history)
np.save('lay%d-epoch%d-lossdiv.npy'%(wid,epoch),div_history)
np.save('lay%d-epoch%d-losslo.npy'%(wid,epoch),lo_history)
#%%
fig, ax = plt.subplots(1,2,figsize=(12,3.5))
ax[0].semilogy(np.array(lossin_history))
ax[0].legend(['loss','loss_u', 'loss_v', 'loss_div'])
ax[0].set_xlabel('iters')
ax[1].plot(np.array(lossbd_history))
ax[1].legend(['bd1','bd2','bd3','bd4','bd5'])
ax[1].set_xlabel('iters')
plt.yscale('log')
fig.tight_layout()
plt.show()
plt.scatter(inset.X.detach().numpy()[:,0],inset.X.detach().numpy()[:,1])
plt.show()
#%%
nx_te = [40,40]
te_bd_set = BDSET(nx_te)
hx = [(bounds[0,1] - bounds[0,0])/nx_te[0],(bounds[1,1] - bounds[1,0])/nx_te[1]]
fig, ax = plt.subplots(1,3, figsize=(13,4))
x1s = np.linspace(bounds[1,0] + 0.5*hx[1],bounds[1,1] - hx[1],nx_te[1])
te_bd_set.x_in = te_bd_set.x_in.type(dtype)
te_bd_set.x_out = te_bd_set.x_out.type(dtype)
u_in = pred_u(netu,te_bd_set.x_in).detach().numpy()
v_in = pred_v(netv,te_bd_set.x_in).detach().numpy()
u_out = pred_u(netu,te_bd_set.x_out).detach().numpy()
v_out = pred_v(netv,te_bd_set.x_out).detach().numpy()
u_o_p = x1s*(1-x1s)*4/(Ly**2)
ax[1].plot(x1s,u_out); ax[1].plot(x1s,u_in)
ax[1].legend(['outlet','inlet'])
ax[1].set_xlabel('y'); ax[1].set_ylabel('u')
ax[1].set_title('PINN: u')
ax[2].plot(x1s,v_out); ax[2].plot(x1s,v_in)
ax[2].legend(['outlet','inlet'])
ax[2].set_xlabel('y'); ax[2].set_ylabel('v')
ax[2].set_title('PINN: v')
ax[0].semilogy(np.array(lo_history))
ax[0].legend(['pde_loss'])
ax[0].set_xlabel('iters')
plt.show()
#%%
n=n_tr
xx0 = np.linspace(bounds[0,0],bounds[0,1],2*n)
xx1 = np.linspace(bounds[1,0],bounds[1,1],n)
xx0, xx1 = np.meshgrid(xx0,xx1)
ind = (xx0>1-d)&(xx0<1+d)&(xx1>0.5-d)&(xx1<0.5+d)
inp_s = torch.from_numpy(np.hstack([xx0.reshape(-1,1),xx1.reshape(-1,1)]))
u_pred = torch.zeros(inp_s.shape[0],1)
v_pred = torch.zeros(inp_s.shape[0],1)
p_pred = torch.zeros(inp_s.shape[0],1)
u_pred = pred_u(netu,inp_s)
v_pred = pred_v(netv,inp_s)
p_pred = pred_p(netp,inp_s)
u = u_pred.detach().numpy()
v = v_pred.detach().numpy()
p = p_pred.detach().numpy()
y1_s = u.reshape(n,2*n); y1 = u.reshape(n,2*n);
y2_s = v.reshape(n,2*n); y2 = v.reshape(n,2*n);
p = p.reshape(n,2*n)
y1_s[ind] = np.nan # for streamplot mask!
y2_s[ind] = np.nan
n_ind = np.invert(ind)
y1 = y1[n_ind].flatten()
y2 = y2[n_ind].flatten()
p = p[n_ind].flatten()
speed_s = np.sqrt(y1_s**2+y2_s**2)
x0 = xx0[n_ind].flatten()
x1 = xx1[n_ind].flatten()
num_line = 100
fig, ax = plt.subplots(2,2, figsize=(12,6))
for i in range(2):
for j in range(2):
ax[i,j].axis('equal')
ax[i,j].set_xlim([0.,2.0])
ax[i,j].set_ylim([0.,1.])
ax[i,j].axis('off')
ax[i,j].add_artist(plt.Rectangle((1-d,0.5-d),2*d,2*d, fill=True, color='white'))
ax00 = ax[0,0].tricontourf(x0, x1, y1, num_line, cmap='rainbow')
fig.colorbar(ax00,ax=ax[0,0],fraction = 0.024,pad = 0.04)
#ax[0,0].contour(ax00, linewidths=0.6, colors='black')
#, cmap='jet', color=speed_s, linewidth=0.5)
ax01 = ax[0,1].tricontourf(x0, x1, y2, num_line, cmap='rainbow')
fig.colorbar(ax01,ax=ax[0,1],fraction = 0.024,pad = 0.04)
ax[0,0].set_title('PINN: u')
ax[0,1].set_title('PINN: v')
ax10 = ax[1,0].tricontourf(x0, x1, (y1**2+y2**2)**0.5, num_line, cmap='rainbow')
ax[1,0].streamplot(xx0, xx1, y1_s, y2_s, density = 1.5)
fig.colorbar(ax10,ax=ax[1,0],fraction = 0.024,pad = 0.04)
ax[1,0].set_title('PINN: stream')
ax11 = ax[1,1].tricontourf(x0, x1, p, num_line, cmap='rainbow')
#ax[1,0].contour(ax10, linewidths=0.6, colors='black')
#ax11 = ax[1,1].tricontourf(x0, x1, p, num_line, cmap='rainbow')
ax[1,1].set_title('PINN: p')
#ax[1,1].set_title('PINN: p')
fig.colorbar(ax11,ax=ax[1,1],fraction = 0.024,pad = 0.04)
#fig.colorbar(ax11,ax=ax[1,1])
plt.show()
画图障碍流
import torch
import time
import numpy as np
import matplotlib.pyplot as plt
from matplotlib import cm
import torch.nn as nn
import torch.nn.functional as F
import itertools
import bfgs
from scipy.stats import qmc
#device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")
device = torch.device('cpu')
nu = 1e-2
d = 0.1
def region(x):
x1 = x[:,0:1]
x2 = x[:,1:2]
box = (x1>1-d)&(x1<1+d)&(x2>0.5-d)&(x2<0.5+d)
s = (x1>0)&(x1<2)&(x2>0)&(x2<1)&(np.invert(box))
return s.flatten()
hr = 1e-3
bounds = np.array([0 - hr,2 + hr,0 - hr,1 + hr]).reshape(2,2)
Lx = 2.0
Ly = 1.0
def y_in(x):
x2 = x[:,1:2]
s = 0*x
s[:,0:1] = 4*x2*(1-x2)/(Ly**2)
return s
def y_d(x):
return y_in(x)
class BDSET():#边界点取值
def __init__(self,nx):
self.dim = 2
self.hx = [(bounds[0,1] - bounds[0,0])/nx[0],(bounds[1,1] - bounds[1,0])/nx[1]]
self.x_in = torch.zeros(nx[1],self.dim)
self.dir_in = torch.zeros(nx[1],self.dim)
for i in range(nx[1]):
self.x_in[i,0] = bounds[0,0]
self.x_in[i,1] = bounds[1,0] + (i + 0.5)*self.hx[1]
self.dir_in[i,0] = -1
self.dir_in[i,1] = 0
self.rig_in = torch.zeros_like(self.x_in)
self.rig_in = y_in(self.x_in)
self.x_out = torch.zeros(nx[1],self.dim)
self.dir_out = torch.zeros(nx[1],self.dim)
for i in range(nx[1]):
self.x_out[i,0] = bounds[0,1]
self.x_out[i,1] = bounds[1,0] + (i + 0.5)*self.hx[1]
self.dir_out[i,0] = 1
self.dir_out[i,1] = 0
self.x_w = torch.zeros(4*nx[0] + 2*nx[1],self.dim)
self.dir_w = torch.zeros(4*nx[0] + 2*nx[1],self.dim)
m = 0
for i in range(nx[0]):
self.x_w[m,0] = bounds[0,0] + (i + 0.5)*self.hx[0]
self.x_w[m,1] = bounds[1,0]
self.dir_w[m,0] = 0
self.dir_w[m,1] = -1
m = m + 1
for i in range(nx[0]):
self.x_w[m,0] = bounds[0,0] + (i + 0.5)*self.hx[0]
self.x_w[m,1] = bounds[1,1]
self.dir_w[m,0] = 0
self.dir_w[m,1] = 1
m = m + 1
for i in range(nx[0]):
self.x_w[m,0] = 1 - d + (i + 0.5)*(2*d/nx[0])
self.x_w[m,1] = 0.5 - d
self.dir_w[m,0] = 0
self.dir_w[m,1] = -1
m = m + 1
for i in range(nx[0]):
self.x_w[m,0] = 1 - d + (i + 0.5)*(2*d/nx[0])
self.x_w[m,1] = 0.5 + d
self.dir_w[m,0] = 0
self.dir_w[m,1] = 1
m = m + 1
for i in range(nx[1]):
self.x_w[m,0] = 1 - d
self.x_w[m,1] = 0.5 - d + (i + 0.5)*(2*d/nx[1])
self.dir_w[m,0] = -1
self.dir_w[m,1] = 0
m = m + 1
for i in range(nx[1]):
self.x_w[m,0] = 1 + d
self.x_w[m,1] = 0.5 - d + (i + 0.5)*(2*d/nx[1])
self.dir_w[m,0] = 1
self.dir_w[m,1] = 0
m = m + 1
self.x_oc = torch.cat([self.x_in,self.x_w],0)
self.dir_oc = torch.cat([self.dir_in,self.dir_w],0)
def loadtype(bdset,dtype):
#-----------------------------
bdset.x_in = bdset.x_in.type(dtype)
bdset.rig_in = bdset.rig_in.type(dtype)
bdset.x_out = bdset.x_out.type(dtype)
bdset.x_w = bdset.x_w.type(dtype)
bdset.x_oc = bdset.x_oc.type(dtype)
bdset.dir_in = bdset.dir_in.type(dtype)
bdset.dir_out = bdset.dir_out.type(dtype)
bdset.dir_w = bdset.dir_w.type(dtype)
bdset.dir_oc = bdset.dir_oc.type(dtype)
np.random.seed(1234)
torch.manual_seed(1234)
class Net(torch.nn.Module):
def __init__(self, layers, dtype):
super(Net, self).__init__()
self.layers = layers
self.layers_hid_num = len(layers)-2
self.device = device
self.dtype = dtype
fc = []
for i in range(self.layers_hid_num):
fc.append(torch.nn.Linear(self.layers[i],self.layers[i+1]))
fc.append(torch.nn.Linear(self.layers[i+1],self.layers[i+1]))
fc.append(torch.nn.Linear(self.layers[-2],self.layers[-1]))
self.fc = torch.nn.Sequential(*fc)
for i in range(self.layers_hid_num):
self.fc[2*i].weight.data = self.fc[2*i].weight.data.type(dtype)
self.fc[2*i].bias.data = self.fc[2*i].bias.data.type(dtype)
self.fc[2*i + 1].weight.data = self.fc[2*i + 1].weight.data.type(dtype)
self.fc[2*i + 1].bias.data = self.fc[2*i + 1].bias.data.type(dtype)
self.fc[-1].weight.data = self.fc[-1].weight.data.type(dtype)
self.fc[-1].bias.data = self.fc[-1].bias.data.type(dtype)
def forward(self, x):
dev = x.device
for i in range(self.layers_hid_num):
h = torch.sin(self.fc[2*i](x))
h = torch.sin(self.fc[2*i+1](h))
temp = torch.eye(x.shape[-1],self.layers[i+1],dtype = self.dtype,device = dev)
x = h + x@temp
return self.fc[-1](x)
def total_para(self):#计算参数数目
return sum([x.numel() for x in self.parameters()])
def length(X):
return (X[:,1:2] - bounds[1,0])*(bounds[1,1] - X[:,1:2])
def pred_u(netu,X):
return netu.forward(X)*(X[:,0:1] - bounds[0,0]) + 4*X[:,1:2]*(1 - X[:,1:2])
def pred_v(netv,X):
return netv.forward(X)*(X[:,0:1] - bounds[0,0])*length(X)
def pred_p(netp,X):
return netp.forward(X)*(X[:,0:1] - bounds[0,1])
dtype = torch.float64
wid = 25
epoch = 100
layer_u = [2,wid,wid,wid,1];netu = Net(layer_u,dtype)
layer_v = [2,wid,wid,wid,1];netv = Net(layer_v,dtype)
layer_p = [2,wid,wid,wid,1];netp = Net(layer_p,dtype)
'''
fname1 = "C:\\Users\\2001213226\\Desktop\\mucode\\NSpde\\pengfei\\unsf-NSlay%dvar.pt"%(wid)
fname2 = "C:\\Users\\2001213226\\Desktop\\mucode\\NSpde\\pengfei\\vnsf-NSlay%dvar.pt"%(wid)
fname3 = "C:\\Users\\2001213226\\Desktop\\mucode\\NSpde\\pengfei\\pnsf-NSlay%dvar.pt"%(wid)
'''
fname1 = "C:\\Users\\2001213226\\Desktop\\mucode\\NSpde\\pengfei\\umeannsf-NSlay%dvar.pt"%(wid)
fname2 = "C:\\Users\\2001213226\\Desktop\\mucode\\NSpde\\pengfei\\vmeannsf-NSlay%dvar.pt"%(wid)
fname3 = "C:\\Users\\2001213226\\Desktop\\mucode\\NSpde\\pengfei\\pmeannsf-NSlay%dvar.pt"%(wid)
netu = torch.load(fname1).to('cpu')
netv = torch.load(fname2).to('cpu')
netw = torch.load(fname3).to('cpu')
lo_history = np.load('C:\\Users\\2001213226\\Desktop\\mucode\\NSpde\\pengfei\\lay%d-epoch%d-losslo.npy'%(wid,epoch))
lossin_history = np.load('C:\\Users\\2001213226\\Desktop\\mucode\\NSpde\\pengfei\\lay%d-epoch%d-lossin.npy'%(wid,epoch))
lossbd_history = np.load('C:\\Users\\2001213226\\Desktop\\mucode\\NSpde\\pengfei\\lay%d-epoch%d-lossbd.npy'%(wid,epoch))
lossdiv_history = np.load('C:\\Users\\2001213226\\Desktop\\mucode\\NSpde\\pengfei\\lay%d-epoch%d-lossdiv.npy'%(wid,epoch))
#%%
fig, ax = plt.subplots(1,2,figsize=(12,3.5))
ax[0].semilogy(np.array(lossin_history))
ax[0].legend(['loss','loss_u', 'loss_v', 'loss_div'])
ax[0].set_xlabel('iters')
ax[1].plot(np.array(lossbd_history))
ax[1].legend(['bd1','bd2','bd3','bd4','bd5'])
ax[1].set_xlabel('iters')
plt.yscale('log')
fig.tight_layout()
plt.show()
#%%
nx_te = [40,40]
te_bd_set = BDSET(nx_te)
hx = [(bounds[0,1] - bounds[0,0])/nx_te[0],(bounds[1,1] - bounds[1,0])/nx_te[1]]
fig, ax = plt.subplots(1,3, figsize=(13,4))
x1s = np.linspace(bounds[1,0] + 0.5*hx[1],bounds[1,1] - hx[1],nx_te[1])
te_bd_set.x_in = te_bd_set.x_in.type(dtype)
te_bd_set.x_out = te_bd_set.x_out.type(dtype)
u_in = pred_u(netu,te_bd_set.x_in).detach().numpy()
v_in = pred_v(netv,te_bd_set.x_in).detach().numpy()
u_out = pred_u(netu,te_bd_set.x_out).detach().numpy()
v_out = pred_v(netv,te_bd_set.x_out).detach().numpy()
u_o_p = x1s*(1-x1s)*4/(Ly**2)
ax[1].plot(x1s,u_out); ax[1].plot(x1s,u_in)
ax[1].legend(['outlet','inlet'])
ax[1].set_xlabel('y'); ax[1].set_ylabel('u')
ax[1].set_title('NSFnet: u')
ax[2].plot(x1s,v_out); ax[2].plot(x1s,v_in)
ax[2].legend(['outlet','inlet'])
ax[2].set_xlabel('y'); ax[2].set_ylabel('v')
ax[2].set_title('NSFnet: v')
ax[0].semilogy(np.array(lo_history))
ax[0].legend(['pde_loss'])
ax[0].set_xlabel('iters')
plt.show()
#%%
n=64
xx0 = np.linspace(bounds[0,0],bounds[0,1],2*n)
xx1 = np.linspace(bounds[1,0],bounds[1,1],n)
xx0, xx1 = np.meshgrid(xx0,xx1)
ind = (xx0>1-d)&(xx0<1+d)&(xx1>0.5-d)&(xx1<0.5+d)
inp_s = torch.from_numpy(np.hstack([xx0.reshape(-1,1),xx1.reshape(-1,1)]))
u_pred = torch.zeros(inp_s.shape[0],1)
v_pred = torch.zeros(inp_s.shape[0],1)
p_pred = torch.zeros(inp_s.shape[0],1)
u_pred = pred_u(netu,inp_s)
v_pred = pred_v(netv,inp_s)
p_pred = pred_p(netp,inp_s)
u = u_pred.detach().numpy()
v = v_pred.detach().numpy()
p = p_pred.detach().numpy()
y1_s = u.reshape(n,2*n); y1 = u.reshape(n,2*n);
y2_s = v.reshape(n,2*n); y2 = v.reshape(n,2*n);
p = p.reshape(n,2*n)
y1_s[ind] = np.nan # for streamplot mask!
y2_s[ind] = np.nan
n_ind = np.invert(ind)
y1 = y1[n_ind].flatten()
y2 = y2[n_ind].flatten()
p = p[n_ind].flatten()
speed_s = np.sqrt(y1_s**2+y2_s**2)
x0 = xx0[n_ind].flatten()
x1 = xx1[n_ind].flatten()
num_line = 100
fig, ax = plt.subplots(2,2, figsize=(12,6))
for i in range(2):
for j in range(2):
ax[i,j].axis('equal')
ax[i,j].set_xlim([0.,2.0])
ax[i,j].set_ylim([0.,1.])
ax[i,j].axis('off')
ax[i,j].add_artist(plt.Rectangle((1-d,0.5-d),2*d,2*d, fill=True, color='white'))
ax00 = ax[0,0].tricontourf(x0, x1, y1, num_line, cmap='rainbow')
fig.colorbar(ax00,ax=ax[0,0],fraction = 0.024,pad = 0.04)
#ax[0,0].contour(ax00, linewidths=0.6, colors='black')
#, cmap='jet', color=speed_s, linewidth=0.5)
ax01 = ax[0,1].tricontourf(x0, x1, y2, num_line, cmap='rainbow')
fig.colorbar(ax01,ax=ax[0,1],fraction = 0.024,pad = 0.04)
ax[0,0].set_title('NSFnet: u')
ax[0,1].set_title('NSFnet: v')
ax10 = ax[1,0].tricontourf(x0, x1, (y1**2+y2**2)**0.5, num_line, cmap='rainbow')
ax[1,0].streamplot(xx0, xx1, y1_s, y2_s, density = 1.5)
fig.colorbar(ax10,ax=ax[1,0],fraction = 0.024,pad = 0.04)
ax[1,0].set_title('NSFnet: stream')
ax11 = ax[1,1].tricontourf(x0, x1, p, num_line, cmap='rainbow')
#ax[1,0].contour(ax10, linewidths=0.6, colors='black')
#ax11 = ax[1,1].tricontourf(x0, x1, p, num_line, cmap='rainbow')
ax[1,1].set_title('NSFnet: p')
#ax[1,1].set_title('PINN: p')
fig.colorbar(ax11,ax=ax[1,1],fraction = 0.024,pad = 0.04)
#fig.colorbar(ax11,ax=ax[1,1])
plt.show()
扫一扫
2620
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
