x265 线程池

class ThreadPool
{
public:

    sleepbitmap_t m_sleepBitmap;
    int           m_numProviders;
    int           m_numWorkers;
    void*         m_numaMask; // node mask in linux, cpu mask in windows
#if defined(_WIN32_WINNT) && _WIN32_WINNT >= _WIN32_WINNT_WIN7
    GROUP_AFFINITY m_groupAffinity;
#endif
    bool          m_isActive;

    JobProvider** m_jpTable;
    WorkerThread* m_workers;

    ThreadPool();
    ~ThreadPool();

    bool create(int numThreads, int maxProviders, uint64_t nodeMask);
    bool start();
    void stopWorkers();
    void setCurrentThreadAffinity();
    void setThreadNodeAffinity(void *numaMask);
    int  tryAcquireSleepingThread(sleepbitmap_t firstTryBitmap, sleepbitmap_t secondTryBitmap);
    int  tryBondPeers(int maxPeers, sleepbitmap_t peerBitmap, BondedTaskGroup& master);
    static ThreadPool* allocThreadPools(s265_param* p, int& numPools, bool isThreadsReserved);
    static int  getCpuCount();
    static int  getNumaNodeCount();
    static void getFrameThreadsCount(s265_param* p,int cpuCount);
};

/* Any worker thread may enlist the help of idle worker threads from the same
 * job provider. They must derive from this class and implement the
 * processTasks() method.  To use, an instance must be instantiated by a worker
 * thread (referred to as the master thread) and then tryBondPeers() must be
 * called. If it returns non-zero then some number of slave worker threads are
 * already in the process of calling your processTasks() function. The master
 * thread should participate and call processTasks() itself. When
 * waitForExit() returns, all bonded peer threads are guaranteed to have
 * exitied processTasks(). Since the thread count is small, it uses explicit
 * locking instead of atomic counters and bitmasks */
class BondedTaskGroup
{
public:

    Lock              m_lock;
    ThreadSafeInteger m_exitedPeerCount;
    int               m_bondedPeerCount;
    int               m_jobTotal;
    int               m_jobAcquired;

    BondedTaskGroup()  { m_bondedPeerCount = m_jobTotal = m_jobAcquired = 0; }

    /* Do not allow the instance to be destroyed before all bonded peers have
     * exited processTasks() */
    ~BondedTaskGroup() { waitForExit(); }

    /* Try to enlist the help of idle worker threads on most recently associated
     * with the given job provider and "bond" them to work on your tasks. Up to
     * maxPeers worker threads will call your processTasks() method. */
    int tryBondPeers(JobProvider& jp, int maxPeers)
    {
        int count = jp.m_pool->tryBondPeers(maxPeers, jp.m_ownerBitmap, *this);
        m_bondedPeerCount += count;
        return count;
    }

    /* Try to enlist the help of any idle worker threads and "bond" them to work
     * on your tasks. Up to maxPeers worker threads will call your
     * processTasks() method. */
    int tryBondPeers(ThreadPool& pool, int maxPeers)
    {
        int count = pool.tryBondPeers(maxPeers, ALL_POOL_THREADS, *this);
        m_bondedPeerCount += count;
        return count;
    }

    /* Returns when all bonded peers have exited processTasks(). It does *NOT*
     * ensure all tasks are completed (but this is generally implied). */
    void waitForExit()
    {
        int exited = m_exitedPeerCount.get();
        while (m_bondedPeerCount != exited)
            exited = m_exitedPeerCount.waitForChange(exited);
    }

    /* Derived classes must define this method. The worker thread ID may be
     * used to index into thread local data, or ignored.  The ID will be between
     * 0 and jp.m_numWorkers - 1 */
    virtual void processTasks(int workerThreadId) = 0;
};

//线程池启动函数
bool ThreadPool::start()
{
    m_isActive = true;
    for (int i = 0; i < m_numWorkers; i++)
    {
        if (!m_workers[i].start())
        {
            m_isActive = false;
            return false;
        }
    }
    return true;
}

bool Thread::start()
{
    if (pthread_create(&thread, NULL, ThreadShim, this))
    {
        thread = 0;
        return false;
    }

    return true;
}

线程池类定义。

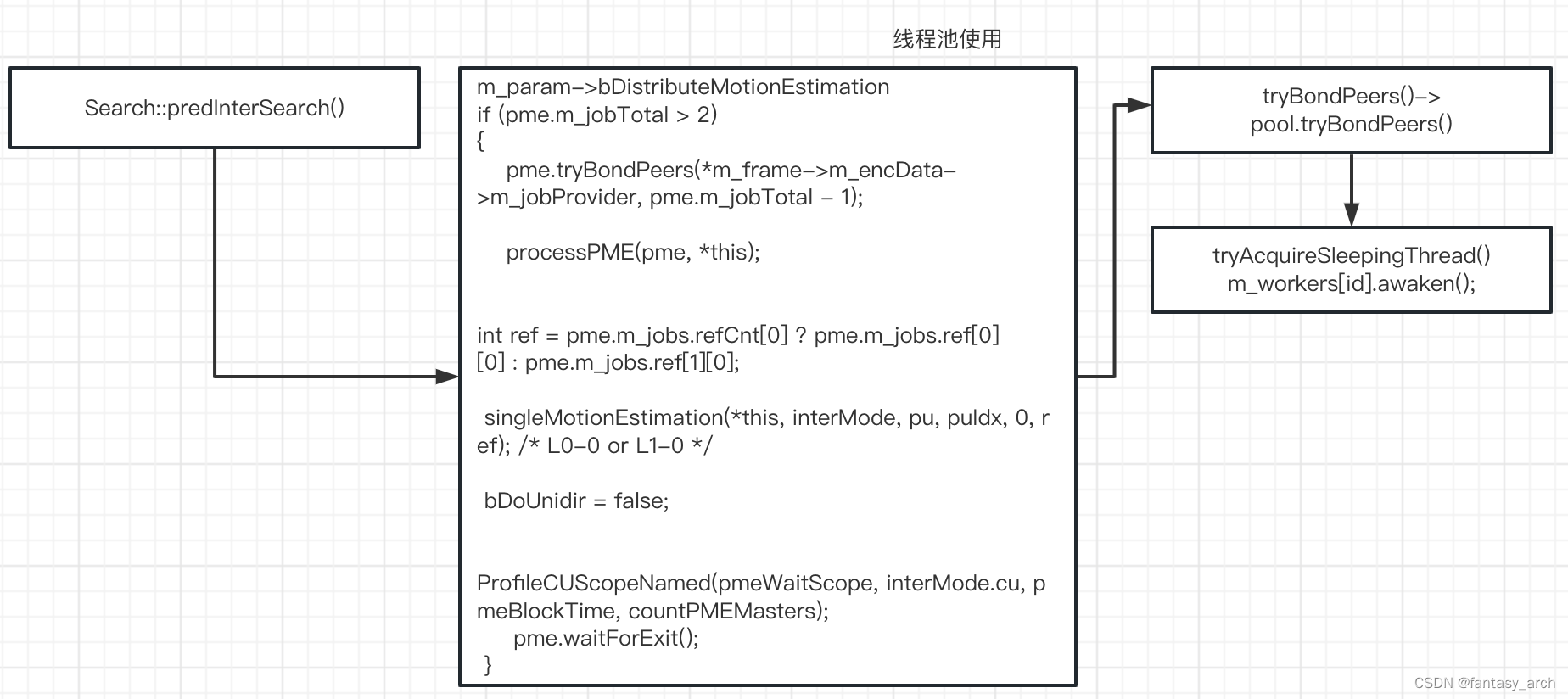

//PME启动
if (m_param->bDistributeMotionEstimation)
        {
            PME pme(*this, interMode, cuGeom, pu, puIdx);
            pme.m_jobTotal = 0;
            pme.m_jobAcquired = 1; /* reserve L0-0 or L1-0 */

            uint32_t refMask = refMasks[puIdx] ? refMasks[puIdx] : (uint32_t)-1;
            for (int list = 0; list < numPredDir; list++)
            {
                int idx = 0;
                for (int ref = 0; ref < numRefIdx[list]; ref++)
                {
                    if (!(refMask & (1 << ref)))
                        continue;

                    pme.m_jobs.ref[list][idx++]  = ref;
                    pme.m_jobTotal++;
                }
                pme.m_jobs.refCnt[list] = idx;

                /* the second list ref bits start at bit 16 */
                refMask >>= 16;
            }

            if (pme.m_jobTotal > 2)
            {
                pme.tryBondPeers(*m_frame->m_encData->m_jobProvider, pme.m_jobTotal - 1);

                processPME(pme, *this);

                int ref = pme.m_jobs.refCnt[0] ? pme.m_jobs.ref[0][0] : pme.m_jobs.ref[1][0];
                singleMotionEstimation(*this, interMode, pu, puIdx, 0, ref); /* L0-0 or L1-0 */

                bDoUnidir = false;

                ProfileCUScopeNamed(pmeWaitScope, interMode.cu, pmeBlockTime, countPMEMasters);
                pme.waitForExit();
            }

            /* if no peer threads were bonded, fall back to doing unidirectional
             * searches ourselves without overhead of singleMotionEstimation() */
        }
//绑定当前对象
  int tryBondPeers(JobProvider& jp, int maxPeers)
    {
        int count = jp.m_pool->tryBondPeers(maxPeers, jp.m_ownerBitmap, *this);
        m_bondedPeerCount += count;
        return count;
    }

int ThreadPool::tryBondPeers(int maxPeers, sleepbitmap_t peerBitmap, BondedTaskGroup& master)
{
    int bondCount = 0;
    do
    {
        int id = tryAcquireSleepingThread(peerBitmap, 0); //获空闲线程
        if (id < 0)
            return bondCount;

        m_workers[id].m_bondMaster = &master;
        m_workers[id].awaken(); //唤醒 线程
        bondCount++;
    }
    while (bondCount < maxPeers);

    return bondCount;
}
