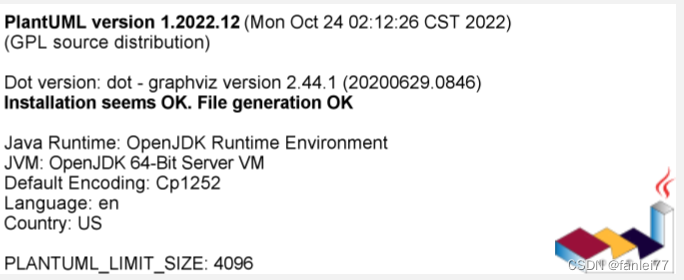

Print Version

@startuml
version
@enduml

Title and Footer with Date

@startuml
title Sample update on %date("yyyy-MM-dd")
footer update on %date("yyyy.MM.dd' at 'HH:mm")
@enduml

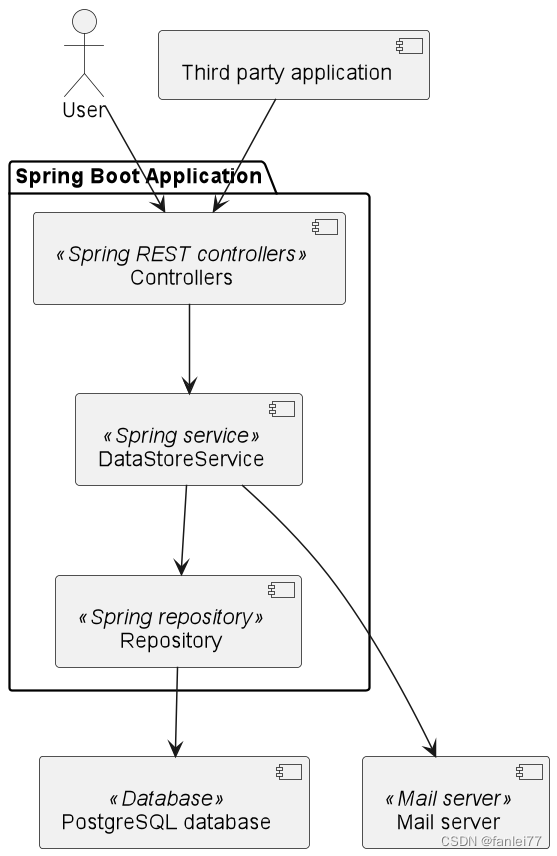

Keeping Elements together

@startuml

actor User
[Third party application] as ThirdPartyApp

/' Try to keep PostgresDB and Mail together,
   so they are at the same level in the diagram. '/
together {
    [PostgreSQL database] as PostgresDB <<Database>>
    [Mail server] as Mail <<Mail server>>
}

package "Spring Boot Application" {
    [Controllers] <<Spring REST controllers>>
    [DataStoreService] <<Spring service>>
    [Repository] <<Spring repository>>
}

User --> Controllers
ThirdPartyApp --> Controllers

Controllers --> DataStoreService

DataStoreService --> Repository
DataStoreService --> Mail

Repository --> PostgresDB

@enduml
