定义:
在应用程序中,可以通过菜单、工具栏按钮和键盘快捷键调用许多常用命令。 由于用户希望每个命令都以相同的方式执行,而不管使用的用户界面如何,将每个命令表示为一个动作(QAction)是很有用的。
调用QAction的官方例子:
const QIcon openIcon = QIcon::fromTheme("document-open",
QIcon(":/images/open.png"));
QAction *openAct = new QAction(openIcon, tr("&Open..."), this);
openAct->setShortcuts(QKeySequence::Open);
openAct->setStatusTip(tr("Open an existing file"));
connect(openAct, &QAction::triggered, this, &MainWindow::open);
fileMenu->addAction(openAct);
fileToolBar->addAction(openAct);
可以看到,QAction把用户的动作通过triggered信号绑定到指定的函数上。
接下来,分析一下QAction::triggered调用流程。
QAction继承于QObject。
当一个事件发生时,Qt 通过构造一个合适的 QEvent 子类的实例来创建一个事件对象来表示它,并通过调用它的 event() 函数将它传递给 QObject 的一个特定实例(或其子类之一)。(参考The Event System | Qt Core 5.15.8)
我们看下QAction的event实现
QAction::event(QEvent *e)
{
#if QT_CONFIG(shortcut)
if (e->type() == QEvent::Shortcut) {
QShortcutEvent *se = static_cast<QShortcutEvent *>(e);
Q_ASSERT_X(se->key() == d_func()->shortcut || d_func()->alternateShortcuts.contains(se->key()),
"QAction::event",
"Received shortcut event from incorrect shortcut");
if (se->isAmbiguous())
qWarning("QAction::event: Ambiguous shortcut overload: %s", se->key().toString(QKeySequence::NativeText).toLatin1().constData());
else
activate(Trigger);
return true;
}
#endif
return QObject::event(e);
}
调用了activate函数
void QAction::activate(ActionEvent event)
{
Q_D(QAction);
if(event == Trigger) {
QPointer<QObject> guard = this;
if(d->checkable) {
// the checked action of an exclusive group may not be unchecked
if (d->checked && (d->group
&& d->group->exclusionPolicy() == QActionGroup::ExclusionPolicy::Exclusive
&& d->group->checkedAction() == this)) {
if (!guard.isNull())
emit triggered(true);
return;
}
setChecked(!d->checked);
}
if (!guard.isNull())
emit triggered(d->checked);
} else if(event == Hover) {
emit hovered();
}
}
触发triggered信号,之后会调用用户绑定的函数。

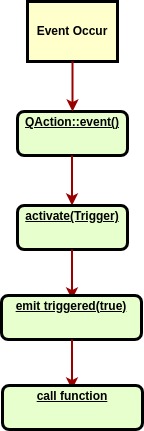

流程图如下:
