本文介绍了如何从nginx源码中提取红黑树实现，并构建了一个简单的定时器。作者首先展示了修改后的ngx_rbtree.h和ngx_rbtree.c文件，使其独立于nginx项目。然后，创建了一个名为my_timer.h的头文件，定义了定时器结构和相关操作，如添加、删除和处理定时任务。最后，给出了一个测试用例，模拟了生成和处理定时任务的线程。测试用例中，一个线程随机添加定时任务，主线程处理这些任务。

笔者之前有一篇博客大致讲解了nginx源码中红黑树实现定时器的流程：Nginx事件模块学习之定时器_码农诗人的博客-优快云博客_nginx定时器；本章先不讨论红黑树算法的具体细节，借助nginx中的红黑树源码，将其抽离出来并实现一个简单的定时器的demo。

首先，将nginx源码中ngx_rbtree.h、ngx_rbtree.c两个文件拷贝出来，对其做一下简单修改，使其不再依赖nginx项目源码。

ngx_rbtree.h 具体代码如下：

/*
 * Copyright (C) Igor Sysoev
 * Copyright (C) Nginx, Inc.
 */

#ifndef _NGX_RBTREE_H_INCLUDED_
#define _NGX_RBTREE_H_INCLUDED_

#include <stdio.h>

typedef unsigned int  ngx_rbtree_key_t;
typedef int   ngx_rbtree_key_int_t;

typedef unsigned char   u_char;

typedef struct ngx_rbtree_node_s  ngx_rbtree_node_t;

struct ngx_rbtree_node_s {
    ngx_rbtree_key_t       key;
    ngx_rbtree_node_t     *left;
    ngx_rbtree_node_t     *right;
    ngx_rbtree_node_t     *parent;
    u_char                 color;
    u_char                 data;
};

typedef struct ngx_rbtree_s  ngx_rbtree_t;

typedef void (*ngx_rbtree_insert_pt) (ngx_rbtree_node_t *root,
    ngx_rbtree_node_t *node, ngx_rbtree_node_t *sentinel);

struct ngx_rbtree_s {
    ngx_rbtree_node_t     *root;
    ngx_rbtree_node_t     *sentinel;
    ngx_rbtree_insert_pt   insert;
};


#define ngx_rbtree_init(tree, s, i)                                           \
    ngx_rbtree_sentinel_init(s);                                              \
    (tree)->root = s;                                                         \
    (tree)->sentinel = s;                                                     \
    (tree)->insert = i


void ngx_rbtree_insert(ngx_rbtree_t *tree, ngx_rbtree_node_t *node);
void ngx_rbtree_delete(ngx_rbtree_t *tree, ngx_rbtree_node_t *node);
void ngx_rbtree_insert_value(ngx_rbtree_node_t *root, ngx_rbtree_node_t *node,
    ngx_rbtree_node_t *sentinel);
void ngx_rbtree_insert_timer_value(ngx_rbtree_node_t *root,
    ngx_rbtree_node_t *node, ngx_rbtree_node_t *sentinel);
ngx_rbtree_node_t *ngx_rbtree_next(ngx_rbtree_t *tree,
    ngx_rbtree_node_t *node);


#define ngx_rbt_red(node)               ((node)->color = 1)
#define ngx_rbt_black(node)             ((node)->color = 0)
#define ngx_rbt_is_red(node)            ((node)->color)
#define ngx_rbt_is_black(node)          (!ngx_rbt_is_red(node))
#define ngx_rbt_copy_color(n1, n2)      (n1->color = n2->color)


/* a sentinel must be black */

#define ngx_rbtree_sentinel_init(node)  ngx_rbt_black(node)


static inline ngx_rbtree_node_t *
ngx_rbtree_min(ngx_rbtree_node_t *node, ngx_rbtree_node_t *sentinel)
{
    while (node->left != sentinel) {
        node = node->left;
    }

    return node;
}


#endif /* _NGX_RBTREE_H_INCLUDED_ */

ngx_rbtree.c 具体代码如下：

/*
 * Copyright (C) Igor Sysoev
 * Copyright (C) Nginx, Inc.
 */

#include "ngx_rbtree.h"

/*
 * The red-black tree code is based on the algorithm described in
 * the "Introduction to Algorithms" by Cormen, Leiserson and Rivest.
 */

static inline void ngx_rbtree_left_rotate(ngx_rbtree_node_t **root,
    ngx_rbtree_node_t *sentinel, ngx_rbtree_node_t *node);
static inline void ngx_rbtree_right_rotate(ngx_rbtree_node_t **root,
    ngx_rbtree_node_t *sentinel, ngx_rbtree_node_t *node);

void
ngx_rbtree_insert(ngx_rbtree_t *tree, ngx_rbtree_node_t *node)
{
    ngx_rbtree_node_t  **root, *temp, *sentinel;

    /* a binary tree insert */

    root = &tree->root;
    sentinel = tree->sentinel;

    if (*root == sentinel) {
        node->parent = NULL;
        node->left = sentinel;
        node->right = sentinel;
        ngx_rbt_black(node);
        *root = node;

        return;
    }

    tree->insert(*root, node, sentinel);

    /* re-balance tree */

    while (node != *root && ngx_rbt_is_red(node->parent)) {

        if (node->parent == node->parent->parent->left) {
            temp = node->parent->parent->right;

            if (ngx_rbt_is_red(temp)) {
                ngx_rbt_black(node->parent);
                ngx_rbt_black(temp);
                ngx_rbt_red(node->parent->parent);
                node = node->parent->parent;

            } else {
                if (node == node->parent->right) {
                    node = node->parent;
                    ngx_rbtree_left_rotate(root, sentinel, node);
                }

                ngx_rbt_black(node->parent);
                ngx_rbt_red(node->parent->parent);
                ngx_rbtree_right_rotate(root, sentinel, node->parent->parent);
            }

        } else {
            temp = node->parent->parent->left;

            if (ngx_rbt_is_red(temp)) {
                ngx_rbt_black(node->parent);
                ngx_rbt_black(temp);
                ngx_rbt_red(node->parent->parent);
                node = node->parent->parent;

            } else {
                if (node == node->parent->left) {
                    node = node->parent;
                    ngx_rbtree_right_rotate(root, sentinel, node);
                }

                ngx_rbt_black(node->parent);
                ngx_rbt_red(node->parent->parent);
                ngx_rbtree_left_rotate(root, sentinel, node->parent->parent);
            }
        }
    }

    ngx_rbt_black(*root);
}


void
ngx_rbtree_insert_value(ngx_rbtree_node_t *temp, ngx_rbtree_node_t *node,
    ngx_rbtree_node_t *sentinel)
{
    ngx_rbtree_node_t  **p;

    for ( ;; ) {

        p = (node->key < temp->key) ? &temp->left : &temp->right;

        if (*p == sentinel) {
            break;
        }

        temp = *p;
    }

    *p = node;
    node->parent = temp;
    node->left = sentinel;
    node->right = sentinel;
    ngx_rbt_red(node);
}


void
ngx_rbtree_insert_timer_value(ngx_rbtree_node_t *temp, ngx_rbtree_node_t *node,
    ngx_rbtree_node_t *sentinel)
{
    ngx_rbtree_node_t  **p;

    for ( ;; ) {

        /*
         * Timer values
         * 1) are spread in small range, usually several minutes,
         * 2) and overflow each 49 days, if milliseconds are stored in 32 bits.
         * The comparison takes into account that overflow.
         */

		 /*
		// map 实现 key相同覆盖
		if(node->key == temp->key){
			temp->data = node->data;
			break;
		}
		*/

        /*  node->key < temp->key */

        p = ((ngx_rbtree_key_int_t) (node->key - temp->key) < 0)
            ? &temp->left : &temp->right;

        if (*p == sentinel) {
            break;
        }

        temp = *p;
    }

    *p = node;
    node->parent = temp;
    node->left = sentinel;
    node->right = sentinel;
    ngx_rbt_red(node);
}


void
ngx_rbtree_delete(ngx_rbtree_t *tree, ngx_rbtree_node_t *node)
{
    unsigned int           red;
    ngx_rbtree_node_t  **root, *sentinel, *subst, *temp, *w;

    /* a binary tree delete */

    root = &tree->root;
    sentinel = tree->sentinel;

    if (node->left == sentinel) {
        temp = node->right;
        subst = node;

    } else if (node->right == sentinel) {
        temp = node->left;
        subst = node;

    } else {
        subst = ngx_rbtree_min(node->right, sentinel);

        if (subst->left != sentinel) {
            temp = subst->left;
        } else {
            temp = subst->right;
        }
    }

    if (subst == *root) {
        *root = temp;
        ngx_rbt_black(temp);

        /* DEBUG stuff */
        node->left = NULL;
        node->right = NULL;
        node->parent = NULL;
        node->key = 0;

        return;
    }

    red = ngx_rbt_is_red(subst);

    if (subst == subst->parent->left) {
        subst->parent->left = temp;

    } else {
        subst->parent->right = temp;
    }

    if (subst == node) {

        temp->parent = subst->parent;

    } else {

        if (subst->parent == node) {
            temp->parent = subst;

        } else {
            temp->parent = subst->parent;
        }

        subst->left = node->left;
        subst->right = node->right;
        subst->parent = node->parent;
        ngx_rbt_copy_color(subst, node);

        if (node == *root) {
            *root = subst;

        } else {
            if (node == node->parent->left) {
                node->parent->left = subst;
            } else {
                node->parent->right = subst;
            }
        }

        if (subst->left != sentinel) {
            subst->left->parent = subst;
        }

        if (subst->right != sentinel) {
            subst->right->parent = subst;
        }
    }

    /* DEBUG stuff */
    node->left = NULL;
    node->right = NULL;
    node->parent = NULL;
    node->key = 0;

    if (red) {
        return;
    }

    /* a delete fixup */

    while (temp != *root && ngx_rbt_is_black(temp)) {

        if (temp == temp->parent->left) {
            w = temp->parent->right;

            if (ngx_rbt_is_red(w)) {
                ngx_rbt_black(w);
                ngx_rbt_red(temp->parent);
                ngx_rbtree_left_rotate(root, sentinel, temp->parent);
                w = temp->parent->right;
            }

            if (ngx_rbt_is_black(w->left) && ngx_rbt_is_black(w->right)) {
                ngx_rbt_red(w);
                temp = temp->parent;

            } else {
                if (ngx_rbt_is_black(w->right)) {
                    ngx_rbt_black(w->left);
                    ngx_rbt_red(w);
                    ngx_rbtree_right_rotate(root, sentinel, w);
                    w = temp->parent->right;
                }

                ngx_rbt_copy_color(w, temp->parent);
                ngx_rbt_black(temp->parent);
                ngx_rbt_black(w->right);
                ngx_rbtree_left_rotate(root, sentinel, temp->parent);
                temp = *root;
            }

        } else {
            w = temp->parent->left;

            if (ngx_rbt_is_red(w)) {
                ngx_rbt_black(w);
                ngx_rbt_red(temp->parent);
                ngx_rbtree_right_rotate(root, sentinel, temp->parent);
                w = temp->parent->left;
            }

            if (ngx_rbt_is_black(w->left) && ngx_rbt_is_black(w->right)) {
                ngx_rbt_red(w);
                temp = temp->parent;

            } else {
                if (ngx_rbt_is_black(w->left)) {
                    ngx_rbt_black(w->right);
                    ngx_rbt_red(w);
                    ngx_rbtree_left_rotate(root, sentinel, w);
                    w = temp->parent->left;
                }

                ngx_rbt_copy_color(w, temp->parent);
                ngx_rbt_black(temp->parent);
                ngx_rbt_black(w->left);
                ngx_rbtree_right_rotate(root, sentinel, temp->parent);
                temp = *root;
            }
        }
    }

    ngx_rbt_black(temp);
}


static inline void
ngx_rbtree_left_rotate(ngx_rbtree_node_t **root, ngx_rbtree_node_t *sentinel,
    ngx_rbtree_node_t *node)
{
    ngx_rbtree_node_t  *temp;

    temp = node->right;
    node->right = temp->left;

    if (temp->left != sentinel) {
        temp->left->parent = node;
    }

    temp->parent = node->parent;

    if (node == *root) {
        *root = temp;

    } else if (node == node->parent->left) {
        node->parent->left = temp;

    } else {
        node->parent->right = temp;
    }

    temp->left = node;
    node->parent = temp;
}


static inline void
ngx_rbtree_right_rotate(ngx_rbtree_node_t **root, ngx_rbtree_node_t *sentinel,
    ngx_rbtree_node_t *node)
{
    ngx_rbtree_node_t  *temp;

    temp = node->left;
    node->left = temp->right;

    if (temp->right != sentinel) {
        temp->right->parent = node;
    }

    temp->parent = node->parent;

    if (node == *root) {
        *root = temp;

    } else if (node == node->parent->right) {
        node->parent->right = temp;

    } else {
        node->parent->left = temp;
    }

    temp->right = node;
    node->parent = temp;
}


ngx_rbtree_node_t *
ngx_rbtree_next(ngx_rbtree_t *tree, ngx_rbtree_node_t *node)
{
    ngx_rbtree_node_t  *root, *sentinel, *parent;

    sentinel = tree->sentinel;

    if (node->right != sentinel) {
        return ngx_rbtree_min(node->right, sentinel);
    }

    root = tree->root;

    for ( ;; ) {
        parent = node->parent;

        if (node == root) {
            return NULL;
        }

        if (node == parent->left) {
            return parent;
        }

        node = parent;
    }
}

下来构建一下自己定时器头文件my_timer.h，具体代码如下：

/***********************************************
*    Author : lijd
*    Date   : 2022-11-15
*	 Func   : 借助nginx红黑树源码实现简单定时器
***********************************************/

#ifndef _LIJD_MY_TIMER_
#define _LIJD_MY_TIMER_

#include <stdlib.h>
#include <string.h>
#include <stddef.h>
#include <time.h>
#include <stdio.h>
#include <pthread.h>

#include "ngx_rbtree.h"

// 定时器树结构定义
ngx_rbtree_t	my_timer;

// 定时器哨兵节点定义，用作初始化
ngx_rbtree_node_t	my_sentinel;

typedef unsigned int  uint_32;

typedef struct my_timer_entry_s  my_timer_entry_t;


typedef void (*my_timer_callback_pt) (my_timer_entry_t *mte);

// 定时器结构定义
struct my_timer_entry_s {
	ngx_rbtree_node_t rbnode;	// 红黑树节点，用作生成红黑树
    my_timer_callback_pt cb;	// 到期执行的回调函数
	void *data;					// 回调函数的传入参数
};

// 获取当前时间的毫秒值(CLOCK_MONOTONIC:系统启动相对时间)
uint_32 my_currtime() {
	struct timespec tv = {0};
    clock_gettime(CLOCK_MONOTONIC, &tv);

	uint_32 t = tv.tv_sec * 1000;
	t += tv.tv_nsec / 1000000;

	return t;
}

// 初始化定时器树结构
void my_init_timer() {
	ngx_rbtree_init(&my_timer, &my_sentinel, ngx_rbtree_insert_timer_value);
}

// 定时器结构添加节点
my_timer_entry_t * my_add_timer(uint_32 key, my_timer_callback_pt cb, void *data) {
	my_timer_entry_t *mte = (my_timer_entry_t *)malloc(sizeof(my_timer_entry_t));

	if(mte != NULL){
		memset(mte, 0, sizeof(my_timer_entry_t));
		mte->rbnode.key = my_currtime() + key;
		mte->cb = cb;
		mte->data = data;

		printf("pthread id: %x, add timer key : %u\n", pthread_self(), mte->rbnode.key);

		ngx_rbtree_insert(&my_timer, &mte->rbnode);
	}

	return mte;
}

// 定时器结构删除节点
void my_del_timer(my_timer_entry_t *mte) {

	if(mte != NULL) {
		ngx_rbtree_delete(&my_timer, &mte->rbnode);
		free(mte);
	}
}

// 处理定时任务
void my_handle_timer() {

	my_timer_entry_t *mte;

	ngx_rbtree_node_t *root, *node;
	for(;;) {
		root = my_timer.root;

		// 空树
		if(root == my_timer.sentinel)	break;

		node = ngx_rbtree_min(root, my_timer.sentinel);

		// 最近的事件还没到达触发时间
		if(node->key > my_currtime()) break;

		// 存在事件需触发，将node转换为自定义结构
		mte = (my_timer_entry_t *)((char *)node - offsetof(my_timer_entry_t, rbnode));

		// 回调函数调用
		mte->cb(mte);

		// 定时器树上删除已执行节点
		my_del_timer(mte);
	}
}

// 查找时间的最小触发时间
int my_find_nearest_timer() {
	if(my_timer.root == my_timer.sentinel)	return -1;

	ngx_rbtree_node_t *node = ngx_rbtree_min(my_timer.root, my_timer.sentinel);

	if(node->key <= my_currtime())	return -1;

	return (int)(node->key - my_currtime());
}

#endif /* _LIJD_MY_TIMER_ */

由于nginx中的网络事件用epoll处理的，我们的测试用例尽量接近nginx环境。测试用例中：主要创建一个线程去随机生产定时任务，主线程去处理epoll事件和定时任务事件）。具体代码如下：

/***********************************************
*    Author : lijd
*    Date   : 2022-11-15
*	 Func   : 测试定时器功能主函数
***********************************************/

#include <stdio.h>
#include <sys/epoll.h>
#include <pthread.h>
#include <unistd.h>

#include "ngx_rbtree.h"
#include "my_timer.h"

// 定时器回调函数
void test(my_timer_entry_t *mte) {
	printf("pthread id : %x, test time callback : %u \n", pthread_self(), mte->rbnode.key);
}

// 随机生成定时器事件
void* handler_thread(void *arg) {

	my_init_timer();

	for(;;) {

		srand((unsigned int)time(NULL));
		int ret=rand() % 10;

		my_add_timer(ret * 1000, test, NULL);

		sleep(5);
	}

	pthread_exit(NULL);
}

int main()
{
	pthread_t pid;
	int i;

	// 创建生成定时器事件线程
	pthread_create(&pid, NULL, handler_thread, NULL);

	int epfd = epoll_create(1);

	struct epoll_event events[512];

	// 定时器中的事件：网络事件 + 其它定时事件
	// 如果其它定时事件的最小key(执行时间) > nowtime(当前时间) : 说明有事件需要触发，需立即执行
	// 否则，网络事件的阻塞时间(timeout) = 其它最近触发的定时事件 - nowtime
	// 这样既兼顾了其它事件 也 兼顾了网络事件

	for(;;) {

		// epoll_wait 为阻塞的系统调用
		// timeout 为阻塞时间(-1：一直阻塞，直到事件发生，>=0 表示阻塞最多时间返回)
		int timeout = (my_find_nearest_timer() >= 0 ? my_find_nearest_timer() : 10*1000);
		printf("now time : %u, timeout : %d\n",my_currtime(), timeout);
		int n = epoll_wait(epfd, events, 512, timeout);

		for(i = 0; i < n; i++) {
			// 处理网络事件
		}

		// 处理定时任务
		my_handle_timer();

		printf("-----------------------------------------------------\n\n");
	}

	pthread_join(pid, NULL);

	return 0;
}

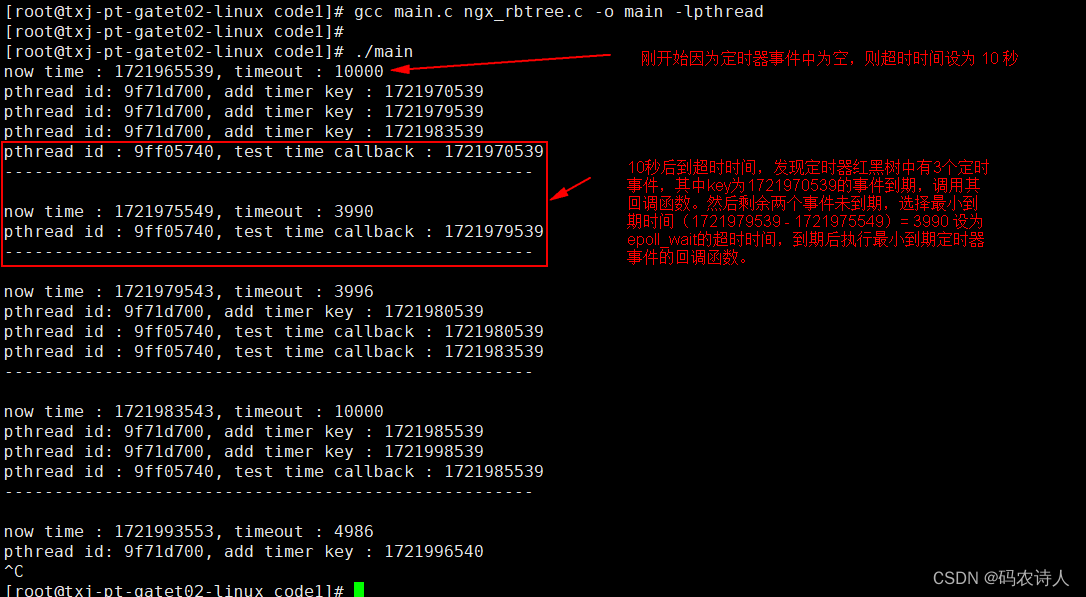

执行结果如下图：
