本文介绍了Spring JDBC的基本使用，包括JdbcTemplate的配置和常用操作。此外，详细讲解了Spring的声明式事务控制，包括PlatformTransactionManager、TransactionDefinition和TransactionStatus等关键对象，以及XML和注解方式的声明式事务配置与实现。

Spring JDBC 基本使用

JdbcTemplate基本使用

创建工程坐标

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.itheima</groupId>
    <artifactId>itheima_spring_jdbc</artifactId>
    <version>1.0-SNAPSHOT</version>

    <!-- 导入工程 -->
    <dependencies>
        <!--mysql -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.32</version>
        </dependency>
        <dependency>
            <groupId>c3p0</groupId>
            <artifactId>c3p0</artifactId>
            <version>0.9.1.2</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.0.9</version>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
            <scope>test</scope>
        </dependency>

        <!-- spring -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>5.0.3.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>5.0.2.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>5.0.3.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>5.0.4.RELEASE</version>
        </dependency>

        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.1.0</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet.jsp</groupId>
            <artifactId>javax.servlet.jsp-api</artifactId>
            <version>2.2.1</version>
        </dependency>

        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-core</artifactId>
            <version>2.8.1</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.6.7</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-annotations</artifactId>
            <version>2.6.0</version>
        </dependency>

        <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
            <version>1.3.1</version>
        </dependency>
        <dependency>
            <groupId>commons-io</groupId>
            <artifactId>commons-io</artifactId>
            <version>2.6</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>5.0.3.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-tx</artifactId>
            <version>5.0.3.RELEASE</version>
        </dependency>

    </dependencies>

</project>

创建数据库表

CREATE TABLE account(
name VARCHAR(20),
money INT(10))

创建实体类

package com.itheima.domain;
//实体类
public class Account {

    private String name;
    private double money;

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public double getMoney() {
        return money;
    }

    public void setMoney(double money) {
        this.money = money;
    }

    @Override
    public String toString() {
        return "Account{" +
                "name='" + name + '\'' +
                ", money=" + money +
                '}';
    }
}

测试类

package com.itheima.test;

import com.mchange.v2.c3p0.ComboPooledDataSource;
import org.junit.Test;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import org.springframework.jdbc.core.JdbcTemplate;

import java.beans.PropertyVetoException;

public class JdbcTemplateTest {

    //测试JdbcTemplate开发步骤
    @Test
    public void test1() throws PropertyVetoException {
        //创建数据源对象
        ComboPooledDataSource dataSource = new ComboPooledDataSource();
        dataSource.setDriverClass("com.mysql.jdbc.mysql");
        dataSource.setJdbcUrl("jdbc:mysql://localhost:3306/test");
        dataSource.setUser("root");
        dataSource.setPassword("root");

        JdbcTemplate jdbcTemplate = new JdbcTemplate();
        //设置数据源对象
        jdbcTemplate.setDataSource(dataSource);

        //执行操作
        int row = jdbcTemplate.update("insert into account values (?,?)", "tom", 5000);
        System.out.println(row);

    }
}

Spring配置jdbc (标准)

jdbc.properties

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/test
jdbc.username=root
jdbc.password=root

applicationContext.xml spring配置

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="
       http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">

    <!--加载jdbc.properties配置文件数据 context-->
    <context:property-placeholder location="jdbc.properties"/>

    <!-- 数据源对象 -->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="driverClass" value="${jdbc.url}"/>
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>

    </bean>

    <!-- jdbc模板对象-->
    <bean id="jdbcTemplate" class="org.springframework.jdbc.core.JdbcTemplate">
        <property name="dataSource" ref="dataSource"/>
    </bean>

</beans>

测试

package com.itheima.test;

import com.mchange.v2.c3p0.ComboPooledDataSource;
import org.junit.Test;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import org.springframework.jdbc.core.JdbcTemplate;

import java.beans.PropertyVetoException;

public class JdbcTemplateTest {

    //测试spring产生JdbcTemplate对象
    @Test
    public void test2() throws PropertyVetoException {
        //创建数据源对象
        ApplicationContext app = new ClassPathXmlApplicationContext("applicationContext.xml");
        JdbcTemplate jdbcTemplate = app.getBean(JdbcTemplate.class);
        //执行操作
        int row = jdbcTemplate.update("insert into account values (?,?)", "zhangsan", 5000);
        System.out.println(row);

    }


    //测试JdbcTemplate开发步骤
    @Test
    public void test1() throws PropertyVetoException {
        //创建数据源对象
        ComboPooledDataSource dataSource = new ComboPooledDataSource();
        dataSource.setDriverClass("com.mysql.jdbc.mysql");
        dataSource.setJdbcUrl("jdbc:mysql://localhost:3306/test");
        dataSource.setUser("root");
        dataSource.setPassword("root");

        JdbcTemplate jdbcTemplate = new JdbcTemplate();
        //设置数据源对象
        jdbcTemplate.setDataSource(dataSource);

        //执行操作
        int row = jdbcTemplate.update("insert into account values (?,?)", "tom", 5000);
        System.out.println(row);

    }
}

常用操作

package com.itheima.test;

import com.itheima.domain.Account;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.jdbc.core.BeanPropertyRowMapper;
import org.springframework.jdbc.core.JdbcTemplate;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

import java.util.List;

@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration("classpath:applicationContext.xml")
public class JdbcTemplateCRUDTest {

    @Autowired
    private JdbcTemplate jdbcTemplate;

    //查询总数 聚合
    @Test
    public void testQueryCount() {
        Long count = jdbcTemplate.queryForObject("select count(*) from account", Long.class);
        System.out.println(count);
    }

    //查询单个对象
    @Test
    public void testQueryOne() {
        Account account = jdbcTemplate.queryForObject("select * from account where name=?", new BeanPropertyRowMapper<Account>(Account.class), "tom");
        System.out.println(account);
    }

    //查询所有对象
    @Test
    public void testQueryAll() {
        List<Account> accountList = jdbcTemplate.query("select * from account", new BeanPropertyRowMapper<Account>(Account.class));
        System.out.println(accountList);
    }

    @Test
    public void testUpdate() {
        jdbcTemplate.update("update account set money=? where name=?", 1000, "tom");
    }

    @Test
    public void testDelete() {
        jdbcTemplate.update("delete from account where name=?", "tom");
    }

    @Test
    public void testInsert() {
        jdbcTemplate.update("insert into account values (?,?)", "tom", 5000);
    }

}

声明式事务控制

编程式事务控制相关对象

PlatformTransactionManager

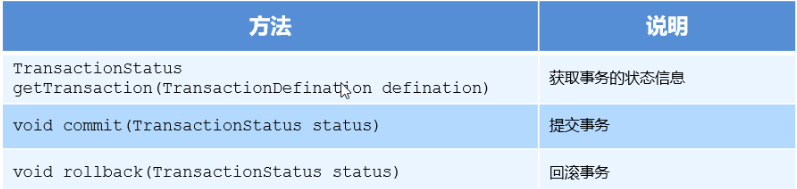

PlatformTransactionManager 接口是 spring 的事务管理器，它里面提供了我们常用的操作事务的方法。
在这里插入图片描述
注意：

PlatformTransactionManager 是接口类型，不同的 Dao 层技术则有不同的实现类，例如：Dao 层技术是jdbc 或 mybatis 时：org.springframework.jdbc.datasource.DataSourceTransactionManager

Dao 层技术是hibernate时：org.springframework.orm.hibernate5.HibernateTransactionManager

TransactionDefinition

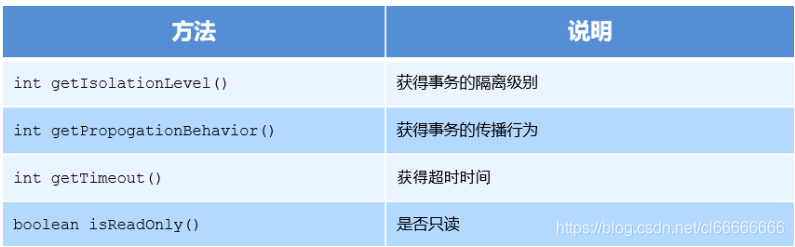

TransactionDefinition 是事务的定义信息对象，里面有如下方法：
在这里插入图片描述

1. 事务隔离级别

设置隔离级别，可以解决事务并发产生的问题，如脏读、不可重复读和虚读。

ISOLATION_DEFAULT
ISOLATION_READ_UNCOMMITTED
ISOLATION_READ_COMMITTED
ISOLATION_REPEATABLE_READ
ISOLATION_SERIALIZABLE

**2. 事务传播行为 **

REQUIRED：如果当前没有事务，就新建一个事务，如果已经存在一个事务中，加入到这个事务中。一般的选择（默认值）
SUPPORTS：支持当前事务，如果当前没有事务，就以非事务方式执行（没有事务）
MANDATORY：使用当前的事务，如果当前没有事务，就抛出异常
REQUERS_NEW：新建事务，如果当前在事务中，把当前事务挂起。
NOT_SUPPORTED：以非事务方式执行操作，如果当前存在事务，就把当前事务挂起
NEVER：以非事务方式运行，如果当前存在事务，抛出异常
NESTED：如果当前存在事务，则在嵌套事务内执行。如果当前没有事务，则执行 REQUIRED 类似的操作
超时时间：默认值是-1，没有超时限制。如果有，以秒为单位进行设置
是否只读：建议查询时设置为只读

TransactionStatus

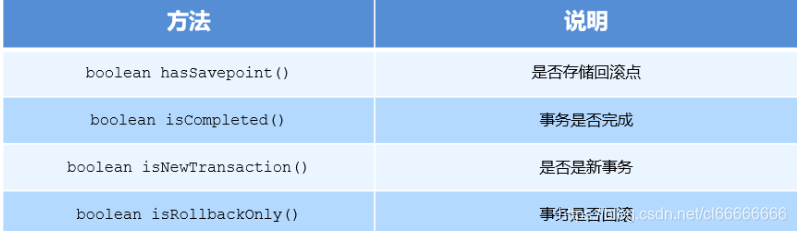

TransactionStatus 接口提供的是事务具体的运行状态，方法介绍如下。
在这里插入图片描述

基于 XML 的声明式事务控制

声明式事务控制

Spring 的声明式事务顾名思义就是采用声明的方式来处理事务。这里所说的声明，就是指在配置文件中声明，用在 Spring 配置文件中声明式的处理事务来代替代码式的处理事务。

声明式事务处理的作用

事务管理不侵入开发的组件。具体来说，业务逻辑对象就不会意识到正在事务管理之中，事实上也应该如此，因为事务管理是属于系统层面的服务，而不是业务逻辑的一部分，如果想要改变事务管理策划的话，也只需要在定义文件中重新配置即可
在不需要事务管理的时候，只要在设定文件上修改一下，即可移去事务管理服务，无需改变代码重新编译，这样维护起来极其方便

注意：Spring 声明式事务控制底层就是AOP。

实现代码

引入坐标

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.example</groupId>
    <artifactId>itheima_spring_tx</artifactId>
    <version>1.0-SNAPSHOT</version>

    <dependencies>
        <!--spring相关坐标 -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>5.0.4.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjweaver</artifactId>
            <version>1.8.13</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>5.0.3.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-tx</artifactId>
            <version>5.0.3.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>5.0.2.RELEASE</version>
        </dependency>

        <!--mysql相关坐标-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.32</version>
        </dependency>
        <dependency>
            <groupId>c3p0</groupId>
            <artifactId>c3p0</artifactId>
            <version>0.9.1.2</version>
        </dependency>

        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
            <scope>test</scope>
        </dependency>
    </dependencies>


</project>

domain 实现类

package com.itheima.domain;
//Account实体类
public class Account {
    private String name;
    private double money;

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public double getMoney() {
        return money;
    }

    public void setMoney(double money) {
        this.money = money;
    }

    @Override
    public String toString() {
        return "Account{" +
                "name='" + name + '\'' +
                ", money=" + money +
                '}';
    }
}

dao数据层

package com.itheima.dao;

public interface AccountDao {
    public void out(String outMan,double money);
    public void in(String isMan,double money);
}

package com.itheima.dao.impl;

import com.itheima.dao.AccountDao;
import org.springframework.jdbc.core.JdbcTemplate;

public class AccountDaoImpl implements AccountDao {
    private JdbcTemplate jdbcTemplate;

    public void setJdbcTemplate(JdbcTemplate jdbcTemplate) {
        this.jdbcTemplate = jdbcTemplate;
    }

    @Override
    public void out(String outMan,double money) {
        jdbcTemplate.update("update account set money=money-? where name=?",money,outMan);
    }

    @Override
    public void in(String isMan,double money) {
        jdbcTemplate.update("update account set money=money+? where name=?",money,isMan);
    }
}

service 业务层

package com.itheima.service;

import com.itheima.dao.AccountDao;

public interface AccountService {
    public void setAccountDao(AccountDao accountDao) ;

    public void transfer(String outMan,String isMan,double money);
}

package com.itheima.service.impl;

import com.itheima.dao.AccountDao;
import com.itheima.service.AccountService;

public class AccountServiceImpl implements AccountService {

    private AccountDao accountDao;

    public void setAccountDao(AccountDao accountDao) {
        this.accountDao = accountDao;
    }

    public void transfer(String outMan,String isMan,double money){
        //开启事务
        accountDao.out(outMan,money);
        int i= 1/0;                 //测试 异常，导致事务回滚
        accountDao.in(isMan,money);
        //提交事务
    }
}

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="
       http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd
       http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd">

    <!--加载jdbc.properties配置文件数据 context-->
    <context:property-placeholder location="jdbc.properties"/>

    <!-- 数据源对象 -->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="driverClass" value="${jdbc.url}"/>
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
    </bean>

    <!-- jdbc模板对象-->
    <bean id="jdbcTemplate" class="org.springframework.jdbc.core.JdbcTemplate">
        <property name="dataSource" ref="dataSource"/>
    </bean>


    <bean id="accountDao" class="com.itheima.dao.impl.AccountDaoImpl">
        <property name="jdbcTemplate" ref="jdbcTemplate"/>
    </bean>

    <!--目标对象 内部的方法就是切点-->
    <bean id="accountService" class="com.itheima.service.impl.AccountServiceImpl">
        <property name="accountDao" ref="accountDao"/>
    </bean>

    <!--配置平台事务管理器 PlatformTransactionManager -->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>

    <!--通知 事务的增强-->
    <tx:advice id="txAdvice" transaction-manager="transactionManager">
        <!--设置事务的属性信息 TransactionDefinition -->
        <tx:attributes>
            //<tx:method name="update*" isolation="REPEATABLE_READ" propagation="REQUIRED" timeout="-1" read-only="false"/>
            //<tx:method name="save" isolation="REPEATABLE_READ" propagation="REQUIRED" read-only="false"/>
            <tx:method name="*"/>
        </tx:attributes>
    </tx:advice>

    <!--配置事务的aop织入-->
    <aop:config>
        <aop:advisor advice-ref="txAdvice" pointcut="execution(* com.itheima.service.impl.*.*(..))"/>
    </aop:config>
</beans>

测试层

package com.itheima.controller;

import com.itheima.service.AccountService;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

public class AccountController {
    public static void main(String[] args) {
        ApplicationContext app = new ClassPathXmlApplicationContext("applicationContext.xml");
        AccountService accountService = app.getBean(AccountService.class);
        accountService.transfer("tom","zhangsan",500);
    }
}
//数据库转账金额未发生改变

切点方法的事务参数的配置

<!--事务增强配置-->
<tx:advice id="txAdvice" transaction-manager="transactionManager">
    <tx:attributes>
        <tx:method name="*"/>
    </tx:attributes>
</tx:advice>

其中，tx:method 代表切点方法的事务参数的配置，例如：

<tx:method name="transfer" isolation="REPEATABLE_READ" propagation="REQUIRED" timeout="-1" read-only="false"/>

name：切点方法名称
isolation:事务的隔离级别
propogation：事务的传播行为
timeout：超时时间
read-only：是否只读

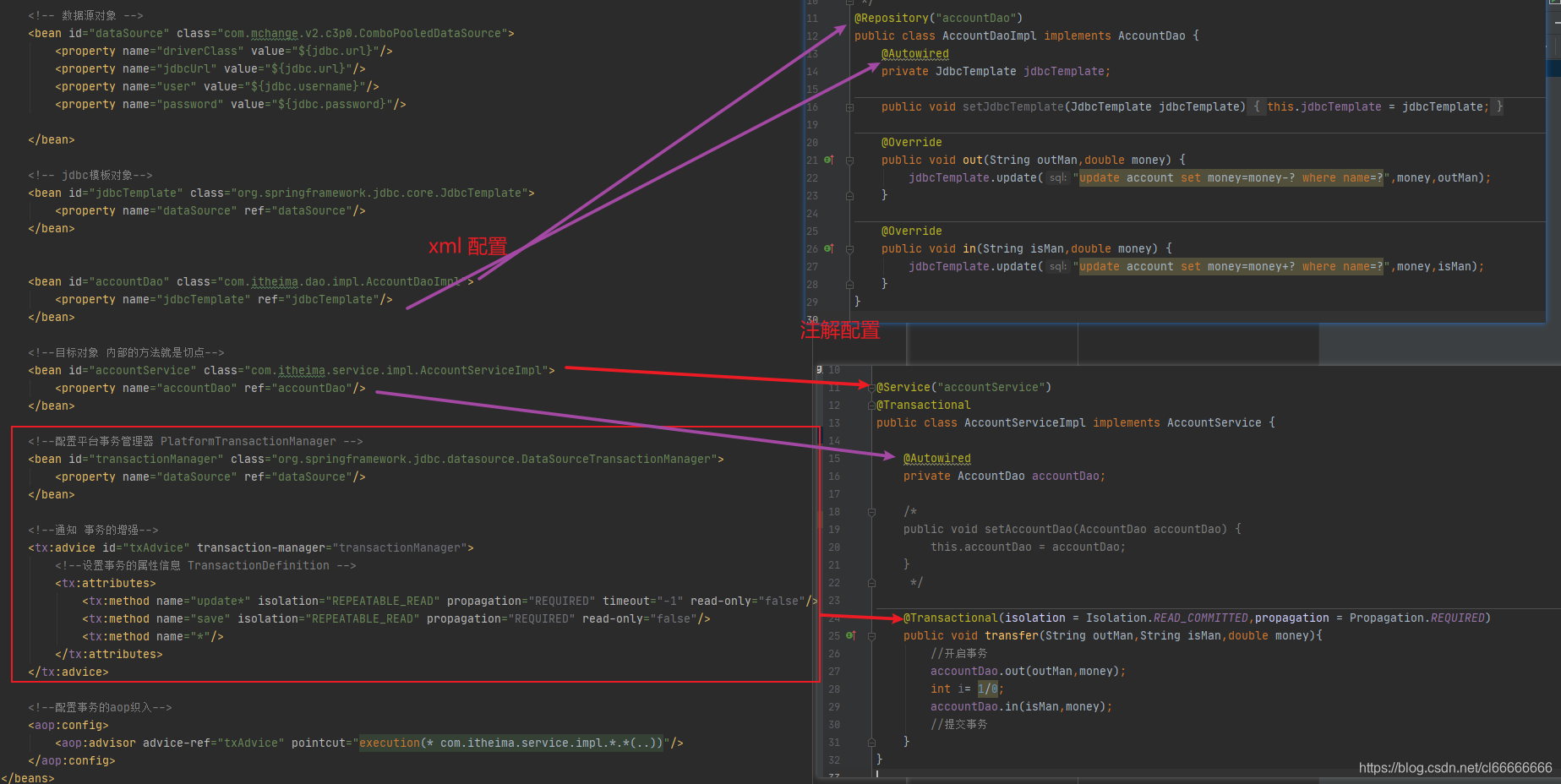

基于注解的声明式事务控制

实现代码

在这里插入图片描述

平台事务管理器配置（xml方式）
事务通知的配置（@Transactional注解配置）
事务注解驱动的配置 tx:annotation-driven/

applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="
       http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd
       http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd">

    <!--加载jdbc.properties配置文件数据 context-->
    <context:property-placeholder location="jdbc.properties"/>

    <!-- 数据源对象 -->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="driverClass" value="${jdbc.url}"/>
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
    </bean>

    <!-- jdbc模板对象-->
    <bean id="jdbcTemplate" class="org.springframework.jdbc.core.JdbcTemplate">
        <property name="dataSource" ref="dataSource"/>
    </bean>

    <!-- 组件扫描-->
    <context:component-scan base-package="com.itheima"/>

    <!--配置平台事务管理器 PlatformTransactionManager -->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>

    <!--事务的注解驱动 -->
    <tx:annotation-driven transaction-manager="transactionManager"/>

</beans>

package com.itheima.dao.impl;

import com.itheima.dao.AccountDao;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.jdbc.core.JdbcTemplate;
import org.springframework.stereotype.Repository;


@Repository("accountDao")
public class AccountDaoImpl implements AccountDao {
    @Autowired
    private JdbcTemplate jdbcTemplate;

    public void setJdbcTemplate(JdbcTemplate jdbcTemplate) {
        this.jdbcTemplate = jdbcTemplate;
    }

    @Override
    public void out(String outMan,double money) {
        jdbcTemplate.update("update account set money=money-? where name=?",money,outMan);
    }

    @Override
    public void in(String isMan,double money) {
        jdbcTemplate.update("update account set money=money+? where name=?",money,isMan);
    }
}

package com.itheima.service.impl;

import com.itheima.dao.AccountDao;
import com.itheima.service.AccountService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Isolation;
import org.springframework.transaction.annotation.Propagation;
import org.springframework.transaction.annotation.Transactional;

@Service("accountService")
@Transactional
public class AccountServiceImpl implements AccountService {

    @Autowired
    private AccountDao accountDao;

    /* 注解可不写set方法
    public void setAccountDao(AccountDao accountDao) {
        this.accountDao = accountDao;
    }
     */

    @Transactional(isolation = Isolation.READ_COMMITTED,propagation = Propagation.REQUIRED)
    public void transfer(String outMan,String isMan,double money){
        //开启事务
        accountDao.out(outMan,money);
        int i= 1/0;
        accountDao.in(isMan,money);
        //提交事务
    }
}
