Bezier曲线

本文介绍了Bezier曲线的基本概念,包括其定义、性质及De Casteljau算法,并提供了一个使用C++实现Bezier曲线绘制的示例。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

Bezier曲线的定义

Bezier曲线在起点与终点位置与多边形重合。当给定空间n+1个点的位置矢量,则n次Bezier曲线上各点坐标的插值公式为:

C(t)=i=0nPiBi,n(t)C(t)=∑i=0nPiBi,n(t)
其中,n此Bernstein基函数为:
Bi,n(t)=n!i!(ni)!ti(1t)niBi,n(t)=n!i!(n−i)!ti(1−t)n−i

Bezier曲线的性质

  1. 端点性质:曲线在端点处的位置矢量、切矢量、曲率均与特征多边形的相同
  2. 对称性
  3. 凸包性。曲线是各点的凸线性组合
  4. 几何不变性
  5. 变差缩减性

De Casteliau 算法

Pri(t)=(1t)Pr1i(t)+tPr1i+1(t)Pir(t)=(1−t)Pir−1(t)+tPi+1r−1(t)

算法实现

#include<iostream>
#include<algorithm>
#include<opencv2\core\core.hpp>
#include<opencv2\highgui\highgui.hpp>
#include"MyPoint.h"

#define WIDTH 1000
#define HEIGHT 500

using namespace std;
using namespace cv;

MyPoint DeCasteliau(int degree, const vector<MyPoint>& pv, double t);

int main(){
    Mat imageROI = Mat(HEIGHT, WIDTH, CV_8UC3, Scalar(255, 255, 255));
    vector<MyPoint> pv;
    MyPoint P;
    int degree = 0, npoints = 0;
    cout << "Please input the number of points of the Bezier Curve:" << endl;
    cin >> npoints;
    cout << "Please input the degree of the Bezier Curve:" << endl;
    cin >> degree;
    cout << "Please input the coodinate of the controling points" << endl;
    double t = 0, delta;
    int i;
    int x, y;
    delta = 1.0 / npoints;
    for (i = 0; i < degree; i++){
        cin >> x >> y;
        circle(imageROI, cvPoint(x, y), 5, Scalar(0, 0, 0), -1);
        pv.push_back(MyPoint(x, y));
    }
    for (i = 0, t = 0.0; i < npoints; i++){
        P = DeCasteliau(degree, pv, t);
        imageROI.at<Vec3b>(P.GetY(), P.GetX()) = Vec3b(0, 0, 0);
        t += delta;
    }
    namedWindow("显示结果");
    imshow("显示结果", imageROI);
    waitKey();
}

MyPoint DeCasteliau(int degree, const vector<MyPoint>& pv,double t){
    vector<MyPoint> newpv;
    vector<MyPoint>::const_iterator iterForP;
    vector<MyPoint>::iterator iterForN;
    int r, i;
    double t1 = 1.0 - t;
    for (iterForP = pv.begin(); iterForP != pv.end(); iterForP++){
        newpv.push_back(*iterForP);
    }
    for (r = 1; r <= newpv.size(); r++){
        for (i = 0; i < newpv.size() - r; i++){
            newpv[i] = t1*newpv[i] + t*newpv[i + 1];
        }
    }
    return newpv[0];
}

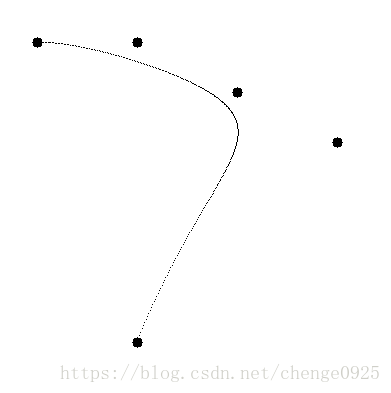

实现效果:
这里写图片描述
