通过脚本自动生成v3s的结构体，方便调用，再也不怕手动查找出错了

本文链接：https://blog.youkuaiyun.com/c_1969/article/details/144631731

一、介绍

接上一篇，v3s的timer中断-优快云博客 ,讲到了V3S的寄存器结构体调用。它就像是一把武器，一方面节省我们查找的时间，减少错误率，还能使用代码易读，更优雅。

二、生成原理：

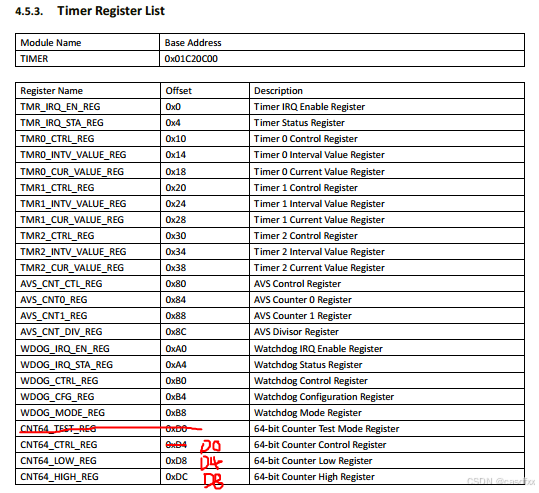

由timer的基地址0x1c20c00，和偏移地址可以知道第一个寄存器的地址。这是第一级优化。

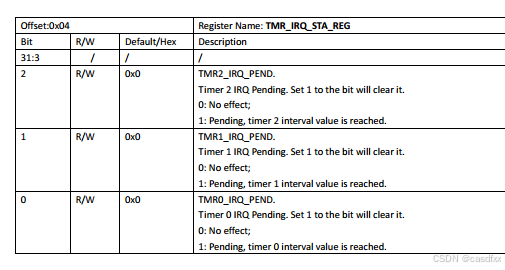

由已知寄存器找出每一位或数位代表的意思，按bit寻值，可以精细化操作。

三、生成后的结构体举例：

v3s_timer.h：

1、数据结构：

#ifndef _V3S_TIMER_H_
#define _V3S_TIMER_H_

typedef union{
    volatile unsigned int all;
    struct{
        volatile unsigned int AVS_CNT0 :32 ;
    }bits;
}AVS_CNT0_REG_unionDef;

typedef union{
    volatile unsigned int all;
    struct{
        volatile unsigned int AVS_CNT1 :32 ;
    }bits;
}AVS_CNT1_REG_unionDef;

typedef union{
    volatile unsigned int all;
    struct{
        volatile unsigned int AVS_CNT0_EN :1 ;
        volatile unsigned int AVS_CNT1_EN :1 ;
        volatile unsigned int reserved0 : 6 ;
        volatile unsigned int AVS_CNT0_PS :1 ;
        volatile unsigned int AVS_CNT1_PS :1 ;
        volatile unsigned int reserved1 : 22 ;
    }bits;
}AVS_CNT_CTL_REG_unionDef;

typedef union{
    volatile unsigned int all;
    struct{
        volatile unsigned int AVS_CNT0_D :12 ;
        volatile unsigned int reserved2 : 4 ;
        volatile unsigned int AVS_CNT1_D :12 ;
        volatile unsigned int reserved3 : 4 ;
    }bits;
}AVS_CNT_DIV_REG_unionDef;

typedef union{
    volatile unsigned int all;
    struct{
        volatile unsigned int CNT64_CLR_EN :1 ;
        volatile unsigned int CNT64_RL_EN :1 ;
        volatile unsigned int CNT64_CLK_SRC_SEL :1 ;
        volatile unsigned int reserved4 : 28 ;
        volatile unsigned int CNT64_TEST_EN :1 ;
    }bits;
}CNT64_CTRL_REG_unionDef;

typedef union{
    volatile unsigned int all;
    struct{
        volatile unsigned int CNT64_HI :32 ;
    }bits;
}CNT64_HIGH_REG_unionDef;

typedef union{
    volatile unsigned int all;
    struct{
        volatile unsigned int CNT64_LO :32 ;
    }bits;
}CNT64_LOW_REG_unionDef;

typedef union{
    volatile unsigned int all;
    struct{
        volatile unsigned int TMR0_EN :1 ;
        volatile unsigned int TMR0_RELOAD :1 ;
        volatile unsigned int TMR0_CLK_SRC :2 ;
        volatile unsigned int TMR0_CLK_PRES :3 ;
        volatile unsigned int TMR0_MODE :1 ;
        volatile unsigned int reserved5 : 24 ;
    }bits;
}TMR0_CTRL_REG_unionDef;

typedef union{
    volatile unsigned int all;
    struct{
        volatile unsigned int TMR0_CUR_VALUE :32 ;
    }bits;
}TMR0_CUR_VALUE_REG_unionDef;

typedef union{
    volatile unsigned int all;
    struct{
        volatile unsigned int TMR0_INTV_VALUE :32 ;
    }bits;
}TMR0_INTV_VALUE_REG_unionDef;

typedef union{
    volatile unsigned int all;
    struct{
        volatile unsigned int TMR1_EN :1 ;
        volatile unsigned int TMR1_RELOAD :1 ;
        volatile unsigned int TMR1_CLK_SRC :2 ;
        volatile unsigned int TMR1_CLK_PRES :3 ;
        volatile unsigned int TMR1_MODE :1 ;
        volatile unsigned int reserved6 : 24 ;
    }bits;
}TMR1_CTRL_REG_unionDef;

typedef union{
    volatile unsigned int all;
    struct{
        volatile unsigned int TMR1_CUR_VALUE :32 ;
    }bits;
}TMR1_CUR_VALUE_REG_unionDef;

typedef union{
    volatile unsigned int all;
    struct{
        volatile unsigned int TMR1_INTV_VALUE :32 ;
    }bits;
}TMR1_INTV_VALUE_REG_unionDef;

typedef union{
    volatile unsigned int all;
    struct{
        volatile unsigned int TMR2_EN :1 ;
        volatile unsigned int TMR2_RELOAD :1 ;
        volatile unsigned int TMR2_CLK_SRC :2 ;
        volatile unsigned int TMR2_CLK_PRES :3 ;
        volatile unsigned int TMR2_MODE :1 ;
        volatile unsigned int reserved7 : 24 ;
    }bits;
}TMR2_CTRL_REG_unionDef;

typedef union{
    volatile unsigned int all;
    struct{
        volatile unsigned int TMR2_CUR_VALUE :32 ;
    }bits;
}TMR2_CUR_VALUE_REG_unionDef;

typedef union{
    volatile unsigned int all;
    struct{
        volatile unsigned int TMR2_INTV_VALUE :32 ;
    }bits;
}TMR2_INTV_VALUE_REG_unionDef;

typedef union{
    volatile unsigned int all;
    struct{
        volatile unsigned int TMR0_IRQ_EN :1 ;
        volatile unsigned int TMR1_IRQ_EN :1 ;
        volatile unsigned int TMR2_IRQ_EN :1 ;
        volatile unsigned int reserved8 : 29 ;
    }bits;
}TMR_IRQ_EN_REG_unionDef;

typedef union{
    volatile unsigned int all;
    struct{
        volatile unsigned int TMR0_IRQ_PEND :1 ;
        volatile unsigned int TMR1_IRQ_PEND :1 ;
        volatile unsigned int TMR2_IRQ_PEND :1 ;
        volatile unsigned int reserved9 : 29 ;
    }bits;
}TMR_IRQ_STA_REG_unionDef;

typedef union{
    volatile unsigned int all;
    struct{
        volatile unsigned int WDOG_CONFIG :2 ;
        volatile unsigned int reserved10 : 30 ;
    }bits;
}WDOG_CFG_REG_unionDef;

typedef union{
    volatile unsigned int all;
    struct{
        volatile unsigned int WDOG_RSTART :1 ;
        volatile unsigned int WDOG_KEY_FIELD :12 ;
        volatile unsigned int reserved11 : 19 ;
    }bits;
}WDOG_CTRL_REG_unionDef;

typedef union{
    volatile unsigned int all;
    struct{
        volatile unsigned int WDOG_IRQ_EN :1 ;
        volatile unsigned int reserved12 : 31 ;
    }bits;
}WDOG_IRQ_EN_REG_unionDef;

typedef union{
    volatile unsigned int all;
    struct{
        volatile unsigned int WDOG_IRQ :1 ;
        volatile unsigned int reserved13 : 31 ;
    }bits;
}WDOG_IRQ_STA_REG_unionDef;

typedef union{
    volatile unsigned int all;
    struct{
        volatile unsigned int WDOG_EN :1 ;
        volatile unsigned int reserved14 : 3 ;
        volatile unsigned int WDOG_INTV_VALUE :4 ;
        volatile unsigned int reserved15 : 24 ;
    }bits;
}WDOG_MODE_REG_unionDef;

typedef struct{
    TMR_IRQ_EN_REG_unionDef TMR_IRQ_EN_REG ;    //Timer IRQ Enable Register
    TMR_IRQ_STA_REG_unionDef TMR_IRQ_STA_REG ;    //Timer Status Register
    volatile unsigned char reserved72[8] ;
    TMR0_CTRL_REG_unionDef TMR0_CTRL_REG ;    //Timer 0 Control Register
    TMR0_INTV_VALUE_REG_unionDef TMR0_INTV_VALUE_REG ;    //Timer 0 Interval Value Register
    TMR0_CUR_VALUE_REG_unionDef TMR0_CUR_VALUE_REG ;    //Timer 0 Current Value Register
    volatile unsigned char reserved73[4] ;
    TMR1_CTRL_REG_unionDef TMR1_CTRL_REG ;    //Timer 1 Control Register
    TMR1_INTV_VALUE_REG_unionDef TMR1_INTV_VALUE_REG ;    //Timer 1 Interval Value Register
    TMR1_CUR_VALUE_REG_unionDef TMR1_CUR_VALUE_REG ;    //Timer 1 Current Value Register
    volatile unsigned char reserved74[4] ;
    TMR2_CTRL_REG_unionDef TMR2_CTRL_REG ;    //Timer 2 Control Register
    TMR2_INTV_VALUE_REG_unionDef TMR2_INTV_VALUE_REG ;    //Timer 2 Interval Value Register
    TMR2_CUR_VALUE_REG_unionDef TMR2_CUR_VALUE_REG ;    //Timer 2 Current Value Register
    volatile unsigned char reserved75[68] ;
    AVS_CNT_CTL_REG_unionDef AVS_CNT_CTL_REG ;    //AVS Control Register
    AVS_CNT0_REG_unionDef AVS_CNT0_REG ;    //AVS Counter 0 Register
    AVS_CNT1_REG_unionDef AVS_CNT1_REG ;    //AVS Counter 1 Register
    AVS_CNT_DIV_REG_unionDef AVS_CNT_DIV_REG ;    //AVS Divisor Register
    volatile unsigned char reserved76[16] ;
    WDOG_IRQ_EN_REG_unionDef WDOG_IRQ_EN_REG ;    //Watchdog IRQ Enable Register
    WDOG_IRQ_STA_REG_unionDef WDOG_IRQ_STA_REG ;    //Watchdog Status Register
    volatile unsigned char reserved77[8] ;
    WDOG_CTRL_REG_unionDef WDOG_CTRL_REG ;    //Watchdog Control Register
    WDOG_CFG_REG_unionDef WDOG_CFG_REG ;    //Watchdog Configuration Register
    WDOG_MODE_REG_unionDef WDOG_MODE_REG ;    //Watchdog Mode Register
    volatile unsigned char reserved78[20] ;
    CNT64_CTRL_REG_unionDef CNT64_CTRL_REG ;    //64-bit Counter Control Register
    CNT64_LOW_REG_unionDef CNT64_LOW_REG ;    //64-bit Counter Low Register
    CNT64_HIGH_REG_unionDef CNT64_HIGH_REG ;    //64-bit Counter High Register
}TIMER_structDef;

#define V3S_TIMER_MODE_CONTINUE     (0U)
#define V3S_TIMER_MODE_SINGLE       (1U)
#define V3S_TIMER_CLR_PRES_1        (0U)
#define V3S_TIMER_CLR_PRES_2        (1U)
#define V3S_TIMER_CLR_PRES_4        (2U)
#define V3S_TIMER_CLR_PRES_8        (3U)
#define V3S_TIMER_CLR_PRES_16       (4U)
#define V3S_TIMER_CLR_PRES_32       (5U)
#define V3S_TIMER_CLR_PRES_64       (6U)
#define V3S_TIMER_CLR_PRES_128      (7U)

#define V3S_TIMER_CLK_SRC_OSC_512       (0U)
#define V3S_TIMER_CLK_SRC_OSC24M        (1U)


#endif

2、使用案例

void a_InitSystemTick(){
    TIMER->TMR_IRQ_EN_REG.bits.TMR1_IRQ_EN      |= 1;
    TIMER->TMR_IRQ_STA_REG.bits.TMR1_IRQ_PEND   |= 1;

    TIMER->TMR1_CTRL_REG.bits.TMR1_MODE     = V3S_TIMER_MODE_CONTINUE;
    TIMER->TMR1_CTRL_REG.bits.TMR1_CLK_SRC  = V3S_TIMER_CLK_SRC_OSC24M;
    TIMER->TMR1_CTRL_REG.bits.TMR1_CLK_PRES = V3S_TIMER_CLR_PRES_64;
    TIMER->TMR1_CTRL_REG.bits.TMR1_RELOAD   = 1;

    TIMER->TMR1_INTV_VALUE_REG.all          = 375 * 100; //5ms


    GIC->D_IPRIORITYR.byte.d51              = PRIORITY_TIMER1;
    GIC->D_ITARGETSR.byte.d51               = 0XFF;
    GIC->D_ISENABLER.bit.d51                = 1;

    TIMER->TMR1_CTRL_REG.bits.TMR1_EN       = 1;

}

是不是比writel(addr, value)的方式方便多了。

四、生成脚本介绍：

1、生成目录：

第一级：

dir_path = r"C:\Users\nisag\Desktop\v3s_sunxi"

第二级：

dir_path = r"C:\Users\nisag\Desktop\v3s_sunxi2"

2、生成方法：

将数据手册里的寄存器数据复制下来，以寄存器命令文件，粘贴到相应目录下。

分别运行

allwinner.py

allwinnerSub.py

eg:

allwinnerSub.py的输入文件为：

31:18 / / /
17:16 R/W 0x1 HCLKC_DIV
15:14 / / /
13:12 R/W 0x1 AHB_CLK_SRC_SEL
11:10 / / /
9:8 R/W 0x0 APB_CLK_RATIO
7:6 R/W 0x0 AHB_PRE_DIV
5:4 R/W 0x1 AHB_CLK_DIV_RATIO
3:0 / / /

运行allwinnerSub.py后生成：

typedef union{
    volatile unsigned int all;
    struct{
        volatile unsigned int reserved0 : 4 ;
        volatile unsigned int AHB_CLK_DIV_RATIO :2 ;
        volatile unsigned int AHB_PRE_DIV :2 ;
        volatile unsigned int APB_CLK_RATIO :2 ;
        volatile unsigned int reserved1 : 2 ;
        volatile unsigned int AHB_CLK_SRC_SEL :2 ;
        volatile unsigned int reserved2 : 2 ;
        volatile unsigned int HCLKC_DIV :2 ;
        volatile unsigned int reserved3 : 14 ;
    }bits;
}AHB_APB_HCLKC_CFG_REG_unionDef;

然后将第一级生成的结构体与第二级生成的结构体放进同一文件内。注意，第一级应在最下方。

修改后，将第一级结构体转为指针类型，把该寄存器基地址转为此类型指针，如下：

#include "v3s_timer.h"
#define TIMER       ((TIMER_structDef*)TIMER_BASE)

五、附下载链接：

如果有类似结构（看四、2）的数据手册，也适用。

allwinner-data-sheet-creator资源-优快云文库
