概述

libjpeg - turbo是一个JPEG图像编解码器，它使用SIMD指令(MMX，SSE2，AVX2，NEON，AltiVec)来加速x86，x86-64，ARM和PowerPC系统上的基线JPEG压缩和解压缩，以及渐进式JPEG压缩x86和x86-64系统。在这样的系统上， libjpeg - turbo的速度通常是libjpeg的2-6倍，在其他类型的系统上，凭借其高度优化的霍夫曼编码例程， libjpeg - turbo仍然可以大大超过libjpeg

环境准备

操作系统：ubuntu 16.05
ndk版本：android-ndk-r16b

克隆最新的libjpeg - turbo源代码

git clone git@github.com:libjpeg-turbo/libjpeg-turbo.git

• 去掉版本号

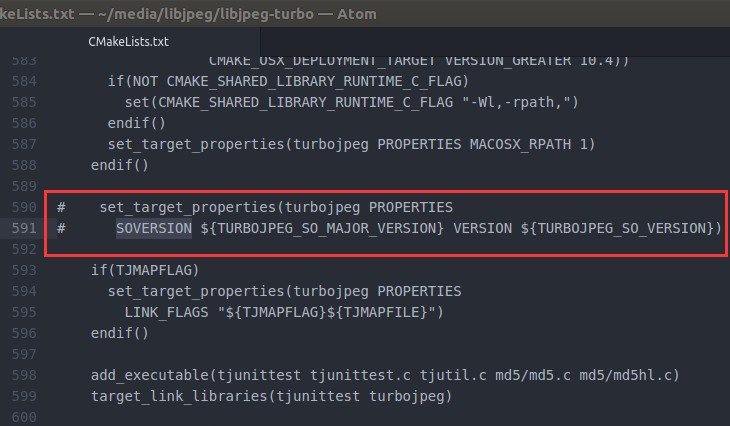

编辑libjpeg-turbo/CMakeLists.txt，注释掉红框中的内容

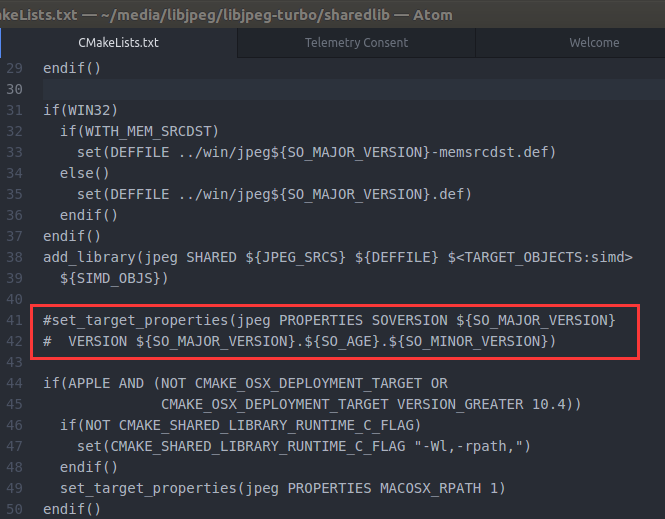

编辑libjpeg-turbo/sharedlib/CMakeLists.txt，注释掉红框中的内容

第一步：编写配置脚本config.sh

#架构
if [ "$#" -lt 1 ]; then
	THE_ARCH=armv7
else
	THE_ARCH=$(tr [A-Z] [a-z] <<< "$1")
fi

#根据不同架构配置环境变量
case "$THE_ARCH" in
  arm|armv5|armv6|armv7|armeabi)
	TOOLCHAIN_BASE="arm-linux-androideabi"
	HOST="arm-linux-androideabi"
	AOSP_ABI="armeabi"
	AOSP_ARCH="arch-arm"
	AOSP_FLAGS="-march=armv7-a -mfloat-abi=softfp -fprefetch-loop-arrays"
	PROCESSOR="arm"
	;;
  armv7a|armeabi-v7a)
	TOOLCHAIN_BASE="arm-linux-androideabi"
	HOST="arm-linux-androideabi"
	AOSP_ABI="armeabi-v7a"
	AOSP_ARCH="arch-arm"
	AOSP_FLAGS="-march=armv7-a -mfloat-abi=softfp -fprefetch-loop-arrays"
	PROCESSOR="arm"
	;;
  armv8|armv8a|aarch64|arm64|arm64-v8a)
	TOOLCHAIN_BASE="aarch64-linux-android"
	HOST="aarch64-linux-android"
	AOSP_ABI="arm64-v8a"
	AOSP_ARCH="arch-arm64"
	AOSP_FLAGS=""
	PROCESSOR="aarch64"
	;;
  x86)
	TOOLCHAIN_BASE="x86"
	HOST="i686-linux-android"
	AOSP_ABI="x86"
	AOSP_ARCH="arch-x86"
	AOSP_FLAGS=""
	PROCESSOR="i386"
	;;
  x86_64|x64)
	TOOLCHAIN_BASE="x86_64"
	HOST="x86_64-linux-android"
	AOSP_ABI="x86_64"
	AOSP_ARCH="arch-x86_64"
	AOSP_FLAGS=""
	PROCESSOR="x86_64"
	;;
  *)
	echo "ERROR: Unknown architecture $1"
	[ "$0" = "$BASH_SOURCE" ] && exit 1 || return 1
	;;
esac

echo "TOOLCHAIN_BASE="$TOOLCHAIN_BASE
echo "TOOLNAME_BASE="$TOOLNAME_BASE
echo "AOSP_ABI="$AOSP_ABI
echo "AOSP_ARCH="$AOSP_ARCH
echo "AOSP_FLAGS="$AOSP_FLAGS
echo "HOST="$HOST

# Set these variables to suit your needs
NDK_PATH=/media/byhook/backup/android/android-ndk-r10e
BUILD_PLATFORM=linux-x86_64
TOOLCHAIN_VERSION=4.9
ANDROID_VERSION=19

# It should not be necessary to modify the rest
HOST=arm-linux-androideabi
SYSROOT=${NDK_PATH}/platforms/android-${ANDROID_VERSION}/arch-arm
export CFLAGS="-march=armv7-a -mfloat-abi=softfp -fprefetch-loop-arrays \
  -D__ANDROID_API__=${ANDROID_VERSION} --sysroot=${SYSROOT} \
  -isystem ${NDK_PATH}/sysroot/usr/include \
  -isystem ${NDK_PATH}/sysroot/usr/include/${HOST}"
export LDFLAGS=-pie
TOOLCHAIN=${NDK_PATH}/toolchains/${HOST}-${TOOLCHAIN_VERSION}/prebuilt/${BUILD_PLATFORM}

cat <<EOF >toolchain.cmake
set(CMAKE_SYSTEM_NAME Linux)
set(CMAKE_SYSTEM_PROCESSOR arm)
set(CMAKE_C_COMPILER ${TOOLCHAIN}/bin/${HOST}-gcc)
set(CMAKE_FIND_ROOT_PATH ${TOOLCHAIN}/${HOST})
EOF

cmake -G"Unix Makefiles" -DCMAKE_TOOLCHAIN_FILE=toolchain.cmake \
  -DCMAKE_POSITION_INDEPENDENT_CODE=1 \
  [additional CMake flags] libjpeg-turbo
make

第二步：编写构建脚本build_jpeg.sh，注意下面的ANDROID_NDK_ROOT路径需要配置成自己的路径

#!/bin/sh

＃初始化环境变量
source config.sh

# 获取当前路径
NOW_DIR=$(cd `dirname $0`; pwd)

# 待编译的库目录名称
MY_LIBS_NAME=libjpeg-turbo
# 源代码路径
MY_SOURCE_DIR=$NOW_DIR/libjpeg-turbo

#编译的过程中产生的中间件的存放目录
BINARY_DIR=binary

#NDK路径
ANDROID_NDK_ROOT=/media/byhook/backup/android/android-ndk-r16b
BUILD_PLATFORM=linux-x86_64
AOSP_TOOLCHAIN_SUFFIX=4.9
AOSP_API=21

LIBS_DIR=$NOW_DIR/libs
echo "LIBS_DIR="$LIBS_DIR


# 构建中间文件
BUILD_DIR=./${BINARY_DIR}/${AOSP_ABI}

# 最终编译的安装目录
PREFIX=${LIBS_DIR}/${AOSP_ABI}/
SYSROOT=${ANDROID_NDK_ROOT}/platforms/android-${AOSP_API}/${AOSP_ARCH}

export CFLAGS="$AOSP_FLAGS -D__ANDROID_API__=${AOSP_API} --sysroot=${SYSROOT} \
               -isystem ${ANDROID_NDK_ROOT}/sysroot/usr/include \
               -isystem ${ANDROID_NDK_ROOT}/sysroot/usr/include/${HOST} "
export LDFLAGS=-pie

TOOLCHAIN=${ANDROID_NDK_ROOT}/toolchains/$TOOLCHAIN_BASE-$AOSP_TOOLCHAIN_SUFFIX/prebuilt/${BUILD_PLATFORM}

#创建当前编译目录
mkdir -p ${BUILD_DIR}
mkdir -p ${PREFIX}
cd ${BUILD_DIR}

cat <<EOF >toolchain.cmake
set(CMAKE_SYSTEM_NAME Linux)
set(CMAKE_SYSTEM_PROCESSOR ${PROCESSOR})
set(CMAKE_C_COMPILER ${TOOLCHAIN}/bin/${HOST}-gcc)
set(CMAKE_FIND_ROOT_PATH ${TOOLCHAIN}/${HOST})
EOF

cmake -G"Unix Makefiles" \
      -DCMAKE_TOOLCHAIN_FILE=toolchain.cmake \
      -DCMAKE_POSITION_INDEPENDENT_CODE=1 \
      -DCMAKE_INSTALL_PREFIX=${PREFIX} \
      -DWITH_JPEG8=1 \
      ${MY_SOURCE_DIR}

make clean
make
make install

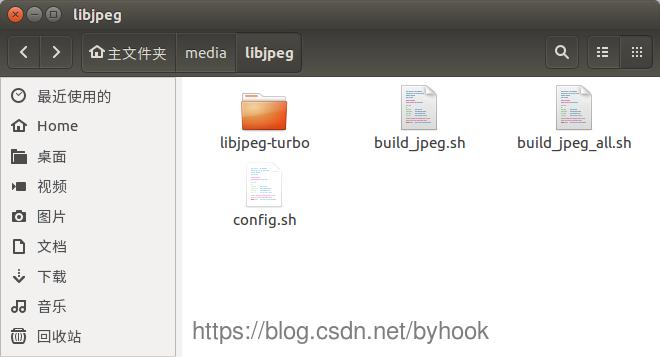

文件目录结构：

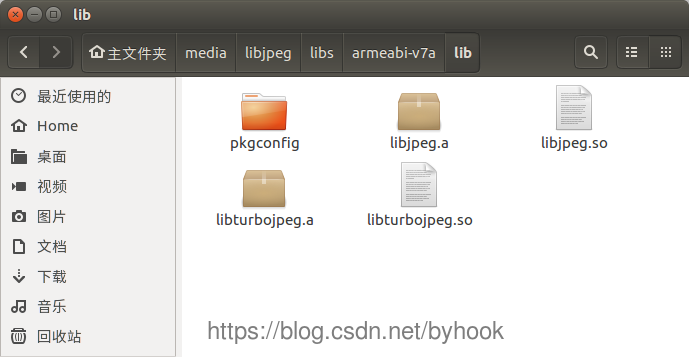

第三步：开始执行编译脚本

bash build_jpeg.sh armeabi-v7a

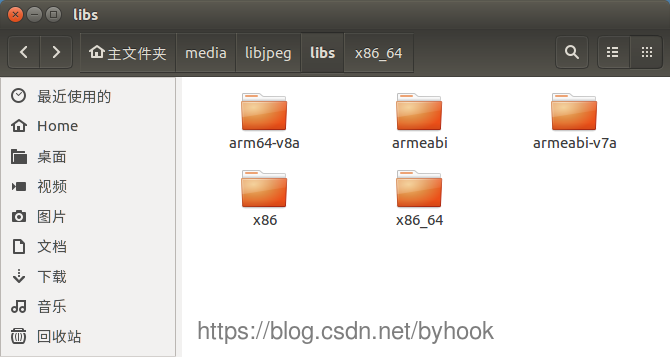

一次编译全平台版本的脚本：build_jpeg_all.sh

for arch in armeabi armeabi-v7a arm64-v8a x86 x86_64
do
    bash build_jpeg.sh $arch
done

加载JPEG图片

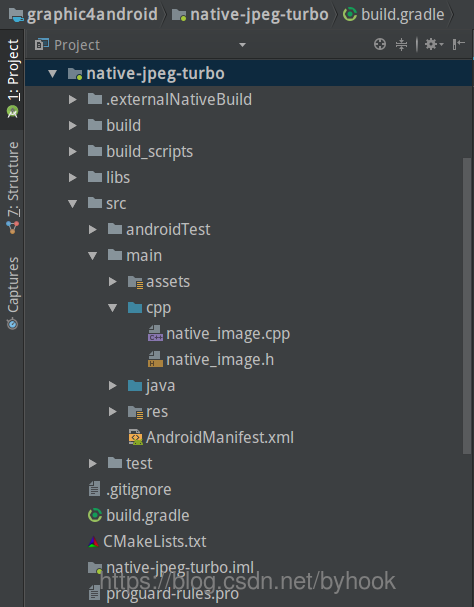

新建native-jpeg-turbo工程

定义java层的接口：

package com.onzhou.libjpeg.turbo.loader;

import android.view.Surface;

public class NativeImageLoader {

    static {
        System.loadLibrary("native-image");
    }


    public native void loadJPEGImage(String imagePath, Surface surface);

}

新建native_image.cpp文件，开始编写native层的实现：

#include <jni.h>
#include <stdio.h>
#include <time.h>
#include <android/bitmap.h>
#include <android/native_window.h>
#include <android/native_window_jni.h>
#include <EGL/egl.h>
#include <GLES3/gl3.h>
#include <jpeglib.h>

#include "native_image.h"

#ifdef ANDROID

#include <android/log.h>
#include <malloc.h>
#include <string.h>

#define LOG_TAG    "NativeImage"
#define LOGE(format, ...)  __android_log_print(ANDROID_LOG_ERROR, LOG_TAG, format, ##__VA_ARGS__)
#define LOGI(format, ...)  __android_log_print(ANDROID_LOG_INFO,  LOG_TAG, format, ##__VA_ARGS__)
#else
#define LOGE(format, ...)  printf(LOG_TAG format "\n", ##__VA_ARGS__)
#define LOGI(format, ...)  printf(LOG_TAG format "\n", ##__VA_ARGS__)
#endif


/**
 * 动态注册
 */
JNINativeMethod methods[] = {
        {"loadJPEGImage", "(Ljava/lang/String;Landroid/view/Surface;)V", (void *) loadJPEGImage}
};

/**
 * 动态注册
 * @param env
 * @return
 */
jint registerNativeMethod(JNIEnv *env) {
    jclass cl = env->FindClass("com/onzhou/libjpeg/turbo/loader/NativeImageLoader");
    if ((env->RegisterNatives(cl, methods, sizeof(methods) / sizeof(methods[0]))) < 0) {
        return -1;
    }
    return 0;
}

/**
 * 加载默认回调
 * @param vm
 * @param reserved
 * @return
 */
jint JNI_OnLoad(JavaVM *vm, void *reserved) {
    JNIEnv *env = NULL;
    if (vm->GetEnv((void **) &env, JNI_VERSION_1_6) != JNI_OK) {
        return -1;
    }
    //注册方法
    if (registerNativeMethod(env) != JNI_OK) {
        return -1;
    }
    return JNI_VERSION_1_6;
}

void ThrowException(JNIEnv *env, const char *exception, const char *message) {
    jclass clazz = env->FindClass(exception);
    if (NULL != clazz) {
        env->ThrowNew(clazz, message);
    }
}

int drawJPEG(const char *input_filename, ANativeWindow_Buffer &nwBuffer) {

    jpeg_decompress_struct jpegInfo;
    jpeg_error_mgr jpegError;
    FILE *input_file;
    JSAMPARRAY buffer;
    int row_width;

    unsigned char *pixel;

    jpegInfo.err = jpeg_std_error(&jpegError);

    if ((input_file = fopen(input_filename, "rb")) == NULL) {
        fprintf(stderr, "can't open %s\n", input_filename);
        LOGE("open file error");
        return -1;
    }

    //初始化对象信息
    jpeg_create_decompress(&jpegInfo);

    //指定图片
    jpeg_stdio_src(&jpegInfo, input_file);

    //读取文件头信息,设置默认的解压参数
    jpeg_read_header(&jpegInfo, TRUE);

    //开始解压
    jpeg_start_decompress(&jpegInfo);

    row_width = jpegInfo.output_width * jpegInfo.output_components;

    buffer = (*jpegInfo.mem->alloc_sarray)((j_common_ptr) &jpegInfo, JPOOL_IMAGE,
                                           row_width, 1);

    //一行
    pixel = (unsigned char *) malloc(row_width);
    memset(pixel, 0, row_width);

    uint32_t *line = (uint32_t *) nwBuffer.bits;
    for (int i = 0; i < jpegInfo.output_height; i++) {
        //读取一行数据
        jpeg_read_scanlines(&jpegInfo, buffer, 1);
        pixel = *buffer;
        //根据缩放选取行
        for (int j = 0; j < jpegInfo.output_width; j++) {
            //存储顺序为BGR,BGR,BGR......
            line[j] = ((uint32_t) pixel[3 * j + 2]) << 16
                      | ((uint32_t) pixel[3 * j + 1] << 8)
                      | ((uint32_t) (pixel[3 * j + 0]));
        }
        line = line + nwBuffer.stride;
    }

    free(pixel);
    //完成解压
    jpeg_finish_decompress(&jpegInfo);

    //销毁解压相关信息
    jpeg_destroy_decompress(&jpegInfo);

    //关闭文件句柄
    fclose(input_file);

    return 0;
}

void loadJPEGImage(JNIEnv *env, jobject obj, jstring jpegPath, jobject surface) {

    const char *path = env->GetStringUTFChars(jpegPath, 0);
    //获取目标surface
    ANativeWindow *window = ANativeWindow_fromSurface(env, surface);
    if (NULL == window) {
        ThrowException(env, "java/lang/RuntimeException", "unable to get native window");
        return;
    }
    //默认的是RGB_565
    int32_t result = ANativeWindow_setBuffersGeometry(window, 0, 0, WINDOW_FORMAT_RGBA_8888);
    if (result < 0) {
        ThrowException(env, "java/lang/RuntimeException", "unable to set buffers geometry");
        //释放窗口
        ANativeWindow_release(window);
        window = NULL;
        return;
    }
    ANativeWindow_acquire(window);

    ANativeWindow_Buffer buffer;
    //锁定窗口的绘图表面
    if (ANativeWindow_lock(window, &buffer, NULL) < 0) {
        ThrowException(env, "java/lang/RuntimeException", "unable to lock native window");
        //释放窗口
        ANativeWindow_release(window);
        window = NULL;
        return;
    }
    //绘制JPEG图片
    drawJPEG(path, buffer);

    //解锁窗口的绘图表面
    if (ANativeWindow_unlockAndPost(window) < 0) {
        ThrowException(env, "java/lang/RuntimeException",
                       "unable to unlock and post to native window");
    }

    env->ReleaseStringUTFChars(jpegPath, path);
    //释放
    ANativeWindow_release(window);
}

注意：上面的操作步骤实际就是：

• 先通过ANativeWindow_fromSurface拿到对应的窗口
• 通过libjpeg-turbo库读取对应的JPEG图片，然后解码成对应的RGB数据
• 最后将解码后的RGB数据写到窗口的buffer中去，完成绘制

编写cmake的配置文件CMakeLists.txt

cmake_minimum_required(VERSION 3.4.1)

##官方标准配置
set(CMAKE_C_FLAGS "${CMAKE_C_FLAGS} -Wall")
set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -std=c++11 -fno-rtti -fno-exceptions -Wall")

add_library(native-image
           SHARED
           src/main/cpp/native_image.cpp)

add_library(jpeg
           SHARED
           IMPORTED)

set_target_properties(jpeg
                    PROPERTIES IMPORTED_LOCATION
                    ${CMAKE_SOURCE_DIR}/libs/${ANDROID_ABI}/libjpeg.so
                    )

add_library(jpeg-turbo
           SHARED
           IMPORTED)

set_target_properties(jpeg-turbo
                    PROPERTIES IMPORTED_LOCATION
                    ${CMAKE_SOURCE_DIR}/libs/${ANDROID_ABI}/libturbojpeg.so
                    )

#头文件
include_directories(${CMAKE_SOURCE_DIR}/libs/${ANDROID_ABI}/include)

target_link_libraries(native-image
            jpeg
            jpeg-turbo
            android
            jnigraphics
            log)

在启动的目标Activity中加载我们指定的JPEG图片

mSurfaceView.getHolder().addCallback(new SurfaceHolder.Callback() {
    @Override
    public void surfaceCreated(SurfaceHolder holder) {
        NativeImageLoader nativeImageLoader = new NativeImageLoader();
        File file = new File(getExternalFilesDir(null), "input.jpeg");
        nativeImageLoader.loadJPEGImage(file.getAbsolutePath(), holder.getSurface());
    }

    @Override
    public void surfaceChanged(SurfaceHolder holder, int format, int width, int height) {

    }

    @Override
    public void surfaceDestroyed(SurfaceHolder holder) {

    }
});

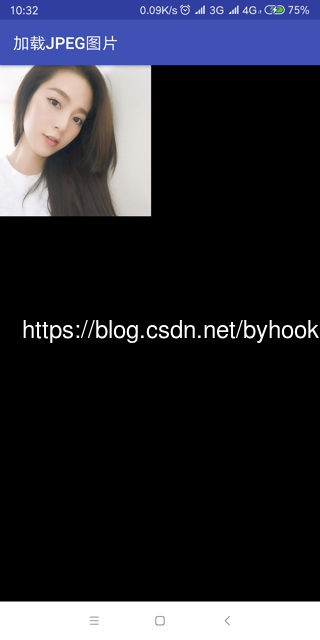

可以看到如下输出：

项目地址：native-jpeg-turbo
https://github.com/byhook/graphic4android

参考：
https://github.com/libjpeg-turbo/libjpeg-turbo/blob/master/BUILDING.md
