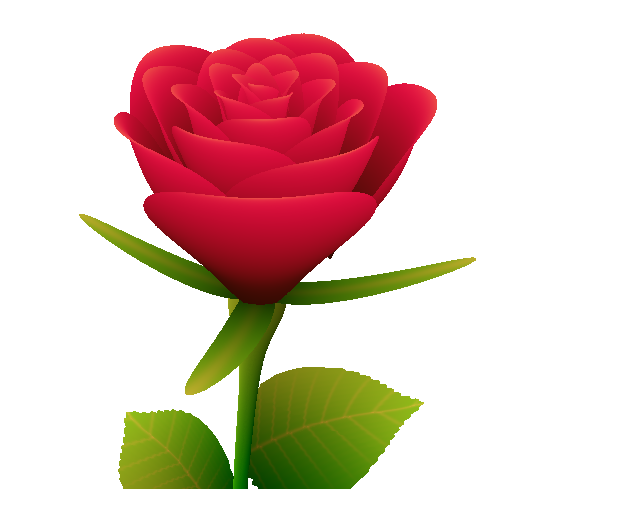

本文展示了如何使用HTML5的CanvasAPI创建三种不同的动画效果：粉色爱心飘动、爱心树生长及玫瑰绽放。代码中包含了粒子系统、图形绘制和时间同步等技术，用于在网页上生成动态的视觉表现。

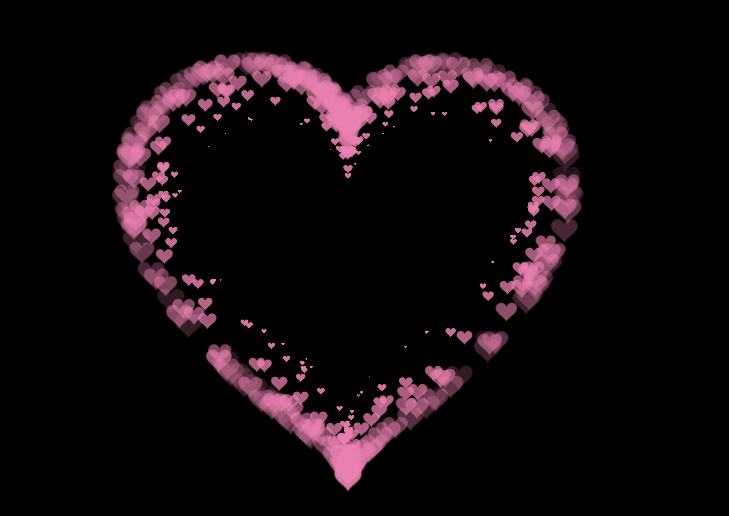

粉色爱心
效果
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0 Transitional//EN">
<HTML>
<HEAD>
<TITLE> New Document </TITLE>
<META NAME="Generator" CONTENT="EditPlus">
<META NAME="Author" CONTENT="">
<META NAME="Keywords" CONTENT="">
<META NAME="Description" CONTENT="">
<style>
html, body {
height: 100%;
padding: 0;
margin: 0;
background: #000;
}
canvas {
position: absolute;
width: 100%;
height: 100%;
}
</style>
</HEAD>
<BODY>
<canvas id="pinkboard"></canvas>
<script>
/*
* Settings
*/
var settings = {
particles: {
length: 500, // maximum amount of particles
duration: 2, // particle duration in sec
velocity: 100, // particle velocity in pixels/sec
effect: -0.75, // play with this for a nice effect
size: 30, // particle size in pixels
},
};
/*
* RequestAnimationFrame polyfill by Erik Möller
*/
(function(){var b=0;var c=["ms","moz","webkit","o"];for(var a=0;a<c.length&&!window.requestAnimationFrame;++a){window.requestAnimationFrame=window[c[a]+"RequestAnimationFrame"];window.cancelAnimationFrame=window[c[a]+"CancelAnimationFrame"]||window[c[a]+"CancelRequestAnimationFrame"]}if(!window.requestAnimationFrame){window.requestAnimationFrame=function(h,e){var d=new Date().getTime();var f=Math.max(0,16-(d-b));var g=window.setTimeout(function(){h(d+f)},f);b=d+f;return g}}if(!window.cancelAnimationFrame){window.cancelAnimationFrame=function(d){clearTimeout(d)}}}());
/*
* Point class
*/
var Point = (function() {
function Point(x, y) {
this.x = (typeof x !== 'undefined') ? x : 0;
this.y = (typeof y !== 'undefined') ? y : 0;
}
Point.prototype.clone = function() {
return new Point(this.x, this.y);
};
Point.prototype.length = function(length) {
if (typeof length == 'undefined')
return Math.sqrt(this.x * this.x + this.y * this.y);
this.normalize();
this.x *= length;
this.y *= length;
return this;
};
Point.prototype.normalize = function() {
var length = this.length();
this.x /= length;
this.y /= length;
return this;
};
return Point;
})();
/*
* Particle class
*/
var Particle = (function() {
function Particle() {
this.position = new Point();
this.velocity = new Point();
this.acceleration = new Point();
this.age = 0;
}
Particle.prototype.initialize = function(x, y, dx, dy) {
this.position.x = x;
this.position.y = y;
this.velocity.x = dx;
this.velocity.y = dy;
this.acceleration.x = dx * settings.particles.effect;
this.acceleration.y = dy * settings.particles.effect;
this.age = 0;
};
Particle.prototype.update = function(deltaTime) {
this.position.x += this.velocity.x * deltaTime;
this.position.y += this.velocity.y * deltaTime;
this.velocity.x += this.acceleration.x * deltaTime;
this.velocity.y += this.acceleration.y * deltaTime;
this.age += deltaTime;
};
Particle.prototype.draw = function(context, image) {
function ease(t) {
return (--t) * t * t + 1;
}
var size = image.width * ease(this.age / settings.particles.duration);
context.globalAlpha = 1 - this.age / settings.particles.duration;
context.drawImage(image, this.position.x - size / 2, this.position.y - size / 2, size, size);
};
return Particle;
})();
/*
* ParticlePool class
*/
var ParticlePool = (function() {
var particles,
firstActive = 0,
firstFree = 0,
duration = settings.particles.duration;
function ParticlePool(length) {
// create and populate particle pool
particles = new Array(length);
for (var i = 0; i < particles.length; i++)
particles[i] = new Particle();
}
ParticlePool.prototype.add = function(x, y, dx, dy) {
particles[firstFree].initialize(x, y, dx, dy);
// handle circular queue
firstFree++;
if (firstFree == particles.length) firstFree = 0;
if (firstActive == firstFree ) firstActive++;
if (firstActive == particles.length) firstActive = 0;
};
ParticlePool.prototype.update = function(deltaTime) {
var i;
// update active particles
if (firstActive < firstFree) {
for (i = firstActive; i < firstFree; i++)
particles[i].update(deltaTime);
}
if (firstFree < firstActive) {
for (i = firstActive; i < particles.length; i++)
particles[i].update(deltaTime);
for (i = 0; i < firstFree; i++)
particles[i].update(deltaTime);
}
// remove inactive particles
while (particles[firstActive].age >= duration && firstActive != firstFree) {
firstActive++;
if (firstActive == particles.length) firstActive = 0;
}
};
ParticlePool.prototype.draw = function(context, image) {
// draw active particles
if (firstActive < firstFree) {
for (i = firstActive; i < firstFree; i++)
particles[i].draw(context, image);
}
if (firstFree < firstActive) {
for (i = firstActive; i < particles.length; i++)
particles[i].draw(context, image);
for (i = 0; i < firstFree; i++)
particles[i].draw(context, image);
}
};
return ParticlePool;
})();
/*
* Putting it all together
*/
(function(canvas) {
var context = canvas.getContext('2d'),
particles = new ParticlePool(settings.particles.length),
particleRate = settings.particles.length / settings.particles.duration, // particles/sec
time;
// get point on heart with -PI <= t <= PI
function pointOnHeart(t) {
return new Point(
160 * Math.pow(Math.sin(t), 3),
130 * Math.cos(t) - 50 * Math.cos(2 * t) - 20 * Math.cos(3 * t) - 10 * Math.cos(4 * t) + 25
);
}
// creating the particle image using a dummy canvas
var image = (function() {
var canvas = document.createElement('canvas'),
context = canvas.getContext('2d');
canvas.width = settings.particles.size;
canvas.height = settings.particles.size;
// helper function to create the path
function to(t) {
var point = pointOnHeart(t);
point.x = settings.particles.size / 2 + point.x * settings.particles.size / 350;
point.y = settings.particles.size / 2 - point.y * settings.particles.size / 350;
return point;
}
// create the path
context.beginPath();
var t = -Math.PI;
var point = to(t);
context.moveTo(point.x, point.y);
while (t < Math.PI) {
t += 0.01; // baby steps!
point = to(t);
context.lineTo(point.x, point.y);
}
context.closePath();
// create the fill
context.fillStyle = '#ea80b0';
context.fill();
// create the image
var image = new Image();
image.src = canvas.toDataURL();
return image;
})();
// render that thing!
function render() {
// next animation frame
requestAnimationFrame(render);
// update time
var newTime = new Date().getTime() / 1000,
deltaTime = newTime - (time || newTime);
time = newTime;
// clear canvas
context.clearRect(0, 0, canvas.width, canvas.height);
// create new particles
var amount = particleRate * deltaTime;
for (var i = 0; i < amount; i++) {
var pos = pointOnHeart(Math.PI - 2 * Math.PI * Math.random());
var dir = pos.clone().length(settings.particles.velocity);
particles.add(canvas.width / 2 + pos.x, canvas.height / 2 - pos.y, dir.x, -dir.y);
}
// update and draw particles
particles.update(deltaTime);
particles.draw(context, image);
}
// handle (re-)sizing of the canvas
function onResize() {
canvas.width = canvas.clientWidth;
canvas.height = canvas.clientHeight;
}
window.onresize = onResize;
// delay rendering bootstrap
setTimeout(function() {
onResize();
render();
}, 10);
})(document.getElementById('pinkboard'));
</script>
</BODY>
</HTML>

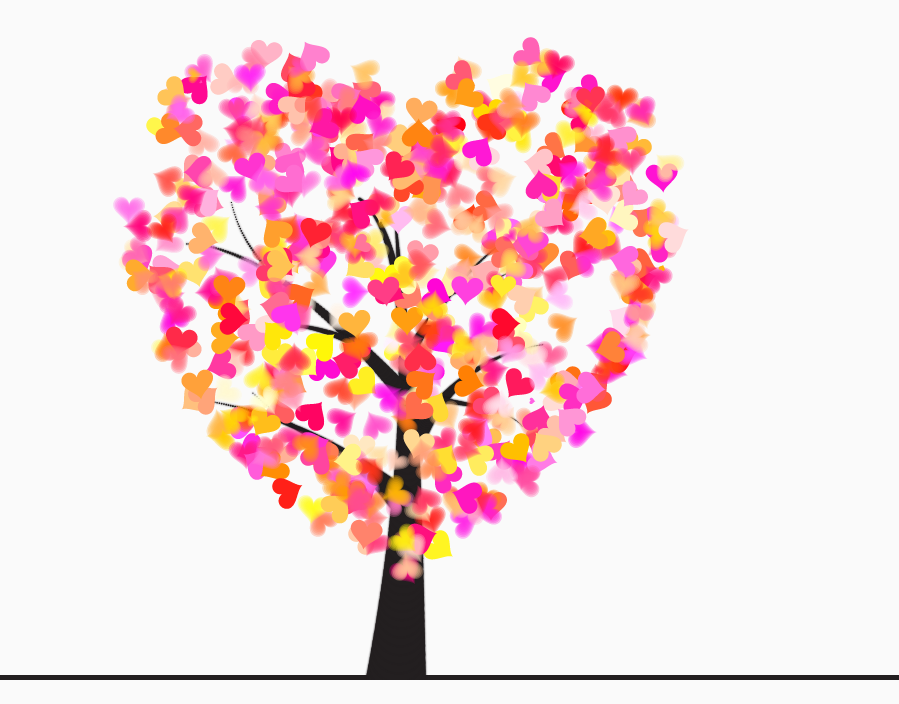

爱心树
效果
代码如下
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<title>爱心树表白动画</title>
<style>
body {
margin: 0;
padding: 0;
background: #fafafa;
font-size: 14px;
font-family: "微软雅黑", "宋体", sans-serif;
color: #231f20;
overflow: auto;
}
a {
color: #000;
font-size: 14px;
}
#main {
width: 100%;
}
#wrap {
position: relative;
margin: 0 auto;
width: 1100px;
height: 680px;
margin-top: 10px;
}
#text {
width: 400px;
height: 425px;
left: 60px;
top: 80px;
position: absolute;
}
#code {
display: none;
font-size: 16px;
}
#clock-box {
position: absolute;
left: 60px;
top: 550px;
font-size: 28px;
display: none;
}
#clock-box a {
font-size: 28px;
text-decoration: none;
}
#clock {
margin-left: 48px;
}
#clock .digit {
font-size: 64px;
}
#canvas {
margin: 0 auto;
width: 1100px;
height: 680px;
}
#error {
margin: 0 auto;
text-align: center;
margin-top: 60px;
display: none;
}
.hand {
cursor: pointer;
}
.say {
margin-left: 5px;
}
.space {
margin-right: 150px;
}
</style>
</head>
<body>
<div id="main">
<div id="error">
抱歉！目前您的浏览器无法显示，请更新至最新版本或使用其他主流浏览器，谢谢合作。
</div>
<div id="wrap">
<canvas id="canvas" width="1100" height="680"></canvas>
</div>
</div>
<script
type="text/javascript"
src="https://cdn-static-devbit.youkuaiyun.com/devbit-static/code/love-tree/js/jquery.min.js"
></script>
<script
type="text/javascript"
src="https://cdn-static-devbit.youkuaiyun.com/devbit-static/code/love-tree/js/jscex.min.js"
></script>
<script
type="text/javascript"
src="https://cdn-static-devbit.youkuaiyun.com/devbit-static/code/love-tree/js/jscex-parser.js"
></script>
<script
type="text/javascript"
src="https://cdn-static-devbit.youkuaiyun.com/devbit-static/code/love-tree/js/jscex-jit.js"
></script>
<script
type="text/javascript"
src="https://cdn-static-devbit.youkuaiyun.com/devbit-static/code/love-tree/js/jscex-builderbase.min.js"
></script>
<script
type="text/javascript"
src="https://cdn-static-devbit.youkuaiyun.com/devbit-static/code/love-tree/js/jscex-async.min.js"
></script>
<script
type="text/javascript"
src="https://cdn-static-devbit.youkuaiyun.com/devbit-static/code/love-tree/js/jscex-async-powerpack.min.js"
></script>
<script
type="text/javascript"
src="https://cdn-static-devbit.youkuaiyun.com/devbit-static/code/love-tree/js/functions.js"
charset="utf-8"
></script>
<script
type="text/javascript"
src="https://cdn-static-devbit.youkuaiyun.com/devbit-static/code/love-tree/js/love.js"
charset="utf-8"
></script>
<script>
(function () {
var canvas = $("#canvas");
if (!canvas[0].getContext) {
$("#error").show();
return false;
}
var width = canvas.width();
var height = canvas.height();
canvas.attr("width", width);
canvas.attr("height", height);
var opts = {
seed: {
x: width / 2 - 20,
color: "rgb(190, 26, 37)",
scale: 2
},
branch: [
[
535,
680,
570,
250,
500,
200,
30,
100,
[
[
540,
500,
455,
417,
340,
400,
13,
100,
[[450, 435, 434, 430, 394, 395, 2, 40]]
],
[
550,
445,
600,
356,
680,
345,
12,
100,
[[578, 400, 648, 409, 661, 426, 3, 80]]
],
[539, 281, 537, 248, 534, 217, 3, 40],
[
546,
397,
413,
247,
328,
244,
9,
80,
[
[427, 286, 383, 253, 371, 205, 2, 40],
[498, 345, 435, 315, 395, 330, 4, 60]
]
],
[
546,
357,
608,
252,
678,
221,
6,
100,
[[590, 293, 646, 277, 648, 271, 2, 80]]
]
]
]
],
bloom: {
num: 700,
width: 1080,
height: 650
},
footer: {
width: 1200,
height: 5,
speed: 10
}
};
var tree = new Tree(canvas[0], width, height, opts);
var seed = tree.seed;
var foot = tree.footer;
var hold = 1;
canvas
.click(function (e) {
var offset = canvas.offset(),
x,
y;
x = e.pageX - offset.left;
y = e.pageY - offset.top;
if (seed.hover(x, y)) {
hold = 0;
canvas.unbind("click");
canvas.unbind("mousemove");
canvas.removeClass("hand");
}
})
.mousemove(function (e) {
var offset = canvas.offset(),
x,
y;
x = e.pageX - offset.left;
y = e.pageY - offset.top;
canvas.toggleClass("hand", seed.hover(x, y));
});
var seedAnimate = eval(
Jscex.compile("async", function () {
seed.draw();
while (hold) {
$await(Jscex.Async.sleep(10));
}
while (seed.canScale()) {
seed.scale(0.95);
$await(Jscex.Async.sleep(10));
}
while (seed.canMove()) {
seed.move(0, 2);
foot.draw();
$await(Jscex.Async.sleep(10));
}
})
);
var growAnimate = eval(
Jscex.compile("async", function () {
do {
tree.grow();
$await(Jscex.Async.sleep(10));
} while (tree.canGrow());
})
);
var flowAnimate = eval(
Jscex.compile("async", function () {
do {
tree.flower(2);
$await(Jscex.Async.sleep(10));
} while (tree.canFlower());
})
);
var moveAnimate = eval(
Jscex.compile("async", function () {
tree.snapshot("p1", 240, 0, 610, 680);
canvas
.parent()
.css("background", "url(" + tree.toDataURL("image/png") + ")");
canvas.css("background", "#fafafa");
$await(Jscex.Async.sleep(300));
canvas.css("background", "none");
})
);
var jumpAnimate = eval(
Jscex.compile("async", function () {
var ctx = tree.ctx;
while (true) {
tree.ctx.clearRect(0, 0, width, height);
tree.jump();
foot.draw();
$await(Jscex.Async.sleep(25));
}
})
);
var textAnimate = eval(
Jscex.compile("async", function () {
var together = new Date();
together.setFullYear(2010, 1, 15); //时间年月日
together.setHours(16); //小时
together.setMinutes(53); //分钟
together.setSeconds(0); //秒前一位
together.setMilliseconds(2); //秒第二位
$("#code").show().typewriter();
$("#clock-box").fadeIn(500);
while (true) {
timeElapse(together);
$await(Jscex.Async.sleep(1000));
}
})
);
var runAsync = eval(
Jscex.compile("async", function () {
$await(seedAnimate());
$await(growAnimate());
$await(flowAnimate());
$await(moveAnimate());
$await(jumpAnimate());
})
);
runAsync().start();
})();
</script>
</body>
</html>玫瑰表白代码
效果
代码
<!DOCTYPE html>
<html>
<head>
<title>玫瑰</title>
<meta charset="utf-8">
</head>
<body>
<p style="text-align: center;">
<canvas id="c" height="500" width="500"></canvas>
<script>
var b = document.body;
var c = document.getElementsByTagName('canvas')[0];
var a = c.getContext('2d');
document.body.clientWidth;
</script>
<script>
// start of submission //
with(m=Math)C=cos,S=sin,P=pow,R=random;c.width=c.height=f=500;h=-250;function p(a,b,c){if(c>60)return[S(a*7)*(13+5/(.2+P(b*4,4)))-S(b)*50,b*f+50,625+C(a*7)*(13+5/(.2+P(b*4,4)))+b*400,a*1-b/2,a];A=a*2-1;B=b*2-1;if(A*A+B*B<1){if(c>37){n=(j=c&1)?6:4;o=.5/(a+.01)+C(b*125)*3-a*300;w=b*h;return[o*C(n)+w*S(n)+j*610-390,o*S(n)-w*C(n)+550-j*350,1180+C(B+A)*99-j*300,.4-a*.1+P(1-B*B,-h*6)*.15-a*b*.4+C(a+b)/5+P(C((o*(a+1)+(B>0?w:-w))/25),30)*.1*(1-B*B),o/1e3+.7-o*w*3e-6]}if(c>32){c=c*1.16-.15;o=a*45-20;w=b*b*h;z=o*S(c)+w*C(c)+620;return[o*C(c)-w*S(c),28+C(B*.5)*99-b*b*b*60-z/2-h,z,(b*b*.3+P((1-(A*A)),7)*.15+.3)*b,b*.7]}o=A*(2-b)*(80-c*2);w=99-C(A)*120-C(b)*(-h-c*4.9)+C(P(1-b,7))*50+c*2;z=o*S(c)+w*C(c)+700;return[o*C(c)-w*S(c),B*99-C(P(b, 7))*50-c/3-z/1.35+450,z,(1-b/1.2)*.9+a*.1, P((1-b),20)/4+.05]}}setInterval('for(i=0;i<1e4;i++)if(s=p(R(),R(),i%46/.74)){z=s[2];x=~~(s[0]*f/z-h);y=~~(s[1]*f/z-h);if(!m[q=y*f+x]|m[q]>z)m[q]=z,a.fillStyle="rgb("+~(s[3]*h)+","+~(s[4]*h)+","+~(s[3]*s[3]*-80)+")",a.fillRect(x,y,1,1)}',0)
// end of submission //
</script><br>
</p>
</body>

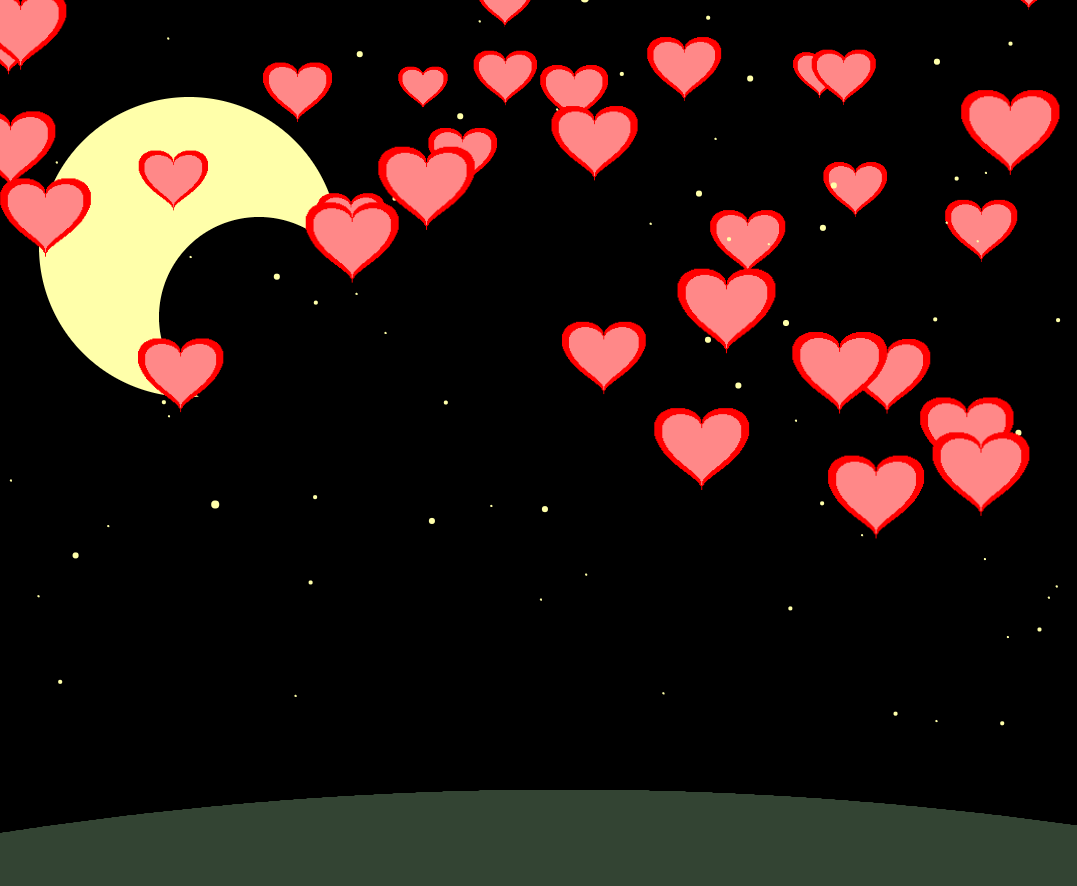

</html>爱心雨代码
效果
代码
<html>
<canvas></canvas>
<script>
var c = document.getElementsByTagName('canvas')[0];
var b = document.body;
var a = c.getContext('2d');
function d(b, c, d, e) {
a.fillStyle = b;
a.beginPath();
a.arc(c, d, e, 0, 2 * m.PI, !0);
a.fill();
a.fillRect(c, d, 1, 1)
}
m = Math;
r = m.random;
g = Date;
l = +(new g);
e = document;
q = e.createElement("canvas");
w = e.createElement("canvas");
o = {};
h = 100;
H = 200;
v = window;
t = c.width = v.innerWidth;
u = c.height = v.innerHeight - 5;
b.setAttribute("style", "margin:0;background:#000");
k = a;
q.width = q.height = h;
w.width = 1e3;
w.height = H;
for (j = 0; ++j < H; ) {
for (i = 0; 1e3 > ++i; )
a = q.getContext("2d"),
z = .5 - i / h,
f = j / h - .5 + .4 * m.sqrt(m.abs(z)),
f = z * z + 2 * f * f,
.23 > f && d(.16 < f ? "#F00" : "#F88", i, j, 0),
a = w.getContext("2d"),
d(j > 5e-4 * i * i - .3 * i + h ? "#343" : j > 4e-4 * i * i - .9 * i + 500 ? "#232" : "#000", i, j, 0);
o[j] = {
x: r() * t,
y: -h - r() * u,
b: 51 - j / 4,
a: 25 + .4 * j
};
o[H + j] = {
x: r() * t,
y: r() * u - H,
a: 3 * r() + 1,
c: j
}
}
a = k;
v.setInterval(function() {
n = +(new g);
a.clearRect(0, 0, t, u);
d("#FFA", H, 250, 150);
d("#000", 270, 320, h);
a.drawImage(w, 0, u - H, t, H);
for (i = 0; ++i < H; )
f = (n - l) / h,
s = o[H + i],
d("#FFA", s.x, s.y, m.floor(m.max(s.a + m.sin(s.c++ / 10) - .5, 1))),
z = o[i],
a.drawImage(q, z.x += -.1 / (z.b / h) * f, z.y += (5 - z.b / 10) * f, z.a, z.a),
z.y > u && (z.y = -h),
z.x < -H && (z.x = t);
l = n
}, 60)
//L<3
</script>
</html>
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
