程序进入错误时调试，如hardfault

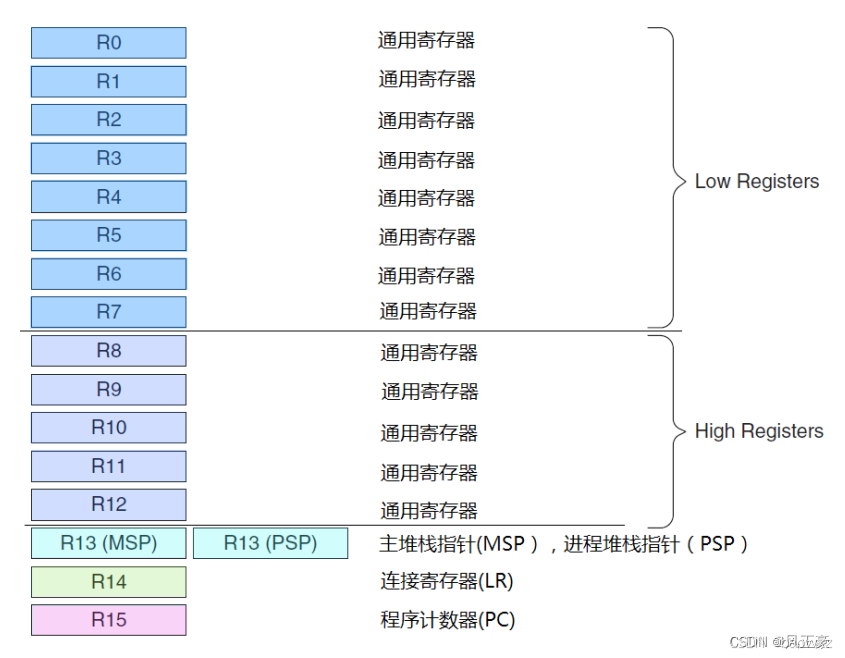

1、如果不是在仿真情况下，出现进入了死机程序，可以通过R0~R15大概判断下程序出问题的地方

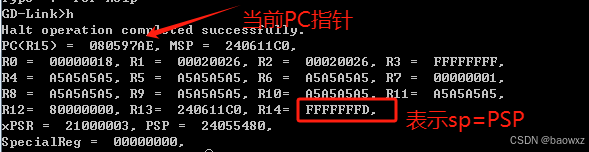

2、暂停程序，读取R0-R15如下：

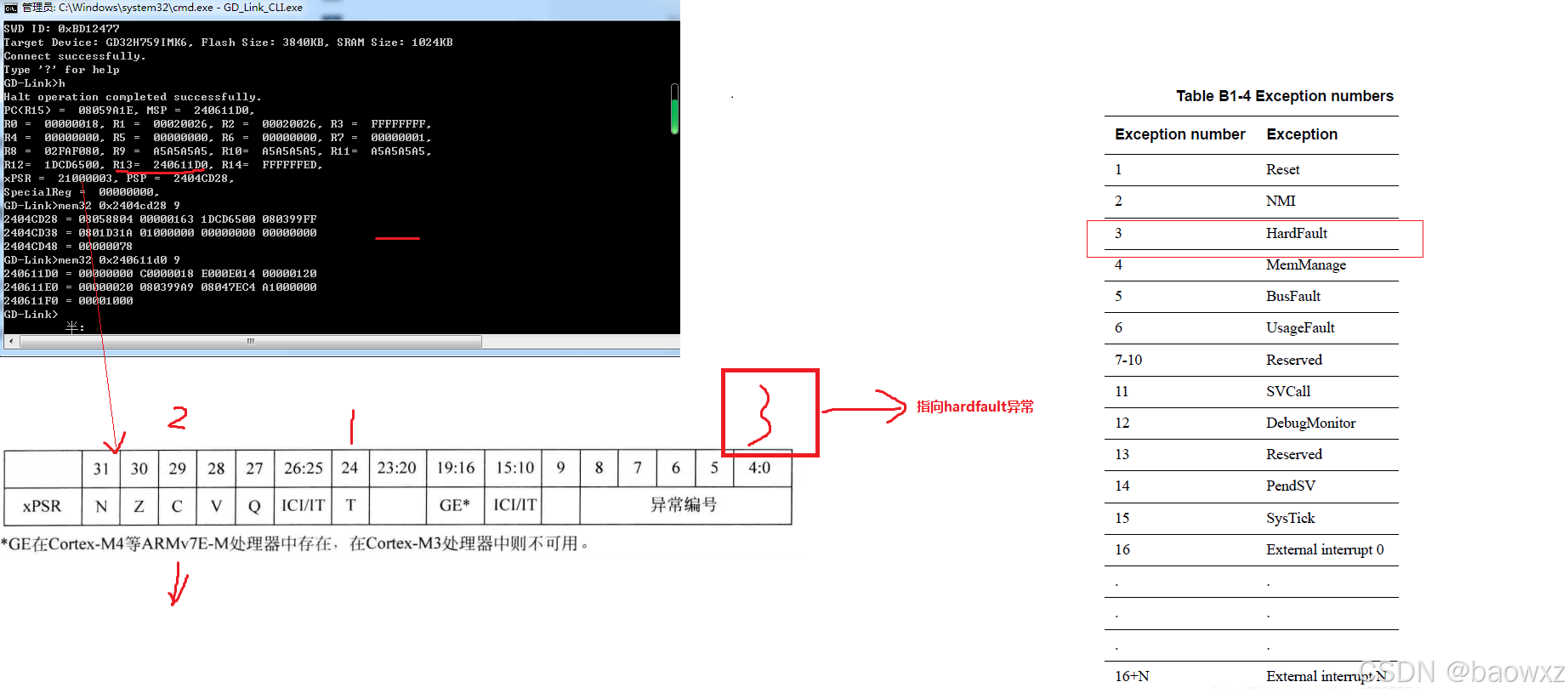

通过xPSR程序可以判定当前的异常服务是啥：

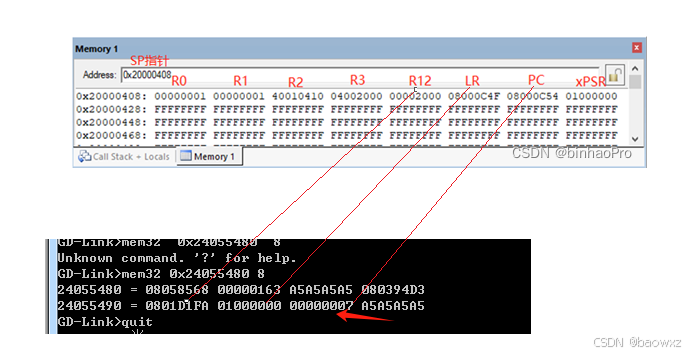

3、读出PSP地址值存储PC，LR值：这里存的是，进入异常前，压入堆栈的PC和link信息

从PC值看到值为00000007，基本是系统开始的地方啊，说明异常退出？

4、addline可以查询对应的目标函数

异常中断3：hardfault是对应上的

---------------------------------------------------------------------------------------------------------------------

实际的程序记录

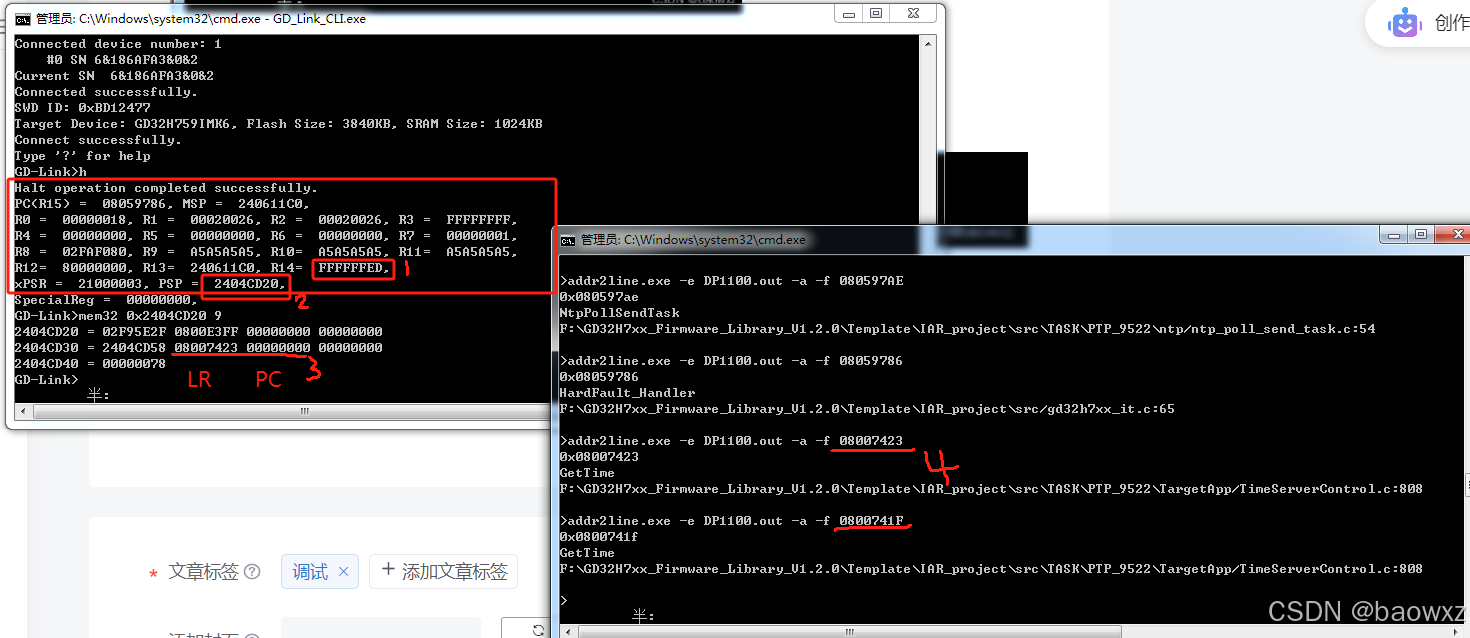

1、确定是SP是PSP指针

2、得到PSP地址

3、查看PSP的地址指向的内容，查出LR，PC的值

4、通过addr2line查询到LR PC的位置

        LR-4是出错前调用的位置，得到gettime，所以查看调用该函数的代码附近，查找前后错误；

        PC=0，说明他的PC指针要复位到0了，所以此时出错了，进而跳到了HardFault，说明退出程序了；

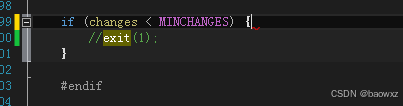

原来从错误在这里：给他屏蔽掉，加个调试信息

addr2line.exe：可以在这个里面找到

CmBacktrace-1.4.1\tools\addr2line\win64，CmBacktrace工具里面

iar下

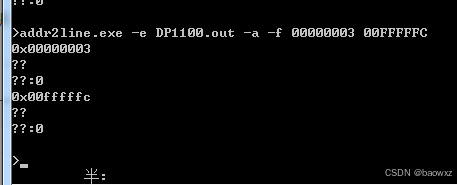

指令：addr2line.exe -e XXX.out -a -f 80130d7

附：

----------------------------------------我是分割线-------------------------------------------------------------------------

一、我们可以将LR和PC打印出来，添加到程序里

代码如下：IAR下，GD32H7的M7核的，重新定义HardFault_Handler中断函数，在此时打印LR和PC值，用了2种方式打印PC和LR

/* Exception frame without floating-point storage
* hard fault handler in C,
* with stack frame location as input parameter
*/
void
hard_fault_handler_c(unsigned int * hardfault_args)
{
    unsigned int stacked_r0;
    unsigned int stacked_r1;
    unsigned int stacked_r2;
    unsigned int stacked_r3;
    unsigned int stacked_r12;
    unsigned int stacked_lr;
    unsigned int stacked_pc;
    unsigned int stacked_psr;

     volatile uint32_t *fault_stack_addr;
    uint32_t pc, lr;

    // 获取当前堆栈指针（SP）
    __asm volatile("mrs %0, psp" : "=r"(fault_stack_addr));

    // 打印出PC和LR的值
    pc = *(fault_stack_addr + 6); // 6是因为堆栈结构，PC寄存器在堆栈上的偏移量
    lr = *(fault_stack_addr + 5); // LR寄存器偏移量为5


    //Exception stack frame
    stacked_r0 = ((unsigned long) hardfault_args[0]);
    stacked_r1 = ((unsigned long) hardfault_args[1]);
    stacked_r2 = ((unsigned long) hardfault_args[2]);
    stacked_r3 = ((unsigned long) hardfault_args[3]);

    stacked_r12 = ((unsigned long) hardfault_args[4]);
    stacked_lr = ((unsigned long) hardfault_args[5]);
    stacked_pc = ((unsigned long) hardfault_args[6]);
    stacked_psr = ((unsigned long) hardfault_args[7]);

    Str_PrintfISR ("[Hard fault handler]\n");
    Str_PrintfISR ("R0 = %x\n", stacked_r0);
    Str_PrintfISR ("R1 = %x\n", stacked_r1);
    Str_PrintfISR ("R2 = %x\n", stacked_r2);
    Str_PrintfISR ("R3 = %x\n", stacked_r3);
    Str_PrintfISR ("R12 = %x\n", stacked_r12);
    Str_PrintfISR ("LR = %x\n", stacked_lr);
    Str_PrintfISR ("PC = %x\n", stacked_pc);
    Str_PrintfISR ("PSR = %x\n", stacked_psr);
#ifndef CW
    Str_PrintfISR ("BFAR = %x\n", (*((volatile unsigned long *)(0xE000ED38))));
    Str_PrintfISR ("CFSR = %x\n", (*((volatile unsigned long *)(0xE000ED28))));
    Str_PrintfISR ("HFSR = %x\n", (*((volatile unsigned long *)(0xE000ED2C))));
    Str_PrintfISR ("DFSR = %x\n", (*((volatile unsigned long *)(0xE000ED30))));
    Str_PrintfISR ("AFSR = %x\n", (*((volatile unsigned long *)(0xE000ED3C))));
#else
    Str_PrintfISR ("BFAR = %x\n", (*((volatile unsigned int *)(0xE000ED38))));
    Str_PrintfISR ("CFSR = %x\n", (*((volatile unsigned int *)(0xE000ED28))));
    Str_PrintfISR ("HFSR = %x\n", (*((volatile unsigned int *)(0xE000ED2C))));
    Str_PrintfISR ("DFSR = %x\n", (*((volatile unsigned int *)(0xE000ED30))));
    Str_PrintfISR ("AFSR = %x\n", (*((volatile unsigned int *)(0xE000ED3C))));
#endif


    Str_PrintfISR("HardFault_Handler: PC = %08X, LR = %08X\n", pc, lr);


    for(;;)
    {}
}
/* The prototype shows it is a naked function - in effect this is just an
assembly function. */
void HardFault_Handler( void ) __attribute__( ( naked ) );

/*!
    \brief      this function handles HardFault exception
    \param[in]  none
    \param[out] none
    \retval     none
*/
void HardFault_Handler(void)        //0x805'9a1f ,错误在这里
{
  #if   1       //def CORTEX_M3_M4_M7
    __asm volatile(
        " tst lr, #4                        \n" /* Check EXC_RETURN[2] */
        " ite eq                            \n"
        " mrseq r0, msp                     \n"
        " mrsne r0, psp                     \n"
        "b hard_fault_handler_c             \n"
        : /* no output */
        : /* no input */
        : "r0" /* clobber */
    );
  #else
    __asm volatile(
        "movs r0, #4                        \n"
        "mov  r1, lr                        \n"
        "tst  r0, r1                        \n" /* Check EXC_RETURN[2] */
        "beq 1f                             \n"
        "mrs r0, psp                        \n"
        "ldr r1,=hard_fault_handler_c       \n"
        "bx r1                              \n"
        "1:mrs r0,msp                       \n"
        "ldr r1,=hard_fault_handler_c       \n"
        : /* no output */
        : /* no input */
        : "r0" /* clobber */
    );
  #endif
}

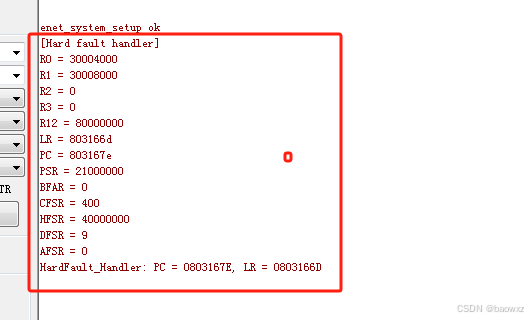

出错后，程序打印：

看到，是比较直观了
