图及其遍历

图的定义：
图（Graph）G由两个集合V和E组成，记为G=(V,E)，其中V是顶点的有穷非空集合，E是V中顶点偶对的有穷集合，这些顶点偶对称为边。V(G)和E(G)通常分别表示图G的顶点集合和边集合，E(G)可以为空集。若E(G)为空，则图G只有顶点而没有边。

代码：

typedef struct Graph{
	int** connections;
	int numNodes;
} *GraphPtr;

图的初始化

GraphPtr initGraph(int paraSize, int** paraData) {
	int i, j;
	GraphPtr resultPtr = (GraphPtr)malloc(sizeof(Graph));
	resultPtr -> numNodes = paraSize;
	//resultPtr -> connections = (int**)malloc(paraSize * paraSize * sizeof(int));
	resultPtr -> connections = (int**)malloc(paraSize * sizeof(int*));
	for (i = 0; i < paraSize; i ++) {
		resultPtr -> connections[i] = (int*)malloc(paraSize * sizeof(int));
		for (j = 0; j < paraSize; j ++) {
			resultPtr -> connections[i][j] = paraData[i][j];
		}//Of for j
	}//Of for i

	return resultPtr;
}//Of initGraph

图的遍历：从图的某个顶点出发，依次访问图中所有的顶点，每个顶点被访问一次且仅访问一次。防止多次访问某一个顶点的思路：设置辅助数组visitedPtr[n],用来标记每个被访问的顶点，初始化状态为visitedPtr[n]=0;如果顶点被访问到，则修改辅助数组的值 ：visitedPtr[i]=1

int* visitedPtr;

初始化

void initTranverse(GraphPtr paraGraphPtr) {
	int i;
	//Initialize data
	visitedPtr = (int*) malloc(paraGraphPtr -> numNodes * sizeof(int));

	for (i = 0; i < paraGraphPtr -> numNodes; i ++) {
		visitedPtr[i] = 0;
	}//Of for i
}//Of initTranverse

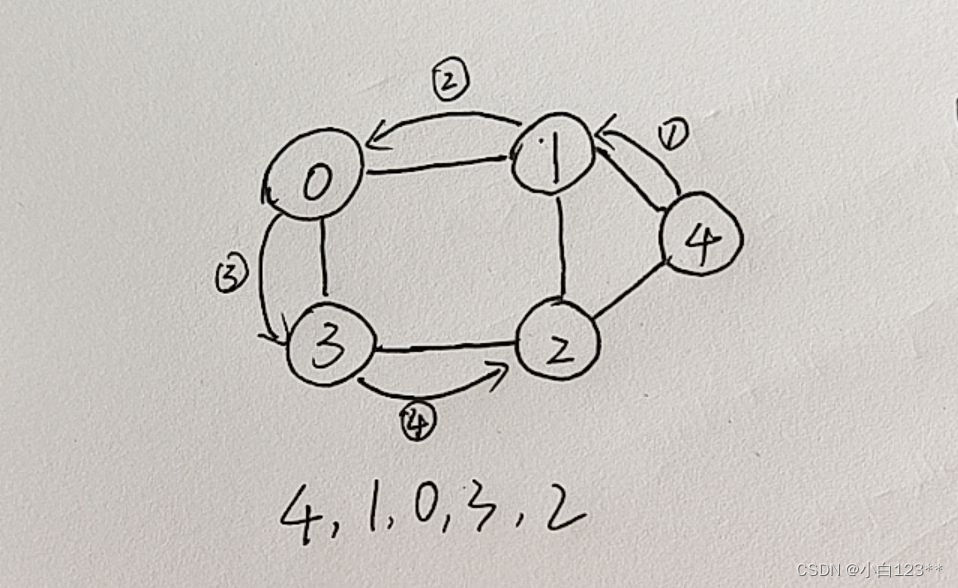

深度优先遍历：
（1）访问顶点V
（2）依次从顶点V的未被访问的邻节点出发，进行深度优先搜索，直至和V有路径相通的顶点都被访问到。
（3）对于连通图进行遍历时，从一个顶点出发即可访问图中所有的顶点。
（4）对于非连通图进行遍历时，若图中尚有顶点未被访问，则另选一未曾访问的顶点作为起始点，进行深度优先搜索，直至所有顶点都被访问

代码：

void depthFirstTranverse(GraphPtr paraGraphPtr, int paraNode) {
	int i;

	visitedPtr[paraNode] = 1;
	printf("%d\t", paraNode);

	for (i = 0; i < paraGraphPtr -> numNodes; i ++) {
		if (!visitedPtr[i]){
			if (paraGraphPtr -> connections[paraNode][i]) {
				depthFirstTranverse(paraGraphPtr, i);
			}//Of if
		}//Of if
	}//Of for i
}//Of depthFirstTranverse

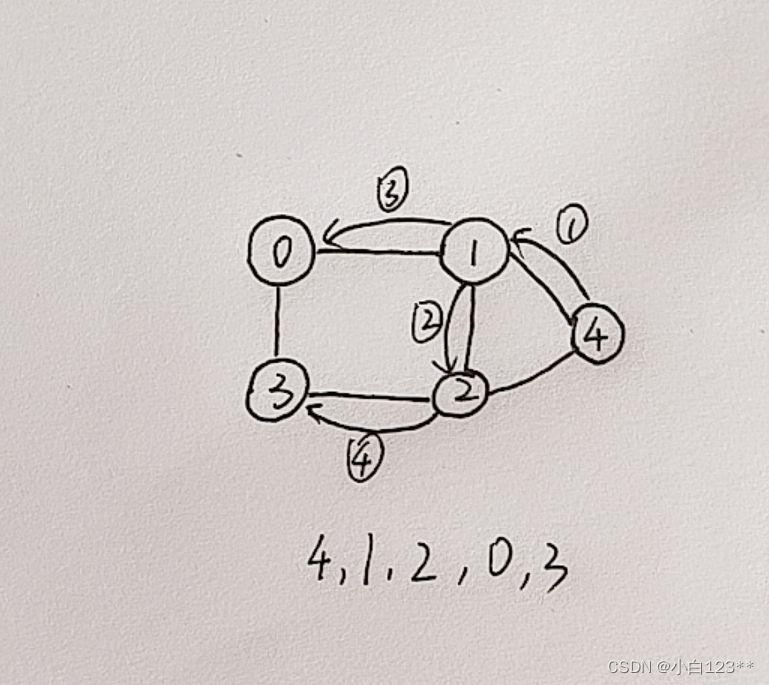

广度优先遍历：
（1）访问顶点V
（2）依次访问顶点V的各个未被访问的临接点（横向访问）
（3）从V的这些邻接点出发依次访问他们的邻接点，致使“先被访问的顶点的邻接点先于"后访问的顶点的邻接点"被访问，直至图中所有已被访问的顶点的邻接点均被访问。
（4）对于非连通图进行遍历时，若图中尚有顶点未被访问，则另选一未曾访问的顶点作为起始点，进行广度优先搜索，直至所有顶点都被访问

void widthFirstTranverse(GraphPtr paraGraphPtr, int paraStart){
	//Use a queue to manage the pointers
	int i, j, tempNode;
	i = 0;
	QueuePtr tempQueuePtr = initQueue();
	printf("%d\t", paraStart);
	visitedPtr[paraStart] = 1;
	enqueue(tempQueuePtr, paraStart);
	while (!isQueueEmpty(tempQueuePtr)) {
		tempNode = dequeue(tempQueuePtr);
		visitedPtr[tempNode] = 1;

		//For output.
		i ++;

		for (j = 0; j < paraGraphPtr->numNodes; j ++) {
			if (visitedPtr[j])
				continue;

			if (paraGraphPtr->connections[tempNode][j] == 0)
				continue;

			printf("%d\t", j);
			visitedPtr[j] = 1;
			enqueue(tempQueuePtr, j);
		}//Of  for j
	}//Of while
}//Of widthFirstTranverse

完整代码：

#include <stdio.h>
#include <malloc.h>

#define QUEUE_SIZE 10

int* visitedPtr;

/**
 * A queue with a number of indices.
 */
typedef struct GraphNodeQueue{
	int* nodes;
	int front;
	int rear;
}GraphNodeQueue, *QueuePtr;

/**
 * Initialize the queue.
 */
QueuePtr initQueue(){
	QueuePtr resultQueuePtr = (QueuePtr)malloc(sizeof(struct GraphNodeQueue));
	resultQueuePtr->nodes = (int*)malloc(QUEUE_SIZE * sizeof(int));
	resultQueuePtr->front = 0;
	resultQueuePtr->rear = 1;
	return resultQueuePtr;
}//Of initQueue

/**
 * Is the queue empty?
 */
bool isQueueEmpty(QueuePtr paraQueuePtr){
	if ((paraQueuePtr->front + 1) % QUEUE_SIZE == paraQueuePtr->rear) {
		return true;
	}//Of if

	return false;
}//Of isQueueEmpty

/**
 * Add a node to the queue.
 */
void enqueue(QueuePtr paraQueuePtr, int paraNode){
	//printf("front = %d, rear = %d.\r\n", paraQueuePtr->front, paraQueuePtr->rear);
	if ((paraQueuePtr->rear + 1) % QUEUE_SIZE == paraQueuePtr->front % QUEUE_SIZE) {
		printf("队满！%d不能入队！\n",paraNode);
		return;
	}//Of if
	paraQueuePtr->nodes[paraQueuePtr->rear] = paraNode;
	paraQueuePtr->rear = (paraQueuePtr->rear + 1) % QUEUE_SIZE;
	//printf("enqueue %d ends.\r\n", paraNode);
}//Of enqueue

/**
 * Remove an element from the queue and return.
 */
int dequeue(QueuePtr paraQueuePtr){
	if (isQueueEmpty(paraQueuePtr)){
		printf("队空！");
		return NULL;
	}//Of if

	paraQueuePtr->front = (paraQueuePtr->front + 1) % QUEUE_SIZE;

	//printf("dequeue %d ends.\r\n", paraQueuePtr->nodes[paraQueuePtr->front]);
	return paraQueuePtr->nodes[paraQueuePtr->front];
}//Of dequeue

/**
 * The structure of a graph.
 */
typedef struct Graph{
	int** connections;
	int numNodes;
} *GraphPtr;

//void deepFirst(GraphPtr paraGraphPtr, int paraNode);
GraphPtr initGraph(int paraSize, int** paraData) {
	int i, j;
	GraphPtr resultPtr = (GraphPtr)malloc(sizeof(Graph));
	resultPtr -> numNodes = paraSize;
	//resultPtr -> connections = (int**)malloc(paraSize * paraSize * sizeof(int));
	resultPtr -> connections = (int**)malloc(paraSize * sizeof(int*));
	for (i = 0; i < paraSize; i ++) {
		resultPtr -> connections[i] = (int*)malloc(paraSize * sizeof(int));
		for (j = 0; j < paraSize; j ++) {
			resultPtr -> connections[i][j] = paraData[i][j];
		}//Of for j
	}//Of for i

	return resultPtr;
}//Of initGraph

/**
 * Initialize the tranverse.
 */
void initTranverse(GraphPtr paraGraphPtr) {
	int i;
	//Initialize data
	visitedPtr = (int*) malloc(paraGraphPtr -> numNodes * sizeof(int));

	for (i = 0; i < paraGraphPtr -> numNodes; i ++) {
		visitedPtr[i] = 0;
	}//Of for i
}//Of initTranverse

/**
 * Depth first tranverse.
 */
void depthFirstTranverse(GraphPtr paraGraphPtr, int paraNode) {
	int i;

	visitedPtr[paraNode] = 1;
	printf("%d\t", paraNode);

	for (i = 0; i < paraGraphPtr -> numNodes; i ++) {
		if (!visitedPtr[i]){
			if (paraGraphPtr -> connections[paraNode][i]) {
				depthFirstTranverse(paraGraphPtr, i);
			}//Of if
		}//Of if
	}//Of for i
}//Of depthFirstTranverse

/**
 * Width first tranverse.
 */
void widthFirstTranverse(GraphPtr paraGraphPtr, int paraStart){
	//Use a queue to manage the pointers
	int i, j, tempNode;
	i = 0;
	QueuePtr tempQueuePtr = initQueue();
	printf("%d\t", paraStart);
	visitedPtr[paraStart] = 1;
	enqueue(tempQueuePtr, paraStart);
	while (!isQueueEmpty(tempQueuePtr)) {
		tempNode = dequeue(tempQueuePtr);
		visitedPtr[tempNode] = 1;

		//For output.
		i ++;

		for (j = 0; j < paraGraphPtr->numNodes; j ++) {
			if (visitedPtr[j])
				continue;

			if (paraGraphPtr->connections[tempNode][j] == 0)
				continue;

			printf("%d\t", j);
			visitedPtr[j] = 1;
			enqueue(tempQueuePtr, j);
		}//Of  for j
	}//Of while
}//Of widthFirstTranverse

void testGraphTranverse() {
	int i, j;

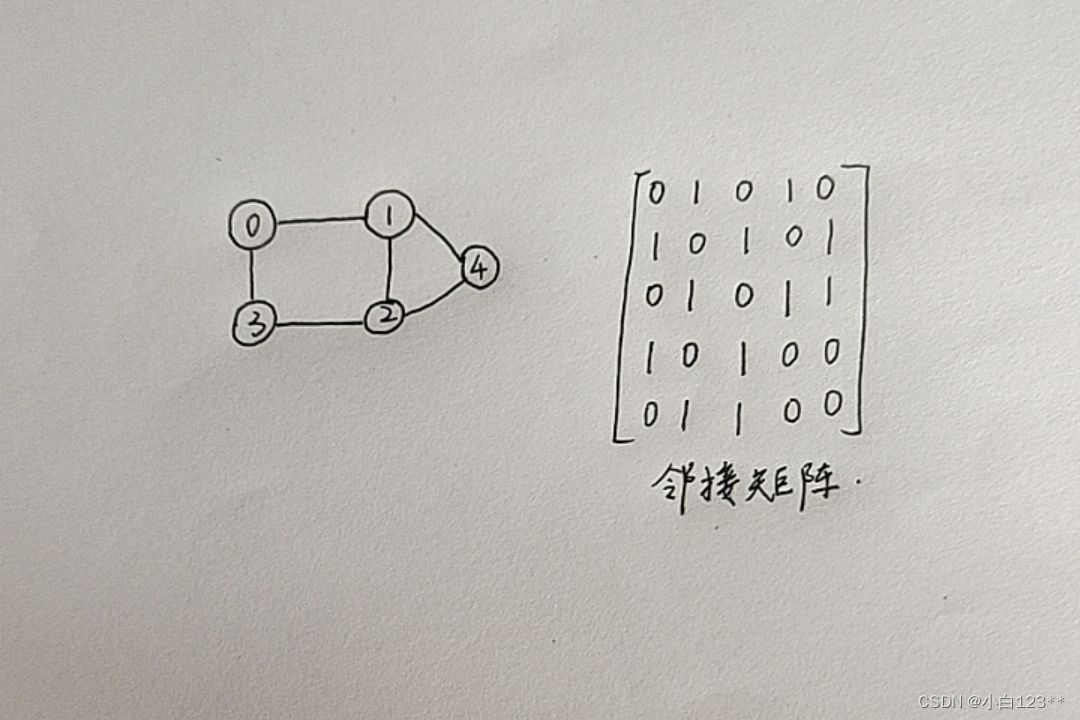

	int myGraph[5][5] = {
		{0, 1, 0, 1, 0},
		{1, 0, 1, 0, 1},
		{0, 1, 0, 1, 1},
		{1, 0, 1, 0, 0},
		{0, 1, 1, 0, 0}};
	int** tempPtr;
	printf("Preparing data\r\n");

	tempPtr = (int**)malloc(5 * sizeof(int*));
	for (i = 0; i < 5; i ++) {
		tempPtr[i] = (int*)malloc(5 * sizeof(int));
	}//Of for i

	for (i = 0; i < 5; i ++) {
		for (j = 0; j < 5; j ++) {
			//printf("i = %d, j = %d, ", i, j);
			//printf("%d\r\n", tempPtr[i][j]);
			tempPtr[i][j] = myGraph[i][j];
			//printf("i = %d, j = %d, %d\r\n", i, j, tempPtr[i][j]);
		}//Of for j
	}//Of for i

	printf("Data ready\r\n");

	GraphPtr tempGraphPtr = initGraph(5, tempPtr);
	printf("num nodes = %d \r\n", tempGraphPtr -> numNodes);
	printf("Graph initialized\r\n");

	printf("Depth first visit:\r\n");
	initTranverse(tempGraphPtr);
	depthFirstTranverse(tempGraphPtr, 4);

	printf("\r\nWidth first visit:\r\n");
	initTranverse(tempGraphPtr);
	widthFirstTranverse(tempGraphPtr, 4);
}//Of testGraphTranverse

int main(){
	testGraphTranverse();
	return 1;
}//Of main
