Day21——邻接表

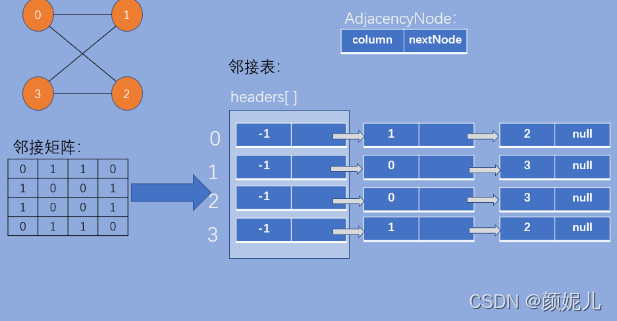

邻接表是图的另一种存储形式，这种方式比较适合稀疏图。

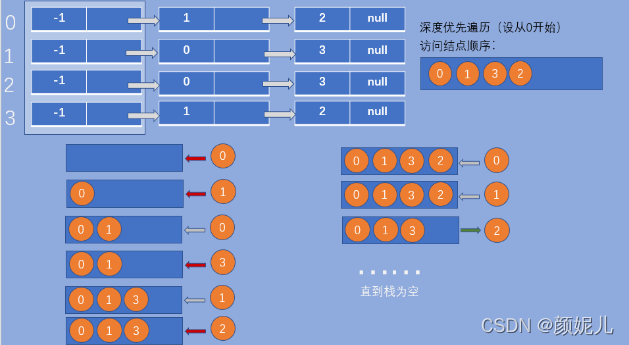

对于稍复杂的问题我喜欢画图来模拟数据的流向，这能够帮我们整理思维，今晚画深度优先遍历的时候，就找出了一个前两天的代码中的一个bug。

package day21;

import datastruct.CircleObjectQueue;
import datastruct.Graph;
import datastruct.ObjectStack;

public class AdjacencyList {

	/**
	 * An inner class for adjacent node.
	 *
	 */
	class AdjacencyNode {

		/**
		 * The column index.
		 */
		int column;

		/**
		 * The next adjacent node.
		 */
		AdjacencyNode next;

		public AdjacencyNode(int paraColumn) {
			column = paraColumn;
			next = null;
		}// Of AdjacencyNode
	}// Of class AdjacencyNode

	/**
	 * The number of nodes.This member variable may be redundant since it is always
	 * equal to headers.length.
	 */
	int numNodes;

	/**
	 * The headers for each row.
	 */
	AdjacencyNode[] headers;

	public AdjacencyList(int[][] paraMatrix) {
		numNodes = paraMatrix.length;

		// Step 1. Initialize the headers which are not meaningful.
		AdjacencyNode tempPreviousNode, tempNode;

		headers = new AdjacencyNode[numNodes];
		for (int i = 0; i < numNodes; i++) {
			headers[i] = new AdjacencyNode(-1);
			tempPreviousNode = headers[i];
			for (int j = 0; j < numNodes; j++) {
				if (paraMatrix[i][j] != 0) {
					// Create a new node.
					tempNode = new AdjacencyNode(j);

					// Link
					tempPreviousNode.next = tempNode;
					tempPreviousNode = tempNode;
				} // Of if
			} // Of for j
		} // Of for i
	}// Of AdjacencyList

	public String toString() {
		String resultString = "";

		AdjacencyNode tempNode;
		for (int i = 0; i < numNodes; i++) {
			tempNode = headers[i].next;

			while (tempNode != null) {
				resultString += " (" + i + ", " + tempNode.column + ")";
				tempNode = tempNode.next;
			} // Of while
			resultString += "\r\n";
		} // Of for i

		return resultString;
	}// Of toString

	boolean[] visited;

	/**
	 *
	 *********************
	 * @Title: initializeVisited
	 * @Description: TODO(Initialize the visited array.)
	 *
	 *********************
	 *
	 */
	public void initializeVisited() {
		visited = new boolean[numNodes];
		for (int i = 0; i < numNodes; i++)
			visited[i] = false;
	}// Of initializeVisited

	/**
	 *
	 *********************
	 * @Title: breadthFirstTraversal
	 * @Description: TODO(Bread first traversal.)
	 *
	 * @param paraIndex The start index.
	 * @return The sequence of the visit.
	 *********************
	 *
	 */
	public String breadthFirstTraversal(int paraIndex) {
		initializeVisited();
		String resultString = "";
		resultString = breadthFirstTraversal(paraIndex, resultString);

		for (int i = 0; i < numNodes; i++) {
			if (!visited[i]) {
				resultString = breadthFirstTraversal(i, resultString);
			} // Of if
		} // Of for i

		return resultString;
	}// Of breadthFirstTraversal

	/**
	 *
	 *********************
	 * @Title: breadthFirstTraversal
	 * @Description: TODO(Bread first traversal.)
	 *
	 * @param paraIndex  The start index.
	 * @param paraString The previous sequence of the visit.
	 * @return The result sequence of the visit.
	 *********************
	 *
	 */
	public String breadthFirstTraversal(int paraIndex, String paraString) {
		CircleObjectQueue tempQueue = new CircleObjectQueue();

		tempQueue.enqueue(new Integer(paraIndex));
		paraString += paraIndex + " ";
		visited[paraIndex] = true;

		while (!tempQueue.isEmpty()) {
			int tempIndex = ((Integer) tempQueue.dequeue()).intValue();
			AdjacencyNode tempNode = headers[tempIndex].next;
			while (tempNode != null) {
				if (!visited[tempNode.column]) {
					// Visit before enqueue.
					paraString += tempNode.column + " ";
					visited[tempNode.column] = true;
					tempQueue.enqueue(new Integer(tempNode.column));
				} // Of if
				tempNode = tempNode.next;
			} // Of while

		} // Of while

		return paraString;
	}// Of breadthFirstTraversal

	/**
	 *
	 *********************
	 * @Title: breadthFirstTraversalTest
	 * @Description: TODO(Unit test for breadthFirstTraversal. The same as the one
	 *               in class Graph.)
	 *
	 *********************
	 *
	 */
	public static void breadthFirstTraversalTest() {
		int[][] tempMatrix = { { 0, 1, 1, 0 }, { 1, 0, 0, 1 }, { 1, 0, 0, 1 }, { 0, 1, 1, 0 } };
		Graph tempGraph = new Graph(tempMatrix);
		System.out.println(tempGraph);

		String tempSequence1 = "";

		try {
			tempSequence1 = tempGraph.breadthFirstTraverse(2);
		} catch (Exception e) {
			// TODO: handle exception
			System.out.println(e);
		} // Of try

		System.out.println("The breadth first order of visit with martrix: " + tempSequence1 + "\r\n");

		AdjacencyList tempAdjlist = new AdjacencyList(tempMatrix);

		String tempSequence2 = "";
		try {
			tempSequence2 = tempAdjlist.breadthFirstTraversal(2);
		} catch (Exception e) {
			// TODO: handle exception
			System.out.println(e);
		} // Of try

		System.out.println("The breadth first order of visit with adjacency list: " + tempSequence2 + "\r\n");
	}// Of breadthFirstTraversalTest

	/**
	 *
	 *********************
	 * @Title: depthFirstTraversal
	 * @Description: TODO(Depth first traversal.)
	 *
	 * @param paraIndex The start index.
	 * @return The sequence of the visit.
	 *********************
	 *
	 */
	public String depthFirstTraversal(int paraIndex) {
		initializeVisited();
		String resultString = "";
		resultString = depthFirstTraversal(paraIndex, resultString);

		for (int i = 0; i < numNodes; i++) {
			if (!visited[i]) {
				resultString = depthFirstTraversal(i, resultString);
			} // Of if
		} // Of for i

		return resultString;
	}// Of depthFirstTraversal

	/**
	 *
	 *********************
	 * @Title: depthFirstTraversal
	 * @Description: TODO(Depth first traversal.)
	 *
	 * @param paraIndex  The start index.
	 * @param paraString The previous sequence of the visit.
	 * @return The result sequence of the visit.
	 *********************
	 *
	 */
	public String depthFirstTraversal(int paraIndex, String paraString) {
		ObjectStack tempStack = new ObjectStack();

		paraString += paraIndex + " ";
		visited[paraIndex] = true;
		tempStack.push(new Integer(paraIndex));

		AdjacencyNode tempNode = headers[paraIndex];
		boolean fromStack = false;
		int tempIndex = -1;

		while (tempNode != null) {
			tempNode = tempNode.next;
			while (tempNode != null) {
				if (!visited[tempNode.column]) {
					// Push again.
					if (fromStack) {
						tempStack.push(new Integer(tempIndex));
						fromStack = false;
					} // Of if
						// Visit before push.
					paraString += tempNode.column + " ";
					visited[tempNode.column] = true;
					tempStack.push(new Integer(tempNode.column));
					tempNode = headers[tempNode.column].next;
				} else {
					tempNode = tempNode.next;
				} // Of if
			} // Of while

			if (!tempStack.isEmpty()) {
				tempIndex = ((Integer) tempStack.pop()).intValue();
				tempNode = headers[tempIndex];
				fromStack = true;
			} // Of if

		} // Of while

		return paraString;
	}// Of depthFirstTraversal

	/**
	 *
	 *********************
	 * @Title: depthFirstTraversalTest
	 * @Description: TODO(Unit test for depthFirstTraversalTest. The same as the one
	 *               in class Graph.)
	 *
	 *********************
	 *
	 */
	public static void depthFirstTraversalTest() {
		// int[][] tempMatrix = { { 0, 1, 1, 0 }, { 1, 0, 0, 1 }, { 1, 0, 0, 1 }, { 0,
		// 1, 1, 0 } };
		int[][] tempMatrix = { { 0, 1, 0, 0, 0, 0, 0, 0, 0 }, { 1, 0, 1, 1, 1, 0, 0, 0, 0 },
				{ 0, 1, 0, 0, 0, 1, 1, 0, 0 }, { 0, 1, 0, 0, 0, 0, 0, 1, 0 }, { 0, 1, 0, 0, 0, 0, 0, 0, 1 },
				{ 0, 0, 1, 0, 0, 0, 0, 0, 0 }, { 0, 0, 1, 0, 0, 0, 0, 0, 0 }, { 0, 0, 0, 1, 0, 0, 0, 0, 0 },
				{ 0, 0, 0, 0, 1, 0, 0, 0, 0 } };
		Graph tempGraph = new Graph(tempMatrix);
		System.out.println(tempGraph);

		String tempSequence1 = "";

		try {
			tempSequence1 = tempGraph.depthFirstTraverse(0);
		} catch (Exception e) {
			// TODO: handle exception
			System.out.println(e);
		} // Of try

		System.out.println("The depth first order of visit with martrix: " + tempSequence1 + "\r\n");

		AdjacencyList tempAdjlist = new AdjacencyList(tempMatrix);

		String tempSequence2 = "";
		try {
			tempSequence2 = tempAdjlist.depthFirstTraversal(0);
		} catch (Exception e) {
			// TODO: handle exception
			System.out.println(e);
		} // Of try

		System.out.println("The depth first order of visit with adjacency list: " + tempSequence2 + "\r\n");
	}// Of depthFirstTraversalTest

	public static void main(String args[]) {

		// breadthFirstTraversalTest();
		depthFirstTraversalTest();
	}
}// Of class AdjacencyList

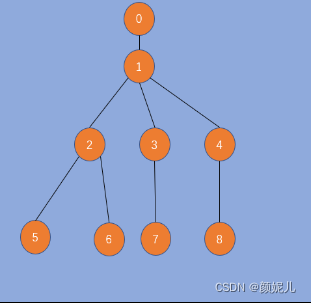

深度优先遍历测试用例图：

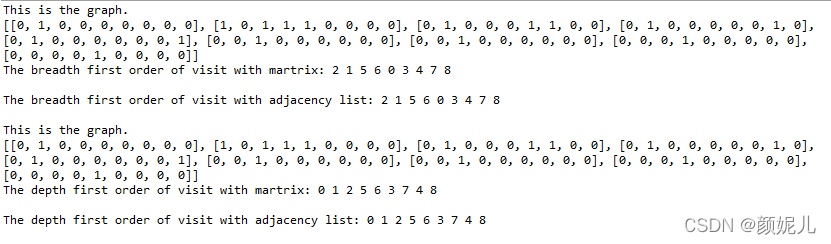

运行效果：
