3、matplotlib 子图

matplotlib.pyplot.subplot

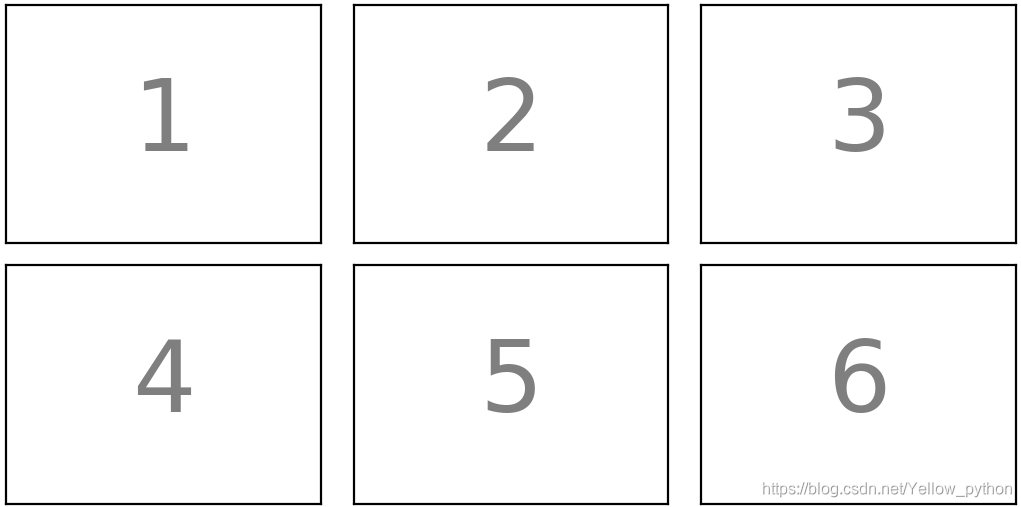

• subplot(行数, 列数, 第n个图)

import matplotlib.pyplot as mp

# mp.figure(facecolor='lightgray')
for i in range(6):
    mp.subplot(2, 3, i+1)
    mp.xticks(())  # x轴置空
    mp.yticks(())  # y轴置空
    # .text(x, y, s, fontdict=None, withdash=False, **kwargs)
    mp.text(.5, .5, str(i+1), ha='center', va='center', size=36, alpha=0.5)

mp.tight_layout()
mp.show()

matplotlib.pyplot.axes

• axes([左距, 下距, 宽, 高])

import matplotlib.pyplot as mp
mp.figure(facecolor='lightgray', figsize=(2, 2))

mp.axes([0.05, 0.05, 0.9, 0.9])
mp.xticks(())
mp.yticks(())
mp.text(0.5, 0.5, '1', ha='center', va='center', size=36, alpha=0.5)

mp.axes([0.1, 0.1, 0.3, 0.3])
mp.xticks(())
mp.yticks(())
mp.text(0.5, 0.5, '2', ha='center', va='center', size=36, alpha=0.5)

mp.show()

matplotlib.gridspec.GridSpec

• GridSpec(行数, 列数)

import matplotlib.pyplot as mp
import matplotlib.gridspec as mg
# 创建figure对象
mp.figure(facecolor='lightgray')
# 3行3列
gs = mg.GridSpec(3, 3)

for i in range(3):
    for j in range(3):
        # 传入参数
        mp.subplot(gs[i, j])
        mp.xticks(())
        mp.yticks(())
        mp.text(0.5, 0.5, str(i)+str(j), ha='center', va='center', size=36, alpha=0.5)
mp.tight_layout()
mp.show()

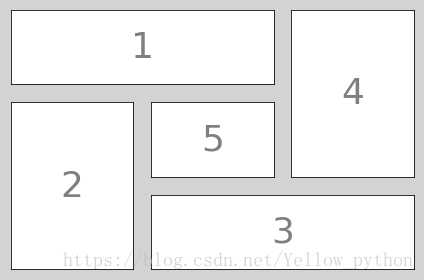

import matplotlib.pyplot as mp
import matplotlib.gridspec as mg
# 创建figure对象
mp.figure(facecolor='lightgray')
# 3行3列
gs = mg.GridSpec(3, 3)

# 子图1
mp.subplot(gs[0, :2])
mp.xticks(())
mp.yticks(())
mp.text(0.5, 0.5, '1', ha='center', va='center', size=36, alpha=0.5)
# 子图2
mp.subplot(gs[1:, 0])
mp.xticks(())
mp.yticks(())
mp.text(0.5, 0.5, '2', ha='center', va='center', size=36, alpha=0.5)
# 子图3
mp.subplot(gs[2, 1:])
mp.xticks(())
mp.yticks(())
mp.text(0.5, 0.5, '3', ha='center', va='center', size=36, alpha=0.5)
# 子图4
mp.subplot(gs[:2, 2])
mp.xticks(())
mp.yticks(())
mp.text(0.5, 0.5, '4', ha='center', va='center', size=36, alpha=0.5)
# 子图5
mp.subplot(gs[1, 1])
mp.xticks(())
mp.yticks(())
mp.text(0.5, 0.5, '5', ha='center', va='center', size=36, alpha=0.5)

# 防挤压
mp.tight_layout()
# 展示
mp.show()

Appendix

En	Cn
grid	网格
specify	vt. 指定；详细说明；
axes	n. 轴线
tick	n. 滴答声；记号；
figure	图形
