练习：BGP联邦和发射试验

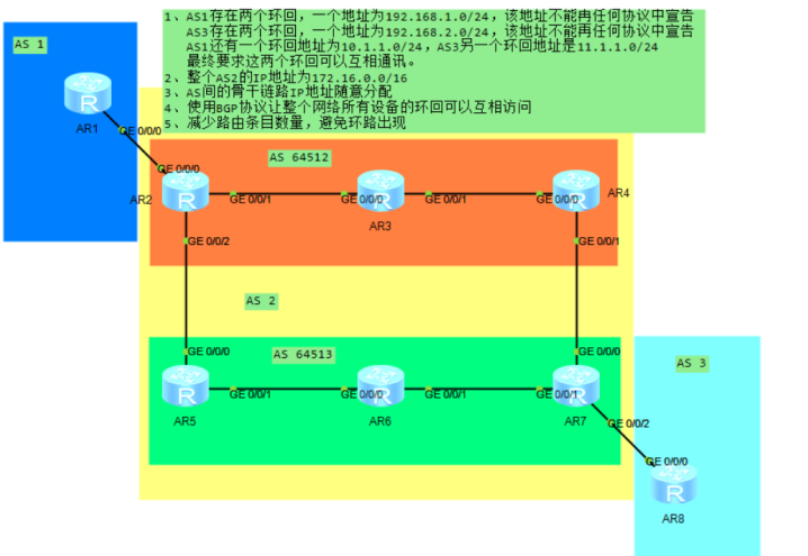

一.要求拓扑图

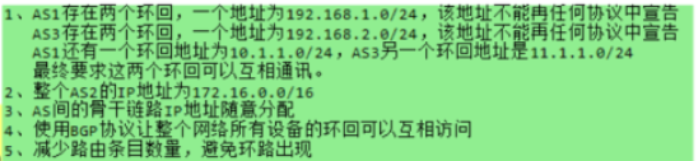

二.要求

三.需求分析

1.   AS1：环回`16.1.1.0/24`需宣告，`192.168.1.0/24`不宣告。
AS3：环回`11.1.1.0/24`需宣告，`192.168.2.0/24`不宣告。
AS2：使用`172.16.0.0/16`划分子网。

2. AS内部：AS1/AS3用OSPF/EIGRP，过滤未宣告环回；AS2用OSPF全网可达。
AS间：通过BGP互联（AS1-AS2-AS3），宣告`16.1.1.0/24`和`11.1.1.0/24`。

3. 路由汇总：BGP边界汇总路由，减少条目。
防环机制：BGP通过`AS_PATH`检测环路，IGP过滤未宣告网段。

4.  配置环回接口，仅宣告指定网段；AS间链路启用BGP，建立eBGP邻居并宣告合法路由；AS内启用IGP（如OSPF），通过前缀列表过滤敏感路由。

5.   测试`16.1.1.0/24`与`11.1.1.0/24`互通性；检查路由表中无未宣告的`192.168.x.0/24`网段；确认BGP表无重复AS_PATH。

四.配置

ar1

interface GigabitEthernet 0/0/0
 ip address 12.0.0.1 24

interface LoopBack0
 ip address 10.1.1.1 24

interface LoopBack1
 ip address 192.168.1.1 24

bgp 1
 router-id 1.1.1.1
 peer 12.0.0.2 as-number 2
 network 10.1.1.0 24

interface Tunnel 0/0/0
 ip address 18.1.1.1 24
 tunnel-protocol gre
 source 10.1.1.1
 destination 11.1.1.1

ip route-static 192.168.2.0 24 18.1.1.2

ar2

interface GigabitEthernet 0/0/0
 ip address 12.0.0.2 24

interface GigabitEthernet 0/0/1
 ip address 172.16.0.1 30

interface GigabitEthernet 0/0/2
 ip address 172.16.0.21 30

interface LoopBack0
 ip address 2.2.2.2 32

interface LoopBack1
 ip address 172.16.2.1 24

ospf 1 router-id 2.2.2.2
 area 0
  network 172.16.0.0 0.0.0.255
  network 2.2.2.2 0.0.0.0

bgp 64512
 router-id 2.2.2.2
 confederation id 2
 peer 12.0.0.1 as-number 1
 peer 3.3.3.3 as-number 64512
 peer 3.3.3.3 connect-interface LoopBack 0
 peer 3.3.3.3 next-hop-local
 peer 5.5.5.5 as-number 64513
 peer 5.5.5.5 connect-interface LoopBack 0
 peer 5.5.5.5 next-hop-local
 peer 5.5.5.5 ebgp-max-hop 255
 confederation peer-as 64513
 network 172.16.0.0 24
 network 172.16.0.0 16

ip route-static 172.16.0.0 16 NULL 0

ar3

interface GigabitEthernet 0/0/0
 ip address 172.16.0.2 30

interface GigabitEthernet 0/0/1
 ip address 172.16.0.5 30

interface LoopBack0
 ip address 3.3.3.3 32

interface LoopBack1
 ip address 172.16.3.1 24

ospf 1 router-id 3.3.3.3
 area 0
  network 172.16.0.0 0.0.0.255
  network 3.3.3.3 0.0.0.0

bgp 64512
 confederation id 2
 router-id 3.3.3.3
 peer 2.2.2.2 as-number 64512
 peer 2.2.2.2 connect-interface LoopBack 0
 peer 4.4.4.4 as-number 64512
 peer 4.4.4.4 connect-interface LoopBack 0
 peer 2.2.2.2 reflect-client
 peer 4.4.4.4 reflect-client

ar4

interface GigabitEthernet 0/0/0
 ip address 172.16.0.6 30

interface GigabitEthernet 0/0/1
 ip address 172.16.0.9 30

interface LoopBack0
 ip address 4.4.4.4 32

interface LoopBack1
 ip address 172.16.4.1 24

ospf 1 router-id 4.4.4.4
 area 0
  network 172.16.0.0 0.0.0.255
  network 4.4.4.4 0.0.0.0

bgp 64512
 confederation id 2
 router-id 4.4.4.4
 peer 3.3.3.3 as-number 64512
 peer 3.3.3.3 connect-interface LoopBack 0
 peer 3.3.3.3 next-hop-local
 confederation peer-as 64513
 peer 7.7.7.7 as-number 64513
 peer 7.7.7.7 connect-interface LoopBack 0
 peer 7.7.7.7 next-hop-local
 peer 7.7.7.7 ebgp-max-hop 255

ar5

interface GigabitEthernet 0/0/0
 ip address 172.16.0.22 30

interface GigabitEthernet 0/0/1
 ip address 172.16.0.17 30

interface LoopBack0
 ip address 5.5.5.5 32

interface LoopBack1
 ip address 172.16.5.1 24

ospf 1 router-id 5.5.5.5
 area 0
  network 172.16.0.0 0.0.0.255
  network 5.5.5.5 0.0.0.0

bgp 64513
 confederation id 2
 router-id 5.5.5.5
 peer 6.6.6.6 as-number 64513
 peer 6.6.6.6 connect-interface LoopBack 0
 peer 6.6.6.6 next-hop-local
 confederation peer-as 64512
 peer 2.2.2.2 as-number 64512
 peer 2.2.2.2 connect-interface LoopBack 0
 peer 2.2.2.2 next-hop-local
 peer 2.2.2.2 ebgp-max-hop 255

ar6

interface GigabitEthernet 0/0/0
 ip address 172.16.0.18 30

interface GigabitEthernet 0/0/1
 ip address 172.16.0.13 30

interface LoopBack0
 ip address 6.6.6.6 32

interface LoopBack1
 ip address 172.16.6.1 24

ospf 1 router-id 6.6.6.6
 area 0
  network 172.16.0.0 0.0.0.255
  network 6.6.6.6 0.0.0.0

bgp 64513
 confederation id 2
 router-id 6.6.6.6
 peer 5.5.5.5 as-number 64513
 peer 5.5.5.5 connect-interface LoopBack 0
 peer 7.7.7.7 as-number 64513
 peer 7.7.7.7 connect-interface LoopBack 0
 peer 5.5.5.5 reflect-client
 peer 7.7.7.7 reflect-client

ar7

interface GigabitEthernet 0/0/0
 ip address 172.16.0.14 30

interface GigabitEthernet 0/0/1
 ip address 172.16.0.10 30

interface GigabitEthernet 0/0/2
 ip address 78.0.0.7 24

interface LoopBack0
 ip address 7.7.7.7 32

interface LoopBack1
 ip address 172.16.7.1 24

ospf 1 router-id 7.7.7.7
 area 0
  network 172.16.0.0 0.0.0.255
  network 7.7.7.7 0.0.0.0

bgp 64513
 confederation id 2
 router-id 7.7.7.7
 peer 78.0.0.8 as-number 3
 peer 6.6.6.6 as-number 64513
 peer 6.6.6.6 connect-interface LoopBack 0
 peer 6.6.6.6 next-hop-local
 confederation peer-as 64512
 peer 4.4.4.4 as-number 64512
 peer 4.4.4.4 connect-interface LoopBack 0
 peer 4.4.4.4 next-hop-local
 peer 4.4.4.4 ebgp-max-hop 255
 network 172.16.0.0 24
 network 172.16.0.0 16

ip route-static 172.16.0.0 16 NULL 0

ar8

interface GigabitEthernet 0/0/0
 ip address 78.0.0.8 24

interface LoopBack0
 ip address 11.1.1.1 24

interface LoopBack1
 ip address 192.168.2.1 24

bgp 3
 router-id 8.8.8.8
 peer 78.0.0.7 as-number 2
 network 11.1.1.0 24

interface Tunnel 0/0/0
 ip address 18.1.1.2 24
 tunnel-protocol gre
 source 11.1.1.1
 destination 10.1.1.1

ip route-static 192.168.1.0 24 18.1.1.1

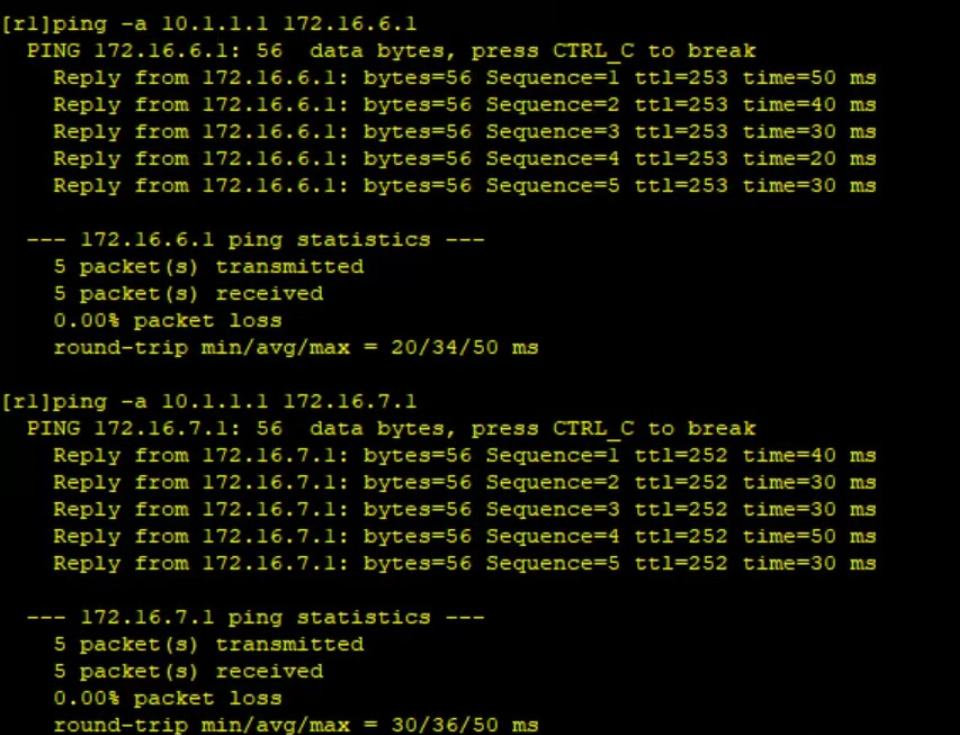

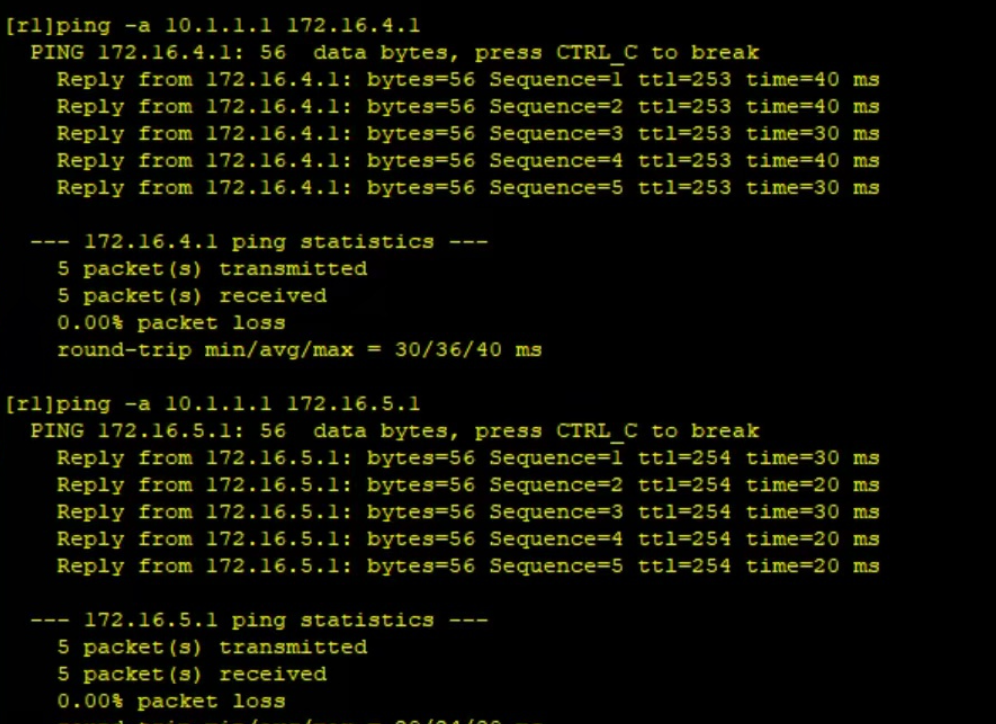

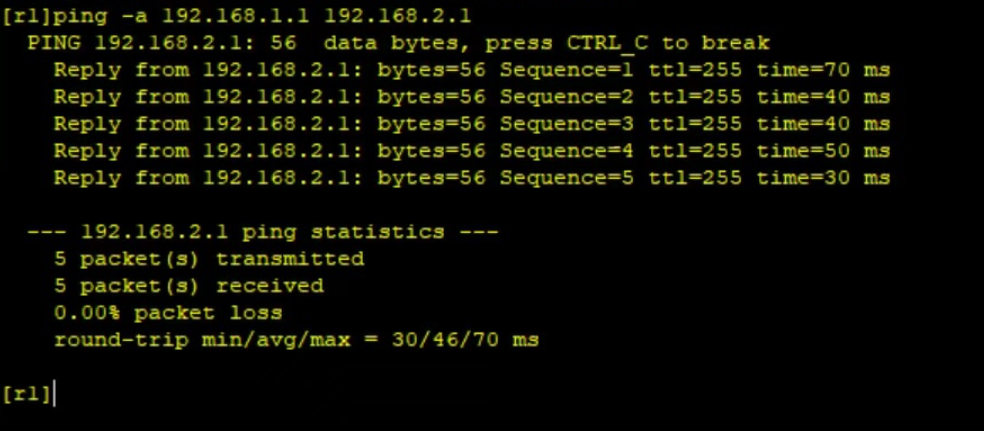

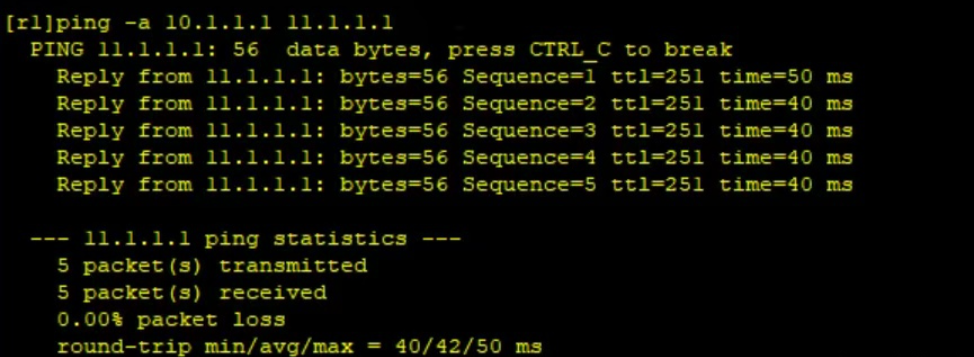

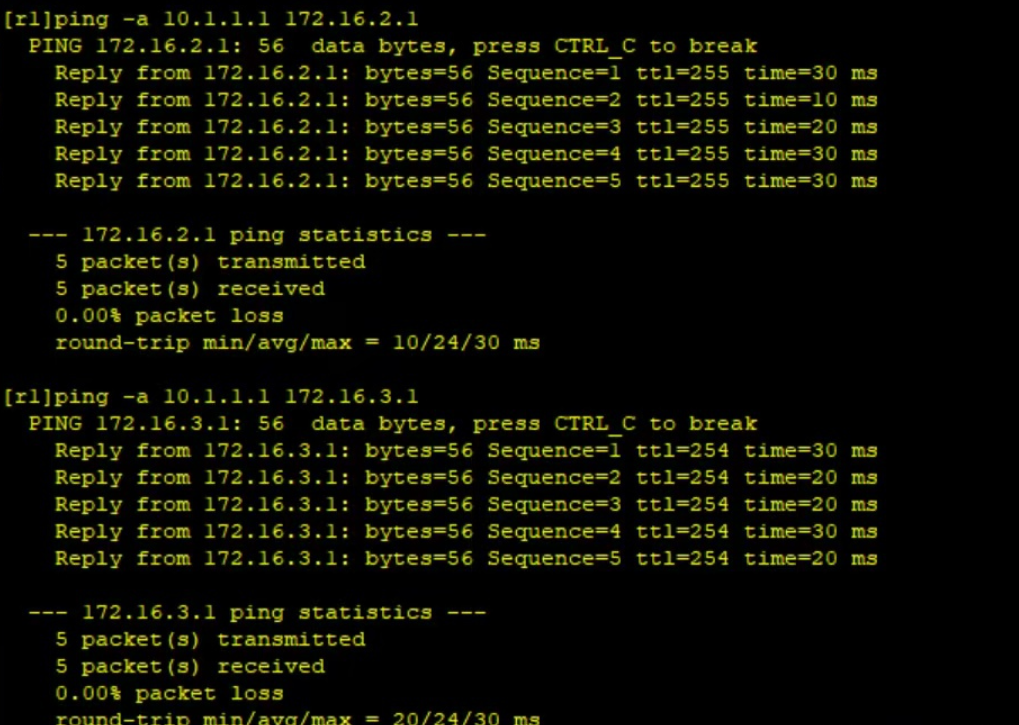

五.检验
