CheckBox

该博客展示了如何在Android应用程序中使用CheckBox和RadioButton组件。通过XML布局文件创建了一个允许用户选择多个城市的例子,并在Java代码中实现了监听器,当用户选中城市时显示Toast提示。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

CheckBox:复选框
RadioButton:单选按钮
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:orientation="vertical"
    tools:context=".MainActivity">


    <TextView
        android:id="@+id/textView"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="请选择你喜欢的城市:" />

    <CheckBox
        android:id="@+id/checkBox"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:checked="true"
        android:text="北京" />

    <CheckBox
        android:id="@+id/checkBox2"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="上海" />

    <CheckBox
        android:id="@+id/checkBox3"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="深圳" />

    <CheckBox
        android:id="@+id/checkBox4"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="珠海" />
</LinearLayout>
package com.example.myapplication;

import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.widget.CheckBox;
import android.widget.CompoundButton;
import android.widget.RadioGroup;
import android.widget.Toast;

public class MainActivity extends AppCompatActivity {
    private CheckBox ck1,ck2,ck3,ck4;
    private String str="您选择了";
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        ck1=(CheckBox)findViewById(R.id.checkBox);
        ck2=(CheckBox)findViewById(R.id.checkBox2);
        ck3=(CheckBox)findViewById(R.id.checkBox3);
        ck4=(CheckBox)findViewById(R.id.checkBox4);
        CompoundButton.OnCheckedChangeListener listener=new CompoundButton.OnCheckedChangeListener() {
            @Override
            public void onCheckedChanged(CompoundButton cb, boolean isChecked) {
                if(isChecked){
                    Toast.makeText(MainActivity.this,str+cb.getText().toString(),Toast.LENGTH_LONG).show();
                }
            }
        };
        ck1.setOnCheckedChangeListener(listener);
        ck2.setOnCheckedChangeListener(listener);
        ck3.setOnCheckedChangeListener(listener);
        ck4.setOnCheckedChangeListener(listener);
    }
}

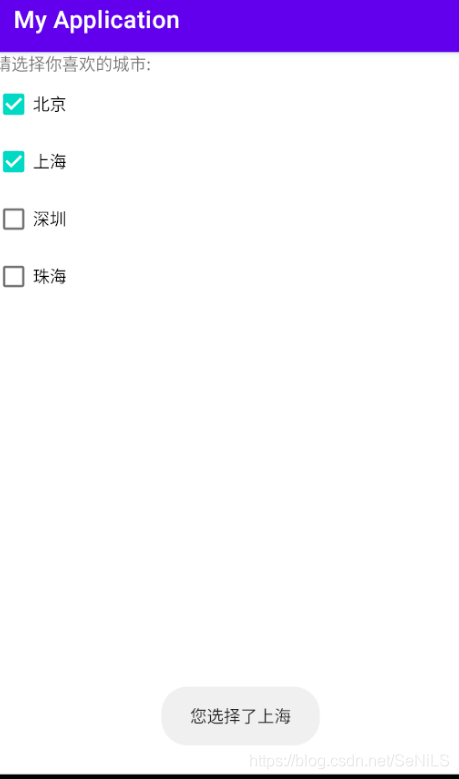

在这里插入图片描述

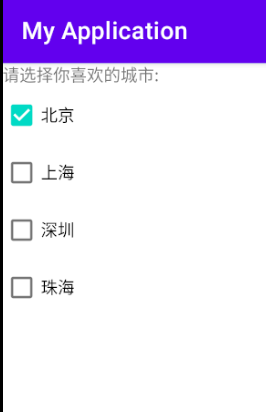

在这里插入图片描述

### CheckBox 控件概述 CheckBox 控件是一种常用的 UI 组件,广泛应用于各种编程框架中。它允许用户通过勾选或取消勾选来表达某种选择状态。以下是不同平台下的 CheckBox 控件使用方法及其示例。 --- #### WinForms 中的 CheckBox 使用方法 在 Windows Forms 开发环境中,可以通过 `CheckedChanged` 事件捕获用户的交互行为,并根据其状态执行相应操作。以下是一个完整的 C# 示例: ```csharp using System; using System.Windows.Forms; namespace CheckBoxExample { public partial class Form1 : Form { public Form1() { InitializeComponent(); } private void checkBox1_CheckedChanged(object sender, EventArgs e) { if (checkBox1.Checked) { MessageBox.Show("CheckBox 被选中了!"); } else { MessageBox.Show("CheckBox 被取消选中了!"); } } } } ``` 在此代码中,当用户改变 CheckBox 的状态时会触发 `CheckedChanged` 事件[^2]。如果 CheckBox 处于选中状态 (`Checked`),则弹出提示消息;反之亦然。 --- #### WPF 中的 CheckBox 使用方法 Windows Presentation Foundation (WPF) 提供了一种更灵活的方式定义 CheckBox 行为。除了基本的选择功能外,还支持三态模式(即不确定状态)。下面展示了一个绑定属性的例子: ```xml <Window x:Class="WpfApp.MainWindow" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" Title="MainWindow" Height="200" Width="400"> <StackPanel Margin="10"> <!-- 定义一个标准 CheckBox --> <CheckBox Name="chkStandard" Content="这是一个普通的 CheckBox"/> <!-- 支持三态的 CheckBox --> <CheckBox Name="chkTriState" IsThreeState="True" Content="这是具有三态特性的 CheckBox"/> <!-- 输出当前状态到 Label --> <Label Name="lblStatus" Content="{Binding ElementName=chkTriState, Path=IsChecked}" /> </StackPanel> </Window> ``` 在这个例子中,`IsThreeState=True` 启用了三态特性,而 `Content` 属性用于指定显示的文字内容[^3]。此外,还可以利用数据绑定技术动态更新其他控件的状态。 --- #### Android 中的 CheckBox 使用方法 对于移动应用开发而言,在 Android SDK 中也提供了类似的组件——CheckBox。开发者通常需要为其注册监听器以便响应变化动作。这里给出一段 Java 实现片段: ```java import android.os.Bundle; import android.widget.CheckBox; import androidx.appcompat.app.AppCompatActivity; public class MainActivity extends AppCompatActivity { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); final CheckBox checkBox = findViewById(R.id.checkBox); checkBox.setOnCheckedChangeListener((buttonView, isChecked) -> { String message = isChecked ? "已启用" : "已禁用"; // 可以在这里加入更多业务逻辑... }); } } ``` 上述代码展示了如何设置回调函数以及获取最新的开关情况[^4]。每当用户点击该按钮时都会调用匿名内部类里的重写方法完成进一步处理流程。 --- ### 总结 无论是在桌面应用程序还是移动端项目里,CheckBox 都扮演着不可或缺的角色之一。它们不仅能够单独存在作为独立选项呈现给最终使用者,而且还能组合起来形成复杂表单结构的一部分。以上分别介绍了几种主流环境下的实现细节,希望对你有所帮助!
