petalinux2022.1编译报设备树错误

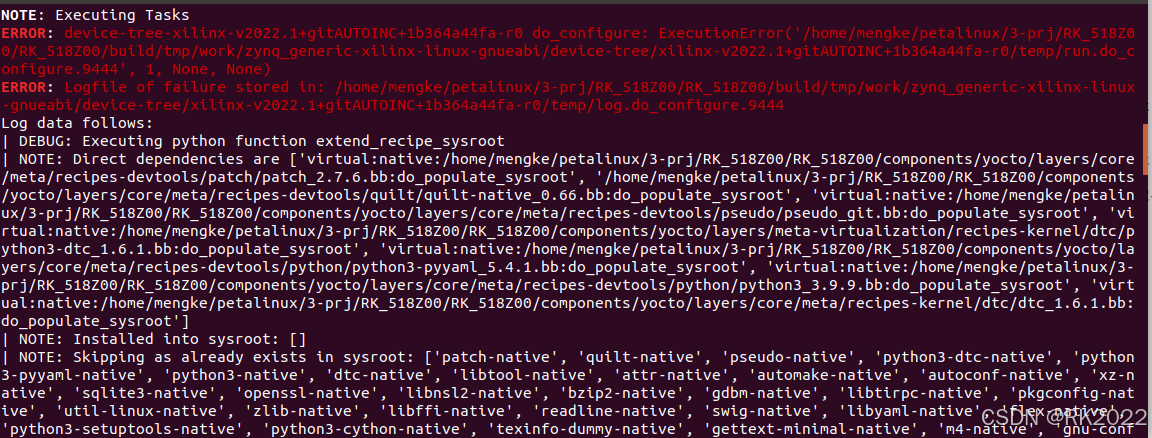

错误：ERROR: device-tree-xilinx-v2022.1+gitAUTOINC+1b364a44fa-r0 do_configure: ExecutionError('/home/mengke/petalinux/3-prj/RK_518Z00/RK_518Z00/build/tmp/work/zynq_generic-xilinx-linux-gnueabi/device-tree/xilinx-v2022.1+gitAUTOINC+1b364a44fa-r0/temp/run.do_configure.9444', 1, None, None)
ERROR: Logfile of failure stored in: /home/mengke/petalinux/3-prj/RK_518Z00/RK_518Z00/build/tmp/work/zynq_generic-xilinx-linux-gnueabi/device-tree/xilinx-v2022.1+gitAUTOINC+1b364a44fa-r0/temp/log.do_configure.9444

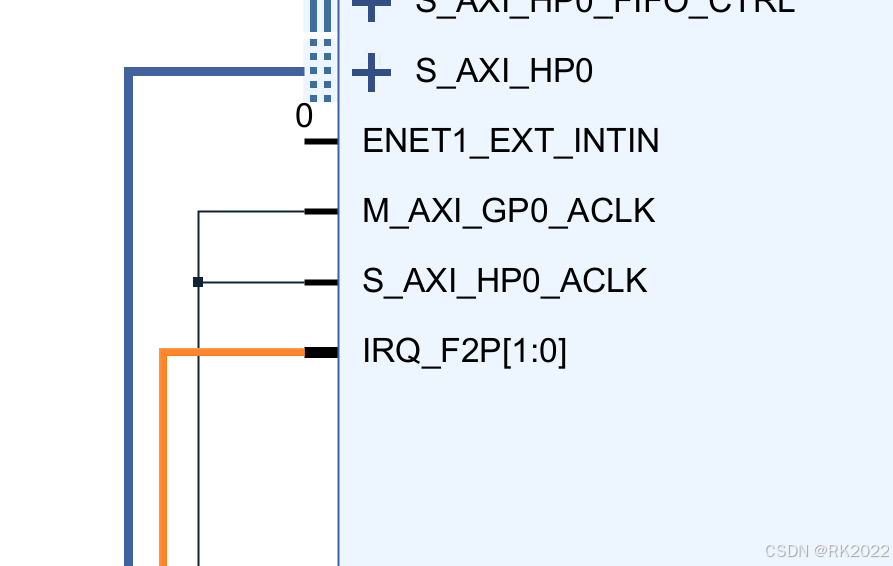

解决方法：仔细检查block design设计里是否有常量赋给zynq中断引脚IRQ_F2P，去掉后编译通过。
