多校联赛四之找边界 License Plate Recognition HDU - 6993

题目链接：https://acm.hdu.edu.cn/contests/contest_showproblem.php?pid=1009&cid=987
Little Rabbit is a college student who is studying Communication Engineering. In this term, he has a course called Digital Image Processing. At the end of the course, Little Rabbit needs to complete a project called License Plate Recognition, in which Little Rabbit should program a system to recognize the characters of a license plate in an image.

A classic License Plate Recognition system has three modules:
License Plate Localization: to localize the license plate in the image.

Character Segmentation: to segment the image so that the characters of the license plate can be separated.

Character Recognition: to recognize the characters in the image and get the result string.
To complete the project, Little Rabbit builds a team of three members. Each member is in charge of one module. Here, Little Rabbit is in charge of the second module — Character Segmentation.

After the License Plate Localization module and some preprocessing, Little Rabbit gets some binary images that represent the license plates. The binary images are all 100 pixels in width and 30 pixels in height, containing only black pixels and white pixels. The black pixels represent the background, and the white pixels represent the characters.

Little Rabbit’s task is to segment the binary images so that the characters in the images can be separated. According to the standard, there are seven characters in a license plate, lining up from left to right. Specifically, Little Rabbit’s task is to find the left boundary and the right boundary of each character.

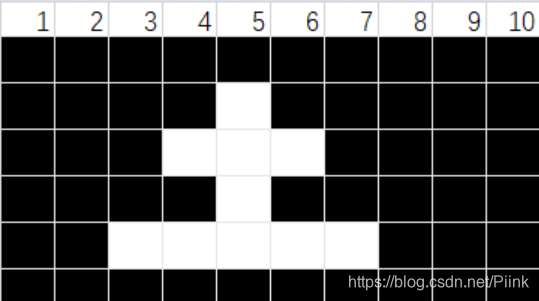

Let’s consider the images as matrices with 30 rows and 100 columns. Then number the columns 1 to 100 from left to right. We define the left boundary of a character as the index of the column where the leftmost pixel is located, and the right boundary as the index of the column where the rightmost pixel is located. For example, in the following picture, the left boundary of the character is 3, and the right boundary is 7.

Now given the binary images that Little Rabbit needs to segment, please output the left boundary and the right boundary of each character. In this problem, we use . to represent a black pixel, and # to represent a white pixel.
Input
The first line contains an integer T (1≤T≤50) — the number of test cases.

Each test case represents a binary image, which contains 30 lines of strings. Each line contains 100 characters, either . (a black pixel) or # (a white pixel).

Here are all the characters that may appear in the image.

Chinese characters:

ASCII version: https://paste.ubuntu.com/p/B5pTWv7s6J/
(Backup: https://github.com/cjj490168650/plate/blob/main/chn.txt)

English and numeric characters:

ASCII version: https://paste.ubuntu.com/p/59bjvwY3Yr/
(Backup: https://github.com/cjj490168650/plate/blob/main/eng.txt)

It is guaranteed that:
The characters in the image follow the standard of license plates. There are seven characters in the image, lining up from left to right. The first character is a Chinese character. The second character is an English character. The last five characters are English or numeric characters.

All characters in the image are identical to the characters given above (ASCII version), including the size and the shape.

There are no redundant white pixels in the image.

There is spacing between characters.

The characters won’t touch or get out of the image boundaries.
Output
For the x-th test case, output Case #x: in the first line.

Then in the next seven lines, the i-th line contains two integers separated by a space character, indicating the left boundary and the right boundary of the i-th character.
Sample Input

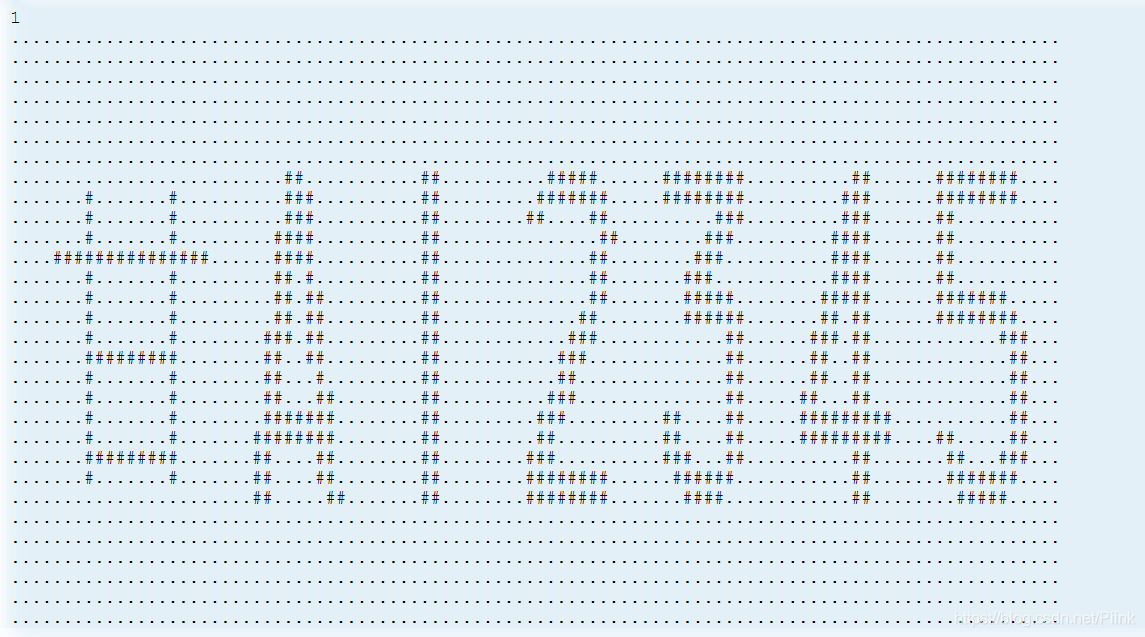

样例格式搞不定，图片如下

1
…
…
…
…
…
…
…
…##…##…#####…########…##…########…
…#…#…###…##…#######…########…###…########…
…#…#…###…##…##…##…###…###…##…
…#…#…####…##…##…###…####…##…
…###############…####…##…##…###…####…##…
…#…#…##.#…##…##…###…####…##…
…#…#…##.##…##…##…#####…#####…#######…
…#…#…##.##…##…##…######…##.##…########…
…#…#…###.##…##…###…##…###.##…###…
…#########…##…##…##…###…##…##…##…##…
…#…#…##…#…##…##…##…##…##…##…
…#…#…##…##…##…###…##…##…##…##…
…#…#…#######…##…###…##…##…#########…##…
…#…#…########…##…##…##…##…#########…##…##…
…#########…##…##…##…###…###…##…##…##…###…
…#…#…##…##…##…########…######…##…#######…
…##…##…##…########…####…##…#####…
…
…
…
…
…
…
Sample Output
Case #1:
5 19
24 32
40 41
50 58
63 70
76 84
89 97

题意

图中一个七个字符，找出每个字符的左右边界

思路

将有 # 的列记为 1，没有为0 ，然后寻找每个字符对应的左右边界即可。从右向左找出每个字符的左右边界，由于川，鄂字中间有间隔，所以对汉字的左边界再次查找，从左到右找到第一个字符，即为汉字的左边界

代码

#include<bits/stdc++.h>
using namespace std;
char a[40][110];
int s[110];
struct node
{
    int x,y;
}p[110];
int main()
{
    int t,k1=0;
    scanf("%d",&t);
    while(t--)
    {
        k1++;
        memset(s,0,sizeof(s));
        for(int i=0;i<30;i++)
            scanf("\n%s",a[i]);

        for(int i=0;i<100;i++)
        {
            for(int j=0;j<30;j++)
            {
                if(a[j][i]=='#')
                {
                    s[i]=1;
                    break;
                }
            }
        }
        int k=0;
        for(int i=99;i>0;i--)
        {
            if(s[i]==0&&s[i-1]==1)
                p[k++].y=i;
        }
        int l=0;
        for(int i=99;i>0;i--)
        {
            if(s[i]==1&&s[i-1]==0)
                p[l++].x=i+1;
        }
        for(int i=0;i<100;i++)
        {
            if(s[i]==1)
            {
                 p[6].x=i+1;
                 break;
            }
        }
        printf("Case #%d:\n",k1);
        for(int i=6;i>=0;i--)
            printf("%d %d\n",p[i].x,p[i].y);
    }
    return 0;
}
