maptalks添加指南针控件

maptalks添加指南针控件（新版本已经支持指南针控件，无需再单独开发）

参考文章 https://blog.youkuaiyun.com/lhjuejiang/article/details/126426437
与openlayers添加指南针控件不同的是,三维的指南针控件需要能满足地图交互的功能,不仅要在点击控件的时候联动地图,还要在操作地图(旋转)的时候联动控件.由于地图上bear的范围是[0, 180]和[0, -180],在旋转到右下角(六点钟)时,bear会从180变成-180或者从-180变成180,此时需要特殊处理指南针的旋转角度…

1. 指南针组件

<!--
 * @Author: CharlesLeocc 1015057518@qq.com
 * @Date: 2023-01-30 15:30:51
 * @LastEditors: CharlesLeocc 1015057518@qq.com
 * @LastEditTime: 2023-01-31 10:36:56
 * @FilePath: \examples\src\webapp\webgis\tools\mapCompass.vue
 * @Description: 这是默认设置,请设置`customMade`, 打开koroFileHeader查看配置 进行设置: https://github.com/OBKoro1/koro1FileHeader/wiki/%E9%85%8D%E7%BD%AE
-->
<template>
  <div class="compass">
    <button title="逆时针转动"
     class="leftRow"
     @click="leftRowClick"
    ></button>
    <button title="恢复正北方向"
      class="centerRow"
      @click="centerRowClick"
    ></button>
    <button title="顺时针转动"
      class="rightRow"
      @click="rightRowClick"
    ></button>
  </div>
</template>

<script lang="ts" setup>
import {
  computed,
} from 'vue';
import { MapNavStore } from '../store'
import { EventBus } from '@/tlw/core'
import { MAPTOOLS } from '../utils/EventNames'
//#region 变量定义
const rotateDeg =  computed(():string => MapNavStore.getRotateDeg + 'deg')
//#endregion 变量定义

//#region 生命周期
//#endregion 生命周期
//#region Function
const leftRowClick = () => {
  MapNavStore.setRotateDeg(-90 + MapNavStore.getRotateDeg)
  EventBus.$emit(MAPTOOLS.CHANGE_BEARING, -90)
}
const centerRowClick = () => {
  const rotateAngel = MapNavStore.getRotateDeg
  const index = rotateAngel % 360
  if(index !== 0){ // 复位
      let dis = 360 - Math.abs(index)
      let dis1 = Math.abs(index)
      dis = dis > dis1 ? dis1 : dis
      if(dis == 180) dis = -180
      MapNavStore.setRotateDeg((rotateAngel + dis)%360 == 0? rotateAngel + dis : rotateAngel - dis)
      EventBus.$emit(MAPTOOLS.CHANGE_BEARING, 0)
  }
}
const rightRowClick = () => {
  MapNavStore.setRotateDeg(90 + MapNavStore.getRotateDeg)
  EventBus.$emit(MAPTOOLS.CHANGE_BEARING, 90)
}
//#endregion Function
</script>

<style lang="less" scoped>
.compass{
  position: absolute;
  z-index: 5;
  bottom: 130px;
  right: 50px;
  width: 52px;
  height: 54px;
  background: url('../assets/images/earth-navi-control-pc4.png') 0% 0% / 266px no-repeat;
  .leftRow{
    position: absolute;
    outline: none;
    border: none;
    background: url('../assets/images/earth-navi-control-pc4.png') -75px -5px / 266px no-repeat;
    cursor: pointer;
    left: 4px;
    top: 0px;
    z-index: 1;
    width: 15px;
    height: 42px;
    opacity: 1;
    &:hover{
      background: url('../assets/images/earth-navi-control-pc4.png') -89px -5px / 266px no-repeat;
    }
  }
  .centerRow{
    position: absolute;
    outline: none;
    border: none;
    background: url('../assets/images/earth-navi-control-pc4.png') -56px -2px no-repeat;
    cursor: pointer;
    left: 19px;
    top: 2px;
    width: 14px;
    height: 44px;
    transition: all .3s ease-out;
    transform-origin: 7px 24px;
    transform: rotate(v-bind(rotateDeg));
    opacity: 1;
  }
  .rightRow{
    position: absolute;
    outline: none;
    border: none;
    background: url('../assets/images/earth-navi-control-pc4.png') -75px -5px / 266px no-repeat;
    cursor: pointer;
    right: 2px;
    top: 0px;
    z-index: 1;
    width: 15px;
    height: 42px;
    transform: scaleX(-1);
    opacity: 1;
    &:hover{
      background: url('../assets/images/earth-navi-control-pc4.png') -89px -5px / 266px no-repeat;
    }
  }
}
</style>

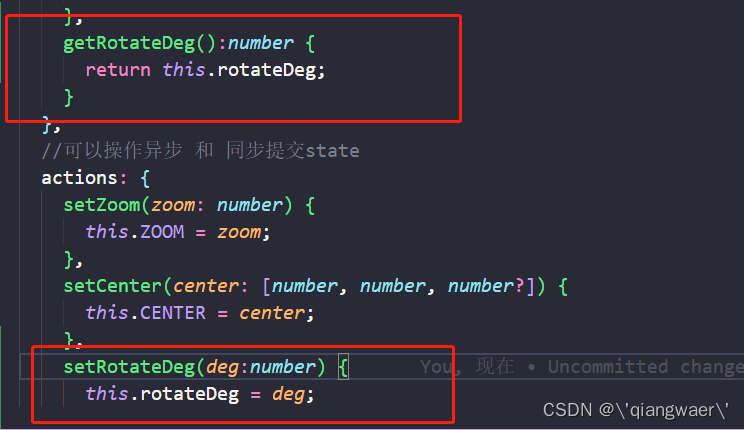

2. 使用pinia存储旋转角度,角度可以不用store存储,这个就随意发挥了
3. 地图响应旋转

EventBus.$on(MAPTOOLS.CHANGE_BEARING, (bearing) => {
  let bear = data.map.getBearing() + bearing
  if (bearing === 0) {
    bear = 0
  }
  data.map.animateTo({
    bearing: bear,
  },{
    duration : 2000,
    easing : 'out'
  })
})```

 4. 地图操作联动控件旋转


```javascript
tMap.on("dragrotatestart dragrotating dragrotateend", e => {
    const rotateAngel = MapNavStore.getRotateDeg
    if (e.type === 'dragrotatestart') {
      lastBear = data.map.getBearing()
      console.log(lastBear, 'lastBear');
    }else if(e.type === 'dragrotating'){
      const rotatingBear:number = data.map.getBearing()
      let deBear = null
        if (rotatingBear < 0 && lastBear > 0) { // 顺时针旋转,转过180°时,rotatingBear会变成负值
          deBear = lastBear + rotatingBear
        } else if (rotatingBear > 0 && lastBear < 0) { // 逆时针旋转,转过-180°时,rotatingBear会变成正值
          deBear = ~(rotatingBear + lastBear) // rotatingBear + lastBear 的值为正,因为是逆时针旋转,所以需要取反
        } else { // 其他情况(在0 - 180或0 - -180之间的情况)
          deBear = rotatingBear - lastBear
        }
        MapNavStore.setRotateDeg(rotateAngel + deBear)
      console.log(rotatingBear, 'rotatingBear');
      lastBear = rotatingBear
    }else if(e.type === 'dragrotateend') {
      const currentBear = data.map.getBearing()
      lastBear = currentBear
    }
  })

maptalks指南针控件
