一、简介

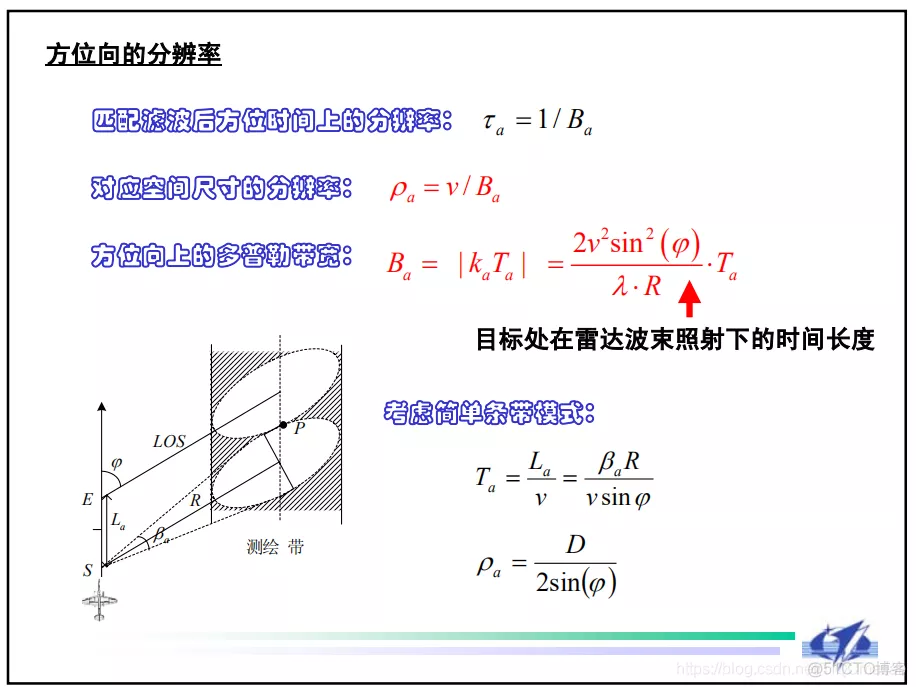

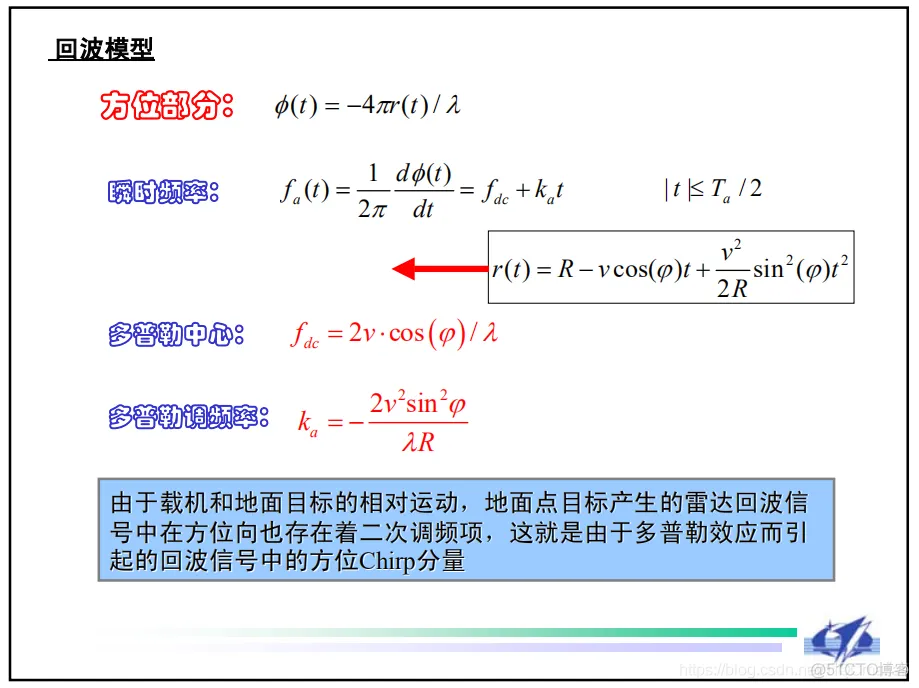

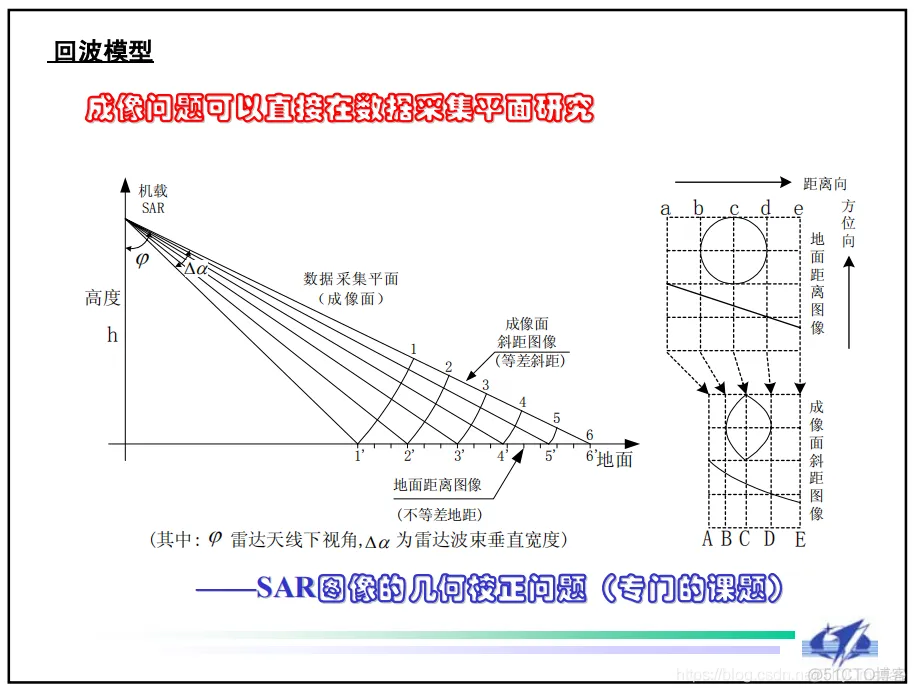

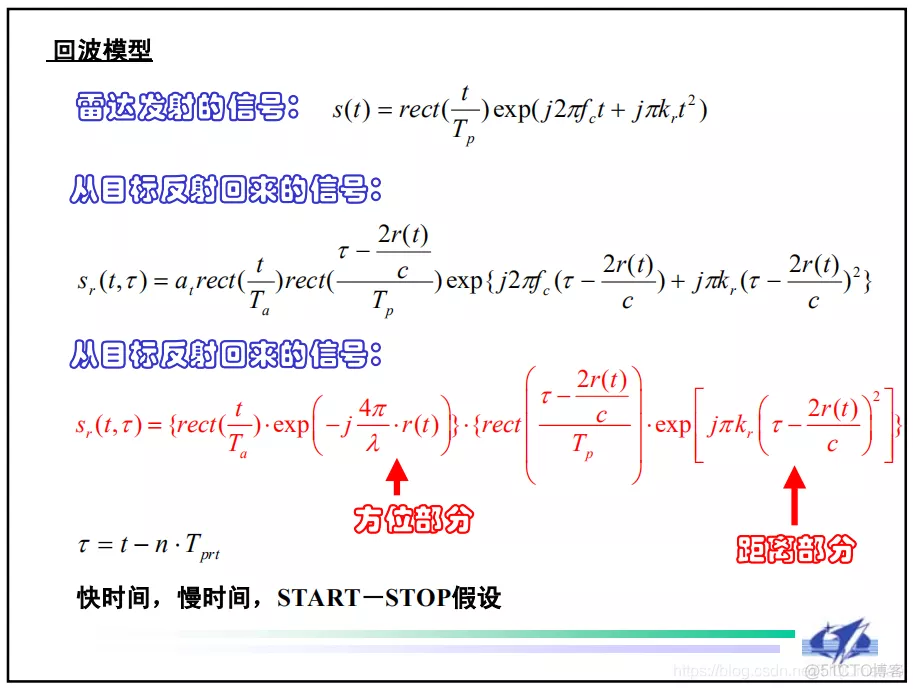

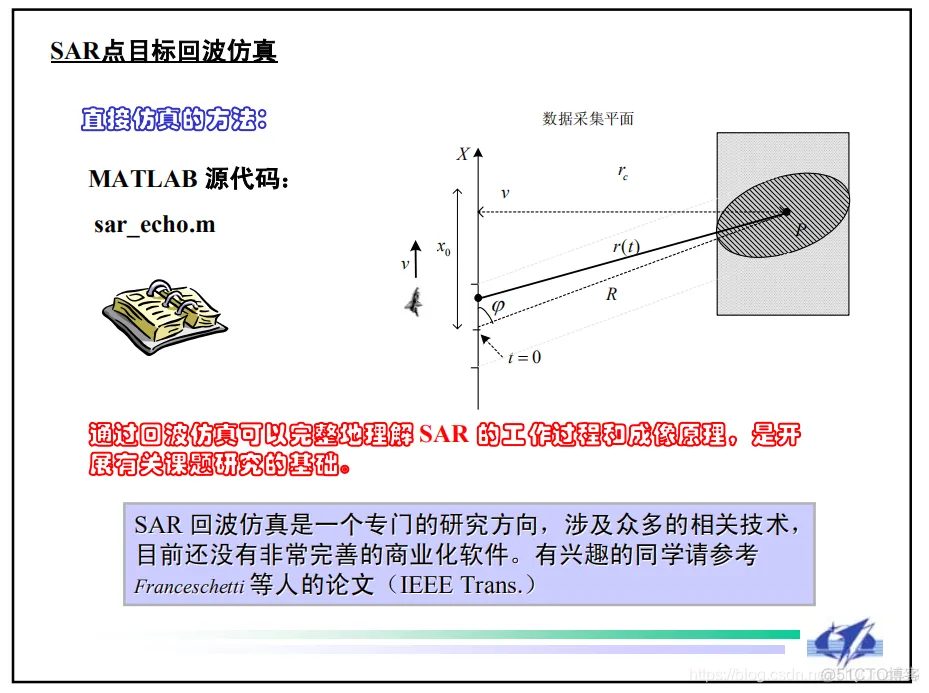

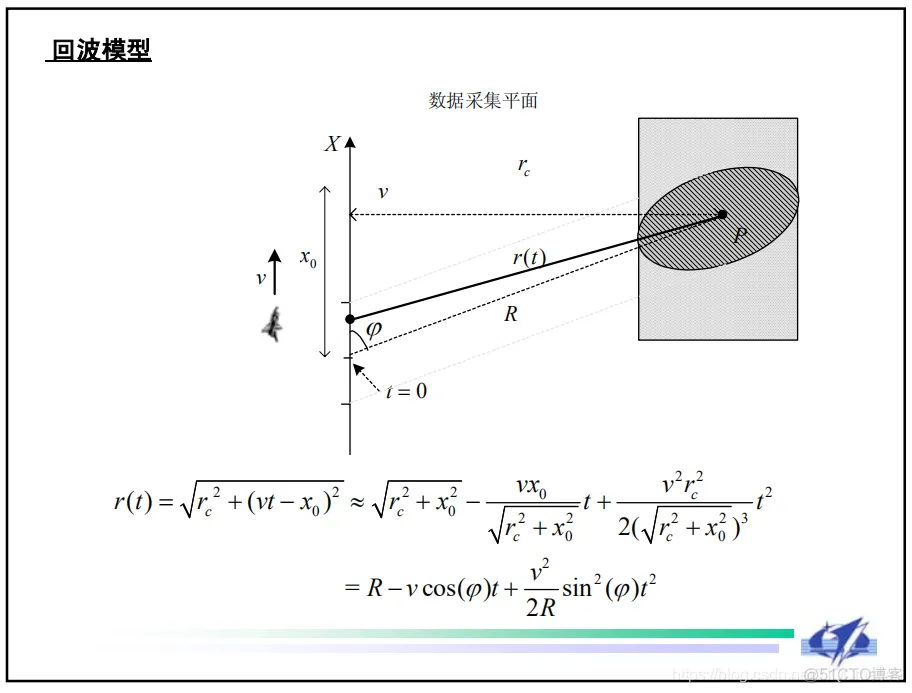

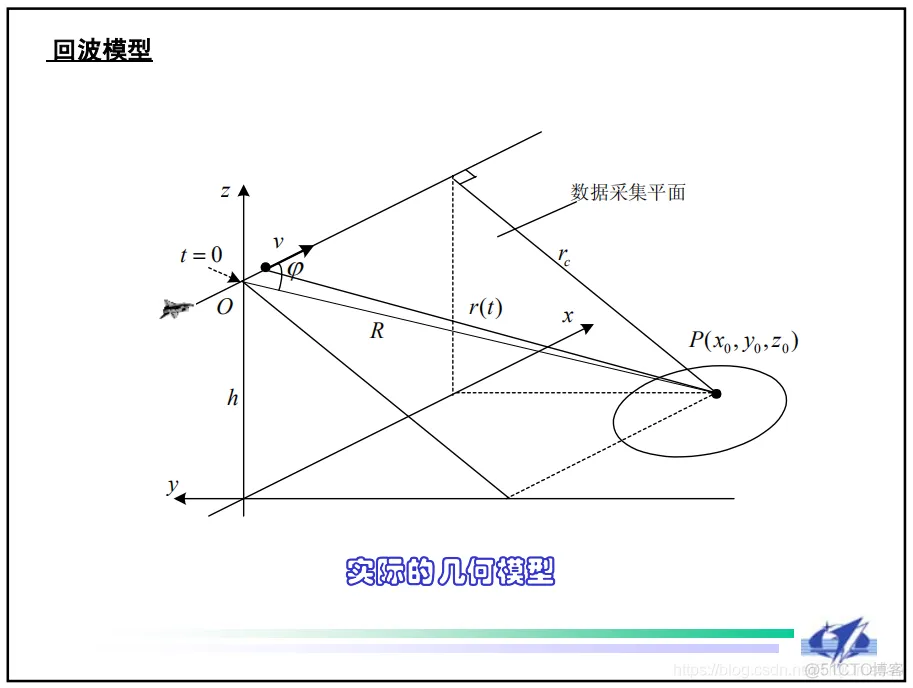

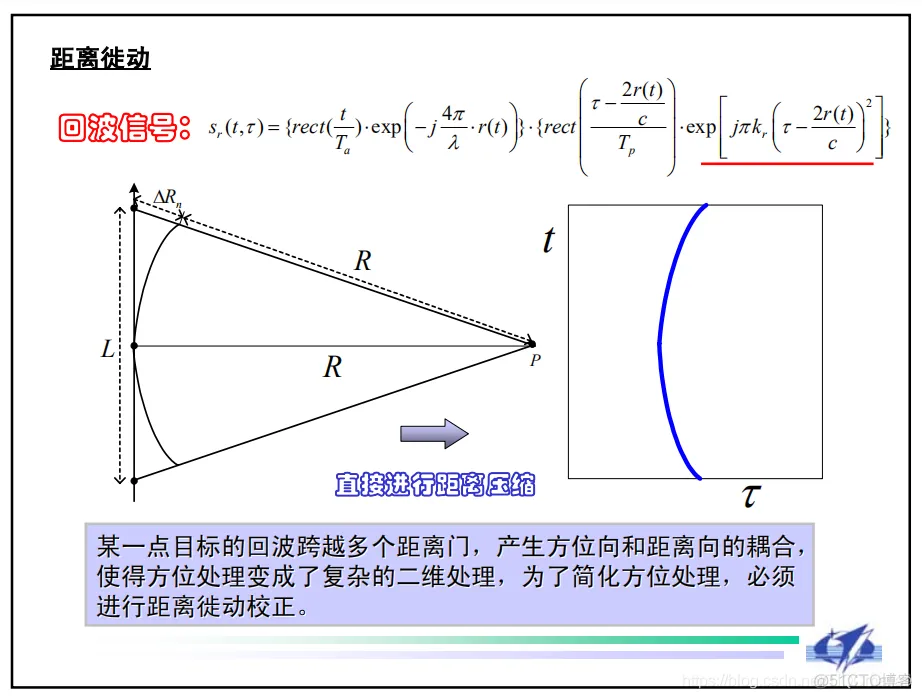

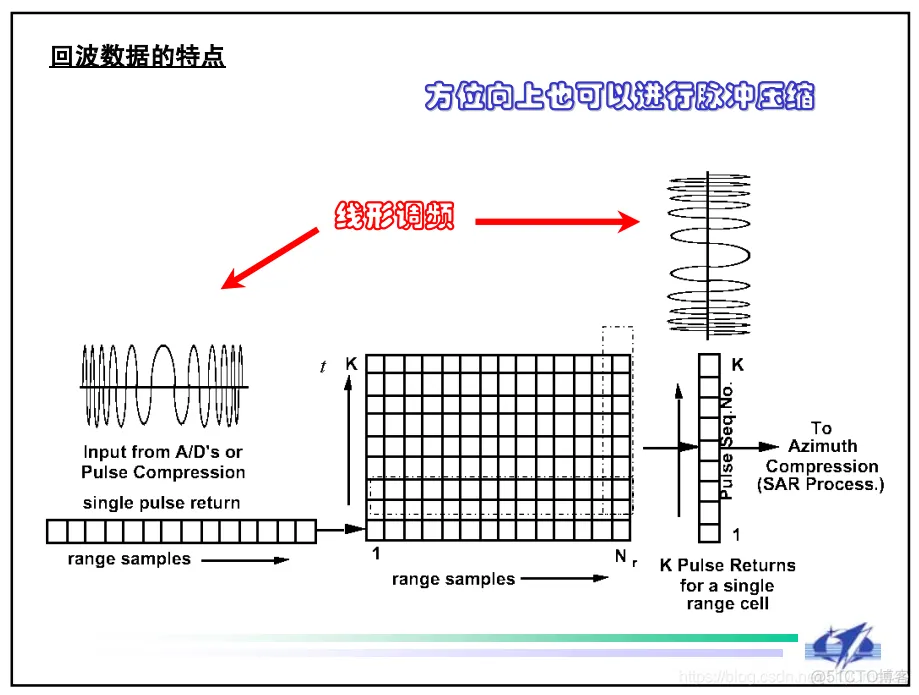

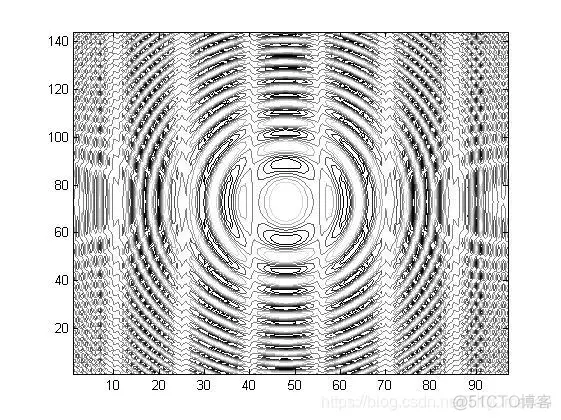

【雷达图像】SAR合成孔径雷达成像及处理matlab源码_matlab 【雷达图像】SAR合成孔径雷达成像及处理matlab源码_雷达_03

二、源代码

clear all;
%======================================================================
%%% (I) parameters' definition
%======================================================================
c=3e+8;										% speed of light
pi=3.1415926;	 					   	% pi
j00=sqrt(-1);							   % square root of -1

res_a=2;										% required azimuth resolution
k_r=1.2;										% range factor

Ra=4000.;									% radar working distance
va=70.; 										% radar/platform forward velocity
fc=3.e+9;	 						   	% carrier frequency
FsFactor = 1.0;
theta=90*pi/180;						   % squint angle

%======================================================================

lamda=c/fc;									% wavelength
Br=k_r*c/2./res_r;					   % required transmitted bandwidth
Fs=Br*FsFactor;						   % A/D sampling rate
bin_r=c/2./Fs;							   % range bin
Kr=Br/Tp;					  		      % range chirp rate

La=Ra*k_a*lamda/2/res_a;            % required synthetic aperture length
Ta=La/va;									% required synthetic aperture time
fdc=2*va*cos(theta)/lamda;          % doppler centriod
fdr=-2*(va*sin(theta)).^2/lamda/Ra;	% doppler rate
Bd=abs(fdr)*Ta;						   % doppler bandwidth
prf=round(Bd*2);						   % PRF

%======================================================================
%%%(II) echo return modelling (point target)
%======================================================================

na=fix(Ta*prf/2);							% azimuth sampling number
ta=-na:na;
ta=ta/prf;								   % slow time along azimuth
xa=va*ta-Ra*cos(theta);				   % azimuth location along flight track
Na=2*fix(na);

%x0=[  0  0  0  0  0 ];             % define multi points if you want
%R0=[-20 -10 0 10 20 ];             % x0: azimuth location (positive towards forward velocity)
                                    % R0: slant range location (positive towards far range)

x0=[ 0 0 ];  R0=[ 0 10 ];                % only one point
Npt_num = length(x0);

ra=zeros(Npt_num, length(xa));      % calculate every point target's slant range history
for i=1:Npt_num
	ra(i,:)=sqrt((Ra*sin(theta)+R0(i)).^2+(xa+x0(i)).^2);
end

rmax=max(max(ra));						% max. slant range
rmin=min(min(ra));						% min. slant range
rmc=fix((rmax-rmin)/bin_r);			% range migration,	number

rg=0*ra;                            % initialize
rg=fix((ra-rmin)/bin_r+1);				% range gate index caused by range migration
rgmax=max(max(rg));
rgmin=min(min(rg));

nr=round(Tp*Fs);							% samples of a pluse
tr=1:fix(nr)+1;
tr=tr/Fs-Tp/2;								% fast time within a pluse duration
Nr=nr+rgmax;

%======================================================================
%%%(II) echo return modelling (point target)
%======================================================================

sig=zeros(Na,Nr);
for i=1:Na
	for k=1:Npt_num
  		sig(i,rg(k,i):rg(k,i)+nr)=sig(i,rg(k,i):rg(k,i)+nr)+exp(-j00*4*pi/lamda*ra(k,i))*exp(-j00*pi*Kr*(tr).^2);
   end
end
%%%  parameters' definition
c=3e+8;										% speed of light
pi=3.1415926;
j=sqrt(-1);

Tp=1.e-6; 								% transmitted pulse width
fc=1.e+9;	 						   	% carrier frequency
Br=50.e+6;              % transmitted bandwidth
Fs=200.e+6;             % A/D sample rate
kr=Br/Tp;               % range chirp rate

Nr=Tp*Fs;
Ni=1:Nr;
tr=(Ni-Nr/2)*Tp/Nr;

%===============================
%Chirp pulse echo from point A
%===============================

sig_point0 = exp(j*pi*kr*(tr).^2);

%===============================
%Chirp pulse echo from point B
%===============================

dr=3;  dr_t=2*dr/c;  dN=dr_t*Fs;
sig_point1 = exp(j*pi*kr*(tr-dr_t).^2);

sig_0 = zeros(1, 3*Nr); sig_1 = sig_0; sum_sig = sig_0;

sig_0(Nr+1:2*Nr)=sig_point0;
sig_1(Nr+dN+1:2*Nr+dN)=sig_point1;

%===============================
% Summary echo signal of A and B
%===============================

sum_sig = sig_0 + sig_1;

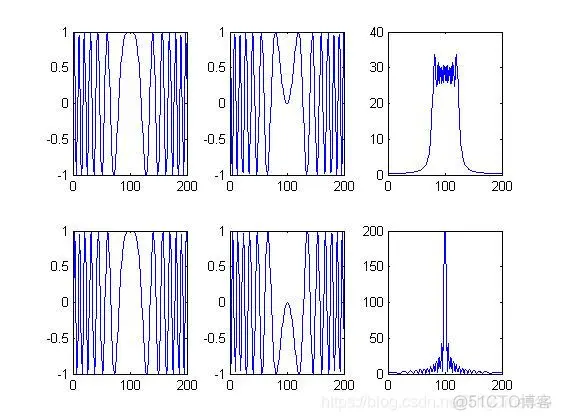

figure;
subplot(4,1,1); plot(real(sig_0));
subplot(4,1,2); plot(real(sig_1));
subplot(4,1,3); plot(real(sum_sig));
