关键字模型和PO模型的根本思想都是面向对象的思想,简单理解为就是封装,关键字模型的封装更为彻底,关键字模型搭建好之后,基本不需要写代码了,直接写用例的配置文件就可以了。
关键字模型的搭建不需要重新搭建,在 8.Appium PO模型实战 (https://blog.youkuaiyun.com/MATLAB_matlab/article/details/105833808) 的基础上搭建即可。
详情请点击 https://study.163.com/course/introduction/1209833813.htm 查看

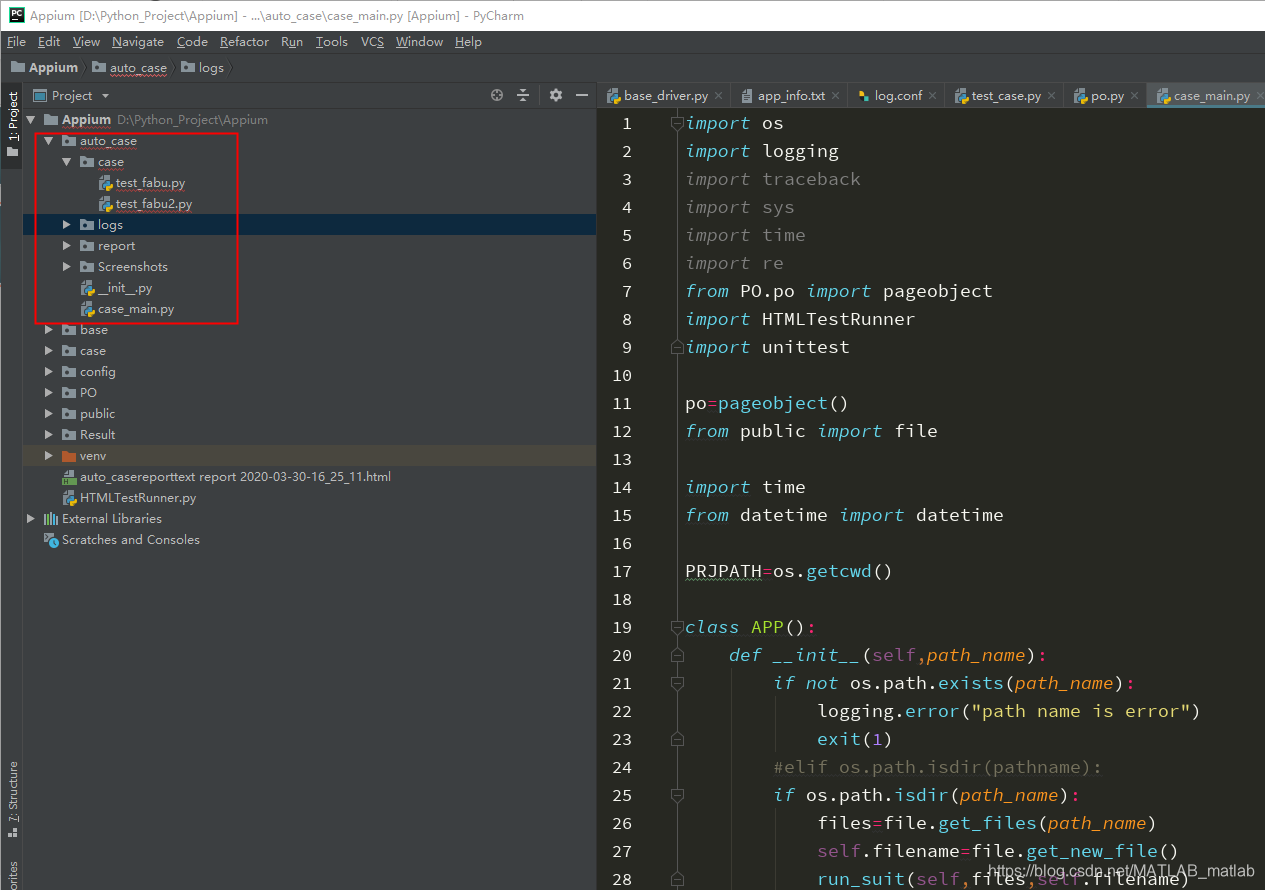

在PO模型的基础之上,新建一个auto_case文件夹,
里面的case文件下存放用例脚本,一个用例就是一个py文件;logs存放日志;report存放报告、Screenshots存放截图、case_main.py是关键字模型执行入口。
用例文件示例:
test_fabu.py
#测试点击发布按钮是否能够进入发布页面
gohome|
click|shouye|fabu
sleep|5
ScreenShot|这个是第一条用例的截图
check|fabupage|caogaoxiang
用例脚本以 | 分割方法名称和参数
gohome |在代码中封装为返回主页
click | shouye|fabu click是封装的点击方法,后面的是PO模型中page.ini中的参数,通过这两个参数去page.ini中找到该元素
sleep|5 是封装的等待方法, 等待5s
ScreenShot|这个是第一条用例的截图 ScreenShot是封装的截图方法,后面的参数是截图说明,会把该说明放到截图的名称上
check|fabupage|caogaoxiang check是封装的检查函数,检查元素是否存在,后面的两个参数就是在page.ini中定位元素的
case_main.py
import os
import logging
import traceback
import sys
import time
import re
from PO.po import pageobject
import HTMLTestRunner
import unittest
po=pageobject()
from public import file
import time
from datetime import datetime
PRJPATH=os.getcwd()
class APP():
def __init__(self,path_name):
if not os.path.exists(path_name):
logging.error("path name is error")
exit(1)
#elif os.path.isdir(pathname):
if os.path.isdir(path_name):
files=file.get_files(path_name)
self.filename=file.get_new_file()
run_suit(self,files,self.filename)
else:
text="please enter a vaild path "+path_name
logging.error(text)
return
def run_suit(app,cases,html_file=None):
logging.info("run_suit")
suite=unittest.TestSuite()
for i in cases:
suite.addTest(CaseTest(app,i))
if html_file is None:
html_file=os.getcwd()+'/report.html'
fp=open(html_file,'wb')
title='Test Report'
HTMLTestRunner.HTMLTestRunner(stream=fp,title=title).run(suite)
class CaseTest(unittest.TestCase):
def __init__(self,app,case):
self.app=app
self.case=case
case_name=os.path.basename(case)
cn=case_name.replace('.','_')
setattr(self,cn,self.run_test)
unittest.TestCase.__init__(self,cn)
@classmethod
def setUpClass(cls):
logging.info('This is setUpClass')
def setUp(self):
logging.info("Set up")
def run_test(self): #执行用例的主要入口
logging.info("run test "+self.case)
ret,key=self.replay(self.case)
if not ret:
raise Exception('Error:{0}'.format(key))
def replay(self,case):
logging.info("start case: "+case)
#path=file.get_new_file(case)
path=file.get_new_dir(case)
proc,filename=file.start_logcat(path)
ret=True
key=''
steps=file.read_case(case)
for s in steps:
if s[0]=='gohome':
logging.info("gohome方法")
po.go_home()
elif s[0]=='click':
logging.info("这个是click方法")
element=po.get_element.get_element(s[1],s[2])
time.sleep(3)
element.click()
time.sleep(2)
elif s[0]=='sleep':
logging.info("这个是sleep方法")
time.sleep(int(s[1]))
elif s[0]=='check':
logging.info("这个是check方法")
element=po.get_element.get_element(s[1],s[2])
if element is None:
ret=False
key="结果验证失败"
logging.error("用例执行失败")
elif s[0]=='ScreenShot':
logging.info("开始截图")
case_name=case.split('\\')[-1].split('.')[0] #把用例的名称取出
step_name=str(s[0])
text1=str(s[1])
text=case_name+"_"+step_name+"_"+text1
dt = datetime.now()
now_time = dt.strftime("%Y_%m_%d_%H_%M_%S")
imgae_file=PRJPATH+"\\Screenshots\\%s_%s"%(now_time,text)
logging.info("截图路径:")
logging.info(imgae_file)
po.driver.get_screenshot_as_file(imgae_file)
else:
logging.error("没有找到用例中的方法,请检查,封装该方法")
ret=False
key="没有找到用例中的方法,请检查,封装该方法"
file.end_logcat(proc)
return ret,key
if __name__=="__main__":
pathname=os.path.join(file.PRJPATH,'case')
logging.info(pathname)
app=APP(pathname)
