深度学习 Day23——J3DenseNet算法实战与解析

[pytorch] 2D + 3D DenseNet代码实现,改写 2D + 3D DenseNet代码实现 pytorch 阅读详情


前言

关键字: pytorch实现DenseNet算法,tensorflow实现DenseNet算法,DenseNet算法详解

1 我的环境

  • 电脑系统:Windows 11
  • 语言环境:python 3.8.6
  • 编译器:pycharm2020.2.3
  • 深度学习环境:
    torch == 1.9.1+cu111
    torchvision == 0.10.1+cu111
    TensorFlow 2.10.1
  • 显卡:NVIDIA GeForce RTX 4070

2 pytorch实现DenseNet算法

2.1 前期准备

2.1.1 引入库


import torch
import torch.nn as nn
import time
import copy
from torchvision import transforms, datasets
from pathlib import Path
from PIL import Image
import torchsummary as summary
import torch.nn.functional as F
from collections import OrderedDict
import re
import torch.utils.model_zoo as model_zoo
import matplotlib.pyplot as plt
plt.rcParams['font.sans-serif'] = ['SimHei']  # 用来正常显示中文标签
plt.rcParams['axes.unicode_minus'] = False  # 用来正常显示负号
plt.rcParams['figure.dpi'] = 100  # 分辨率
import warnings

warnings.filterwarnings('ignore')  # 忽略一些warning内容,无需打印

2.1.2 设置GPU(如果设备上支持GPU就使用GPU,否则使用CPU)

"""前期准备-设置GPU"""
# 如果设备上支持GPU就使用GPU,否则使用CPU
 device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
 print("Using {} device".format(device))

输出

Using cuda device

2.1.3 导入数据

'''前期工作-导入数据'''
data_dir = r"D:\DeepLearning\data\bird\bird_photos"
data_dir = Path(data_dir)

data_paths = list(data_dir.glob('*'))
classeNames = [str(path).split("\\")[-1] for path in data_paths]
print(classeNames)

输出

['Bananaquit', 'Black Skimmer', 'Black Throated Bushtiti', 'Cockatoo']

2.1.4 可视化数据

'''前期工作-可视化数据'''
subfolder = Path(data_dir) / "Cockatoo"
image_files = list(p.resolve() for p in subfolder.glob('*') if p.suffix in [".jpg", ".png", ".jpeg"])
plt.figure(figsize=(10, 6))
for i in range(len(image_files[:12])):
    image_file = image_files[i]
    ax = plt.subplot(3, 4, i + 1)
    img = Image.open(str(image_file))
    plt.imshow(img)
    plt.axis("off")
# 显示图片
plt.tight_layout()
plt.show()

在这里插入图片描述

2.1.4 图像数据变换

'''前期工作-图像数据变换'''
total_datadir = data_dir

# 关于transforms.Compose的更多介绍可以参考:https://blog.youkuaiyun.com/qq_38251616/article/details/124878863
train_transforms = transforms.Compose([
    transforms.Resize([224, 224]),  # 将输入图片resize成统一尺寸
    transforms.ToTensor(),  # 将PIL Image或numpy.ndarray转换为tensor,并归一化到[0,1]之间
    transforms.Normalize(  # 标准化处理-->转换为标准正太分布(高斯分布),使模型更容易收敛
        mean=[0.485, 0.456, 0.406],
        std=[0.229, 0.224, 0.225])  # 其中 mean=[0.485,0.456,0.406]与std=[0.229,0.224,0.225] 从数据集中随机抽样计算得到的。
])
total_data = datasets.ImageFolder(total_datadir, transform=train_transforms)
print(total_data)
print(total_data.class_to_idx)

输出

Dataset ImageFolder
    Number of datapoints: 565
    Root location: D:\DeepLearning\data\bird\bird_photos
    StandardTransform
Transform: Compose(
               Resize(size=[224, 224], interpolation=bilinear, max_size=None, antialias=None)
               ToTensor()
               Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225])
           )
{'Bananaquit': 0, 'Black Skimmer': 1, 'Black Throated Bushtiti': 2, 'Cockatoo': 3}

2.1.4 划分数据集

'''前期工作-划分数据集'''
train_size = int(0.8 * len(total_data))  # train_size表示训练集大小,通过将总体数据长度的80%转换为整数得到;
test_size = len(total_data) - train_size  # test_size表示测试集大小,是总体数据长度减去训练集大小。
# 使用torch.utils.data.random_split()方法进行数据集划分。该方法将总体数据total_data按照指定的大小比例([train_size, test_size])随机划分为训练集和测试集,
# 并将划分结果分别赋值给train_dataset和test_dataset两个变量。
train_dataset, test_dataset = torch.utils.data.random_split(total_data, [train_size, test_size])
print("train_dataset={}\ntest_dataset={}".format(train_dataset, test_dataset))
print("train_size={}\ntest_size={}".format(train_size, test_size))

输出

train_dataset=<torch.utils.data.dataset.Subset object at 0x000001309DFA26D0>
test_dataset=<torch.utils.data.dataset.Subset object at 0x000001309DFA2760>
train_size=452
test_size=113

2.1.4 加载数据

'''前期工作-加载数据'''
batch_size = 32

train_dl = torch.utils.data.DataLoader(train_dataset,
                                       batch_size=batch_size,
                                       shuffle=True,
                                       num_workers=1)
test_dl = torch.utils.data.DataLoader(test_dataset,
                                      batch_size=batch_size,
                                      shuffle=True,
                                      num_workers=1)

2.1.4 查看数据

'''前期工作-查看数据'''
for X, y in test_dl:
    print("Shape of X [N, C, H, W]: ", X.shape)
    print("Shape of y: ", y.shape, y.dtype)
    break

输出

Shape of X [N, C, H, W]:  torch.Size([32, 3, 224, 224])
Shape of y:  torch.Size([32]) torch.int64

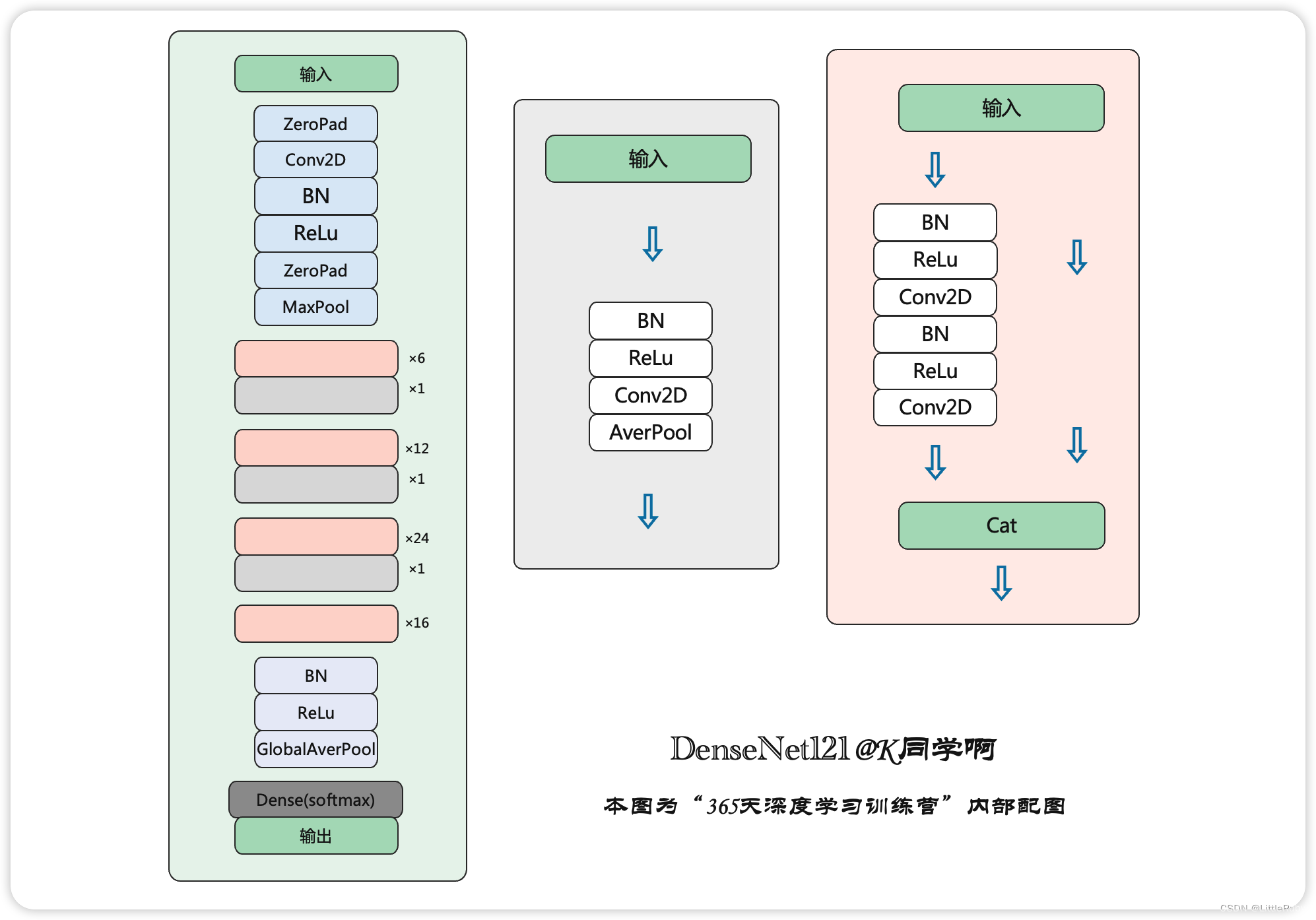

2.2 搭建densenet121模型

"""构建DenseNet网络"""
# 这里我们采用了Pytorch的框架来实现DenseNet,

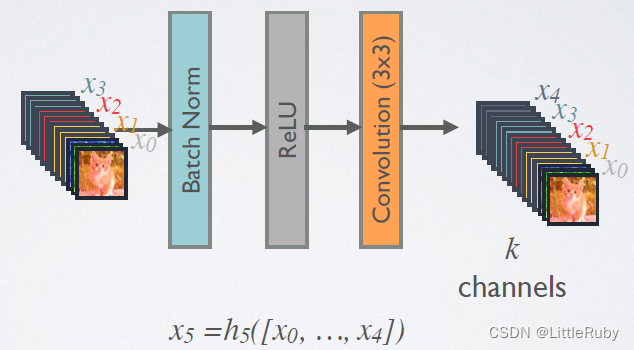

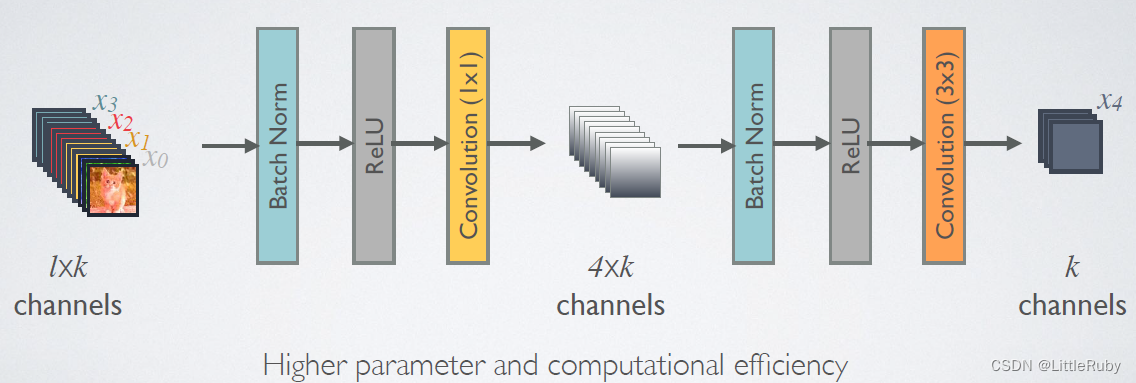

# 首先实现DenseBlock中的内部结构,这里是BN+ReLU+1×1Conv+BN+ReLU+3×3Conv结构,最后也加入dropout层用于训练过程。
class _DenseLayer(nn.Sequential):
    """Basic unit of DenseBlock (using bottleneck layer) """

    def __init__(self, num_input_features, growth_rate, bn_size, drop_rate):
        super(_DenseLayer, self).__init__()
        self.add_module('norm1', nn.BatchNorm2d(num_input_features)),
        self.add_module('relu1', nn.ReLU(inplace=True)),
        self.add_module('conv1', nn.Conv2d(num_input_features, bn_size * growth_rate,
                                           kernel_size=1, stride=1, bias=False)),
        self.add_module('norm2', nn.BatchNorm2d(bn_size * growth_rate)),
        self.add_module('relu2', nn.ReLU(inplace=True)),
        self.add_module('conv2', nn.Conv2d(bn_size * growth_rate, growth_rate,
                                           kernel_size=3, stride=1, padding=1, bias=False)),
        self.drop_rate = drop_rate

    def forward(self, x):
        new_features = super(_DenseLayer, self).forward(x)
        if self.drop_rate > 0:
            new_features = F.dropout(new_features, p=self.drop_rate, training=self.training)
        return torch.cat([x, new_features], 1)

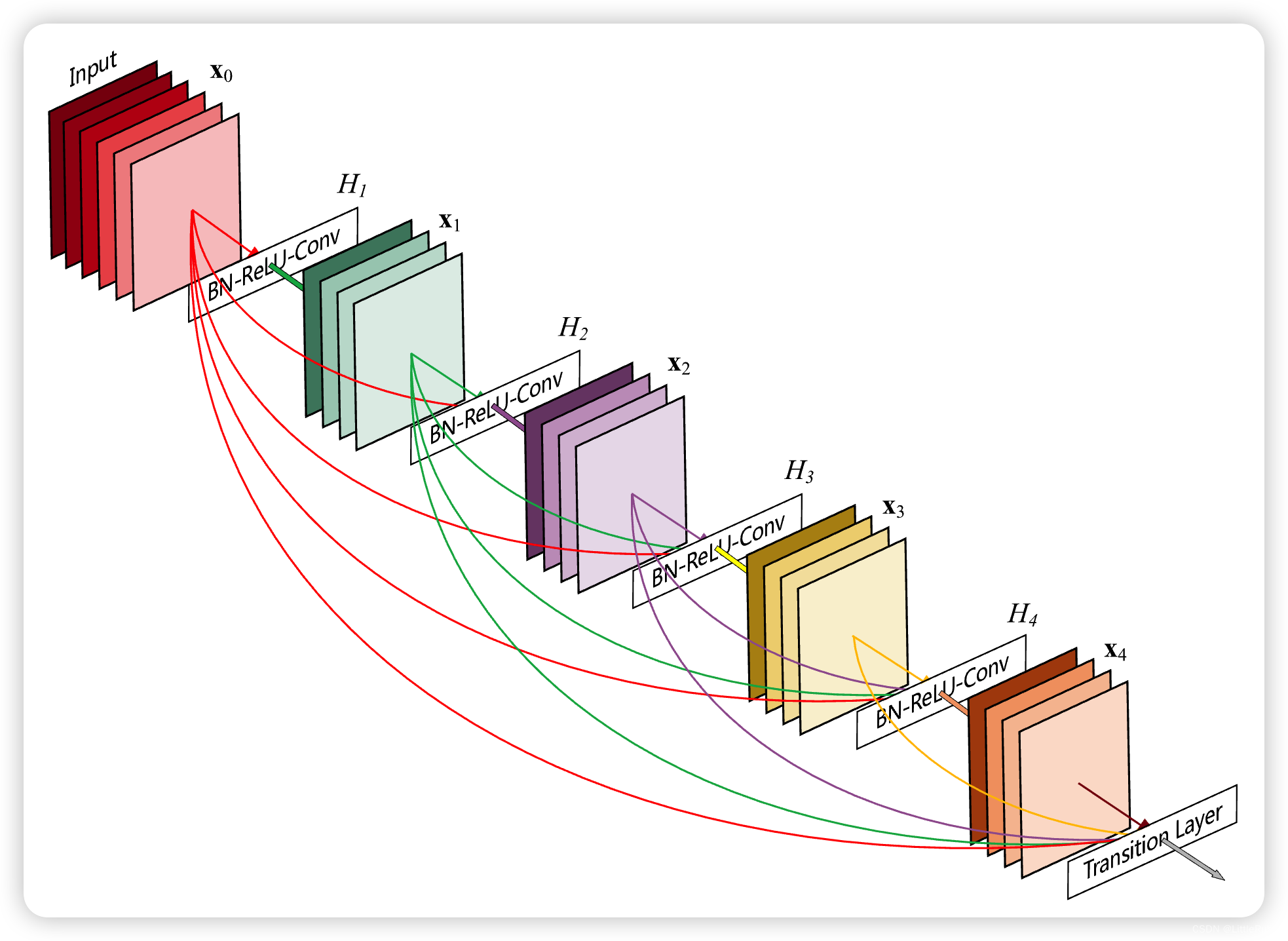

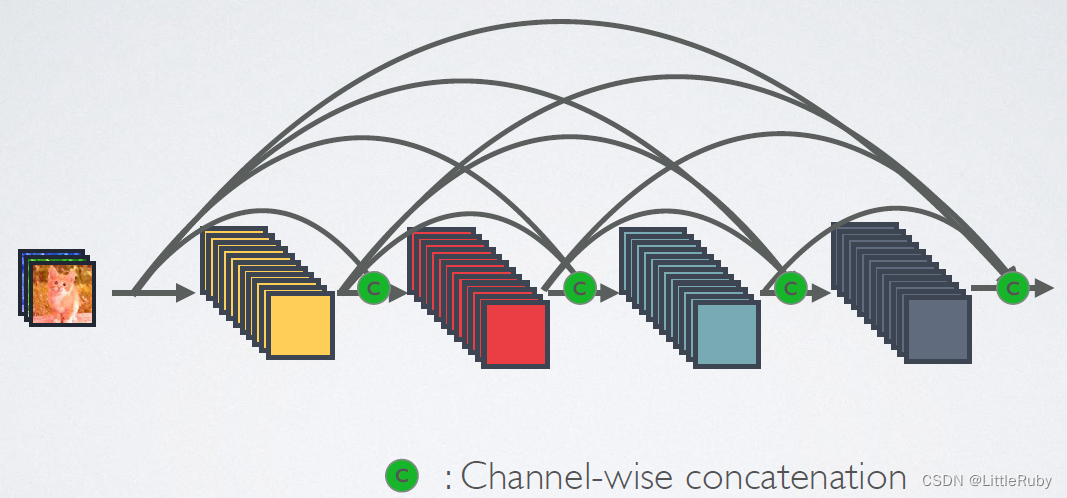

# 实现DenseBlock模块,内部是密集连接方式(输入特征数线性增长):
class _DenseBlock(nn.Sequential):
    """DenseBlock """

    def __init__(self, num_layers, num_input_features, bn_size, growth_rate, drop_rate):
        super(_DenseBlock, self).__init__()
        for i in range(num_layers):
            layer = _DenseLayer(
                num_input_features + i * growth_rate, growth_rate, bn_size, drop_rate)
            self.add_module('denselayer%d' % (i + 1), layer)


# 实现Transition层,它主要是一个卷积层和一个池化层:
class _Transition(nn.Sequential):
    def __init__(self, num_input_features, num_output_features):
        super(_Transition, self).__init__()
        self.add_module('norm', nn.BatchNorm2d(num_input_features))
        self.add_module('relu', nn.ReLU(inplace=True))
        self.add_module('conv', nn.Conv2d(num_input_features, num_output_features,
                                          kernel_size=1, stride=1, bias=False))
        self.add_module('pool', nn.AvgPool2d(kernel_size=2, stride=2))

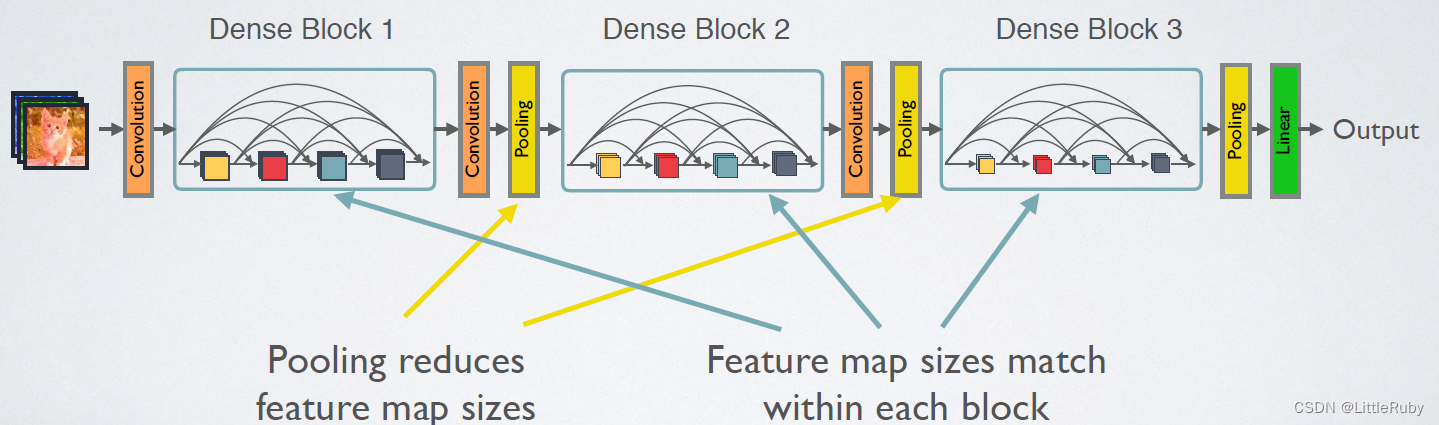

# 最后我们实现DenseNet网络:
class DenseNet(nn.Module):
    r"""Densenet-BC model class, based on
    `"Densely Connected Convolutional Networks" <https://arxiv.org/pdf/1608.06993.pdf>`
    Args:
        growth_rate (int) - how many filters to add each layer (`k` in paper)
        block_config (list of 3 or 4 ints) - how many layers in each pooling block
        num_init_features (int) - the number of filters to learn in the first convolution layer
        bn_size (int) - multiplicative factor for number of bottle neck layers
            (i.e. bn_size * k features in the bottleneck layer)
        drop_rate (float) - dropout rate after each dense layer
        num_classes (int) - number of classification classes
    """

    def __init__(self, growth_rate=32, block_config=(6, 12, 24, 16),
                 num_init_features=24, bn_size=4, compression=0.5, drop_rate=0,
                 num_classes=1000):
        super(DenseNet, self).__init__()

        # First Conv2d
        self.features = nn.Sequential(OrderedDict([
            ('conv0', nn.Conv2d(3, num_init_features, kernel_size=7, stride=2, padding=3, bias=False)),
            ('norm0', nn.BatchNorm2d(num_init_features)),
            ('relu0', nn.ReLU(inplace=True)),
            ('pool0', nn.MaxPool2d(kernel_size=3, stride=2, padding=1))
        ]))


        # Each denseblock
        num_features = num_init_features
        for i, num_layers in enumerate(block_config):
            block = _DenseBlock(num_layers, num_features, bn_size, growth_rate, drop_rate)
            self.features.add_module('denseblock%d' % (i + 1), block)
            num_features += num_layers * growth_rate
            if i != len(block_config) - 1:
                transition = _Transition(num_input_features=num_features,
                                         num_output_features=int(num_features * compression))
                self.features.add_module('transition%d' % (i + 1), transition)
                num_features = int(num_features * compression)

        # Final bn+relu
        self.features.add_module('norm5', nn.BatchNorm2d(num_features))
        self.features.add_module('relu5', nn.ReLU(inplace=True))

        # classification layer
        self.classifier = nn.Linear(num_features, num_classes)

        # params initialization
        for m in self.modules():
            if isinstance(m, nn.Conv2d):
                nn.init.kaiming_normal_(m.weight)
            elif isinstance(m, nn.BatchNorm2d):
                nn.init.constant_(m.bias, 0)
                nn.init.constant_(m.weight, 1)
            elif isinstance(m, nn.Linear):
                nn.init.constant_(m.bias, 0)

    def forward(self, x):
        features = self.features(x)
        out = F.avg_pool2d(features, 7, stride=1).view(features.size(0), -1)
        out = self.classifier(out)
        return out



model_urls = {
    'densenet121': 'https://download.pytorch.org/models/densenet121-a639ec97.pth',
    'densenet169': 'https://download.pytorch.org/models/densenet169-b2777c0a.pth',
    'densenet201': 'https://download.pytorch.org/models/densenet201-c1103571.pth',
    'densenet161': 'https://download.pytorch.org/models/densenet161-8d451a50.pth'}


def densenet121(pretrained=False, **kwargs):
    """DenseNet121"""
    model = DenseNet(num_init_features=64, growth_rate=32, block_config=(6, 12, 24, 16),	**kwargs)
    if pretrained:
        # '.'s are no longer allowed in module names, but pervious _DenseLayer
        # has keys 'norm.1', 'relu.1', 'conv.1', 'norm.2', 'relu.2', 'conv.2'.
        # They are also in the checkpoints in model_urls. This pattern is used
        # to find such keys.
        pattern = re.compile(
            r'^(.*denselayer\d+\.(?:norm|relu|conv))\.((?:[12])\.(?:weight|bias|running_mean|running_var))$')
        state_dict = model_zoo.load_url(model_urls['densenet121'])
        for key in list(state_dict.keys()):
            res = pattern.match(key)
            if res:
                new_key = res.group(1) + res.group(2)
                state_dict[new_key] = state_dict[key]
                del state_dict[key]
        model.load_state_dict(state_dict)
    return model

"""搭建densenet121模型"""
# model = densenet121().to(device)
model = densenet121(True).to(device)  # 使用预训练模型
print(model)
print(summary.summary(model, (3, 224, 224)))  # 查看模型的参数量以及相关指标


输出

DenseNet(
  (features): Sequential(
    (conv0): Conv2d(3, 64, kernel_size=(7, 7), stride=(2, 2), padding=(3, 3), bias=False)
    (norm0): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
    (relu0): ReLU(inplace=True)
    (pool0): MaxPool2d(kernel_size=3, stride=2, padding=1, dilation=1, ceil_mode=False)
    (denseblock1): _DenseBlock(
      (denselayer1): _DenseLayer(
        (norm1): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(64, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer2): _DenseLayer(
        (norm1): BatchNorm2d(96, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(96, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer3): _DenseLayer(
        (norm1): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(128, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer4): _DenseLayer(
        (norm1): BatchNorm2d(160, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(160, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer5): _DenseLayer(
        (norm1): BatchNorm2d(192, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(192, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer6): _DenseLayer(
        (norm1): BatchNorm2d(224, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(224, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
    )
    (transition1): _Transition(
      (norm): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
      (relu): ReLU(inplace=True)
      (conv): Conv2d(256, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
      (pool): AvgPool2d(kernel_size=2, stride=2, padding=0)
    )
    (denseblock2): _DenseBlock(
      (denselayer1): _DenseLayer(
        (norm1): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(128, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer2): _DenseLayer(
        (norm1): BatchNorm2d(160, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(160, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer3): _DenseLayer(
        (norm1): BatchNorm2d(192, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(192, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer4): _DenseLayer(
        (norm1): BatchNorm2d(224, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(224, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer5): _DenseLayer(
        (norm1): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(256, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer6): _DenseLayer(
        (norm1): BatchNorm2d(288, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(288, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer7): _DenseLayer(
        (norm1): BatchNorm2d(320, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(320, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer8): _DenseLayer(
        (norm1): BatchNorm2d(352, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(352, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer9): _DenseLayer(
        (norm1): BatchNorm2d(384, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(384, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer10): _DenseLayer(
        (norm1): BatchNorm2d(416, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(416, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer11): _DenseLayer(
        (norm1): BatchNorm2d(448, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(448, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer12): _DenseLayer(
        (norm1): BatchNorm2d(480, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(480, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
    )
    (transition2): _Transition(
      (norm): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
      (relu): ReLU(inplace=True)
      (conv): Conv2d(512, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
      (pool): AvgPool2d(kernel_size=2, stride=2, padding=0)
    )
    (denseblock3): _DenseBlock(
      (denselayer1): _DenseLayer(
        (norm1): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(256, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer2): _DenseLayer(
        (norm1): BatchNorm2d(288, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(288, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer3): _DenseLayer(
        (norm1): BatchNorm2d(320, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(320, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer4): _DenseLayer(
        (norm1): BatchNorm2d(352, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(352, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer5): _DenseLayer(
        (norm1): BatchNorm2d(384, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(384, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer6): _DenseLayer(
        (norm1): BatchNorm2d(416, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(416, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer7): _DenseLayer(
        (norm1): BatchNorm2d(448, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(448, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer8): _DenseLayer(
        (norm1): BatchNorm2d(480, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(480, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer9): _DenseLayer(
        (norm1): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(512, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer10): _DenseLayer(
        (norm1): BatchNorm2d(544, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(544, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer11): _DenseLayer(
        (norm1): BatchNorm2d(576, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(576, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer12): _DenseLayer(
        (norm1): BatchNorm2d(608, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(608, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer13): _DenseLayer(
        (norm1): BatchNorm2d(640, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(640, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer14): _DenseLayer(
        (norm1): BatchNorm2d(672, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(672, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer15): _DenseLayer(
        (norm1): BatchNorm2d(704, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(704, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer16): _DenseLayer(
        (norm1): BatchNorm2d(736, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(736, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer17): _DenseLayer(
        (norm1): BatchNorm2d(768, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(768, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer18): _DenseLayer(
        (norm1): BatchNorm2d(800, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(800, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer19): _DenseLayer(
        (norm1): BatchNorm2d(832, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(832, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer20): _DenseLayer(
        (norm1): BatchNorm2d(864, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(864, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer21): _DenseLayer(
        (norm1): BatchNorm2d(896, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(896, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer22): _DenseLayer(
        (norm1): BatchNorm2d(928, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(928, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer23): _DenseLayer(
        (norm1): BatchNorm2d(960, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(960, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer24): _DenseLayer(
        (norm1): BatchNorm2d(992, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(992, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
    )
    (transition3): _Transition(
      (norm): BatchNorm2d(1024, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
      (relu): ReLU(inplace=True)
      (conv): Conv2d(1024, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
      (pool): AvgPool2d(kernel_size=2, stride=2, padding=0)
    )
    (denseblock4): _DenseBlock(
      (denselayer1): _DenseLayer(
        (norm1): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(512, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer2): _DenseLayer(
        (norm1): BatchNorm2d(544, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(544, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer3): _DenseLayer(
        (norm1): BatchNorm2d(576, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(576, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer4): _DenseLayer(
        (norm1): BatchNorm2d(608, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(608, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer5): _DenseLayer(
        (norm1): BatchNorm2d(640, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(640, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer6): _DenseLayer(
        (norm1): BatchNorm2d(672, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(672, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer7): _DenseLayer(
        (norm1): BatchNorm2d(704, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(704, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer8): _DenseLayer(
        (norm1): BatchNorm2d(736, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(736, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer9): _DenseLayer(
        (norm1): BatchNorm2d(768, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(768, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer10): _DenseLayer(
        (norm1): BatchNorm2d(800, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(800, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer11): _DenseLayer(
        (norm1): BatchNorm2d(832, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(832, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer12): _DenseLayer(
        (norm1): BatchNorm2d(864, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(864, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer13): _DenseLayer(
        (norm1): BatchNorm2d(896, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(896, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer14): _DenseLayer(
        (norm1): BatchNorm2d(928, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(928, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer15): _DenseLayer(
        (norm1): BatchNorm2d(960, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(960, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
      (denselayer16): _DenseLayer(
        (norm1): BatchNorm2d(992, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu1): ReLU(inplace=True)
        (conv1): Conv2d(992, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
        (norm2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (relu2): ReLU(inplace=True)
        (conv2): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      )
    )
    (norm5): BatchNorm2d(1024, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
    (relu5): ReLU(inplace=True)
  )
  (classifier): Linear(in_features=1024, out_features=1000, bias=True)
)
----------------------------------------------------------------
        Layer (type)               Output Shape         Param #
================================================================
            Conv2d-1         [-1, 64, 112, 112]           9,408
       BatchNorm2d-2         [-1, 64, 112, 112]             128
              ReLU-3         [-1, 64, 112, 112]               0
         MaxPool2d-4           [-1, 64, 56, 56]               0
       BatchNorm2d-5           [-1, 64, 56, 56]             128
              ReLU-6           [-1, 64, 56, 56]               0
            Conv2d-7          [-1, 128, 56, 56]           8,192
       BatchNorm2d-8          [-1, 128, 56, 56]             256
              ReLU-9          [-1, 128, 56, 56]               0
           Conv2d-10           [-1, 32, 56, 56]          36,864
      BatchNorm2d-11           [-1, 96, 56, 56]             192
             ReLU-12           [-1, 96, 56, 56]               0
           Conv2d-13          [-1, 128, 56, 56]          12,288
      BatchNorm2d-14          [-1, 128, 56, 56]             256
             ReLU-15          [-1, 128, 56, 56]               0
           Conv2d-16           [-1, 32, 56, 56]          36,864
      BatchNorm2d-17          [-1, 128, 56, 56]             256
             ReLU-18          [-1, 128, 56, 56]               0
           Conv2d-19          [-1, 128, 56, 56]          16,384
      BatchNorm2d-20          [-1, 128, 56, 56]             256
             ReLU-21          [-1, 128, 56, 56]               0
           Conv2d-22           [-1, 32, 56, 56]          36,864
      BatchNorm2d-23          [-1, 160, 56, 56]             320
             ReLU-24          [-1, 160, 56, 56]               0
           Conv2d-25          [-1, 128, 56, 56]          20,480
      BatchNorm2d-26          [-1, 128, 56, 56]             256
             ReLU-27          [-1, 128, 56, 56]               0
           Conv2d-28           [-1, 32, 56, 56]          36,864
      BatchNorm2d-29          [-1, 192, 56, 56]             384
             ReLU-30          [-1, 192, 56, 56]               0
           Conv2d-31          [-1, 128, 56, 56]          24,576
      BatchNorm2d-32          [-1, 128, 56, 56]             256
             ReLU-33          [-1, 128, 56, 56]               0
           Conv2d-34           [-1, 32, 56, 56]          36,864
      BatchNorm2d-35          [-1, 224, 56, 56]             448
             ReLU-36          [-1, 224, 56, 56]               0
           Conv2d-37          [-1, 128, 56, 56]          28,672
      BatchNorm2d-38          [-1, 128, 56, 56]             256
             ReLU-39          [-1, 128, 56, 56]               0
           Conv2d-40           [-1, 32, 56, 56]          36,864
      BatchNorm2d-41          [-1, 256, 56, 56]             512
             ReLU-42          [-1, 256, 56, 56]               0
           Conv2d-43          [-1, 128, 56, 56]          32,768
        AvgPool2d-44          [-1, 128, 28, 28]               0
      BatchNorm2d-45          [-1, 128, 28, 28]             256
             ReLU-46          [-1, 128, 28, 28]               0
           Conv2d-47          [-1, 128, 28, 28]          16,384
      BatchNorm2d-48          [-1, 128, 28, 28]             256
             ReLU-49          [-1, 128, 28, 28]               0
           Conv2d-50           [-1, 32, 28, 28]          36,864
      BatchNorm2d-51          [-1, 160, 28, 28]             320
             ReLU-52          [-1, 160, 28, 28]               0
           Conv2d-53          [-1, 128, 28, 28]          20,480
      BatchNorm2d-54          [-1, 128, 28, 28]             256
             ReLU-55          [-1, 128, 28, 28]               0
           Conv2d-56           [-1, 32, 28, 28]          36,864
      BatchNorm2d-57          [-1, 192, 28, 28]             384
             ReLU-58          [-1, 192, 28, 28]               0
           Conv2d-59          [-1, 128, 28, 28]          24,576
      BatchNorm2d-60          [-1, 128, 28, 28]             256
             ReLU-61          [-1, 128, 28, 28]               0
           Conv2d-62           [-1, 32, 28, 28]          36,864
      BatchNorm2d-63          [-1, 224, 28, 28]             448
             ReLU-64          [-1, 224, 28, 28]               0
           Conv2d-65          [-1, 128, 28, 28]          28,672
      BatchNorm2d-66          [-1, 128, 28, 28]             256
             ReLU-67          [-1, 128, 28, 28]               0
           Conv2d-68           [-1, 32, 28, 28]          36,864
      BatchNorm2d-69          [-1, 256, 28, 28]             512
             ReLU-70          [-1, 256, 28, 28]               0
           Conv2d-71          [-1, 128, 28, 28]          32,768
      BatchNorm2d-72          [-1, 128, 28, 28]             256
             ReLU-73          [-1, 128, 28, 28]               0
           Conv2d-74           [-1, 32, 28, 28]          36,864
      BatchNorm2d-75          [-1, 288, 28, 28]             576
             ReLU-76          [-1, 288, 28, 28]               0
           Conv2d-77          [-1, 128, 28, 28]          36,864
      BatchNorm2d-78          [-1, 128, 28, 28]             256
             ReLU-79          [-1, 128, 28, 28]               0
           Conv2d-80           [-1, 32, 28, 28]          36,864
      BatchNorm2d-81          [-1, 320, 28, 28]             640
             ReLU-82          [-1, 320, 28, 28]               0
           Conv2d-83          [-1, 128, 28, 28]          40,960
      BatchNorm2d-84          [-1, 128, 28, 28]             256
             ReLU-85          [-1, 128, 28, 28]               0
           Conv2d-86           [-1, 32, 28, 28]          36,864
      BatchNorm2d-87          [-1, 352, 28, 28]             704
             ReLU-88          [-1, 352, 28, 28]               0
           Conv2d-89          [-1, 128, 28, 28]          45,056
      BatchNorm2d-90          [-1, 128, 28, 28]             256
             ReLU-91          [-1, 128, 28, 28]               0
           Conv2d-92           [-1, 32, 28, 28]          36,864
      BatchNorm2d-93          [-1, 384, 28, 28]             768
             ReLU-94          [-1, 384, 28, 28]               0
           Conv2d-95          [-1, 128, 28, 28]          49,152
      BatchNorm2d-96          [-1, 128, 28, 28]             256
             ReLU-97          [-1, 128, 28, 28]               0
           Conv2d-98           [-1, 32, 28, 28]          36,864
      BatchNorm2d-99          [-1, 416, 28, 28]             832
            ReLU-100          [-1, 416, 28, 28]               0
          Conv2d-101          [-1, 128, 28, 28]          53,248
     BatchNorm2d-102          [-1, 128, 28, 28]             256
            ReLU-103          [-1, 128, 28, 28]               0
          Conv2d-104           [-1, 32, 28, 28]          36,864
     BatchNorm2d-105          [-1, 448, 28, 28]             896
            ReLU-106          [-1, 448, 28, 28]               0
          Conv2d-107          [-1, 128, 28, 28]          57,344
     BatchNorm2d-108          [-1, 128, 28, 28]             256
            ReLU-109          [-1, 128, 28, 28]               0
          Conv2d-110           [-1, 32, 28, 28]          36,864
     BatchNorm2d-111          [-1, 480, 28, 28]             960
            ReLU-112          [-1, 480, 28, 28]               0
          Conv2d-113          [-1, 128, 28, 28]          61,440
     BatchNorm2d-114          [-1, 128, 28, 28]             256
            ReLU-115          [-1, 128, 28, 28]               0
          Conv2d-116           [-1, 32, 28, 28]          36,864
     BatchNorm2d-117          [-1, 512, 28, 28]           1,024
            ReLU-118          [-1, 512, 28, 28]               0
          Conv2d-119          [-1, 256, 28, 28]         131,072
       AvgPool2d-120          [-1, 256, 14, 14]               0
     BatchNorm2d-121          [-1, 256, 14, 14]             512
            ReLU-122          [-1, 256, 14, 14]               0
          Conv2d-123          [-1, 128, 14, 14]          32,768
     BatchNorm2d-124          [-1, 128, 14, 14]             256
            ReLU-125          [-1, 128, 14, 14]               0
          Conv2d-126           [-1, 32, 14, 14]          36,864
     BatchNorm2d-127          [-1, 288, 14, 14]             576
            ReLU-128          [-1, 288, 14, 14]               0
          Conv2d-129          [-1, 128, 14, 14]          36,864
     BatchNorm2d-130          [-1, 128, 14, 14]             256
            ReLU-131          [-1, 128, 14, 14]               0
          Conv2d-132           [-1, 32, 14, 14]          36,864
     BatchNorm2d-133          [-1, 320, 14, 14]             640
            ReLU-134          [-1, 320, 14, 14]               0
          Conv2d-135          [-1, 128, 14, 14]          40,960
     BatchNorm2d-136          [-1, 128, 14, 14]             256
            ReLU-137          [-1, 128, 14, 14]               0
          Conv2d-138           [-1, 32, 14, 14]          36,864
     BatchNorm2d-139          [-1, 352, 14, 14]             704
            ReLU-140          [-1, 352, 14, 14]               0
          Conv2d-141          [-1, 128, 14, 14]          45,056
     BatchNorm2d-142          [-1, 128, 14, 14]             256
            ReLU-143          [-1, 128, 14, 14]               0
          Conv2d-144           [-1, 32, 14, 14]          36,864
     BatchNorm2d-145          [-1, 384, 14, 14]             768
            ReLU-146          [-1, 384, 14, 14]               0
          Conv2d-147          [-1, 128, 14, 14]          49,152
     BatchNorm2d-148          [-1, 128, 14, 14]             256
            ReLU-149          [-1, 128, 14, 14]               0
          Conv2d-150           [-1, 32, 14, 14]          36,864
     BatchNorm2d-151          [-1, 416, 14, 14]             832
            ReLU-152          [-1, 416, 14, 14]               0
          Conv2d-153          [-1, 128, 14, 14]          53,248
     BatchNorm2d-154          [-1, 128, 14, 14]             256
            ReLU-155          [-1, 128, 14, 14]               0
          Conv2d-156           [-1, 32, 14, 14]          36,864
     BatchNorm2d-157          [-1, 448, 14, 14]             896
            ReLU-158          [-1, 448, 14, 14]               0
          Conv2d-159          [-1, 128, 14, 14]          57,344
     BatchNorm2d-160          [-1, 128, 14, 14]             256
            ReLU-161          [-1, 128, 14, 14]               0
          Conv2d-162           [-1, 32, 14, 14]          36,864
     BatchNorm2d-163          [-1, 480, 14, 14]             960
            ReLU-164          [-1, 480, 14, 14]               0
          Conv2d-165          [-1, 128, 14, 14]          61,440
     BatchNorm2d-166          [-1, 128, 14, 14]             256
            ReLU-167          [-1, 128, 14, 14]               0
          Conv2d-168           [-1, 32, 14, 14]          36,864
     BatchNorm2d-169          [-1, 512, 14, 14]           1,024
            ReLU-170          [-1, 512, 14, 14]               0
          Conv2d-171          [-1, 128, 14, 14]          65,536
     BatchNorm2d-172          [-1, 128, 14, 14]             256
            ReLU-173          [-1, 128, 14, 14]               0
          Conv2d-174           [-1, 32, 14, 14]          36,864
     BatchNorm2d-175          [-1, 544, 14, 14]           1,088
            ReLU-176          [-1, 544, 14, 14]               0
          Conv2d-177          [-1, 128, 14, 14]          69,632
     BatchNorm2d-178          [-1, 128, 14, 14]             256
            ReLU-179          [-1, 128, 14, 14]               0
          Conv2d-180           [-1, 32, 14, 14]          36,864
     BatchNorm2d-181          [-1, 576, 14, 14]           1,152
            ReLU-182          [-1, 576, 14, 14]               0
          Conv2d-183          [-1, 128, 14, 14]          73,728
     BatchNorm2d-184          [-1, 128, 14, 14]             256
            ReLU-185          [-1, 128, 14, 14]               0
          Conv2d-186           [-1, 32, 14, 14]          36,864
     BatchNorm2d-187          [-1, 608, 14, 14]           1,216
            ReLU-188          [-1, 608, 14, 14]               0
          Conv2d-189          [-1, 128, 14, 14]          77,824
     BatchNorm2d-190          [-1, 128, 14, 14]             256
            ReLU-191          [-1, 128, 14, 14]               0
          Conv2d-192           [-1, 32, 14, 14]          36,864
     BatchNorm2d-193          [-1, 640, 14, 14]           1,280
            ReLU-194          [-1, 640, 14, 14]               0
          Conv2d-195          [-1, 128, 14, 14]          81,920
     BatchNorm2d-196          [-1, 128, 14, 14]             256
            ReLU-197          [-1, 128, 14, 14]               0
          Conv2d-198           [-1, 32, 14, 14]          36,864
     BatchNorm2d-199          [-1, 672, 14, 14]           1,344
            ReLU-200          [-1, 672, 14, 14]               0
          Conv2d-201          [-1, 128, 14, 14]          86,016
     BatchNorm2d-202          [-1, 128, 14, 14]             256
            ReLU-203          [-1, 128, 14, 14]               0
          Conv2d-204           [-1, 32, 14, 14]          36,864
     BatchNorm2d-205          [-1, 704, 14, 14]           1,408
            ReLU-206          [-1, 704, 14, 14]               0
          Conv2d-207          [-1, 128, 14, 14]          90,112
     BatchNorm2d-208          [-1, 128, 14, 14]             256
            ReLU-209          [-1, 128, 14, 14]               0
          Conv2d-210           [-1, 32, 14, 14]          36,864
     BatchNorm2d-211          [-1, 736, 14, 14]           1,472
            ReLU-212          [-1, 736, 14, 14]               0
          Conv2d-213          [-1, 128, 14, 14]          94,208
     BatchNorm2d-214          [-1, 128, 14, 14]             256
            ReLU-215          [-1, 128, 14, 14]               0
          Conv2d-216           [-1, 32, 14, 14]          36,864
     BatchNorm2d-217          [-1, 768, 14, 14]           1,536
            ReLU-218          [-1, 768, 14, 14]               0
          Conv2d-219          [-1, 128, 14, 14]          98,304
     BatchNorm2d-220          [-1, 128, 14, 14]             256
            ReLU-221          [-1, 128, 14, 14]               0
          Conv2d-222           [-1, 32, 14, 14]          36,864
     BatchNorm2d-223          [-1, 800, 14, 14]           1,600
            ReLU-224          [-1, 800, 14, 14]               0
          Conv2d-225          [-1, 128, 14, 14]         102,400
     BatchNorm2d-226          [-1, 128, 14, 14]             256
            ReLU-227          [-1, 128, 14, 14]               0
          Conv2d-228           [-1, 32, 14, 14]          36,864
     BatchNorm2d-229          [-1, 832, 14, 14]           1,664
            ReLU-230          [-1, 832, 14, 14]               0
          Conv2d-231          [-1, 128, 14, 14]         106,496
     BatchNorm2d-232          [-1, 128, 14, 14]             256
            ReLU-233          [-1, 128, 14, 14]               0
          Conv2d-234           [-1, 32, 14, 14]          36,864
     BatchNorm2d-235          [-1, 864, 14, 14]           1,728
            ReLU-236          [-1, 864, 14, 14]               0
          Conv2d-237          [-1, 128, 14, 14]         110,592
     BatchNorm2d-238          [-1, 128, 14, 14]             256
            ReLU-239          [-1, 128, 14, 14]               0
          Conv2d-240           [-1, 32, 14, 14]          36,864
     BatchNorm2d-241          [-1, 896, 14, 14]           1,792
            ReLU-242          [-1, 896, 14, 14]               0
          Conv2d-243          [-1, 128, 14, 14]         114,688
     BatchNorm2d-244          [-1, 128, 14, 14]             256
            ReLU-245          [-1, 128, 14, 14]               0
          Conv2d-246           [-1, 32, 14, 14]          36,864
     BatchNorm2d-247          [-1, 928, 14, 14]           1,856
            ReLU-248          [-1, 928, 14, 14]               0
          Conv2d-249          [-1, 128, 14, 14]         118,784
     BatchNorm2d-250          [-1, 128, 14, 14]             256
            ReLU-251          [-1, 128, 14, 14]               0
          Conv2d-252           [-1, 32, 14, 14]          36,864
     BatchNorm2d-253          [-1, 960, 14, 14]           1,920
            ReLU-254          [-1, 960, 14, 14]               0
          Conv2d-255          [-1, 128, 14, 14]         122,880
     BatchNorm2d-256          [-1, 128, 14, 14]             256
            ReLU-257          [-1, 128, 14, 14]               0
          Conv2d-258           [-1, 32, 14, 14]          36,864
     BatchNorm2d-259          [-1, 992, 14, 14]           1,984
            ReLU-260          [-1, 992, 14, 14]               0
          Conv2d-261          [-1, 128, 14, 14]         126,976
     BatchNorm2d-262          [-1, 128, 14, 14]             256
            ReLU-263          [-1, 128, 14, 14]               0
          Conv2d-264           [-1, 32, 14, 14]          36,864
     BatchNorm2d-265         [-1, 1024, 14, 14]           2,048
            ReLU-266         [-1, 1024, 14, 14]               0
          Conv2d-267          [-1, 512, 14, 14]         524,288
       AvgPool2d-268            [-1, 512, 7, 7]               0
     BatchNorm2d-269            [-1, 512, 7, 7]           1,024
            ReLU-270            [-1, 512, 7, 7]               0
          Conv2d-271            [-1, 128, 7, 7]          65,536
     BatchNorm2d-272            [-1, 128, 7, 7]             256
            ReLU-273            [-1, 128, 7, 7]               0
          Conv2d-274             [-1, 32, 7, 7]          36,864
     BatchNorm2d-275            [-1, 544, 7, 7]           1,088
            ReLU-276            [-1, 544, 7, 7]               0
          Conv2d-277            [-1, 128, 7, 7]          69,632
     BatchNorm2d-278            [-1, 128, 7, 7]             256
            ReLU-279            [-1, 128, 7, 7]               0
          Conv2d-280             [-1, 32, 7, 7]          36,864
     BatchNorm2d-281            [-1, 576, 7, 7]           1,152
            ReLU-282            [-1, 576, 7, 7]               0
          Conv2d-283            [-1, 128, 7, 7]          73,728
     BatchNorm2d-284            [-1, 128, 7, 7]             256
            ReLU-285            [-1, 128, 7, 7]               0
          Conv2d-286             [-1, 32, 7, 7]          36,864
     BatchNorm2d-287            [-1, 608, 7, 7]           1,216
            ReLU-288            [-1, 608, 7, 7]               0
          Conv2d-289            [-1, 128, 7, 7]          77,824
     BatchNorm2d-290            [-1, 128, 7, 7]             256
            ReLU-291            [-1, 128, 7, 7]               0
          Conv2d-292             [-1, 32, 7, 7]          36,864
     BatchNorm2d-293            [-1, 640, 7, 7]           1,280
            ReLU-294            [-1, 640, 7, 7]               0
          Conv2d-295            [-1, 128, 7, 7]          81,920
     BatchNorm2d-296            [-1, 128, 7, 7]             256
            ReLU-297            [-1, 128, 7, 7]               0
          Conv2d-298             [-1, 32, 7, 7]          36,864
     BatchNorm2d-299            [-1, 672, 7, 7]           1,344
            ReLU-300            [-1, 672, 7, 7]               0
          Conv2d-301            [-1, 128, 7, 7]          86,016
     BatchNorm2d-302            [-1, 128, 7, 7]             256
            ReLU-303            [-1, 128, 7, 7]               0
          Conv2d-304             [-1, 32, 7, 7]          36,864
     BatchNorm2d-305            [-1, 704, 7, 7]           1,408
            ReLU-306            [-1, 704, 7, 7]               0
          Conv2d-307            [-1, 128, 7, 7]          90,112
     BatchNorm2d-308            [-1, 128, 7, 7]             256
            ReLU-309            [-1, 128, 7, 7]               0
          Conv2d-310             [-1, 32, 7, 7]          36,864
     BatchNorm2d-311            [-1, 736, 7, 7]           1,472
            ReLU-312            [-1, 736, 7, 7]               0
          Conv2d-313            [-1, 128, 7, 7]          94,208
     BatchNorm2d-314            [-1, 128, 7, 7]             256
            ReLU-315            [-1, 128, 7, 7]               0
          Conv2d-316             [-1, 32, 7, 7]          36,864
     BatchNorm2d-317            [-1, 768, 7, 7]           1,536
            ReLU-318            [-1, 768, 7, 7]               0
          Conv2d-319            [-1, 128, 7, 7]          98,304
     BatchNorm2d-320            [-1, 128, 7, 7]             256
            ReLU-321            [-1, 128, 7, 7]               0
          Conv2d-322             [-1, 32, 7, 7]          36,864
     BatchNorm2d-323            [-1, 800, 7, 7]           1,600
            ReLU-324            [-1, 800, 7, 7]               0
          Conv2d-325            [-1, 128, 7, 7]         102,400
     BatchNorm2d-326            [-1, 128, 7, 7]             256
            ReLU-327            [-1, 128, 7, 7]               0
          Conv2d-328             [-1, 32, 7, 7]          36,864
     BatchNorm2d-329            [-1, 832, 7, 7]           1,664
            ReLU-330            [-1, 832, 7, 7]               0
          Conv2d-331            [-1, 128, 7, 7]         106,496
     BatchNorm2d-332            [-1, 128, 7, 7]             256
            ReLU-333            [-1, 128, 7, 7]               0
          Conv2d-334             [-1, 32, 7, 7]          36,864
     BatchNorm2d-335            [-1, 864, 7, 7]           1,728
            ReLU-336            [-1, 864, 7, 7]               0
          Conv2d-337            [-1, 128, 7, 7]         110,592
     BatchNorm2d-338            [-1, 128, 7, 7]             256
            ReLU-339            [-1, 128, 7, 7]               0
          Conv2d-340             [-1, 32, 7, 7]          36,864
     BatchNorm2d-341            [-1, 896, 7, 7]           1,792
            ReLU-342            [-1, 896, 7, 7]               0
          Conv2d-343            [-1, 128, 7, 7]         114,688
     BatchNorm2d-344            [-1, 128, 7, 7]             256
            ReLU-345            [-1, 128, 7, 7]               0
          Conv2d-346             [-1, 32, 7, 7]          36,864
     BatchNorm2d-347            [-1, 928, 7, 7]           1,856
            ReLU-348            [-1, 928, 7, 7]               0
          Conv2d-349            [-1, 128, 7, 7]         118,784
     BatchNorm2d-350            [-1, 128, 7, 7]             256
            ReLU-351            [-1, 128, 7, 7]               0
          Conv2d-352             [-1, 32, 7, 7]          36,864
     BatchNorm2d-353            [-1, 960, 7, 7]           1,920
            ReLU-354            [-1, 960, 7, 7]               0
          Conv2d-355            [-1, 128, 7, 7]         122,880
     BatchNorm2d-356            [-1, 128, 7, 7]             256
            ReLU-357            [-1, 128, 7, 7]               0
          Conv2d-358             [-1, 32, 7, 7]          36,864
     BatchNorm2d-359            [-1, 992, 7, 7]           1,984
            ReLU-360            [-1, 992, 7, 7]               0
          Conv2d-361            [-1, 128, 7, 7]         126,976
     BatchNorm2d-362            [-1, 128, 7, 7]             256
            ReLU-363            [-1, 128, 7, 7]               0
          Conv2d-364             [-1, 32, 7, 7]          36,864
     BatchNorm2d-365           [-1, 1024, 7, 7]           2,048
            ReLU-366           [-1, 1024, 7, 7]               0
          Linear-367                 [-1, 1000]       1,025,000
================================================================
Total params: 7,978,856
Trainable params: 7,978,856
Non-trainable params: 0
----------------------------------------------------------------
Input size (MB): 0.57
Forward/backward pass size (MB): 294.58
Params size (MB): 30.44
Estimated Total Size (MB): 325.59
----------------------------------------------------------------


2.3 训练模型

2.3.1 设置超参数

"""训练模型--设置超参数"""
loss_fn = nn.CrossEntropyLoss()  # 创建损失函数,计算实际输出和真实相差多少,交叉熵损失函数,事实上,它就是做图片分类任务时常用的损失函数
learn_rate = 1e-4  # 学习率
optimizer1 = torch.optim.SGD(model.parameters(), lr=learn_rate)# 作用是定义优化器,用来训练时候优化模型参数;其中,SGD表示随机梯度下降,用于控制实际输出y与真实y之间的相差有多大
optimizer2 = torch.optim.Adam(model.parameters(), lr=learn_rate)
lr_opt = optimizer2
model_opt = optimizer2
# 调用官方动态学习率接口时使用2
lambda1 = lambda epoch : 0.92 ** (epoch // 4)
# optimizer = torch.optim.SGD(model.parameters(), lr=learn_rate)
scheduler = torch.optim.lr_scheduler.LambdaLR(lr_opt, lr_lambda=lambda1) #选定调整方法

2.3.2 编写训练函数

"""训练模型--编写训练函数"""
# 训练循环
def train(dataloader, model, loss_fn, optimizer):
    size = len(dataloader.dataset)  # 训练集的大小,一共60000张图片
    num_batches = len(dataloader)  # 批次数目,1875(60000/32)

    train_loss, train_acc = 0, 0  # 初始化训练损失和正确率

    for X, y in dataloader:  # 加载数据加载器,得到里面的 X(图片数据)和 y(真实标签)
        X, y = X.to(device), y.to(device) # 用于将数据存到显卡

        # 计算预测误差
        pred = model(X)  # 网络输出
        loss = loss_fn(pred, y)  # 计算网络输出和真实值之间的差距,targets为真实值,计算二者差值即为损失

        # 反向传播
        optimizer.zero_grad()  # 清空过往梯度
        loss.backward()  # 反向传播,计算当前梯度
        optimizer.step()  # 根据梯度更新网络参数

        # 记录acc与loss
        train_acc += (pred.argmax(1) == y).type(torch.float).sum().item()
        train_loss += loss.item()

    train_acc /= size
    train_loss /= num_batches

    return train_acc, train_loss

2.3.3 编写测试函数

"""训练模型--编写测试函数"""
# 测试函数和训练函数大致相同,但是由于不进行梯度下降对网络权重进行更新,所以不需要传入优化器
def test(dataloader, model, loss_fn):
    size = len(dataloader.dataset)  # 测试集的大小,一共10000张图片
    num_batches = len(dataloader)  # 批次数目,313(10000/32=312.5,向上取整)
    test_loss, test_acc = 0, 0

    # 当不进行训练时,停止梯度更新,节省计算内存消耗
    with torch.no_grad(): # 测试时模型参数不用更新,所以 no_grad,整个模型参数正向推就ok,不反向更新参数
        for imgs, target in dataloader:
            imgs, target = imgs.to(device), target.to(device)

            # 计算loss
            target_pred = model(imgs)
            loss = loss_fn(target_pred, target)

            test_loss += loss.item()
            test_acc += (target_pred.argmax(1) == target).type(torch.float).sum().item()#统计预测正确的个数

    test_acc /= size
    test_loss /= num_batches

    return test_acc, test_loss

2.3.4 正式训练

"""训练模型--正式训练"""
epochs = 10
train_loss = []
train_acc = []
test_loss = []
test_acc = []
best_test_acc=0

for epoch in range(epochs):
    milliseconds_t1 = int(time.time() * 1000)

    # 更新学习率(使用自定义学习率时使用)
    # adjust_learning_rate(lr_opt, epoch, learn_rate)

    model.train()
    epoch_train_acc, epoch_train_loss = train(train_dl, model, loss_fn, model_opt)
    scheduler.step() # 更新学习率(调用官方动态学习率接口时使用)

    model.eval()
    epoch_test_acc, epoch_test_loss = test(test_dl, model, loss_fn)

    train_acc.append(epoch_train_acc)
    train_loss.append(epoch_train_loss)
    test_acc.append(epoch_test_acc)
    test_loss.append(epoch_test_loss)

    # 获取当前的学习率
    lr = lr_opt.state_dict()['param_groups'][0]['lr']

    milliseconds_t2 = int(time.time() * 1000)
    template = ('Epoch:{:2d}, duration:{}ms, Train_acc:{:.1f}%, Train_loss:{:.3f}, Test_acc:{:.1f}%,Test_loss:{:.3f}, Lr:{:.2E}')
    if best_test_acc < epoch_test_acc:
        best_test_acc = epoch_test_acc
        #备份最好的模型
        best_model = copy.deepcopy(model)
        template = (
            'Epoch:{:2d}, duration:{}ms, Train_acc:{:.1f}%, Train_loss:{:.3f}, Test_acc:{:.1f}%,Test_loss:{:.3f}, Lr:{:.2E},Update the best model')
    print(
        template.format(epoch + 1, milliseconds_t2-milliseconds_t1, epoch_train_acc * 100, epoch_train_loss, epoch_test_acc * 100, epoch_test_loss, lr))
# 保存最佳模型到文件中
PATH = './best_model.pth'  # 保存的参数文件名
torch.save(model.state_dict(), PATH)
print('Done')

输出最高精度为Test_acc:100%

Epoch: 1, duration:5339ms, Train_acc:32.5%, Train_loss:4.717, Test_acc:94.7%,Test_loss:0.666, Lr:1.00E-04,Update the best model
Epoch: 2, duration:4585ms, Train_acc:98.5%, Train_loss:0.255, Test_acc:98.2%,Test_loss:0.120, Lr:1.00E-04,Update the best model
Epoch: 3, duration:4651ms, Train_acc:100.0%, Train_loss:0.037, Test_acc:99.1%,Test_loss:0.057, Lr:1.00E-04,Update the best model
Epoch: 4, duration:4610ms, Train_acc:99.8%, Train_loss:0.039, Test_acc:100.0%,Test_loss:0.040, Lr:1.00E-04,Update the best model
Epoch: 5, duration:4520ms, Train_acc:99.8%, Train_loss:0.032, Test_acc:100.0%,Test_loss:0.047, Lr:1.00E-04
Epoch: 6, duration:4528ms, Train_acc:100.0%, Train_loss:0.055, Test_acc:100.0%,Test_loss:0.038, Lr:1.00E-04
Epoch: 7, duration:4541ms, Train_acc:100.0%, Train_loss:0.021, Test_acc:100.0%,Test_loss:0.022, Lr:1.00E-04
Epoch: 8, duration:4568ms, Train_acc:100.0%, Train_loss:0.066, Test_acc:100.0%,Test_loss:0.018, Lr:1.00E-04
Epoch: 9, duration:4515ms, Train_acc:99.8%, Train_loss:0.084, Test_acc:100.0%,Test_loss:0.022, Lr:1.00E-04
Epoch:10, duration:4602ms, Train_acc:99.6%, Train_loss:0.136, Test_acc:100.0%,Test_loss:0.028, Lr:1.00E-04

这里使用了预训练模型,效果特别好

2.4 结果可视化

"""训练模型--结果可视化"""
epochs_range = range(epochs)

plt.figure(figsize=(12, 3))
plt.subplot(1, 2, 1)

plt.plot(epochs_range, train_acc, label='Training Accuracy')
plt.plot(epochs_range, test_acc, label='Test Accuracy')
plt.legend(loc='lower right')
plt.title('Training and Validation Accuracy')

plt.subplot(1, 2, 2)
plt.plot(epochs_range, train_loss, label='Training Loss')
plt.plot(epochs_range, test_loss, label='Test Loss')
plt.legend(loc='upper right')
plt.title('Training and Validation Loss')
plt.show()

在这里插入图片描述

2.4 指定图片进行预测

def predict_one_image(image_path, model, transform, classes):
    test_img = Image.open(image_path).convert('RGB')
    plt.imshow(test_img)  # 展示预测的图片
    plt.show()

    test_img = transform(test_img)
    img = test_img.to(device).unsqueeze(0)

    model.eval()
    output = model(img)

    _, pred = torch.max(output, 1)
    pred_class = classes[pred]
    print(f'预测结果是:{pred_class}')

# 将参数加载到model当中
model.load_state_dict(torch.load(PATH, map_location=device))

"""指定图片进行预测"""
classes = list(total_data.class_to_idx)
# 预测训练集中的某张照片
predict_one_image(image_path=str(Path(data_dir) / "Cockatoo/001.jpg"),
                  model=model,
                  transform=train_transforms,
                  classes=classes)

在这里插入图片描述

输出

预测结果是:Cockatoo

2.6 模型评估

"""模型评估"""
best_model.eval()
epoch_test_acc, epoch_test_loss = test(test_dl, best_model, loss_fn)
# 查看是否与我们记录的最高准确率一致
print(epoch_test_acc, epoch_test_loss)


输出

1.0 0.05105462612118572

3 tensorflow实现DenseNet算法

3.1.引入库

from PIL import Image
import numpy as np
from pathlib import Path
import matplotlib.pyplot as plt

# 支持中文
plt.rcParams['font.sans-serif'] = ['SimHei']  # 用来正常显示中文标签
plt.rcParams['axes.unicode_minus'] = False  # 用来正常显示负号
import tensorflow as tf
from keras import layers, models, Input
from keras.layers import Input, Activation, BatchNormalization, Flatten
from keras.layers import Dense, Conv2D, MaxPooling2D, ZeroPadding2D, GlobalMaxPooling2D, AveragePooling2D, Flatten, \
    Dropout, BatchNormalization, GlobalAveragePooling2D
from keras.models import Model
from keras import regularizers
from tensorflow import keras
from keras.callbacks import ModelCheckpoint
import matplotlib.pyplot as plt
import warnings

warnings.filterwarnings('ignore')  # 忽略一些warning内容,无需打印

3.2.设置GPU(如果使用的是CPU可以忽略这步)

'''前期工作-设置GPU(如果使用的是CPU可以忽略这步)'''
# 检查GPU是否可用
print(tf.test.is_built_with_cuda())
gpus = tf.config.list_physical_devices("GPU")
print(gpus)
if gpus:
    gpu0 = gpus[0]  # 如果有多个GPU,仅使用第0个GPU
    tf.config.experimental.set_memory_growth(gpu0, True)  # 设置GPU显存用量按需使用
    tf.config.set_visible_devices([gpu0], "GPU")

执行结果

True
[PhysicalDevice(name='/physical_device:GPU:0', device_type='GPU')]

3.3.导入数据

'''前期工作-导入数据'''
data_dir = r"D:\DeepLearning\data\bird\bird_photos"
data_dir = Path(data_dir)

3.4.查看数据

'''前期工作-查看数据'''
image_count = len(list(data_dir.glob('*/*.jpg')))
print("图片总数为:", image_count)
image_list = list(data_dir.glob('Bananaquit/*.jpg'))
image = Image.open(str(image_list[1]))
# 查看图像实例的属性
print(image.format, image.size, image.mode)
plt.imshow(image)
plt.axis("off")
plt.show()

执行结果:

图片总数为: 565
JPEG (224, 224) RGB

在这里插入图片描述

3.5.加载数据

'''数据预处理-加载数据'''
batch_size = 32
img_height = 224
img_width = 224
"""
关于image_dataset_from_directory()的详细介绍可以参考文章:https://mtyjkh.blog.youkuaiyun.com/article/details/117018789
"""
train_ds = tf.keras.preprocessing.image_dataset_from_directory(
    data_dir,
    validation_split=0.2,
    subset="training",
    seed=123,
    image_size=(img_height, img_width),
    batch_size=batch_size)
val_ds = tf.keras.preprocessing.image_dataset_from_directory(
    data_dir,
    validation_split=0.2,
    subset="validation",
    seed=123,
    image_size=(img_height, img_width),
    batch_size=batch_size)
class_names = train_ds.class_names
print(class_names)

运行结果:

Found 565 files belonging to 4 classes.
Using 452 files for training.
Found 565 files belonging to 4 classes.
Using 113 files for validation.
['Bananaquit', 'Black Skimmer', 'Black Throated Bushtiti', 'Cockatoo']

3.6.再次检查数据

'''数据预处理-再次检查数据'''
# Image_batch是形状的张量(16, 336, 336, 3)。这是一批形状336x336x3的16张图片(最后一维指的是彩色通道RGB)。
# Label_batch是形状(16,)的张量,这些标签对应16张图片
for image_batch, labels_batch in train_ds:
    print(image_batch.shape)
    print(labels_batch.shape)
    break

运行结果

(32, 224, 224, 3)
(32,)

3.7.配置数据集

'''数据预处理-配置数据集'''
AUTOTUNE = tf.data.AUTOTUNE
train_ds = train_ds.cache().shuffle(1000).prefetch(buffer_size=AUTOTUNE)
val_ds = val_ds.cache().prefetch(buffer_size=AUTOTUNE)

3.8.可视化数据

'''数据预处理-可视化数据'''
plt.figure(figsize=(10, 5))
for images, labels in train_ds.take(1):
    for i in range(8):
        ax = plt.subplot(2, 4, i + 1)
        plt.imshow(images[i].numpy().astype("uint8"))
        plt.title(class_names[labels[i]], fontsize=10)
        plt.axis("off")
# 显示图片
plt.show()

在这里插入图片描述

3.9.构建DenseNet网络

"""构建DenseNet网络"""
def conv_fn(x, growth_rate):
    x1 = keras.layers.BatchNormalization()(x)
    x1 = keras.layers.Activation('relu')(x1)
    x1 = keras.layers.Conv2D(4 * growth_rate, 1, 1, padding="same", use_bias=False)(x1)
    x1 = keras.layers.BatchNormalization()(x1)
    x1 = keras.layers.Activation("relu")(x1)
    x1 = keras.layers.Conv2D(growth_rate, 3, 1, padding="same", use_bias=False)(x1)
    return keras.layers.Concatenate(axis=3)([x, x1])


def dense_block(x, block, growth_rate=32):
    for i in range(block):
        x = conv_fn(x, growth_rate)
    return x


k = keras.backend
def trans_block(x, theta):
    x1 = keras.layers.BatchNormalization()(x)
    x1 = keras.layers.Activation("relu")(x1)
    x1 = keras.layers.Conv2D(int(k.int_shape(x)[3] * theta), 1, 1, use_bias=False)(x1)
    x1 = keras.layers.AveragePooling2D(pool_size=(2, 2), strides=2, padding="valid")(x1)
    return x1


def densenet(input_shape, block, n_classes=1000):
    # 56*56*64
    x_input = keras.layers.Input(shape=input_shape)
    x = keras.layers.Conv2D(64, kernel_size=(7, 7), strides=2, padding="same", use_bias=False)(x_input)
    x = keras.layers.BatchNormalization()(x)
    x = keras.layers.MaxPooling2D(pool_size=3, strides=2, padding="same")(x)
    x = dense_block(x, block[0])
    x = trans_block(x, 0.5)  # 28*28
    x = dense_block(x, block[1])
    x = trans_block(x, 0.5)  # 14*14
    x = dense_block(x, block[2])
    x = trans_block(x, 0.5)  # 7*7
    x = dense_block(x, block[3])
    x = keras.layers.BatchNormalization()(x)
    x = keras.layers.Activation("relu")(x)
    x = keras.layers.GlobalAveragePooling2D()(x)
    outputs = keras.layers.Dense(n_classes, activation="softmax")(x)
    model = keras.models.Model(inputs=[x_input], outputs=[outputs])
    return model


model_121 = densenet([224, 224, 3], [6, 12, 24, 16])  # DenseNet-121
model_169 = densenet([224, 224, 3], [6, 12, 32, 32])  # DenseNet-169
model_201 = densenet([224, 224, 3], [6, 12, 48, 32])  # DenseNet-201
model_269 = densenet([224, 224, 3], [6, 12, 64, 48])  # DenseNet-269
model = model_121
model.summary()

网络结构结果如下:

Model: "model"
__________________________________________________________________________________________________
 Layer (type)                   Output Shape         Param #     Connected to
==================================================================================================
 input_1 (InputLayer)           [(None, 224, 224, 3  0           []
                                )]

 conv2d (Conv2D)                (None, 112, 112, 64  9408        ['input_1[0][0]']
                                )

 batch_normalization (BatchNorm  (None, 112, 112, 64  256        ['conv2d[0][0]']
 alization)                     )

 max_pooling2d (MaxPooling2D)   (None, 56, 56, 64)   0           ['batch_normalization[0][0]']

 batch_normalization_1 (BatchNo  (None, 56, 56, 64)  256         ['max_pooling2d[0][0]']
 rmalization)

 activation (Activation)        (None, 56, 56, 64)   0           ['batch_normalization_1[0][0]']

 conv2d_1 (Conv2D)              (None, 56, 56, 128)  8192        ['activation[0][0]']

 batch_normalization_2 (BatchNo  (None, 56, 56, 128)  512        ['conv2d_1[0][0]']
 rmalization)

 activation_1 (Activation)      (None, 56, 56, 128)  0           ['batch_normalization_2[0][0]']

 conv2d_2 (Conv2D)              (None, 56, 56, 32)   36864       ['activation_1[0][0]']

 concatenate (Concatenate)      (None, 56, 56, 96)   0           ['max_pooling2d[0][0]',
                                                                  'conv2d_2[0][0]']

 batch_normalization_3 (BatchNo  (None, 56, 56, 96)  384         ['concatenate[0][0]']
 rmalization)

 activation_2 (Activation)      (None, 56, 56, 96)   0           ['batch_normalization_3[0][0]']

 conv2d_3 (Conv2D)              (None, 56, 56, 128)  12288       ['activation_2[0][0]']

 batch_normalization_4 (BatchNo  (None, 56, 56, 128)  512        ['conv2d_3[0][0]']
 rmalization)

 activation_3 (Activation)      (None, 56, 56, 128)  0           ['batch_normalization_4[0][0]']

 conv2d_4 (Conv2D)              (None, 56, 56, 32)   36864       ['activation_3[0][0]']

 concatenate_1 (Concatenate)    (None, 56, 56, 128)  0           ['concatenate[0][0]',
                                                                  'conv2d_4[0][0]']

 batch_normalization_5 (BatchNo  (None, 56, 56, 128)  512        ['concatenate_1[0][0]']
 rmalization)

 activation_4 (Activation)      (None, 56, 56, 128)  0           ['batch_normalization_5[0][0]']

 conv2d_5 (Conv2D)              (None, 56, 56, 128)  16384       ['activation_4[0][0]']

 batch_normalization_6 (BatchNo  (None, 56, 56, 128)  512        ['conv2d_5[0][0]']
 rmalization)

 activation_5 (Activation)      (None, 56, 56, 128)  0           ['batch_normalization_6[0][0]']

 conv2d_6 (Conv2D)              (None, 56, 56, 32)   36864       ['activation_5[0][0]']

 concatenate_2 (Concatenate)    (None, 56, 56, 160)  0           ['concatenate_1[0][0]',
                                                                  'conv2d_6[0][0]']

 batch_normalization_7 (BatchNo  (None, 56, 56, 160)  640        ['concatenate_2[0][0]']
 rmalization)

 activation_6 (Activation)      (None, 56, 56, 160)  0           ['batch_normalization_7[0][0]']

 conv2d_7 (Conv2D)              (None, 56, 56, 128)  20480       ['activation_6[0][0]']

 batch_normalization_8 (BatchNo  (None, 56, 56, 128)  512        ['conv2d_7[0][0]']
 rmalization)

 activation_7 (Activation)      (None, 56, 56, 128)  0           ['batch_normalization_8[0][0]']

 conv2d_8 (Conv2D)              (None, 56, 56, 32)   36864       ['activation_7[0][0]']

 concatenate_3 (Concatenate)    (None, 56, 56, 192)  0           ['concatenate_2[0][0]',
                                                                  'conv2d_8[0][0]']

 batch_normalization_9 (BatchNo  (None, 56, 56, 192)  768        ['concatenate_3[0][0]']
 rmalization)

 activation_8 (Activation)      (None, 56, 56, 192)  0           ['batch_normalization_9[0][0]']

 conv2d_9 (Conv2D)              (None, 56, 56, 128)  24576       ['activation_8[0][0]']

 batch_normalization_10 (BatchN  (None, 56, 56, 128)  512        ['conv2d_9[0][0]']
 ormalization)

 activation_9 (Activation)      (None, 56, 56, 128)  0           ['batch_normalization_10[0][0]']

 conv2d_10 (Conv2D)             (None, 56, 56, 32)   36864       ['activation_9[0][0]']

 concatenate_4 (Concatenate)    (None, 56, 56, 224)  0           ['concatenate_3[0][0]',
                                                                  'conv2d_10[0][0]']

 batch_normalization_11 (BatchN  (None, 56, 56, 224)  896        ['concatenate_4[0][0]']
 ormalization)

 activation_10 (Activation)     (None, 56, 56, 224)  0           ['batch_normalization_11[0][0]']

 conv2d_11 (Conv2D)             (None, 56, 56, 128)  28672       ['activation_10[0][0]']

 batch_normalization_12 (BatchN  (None, 56, 56, 128)  512        ['conv2d_11[0][0]']
 ormalization)

 activation_11 (Activation)     (None, 56, 56, 128)  0           ['batch_normalization_12[0][0]']

 conv2d_12 (Conv2D)             (None, 56, 56, 32)   36864       ['activation_11[0][0]']

 concatenate_5 (Concatenate)    (None, 56, 56, 256)  0           ['concatenate_4[0][0]',
                                                                  'conv2d_12[0][0]']

 batch_normalization_13 (BatchN  (None, 56, 56, 256)  1024       ['concatenate_5[0][0]']
 ormalization)

 activation_12 (Activation)     (None, 56, 56, 256)  0           ['batch_normalization_13[0][0]']

 conv2d_13 (Conv2D)             (None, 56, 56, 128)  32768       ['activation_12[0][0]']

 average_pooling2d (AveragePool  (None, 28, 28, 128)  0          ['conv2d_13[0][0]']
 ing2D)

 batch_normalization_14 (BatchN  (None, 28, 28, 128)  512        ['average_pooling2d[0][0]']
 ormalization)

 activation_13 (Activation)     (None, 28, 28, 128)  0           ['batch_normalization_14[0][0]']

 conv2d_14 (Conv2D)             (None, 28, 28, 128)  16384       ['activation_13[0][0]']

 batch_normalization_15 (BatchN  (None, 28, 28, 128)  512        ['conv2d_14[0][0]']
 ormalization)

 activation_14 (Activation)     (None, 28, 28, 128)  0           ['batch_normalization_15[0][0]']

 conv2d_15 (Conv2D)             (None, 28, 28, 32)   36864       ['activation_14[0][0]']

 concatenate_6 (Concatenate)    (None, 28, 28, 160)  0           ['average_pooling2d[0][0]',
                                                                  'conv2d_15[0][0]']

 batch_normalization_16 (BatchN  (None, 28, 28, 160)  640        ['concatenate_6[0][0]']
 ormalization)

 activation_15 (Activation)     (None, 28, 28, 160)  0           ['batch_normalization_16[0][0]']

 conv2d_16 (Conv2D)             (None, 28, 28, 128)  20480       ['activation_15[0][0]']

 batch_normalization_17 (BatchN  (None, 28, 28, 128)  512        ['conv2d_16[0][0]']
 ormalization)

 activation_16 (Activation)     (None, 28, 28, 128)  0           ['batch_normalization_17[0][0]']

 conv2d_17 (Conv2D)             (None, 28, 28, 32)   36864       ['activation_16[0][0]']

 concatenate_7 (Concatenate)    (None, 28, 28, 192)  0           ['concatenate_6[0][0]',
                                                                  'conv2d_17[0][0]']

 batch_normalization_18 (BatchN  (None, 28, 28, 192)  768        ['concatenate_7[0][0]']
 ormalization)

 activation_17 (Activation)     (None, 28, 28, 192)  0           ['batch_normalization_18[0][0]']

 conv2d_18 (Conv2D)             (None, 28, 28, 128)  24576       ['activation_17[0][0]']

 batch_normalization_19 (BatchN  (None, 28, 28, 128)  512        ['conv2d_18[0][0]']
 ormalization)

 activation_18 (Activation)     (None, 28, 28, 128)  0           ['batch_normalization_19[0][0]']

 conv2d_19 (Conv2D)             (None, 28, 28, 32)   36864       ['activation_18[0][0]']

 concatenate_8 (Concatenate)    (None, 28, 28, 224)  0           ['concatenate_7[0][0]',
                                                                  'conv2d_19[0][0]']

 batch_normalization_20 (BatchN  (None, 28, 28, 224)  896        ['concatenate_8[0][0]']
 ormalization)

 activation_19 (Activation)     (None, 28, 28, 224)  0           ['batch_normalization_20[0][0]']

 conv2d_20 (Conv2D)             (None, 28, 28, 128)  28672       ['activation_19[0][0]']

 batch_normalization_21 (BatchN  (None, 28, 28, 128)  512        ['conv2d_20[0][0]']
 ormalization)

 activation_20 (Activation)     (None, 28, 28, 128)  0           ['batch_normalization_21[0][0]']

 conv2d_21 (Conv2D)             (None, 28, 28, 32)   36864       ['activation_20[0][0]']

 concatenate_9 (Concatenate)    (None, 28, 28, 256)  0           ['concatenate_8[0][0]',
                                                                  'conv2d_21[0][0]']

 batch_normalization_22 (BatchN  (None, 28, 28, 256)  1024       ['concatenate_9[0][0]']
 ormalization)

 activation_21 (Activation)     (None, 28, 28, 256)  0           ['batch_normalization_22[0][0]']

 conv2d_22 (Conv2D)             (None, 28, 28, 128)  32768       ['activation_21[0][0]']

 batch_normalization_23 (BatchN  (None, 28, 28, 128)  512        ['conv2d_22[0][0]']
 ormalization)

 activation_22 (Activation)     (None, 28, 28, 128)  0           ['batch_normalization_23[0][0]']

 conv2d_23 (Conv2D)             (None, 28, 28, 32)   36864       ['activation_22[0][0]']

 concatenate_10 (Concatenate)   (None, 28, 28, 288)  0           ['concatenate_9[0][0]',
                                                                  'conv2d_23[0][0]']

 batch_normalization_24 (BatchN  (None, 28, 28, 288)  1152       ['concatenate_10[0][0]']
 ormalization)

 activation_23 (Activation)     (None, 28, 28, 288)  0           ['batch_normalization_24[0][0]']

 conv2d_24 (Conv2D)             (None, 28, 28, 128)  36864       ['activation_23[0][0]']

 batch_normalization_25 (BatchN  (None, 28, 28, 128)  512        ['conv2d_24[0][0]']
 ormalization)

 activation_24 (Activation)     (None, 28, 28, 128)  0           ['batch_normalization_25[0][0]']

 conv2d_25 (Conv2D)             (None, 28, 28, 32)   36864       ['activation_24[0][0]']

 concatenate_11 (Concatenate)   (None, 28, 28, 320)  0           ['concatenate_10[0][0]',
                                                                  'conv2d_25[0][0]']

 batch_normalization_26 (BatchN  (None, 28, 28, 320)  1280       ['concatenate_11[0][0]']
 ormalization)

 activation_25 (Activation)     (None, 28, 28, 320)  0           ['batch_normalization_26[0][0]']

 conv2d_26 (Conv2D)             (None, 28, 28, 128)  40960       ['activation_25[0][0]']

 batch_normalization_27 (BatchN  (None, 28, 28, 128)  512        ['conv2d_26[0][0]']
 ormalization)

 activation_26 (Activation)     (None, 28, 28, 128)  0           ['batch_normalization_27[0][0]']

 conv2d_27 (Conv2D)             (None, 28, 28, 32)   36864       ['activation_26[0][0]']

 concatenate_12 (Concatenate)   (None, 28, 28, 352)  0           ['concatenate_11[0][0]',
                                                                  'conv2d_27[0][0]']

 batch_normalization_28 (BatchN  (None, 28, 28, 352)  1408       ['concatenate_12[0][0]']
 ormalization)

 activation_27 (Activation)     (None, 28, 28, 352)  0           ['batch_normalization_28[0][0]']

 conv2d_28 (Conv2D)             (None, 28, 28, 128)  45056       ['activation_27[0][0]']

 batch_normalization_29 (BatchN  (None, 28, 28, 128)  512        ['conv2d_28[0][0]']
 ormalization)

 activation_28 (Activation)     (None, 28, 28, 128)  0           ['batch_normalization_29[0][0]']

 conv2d_29 (Conv2D)             (None, 28, 28, 32)   36864       ['activation_28[0][0]']

 concatenate_13 (Concatenate)   (None, 28, 28, 384)  0           ['concatenate_12[0][0]',
                                                                  'conv2d_29[0][0]']

 batch_normalization_30 (BatchN  (None, 28, 28, 384)  1536       ['concatenate_13[0][0]']
 ormalization)

 activation_29 (Activation)     (None, 28, 28, 384)  0           ['batch_normalization_30[0][0]']

 conv2d_30 (Conv2D)             (None, 28, 28, 128)  49152       ['activation_29[0][0]']

 batch_normalization_31 (BatchN  (None, 28, 28, 128)  512        ['conv2d_30[0][0]']
 ormalization)

 activation_30 (Activation)     (None, 28, 28, 128)  0           ['batch_normalization_31[0][0]']

 conv2d_31 (Conv2D)             (None, 28, 28, 32)   36864       ['activation_30[0][0]']

 concatenate_14 (Concatenate)   (None, 28, 28, 416)  0           ['concatenate_13[0][0]',
                                                                  'conv2d_31[0][0]']

 batch_normalization_32 (BatchN  (None, 28, 28, 416)  1664       ['concatenate_14[0][0]']
 ormalization)

 activation_31 (Activation)     (None, 28, 28, 416)  0           ['batch_normalization_32[0][0]']

 conv2d_32 (Conv2D)             (None, 28, 28, 128)  53248       ['activation_31[0][0]']

 batch_normalization_33 (BatchN  (None, 28, 28, 128)  512        ['conv2d_32[0][0]']
 ormalization)

 activation_32 (Activation)     (None, 28, 28, 128)  0           ['batch_normalization_33[0][0]']

 conv2d_33 (Conv2D)             (None, 28, 28, 32)   36864       ['activation_32[0][0]']

 concatenate_15 (Concatenate)   (None, 28, 28, 448)  0           ['concatenate_14[0][0]',
                                                                  'conv2d_33[0][0]']

 batch_normalization_34 (BatchN  (None, 28, 28, 448)  1792       ['concatenate_15[0][0]']
 ormalization)

 activation_33 (Activation)     (None, 28, 28, 448)  0           ['batch_normalization_34[0][0]']

 conv2d_34 (Conv2D)             (None, 28, 28, 128)  57344       ['activation_33[0][0]']

 batch_normalization_35 (BatchN  (None, 28, 28, 128)  512        ['conv2d_34[0][0]']
 ormalization)

 activation_34 (Activation)     (None, 28, 28, 128)  0           ['batch_normalization_35[0][0]']

 conv2d_35 (Conv2D)             (None, 28, 28, 32)   36864       ['activation_34[0][0]']

 concatenate_16 (Concatenate)   (None, 28, 28, 480)  0           ['concatenate_15[0][0]',
                                                                  'conv2d_35[0][0]']

 batch_normalization_36 (BatchN  (None, 28, 28, 480)  1920       ['concatenate_16[0][0]']
 ormalization)

 activation_35 (Activation)     (None, 28, 28, 480)  0           ['batch_normalization_36[0][0]']

 conv2d_36 (Conv2D)             (None, 28, 28, 128)  61440       ['activation_35[0][0]']

 batch_normalization_37 (BatchN  (None, 28, 28, 128)  512        ['conv2d_36[0][0]']
 ormalization)

 activation_36 (Activation)     (None, 28, 28, 128)  0           ['batch_normalization_37[0][0]']

 conv2d_37 (Conv2D)             (None, 28, 28, 32)   36864       ['activation_36[0][0]']

 concatenate_17 (Concatenate)   (None, 28, 28, 512)  0           ['concatenate_16[0][0]',
                                                                  'conv2d_37[0][0]']

 batch_normalization_38 (BatchN  (None, 28, 28, 512)  2048       ['concatenate_17[0][0]']
 ormalization)

 activation_37 (Activation)     (None, 28, 28, 512)  0           ['batch_normalization_38[0][0]']

 conv2d_38 (Conv2D)             (None, 28, 28, 256)  131072      ['activation_37[0][0]']

 average_pooling2d_1 (AveragePo  (None, 14, 14, 256)  0          ['conv2d_38[0][0]']
 oling2D)

 batch_normalization_39 (BatchN  (None, 14, 14, 256)  1024       ['average_pooling2d_1[0][0]']
 ormalization)

 activation_38 (Activation)     (None, 14, 14, 256)  0           ['batch_normalization_39[0][0]']

 conv2d_39 (Conv2D)             (None, 14, 14, 128)  32768       ['activation_38[0][0]']

 batch_normalization_40 (BatchN  (None, 14, 14, 128)  512        ['conv2d_39[0][0]']
 ormalization)

 activation_39 (Activation)     (None, 14, 14, 128)  0           ['batch_normalization_40[0][0]']

 conv2d_40 (Conv2D)             (None, 14, 14, 32)   36864       ['activation_39[0][0]']

 concatenate_18 (Concatenate)   (None, 14, 14, 288)  0           ['average_pooling2d_1[0][0]',
                                                                  'conv2d_40[0][0]']

 batch_normalization_41 (BatchN  (None, 14, 14, 288)  1152       ['concatenate_18[0][0]']
 ormalization)

 activation_40 (Activation)     (None, 14, 14, 288)  0           ['batch_normalization_41[0][0]']

 conv2d_41 (Conv2D)             (None, 14, 14, 128)  36864       ['activation_40[0][0]']

 batch_normalization_42 (BatchN  (None, 14, 14, 128)  512        ['conv2d_41[0][0]']
 ormalization)

 activation_41 (Activation)     (None, 14, 14, 128)  0           ['batch_normalization_42[0][0]']

 conv2d_42 (Conv2D)             (None, 14, 14, 32)   36864       ['activation_41[0][0]']

 concatenate_19 (Concatenate)   (None, 14, 14, 320)  0           ['concatenate_18[0][0]',
                                                                  'conv2d_42[0][0]']

 batch_normalization_43 (BatchN  (None, 14, 14, 320)  1280       ['concatenate_19[0][0]']
 ormalization)

 activation_42 (Activation)     (None, 14, 14, 320)  0           ['batch_normalization_43[0][0]']

 conv2d_43 (Conv2D)             (None, 14, 14, 128)  40960       ['activation_42[0][0]']

 batch_normalization_44 (BatchN  (None, 14, 14, 128)  512        ['conv2d_43[0][0]']
 ormalization)

 activation_43 (Activation)     (None, 14, 14, 128)  0           ['batch_normalization_44[0][0]']

 conv2d_44 (Conv2D)             (None, 14, 14, 32)   36864       ['activation_43[0][0]']

 concatenate_20 (Concatenate)   (None, 14, 14, 352)  0           ['concatenate_19[0][0]',
                                                                  'conv2d_44[0][0]']

 batch_normalization_45 (BatchN  (None, 14, 14, 352)  1408       ['concatenate_20[0][0]']
 ormalization)

 activation_44 (Activation)     (None, 14, 14, 352)  0           ['batch_normalization_45[0][0]']

 conv2d_45 (Conv2D)             (None, 14, 14, 128)  45056       ['activation_44[0][0]']

 batch_normalization_46 (BatchN  (None, 14, 14, 128)  512        ['conv2d_45[0][0]']
 ormalization)

 activation_45 (Activation)     (None, 14, 14, 128)  0           ['batch_normalization_46[0][0]']

 conv2d_46 (Conv2D)             (None, 14, 14, 32)   36864       ['activation_45[0][0]']

 concatenate_21 (Concatenate)   (None, 14, 14, 384)  0           ['concatenate_20[0][0]',
                                                                  'conv2d_46[0][0]']

 batch_normalization_47 (BatchN  (None, 14, 14, 384)  1536       ['concatenate_21[0][0]']
 ormalization)

 activation_46 (Activation)     (None, 14, 14, 384)  0           ['batch_normalization_47[0][0]']

 conv2d_47 (Conv2D)             (None, 14, 14, 128)  49152       ['activation_46[0][0]']

 batch_normalization_48 (BatchN  (None, 14, 14, 128)  512        ['conv2d_47[0][0]']
 ormalization)

 activation_47 (Activation)     (None, 14, 14, 128)  0           ['batch_normalization_48[0][0]']

 conv2d_48 (Conv2D)             (None, 14, 14, 32)   36864       ['activation_47[0][0]']

 concatenate_22 (Concatenate)   (None, 14, 14, 416)  0           ['concatenate_21[0][0]',
                                                                  'conv2d_48[0][0]']

 batch_normalization_49 (BatchN  (None, 14, 14, 416)  1664       ['concatenate_22[0][0]']
 ormalization)

 activation_48 (Activation)     (None, 14, 14, 416)  0           ['batch_normalization_49[0][0]']

 conv2d_49 (Conv2D)             (None, 14, 14, 128)  53248       ['activation_48[0][0]']

 batch_normalization_50 (BatchN  (None, 14, 14, 128)  512        ['conv2d_49[0][0]']
 ormalization)

 activation_49 (Activation)     (None, 14, 14, 128)  0           ['batch_normalization_50[0][0]']

 conv2d_50 (Conv2D)             (None, 14, 14, 32)   36864       ['activation_49[0][0]']

 concatenate_23 (Concatenate)   (None, 14, 14, 448)  0           ['concatenate_22[0][0]',
                                                                  'conv2d_50[0][0]']

 batch_normalization_51 (BatchN  (None, 14, 14, 448)  1792       ['concatenate_23[0][0]']
 ormalization)

 activation_50 (Activation)     (None, 14, 14, 448)  0           ['batch_normalization_51[0][0]']

 conv2d_51 (Conv2D)             (None, 14, 14, 128)  57344       ['activation_50[0][0]']

 batch_normalization_52 (BatchN  (None, 14, 14, 128)  512        ['conv2d_51[0][0]']
 ormalization)

 activation_51 (Activation)     (None, 14, 14, 128)  0           ['batch_normalization_52[0][0]']

 conv2d_52 (Conv2D)             (None, 14, 14, 32)   36864       ['activation_51[0][0]']

 concatenate_24 (Concatenate)   (None, 14, 14, 480)  0           ['concatenate_23[0][0]',
                                                                  'conv2d_52[0][0]']

 batch_normalization_53 (BatchN  (None, 14, 14, 480)  1920       ['concatenate_24[0][0]']
 ormalization)

 activation_52 (Activation)     (None, 14, 14, 480)  0           ['batch_normalization_53[0][0]']

 conv2d_53 (Conv2D)             (None, 14, 14, 128)  61440       ['activation_52[0][0]']

 batch_normalization_54 (BatchN  (None, 14, 14, 128)  512        ['conv2d_53[0][0]']
 ormalization)

 activation_53 (Activation)     (None, 14, 14, 128)  0           ['batch_normalization_54[0][0]']

 conv2d_54 (Conv2D)             (None, 14, 14, 32)   36864       ['activation_53[0][0]']

 concatenate_25 (Concatenate)   (None, 14, 14, 512)  0           ['concatenate_24[0][0]',
                                                                  'conv2d_54[0][0]']

 batch_normalization_55 (BatchN  (None, 14, 14, 512)  2048       ['concatenate_25[0][0]']
 ormalization)

 activation_54 (Activation)     (None, 14, 14, 512)  0           ['batch_normalization_55[0][0]']

 conv2d_55 (Conv2D)             (None, 14, 14, 128)  65536       ['activation_54[0][0]']

 batch_normalization_56 (BatchN  (None, 14, 14, 128)  512        ['conv2d_55[0][0]']
 ormalization)

 activation_55 (Activation)     (None, 14, 14, 128)  0           ['batch_normalization_56[0][0]']

 conv2d_56 (Conv2D)             (None, 14, 14, 32)   36864       ['activation_55[0][0]']

 concatenate_26 (Concatenate)   (None, 14, 14, 544)  0           ['concatenate_25[0][0]',
                                                                  'conv2d_56[0][0]']

 batch_normalization_57 (BatchN  (None, 14, 14, 544)  2176       ['concatenate_26[0][0]']
 ormalization)

 activation_56 (Activation)     (None, 14, 14, 544)  0           ['batch_normalization_57[0][0]']

 conv2d_57 (Conv2D)             (None, 14, 14, 128)  69632       ['activation_56[0][0]']

 batch_normalization_58 (BatchN  (None, 14, 14, 128)  512        ['conv2d_57[0][0]']
 ormalization)

 activation_57 (Activation)     (None, 14, 14, 128)  0           ['batch_normalization_58[0][0]']

 conv2d_58 (Conv2D)             (None, 14, 14, 32)   36864       ['activation_57[0][0]']

 concatenate_27 (Concatenate)   (None, 14, 14, 576)  0           ['concatenate_26[0][0]',
                                                                  'conv2d_58[0][0]']

 batch_normalization_59 (BatchN  (None, 14, 14, 576)  2304       ['concatenate_27[0][0]']
 ormalization)

 activation_58 (Activation)     (None, 14, 14, 576)  0           ['batch_normalization_59[0][0]']

 conv2d_59 (Conv2D)             (None, 14, 14, 128)  73728       ['activation_58[0][0]']

 batch_normalization_60 (BatchN  (None, 14, 14, 128)  512        ['conv2d_59[0][0]']
 ormalization)

 activation_59 (Activation)     (None, 14, 14, 128)  0           ['batch_normalization_60[0][0]']

 conv2d_60 (Conv2D)             (None, 14, 14, 32)   36864       ['activation_59[0][0]']

 concatenate_28 (Concatenate)   (None, 14, 14, 608)  0           ['concatenate_27[0][0]',
                                                                  'conv2d_60[0][0]']

 batch_normalization_61 (BatchN  (None, 14, 14, 608)  2432       ['concatenate_28[0][0]']
 ormalization)

 activation_60 (Activation)     (None, 14, 14, 608)  0           ['batch_normalization_61[0][0]']

 conv2d_61 (Conv2D)             (None, 14, 14, 128)  77824       ['activation_60[0][0]']

 batch_normalization_62 (BatchN  (None, 14, 14, 128)  512        ['conv2d_61[0][0]']
 ormalization)

 activation_61 (Activation)     (None, 14, 14, 128)  0           ['batch_normalization_62[0][0]']

 conv2d_62 (Conv2D)             (None, 14, 14, 32)   36864       ['activation_61[0][0]']

 concatenate_29 (Concatenate)   (None, 14, 14, 640)  0           ['concatenate_28[0][0]',
                                                                  'conv2d_62[0][0]']

 batch_normalization_63 (BatchN  (None, 14, 14, 640)  2560       ['concatenate_29[0][0]']
 ormalization)

 activation_62 (Activation)     (None, 14, 14, 640)  0           ['batch_normalization_63[0][0]']

 conv2d_63 (Conv2D)             (None, 14, 14, 128)  81920       ['activation_62[0][0]']

 batch_normalization_64 (BatchN  (None, 14, 14, 128)  512        ['conv2d_63[0][0]']
 ormalization)

 activation_63 (Activation)     (None, 14, 14, 128)  0           ['batch_normalization_64[0][0]']

 conv2d_64 (Conv2D)             (None, 14, 14, 32)   36864       ['activation_63[0][0]']

 concatenate_30 (Concatenate)   (None, 14, 14, 672)  0           ['concatenate_29[0][0]',
                                                                  'conv2d_64[0][0]']

 batch_normalization_65 (BatchN  (None, 14, 14, 672)  2688       ['concatenate_30[0][0]']
 ormalization)

 activation_64 (Activation)     (None, 14, 14, 672)  0           ['batch_normalization_65[0][0]']

 conv2d_65 (Conv2D)             (None, 14, 14, 128)  86016       ['activation_64[0][0]']

 batch_normalization_66 (BatchN  (None, 14, 14, 128)  512        ['conv2d_65[0][0]']
 ormalization)

 activation_65 (Activation)     (None, 14, 14, 128)  0           ['batch_normalization_66[0][0]']

 conv2d_66 (Conv2D)             (None, 14, 14, 32)   36864       ['activation_65[0][0]']

 concatenate_31 (Concatenate)   (None, 14, 14, 704)  0           ['concatenate_30[0][0]',
                                                                  'conv2d_66[0][0]']

 batch_normalization_67 (BatchN  (None, 14, 14, 704)  2816       ['concatenate_31[0][0]']
 ormalization)

 activation_66 (Activation)     (None, 14, 14, 704)  0           ['batch_normalization_67[0][0]']

 conv2d_67 (Conv2D)             (None, 14, 14, 128)  90112       ['activation_66[0][0]']

 batch_normalization_68 (BatchN  (None, 14, 14, 128)  512        ['conv2d_67[0][0]']
 ormalization)

 activation_67 (Activation)     (None, 14, 14, 128)  0           ['batch_normalization_68[0][0]']

 conv2d_68 (Conv2D)             (None, 14, 14, 32)   36864       ['activation_67[0][0]']

 concatenate_32 (Concatenate)   (None, 14, 14, 736)  0           ['concatenate_31[0][0]',
                                                                  'conv2d_68[0][0]']

 batch_normalization_69 (BatchN  (None, 14, 14, 736)  2944       ['concatenate_32[0][0]']
 ormalization)

 activation_68 (Activation)     (None, 14, 14, 736)  0           ['batch_normalization_69[0][0]']

 conv2d_69 (Conv2D)             (None, 14, 14, 128)  94208       ['activation_68[0][0]']

 batch_normalization_70 (BatchN  (None, 14, 14, 128)  512        ['conv2d_69[0][0]']
 ormalization)

 activation_69 (Activation)     (None, 14, 14, 128)  0           ['batch_normalization_70[0][0]']

 conv2d_70 (Conv2D)             (None, 14, 14, 32)   36864       ['activation_69[0][0]']

 concatenate_33 (Concatenate)   (None, 14, 14, 768)  0           ['concatenate_32[0][0]',
                                                                  'conv2d_70[0][0]']

 batch_normalization_71 (BatchN  (None, 14, 14, 768)  3072       ['concatenate_33[0][0]']
 ormalization)

 activation_70 (Activation)     (None, 14, 14, 768)  0           ['batch_normalization_71[0][0]']

 conv2d_71 (Conv2D)             (None, 14, 14, 128)  98304       ['activation_70[0][0]']

 batch_normalization_72 (BatchN  (None, 14, 14, 128)  512        ['conv2d_71[0][0]']
 ormalization)

 activation_71 (Activation)     (None, 14, 14, 128)  0           ['batch_normalization_72[0][0]']

 conv2d_72 (Conv2D)             (None, 14, 14, 32)   36864       ['activation_71[0][0]']

 concatenate_34 (Concatenate)   (None, 14, 14, 800)  0           ['concatenate_33[0][0]',
                                                                  'conv2d_72[0][0]']

 batch_normalization_73 (BatchN  (None, 14, 14, 800)  3200       ['concatenate_34[0][0]']
 ormalization)

 activation_72 (Activation)     (None, 14, 14, 800)  0           ['batch_normalization_73[0][0]']

 conv2d_73 (Conv2D)             (None, 14, 14, 128)  102400      ['activation_72[0][0]']

 batch_normalization_74 (BatchN  (None, 14, 14, 128)  512        ['conv2d_73[0][0]']
 ormalization)

 activation_73 (Activation)     (None, 14, 14, 128)  0           ['batch_normalization_74[0][0]']

 conv2d_74 (Conv2D)             (None, 14, 14, 32)   36864       ['activation_73[0][0]']

 concatenate_35 (Concatenate)   (None, 14, 14, 832)  0           ['concatenate_34[0][0]',
                                                                  'conv2d_74[0][0]']

 batch_normalization_75 (BatchN  (None, 14, 14, 832)  3328       ['concatenate_35[0][0]']
 ormalization)

 activation_74 (Activation)     (None, 14, 14, 832)  0           ['batch_normalization_75[0][0]']

 conv2d_75 (Conv2D)             (None, 14, 14, 128)  106496      ['activation_74[0][0]']

 batch_normalization_76 (BatchN  (None, 14, 14, 128)  512        ['conv2d_75[0][0]']
 ormalization)

 activation_75 (Activation)     (None, 14, 14, 128)  0           ['batch_normalization_76[0][0]']

 conv2d_76 (Conv2D)             (None, 14, 14, 32)   36864       ['activation_75[0][0]']

 concatenate_36 (Concatenate)   (None, 14, 14, 864)  0           ['concatenate_35[0][0]',
                                                                  'conv2d_76[0][0]']

 batch_normalization_77 (BatchN  (None, 14, 14, 864)  3456       ['concatenate_36[0][0]']
 ormalization)

 activation_76 (Activation)     (None, 14, 14, 864)  0           ['batch_normalization_77[0][0]']

 conv2d_77 (Conv2D)             (None, 14, 14, 128)  110592      ['activation_76[0][0]']

 batch_normalization_78 (BatchN  (None, 14, 14, 128)  512        ['conv2d_77[0][0]']
 ormalization)

 activation_77 (Activation)     (None, 14, 14, 128)  0           ['batch_normalization_78[0][0]']

 conv2d_78 (Conv2D)             (None, 14, 14, 32)   36864       ['activation_77[0][0]']

 concatenate_37 (Concatenate)   (None, 14, 14, 896)  0           ['concatenate_36[0][0]',
                                                                  'conv2d_78[0][0]']

 batch_normalization_79 (BatchN  (None, 14, 14, 896)  3584       ['concatenate_37[0][0]']
 ormalization)

 activation_78 (Activation)     (None, 14, 14, 896)  0           ['batch_normalization_79[0][0]']

 conv2d_79 (Conv2D)             (None, 14, 14, 128)  114688      ['activation_78[0][0]']

 batch_normalization_80 (BatchN  (None, 14, 14, 128)  512        ['conv2d_79[0][0]']
 ormalization)

 activation_79 (Activation)     (None, 14, 14, 128)  0           ['batch_normalization_80[0][0]']

 conv2d_80 (Conv2D)             (None, 14, 14, 32)   36864       ['activation_79[0][0]']

 concatenate_38 (Concatenate)   (None, 14, 14, 928)  0           ['concatenate_37[0][0]',
                                                                  'conv2d_80[0][0]']

 batch_normalization_81 (BatchN  (None, 14, 14, 928)  3712       ['concatenate_38[0][0]']
 ormalization)

 activation_80 (Activation)     (None, 14, 14, 928)  0           ['batch_normalization_81[0][0]']

 conv2d_81 (Conv2D)             (None, 14, 14, 128)  118784      ['activation_80[0][0]']

 batch_normalization_82 (BatchN  (None, 14, 14, 128)  512        ['conv2d_81[0][0]']
 ormalization)

 activation_81 (Activation)     (None, 14, 14, 128)  0           ['batch_normalization_82[0][0]']

 conv2d_82 (Conv2D)             (None, 14, 14, 32)   36864       ['activation_81[0][0]']

 concatenate_39 (Concatenate)   (None, 14, 14, 960)  0           ['concatenate_38[0][0]',
                                                                  'conv2d_82[0][0]']

 batch_normalization_83 (BatchN  (None, 14, 14, 960)  3840       ['concatenate_39[0][0]']
 ormalization)

 activation_82 (Activation)     (None, 14, 14, 960)  0           ['batch_normalization_83[0][0]']

 conv2d_83 (Conv2D)             (None, 14, 14, 128)  122880      ['activation_82[0][0]']

 batch_normalization_84 (BatchN  (None, 14, 14, 128)  512        ['conv2d_83[0][0]']
 ormalization)

 activation_83 (Activation)     (None, 14, 14, 128)  0           ['batch_normalization_84[0][0]']

 conv2d_84 (Conv2D)             (None, 14, 14, 32)   36864       ['activation_83[0][0]']

 concatenate_40 (Concatenate)   (None, 14, 14, 992)  0           ['concatenate_39[0][0]',
                                                                  'conv2d_84[0][0]']

 batch_normalization_85 (BatchN  (None, 14, 14, 992)  3968       ['concatenate_40[0][0]']
 ormalization)

 activation_84 (Activation)     (None, 14, 14, 992)  0           ['batch_normalization_85[0][0]']

 conv2d_85 (Conv2D)             (None, 14, 14, 128)  126976      ['activation_84[0][0]']

 batch_normalization_86 (BatchN  (None, 14, 14, 128)  512        ['conv2d_85[0][0]']
 ormalization)

 activation_85 (Activation)     (None, 14, 14, 128)  0           ['batch_normalization_86[0][0]']

 conv2d_86 (Conv2D)             (None, 14, 14, 32)   36864       ['activation_85[0][0]']

 concatenate_41 (Concatenate)   (None, 14, 14, 1024  0           ['concatenate_40[0][0]',
                                )                                 'conv2d_86[0][0]']

 batch_normalization_87 (BatchN  (None, 14, 14, 1024  4096       ['concatenate_41[0][0]']
 ormalization)                  )

 activation_86 (Activation)     (None, 14, 14, 1024  0           ['batch_normalization_87[0][0]']
                                )

 conv2d_87 (Conv2D)             (None, 14, 14, 512)  524288      ['activation_86[0][0]']

 average_pooling2d_2 (AveragePo  (None, 7, 7, 512)   0           ['conv2d_87[0][0]']
 oling2D)

 batch_normalization_88 (BatchN  (None, 7, 7, 512)   2048        ['average_pooling2d_2[0][0]']
 ormalization)

 activation_87 (Activation)     (None, 7, 7, 512)    0           ['batch_normalization_88[0][0]']

 conv2d_88 (Conv2D)             (None, 7, 7, 128)    65536       ['activation_87[0][0]']

 batch_normalization_89 (BatchN  (None, 7, 7, 128)   512         ['conv2d_88[0][0]']
 ormalization)

 activation_88 (Activation)     (None, 7, 7, 128)    0           ['batch_normalization_89[0][0]']

 conv2d_89 (Conv2D)             (None, 7, 7, 32)     36864       ['activation_88[0][0]']

 concatenate_42 (Concatenate)   (None, 7, 7, 544)    0           ['average_pooling2d_2[0][0]',
                                                                  'conv2d_89[0][0]']

 batch_normalization_90 (BatchN  (None, 7, 7, 544)   2176        ['concatenate_42[0][0]']
 ormalization)

 activation_89 (Activation)     (None, 7, 7, 544)    0           ['batch_normalization_90[0][0]']

 conv2d_90 (Conv2D)             (None, 7, 7, 128)    69632       ['activation_89[0][0]']

 batch_normalization_91 (BatchN  (None, 7, 7, 128)   512         ['conv2d_90[0][0]']
 ormalization)

 activation_90 (Activation)     (None, 7, 7, 128)    0           ['batch_normalization_91[0][0]']

 conv2d_91 (Conv2D)             (None, 7, 7, 32)     36864       ['activation_90[0][0]']

 concatenate_43 (Concatenate)   (None, 7, 7, 576)    0           ['concatenate_42[0][0]',
                                                                  'conv2d_91[0][0]']

 batch_normalization_92 (BatchN  (None, 7, 7, 576)   2304        ['concatenate_43[0][0]']
 ormalization)

 activation_91 (Activation)     (None, 7, 7, 576)    0           ['batch_normalization_92[0][0]']

 conv2d_92 (Conv2D)             (None, 7, 7, 128)    73728       ['activation_91[0][0]']

 batch_normalization_93 (BatchN  (None, 7, 7, 128)   512         ['conv2d_92[0][0]']
 ormalization)

 activation_92 (Activation)     (None, 7, 7, 128)    0           ['batch_normalization_93[0][0]']

 conv2d_93 (Conv2D)             (None, 7, 7, 32)     36864       ['activation_92[0][0]']

 concatenate_44 (Concatenate)   (None, 7, 7, 608)    0           ['concatenate_43[0][0]',
                                                                  'conv2d_93[0][0]']

 batch_normalization_94 (BatchN  (None, 7, 7, 608)   2432        ['concatenate_44[0][0]']
 ormalization)

 activation_93 (Activation)     (None, 7, 7, 608)    0           ['batch_normalization_94[0][0]']

 conv2d_94 (Conv2D)             (None, 7, 7, 128)    77824       ['activation_93[0][0]']

 batch_normalization_95 (BatchN  (None, 7, 7, 128)   512         ['conv2d_94[0][0]']
 ormalization)

 activation_94 (Activation)     (None, 7, 7, 128)    0           ['batch_normalization_95[0][0]']

 conv2d_95 (Conv2D)             (None, 7, 7, 32)     36864       ['activation_94[0][0]']

 concatenate_45 (Concatenate)   (None, 7, 7, 640)    0           ['concatenate_44[0][0]',
                                                                  'conv2d_95[0][0]']

 batch_normalization_96 (BatchN  (None, 7, 7, 640)   2560        ['concatenate_45[0][0]']
 ormalization)

 activation_95 (Activation)     (None, 7, 7, 640)    0           ['batch_normalization_96[0][0]']

 conv2d_96 (Conv2D)             (None, 7, 7, 128)    81920       ['activation_95[0][0]']

 batch_normalization_97 (BatchN  (None, 7, 7, 128)   512         ['conv2d_96[0][0]']
 ormalization)

 activation_96 (Activation)     (None, 7, 7, 128)    0           ['batch_normalization_97[0][0]']

 conv2d_97 (Conv2D)             (None, 7, 7, 32)     36864       ['activation_96[0][0]']

 concatenate_46 (Concatenate)   (None, 7, 7, 672)    0           ['concatenate_45[0][0]',
                                                                  'conv2d_97[0][0]']

 batch_normalization_98 (BatchN  (None, 7, 7, 672)   2688        ['concatenate_46[0][0]']
 ormalization)

 activation_97 (Activation)     (None, 7, 7, 672)    0           ['batch_normalization_98[0][0]']

 conv2d_98 (Conv2D)             (None, 7, 7, 128)    86016       ['activation_97[0][0]']

 batch_normalization_99 (BatchN  (None, 7, 7, 128)   512         ['conv2d_98[0][0]']
 ormalization)

 activation_98 (Activation)     (None, 7, 7, 128)    0           ['batch_normalization_99[0][0]']

 conv2d_99 (Conv2D)             (None, 7, 7, 32)     36864       ['activation_98[0][0]']

 concatenate_47 (Concatenate)   (None, 7, 7, 704)    0           ['concatenate_46[0][0]',
                                                                  'conv2d_99[0][0]']

 batch_normalization_100 (Batch  (None, 7, 7, 704)   2816        ['concatenate_47[0][0]']
 Normalization)

 activation_99 (Activation)     (None, 7, 7, 704)    0           ['batch_normalization_100[0][0]']

 conv2d_100 (Conv2D)            (None, 7, 7, 128)    90112       ['activation_99[0][0]']

 batch_normalization_101 (Batch  (None, 7, 7, 128)   512         ['conv2d_100[0][0]']
 Normalization)

 activation_100 (Activation)    (None, 7, 7, 128)    0           ['batch_normalization_101[0][0]']

 conv2d_101 (Conv2D)            (None, 7, 7, 32)     36864       ['activation_100[0][0]']

 concatenate_48 (Concatenate)   (None, 7, 7, 736)    0           ['concatenate_47[0][0]',
                                                                  'conv2d_101[0][0]']

 batch_normalization_102 (Batch  (None, 7, 7, 736)   2944        ['concatenate_48[0][0]']
 Normalization)

 activation_101 (Activation)    (None, 7, 7, 736)    0           ['batch_normalization_102[0][0]']

 conv2d_102 (Conv2D)            (None, 7, 7, 128)    94208       ['activation_101[0][0]']

 batch_normalization_103 (Batch  (None, 7, 7, 128)   512         ['conv2d_102[0][0]']
 Normalization)

 activation_102 (Activation)    (None, 7, 7, 128)    0           ['batch_normalization_103[0][0]']

 conv2d_103 (Conv2D)            (None, 7, 7, 32)     36864       ['activation_102[0][0]']

 concatenate_49 (Concatenate)   (None, 7, 7, 768)    0           ['concatenate_48[0][0]',
                                                                  'conv2d_103[0][0]']

 batch_normalization_104 (Batch  (None, 7, 7, 768)   3072        ['concatenate_49[0][0]']
 Normalization)

 activation_103 (Activation)    (None, 7, 7, 768)    0           ['batch_normalization_104[0][0]']

 conv2d_104 (Conv2D)            (None, 7, 7, 128)    98304       ['activation_103[0][0]']

 batch_normalization_105 (Batch  (None, 7, 7, 128)   512         ['conv2d_104[0][0]']
 Normalization)

 activation_104 (Activation)    (None, 7, 7, 128)    0           ['batch_normalization_105[0][0]']

 conv2d_105 (Conv2D)            (None, 7, 7, 32)     36864       ['activation_104[0][0]']

 concatenate_50 (Concatenate)   (None, 7, 7, 800)    0           ['concatenate_49[0][0]',
                                                                  'conv2d_105[0][0]']

 batch_normalization_106 (Batch  (None, 7, 7, 800)   3200        ['concatenate_50[0][0]']
 Normalization)

 activation_105 (Activation)    (None, 7, 7, 800)    0           ['batch_normalization_106[0][0]']

 conv2d_106 (Conv2D)            (None, 7, 7, 128)    102400      ['activation_105[0][0]']

 batch_normalization_107 (Batch  (None, 7, 7, 128)   512         ['conv2d_106[0][0]']
 Normalization)

 activation_106 (Activation)    (None, 7, 7, 128)    0           ['batch_normalization_107[0][0]']

 conv2d_107 (Conv2D)            (None, 7, 7, 32)     36864       ['activation_106[0][0]']

 concatenate_51 (Concatenate)   (None, 7, 7, 832)    0           ['concatenate_50[0][0]',
                                                                  'conv2d_107[0][0]']

 batch_normalization_108 (Batch  (None, 7, 7, 832)   3328        ['concatenate_51[0][0]']
 Normalization)

 activation_107 (Activation)    (None, 7, 7, 832)    0           ['batch_normalization_108[0][0]']

 conv2d_108 (Conv2D)            (None, 7, 7, 128)    106496      ['activation_107[0][0]']

 batch_normalization_109 (Batch  (None, 7, 7, 128)   512         ['conv2d_108[0][0]']
 Normalization)

 activation_108 (Activation)    (None, 7, 7, 128)    0           ['batch_normalization_109[0][0]']

 conv2d_109 (Conv2D)            (None, 7, 7, 32)     36864       ['activation_108[0][0]']

 concatenate_52 (Concatenate)   (None, 7, 7, 864)    0           ['concatenate_51[0][0]',
                                                                  'conv2d_109[0][0]']

 batch_normalization_110 (Batch  (None, 7, 7, 864)   3456        ['concatenate_52[0][0]']
 Normalization)

 activation_109 (Activation)    (None, 7, 7, 864)    0           ['batch_normalization_110[0][0]']

 conv2d_110 (Conv2D)            (None, 7, 7, 128)    110592      ['activation_109[0][0]']

 batch_normalization_111 (Batch  (None, 7, 7, 128)   512         ['conv2d_110[0][0]']
 Normalization)

 activation_110 (Activation)    (None, 7, 7, 128)    0           ['batch_normalization_111[0][0]']

 conv2d_111 (Conv2D)            (None, 7, 7, 32)     36864       ['activation_110[0][0]']

 concatenate_53 (Concatenate)   (None, 7, 7, 896)    0           ['concatenate_52[0][0]',
                                                                  'conv2d_111[0][0]']

 batch_normalization_112 (Batch  (None, 7, 7, 896)   3584        ['concatenate_53[0][0]']
 Normalization)

 activation_111 (Activation)    (None, 7, 7, 896)    0           ['batch_normalization_112[0][0]']

 conv2d_112 (Conv2D)            (None, 7, 7, 128)    114688      ['activation_111[0][0]']

 batch_normalization_113 (Batch  (None, 7, 7, 128)   512         ['conv2d_112[0][0]']
 Normalization)

 activation_112 (Activation)    (None, 7, 7, 128)    0           ['batch_normalization_113[0][0]']

 conv2d_113 (Conv2D)            (None, 7, 7, 32)     36864       ['activation_112[0][0]']

 concatenate_54 (Concatenate)   (None, 7, 7, 928)    0           ['concatenate_53[0][0]',
                                                                  'conv2d_113[0][0]']

 batch_normalization_114 (Batch  (None, 7, 7, 928)   3712        ['concatenate_54[0][0]']
 Normalization)

 activation_113 (Activation)    (None, 7, 7, 928)    0           ['batch_normalization_114[0][0]']

 conv2d_114 (Conv2D)            (None, 7, 7, 128)    118784      ['activation_113[0][0]']

 batch_normalization_115 (Batch  (None, 7, 7, 128)   512         ['conv2d_114[0][0]']
 Normalization)

 activation_114 (Activation)    (None, 7, 7, 128)    0           ['batch_normalization_115[0][0]']

 conv2d_115 (Conv2D)            (None, 7, 7, 32)     36864       ['activation_114[0][0]']

 concatenate_55 (Concatenate)   (None, 7, 7, 960)    0           ['concatenate_54[0][0]',
                                                                  'conv2d_115[0][0]']

 batch_normalization_116 (Batch  (None, 7, 7, 960)   3840        ['concatenate_55[0][0]']
 Normalization)

 activation_115 (Activation)    (None, 7, 7, 960)    0           ['batch_normalization_116[0][0]']

 conv2d_116 (Conv2D)            (None, 7, 7, 128)    122880      ['activation_115[0][0]']

 batch_normalization_117 (Batch  (None, 7, 7, 128)   512         ['conv2d_116[0][0]']
 Normalization)

 activation_116 (Activation)    (None, 7, 7, 128)    0           ['batch_normalization_117[0][0]']

 conv2d_117 (Conv2D)            (None, 7, 7, 32)     36864       ['activation_116[0][0]']

 concatenate_56 (Concatenate)   (None, 7, 7, 992)    0           ['concatenate_55[0][0]',
                                                                  'conv2d_117[0][0]']

 batch_normalization_118 (Batch  (None, 7, 7, 992)   3968        ['concatenate_56[0][0]']
 Normalization)

 activation_117 (Activation)    (None, 7, 7, 992)    0           ['batch_normalization_118[0][0]']

 conv2d_118 (Conv2D)            (None, 7, 7, 128)    126976      ['activation_117[0][0]']

 batch_normalization_119 (Batch  (None, 7, 7, 128)   512         ['conv2d_118[0][0]']
 Normalization)

 activation_118 (Activation)    (None, 7, 7, 128)    0           ['batch_normalization_119[0][0]']

 conv2d_119 (Conv2D)            (None, 7, 7, 32)     36864       ['activation_118[0][0]']

 concatenate_57 (Concatenate)   (None, 7, 7, 1024)   0           ['concatenate_56[0][0]',
                                                                  'conv2d_119[0][0]']

 batch_normalization_120 (Batch  (None, 7, 7, 1024)  4096        ['concatenate_57[0][0]']
 Normalization)

 activation_119 (Activation)    (None, 7, 7, 1024)   0           ['batch_normalization_120[0][0]']

 global_average_pooling2d (Glob  (None, 1024)        0           ['activation_119[0][0]']
 alAveragePooling2D)

 dense (Dense)                  (None, 1000)         1025000     ['global_average_pooling2d[0][0]'
                                                                 ]

==================================================================================================
Total params: 8,062,504
Trainable params: 7,978,856
Non-trainable params: 83,648
__________________________________________________________________________________________________

3.10.编译模型

#设置初始学习率
initial_learning_rate = 1e-4
opt = tf.keras.optimizers.Adam(learning_rate=initial_learning_rate)
model.compile(optimizer=opt,
              loss='sparse_categorical_crossentropy',
              metrics=['accuracy'])


3.11.训练模型

'''训练模型'''
epochs = 10
history = model.fit(
    train_ds,
    validation_data=val_ds,
    epochs=epochs
)

训练记录如下:

Epoch 1/10
15/15 [==============================] - ETA: 0s - loss: 5.1516 - accuracy: 0.4735
Epoch 1: val_accuracy improved from -inf to 0.30310, saving model to best_model.h5
15/15 [==============================] - 19s 345ms/step - loss: 5.1516 - accuracy: 0.4735 - val_loss: 5.6926 - val_accuracy: 0.3031
Epoch 2/10
15/15 [==============================] - ETA: 0s - loss: 2.6124 - accuracy: 0.7102
Epoch 2: val_accuracy did not improve from 0.30310
15/15 [==============================] - 3s 211ms/step - loss: 2.6124 - accuracy: 0.7102 - val_loss: 5.7346 - val_accuracy: 0.3009
Epoch 3/10
15/15 [==============================] - ETA: 0s - loss: 1.3227 - accuracy: 0.7987
Epoch 3: val_accuracy improved from 0.30310 to 0.35841, saving model to best_model.h5
15/15 [==============================] - 3s 234ms/step - loss: 1.3227 - accuracy: 0.7987 - val_loss: 5.5666 - val_accuracy: 0.3584
Epoch 4/10
14/15 [===========================>..] - ETA: 0s - loss: 0.7132 - accuracy: 0.8862
Epoch 4: val_accuracy improved from 0.35841 to 0.43584, saving model to best_model.h5
15/15 [==============================] - 3s 230ms/step - loss: 0.7095 - accuracy: 0.8872 - val_loss: 5.0263 - val_accuracy: 0.4358
Epoch 5/10
15/15 [==============================] - ETA: 0s - loss: 0.4048 - accuracy: 0.9248
Epoch 5: val_accuracy improved from 0.43584 to 0.52434, saving model to best_model.h5
15/15 [==============================] - 3s 233ms/step - loss: 0.4048 - accuracy: 0.9248 - val_loss: 4.4517 - val_accuracy: 0.5243
Epoch 6/10
15/15 [==============================] - ETA: 0s - loss: 0.2979 - accuracy: 0.9425
Epoch 6: val_accuracy improved from 0.52434 to 0.63274, saving model to best_model.h5
15/15 [==============================] - 3s 234ms/step - loss: 0.2979 - accuracy: 0.9425 - val_loss: 3.6860 - val_accuracy: 0.6327
Epoch 7/10
15/15 [==============================] - ETA: 0s - loss: 0.2562 - accuracy: 0.9336
Epoch 7: val_accuracy did not improve from 0.63274
15/15 [==============================] - 3s 206ms/step - loss: 0.2562 - accuracy: 0.9336 - val_loss: 3.1774 - val_accuracy: 0.4823
Epoch 8/10
14/15 [===========================>..] - ETA: 0s - loss: 0.1304 - accuracy: 0.9777
Epoch 8: val_accuracy did not improve from 0.63274
15/15 [==============================] - 3s 206ms/step - loss: 0.1313 - accuracy: 0.9757 - val_loss: 2.8684 - val_accuracy: 0.3562
Epoch 9/10
15/15 [==============================] - ETA: 0s - loss: 0.1086 - accuracy: 0.9801
Epoch 9: val_accuracy did not improve from 0.63274
15/15 [==============================] - 3s 204ms/step - loss: 0.1086 - accuracy: 0.9801 - val_loss: 2.4839 - val_accuracy: 0.4049
Epoch 10/10
15/15 [==============================] - ETA: 0s - loss: 0.0784 - accuracy: 0.9889
Epoch 10: val_accuracy did not improve from 0.63274
15/15 [==============================] - 3s 204ms/step - loss: 0.0784 - accuracy: 0.9889 - val_loss: 2.3421 - val_accuracy: 0.3982




3.12.模型评估

'''模型评估'''
acc = history.history['accuracy']
val_acc = history.history['val_accuracy']
loss = history.history['loss']
val_loss = history.history['val_loss']
epochs_range = range(len(loss))
plt.figure(figsize=(12, 4))
plt.subplot(1, 2, 1)
plt.plot(epochs_range, acc, label='Training Accuracy')
plt.plot(epochs_range, val_acc, label='Validation Accuracy')
plt.legend(loc='lower right')
plt.title('Training and Validation Accuracy')
plt.subplot(1, 2, 2)
plt.plot(epochs_range, loss, label='Training Loss')
plt.plot(epochs_range, val_loss, label='Validation Loss')
plt.legend(loc='upper right')
plt.title('Training and Validation Loss')
plt.show()

在这里插入图片描述

3.13.图像预测

'''指定图片进行预测'''
# 采用加载的模型(new_model)来看预测结果
plt.figure(figsize=(10, 5))  # 图形的宽为10高为5
plt.suptitle("预测结果展示", fontsize=10)
for images, labels in val_ds.take(1):
    for i in range(8):
        ax = plt.subplot(2, 4, i + 1)

        # 显示图片
        plt.imshow(images[i].numpy().astype("uint8"))

        # 需要给图片增加一个维度
        img_array = tf.expand_dims(images[i], 0)

        # 使用模型预测图片中的人物
        predictions = model.predict(img_array)
        plt.title(class_names[np.argmax(predictions)], fontsize=10)

        plt.axis("off")
plt.show()

在这里插入图片描述

4 知识点详解

4.1 DenseNet算法详解

4.1.1 前言

  在计算机视觉领域,卷积神经网络(CNN)已经成为最主流的方法,比如GoogleNet,VGG-16,Incepetion等模型。CNN史上的一个里程碑事件是ResNet模型的出现,ResNet可以训练出更深的CNN模型,从而实现更高的准确率。ResNet模型的核心是通过建立前面层与后面层之间的“短路连接”(shortcut, skip connection),进而训练出更深的CNN网络。

  DenseNet模型的基本思路与ResNet一致,但是它建立的是前面所有层与后面层的紧密连接(dense connection),它的名称也是由此而来。DenseNet的另一大特色是通过特征在channel上的的连接来实现特征重用(feature reuse)。这些特点让DenseNet在参数和计算成本更少的情形下实现比ResNet更优的性能,DenseNet也因此斩获CVPR2017的最佳论文奖。
在这里插入图片描述

图1 Dense模块(5-layer,growth rate of k=4)

  其中DenseNet论文原文地址为:https://arxiv.org/pdf/1608.06993v5.pdf

4.1.2 设计理念

  相比ResNet,DenseNet提出了一个更激进的密集连接机制:即互相连接所有的层,具体来说就是每个层都会接受前面所有层作为额外的输入。

  图3为ResNet网络的残差连接机制,作为对比,图4为DenseNet的密集连接机制。可以看到,ResNet是每个层与前面的某层(一般是2~4层)短路连接在一起,连接方式是通过元素相加。而在DenseNet中,每个层都会与前面所有层在channel维度上链接(concat)在一起(即元素叠加),并作为下一层的输入。

  对于一个 L L L层的网络,DenseNet共包含 L ( L + 1 ) 2 \frac{L(L+1)}{2} 2L(L+1)​个连接,相比ResNet,这是一种密集连接。而且DenseNet是直接concat来自不同层的特征图,这可以实现特征重用,提升效率,这一特点是DenseNet与ResNet最主要的区别。

4.1.2.1 标准神经网络

在这里插入图片描述

图2 标准的神经网络传播过程

  图2是一个标准的神经网络传播过程示意图,输入和输出的公式是 X l = H l ( X l − 1 ) X_l=H_l(X_{l-1}) Xl​=Hl​(Xl−1​),其中 H l H_l Hl​是一个组合函数,通常包括BN、ReLu、Pooling、Conv等操作, X l − 1 X_{l-1} Xl−1​是第 l l l层的输入的特征图(来自于l-1层的输出), X l X_l Xl​是第 l l l层的输出的特征图。

4.1.2.2 ResNet

在这里插入图片描述

图3 ResNet网络的短路连接机制(+代表元素级相加操作)

  图3是ResNet的网络连接机制,由图可知是跨层相加,输入和输出的公式是 X l = H l ( X l − 1 ) + X l − 1 X_l=H_l(X_{l-1})+X_{l-1} Xl​=Hl​(Xl−1​)+Xl−1​

4.1.2.3 DenseNet

在这里插入图片描述

图4 DenseNet网络的密集连接机制(其中C代表层级的concat操作)

  图4为DenseNet的连接机制,采用跨通道的concat的形式连接,会连接前面所有层作为输入,输入和输出的公式是 X l = H l ( X 0 , X 1 , . . . , X l − 1 ) X_l=H_l(X_0,X_1,...,X_{l-1}) Xl​=Hl​(X0​,X1​,...,Xl−1​)。这里要注意所有层的输入都来源于前面所有层在channel维度的concat,以下动图形象表示这一操作。
在这里插入图片描述

图5 DenseNet前向过程

4.1.3 网络结构

网络的具体实现细节如图6所示。

在这里插入图片描述

图6 DenseNet的网络结构

  CNN网络一般要经过Pooling或者stride>1的Conv来降低特征图的大小,而DenseNet的密集连接方式需要特征图大小保持一致。为了解决这个问题,DenseNet网络中使用DenseBlock+Transition的结构,其中DenseBlock是包含很多层的模块,每个层的特征图大小相同,层与层之间采用密集连接方式。而Transition层是连接两个相邻的DenseBlock,并且通过Pooling使特征图大小降低。图7给出了DenseNet的网络结构,它共包含4个DenseBlock,各个DenseBlock之间通过Transition层连接在一起。

在这里插入图片描述

图7 使用DenseBlock+Transition的DenseNet网络

  在DenseBlock中,各个层的特征图大小一致,可以在channel维度上连接。DenseBlock中的非线性组合函数 H ( ⋅ ) H(\cdot) H(⋅)的是BN+ReLU+3x3Conv的结构,如图8所示。另外,与ResNet不同,所有DenseBlock中各个层卷积之后均输出k个特征图,即得到的特征图的channel数为k,或者说采用k个卷积核。k在DenseNet称为growth rate,这是一个超参数。一般情况下使用较小的k(比如12),就可以得到较佳的性能。假定输入层的特征图的channel数为 k 0 k_0 k0​,那么 l l l层输入的channel数为 k 0 + k ( 1 , 2 , . . . , l − 1 ) k_0+k_{(1,2,...,l-1)} k0​+k(1,2,...,l−1)​,因此随着层数的增加,尽管设定的较小,DenseBlock的输入会非常多,不过这是由于特征重用所造成的,每个层仅有个k特征是自己独有的。

在这里插入图片描述

图8 DenseBlock中的非线性转换结构

  由于后面层的输入会非常大,DenseBlock内部采用bottleneck层来减少计算量,主要是原有的结构中增加1x1Conv,如图9所示,即BN+ReLU+1x1Conv+BN+ReLU+3x3Conv,称为DenseNet-B结构。其中1x1Conv得到4k个特征图,它起到的作用是降低特征数量,从而提升计算效率。

在这里插入图片描述

图9 使用bottleneck层的DenseBlock结构

  对于Trasition层,它主要是连接两个相邻的DenseBlock,并且降低特征图大小。Transition层包括一个1x1的卷积和2x2的AvgPooling,结构为BN+ReLU+1x1Conv+2x2AvgPooling。另外,Transition层可以起到压缩模型的作用。假定Transition层的上接DenseBlock得到特征图channels数为 m m m,Transition层可以产生个 ⌊ θ m ⌋ \lfloor\theta_m\rfloor ⌊θm​⌋特征(通过卷积层),其中 θ ∈ ( 0 , 1 ] \theta\in(0,1] θ∈(0,1]是压缩系数(compression rate)。当 θ < = 1 \theta<=1 θ<=1时,特征个数经过Transition层没有变化,即无压缩,而当压缩系数小于1时,这种结构称为DenseNet-C,文中使用 θ = 0.5 \theta=0.5 θ=0.5。对于使用bootleneck层的DenseBlock结构和压缩系数小于1的Transition组合机构称为DenseNet-BC。

  对于ImageNet数据集,图片输入大小为224x224,网络结构采用包含4个DenseBlock的DenseNet-BC,其首先是一个stride=2的7x7卷积层,然后是一个stride=2的3x3MaxPooling层,后面才进入DenseBlock。ImageNet数据集所采用的网络配置如表1所示:

在这里插入图片描述

表1 ImageNet数据集上所采用的DenseNet结构

4.1.4 效果对比

在这里插入图片描述

图10 在CIFA-10数据集上ResNet vs DenseNet

4.1.5 使用Pytroch实现DenseNet121

在这里插入图片描述

图11 DenseNet121网络架构

  图11为DenseNet121的具体网络结构,它与表1中的DenseNet121相对应。左边是整个DenseNet121的网络结构,其中粉色为DenseBlock,最右侧为其详细结构,灰色为Transition,中间为其详细结构。
  这里我们采用Pytorch框架来实现DenseNet,首先实现DenseBlock中的内部结构,这里是BN+ReLU+1x1Conv+BN+ReLU+3x3Conv结构,最后也加入dropout层以用于训练过程。
  选择不同网络参数,就可以实现不同深度的DenseNet。

DenseNet121网络结构图
在这里插入图片描述

总结

  通过本文的学习,分别采用pytorch和tensorflow框架实现desennet算法,发现采用pytorch可以实现很高的识别率,而tenserflow只能达到50%左右,经过查阅相关资料,发现有可能是tensorflow框架中BatchNormalization层有问题,测试数据采用训练数据,发现在屏蔽BatchNormalization层后,测试精度与训练精度差不多,而保留BatchNormalization层,测试精度就很低,可以确定就是BatchNormalization的原因。之前就有看到tensorflow 2.3版本BN层有问题,而tensorflow 1.x则正常。因此在需要使用tensorflow 搭建网络时,尽量选择1.x版本,本人未对该结果进行验证。

J3:DenseNet算法实战与解析 在计算机视觉领域,卷积神经网络(CNN)已经成为最主流的方法,比如GoogleNet,VGG-16,Incepetion等模型。CNN史上的一个里程碑事件是ResNet模型的出现,ResNet可以训练出更深的CNN模型,从而实现更高的准确率。ResNet模型的核心是通过建立前面层与后面层之间的“短路连接”(shortcut, skip connection),进而训练出更深的CNN网络。今天我们要介绍的是DenseNet模型,它的基本思路与ResNet一致,但是它建立的是前面所有层与后面层的。 阅读详情

相关推荐

AI对战五子棋——深度学习策略网络

在本篇博文中,我们完成了:✔ 构建一个 CNN 五子棋策略网络✔ 让神经网络输出落子概率✔ 使用 Policy Gradient 强化学习训练 AI✔ 让 AI 实现人与 AI、AI 自对弈博弈。

X2829352498的博客 48

卷积神经网络(ResNet-50)鸟类识别

残差网络是为了解决神经网络隐藏层过多时,而引起的网络退化问题。退化(degradation)问题是指:当网络隐藏层变多时,网络的准确度达到饱和然后急剧退化,而且这个退化不是由于过拟合引起的。深度神经网络的“两朵乌云”梯度弥散/爆炸简单来讲就是网络太深了,会导致模型训练难以收敛。这个问题可以被标准初始化和中间层正规化的方法有效控制。(现阶段知道这么一回事就好了)网络退化随着网络深度增加,网络的表现先是逐渐增加至饱和,然后迅速下降,这个退化不是由于过拟合引起的。ResNet-50有两个基本的块,分别名为。

weixin_45822638的博客 1729

手把手教你排查I2C通信故障:当上拉电阻配置不当会发生什么?

本文深入解析I2C通信中上拉电阻配置不当导致的常见故障,包括波形畸变和通信失败现象。通过示波器波形分析和系统化解决方案,帮助工程师快速诊断和优化I2C总线性能,特别适用于嵌入式系统和智能设备开发场景。

weixin_33725722的博客 341

RNNoise-SpeexDSP-WebRTC使用说明

本文介绍RNNoise、SpeexDSP与WebRTC音频处理库的下载、调用及参数配置方法,适用于Android语音工程集成。RNNoise基于深度学习,适合非稳态噪声降噪,需48kHz输入;SpeexDSP支持多采样率与回声消除,适用于全双工场景;WebRTC提供轻量级窄带处理。三者可串联使用:麦克风信号先经前级降噪(RNNoise或SpeexDSP),再进入WebRTC媒体引擎进行编码。重点说明各库的典型应用场景、接口调用方式、关键参数调节策略及采样率转换注意事项,帮助开发者高效集成与优化语音处理链路。

知识共享,你我皆是知识的搬运工 235

Scratch(四十一):升级版垃圾分类

哈喽,大家好!之前给大家展示过“Scratch(二十四):垃圾分类”。今天呢,给大家展示的Scratch是`升级版垃圾分类`。接下来,我们一起看一下效果吧。

我可以很大侠的博客 6871

基因家族Motif 分析

MEME

hgz2020的博客 6325

基于深度学习的商品评论情感分析系统-毕业设计

面向商品评论的中文情感分析系统,支持单条预测、批量分析、情感分布与关键词、报告导出。TextCNN、BiLSTM、Transformer 在同一词表、同一数据切分、同一种子与超参下公平对比,测试集 F1 分别为 0.9101、0.9089、0.9075。结论是这一规模下模型复杂度未带来收益,但误差结构不同。附技术栈、截图、文档预览与演示视频。

csbysj2020 155

SAP成本中心费用分割(KSS2)实战:从原理到月末调整全解析

本文详细解析了SAP成本中心费用分割(KSS2)的核心逻辑与实战操作,从成本要素分组配置到月末调整全流程。通过KSS2将初级成本要素按作业类型重新分类为次级成本要素,确保成本结算准确。文章还提供了常见错误处理方法和典型业务场景实战,帮助用户高效完成SAP成本结算。

weixin_29279101的博客 1268

Transformer 为什么能取代 RNN?从自注意力讲起

2017 年谷歌在《Attention Is All You Need》中提出 Transformer,核心是。它如今是 GPT、BERT、ChatGPT 的共同底座。

anew___的博客 979

WorkBuddy结合DeepSeek与Skill:文献检索自动化与Token成本控制实战

Agent工具与大模型API的结合正重塑知识工作者的日常流程。在实际工程中,调用大模型处理批量任务常面临Token消耗过快、成本不可控的痛点,而国产大模型DeepSeek以极低的API定价和兼容OpenAI接口的特性,为规模化文本处理提供了“Token自由”的可能。同时,可复用的Skill机制能够将特定领域的工作流固化为标准化步骤,让Agent自动执行检索式生成、文献筛选与摘要归纳等复杂操作。本文从这一技术背景出发,以科研文献检索为应用场景,演示如何利用WorkBuddy、DeepSeek API与自建文献

weixin_29061509的博客 511

引入高分辨率特征层保持的YOLOv10小目标增强:从思路到完整实现

大概两个月前,我在做一个无人机航拍图像检测的项目,目标是识别图片里的小型车辆和行人。用的数据集是VisDrone,相信做小目标检测的朋友对这个数据集都不陌生。一开始我直接跑了官方YOLOv10的代码,结果在tiny vehicle这一类上mAP50只有可怜的0.312。那些小目标基本就是几个像素点,YOLOv10在三次下采样之后,这些小目标的特征几乎就消失不见了。 后来我折腾了大概三周,尝试了各种方法:改anchor、调loss权重、做数据增强、甚至考虑过换检测头。最后发现最有效的还是引入一个高分辨率特征

YOLO 51

【原创深度学习项目】基于深度学习的建筑工地防护装备检测系统|安全帽与反光衣检测系统(RT-DETR-L 模型)

本文设计并实现了一套基于RT-DETR-L的建筑工地防护装备检测系统,采用Django+Vue前后端架构,实现对安全帽、反光背心等7类装备及“无PPE”“未戴安全帽”等缺失状态的精准识别。系统支持图片、视频、摄像头实时检测,具备参数可调、数据可视化与统计分析功能,有效解决小目标漏检、误检及管理难问题,助力智慧工地安全管理落地。文末可获取源码。

qq_1445749146的博客 232

一、C++反作弊对抗实战 (基础篇 —— 2.注册表注入DLL)

在Windows NT/XP操作系统中,当需要加载user32.dll的程序启动时,user32.dll会加载注册表键HLM\Software\Microsoft\WindowsNT\CurrentVersion\Windows\AppInit_dlls下面列出的所有模块。

Koma的主页 1099

图解循环神经网络(RNN)

RNN(循环神经网络)就是“带记忆的网络”:让网络拥有一块“记忆”,在处理当前数据时,能同时参考之前看过的内容;它不一次性看完全部输入,而是像人读书一样,一个字一个字地读,每读一个字就更新一次脑子里的记忆,然后用这份记忆去理解当前这个字。但便签一直在被改写,新信息不断挤占旧信息,传到第 40 步时,“巴黎”的痕迹已经淡得几乎没了。读到“贵”的时候,网络并没有重新去查“好看”这个词——但“好看”的影响已经融在了便签里(那个 1.5)。这三个困难的共同点:答案不在当前这一个字里,而在“前面那串东西”里。

技术管理两手抓,两手都要硬. 417

GameFramework框架详解之 DataTable配置表模块

一.前言: DataTable模块是项目的配置表模块,配置表一般是从excel导出csv/json/xml格式的,之所以是excel作为源文件,原因是因为策划同学使用配表最方便。然后一键导出到项目中,除了csv/json/xml配置文件外,一般还会伴随着导出配置的实体类,这样研发同学就可以使用了。GameFramework的DataTable模块也是秉持着这种一贯的策略来实现的。 二.DataRow DataRow在excel数据表中,对应的是一行数据,而在代码中对应的其实就是一条数据对象。 接口IData

TxNet 4728

WINCC7.3破解文件

WINCC7.3硬件够破解文件,有需要的下载!WINCC7.3硬件够破解文件,有需要的下载!

神经网络入门指南:从 CNN、RNN 到 Attention

神经网络的学习,本质是“预测—比较—纠错”的循环;CNN 通过局部连接与权重共享理解图像;RNN 通过隐藏状态传递上下文;LSTM 和 GRU 用门控机制管理记忆;Encoder–Decoder 把理解与生成拆成两个阶段;Attention 则让模型在每一步都能主动寻找最相关的信息。到这里,我们已经走完了从普通神经网络到 Attention 的完整路线。下一篇将正式进入 Transformer,看看它如何摆脱 RNN 的顺序计算,又如何让每个 Token 直接找到与自己相关的信息。

爱敲代码的小黄 393

数学建模模型总结

这是本人在两年内准备参加数学建模竞赛搜集到的模型资料,已经经过了本人的筛选和整理,希望能够对准备参加数学建模竞赛的学弟学妹们提供一些帮助!

AI 学习第 15 课:变长序列不 pack 直接喂 RNN,隐状态全被 0 污染

NLP 的 batch 里句子长短不一,短句垫 0 补齐后直接喂 RNN,看似能跑,实际上每个 0 垫步都在更新隐状态——短序列的最后一步输出根本不是它真实句子的结果。这一课用 torch 2.15(

aifannihao的博客 158

Camera2Demo

在Camera2 的基础上进行封装,使得Camera2一堆初始化逻辑与Activity分离,降低耦合度,完成预览拍照并保存的操作

visio安装包

Microsoft Office Visio 是一款专业的制图软件。利用经过更新的形状、协作工具和数据链接图表,创建专业级图表以简化复杂的信息。

CNN 卷积神经网络深度解析:卷积、池化与特征提取的底层原理

卷积核(Kernel),也叫滤波器(Filter),本质上是一个可以训练的权重矩阵。1 0 -11 0 -11 0 -1这个卷积核可以对图像中的局部像素进行加权计算。不同的卷积核能够提取不同类型的特征:水平边缘特征垂直边缘特征纹理特征角点特征局部形状特征在传统图像处理中,滤波器通常由人工设计。而在 CNN 中,卷积核的权重通过训练数据和反向传播自动学习得到。这也是 CNN 能够自动提取图像特征的关键。# 第一层卷积padding=1# 第二层卷积padding=1。

2503_90237586的博客 291

图解常用深度学习优化器

来隐式构造 Hessian 逆的近似,从而直接估计出“谷底在哪”,而非仅仅判断“哪边最陡”。即SGD/Adam 主要看“当前坡度”,LBFGS 还会看“最近几步坡度怎么变”,像用局部地形图来规划路线。训练 Transformer 时,有些层梯度大,有些层梯度小。如果用 Adam + L2,梯度大的参数反而可能被“少衰减”,正则效果不稳定;:你要下山,但每次迈步前都要派侦察兵把整座山的每一个坡面都测量一遍,算出“绝对最陡”的方向才走一步。:还是下山,但这次你只问身边一个路人“哪边最陡”,然后就走。

技术管理两手抓,两手都要硬. 219

【无标题】无人机视角道路坑洞坑洼目标检测数据集深度学习 目标检测 无人机航拍 道路坑洞 路面病害 YOLO格式 数据集发布9032期

(一)类别构成该数据集聚焦单一类别——坑洞(类别 ID 为 0),任务指向明确,围绕无人机俯视视角下的道路坑洞目标开展检测标注。类别体系精简,与公路路面病害巡检的实际需求高度契合,图像中的坑洞样本可直接作为路面破损识别的核心正样本,便于对接道路养护排查流程。(二)数据数量数据集规模为 3285 张无人机俯视航拍图像,采用标准 YOLO txt 标注格式,标注框总计 4457 个,其中带有效标注的图片 2007 张,全部图片均带有有效标注。

qq_2529413168的博客 185

基于深度学习的猫图像目标检测方法研究:YOLOv8s模型海选、多种子对比训练与Django+ONNX部署实现详解

本课题基于深度学习研究猫图像目标检测问题。数据集含1000张猫图像、1188个标注框,按固定比例划分并冻结清单;训练前在多个候选族中短训海选,确定YOLOv8s为主模型,经学习率搜索与显存标定后完成150轮训练,验证集mAP50达到0.92,并以7个随机种子的对比实验验证稳定性。最优权重导出为ONNX接入Django系统,提供图片、视频、摄像头三种识别方式,配套识别记录管理与统计大屏,形成从训练到应用的完整闭环。

WEIXIN_JSJBSZDS的博客 218

第 05/24 期:计算图与自动微分:深度学习如何计算梯度

本文系统阐述了神经网络训练中梯度计算的本质:损失对参数的敏感性。通过构建计算图,将复杂函数分解为基本运算,利用链式法则实现反向传播。核心在于反向模式自动微分——以一次前向计算为基础,通过传播输出对中间变量的敏感性,高效求得所有参数梯度。相比前向模式,反向模式在参数多、目标为标量的场景下更高效。计算图不仅适用于神经网络,也广泛适用于任意可微程序。关键思想是:梯度是局部导数与上游敏感性的乘积,分支路径的贡献需累加,从而保证导数计算的正确性与效率。

weixin_47502228的博客 329

【深度学习项目实战·30】PM2.5短期预测:用LSTM构造没有未来信息的滑动窗口

本文基于北京PM2.5数据,使用LSTM实现从最近24小时历史观测预测下一小时PM2.5。重点解决时间切分、因果填补、滑动窗口构建与标准化等关键问题,确保模型仅依赖过去信息,避免未来泄漏。通过滚动单步预测与持续性基线对比,评估在原始单位下的MAE/RMSE,验证模型有效性。强调时间顺序与数据完整性,为时序预测提供可复现的实践框架。

银尘博客 513

深度学习 目标检测 无人机巡检 防震锤 电力设备 YOLO格式 数据集发布

深度学习 目标检测 无人机巡检 防震锤 电力设备 YOLO格式 数据集发布 9038期

qq_2529413168的博客 316

无人机巡检道路路面异常检测数据集 深度学习 目标检测 无人机巡检 道路病害 路面异常 YOLO格式 数据集发布9028期

无人机巡检道路路面异常检测数据集 深度学习 目标检测 无人机巡检 道路病害 路面异常 YOLO格式 数据集发布9028期

qq_2529413168的博客 212

AI 学习第 14 课:CNN 训 6 轮卡在 0.5352,数据没打乱

第 13 课把 Conv2d 的参数量和池化后的尺寸算清了,这课把卷积块拼成一个能训练的完整网络,跑满 6 个 epoch。第一版直接卡死:loss 从 2.6104 掉到 0.6989 就再也不动,

aifannihao的博客 252
上一篇: 深度学习 Day22——J2ResNet50V2算法实战与解析
下一篇: 深度学习 Day24——J3-1DenseNet算法实战与解析
LittleRuby
博客等级 码龄7年 465粉丝 38原创
评论
成就一亿技术人!
拼手气红包6.0元
还能输入1000个字符

 条评论被折叠 查看
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付:10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
