计划根据ffmpeg的example学习ffmpeg,编译方法是:先编译ffmpeg的代码,然后使用命令make example编译提供的example文件,在/doc/example下面就可以看到编译后的执行文件。 ffmpeg的版本为:ffmpeg version N-102034-gc8197f73e6
本篇学习encode_video.c
AVCodec
const AVCodec *codec;
codec = avcodec_find_encoder_by_name(codec_name);
avcodec_find_encoder_by_name函数的实现在libavcodec/allcodecs.c中
AVCodec *avcodec_find_encoder_by_name(const char *name)
{
return find_codec_by_name(name, av_codec_is_encoder);
}
static AVCodec *find_codec_by_name(const char *name, int (*x)(const AVCodec *))
{
void *i = 0;
const AVCodec *p;
if (!name)
return NULL;
while ((p = av_codec_iterate(&i))) {
if (!x(p))
continue;
if (strcmp(name, p->name) == 0)
return (AVCodec*)p;
}
return NULL;
}
可以看出通过av_codec_iterate函数逐一对比当前支持的codec name和传入的codec name
const AVCodec *av_codec_iterate(void **opaque)
{
uintptr_t i = (uintptr_t)*opaque;
const AVCodec *c = codec_list[i];
ff_thread_once(&av_codec_static_init, av_codec_init_static);
if (c)
*opaque = (void*)(i + 1);
return c;
}
关键的语句是ff_thread_once(&av_codec_static_init, av_codec_init_static);线程启动时只创建一次,即只调用一次av_codec_init_static来初始化可支持codec
static void av_codec_init_static(void)
{
for (int i = 0; codec_list[i]; i++) {
if (codec_list[i]->init_static_data)
codec_list[i]->init_static_data((AVCodec*)codec_list[i]);
}
}
支持的codec存在codec_list数组里。libavcodec/allcodecs.c文件中通过下面导入了可支持的codec列表
#include “libavcodec/codec_list.c”
例如h263的定义:
AVCodec ff_h263_encoder = {
.name = "h263",
.long_name = NULL_IF_CONFIG_SMALL("H.263 / H.263-1996"),
.type = AVMEDIA_TYPE_VIDEO,
.id = AV_CODEC_ID_H263,
.priv_data_size = sizeof(MpegEncContext),
.init = ff_mpv_encode_init,
.encode2 = ff_mpv_encode_picture,
.close = ff_mpv_encode_end,
.caps_internal = FF_CODEC_CAP_INIT_CLEANUP,
.pix_fmts= (const enum AVPixelFormat[]){AV_PIX_FMT_YUV420P, AV_PIX_FMT_NONE},
.priv_class = &h263_class,
};
AVCodecContext
AVCodecContext,存储该视频/音频流使用解码方式的相关数据;每个AVCodecContext中对应一个AVCodec,包含该视频/音频对应的解码器。
前面确定了编码器,然后通过avcodec_alloc_context3创建AVCodecContext对象,并设置一系列参数
c = avcodec_alloc_context3(codec);
if (!c) {
fprintf(stderr, "Could not allocate video codec context\n");
exit(1);
}
/* put sample parameters */
c->bit_rate = 400000;
/* resolution must be a multiple of two */
c->width = 352;
c->height = 288;
/* frames per second */
c->time_base = (AVRational){1, 25};
c->framerate = (AVRational){25, 1};
/* emit one intra frame every ten frames
* check frame pict_type before passing frame
* to encoder, if frame->pict_type is AV_PICTURE_TYPE_I
* then gop_size is ignored and the output of encoder
* will always be I frame irrespective to gop_size
*/
c->gop_size = 10;
c->max_b_frames = 1;
c->pix_fmt = AV_PIX_FMT_YUV420P;
然后使用确定的AVCodec 打开AVCodecContext对象,比较重要的两件事一是创建了一个AVCodecInternal对象,一个是init AVCodec
ret = avcodec_open2(c, codec, NULL);
int attribute_align_arg avcodec_open2(AVCodecContext *avctx, const AVCodec *codec, AVDictionary **options)
{
int ret = 0;
int codec_init_ok = 0;
AVDictionary *tmp = NULL;
AVCodecInternal *avci;
if (avcodec_is_open(avctx))
return 0;
//判断创建AVCodecContext时传入的AVCodec和当前传入的AVCodec参数如果存在的话,是相同的
if (!codec && !avctx->codec) {
av_log(avctx, AV_LOG_ERROR, "No codec provided to avcodec_open2()\n");
return AVERROR(EINVAL);
}
if (codec && avctx->codec && codec != avctx->codec) {
av_log(avctx, AV_LOG_ERROR, "This AVCodecContext was allocated for %s, "
"but %s passed to avcodec_open2()\n", avctx->codec->name, codec->name);
return AVERROR(EINVAL);
}
//如果当前参数为null,则使用创建AVCodecContext时传入的AVCodec
if (!codec)
codec = avctx->codec;
if ((avctx->codec_type == AVMEDIA_TYPE_UNKNOWN || avctx->codec_type == codec->type) &&
avctx->codec_id == AV_CODEC_ID_NONE) {
avctx->codec_type = codec->type;
avctx->codec_id = codec->id;
}
if (avctx->codec_id != codec->id || (avctx->codec_type != codec->type &&
avctx->codec_type != AVMEDIA_TYPE_ATTACHMENT)) {
av_log(avctx, AV_LOG_ERROR, "Codec type or id mismatches\n");
return AVERROR(EINVAL);
}
avctx->codec = codec;
if (avctx->extradata_size < 0 || avctx->extradata_size >= FF_MAX_EXTRADATA_SIZE)
return AVERROR(EINVAL);
if (options)
av_dict_copy(&tmp, *options, 0);
//使用ff_mutex_unlock加锁
lock_avcodec(codec);
//下面代码创建和初始化AVCodecInternal对象
avci = av_mallocz(sizeof(*avci));
if (!avci) {
ret = AVERROR(ENOMEM);
goto end;
}
avctx->internal = avci;
#if FF_API_OLD_ENCDEC
avci->to_free = av_frame_alloc();
avci->compat_decode_frame = av_frame_alloc();
avci->compat_encode_packet = av_packet_alloc();
if (!avci->to_free || !avci->compat_decode_frame || !avci->compat_encode_packet) {
ret = AVERROR(ENOMEM);
goto free_and_end;
}
#endif
avci->buffer_frame = av_frame_alloc();
avci->buffer_pkt = av_packet_alloc();
avci->es.in_frame = av_frame_alloc();
avci->ds.in_pkt = av_packet_alloc();
avci->last_pkt_props = av_packet_alloc();
avci->pkt_props = av_fifo_alloc(sizeof(*avci->last_pkt_props));
if (!avci->buffer_frame || !avci->buffer_pkt ||
!avci->es.in_frame || !avci->ds.in_pkt ||
!avci->last_pkt_props || !avci->pkt_props) {
ret = AVERROR(ENOMEM);
goto free_and_end;
}
avci->skip_samples_multiplier = 1;
//下面又是对一些参数判断,check是否valid
if (codec->priv_data_size > 0) {
if (!avctx->priv_data) {
avctx->priv_data = av_mallocz(codec->priv_data_size);
if (!avctx->priv_data) {
ret = AVERROR(ENOMEM);
goto free_and_end;
}
if (codec->priv_class) {
*(const AVClass **)avctx->priv_data = codec->priv_class;
av_opt_set_defaults(avctx->priv_data);
}
}
if (codec->priv_class && (ret = av_opt_set_dict(avctx->priv_data, &tmp)) < 0)
goto free_and_end;
} else {
avctx->priv_data = NULL;
}
if ((ret = av_opt_set_dict(avctx, &tmp)) < 0)
goto free_and_end;
if (avctx->codec_whitelist && av_match_list(codec->name, avctx->codec_whitelist, ',') <= 0) {
av_log(avctx, AV_LOG_ERROR, "Codec (%s) not on whitelist \'%s\'\n", codec->name, avctx->codec_whitelist);
ret = AVERROR(EINVAL);
goto free_and_end;
}
// only call ff_set_dimensions() for non H.264/VP6F/DXV codecs so as not to overwrite previously setup dimensions
if (!(avctx->coded_width && avctx->coded_height && avctx->width && avctx->height &&
(avctx->codec_id == AV_CODEC_ID_H264 || avctx->codec_id == AV_CODEC_ID_VP6F || avctx->codec_id == AV_CODEC_ID_DXV))) {
if (avctx->coded_width && avctx->coded_height)
ret = ff_set_dimensions(avctx, avctx->coded_width, avctx->coded_height);
else if (avctx->width && avctx->height)
ret = ff_set_dimensions(avctx, avctx->width, avctx->height);
if (ret < 0)
goto free_and_end;
}
if ((avctx->coded_width || avctx->coded_height || avctx->width || avctx->height)
&& ( av_image_check_size2(avctx->coded_width, avctx->coded_height, avctx->max_pixels, AV_PIX_FMT_NONE, 0, avctx) < 0
|| av_image_check_size2(avctx->width, avctx->height, avctx->max_pixels, AV_PIX_FMT_NONE, 0, avctx) < 0)) {
av_log(avctx, AV_LOG_WARNING, "Ignoring invalid width/height values\n");
ff_set_dimensions(avctx, 0, 0);
}
if (avctx->width > 0 && avctx->height > 0) {
if (av_image_check_sar(avctx->width, avctx->height,
avctx->sample_aspect_ratio) < 0) {
av_log(avctx, AV_LOG_WARNING, "ignoring invalid SAR: %u/%u\n",
avctx->sample_aspect_ratio.num,
avctx->sample_aspect_ratio.den);
avctx->sample_aspect_ratio = (AVRational){ 0, 1 };
}
}
if (avctx->channels > FF_SANE_NB_CHANNELS || avctx->channels < 0) {
av_log(avctx, AV_LOG_ERROR, "Too many or invalid channels: %d\n", avctx->channels);
ret = AVERROR(EINVAL);
goto free_and_end;
}
if (avctx->sample_rate < 0) {
av_log(avctx, AV_LOG_ERROR, "Invalid sample rate: %d\n", avctx->sample_rate);
ret = AVERROR(EINVAL);
goto free_and_end;
}
if (avctx->block_align < 0) {
av_log(avctx, AV_LOG_ERROR, "Invalid block align: %d\n", avctx->block_align);
ret = AVERROR(EINVAL);
goto free_and_end;
}
avctx->frame_number = 0;
avctx->codec_descriptor = avcodec_descriptor_get(avctx->codec_id);
if ((avctx->codec->capabilities & AV_CODEC_CAP_EXPERIMENTAL) &&
avctx->strict_std_compliance > FF_COMPLIANCE_EXPERIMENTAL) {
const char *codec_string = av_codec_is_encoder(codec) ? "encoder" : "decoder";
const AVCodec *codec2;
av_log(avctx, AV_LOG_ERROR,
"The %s '%s' is experimental but experimental codecs are not enabled, "
"add '-strict %d' if you want to use it.\n",
codec_string, codec->name, FF_COMPLIANCE_EXPERIMENTAL);
codec2 = av_codec_is_encoder(codec) ? avcodec_find_encoder(codec->id) : avcodec_find_decoder(codec->id);
if (!(codec2->capabilities & AV_CODEC_CAP_EXPERIMENTAL))
av_log(avctx, AV_LOG_ERROR, "Alternatively use the non experimental %s '%s'.\n",
codec_string, codec2->name);
ret = AVERROR_EXPERIMENTAL;
goto free_and_end;
}
if (avctx->codec_type == AVMEDIA_TYPE_AUDIO &&
(!avctx->time_base.num || !avctx->time_base.den)) {
avctx->time_base.num = 1;
avctx->time_base.den = avctx->sample_rate;
}
if (av_codec_is_encoder(avctx->codec))
ret = ff_encode_preinit(avctx);
else
ret = ff_decode_preinit(avctx);
if (ret < 0)
goto free_and_end;
if (!HAVE_THREADS)
av_log(avctx, AV_LOG_WARNING, "Warning: not compiled with thread support, using thread emulation\n");
if (CONFIG_FRAME_THREAD_ENCODER && av_codec_is_encoder(avctx->codec)) {
unlock_avcodec(codec); //we will instantiate a few encoders thus kick the counter to prevent false detection of a problem
ret = ff_frame_thread_encoder_init(avctx, options ? *options : NULL);
lock_avcodec(codec);
if (ret < 0)
goto free_and_end;
}
if (HAVE_THREADS
&& !(avci->frame_thread_encoder && (avctx->active_thread_type&FF_THREAD_FRAME))) {
ret = ff_thread_init(avctx);
if (ret < 0) {
goto free_and_end;
}
}
if (!HAVE_THREADS && !(codec->caps_internal & FF_CODEC_CAP_AUTO_THREADS))
avctx->thread_count = 1;
//
if ( avctx->codec->init && (!(avctx->active_thread_type&FF_THREAD_FRAME)
|| avci->frame_thread_encoder)) {
ret = avctx->codec->init(avctx);
if (ret < 0) {
codec_init_ok = -1;
goto free_and_end;
}
codec_init_ok = 1;
}
ret=0;
if (av_codec_is_decoder(avctx->codec)) {
if (!avctx->bit_rate)
avctx->bit_rate = get_bit_rate(avctx);
/* validate channel layout from the decoder */
if (avctx->channel_layout) {
int channels = av_get_channel_layout_nb_channels(avctx->channel_layout);
if (!avctx->channels)
avctx->channels = channels;
else if (channels != avctx->channels) {
char buf[512];
av_get_channel_layout_string(buf, sizeof(buf), -1, avctx->channel_layout);
av_log(avctx, AV_LOG_WARNING,
"Channel layout '%s' with %d channels does not match specified number of channels %d: "
"ignoring specified channel layout\n",
buf, channels, avctx->channels);
avctx->channel_layout = 0;
}
}
if (avctx->channels && avctx->channels < 0 ||
avctx->channels > FF_SANE_NB_CHANNELS) {
ret = AVERROR(EINVAL);
goto free_and_end;
}
if (avctx->bits_per_coded_sample < 0) {
ret = AVERROR(EINVAL);
goto free_and_end;
}
#if FF_API_AVCTX_TIMEBASE
if (avctx->framerate.num > 0 && avctx->framerate.den > 0)
avctx->time_base = av_inv_q(av_mul_q(avctx->framerate, (AVRational){avctx->ticks_per_frame, 1}));
#endif
}
if (codec->priv_data_size > 0 && avctx->priv_data && codec->priv_class) {
av_assert0(*(const AVClass **)avctx->priv_data == codec->priv_class);
}
end:
unlock_avcodec(codec);
if (options) {
av_dict_free(options);
*options = tmp;
}
return ret;
free_and_end:
if (avctx->codec && avctx->codec->close &&
(codec_init_ok > 0 || (codec_init_ok < 0 &&
avctx->codec->caps_internal & FF_CODEC_CAP_INIT_CLEANUP)))
avctx->codec->close(avctx);
if (HAVE_THREADS && avci->thread_ctx)
ff_thread_free(avctx);
if (codec->priv_class && avctx->priv_data)
av_opt_free(avctx->priv_data);
av_opt_free(avctx);
if (av_codec_is_encoder(avctx->codec)) {
#if FF_API_CODED_FRAME
FF_DISABLE_DEPRECATION_WARNINGS
av_frame_free(&avctx->coded_frame);
FF_ENABLE_DEPRECATION_WARNINGS
#endif
av_freep(&avctx->extradata);
avctx->extradata_size = 0;
}
av_dict_free(&tmp);
av_freep(&avctx->priv_data);
if (av_codec_is_decoder(avctx->codec))
av_freep(&avctx->subtitle_header);
#if FF_API_OLD_ENCDEC
av_frame_free(&avci->to_free);
av_frame_free(&avci->compat_decode_frame);
av_packet_free(&avci->compat_encode_packet);
#endif
av_frame_free(&avci->buffer_frame);
av_packet_free(&avci->buffer_pkt);
av_packet_free(&avci->last_pkt_props);
av_fifo_freep(&avci->pkt_props);
av_packet_free(&avci->ds.in_pkt);
av_frame_free(&avci->es.in_frame);
av_bsf_free(&avci->bsf);
av_buffer_unref(&avci->pool);
av_freep(&avci);
avctx->internal = NULL;
avctx->codec = NULL;
goto end;
}
测试使用的是libx264,看ff_libx264_encoder的定义,实现函数为X264_init
AVCodec ff_libx264_encoder = {
.name = "libx264",
.long_name = NULL_IF_CONFIG_SMALL("libx264 H.264 / AVC / MPEG-4 AVC / MPEG-4 part 10"),
.type = AVMEDIA_TYPE_VIDEO,
.id = AV_CODEC_ID_H264,
.priv_data_size = sizeof(X264Context),
.init = X264_init,
.encode2 = X264_frame,
.close = X264_close,
.capabilities = AV_CODEC_CAP_DELAY | AV_CODEC_CAP_OTHER_THREADS |
AV_CODEC_CAP_ENCODER_REORDERED_OPAQUE,
.caps_internal = FF_CODEC_CAP_AUTO_THREADS,
.priv_class = &x264_class,
.defaults = x264_defaults,
#if X264_BUILD < 153
.init_static_data = X264_init_static,
#else
.pix_fmts = pix_fmts_all,
#endif
.caps_internal = FF_CODEC_CAP_INIT_CLEANUP | FF_CODEC_CAP_AUTO_THREADS
#if X264_BUILD >= 158
| FF_CODEC_CAP_INIT_THREADSAFE
#endif
,
.wrapper_name = "libx264",
};
AVPacket
通过 av_packet_alloc方法创建AVPacket对象,存储编码后的数据,然后通过av_packet_free方法释放。如果是视频流,则包含一帧数据,如果是音频流,则可能包含几帧数据
AVPacket *av_packet_alloc(void)
{
AVPacket *pkt = av_mallocz(sizeof(AVPacket));
if (!pkt)
return pkt;
get_packet_defaults(pkt);
return pkt;
}
AVFrame
通过av_frame_alloc方法创建AVFrame对象,存储未编码的数据,即raw数据
AVFrame一般是allocated一次,然后通过av_frame_unref()释放数据并恢复到原始状态,从而可以多次使用。数据存在AVFrame.buf / AVFrame.extended_buf中
frame = av_frame_alloc();
if (!frame) {
fprintf(stderr, "Could not allocate video frame\n");
exit(1);
}
//设置像素格式,一帧数据的宽和高
frame->format = c->pix_fmt;
frame->width = c->width;
frame->height = c->height;
//分配buffer,来存储audio/video数据,注意第二次参数表示读取数据时字节按多少对齐,例如设置为32,则一行的字节数不是32的倍数的话,会填充成32的倍数,造成花屏现象
ret = av_frame_get_buffer(frame, 0);
if (ret < 0) {
fprintf(stderr, "Could not allocate the video frame data\n");
exit(1);
}
encode
/* encode 1 second of video */
//encode 25帧数据,即1s
for (i = 0; i < 25; i++) {
fflush(stdout);
/* make sure the frame data is writable */
ret = av_frame_make_writable(frame);
if (ret < 0)
exit(1);
//将要编码的数据分别放到frame->data[]里
/* prepare a dummy image */
/* Y */
for (y = 0; y < c->height; y++) {
for (x = 0; x < c->width; x++) {
frame->data[0][y * frame->linesize[0] + x] = x + y + i * 3;
}
}
/* Cb and Cr */
for (y = 0; y < c->height/2; y++) {
for (x = 0; x < c->width/2; x++) {
frame->data[1][y * frame->linesize[1] + x] = 128 + y + i * 2;
frame->data[2][y * frame->linesize[2] + x] = 64 + x + i * 5;
}
}
frame->pts = i;
/* encode the image */
encode(c, frame, pkt, f);
}
static void encode(AVCodecContext *enc_ctx, AVFrame *frame, AVPacket *pkt,
FILE *outfile)
{
int ret;
/* send the frame to the encoder */
if (frame)
printf("Send frame %3"PRId64"\n", frame->pts);
//将要编码的当前帧数据发送到codec里
ret = avcodec_send_frame(enc_ctx, frame);
if (ret < 0) {
fprintf(stderr, "Error sending a frame for encoding\n");
exit(1);
}
while (ret >= 0) {
//接收编码后的数据,AVPacket对象
ret = avcodec_receive_packet(enc_ctx, pkt);
if (ret == AVERROR(EAGAIN) || ret == AVERROR_EOF)
return;
else if (ret < 0) {
fprintf(stderr, "Error during encoding\n");
exit(1);
}
printf("Write packet %3"PRId64" (size=%5d)\n", pkt->pts, pkt->size);
//将编码后的数据直接写入文件
fwrite(pkt->data, 1, pkt->size, outfile);
//AVPacket对象要重复使用,所以要先unref
av_packet_unref(pkt);
}
}

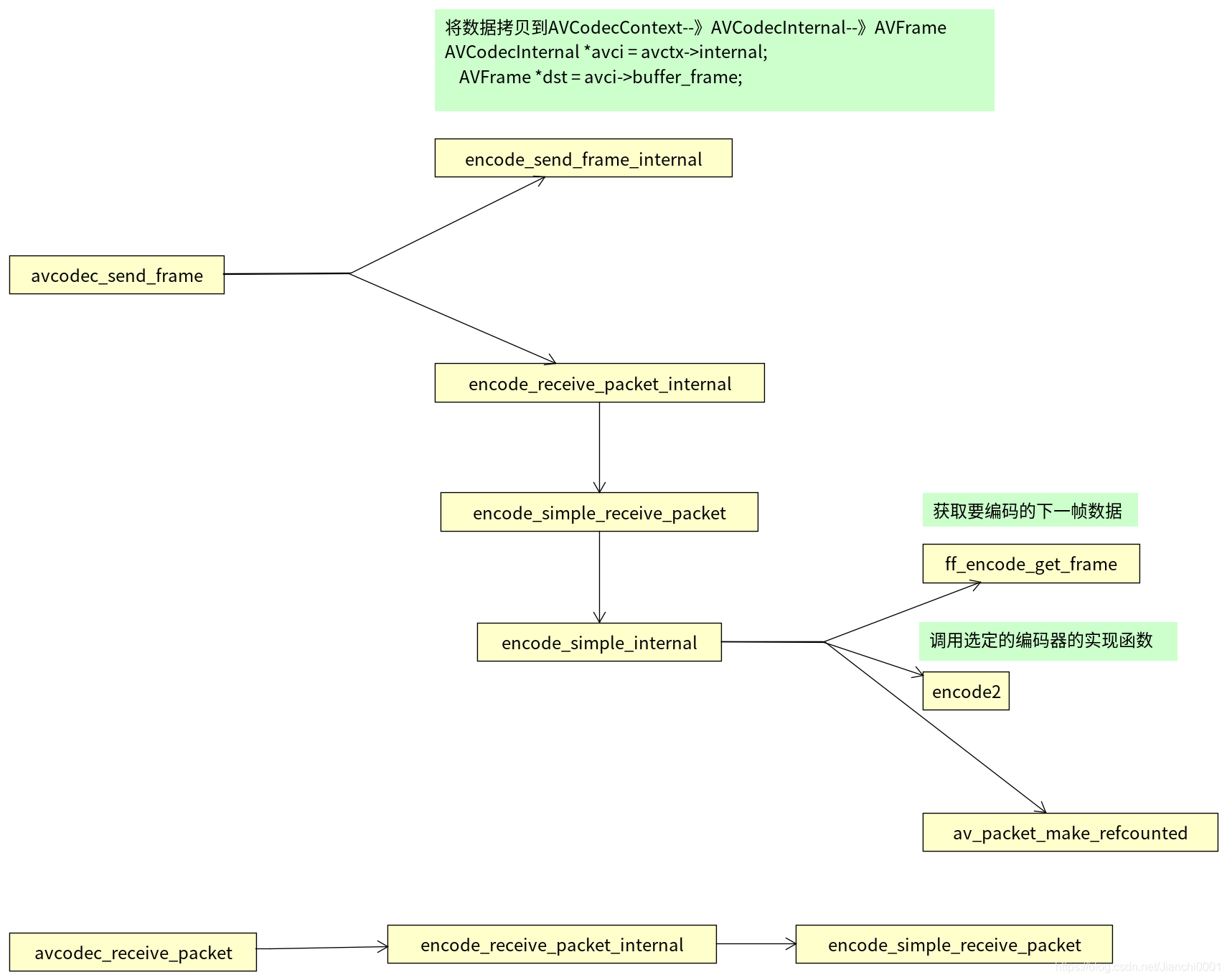

encode的函数调用流程图:
end
//发送null的时候,表示要flush
/* flush the encoder */
encode(c, NULL, pkt, f);
/* add sequence end code to have a real MPEG file */
if (codec->id == AV_CODEC_ID_MPEG1VIDEO || codec->id == AV_CODEC_ID_MPEG2VIDEO)
fwrite(endcode, 1, sizeof(endcode), f);
fclose(f);
//最后要将对象给free
avcodec_free_context(&c);
av_frame_free(&frame);
av_packet_free(&pkt);
