上一篇文章中讲述了在哪里绘图，怎么开始绘制，怎么跟绘制设备绑定、解绑等基础知识，今天就来点实操的，下面坐好了，开始阅读吧。

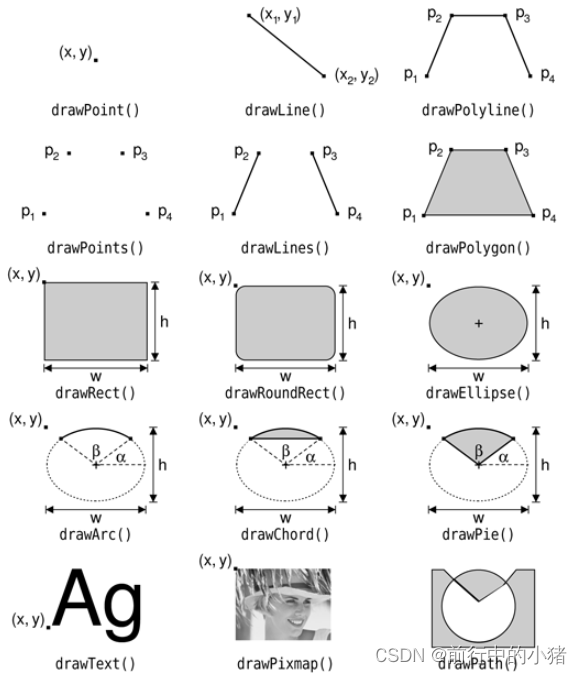

下图是《C++ GUI Programming with Qt 4》这本书中列出的关于QPainter常用的画图方法，基本上都是以draw开头，对应的图片很直观地说明的每种方法的效果，并且很多方法都进行了重载，方便我们使用，非常地友好，下面我们对这些接口做一些详细的介绍。
Qt的坐标系都是以左上角为起点（0, 0），右为X轴正向，下为Y轴正向，如下图所示，我们使用QPainter绘图的时候也是使用该坐标系进行绘制，这里区别于数学中使用的笛卡尔坐标系，X轴向右为正，Y轴向上为正。且每个部件的绘制都是独立的坐标系，父子部件之间的坐标系互不干扰。
4.2 QPainter的绘图接口介绍（中）
上篇文章中我们举例介绍了这几个接口的用法，本篇文章继续讲解绘图的接口。
