以岭回归为例。
导入数据集
本篇借用一个线性模型岭回归来解释,也指出了线性模型不适合拟合数据,或者特征之间具有相关性而引起的问题。
首先导入相关库:
import numpy as np
import scipy as sp
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
导入数据:
from sklearn.datasets import fetch_openml
survey = fetch_openml(data_id=534, as_frame=True)
X = survey.data[survey.feature_names]
y = survey.target.values.ravel()
在这个数据集中,target是WAGE
单位是$/hour,features中既有数值型变量,又有分类型变量。
导入数据之和,先观察数据的类型,看看因变量和特征分别是什么类型的数据,比如浮点数,还是字符串等。
探索性分析(exploratory analysis)
这里,只用了train dataset探索,可以避免我们对测试集数据的了解而做出有偏的分析。
from sklearn.model_selection import train_test_split
X_train, X_test, y_train, y_test = train_test_split(X, y, random_state=42)
变量分布和相关性分析
只分析了数值型变量:
train_dataset = X_train.copy()
train_dataset.insert(0, "WAGE", y_train)
_ = sns.pairplot(train_dataset, kind="reg", diag_kind="kde")

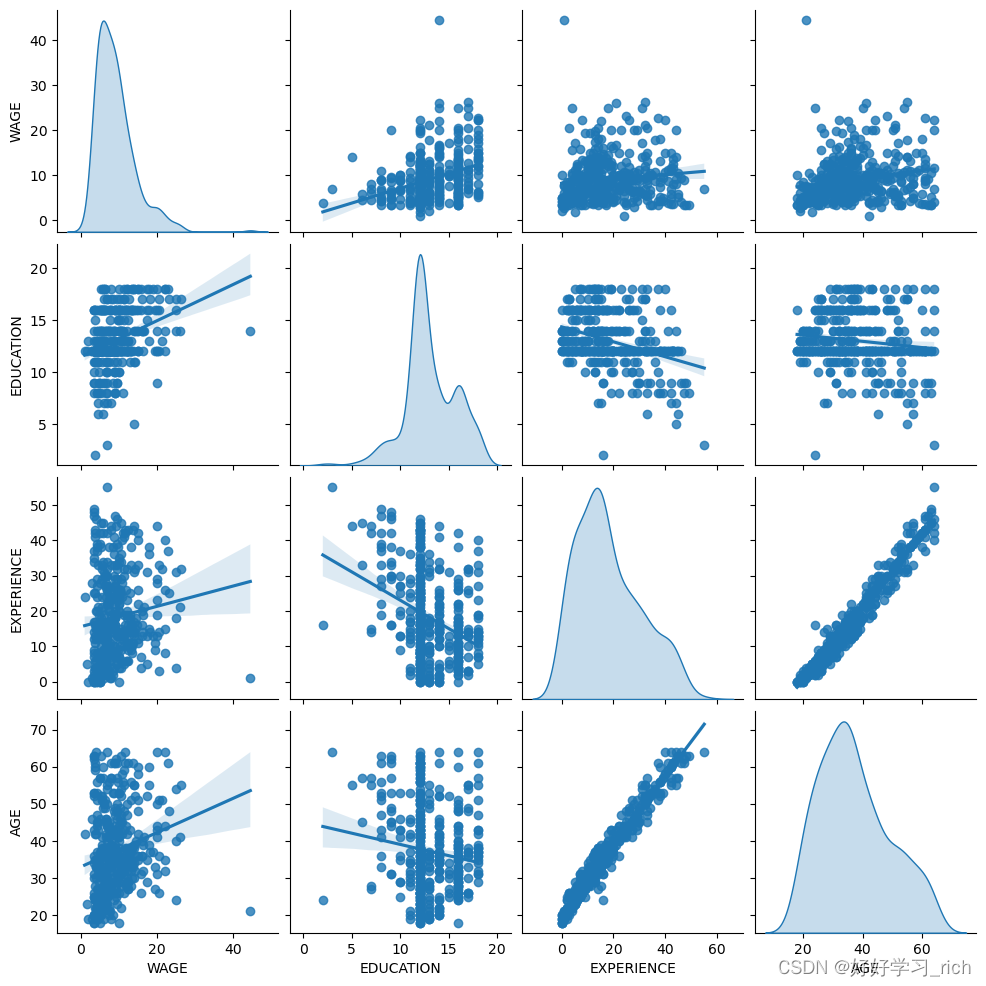

其结果如下图:
看上图,WAGE
明显有一个长尾分布。取对数将其化为正态分布,因为岭回归或者Lasso回归都要求误差是正态分布。
当Education
提高时,WAGE
增加。注意图中的相关关系,并没有保持其他变量不变。Education
和Age
有很强的相关关系。
machine-learning pipeline
首先查看数据类型:machine-learning pipeline
。
特别注意:分类型变量不能直接用于线性模型,除非经过处理,比如说one-hot-encode
处理(只针对非二分类的变量),同时也避免吧分类变量看待成顺序的值,也就是有大小之分。
from sklearn.compose import make_column_transformer
from sklearn.preprocessing import OneHotEncoder
categorical_columns = ["RACE", "OCCUPATION", "SECTOR", "MARR", "UNION", "SEX", "SOUTH"]#分类变量名称
numerical_columns = ["EDUCATION", "EXPERIENCE", "AGE"]#数值变量名称
preprocessor = make_column_transformer(
(OneHotEncoder(drop="if_binary"), categorical_columns),
remainder="passthrough",
verbose_feature_names_out=False, # avoid to prepend the preprocessor names
)
建模
初步建模
建立一个非常小的正则化的岭回归模型,且因变量为log(WAGE)
。只对分类变量进行one-hot-encode
处理。
from sklearn.pipeline import make_pipeline
from sklearn.linear_model import Ridge
from sklearn.compose import TransformedTargetRegressor
model = make_pipeline(
preprocessor,
TransformedTargetRegressor(
regressor=Ridge(alpha=1e-10), func=np.log10, inverse_func=sp.special.exp10
),
)
model.fit(X_train, y_train)#拟合模型
模型指标
对模型拟合的指标,这里是平均绝对值误差MAE
。
from sklearn.metrics import median_absolute_error
mae_train = median_absolute_error(y_train, model.predict(X_train))
y_pred = model.predict(X_test)
mae_test = median_absolute_error(y_test, y_pred)
scores = {
"MedAE on training set": f"{mae_train:.2f} $/hour",
"MedAE on testing set": f"{mae_test:.2f} $/hour",
}
解释系数
建立模型系数的DataFrame
。
feature_names = model[:-1].get_feature_names_out()
coefs = pd.DataFrame(
model[-1].regressor_.coef_,
columns=["Coefficients"],
index=feature_names,
)
coefs
对于系数的解释,特别要注意的是:一定要规范化系数的范围,因为不同的特征的单位不同,数量级也不一样。下面将对比一下:
没有归一化之前:
coefs.plot.barh(figsize=(9, 7))
plt.title("Ridge model, small regularization")
plt.axvline(x=0, color=".5")
plt.xlabel("Raw coefficient values")
plt.subplots_adjust(left=0.3)
plt.show()

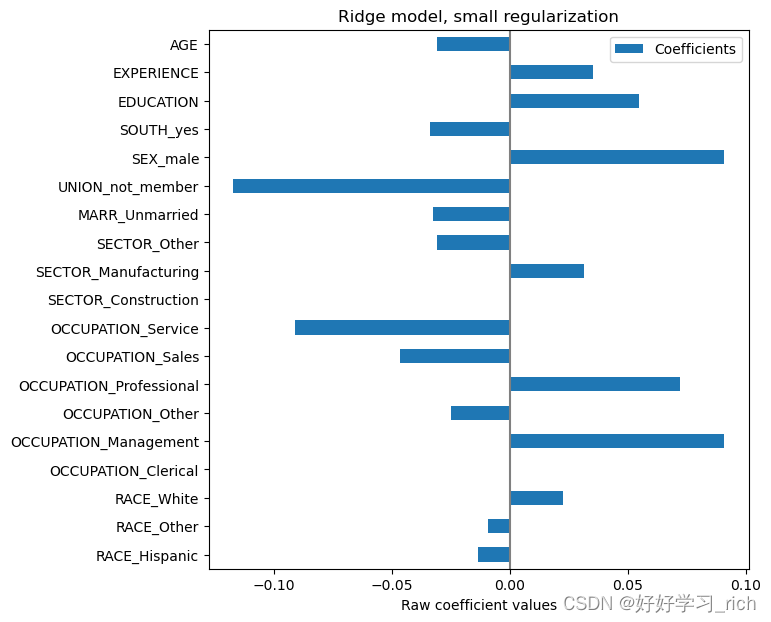

结果为:
在上图中,对影响WAGE
最大的好像是变量Union
,但是经验告诉我们,似乎experience
才应该是最大的。系数范围不一样,可能会误导分析。根据
y
=
∑
c
o
e
f
i
×
X
i
=
∑
(
c
o
e
f
i
×
s
t
d
i
)
×
(
X
i
/
s
t
d
i
)
y=\sum coef_i \times X_i=\sum (coef_i \times std_i)\times (X_i/std_i)
y=∑coefi×Xi=∑(coefi×stdi)×(Xi/stdi),对系数进行处理。
coefs = pd.DataFrame(
model[-1].regressor_.coef_ * X_train_preprocessed.std(axis=0),
columns=["Coefficient importance"],
index=feature_names,
)
coefs.plot(kind="barh", figsize=(9, 7))
plt.xlabel("Coefficient values corrected by the feature's std. dev.")
plt.title("Ridge model, small regularization")
plt.axvline(x=0, color=".5")
plt.subplots_adjust(left=0.3)
plt.show()

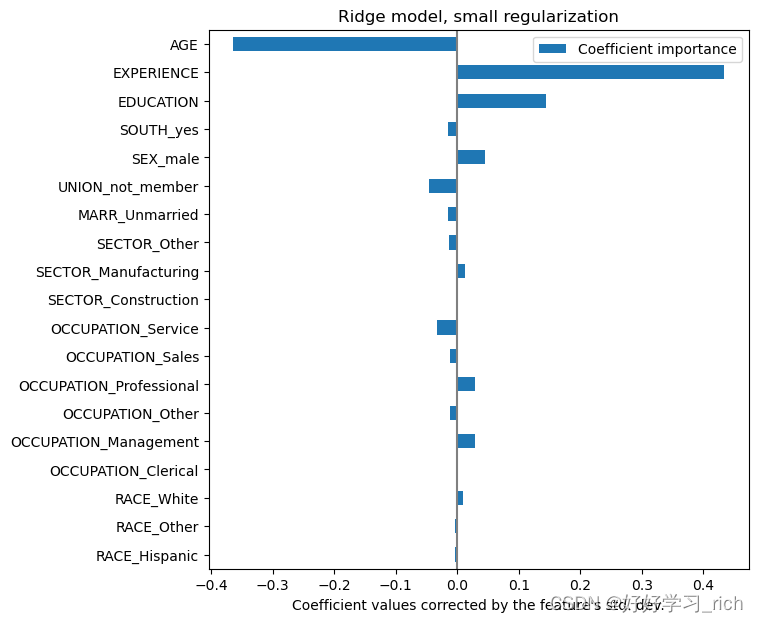

结果为:
上图显示的是条件依赖性,也就是保持其他变量不变,看到随着Age
上升,会导致WAGE
下降。同时,Age
,Experience
和Education
是对WAGE
影响最大的三个变量。
To be continue!!!
