shell脚本中的矩阵及图形拓展

一、99乘法表

#！/bin/bash

for ((a=1;a<=9;a++))
do
   for((b=1;b<=$a;b++))
   do
   c=$[$a*$b]
   echo -n -e "$a*$b=$c\t"

   done
echo " "

done

二、矩形

#!/bin/bash
for ((a=1;a<=5;a++))
do
    for((b=1;b<=10;b++))
    do
    echo -n "*"
    done
echo " "
done

三、直线

#!/bin/bash
for ((a=1;a<=15;a++))
do
   echo -n " "
done
  echo " "

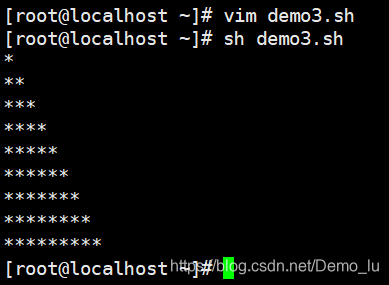

四、正直角三角形

#!/bin/bash
for ((a=1;a<=9;a++))
do
   for((b=1;b<=$a;b++))
   do
   echo -n "*"
   done
echo " "
done

五、反直角三角形

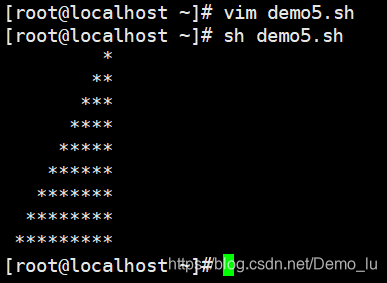

1.空格矩形加三角

#!/bin/bash
for ((a=1;a<=9;a++))
do
   for ((b=1;b<=10;b++))
   do
   echo -n " "
   done
   for((c=1;c<=$a;c++))
   do
   echo -n "*"
   done
  echo " "
done

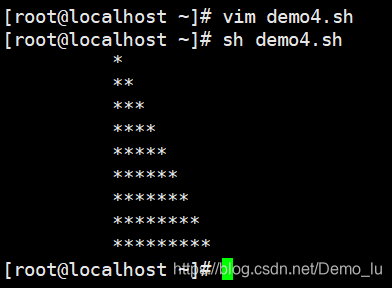

2.空格倒三角加三角

#!/bin/bash
for((a=1;a<=9;a++))
do
    for((b=9;b>=$a;b--))
    do
    echo -n " "
    done
    for ((c=1;c<=$a;c++))
    do
    echo -n "*"
    done

   echo " "
done

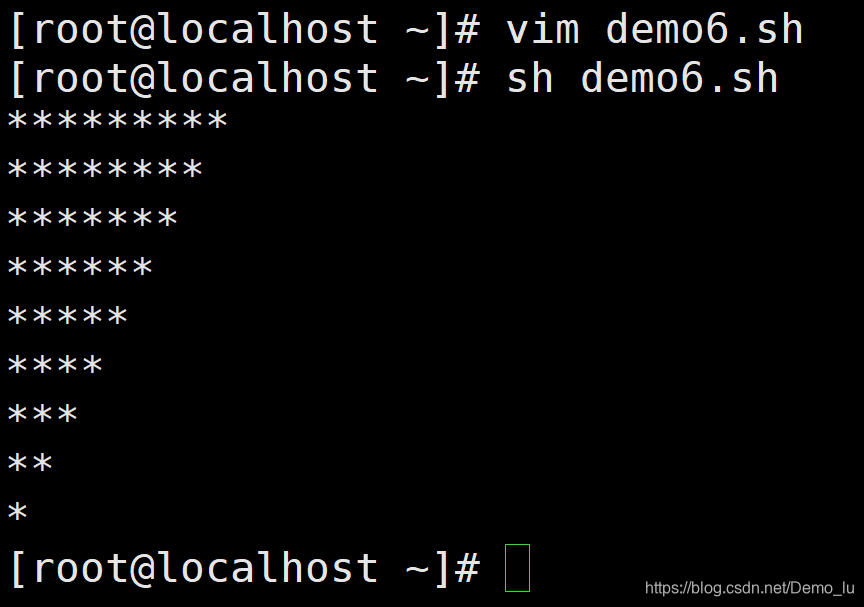

六、倒直角三角形

#!/bin/bash
for ((a=1;a<=9;a++))
do
    for((b=9;b>=$a;b--))
    do
    echo -n "*"
    done
    echo " "
done

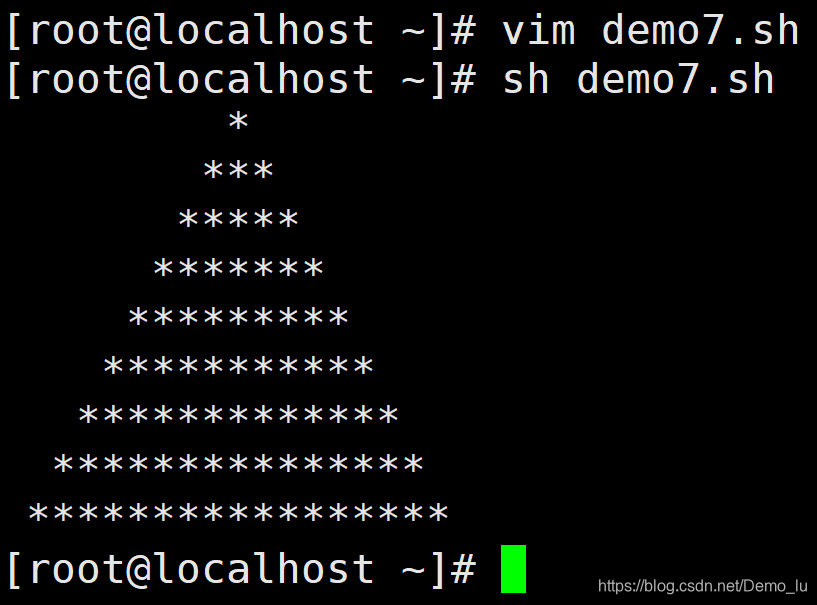

七、等腰直角三角形

1.算法计算$a*2-1

#!/bin/bash
for ((a=1;a<=9;a++))
do
    for((b=9;b>=$a;b--))
    do
    echo -n " "
    done
    for ((c=1;c<=$[$a*2-1];c++))
    do
    echo -n "*"
    done
    echo " "
done

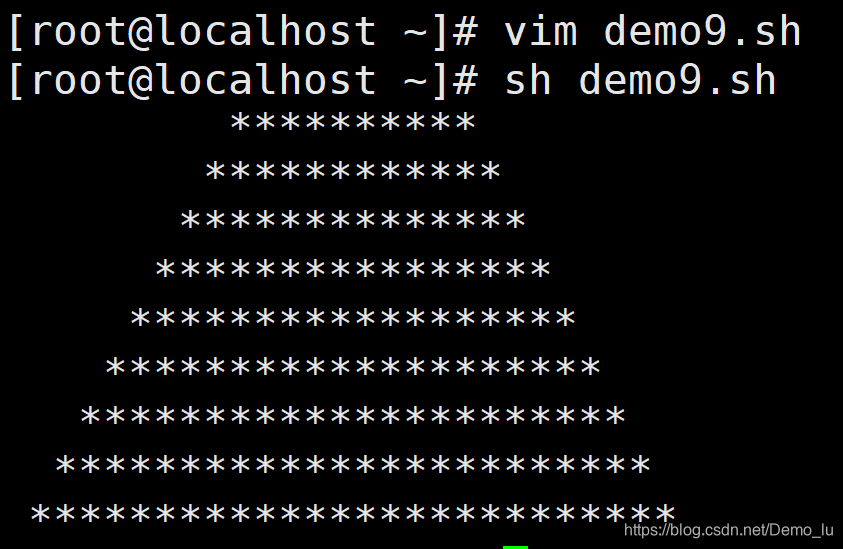

八、等腰梯形

#!/bin/bash
for ((a=1;a<=9;a++))
do
    for ((b=9;b>=$a;b--))
    do
    echo -n " "
    done
   for ((c=1;c<=9;c++))
   do
   echo -n "*"
   done
  for ((d=1;d<=$[$a*2-1];d++))
  do
  echo -n "*"
  done
   echo ""
done

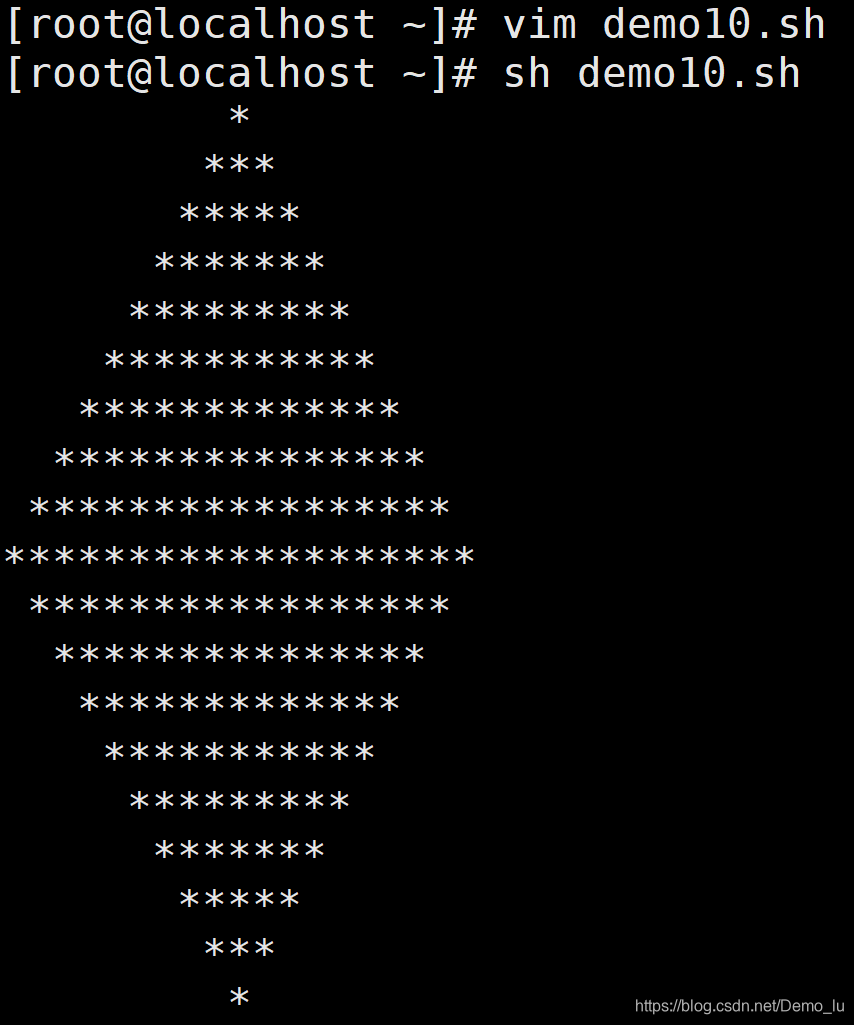

九、菱形

#!/bin/bash
for ((a=1;a<=9;a++))
do
  for ((b=9;b>=$a;b--))
  do
  echo -n " "
  done
 for ((c=1;c<=$[$a*2-1];c++))
 do
 echo -n "*"
 done
echo ""
done

for ((d=1;d<=10;d++))
do
  for ((e=2;e<=$d;e++))
  do
  echo -n " "
  done
 for ((f=10;f>=$d;f--))
 do
 echo -n "*"
 done
   for ((g=9;g>=$d;g--))
   do
   echo -n "*"
   done

 echo ""
done

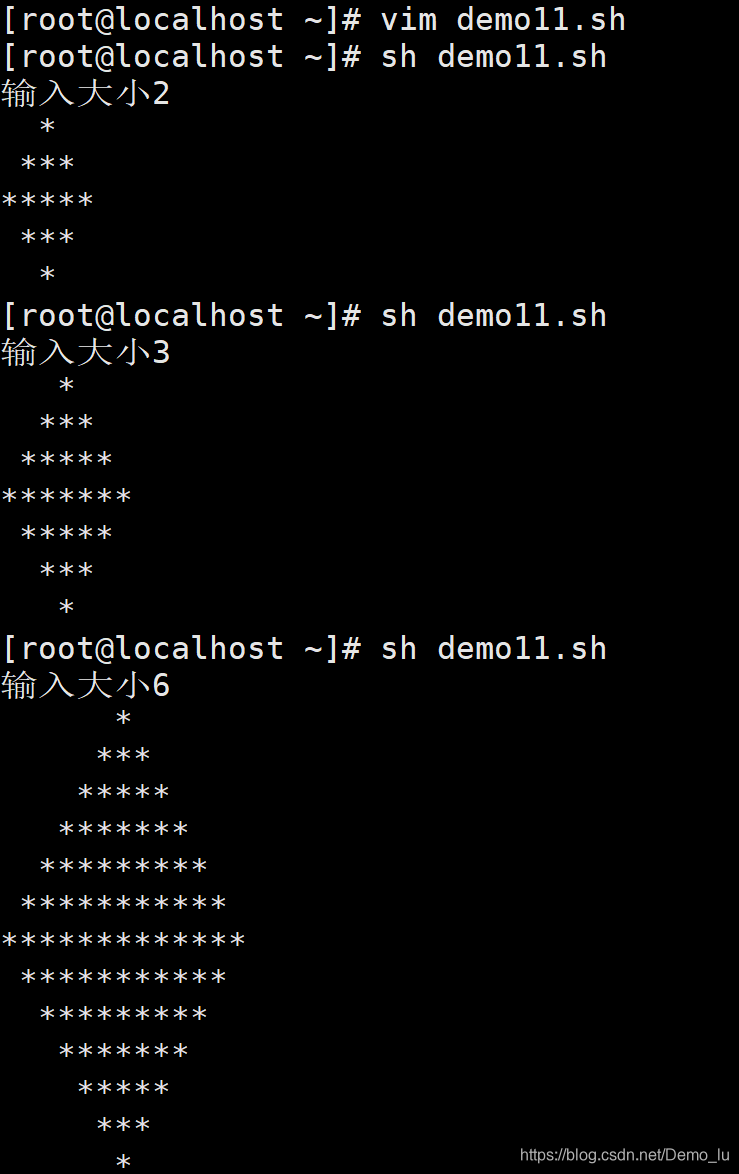

十、可调节大小菱形

#!/bin/bash
read -p "输入大小" i

for ((a=1;a<=$i;a++))
do
    for ((b=$i;b>=$a;b--))
    do
    echo -n " "
    done
  for ((c=1;c<=$[$a*2-1];c++))
  do
  echo -n "*"
  done
 echo ""
done

for ((d=1;d<=$i+1;d++))
do
   for ((e=1;e<=$d-1;e++))
   do
   echo -n " "
   done
  for ((f=2*$i+1;f>=$[$d*2-1];f--))
  do
  echo -n "*"
  done
 echo ""
done
