【VHDL语言学习笔记（八）】 序列信号检测器

目的：采用有限状态机设计序列检测器，实现串行序列11010的检测器。

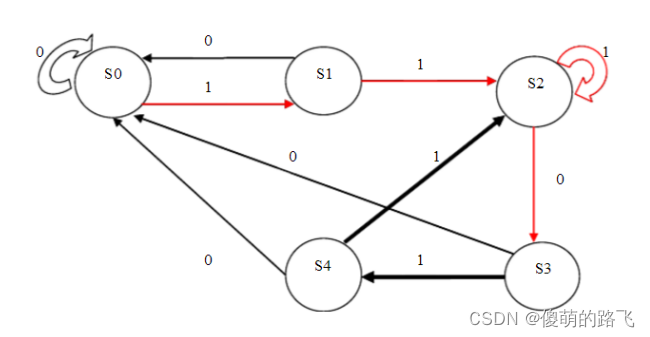

设计思想：使用有限状态机，定义五个状态即s0,s1,s2,s3,s4,实现序列11010的检测。在状态机中，每个状态的下一个状态都有两个转移方向，画出状态转移图，如下。

程序

library ieee;
use ieee.std_logic_1164.all;
use ieee.std_logic_unsigned.all;

entity state is
	port(
		clk,clr			:in std_logic;	--clk时钟脉冲，clr回到初始状态
		input			:in std_logic;	--input序列信号输入
		output			:out std_logic	--output序列检测输出
		);
end state;

architecture behave of state is
type state_type is(st0,st1,st2,st3,st4);	--定义状态位s0,s1,s2,s3,s4)
signal s	:std_logic_vector(4 downto 0);
signal q	:state_type;
signal flag	:integer range 0 to 1;	--标志位
begin
	s <= "11010";
	process(clk)
	begin
		if(clr = '1') then
			flag <= 0;
			q <= st0;
		elsif (clk'event and clk = '1') then
			case q is
				when st0 => if(input = s(4)) then q <= st1;flag <= 1;else q <= st0;flag <= 0;end if;
				when st1 => if(input = s(3)) then q <= st2;flag <= 1;else q <= st0;flag <= 0;end if;
				when st2 => if(input = s(2)) then q <= st3;flag <= 1;else q <= st2;flag <= 0;end if;
				when st3 => if(input = s(1)) then q <= st4;flag <= 1;else q <= st0;flag <= 0;end if;
				when st4 => if(input = s(0)) then q <= st0;flag <= 1;else q <= st2;flag <= 0;end if;
				when others => q <= st0;flag <= 0;
			end case;
		end if;

	end process;
	process(q,flag)
	begin
		if(q = st0 and flag = 1) then
			output <= '1';
		else
			output <= '0';
		end if;
	end process;
end behave;


波形仿真图
