吴恩达2021年版深度学习作业(编程作业)第一章Week3 assigment3

单层的二维数据分类器

在本周的编程任务中，你会构建你的第一个神经网络（带一个隐藏层）.你会了解到本神经网络与之前你实现的逻辑回归有巨大的不同.

本周的编程,你将会学习到:

a.利用一个隐藏层的神经网络实现二分类

b.使用费线性激活函数,例如tanh

c.计算交叉熵损失

d.实现向前传播以及向后传播

# Planar data classification with one hidden layer

Welcome to your week 3 programming assignment. It's time to build your first neural network, which will have a hidden layer. You will see a big difference between this model and the one you implemented using logistic regression.

**You will learn how to:**
- Implement a 2-class classification neural network with a single hidden layer
- Use units with a non-linear activation function, such as tanh
- Compute the cross entropy loss
- Implement forward and backward propagation

1. 导入包

首先导入编程任务中需要用到的函数包

1. numpy Python中进行科学计算必备的函数包

1. sklearn 为数据挖掘以及数据分析提供简单有效的工具

1. matplotlib Python中的画图工具

1. testCases 提供测试样例来验证你函数的准确性

1. planar_utils 提供本任务中需要用到的一些函数

## 1 - Packages ##

Let's first import all the packages that you will need during this assignment.
- [numpy](www.numpy.org) is the fundamental package for scientific computing with Python.
- [sklearn](http://scikit-learn.org/stable/) provides simple and efficient tools for data mining and data analysis.
- [matplotlib](http://matplotlib.org) is a library for plotting graphs in Python.
- testCases provides some test examples to assess the correctness of your functions
- planar_utils provide various useful functions used in this assignment

# Package imports
import numpy as np
import matplotlib.pyplot as plt
from testCases import *
import sklearn
import sklearn.datasets
import sklearn.linear_model
from planar_utils import plot_decision_boundary, sigmoid, load_planar_dataset, load_extra_datasets

%matplotlib inline

np.random.seed(1) # set a seed so that the results are consistent

1. 数据集

首先加载数据集,下面的代码会将flower这一二分类数据加载到X和Y中

## 2 - Dataset ##

First, let's get the dataset you will work on. The following code will load a "flower" 2-class dataset into variables `X` and `Y`.

X, Y = load_planar_dataset()

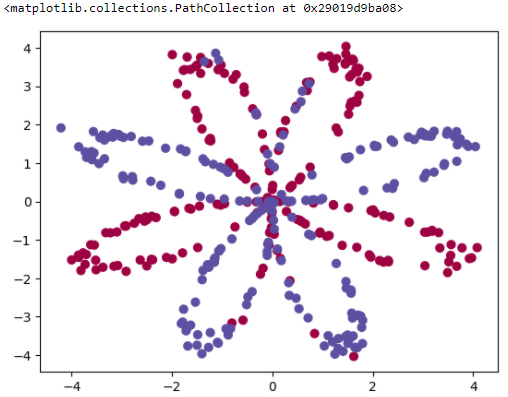

利用matplotlib来进行数据的可视化,flower这一数据集分布像一朵由红色(y=0)\蓝(y=1)的点构成的花.你的目标就是构建模型来拟合这一数据

Visualize the dataset using matplotlib. The data looks like a "flower" with some red (label y=0) and some blue (y=1) points. Your goal is to build a model to fit this data.

# Visualize the data:
plt.scatter(X[0, :], X[1, :], c=Y[0, :], s=40, cmap=plt.cm.Spectral);

现在你拥有:

• 一个包含特征的(x1,x2)numpy数组(矩阵)X

• 一个包含labels(red:0, blue:1)的numpy数组(向量)Y

现在最好先看下你的数据情况是怎么样的

练习:你有多少的训练样本?你的变量X和Y的维度是怎样的?

提示:你怎样获得一个numpy数组的维度?

You have:
    - a numpy-array (matrix) X that contains your features (x1, x2)
    - a numpy-array (vector) Y that contains your labels (red:0, blue:1).

Lets first get a better sense of what our data is like.

**Exercise**: How many training examples do you have? In addition, what is the `shape` of the variables `X` and `Y`?

**Hint**: How do you get the shape of a numpy array? [(help)](https://docs.scipy.org/doc/numpy/reference/generated/numpy.ndarray.shape.html)

#Exercise: How many training examples do you have? In addition, what is the shape of the variables X and Y ?
shape_X = X.shape
shape_Y = Y.shape
m = X.shape[1]

print ('The shape of X is: ' + str(shape_X))
print ('The shape of Y is: ' + str(shape_Y))
print ('I have m = %d training examples!' % (m))
"""
**Expected Output**:
The shape of X is: (2, 400)
The shape of Y is: (1, 400)
I have m = 400 training examples!
"""

1. 简单逻辑回归

构建一个完整的神经网络之前,首先我们先看下逻辑及回归在这个问题上的表现是怎样的.你可以使用sklearn的内置函数去完成它,先训练一个逻辑回归分类器.

## 3 - Simple Logistic Regression

Before building a full neural network, lets first see how logistic regression performs on this problem. You can use sklearn's built-in functions to do that. Run the code below to train a logistic regression classifier on the dataset.

# Train the logistic regression classifier
clf = sklearn.linear_model.LogisticRegressionCV();
clf.fit(X.T, Y[0, :].T);

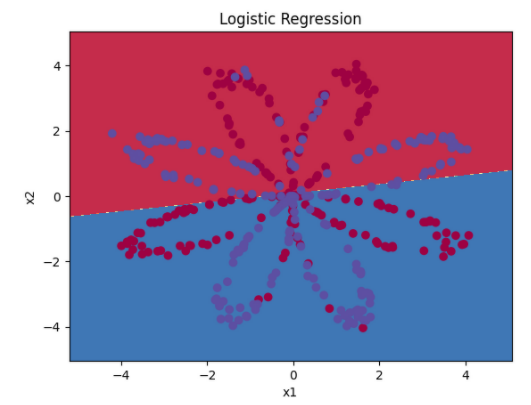

运行下方的代码,你可以画出这个模型的边界

You can now plot the decision boundary of these models. Run the code below.

# Plot the decision boundary for logistic regression
plot_decision_boundary(lambda x: clf.predict(x), X, Y[0, :])
plt.title("Logistic Regression")

# Print accuracy
LR_predictions = clf.predict(X.T)
print ('Accuracy of logistic regression: %d ' % float((np.dot(Y,LR_predictions) + np.dot(1-Y,1-LR_predictions))/float(Y.size)*100) +
       '% ' + "(percentage of correctly labelled datapoints)")

"""
**Expected Output**:
Accuracy of logistic regression: 47 % (percentage of correctly labelled datapoints)
"""

解释:这个数据集不是线性分布的,所以逻辑回归并没有好的表现,希望神经网络能做的更好,下面开始尝试神经网络

**Interpretation**: The dataset is not linearly separable, so logistic regression doesn't perform well. Hopefully a neural network will do better. Let's try this now!

1. 神经网络模型

逻辑回归并没有在在"flower dataset"上表现得很好,你现在要训练一个带单个隐藏层的神经网络来尝试一下.

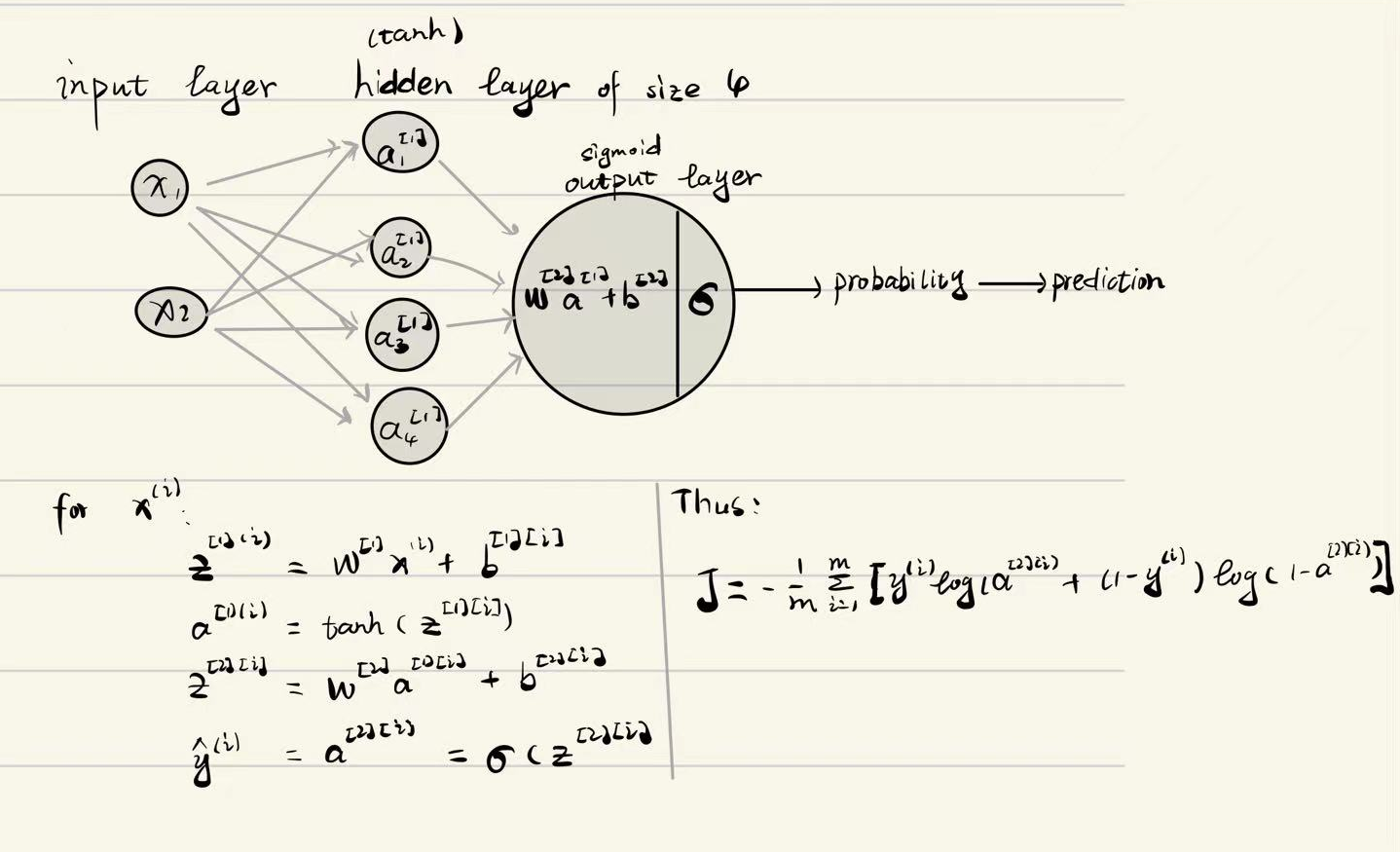

这是你的模型:

提醒:构建一个神经网络的常用步骤:

1. 定义网络结构(输入单元的数量,隐藏层的数量等等)

1. 初始化模型参数

1. 循环

1. 实现向前传播

1. 计算损失函数

1. 实现向后传播并获取梯度

1. 更新参数(梯度下降)

你会在函数包的帮助下去计算1~3步,并且在最后将它们都整合到一个nn_model()里面,一旦你构建好了nn_model()并且学习到了正确的参数,你就可以预测新的数据了

## 4 - Neural Network model

Logistic regression did not work well on the "flower dataset". You are going to train a Neural Network with a single hidden layer.

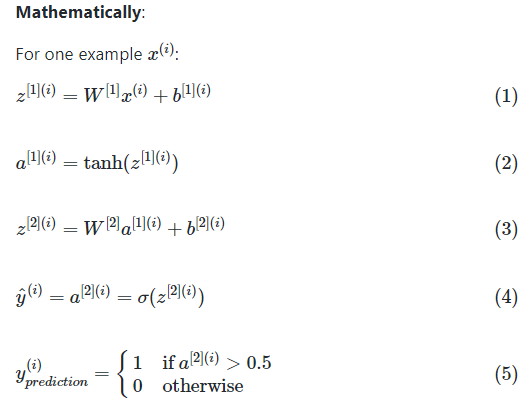

**Mathematically**:

For one example $x^{(i)}$:
$$z^{[1] (i)} =  W^{[1]} x^{(i)} + b^{[1] (i)}\tag{1}$$
$$a^{[1] (i)} = \tanh(z^{[1] (i)})\tag{2}$$
$$z^{[2] (i)} = W^{[2]} a^{[1] (i)} + b^{[2] (i)}\tag{3}$$
$$\hat{y}^{(i)} = a^{[2] (i)} = \sigma(z^{ [2] (i)})\tag{4}$$
$$y^{(i)}_{prediction} = \begin{cases} 1 & \mbox{if } a^{[2](i)} > 0.5 \\ 0 & \mbox{otherwise } \end{cases}\tag{5}$$

Given the predictions on all the examples, you can also compute the cost $J$ as follows:
$$J = - \frac{1}{m} \sum\limits_{i = 0}^{m} \large\left(\small y^{(i)}\log\left(a^{[2] (i)}\right) + (1-y^{(i)})\log\left(1- a^{[2] (i)}\right)  \large  \right) \small \tag{6}$$

**Reminder**: The general methodology to build a Neural Network is to:
    1. Define the neural network structure ( # of input units,  # of hidden units, etc).
    2. Initialize the model's parameters
    3. Loop:
        - Implement forward propagation
        - Compute loss
        - Implement backward propagation to get the gradients
        - Update parameters (gradient descent)

You often build helper functions to compute steps 1-3 and then merge them into one function we call `nn_model()`. Once you've built `nn_model()` and learnt the right parameters, you can make predictions on new data.

4.1确定神经网络架构

练习:定义三个变量:

1. n_x输入层的维度

1. n_h愿意仓层的维度(把这个设置为4)

1. n_y输出层的维度

提示:使用shape操作来找到n_x/n_y的维度,并且将隐藏层的维度硬性设置为4

### 4.1 - Defining the neural network structure ####

**Exercise**: Define three variables:
    - n_x: the size of the input layer
    - n_h: the size of the hidden layer (set this to 4)
    - n_y: the size of the output layer

**Hint**: Use shapes of X and Y to find n_x and n_y. Also, hard code the hidden layer size to be 4.

# GRADED FUNCTION: layer_sizes

def layer_sizes(X, Y):
    """
    Arguments:
    X -- input dataset of shape (input size, number of examples)
    Y -- labels of shape (output size, number of examples)

    Returns:
    n_x -- the size of the input layer
    n_h -- the size of the hidden layer
    n_y -- the size of the output layer
    """
    ### START CODE HERE ### (≈ 3 lines of code)
    n_x = X.shape[0]
    n_y = Y.shape[0]
    n_h = 4



    ### END CODE HERE ###
    return (n_x, n_h, n_y)

X_assess, Y_assess = layer_sizes_test_case()
(n_x, n_h, n_y) = layer_sizes(X_assess, Y_assess)
print("The size of the input layer is: n_x = " + str(n_x))
print("The size of the hidden layer is: n_h = " + str(n_h))
print("The size of the output layer is: n_y = " + str(n_y))

"""
**Expected Output**
The size of the input layer is: n_x = 5
The size of the hidden layer is: n_h = 4
The size of the output layer is: n_y = 2
"""

4.2初始化模型参数

练习:实现initialize_parameters()函数

说明:

1. 确定你的参数维度大小是正确的,如果有需要,请参考上面的神经网络图

1. 使用随机的数值来初始化权重矩阵:

1. 使用np.random.randn(a,b) * 0.01来随机的初始化一个维度为(a,b)的矩阵

1. 使用0来初始化偏置值

1. 使用np.zeros((a,b))来将一个维度为(a,b)的矩阵初始化为全0数值的矩阵

### 4.2 - Initialize the model's parameters ####

**Exercise**: Implement the function `initialize_parameters()`.

**Instructions**:
- Make sure your parameters' sizes are right. Refer to the neural network figure above if needed.
- You will initialize the weights matrices with random values.
    - Use: `np.random.randn(a,b) * 0.01` to randomly initialize a matrix of shape (a,b).
- You will initialize the bias vectors as zeros.
    - Use: `np.zeros((a,b))` to initialize a matrix of shape (a,b) with zeros.

# GRADED FUNCTION: initialize_parameters

def initialize_parameters(n_x, n_h, n_y):
    """
    Argument:
    n_x -- size of the input layer
    n_h -- size of the hidden layer
    n_y -- size of the output layer

    Returns:
    params -- python dictionary containing your parameters:
                    W1 -- weight matrix of shape (n_h, n_x)
                    b1 -- bias vector of shape (n_h, 1)
                    W2 -- weight matrix of shape (n_y, n_h)
                    b2 -- bias vector of shape (n_y, 1)
    """

    np.random.seed(2) # we set up a seed so that your output matches ours although the initialization is random.

    ### START CODE HERE ### (≈ 4 lines of code)
    W1 = np.random.randn(n_h,n_x) * 0.01
    b1 = np.zeros(shape = (n_h ,1))
    W2 = np.random.randn(n_y,n_h) * 0.01
    b2 = np.zeros(shape = (n_y, 1))


    ### END CODE HERE ###

    assert (W1.shape == (n_h, n_x))
    assert (b1.shape == (n_h, 1))
    assert (W2.shape == (n_y, n_h))
    assert (b2.shape == (n_y, 1))

    parameters = {"W1": W1,
                  "b1": b1,
                  "W2": W2,
                  "b2": b2}

    return parameters

n_x, n_h, n_y = initialize_parameters_test_case()

parameters = initialize_parameters(n_x, n_h, n_y)
print("W1 = " + str(parameters["W1"]))
print("b1 = " + str(parameters["b1"]))
print("W2 = " + str(parameters["W2"]))
print("b2 = " + str(parameters["b2"]))

"""
**Expected Output**:
W1 = [[-0.00416758 -0.00056267]
 [-0.02136196  0.01640271]
 [-0.01793436 -0.00841747]
 [ 0.00502881 -0.01245288]]
b1 = [[0.]
 [0.]
 [0.]
 [0.]]
W2 = [[-0.01057952 -0.00909008  0.00551454  0.02292208]]
b2 = [[0.]]
"""

4.3循环

问题：应用forward_propagation()

说明：

1. 使用上面的数学公式来实现你的分类器

1. 你可以使用已经导入的函数sigmoid()

1. 你可以使用numpy中自带的函数np.tanh()

1. 你必须实现的步骤包括:

1. 从"parameters"字典中提取出每一个你需要的参数(使用initialize_parameters()的返回值进行操作)

1. 实现向前传播.计算Z1,A1,Z2和A2(所有在训练集中样本的预测值)

1. 向后传播的参数需要存储到cache里面,cache是向后传播时的输入

### 4.3 - The Loop ####

**Question**: Implement `forward_propagation()`.

**Instructions**:
- Look above at the mathematical representation of your classifier.
- You can use the function `sigmoid()`. It is built-in (imported) in the notebook.
- You can use the function `np.tanh()`. It is part of the numpy library.
- The steps you have to implement are:
    1. Retrieve each parameter from the dictionary "parameters" (which is the output of `initialize_parameters()`) by using `parameters[".."]`.
    2. Implement Forward Propagation. Compute $Z^{[1]}, A^{[1]}, Z^{[2]}$ and $A^{[2]}$ (the vector of all your predictions on all the examples in the training set).
- Values needed in the backpropagation are stored in "`cache`". The `cache` will be given as an input to the backpropagation function.

# GRADED FUNCTION: forward_propagation

def forward_propagation(X, parameters):
    """
    Argument:
    X -- input data of size (n_x, m)
    parameters -- python dictionary containing your parameters (output of initialization function)

    Returns:
    A2 -- The sigmoid output of the second activation
    cache -- a dictionary containing "Z1", "A1", "Z2" and "A2"
    """
    # Retrieve each parameter from the dictionary "parameters"
    ### START CODE HERE ### (≈ 4 lines of code)
    W1,b1,W2,b2 = parameters["W1"],\
                  parameters["b1"],\
                  parameters["W2"],\
                  parameters["b2"]

    ### END CODE HERE ###

    # Implement Forward Propagation to calculate A2 (probabilities)
    ### START CODE HERE ### (≈ 4 lines of code)
    Z1 = np.dot(W1,X) + b1
    A1 = np.tanh(Z1)
    Z2 = np.dot(W2,A1) + b2
    A2 = sigmoid(Z2)


    ### END CODE HERE ###

    assert(A2.shape == (1, X.shape[1]))

    cache = {"Z1": Z1,
             "A1": A1,
             "Z2": Z2,
             "A2": A2}

    return A2, cache

X_assess, parameters = forward_propagation_test_case()

A2, cache = forward_propagation(X_assess, parameters)

# Note: we use the mean here just to make sure that your output matches ours.
print(np.mean(cache['Z1']) ,np.mean(cache['A1']),np.mean(cache['Z2']),np.mean(cache['A2']))
print(A2.shape)
print(X_assess.shape)

"""
**Expected Output**:
-0.0004997557777419913 -0.0004969633532317802 0.0004381874509591466 0.500109546852431
(1, 3)
(2, 3)

"""

现在你已经计算出A2了,现在你可以开始利用下面的公式计算损失函数了:

练习:实现compute_cost()来计算损失函数J的值

说明:有很多实现交叉熵损失函数的办法,为了帮助你,我们提供下面这些我们会用到的方法:

为了实现:

logprobs = np.multiply(np.log(A2),Y)
cost = - np.sum(logprobs)      # no need to use a for loop!

Now that you have computed $A^{[2]}$ (in the Python variable "`A2`"), which contains $a^{[2](i)}$ for every example, you can compute the cost function as follows:

$$J = - \frac{1}{m} \sum\limits_{i = 0}^{m} \large{(} \small y^{(i)}\log\left(a^{[2] (i)}\right) + (1-y^{(i)})\log\left(1- a^{[2] (i)}\right) \large{)} \small\tag{13}$$

**Exercise**: Implement `compute_cost()` to compute the value of the cost $J$.

**Instructions**:
- There are many ways to implement the cross-entropy loss. To help you, we give you how we would have implemented
$- \sum\limits_{i=0}^{m}  y^{(i)}\log(a^{[2](i)})$:
```python
logprobs = np.multiply(np.log(A2),Y)
cost = - np.sum(logprobs)                # no need to use a for loop!
```

(you can use either `np.multiply()` and then `np.sum()` or directly `np.dot()`).

# GRADED FUNCTION: compute_cost

def compute_cost(A2, Y, parameters):
    """
    Computes the cross-entropy cost given in equation (13)

    Arguments:
    A2 -- The sigmoid output of the second activation, of shape (1, number of examples)
    Y -- "true" labels vector of shape (1, number of examples)
    parameters -- python dictionary containing your parameters W1, b1, W2 and b2

    Returns:
    cost -- cross-entropy cost given equation (13)
    """

    m = Y.shape[1] # number of example

    # Compute the cross-entropy cost
    ### START CODE HERE ### (≈ 2 lines of code)
    logprobs = np.multiply(np.log(A2),Y) + np.multiply(np.log(1 -A2),(1 - Y))
    cost = - np.sum(logprobs) / m # no need to use a for loop!
    ### END CODE HERE ###

    cost = np.squeeze(cost)     # makes sure cost is the dimension we expect.
                                # E.g., turns [[17]] into 17
    assert(isinstance(cost, float))

    return cost

A2, Y_assess, parameters = compute_cost_test_case()

print("cost = " + str(compute_cost(A2, Y_assess, parameters)))

"""
**Expected Output**:
cost = 0.6929198937761266
"""

在向前传播的过程中会计算出cache,以便你实现向后传播

问题:实现backward_propagation()函数

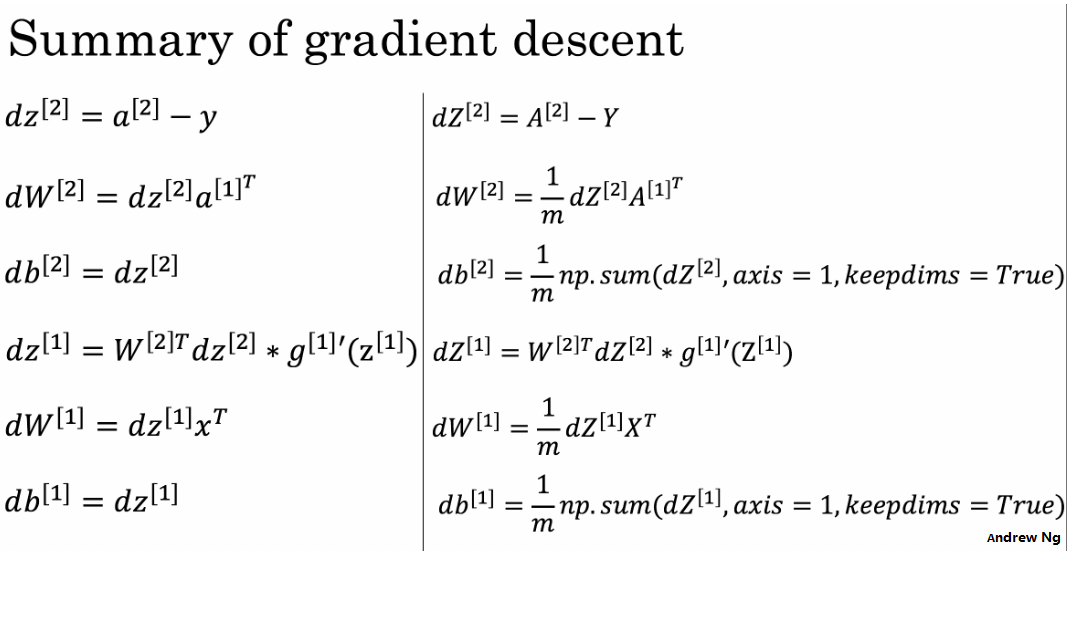

说明:向后传播是深度学习中最难的部分(最多数学公式的部分),巍峨帮助你,这里再次给出一些向后传播的课件图片。你回使用幻灯片右边的6个等式来实现你的向后传播过程，因为你正在实现的是一个向量化的操作。

提示:

为了计算dZ1,你需要计算,因为时tanh激活函数,如果a=,那么 ,所以你可以使用(1 - np.power(A1, 2))计算.

Using the cache computed during forward propagation, you can now implement backward propagation.

**Question**: Implement the function `backward_propagation()`.

**Instructions**:
Backpropagation is usually the hardest (most mathematical) part in deep learning. To help you, here again is the slide from the lecture on backpropagation. You'll want to use the six equations on the right of this slide, since you are building a vectorized implementation.



<!--
$\frac{\partial \mathcal{J} }{ \partial z_{2}^{(i)} } = \frac{1}{m} (a^{[2](i)} - y^{(i)})$

$\frac{\partial \mathcal{J} }{ \partial W_2 } = \frac{\partial \mathcal{J} }{ \partial z_{2}^{(i)} } a^{[1] (i) T} $

$\frac{\partial \mathcal{J} }{ \partial b_2 } = \sum_i{\frac{\partial \mathcal{J} }{ \partial z_{2}^{(i)}}}$

$\frac{\partial \mathcal{J} }{ \partial z_{1}^{(i)} } =  W_2^T \frac{\partial \mathcal{J} }{ \partial z_{2}^{(i)} } * ( 1 - a^{[1] (i) 2}) $

$\frac{\partial \mathcal{J} }{ \partial W_1 } = \frac{\partial \mathcal{J} }{ \partial z_{1}^{(i)} }  X^T $

$\frac{\partial \mathcal{J} _i }{ \partial b_1 } = \sum_i{\frac{\partial \mathcal{J} }{ \partial z_{1}^{(i)}}}$

- Note that $*$ denotes elementwise multiplication.
- The notation you will use is common in deep learning coding:
    - dW1 = $\frac{\partial \mathcal{J} }{ \partial W_1 }$
    - db1 = $\frac{\partial \mathcal{J} }{ \partial b_1 }$
    - dW2 = $\frac{\partial \mathcal{J} }{ \partial W_2 }$
    - db2 = $\frac{\partial \mathcal{J} }{ \partial b_2 }$

!-->

- Tips:
    - To compute dZ1 you'll need to compute $g^{[1]'}(Z^{[1]})$. Since $g^{[1]}(.)$ is the tanh activation function, if $a = g^{[1]}(z)$ then $g^{[1]'}(z) = 1-a^2$. So you can compute
    $g^{[1]'}(Z^{[1]})$ using `(1 - np.power(A1, 2))`.

# GRADED FUNCTION: backward_propagation

def backward_propagation(parameters, cache, X, Y):
    """
    Implement the backward propagation using the instructions above.

    Arguments:
    parameters -- python dictionary containing our parameters
    cache -- a dictionary containing "Z1", "A1", "Z2" and "A2".
    X -- input data of shape (2, number of examples)
    Y -- "true" labels vector of shape (1, number of examples)

    Returns:
    grads -- python dictionary containing your gradients with respect to different parameters
    """
    m = X.shape[1]

    # First, retrieve W1 and W2 from the dictionary "parameters".
    ### START CODE HERE ### (≈ 2 lines of code)
    W1,W2 = parameters["W1"],\
            parameters["W2"]

    ### END CODE HERE ###

    # Retrieve also A1 and A2 from dictionary "cache".
    ### START CODE HERE ### (≈ 2 lines of code)
    A1,A2 = cache["A1"],\
            cache["A2"]

    ### END CODE HERE ###

    # Backward propagation: calculate dW1, db1, dW2, db2.
    ### START CODE HERE ### (≈ 6 lines of code, corresponding to 6 equations on slide above)
    dZ2 = A2 -Y
    dW2 = np.dot(dZ2, A1.T) / m
    db2 =  np.sum(dZ2,axis= 1 ,keepdims= True) / m

    dZ1 = np.multiply(np.dot(W2.T,dZ2), 1 - np.power(A1,2))
    dW1 = (np.dot(dZ1,X.T)) /m
    db1 =  np.sum(dZ1,axis=1,keepdims=True) / m

    ### END CODE HERE ###

    grads = {"dW1": dW1,
             "db1": db1,
             "dW2": dW2,
             "db2": db2}

    return grads

parameters, cache, X_assess, Y_assess = backward_propagation_test_case()

grads = backward_propagation(parameters, cache, X_assess, Y_assess)
print ("dW1 = "+ str(grads["dW1"]))
print ("db1 = "+ str(grads["db1"]))
print ("dW2 = "+ str(grads["dW2"]))
print ("db2 = "+ str(grads["db2"]))

"""
**Expected output**:
dW1 = [[ 0.01018708 -0.00708701]
 [ 0.00873447 -0.0060768 ]
 [-0.00530847  0.00369379]
 [-0.02206365  0.01535126]]
db1 = [[-0.00069728]
 [-0.00060606]
 [ 0.000364  ]
 [ 0.00151207]]
dW2 = [[ 0.00363613  0.03153604  0.01162914 -0.01318316]]
db2 = [[0.06589489]]
"""

问题:实现更新规则.使用梯度下降.为了更新(W1, b1, W2, b2),你必须使用 (dW1, db1, dW2, db2)

常用的梯度下降规则: α是学习率,θ是参数

**Question**: Implement the update rule. Use gradient descent. You have to use (dW1, db1, dW2, db2) in order to update (W1, b1, W2, b2).

**General gradient descent rule**: $ \theta = \theta - \alpha \frac{\partial J }{ \partial \theta }$ where $\alpha$ is the learning rate and $\theta$ represents a parameter.

**Illustration**: The gradient descent algorithm with a good learning rate (converging) and a bad learning rate (diverging). Images courtesy of Adam Harley.

# GRADED FUNCTION: update_parameters

def update_parameters(parameters, grads, learning_rate = 1.2):
    """
    Updates parameters using the gradient descent update rule given above

    Arguments:
    parameters -- python dictionary containing your parameters
    grads -- python dictionary containing your gradients

    Returns:
    parameters -- python dictionary containing your updated parameters
    """
    # Retrieve each parameter from the dictionary "parameters"
    ### START CODE HERE ### (≈ 4 lines of code)
    W1,b1,W2,b2 = parameters["W1"],\
                  parameters["b1"],\
                  parameters["W2"],\
                  parameters["b2"]

    ### END CODE HERE ###

    # Retrieve each gradient from the dictionary "grads"
    ### START CODE HERE ### (≈ 4 lines of code)





    ## END CODE HERE ###

    # Update rule for each parameter
    ### START CODE HERE ### (≈ 4 lines of code)
    dW1,dW2,db1,db2 = grads["dW1"],\
                      grads["dW2"],\
                      grads["db1"],\
                      grads["db2"]

    W1,b1,W2,b2 = W1 -  learning_rate *dW1,\
                  b1 -  learning_rate *db1,\
                  W2 -  learning_rate *dW2,\
                  b2 -  learning_rate *db2,\

    ### END CODE HERE ###

    parameters = {"W1": W1,
                  "b1": b1,
                  "W2": W2,
                  "b2": b2}

    return parameters

"""
**Expected Output**:
W1 = [[-0.00643025  0.01936718]
 [-0.02410458  0.03978052]
 [-0.01653973 -0.02096177]
 [ 0.01046864 -0.05990141]]
b1 = [[-1.02420756e-06]
 [ 1.27373948e-05]
 [ 8.32996807e-07]
 [-3.20136836e-06]]
W2 = [[-0.01041081 -0.04463285  0.01758031  0.04747113]]
b2 = [[0.00010457]]
"""

4.4整合4.1~4.3到一个nn_model内

问题:在nn_model()中构建你的神经网络模型

说明:神经网络模型必须正确使用到之前定义的的函数

### 4.4 - Integrate parts 4.1, 4.2 and 4.3 in nn_model() ####

**Question**: Build your neural network model in `nn_model()`.

**Instructions**: The neural network model has to use the previous functions in the right order.

# GRADED FUNCTION: nn_model

def nn_model(X, Y, n_h, num_iterations = 10000, print_cost=False):
    """
    Arguments:
    X -- dataset of shape (2, number of examples)
    Y -- labels of shape (1, number of examples)
    n_h -- size of the hidden layer
    num_iterations -- Number of iterations in gradient descent loop
    print_cost -- if True, print the cost every 1000 iterations

    Returns:
    parameters -- parameters learnt by the model. They can then be used to predict.
    """

    np.random.seed(3)
    n_x = layer_sizes(X, Y)[0]
    n_y = layer_sizes(X, Y)[2]

    # Initialize parameters, then retrieve W1, b1, W2, b2. Inputs: "n_x, n_h, n_y". Outputs = "W1, b1, W2, b2, parameters".
    ### START CODE HERE ### (≈ 5 lines of code)
    parameters = initialize_parameters(n_x, n_h, n_y)

    ### END CODE HERE ###

    # Loop (gradient descent)

    for i in range(0, num_iterations):

        ### START CODE HERE ### (≈ 4 lines of code)
        # Forward propagation. Inputs: "X, parameters". Outputs: "A2, cache".
        A2, cache = forward_propagation(X,parameters)


        # Cost function. Inputs: "A2, Y, parameters". Outputs: "cost".
        cost = compute_cost(A2,Y,parameters)


        # Backpropagation. Inputs: "parameters, cache, X, Y". Outputs: "grads".
        grads = backward_propagation(parameters,cache,X,Y)


        # Gradient descent parameter update. Inputs: "parameters, grads". Outputs: "parameters".
        parameters = update_parameters(parameters,grads)


        ### END CODE HERE ###

        # Print the cost every 1000 iterations
        if print_cost and i % 1000 == 0:
            print ("Cost after iteration %i: %f" %(i, cost))

    return parameters

X_assess, Y_assess = nn_model_test_case()

parameters = nn_model(X_assess, Y_assess, 4, num_iterations=10000, print_cost=False)
print("W1 = " + str(parameters["W1"]))
print("b1 = " + str(parameters["b1"]))
print("W2 = " + str(parameters["W2"]))
print("b2 = " + str(parameters["b2"]))

"""
**Expected Output**:
W1 = [[-4.18493922  5.33220777]
 [-7.52989373  1.24306188]
 [-4.19296315  5.32631307]
 [ 7.52983613 -1.2430949 ]]
b1 = [[ 2.32926658]
 [ 3.79459021]
 [ 2.33002293]
 [-3.79469057]]
W2 = [[-6033.83672672 -6008.12980904 -6033.10095893  6008.06638751]]
b2 = [[-52.6660728]]
"""

4.5模型预测

问题:使用你的模型去实现predict()函数并进行预测

使用向前传播来预测结果

提醒:

### 4.5 Predictions

**Question**: Use your model to predict by building predict().
Use forward propagation to predict results.

**Reminder**: predictions = $y_{prediction} = \mathbb 1 \text{{activation > 0.5}} = \begin{cases}
      1 & \text{if}\ activation > 0.5 \\
      0 & \text{otherwise}
    \end{cases}$

As an example, if you would like to set the entries of a matrix X to 0 and 1 based on a threshold you would do: ```X_new = (X > threshold)```

# GRADED FUNCTION: predict

def predict(parameters, X):
    """
    Using the learned parameters, predicts a class for each example in X

    Arguments:
    parameters -- python dictionary containing your parameters
    X -- input data of size (n_x, m)

    Returns
    predictions -- vector of predictions of our model (red: 0 / blue: 1)
    """

    # Computes probabilities using forward propagation, and classifies to 0/1 using 0.5 as the threshold.
    ### START CODE HERE ### (≈ 2 lines of code)
    A2,cache = forward_propagation(X,parameters)
    predictions = np.round(A2)
    ### END CODE HERE ###

    return predictions


parameters, X_assess = predict_test_case()

predictions = predict(parameters, X_assess)
print("predictions mean = " + str(np.mean(predictions)))

"""
**Expected Output**:

predictions mean = 0.6666666666666666
"""

是时候将模型放到planar数据集上运行看下效果了.

It is time to run the model and see how it performs on a planar dataset. Run the following code to test your model with a single hidden layer of $n_h$ hidden units.

# GRADED FUNCTION: predict

def predict(parameters, X):
    """
    Using the learned parameters, predicts a class for each example in X

    Arguments:
    parameters -- python dictionary containing your parameters
    X -- input data of size (n_x, m)

    Returns
    predictions -- vector of predictions of our model (red: 0 / blue: 1)
    """

    # Computes probabilities using forward propagation, and classifies to 0/1 using 0.5 as the threshold.
    ### START CODE HERE ### (≈ 2 lines of code)
    A2,cache = forward_propagation(X,parameters)
    predictions = np.round(A2)
    ### END CODE HERE ###

    return predictions


parameters, X_assess = predict_test_case()

predictions = predict(parameters, X_assess)
print("predictions mean = " + str(np.mean(predictions)))

"""
**Expected Output**:

Cost after iteration 0: 0.693048
Cost after iteration 1000: 0.288083
Cost after iteration 2000: 0.254385
Cost after iteration 3000: 0.233864
Cost after iteration 4000: 0.226792
Cost after iteration 5000: 0.222644
Cost after iteration 6000: 0.219731
Cost after iteration 7000: 0.217504
Cost after iteration 8000: 0.219476
Cost after iteration 9000: 0.218563
Accuracy: 90%

"""

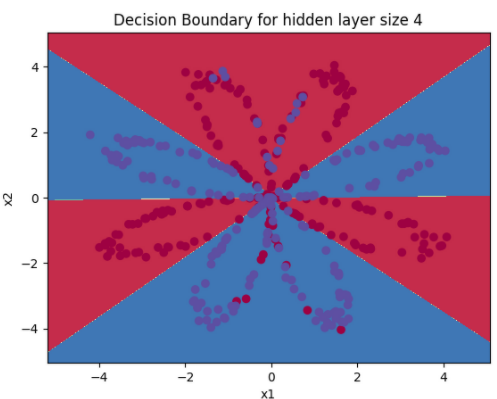

对比于逻辑回归,精度真的非常高.这个模型已经学会了这种话的叶子图案.与逻辑回归不同的是,神经网络能够学习到高度非线性的决策边界

Accuracy is really high compared to Logistic Regression. The model has learnt the leaf patterns of the flower! Neural networks are able to learn even highly non-linear decision boundaries, unlike logistic regression.

Now, let's try out several hidden layer sizes.

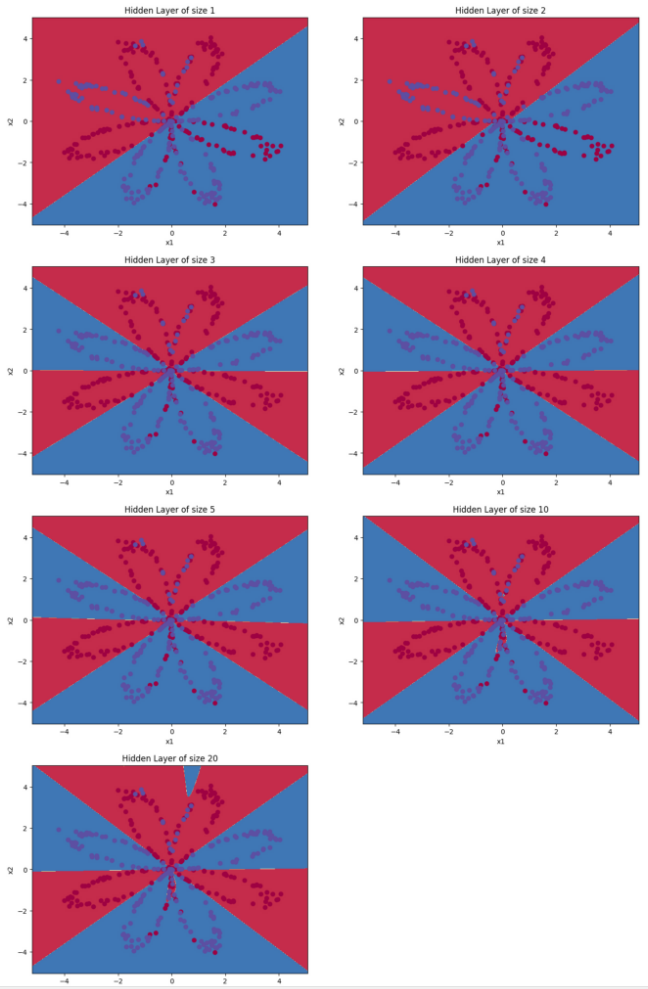

4.6调整隐藏层的大小

运行下面的代码,可能这回花费1~2分钟的时间.你会观察到随着隐藏层大小的变化,模型出现的不同表现

### 4.6 - Tuning hidden layer size (optional/ungraded exercise) ###

Run the following code. It may take 1-2 minutes. You will observe different behaviors of the model for various hidden layer sizes.

# This may take about 2 minutes to run

plt.figure(figsize=(16, 32))
hidden_layer_sizes = [1, 2, 3, 4, 5, 10, 20]
for i, n_h in enumerate(hidden_layer_sizes):
    plt.subplot(5, 2, i+1)
    plt.title('Hidden Layer of size %d' % n_h)
    parameters = nn_model(X, Y, n_h, num_iterations = 5000)
    plot_decision_boundary(lambda x: predict(parameters, x.T), X, Y[0, :])
    predictions = predict(parameters, X)
    accuracy = float((np.dot(Y,predictions.T) + np.dot(1-Y,1-predictions.T))/float(Y.size)*100)
    print ("Accuracy for {} hidden units: {} %".format(n_h, accuracy))

"""

Accuracy for 1 hidden units: 67.5 %
Accuracy for 2 hidden units: 67.25 %
Accuracy for 3 hidden units: 90.75 %
Accuracy for 4 hidden units: 90.5 %
Accuracy for 5 hidden units: 91.25 %
Accuracy for 10 hidden units: 90.25 %
Accuracy for 20 hidden units: 90.0 %
"""

解释:

1. 大的模型(更多的隐藏单元)能够更好地拟合训练集,直到最大的模型能够过拟合训练集地数据

1. 最好的隐藏层大小看起来似乎是n_h = 5.事实上,这里的值似乎能够很好的拟合数据,并且不会出现过拟合的现象

1. 将来你会学习到正则化的方法,用来让你的大模型(例如n_h = 50)不会出现太明显的过拟合现象

**Interpretation**:
- The larger models (with more hidden units) are able to fit the training set better, until eventually the largest models overfit the data.
- The best hidden layer size seems to be around n_h = 5. Indeed, a value around here seems to  fits the data well without also incurring noticable overfitting.
- You will also learn later about regularization, which lets you use very large models (such as n_h = 50) without much overfitting.

可选项:

**Optional questions**:

**Note**: Remember to submit the assignment but clicking the blue "Submit Assignment" button at the upper-right.

Some optional/ungraded questions that you can explore if you wish:
- What happens when you change the tanh activation for a sigmoid activation or a ReLU activation?
- Play with the learning_rate. What happens?
- What if we change the dataset? (See part 5 below!)

你已经学习到了:

1. 构建一个完整的单层神经网络

1. 使用了非线性的单元

1. 实现向前传播以及向后传播,并训练了一个神经网络模型

1. 观察到了隐藏层大小发生改变会出现的现象,包括过拟合

<font color='blue'>
**You've learnt to:**
- Build a complete neural network with a hidden layer
- Make a good use of a non-linear unit
- Implemented forward propagation and backpropagation, and trained a neural network
- See the impact of varying the hidden layer size, including overfitting.

1. 其他数据集的表现

如果你想,你可以重新运行整个notebook的代码(我不想)

If you want, you can rerun the whole notebook (minus the dataset part) for each of the following datasets.

# Datasets
noisy_circles, noisy_moons, blobs, gaussian_quantiles, no_structure = load_extra_datasets()

datasets = {"noisy_circles": noisy_circles,
            "noisy_moons": noisy_moons,
            "blobs": blobs,
            "gaussian_quantiles": gaussian_quantiles}

### START CODE HERE ### (choose your dataset)

### END CODE HERE ###

X, Y = datasets[dataset]
X, Y = X.T, Y.reshape(1, Y.shape[0])

# make blobs binary
if dataset == "blobs":
    Y = Y%2

# Visualize the data
plt.scatter(X[0, :], X[1, :], c=Y[0, :], s=40, cmap=plt.cm.Spectral);

我还是没跑,因为懒
