打造百万级日志洪峰！Logstash容器化部署如何扛住压力？

在云原生时代，Kubernetes与Docker的普及让容器化部署成为常态，但随之而来的日志管理却让运维团队头疼不已：

🔹 容器动态漂移，日志散落何处？

🔹 海量日志如何实时采集、过滤与检索？

🔹 传统日志工具为何在微服务架构下力不从心？

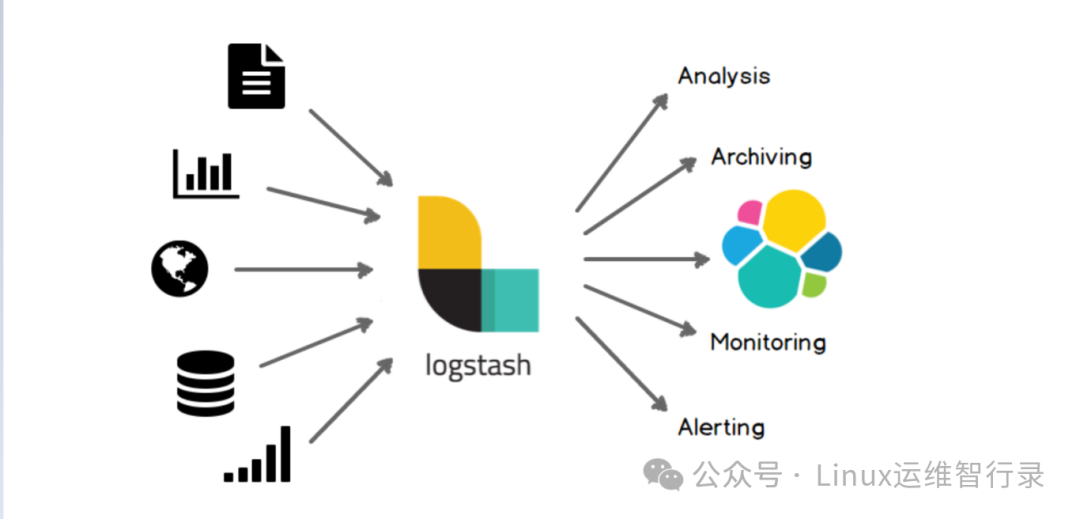

ELK Stack（Elasticsearch + Logstash + Kibana） 正是破解这一困局的黄金组合，而 Logstash 作为核心“管道工”，承担着日志清洗、转换与分发的重任。本文将手把手带你部署Logstash，构建高效的容器日志收集体系！

logstash

01

下载Logstash Chart包

1. 获取官方Chart

$ helm repo add elastic https://helm.elastic.co --force-update
"elastic" has been added to your repositories

$ helm pull elastic/logstash --version 7.13.3

1. 推送至私有仓库

$ helm push logstash-7.13.3.tgz oci://core.jiaxzeng.com/plugins
Pushed: core.jiaxzeng.com/plugins/logstash:7.13.3
Digest: sha256:e833b285f22b9fcdd4eb88943d440e4bcf064dab0139f246299322afca969298

02

配置Logstash部署文件

fullnameOverride: logstash
replicas:3

image:"core.jiaxzeng.com/library/logstash"

logstashJavaOpts:"-Xmx1g -Xms1g"
resources:
requests:
    cpu:"100m"
    memory:"1536Mi"
limits:
    cpu:"1000m"
    memory:"1536Mi"

volumeClaimTemplate:
accessModes:["ReadWriteOnce"]
resources:
    requests:
      storage:1Gi

httpPort:9600

logstashPipeline:
logstash.conf:|
    input {
      kafka {
        # bootstrap_servers => "xxx:9092,xxx:9092,xxx:9092"
        # topics  => ["k8s_logs"]
        # group_id => "test"

        # 安全协议为SSL
        # bootstrap_servers => "xxx:9093,xxx:9093,xxx:9093"
        # topics  => ["k8s_logs"]
        # group_id => "test"
        # security_protocol => "SSL"
        # ssl_truststore_location => "/usr/share/logstash/certs/kafka.server.truststore.p12"
        # ssl_truststore_password => "truststore_password"
        # ssl_truststore_type => "PKCS12"

        # SASL认证机制为SCRAM-SHA-512
        # bootstrap_servers => "xxx:9094,xxx:9094,xxx:9094"
        # topics  => ["k8s_logs"]
        # group_id => "test"
        # security_protocol => "SASL_PLAINTEXT"
        # sasl_mechanism => "SCRAM-SHA-512"
        # sasl_jaas_config => "org.apache.kafka.common.security.scram.ScramLoginModule required username='admin' password='admin-password';"

        # 安全协议为SASL_SSL
        bootstrap_servers=>"xxx:9095,xxx:9095,xxx:9095"
        topics=>["k8s_logs"]
        group_id=>"k8s_logs"
        security_protocol=>"SASL_SSL"
        sasl_mechanism=>"SCRAM-SHA-512"
        sasl_jaas_config=>"org.apache.kafka.common.security.scram.ScramLoginModule required username='admin' password='admin-password';"
        ssl_truststore_location=>"/usr/share/logstash/certs/kafka/kafka.server.truststore.p12"
        ssl_truststore_password=>"truststore_password"
        ssl_truststore_type=>"PKCS12"
      }
    }

    filter{
      json{source=>"message"}

      # 依赖上面的json filter
      mutate{
        remove_field=>["container","agent","log","input","ecs","host","@version","fields","@metadata"]
      }
    }

    output{
      elasticsearch{
        hosts=>["https://elasticsearch.obs-system.svc:9200"]
        # es帐密
        user=>"elastic"
        password=>"admin@123"
        # ssl配置
        ssl=>true
        ssl_certificate_verification=>true
        truststore=>"/usr/share/logstash/certs/es/http.p12"
        truststore_password=>"http.p12"
        # logstash使用es ilm功能
        ilm_enabled=>true
        ilm_rollover_alias=>"k8s-logs"
        ilm_pattern=>"{now/d}-000001"
        ilm_policy=>"jiaxzeng"
        # 关键配置：禁用自动模板创建，指定使用现有模板
        manage_template=>false
        template_name=>"k8s-logs"
      }
    }

# logstash监控不上报给es
extraEnvs:
-name:XPACK_MONITORING.ENABLED
value:"false"

secretMounts:
-name:kafka-ssl
secretName:kafka-ssl-secret
path:/usr/share/logstash/certs/kafka
-name:es-ssl
secretName:elastic-certificates
path: /usr/share/logstash/certs/es

Tip：注意ILM和index template需要提前创建好，如不清楚请查看上一篇文章。

03

部署Logstash

$ helm -n obs-system install logstash -f logstash-values.yaml logstash
NAME: logstash
LAST DEPLOYED: Tue Mar 25 16:38:16 2025
NAMESPACE: obs-system
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
1. Watch all cluster members come up.
  $ kubectl get pods --namespace=obs-system -l app=logstash -w

04

验证Logstash

1、验证Pod运行正常

$ kubectl -n obs-system get pod -l app=logstash
NAME         READY   STATUS    RESTARTS   AGE
logstash-0   1/1     Running   0          31m
logstash-1   1/1     Running   0          31m
logstash-2   1/1     Running   0          31m

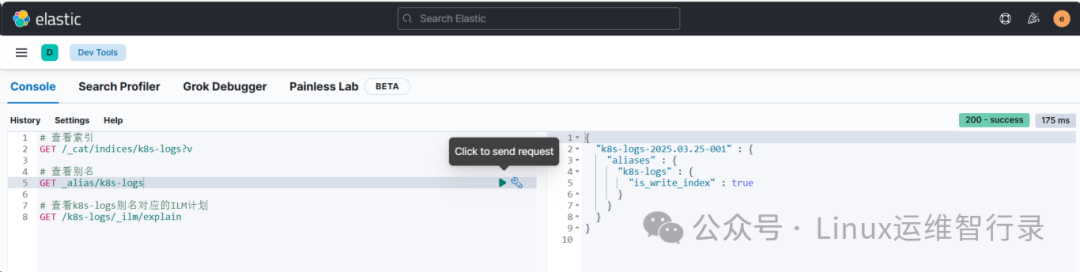

2、查看是否有生成index

05

结语

通过Logstash构建的日志中枢，容器日志不再是散落的碎片，而是可观测性体系的基石：

👉 实时监控：结合Kibana仪表盘快速定位故障

👉 成本优化：自动归档冷数据至对象存储

👉 智能告警：基于日志级别触发企业微信/钉钉通知
